Maxbell 40xMPR121 Breakout V12 Capacitive Touch Sensor Controller Module I2C keyboard
2
sold in last
8
hours
In stock
Rs. 5,178.00
Rs. 2,589.00
customers are viewing this product
Description:

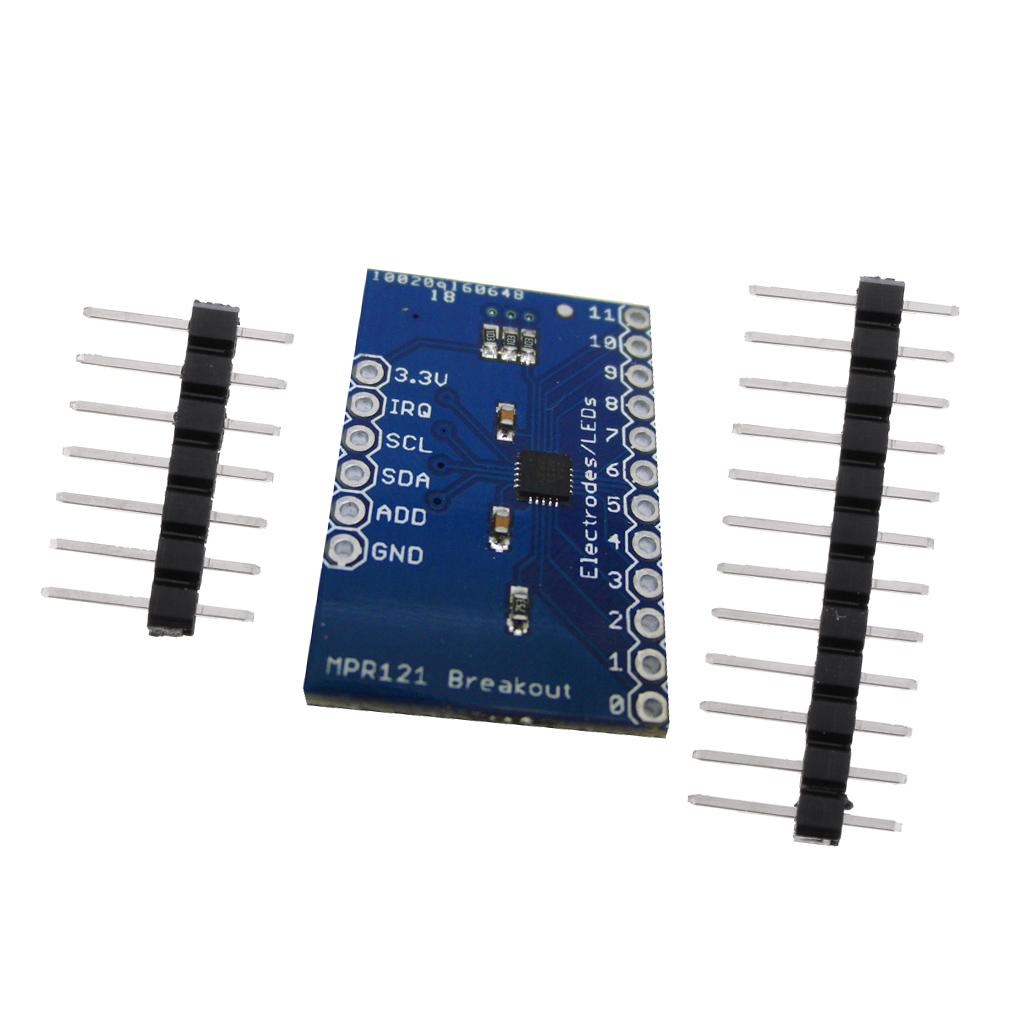

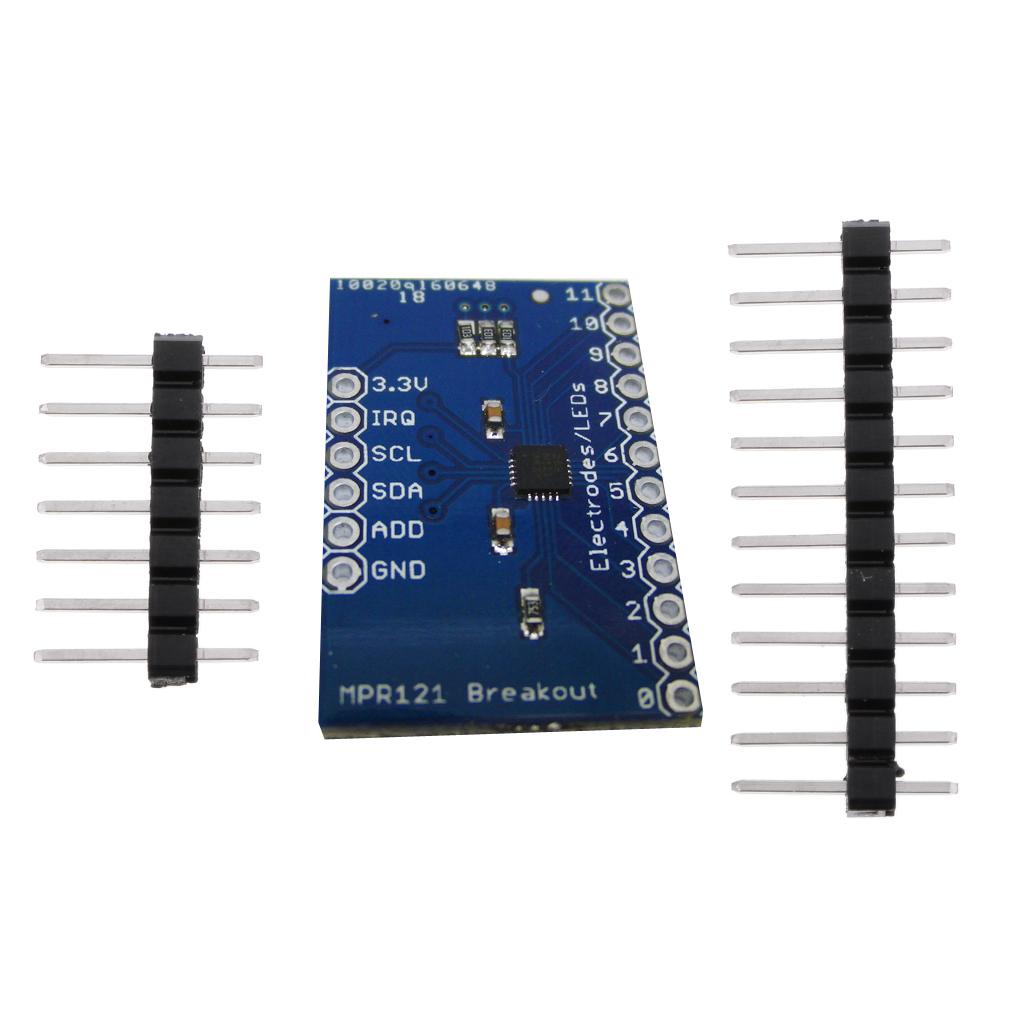

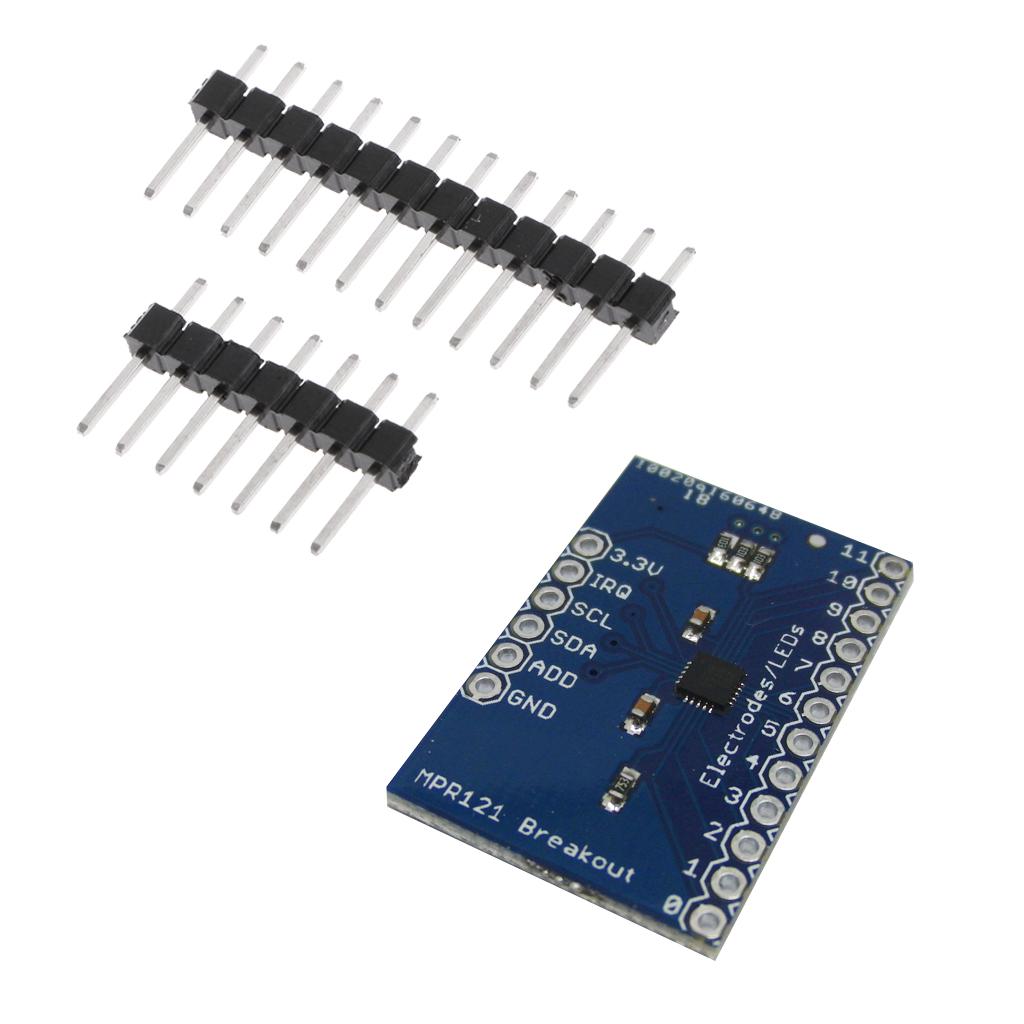

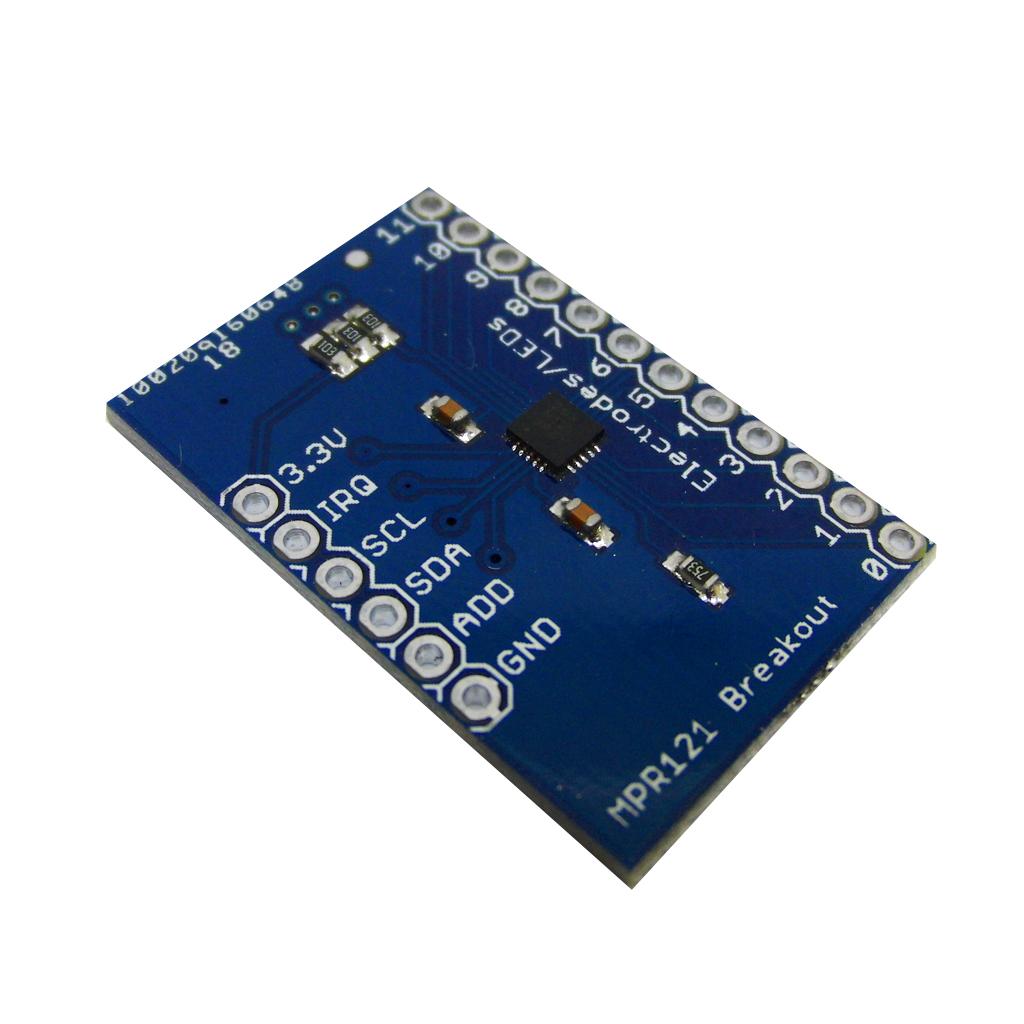

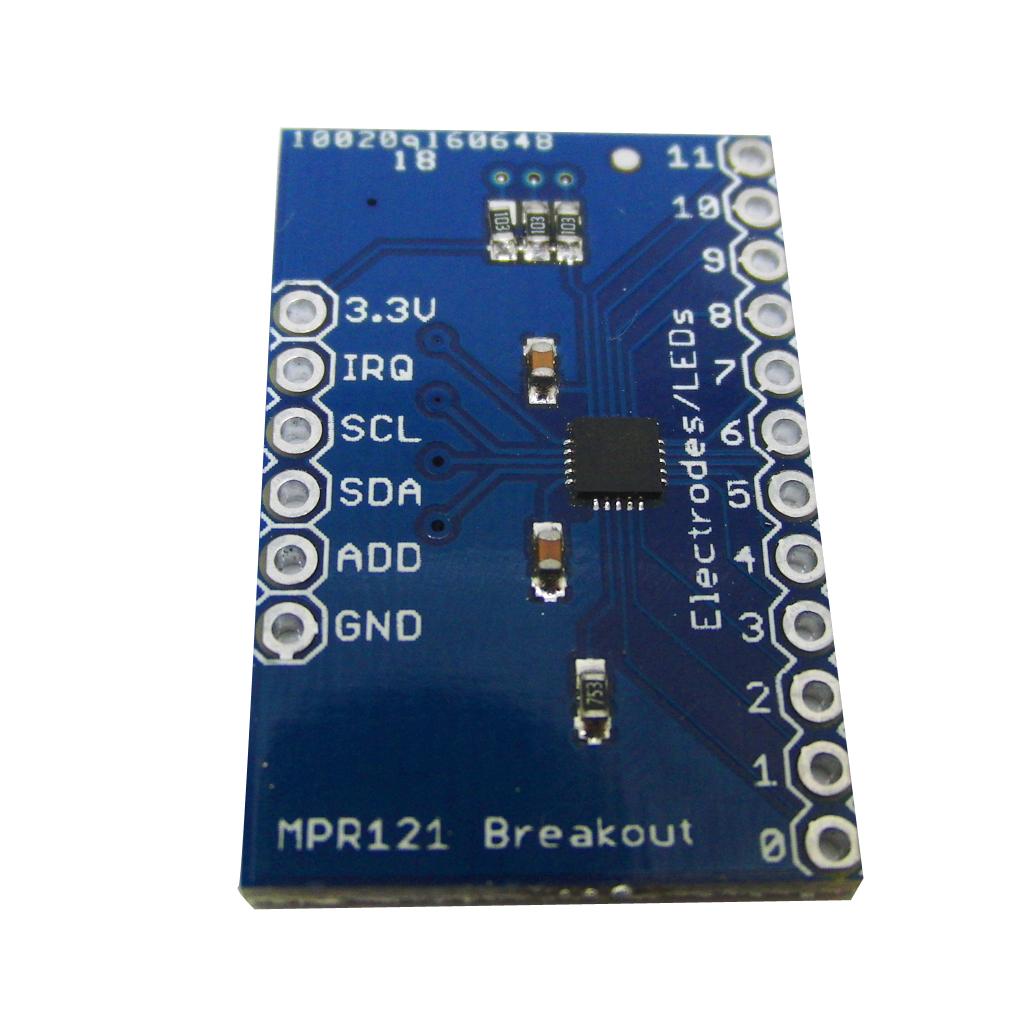

- This is a breakout board for 's MPR121QR2. The MPR121 is a capacitive touch sensor controller driven by an I2C interface
- The chip can control up to twelve individual s, as well as a simulated thirteenth
- The MPR121 also features eight LED driving pins. When these pins are not configured as s, they may be used to drive LEDs

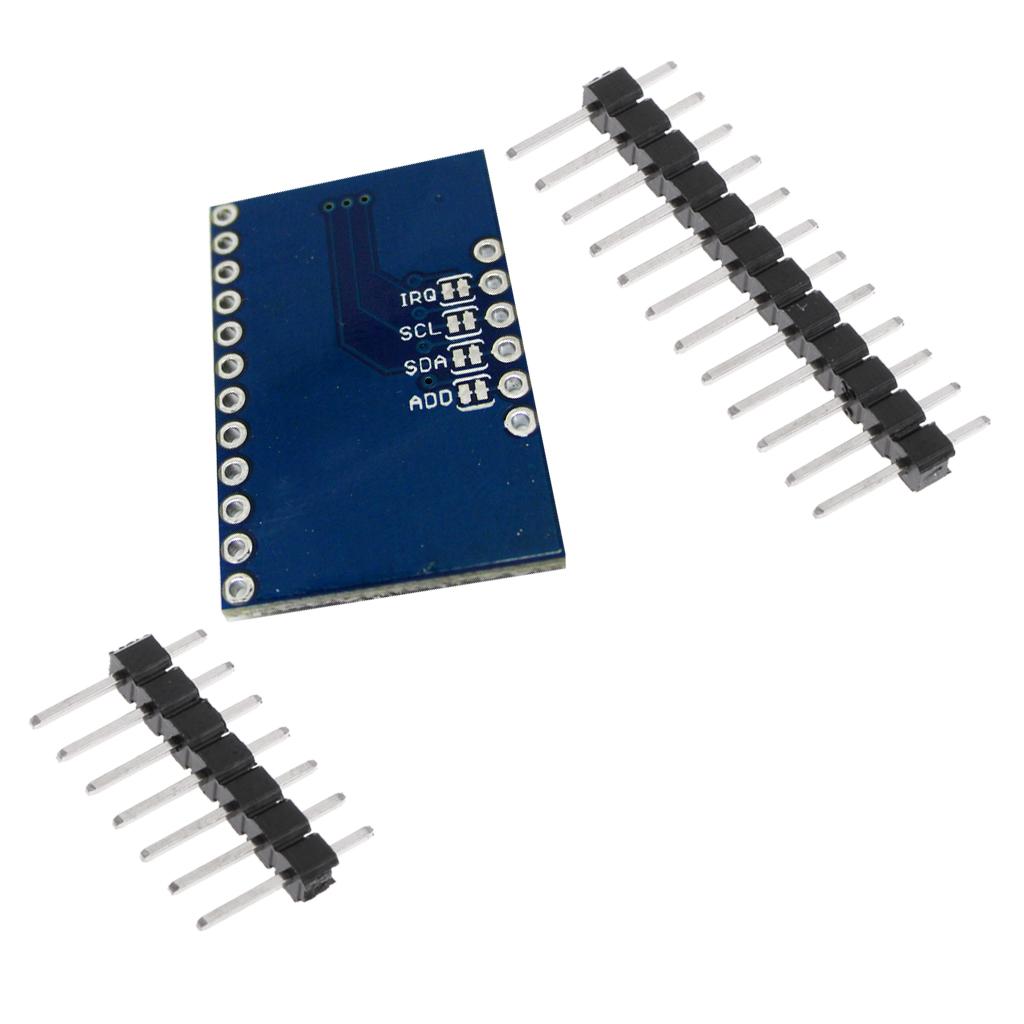

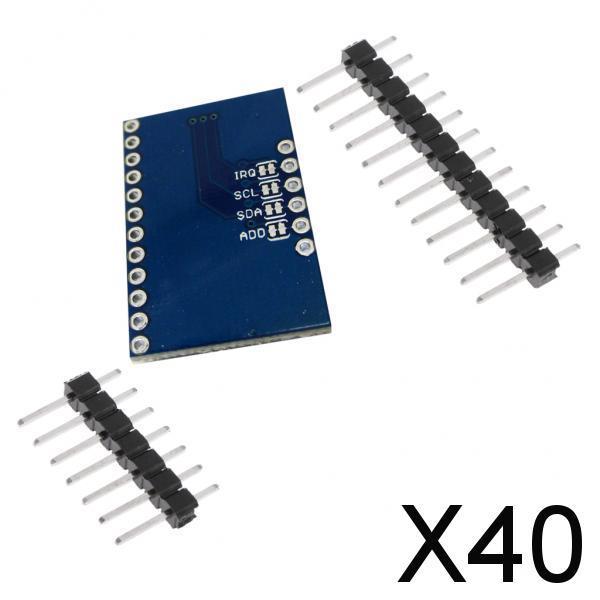

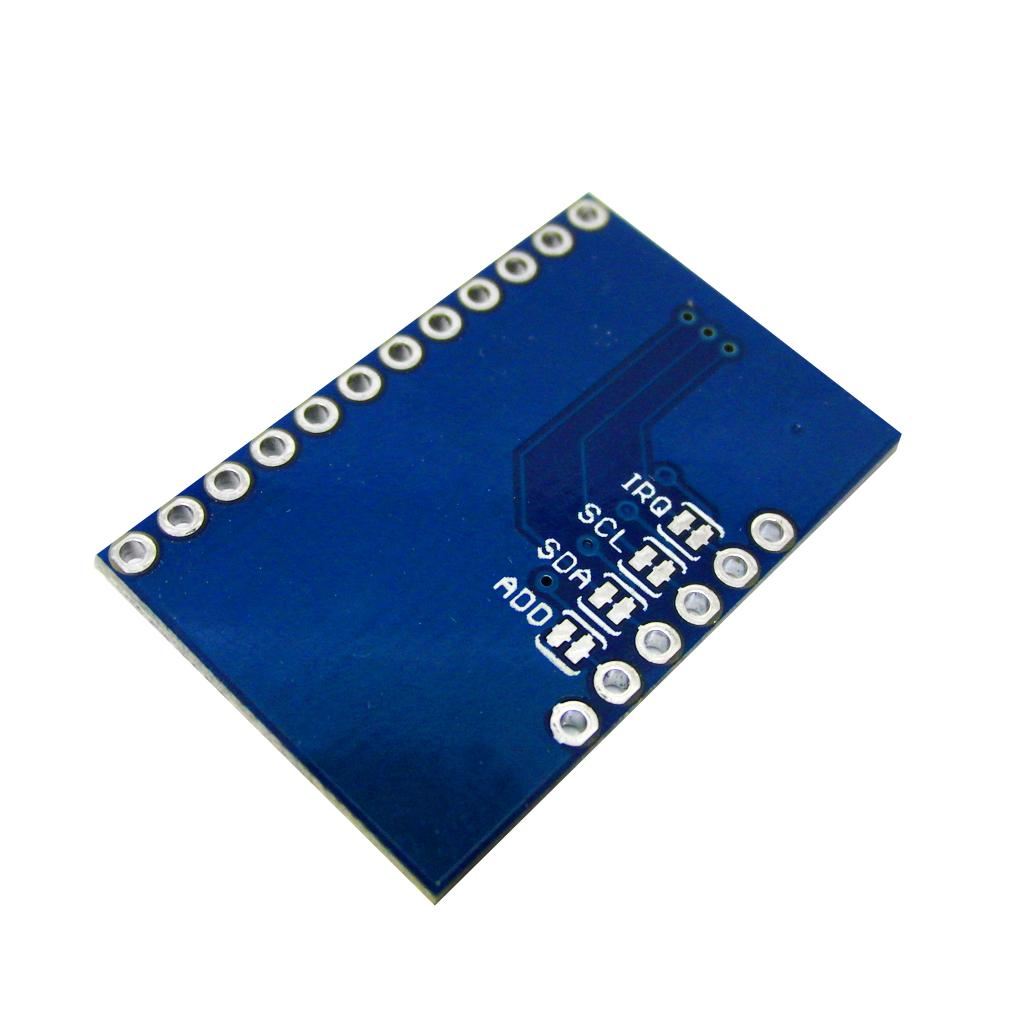

- There are four jumpers on the bottom of the board, all of which are set (closed) by default
- An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper firs
- Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by cutting the trace connecting them
- There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC
- The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-supply voltage mode (1.71-2.75VDC)
- Material: Plastic
- Size: approx.30mm*20mm*3mm
- Color: Red
