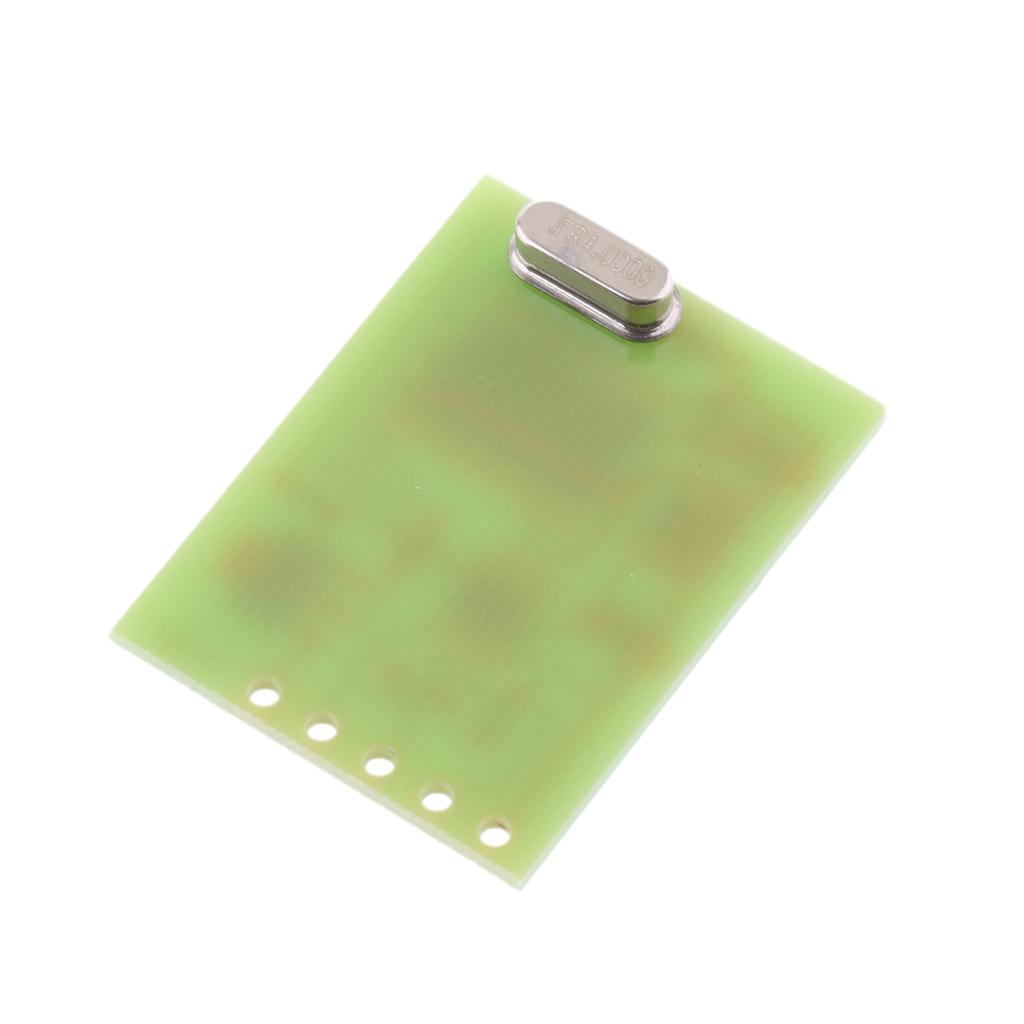

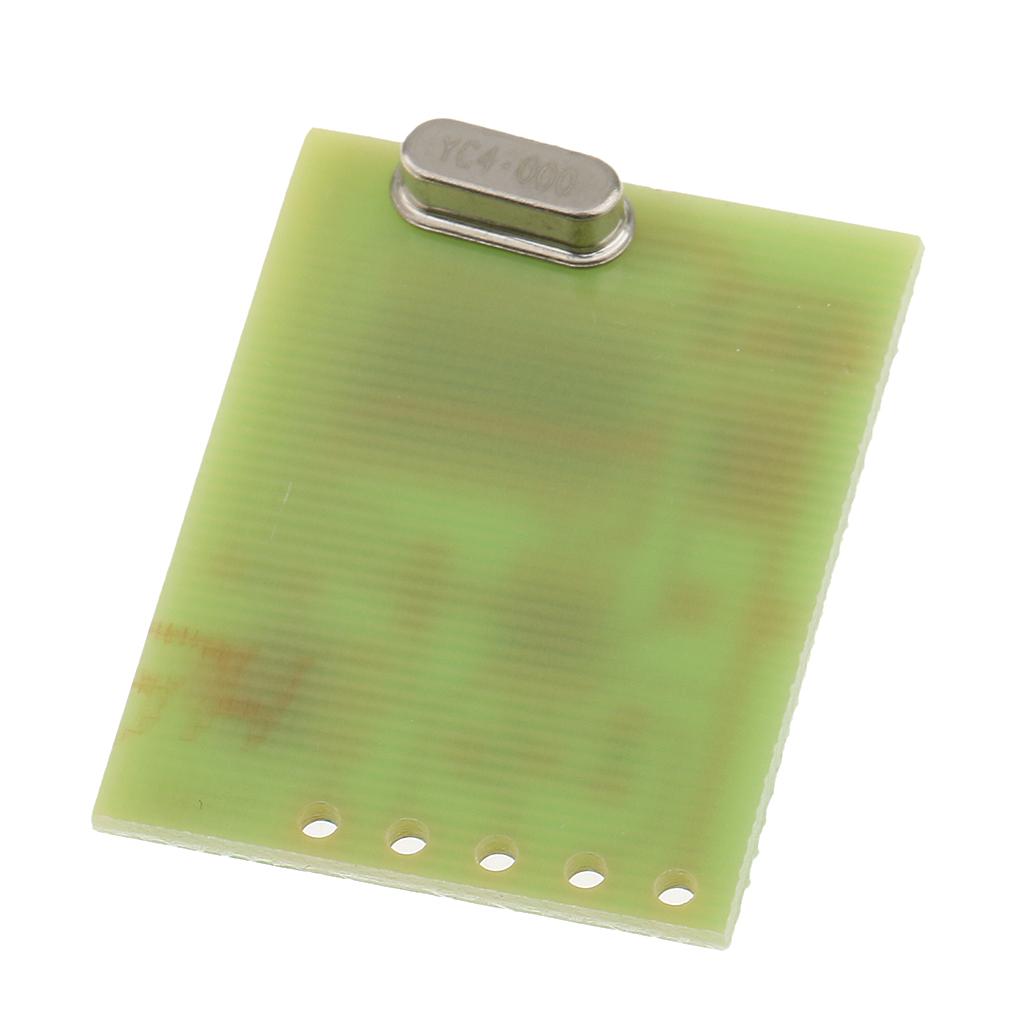

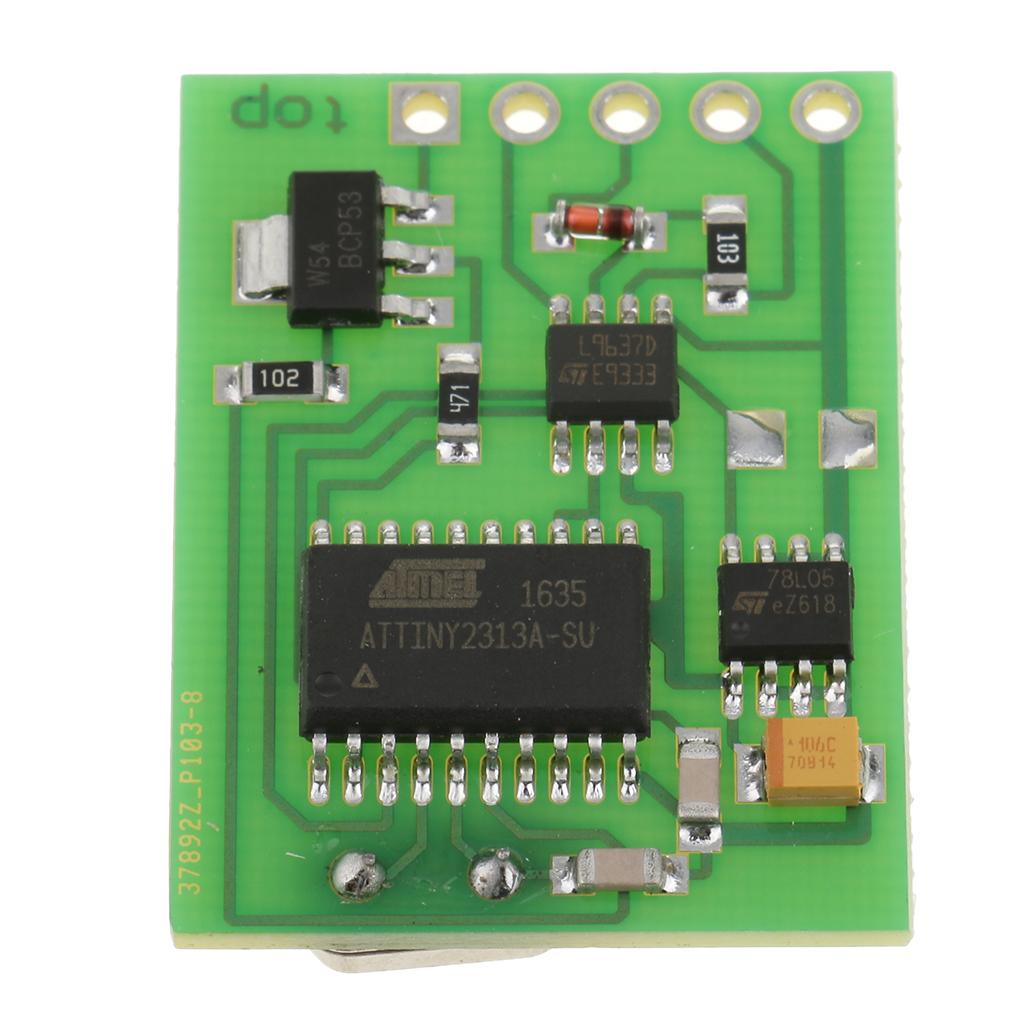

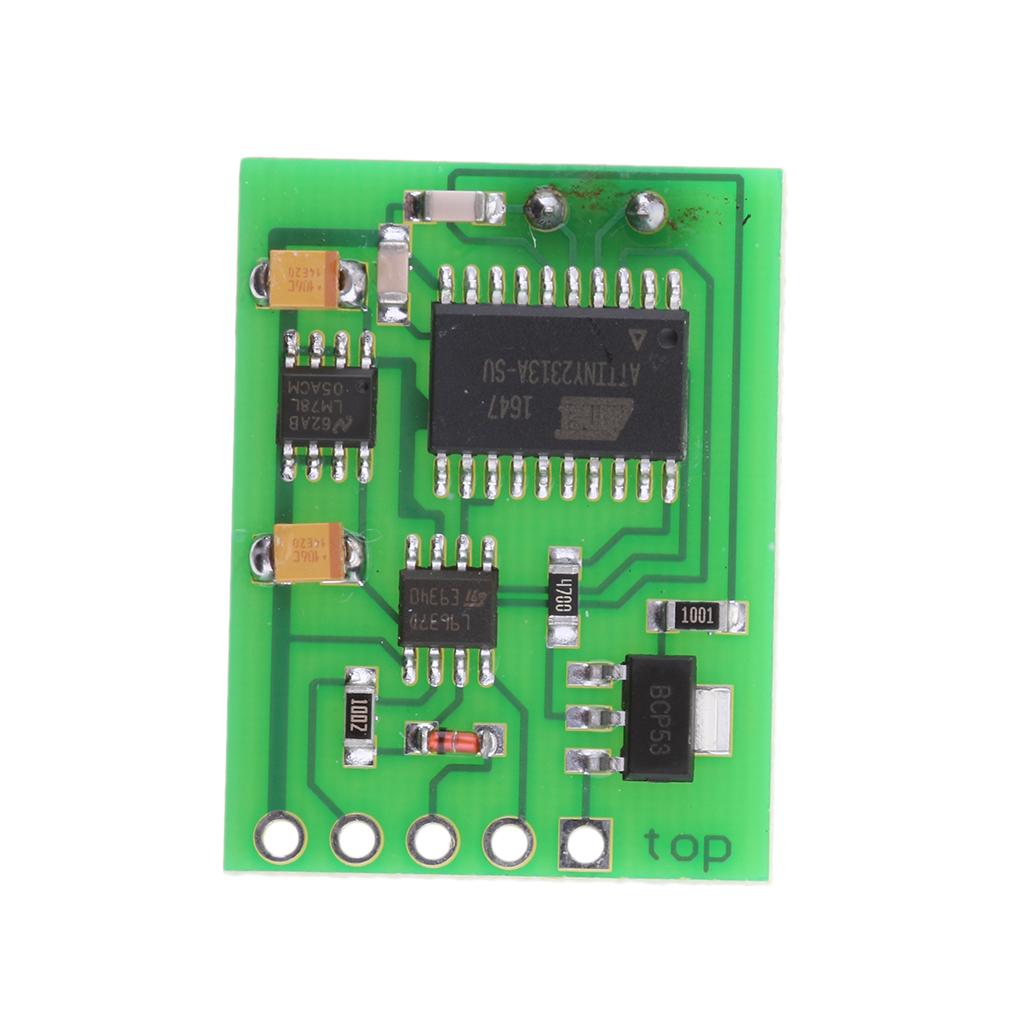

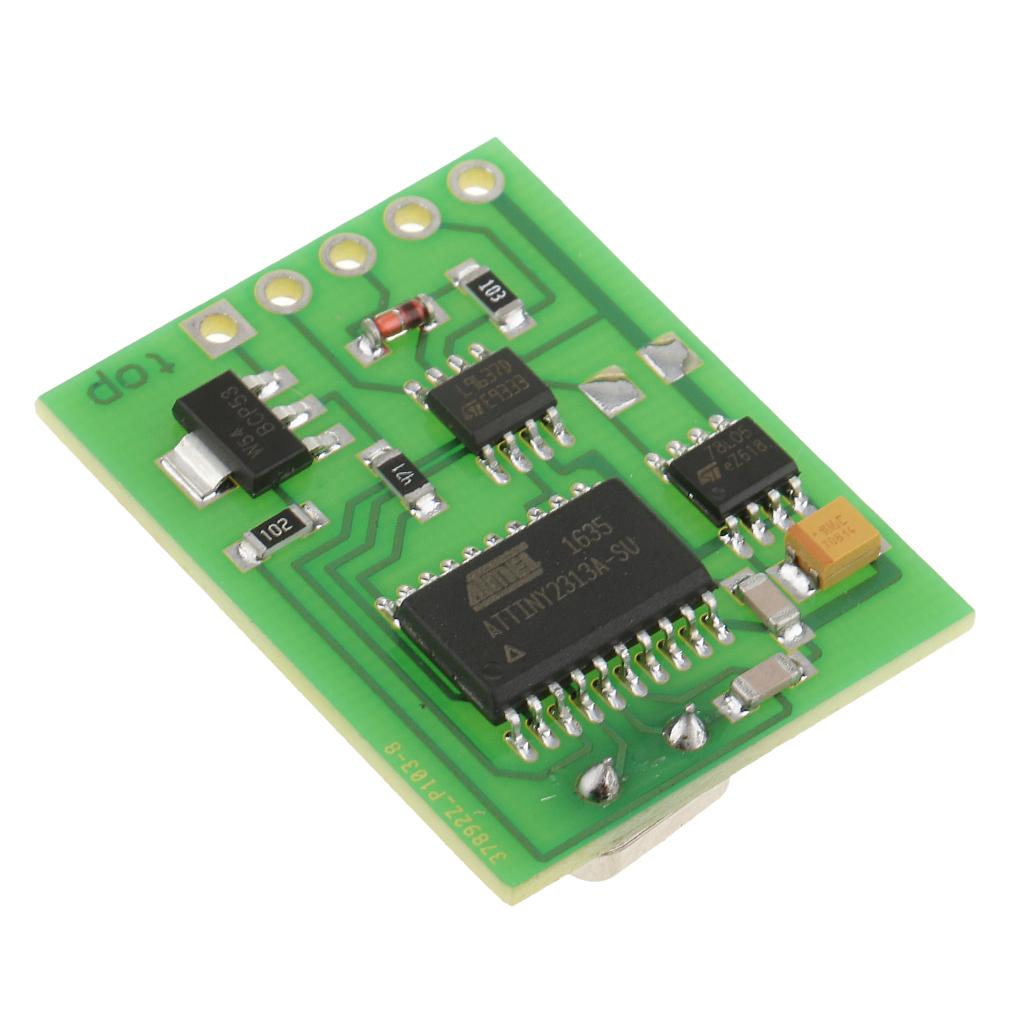

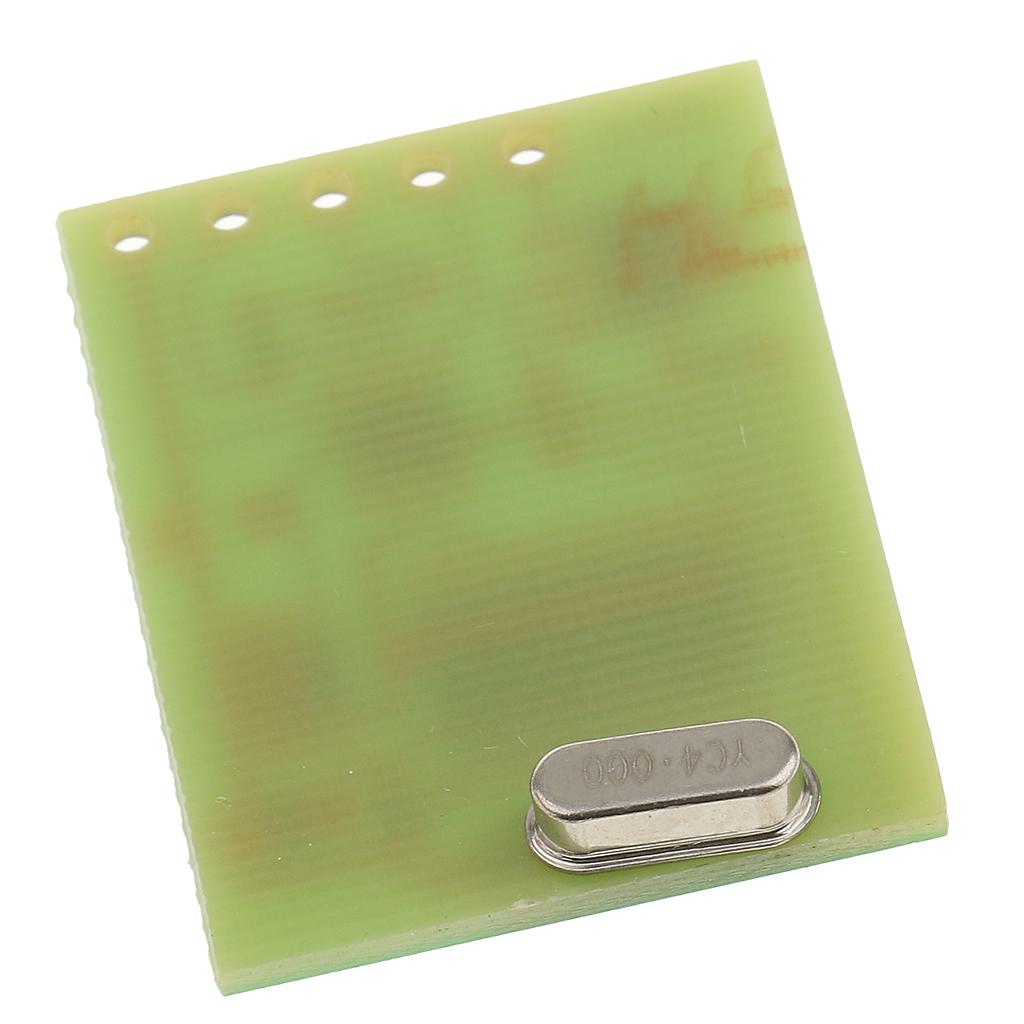

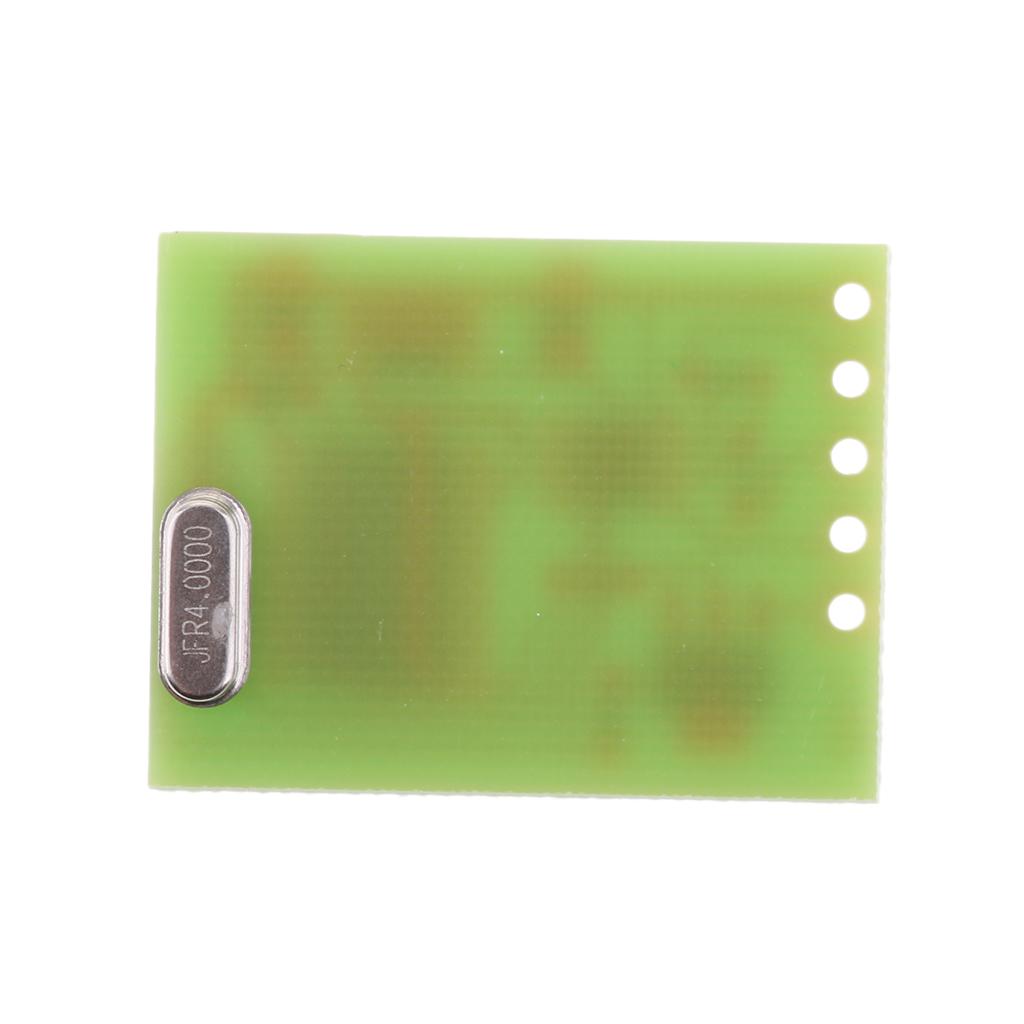

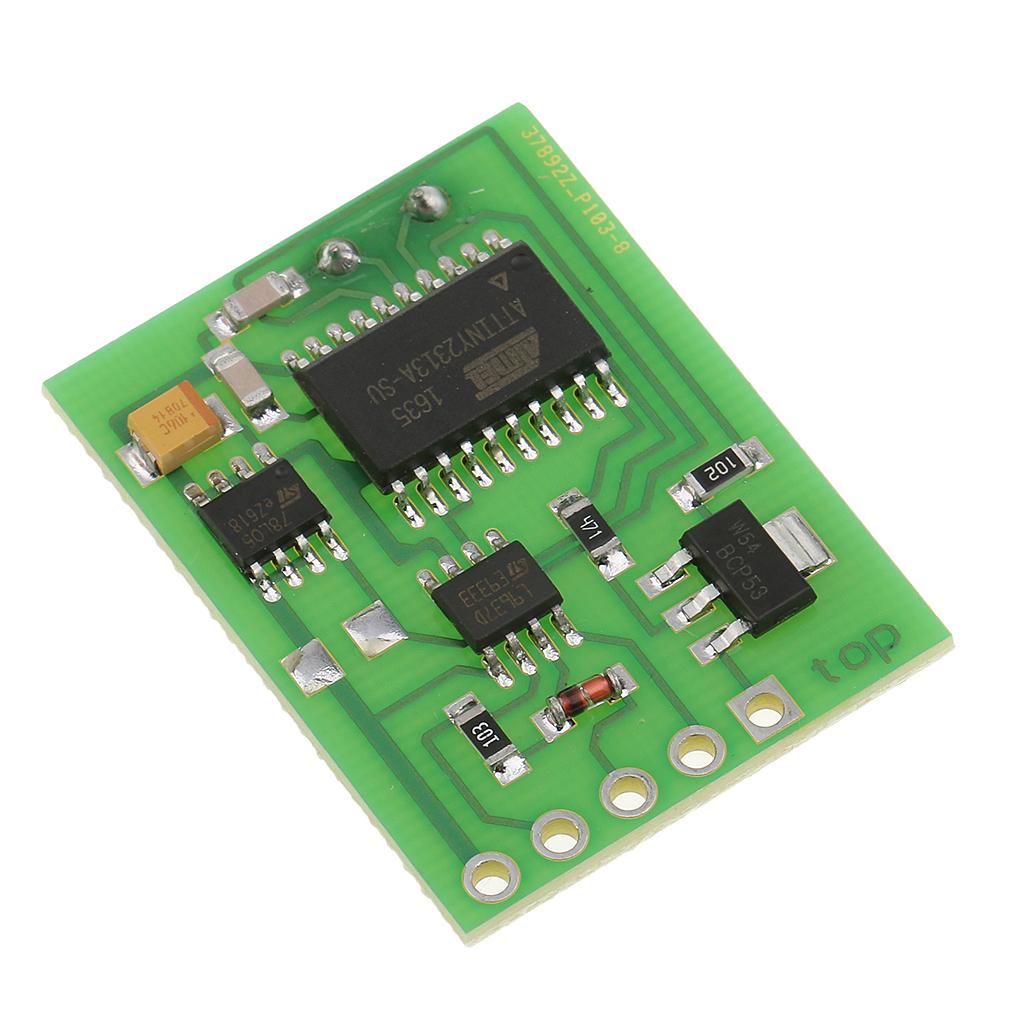

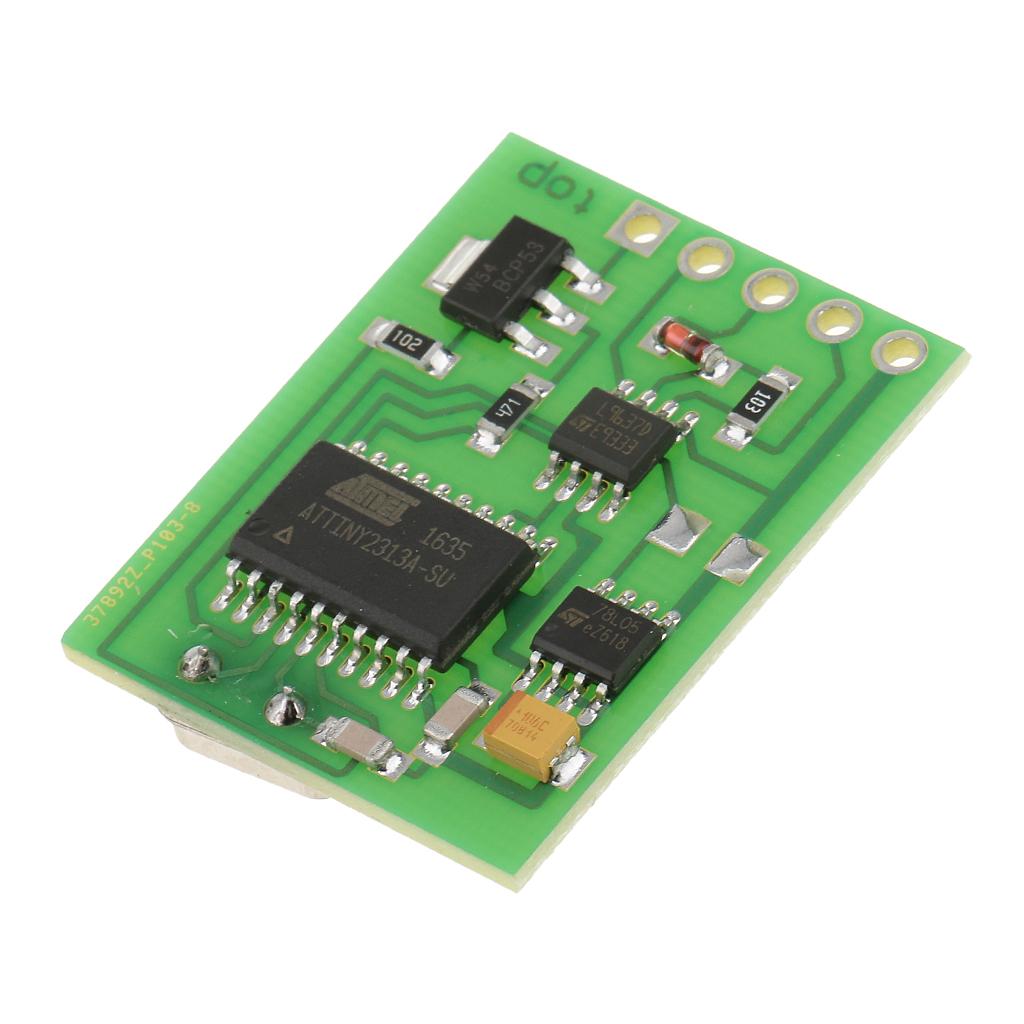

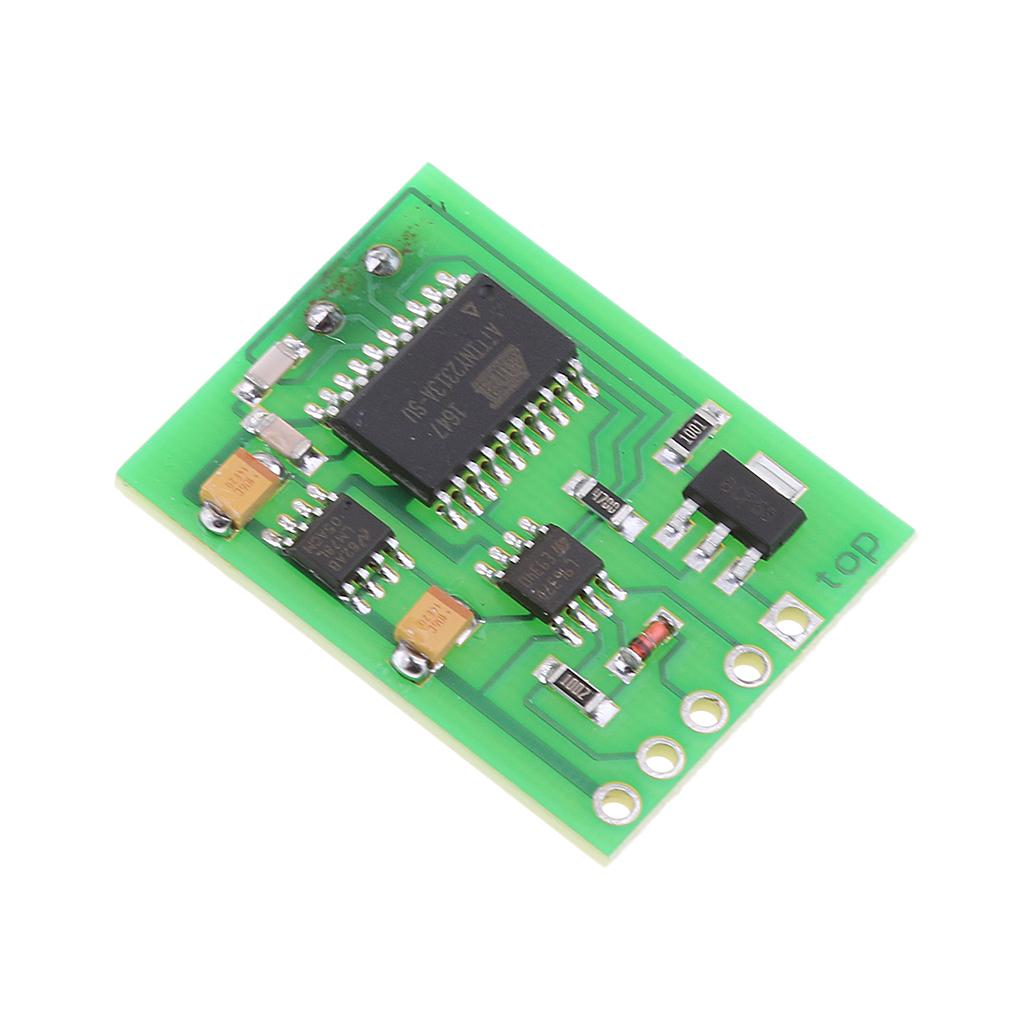

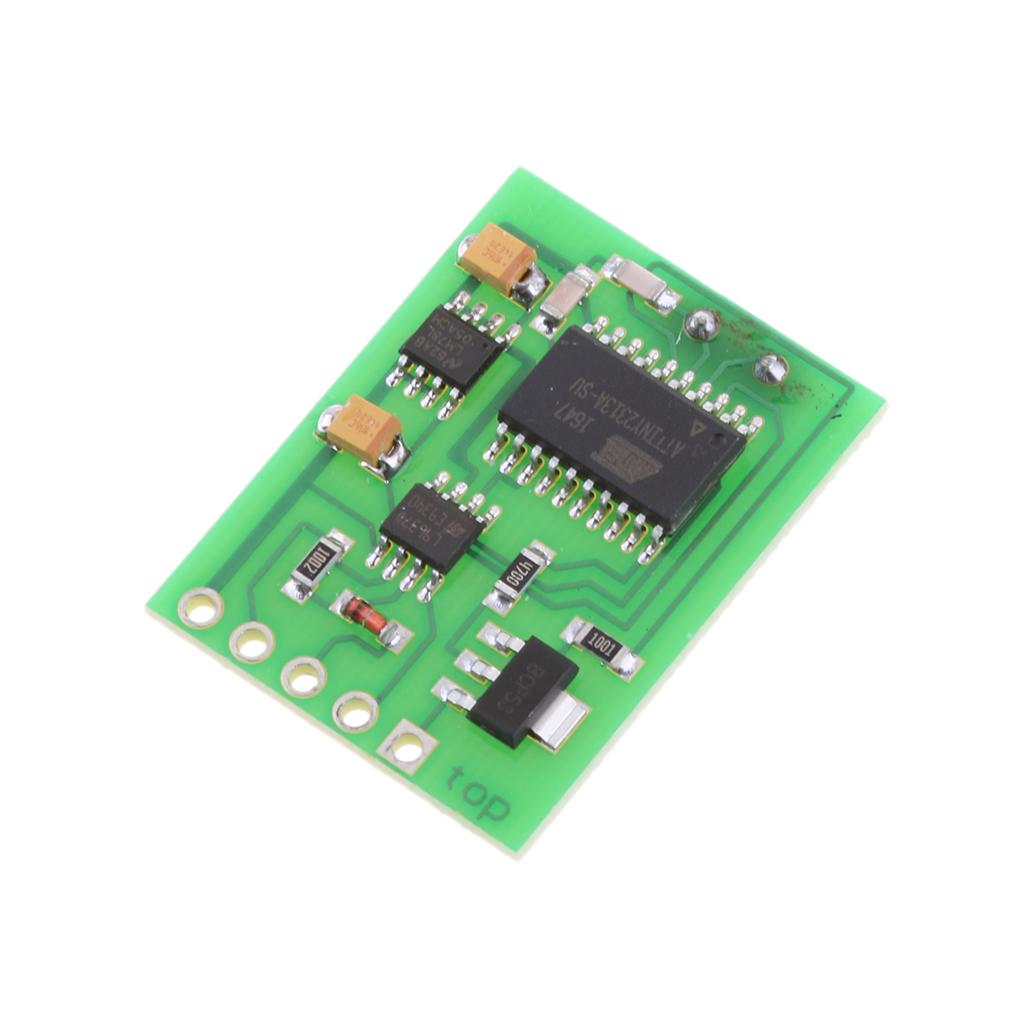

Maxbell 3xImmobiliser Emulator for Yamaha Motorcycle Bike Immobilizer Bypass Emmulator
Description:
Immobiliser Emulator to fit most 2006 - 2009 Yamaha bikes and scooters.
Immobilizer emulator for Yamaha motorcycles and scooters.
Does not require programming, but does require some soldering skills to connect the wires correctly.
Emulates the regular Yamaha immobilizer, including the light-emitting security diode flashing on the instrument panel.
Known to fit 2006 - 2009 Yamaha YZF R1 / YZF R6 FZ6N / FZ6S T-MAX X-MAX V-MAX plus others.
Specification:
Installation instructions to replace the OEM immobilizer with our Emulator unit:
1. Gain access to the OEM immobiliser circuit by digging out the glue holding it in place.
2. Remove the OEM PCB from immobilizer case and de-solder the wires.
3. Connect the new immobiliser emulator to the wires by soldering them in place.
4. Insert the new emulator into the immobilizer case and secure in position.
Wiring:
Black: GND (There may be 2 Black wires in which case connect both)
Blue: K-line Immobilizer ECU
Red: BATT (+12v Permanent)
Yellow IGN (+12v Switched)
Grey LED (+5v Dashboard LED)

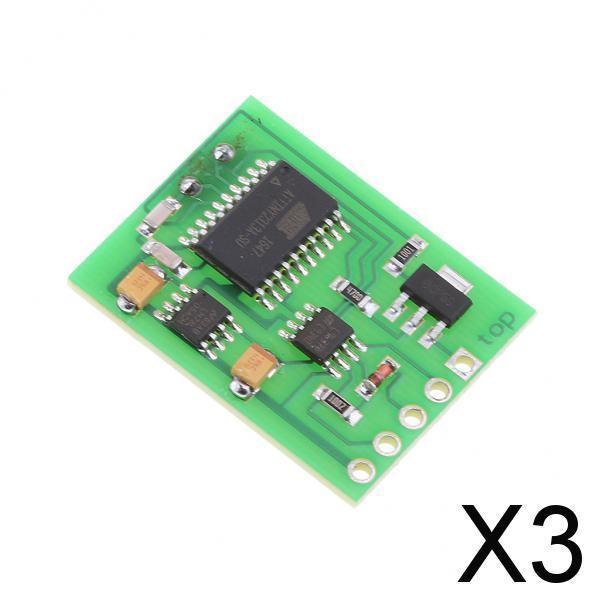

Package Includes:(3 Pack)
1 Piece Immobiliser Emulator
