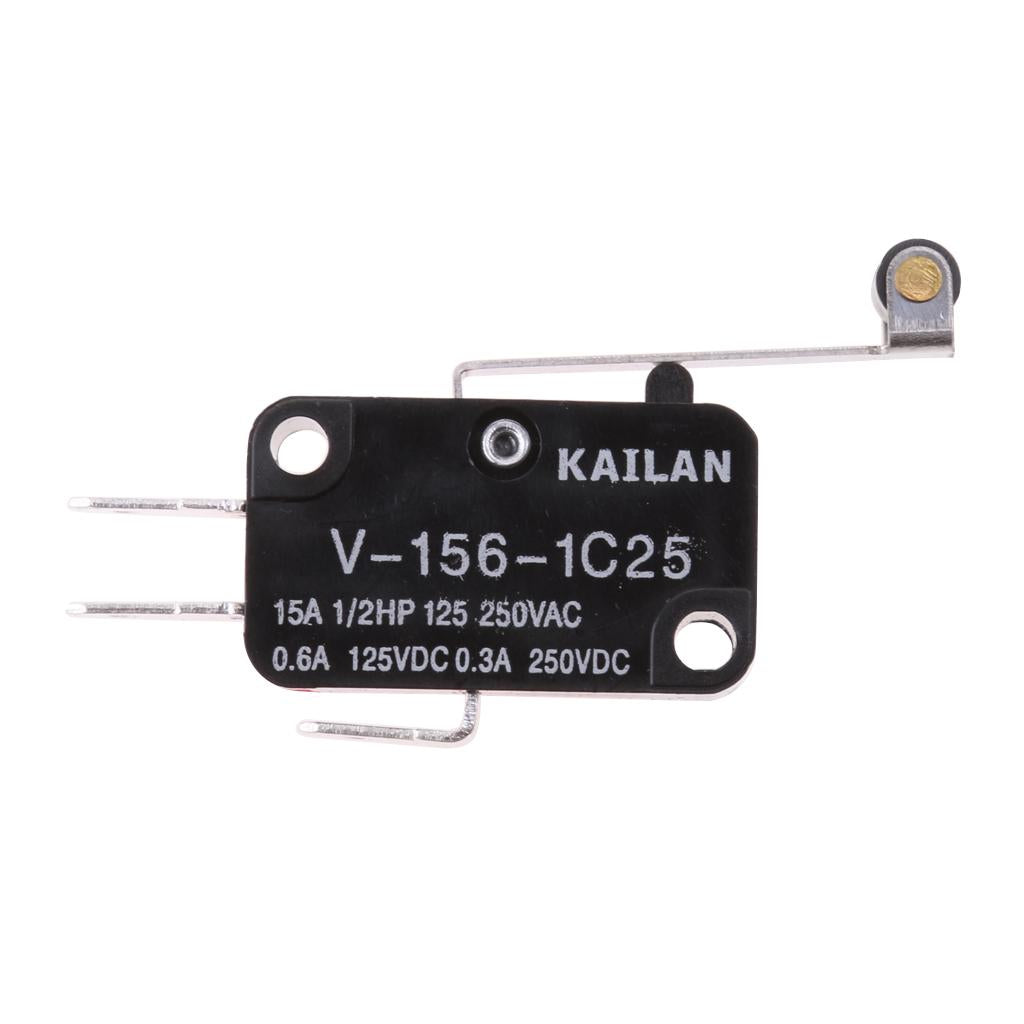

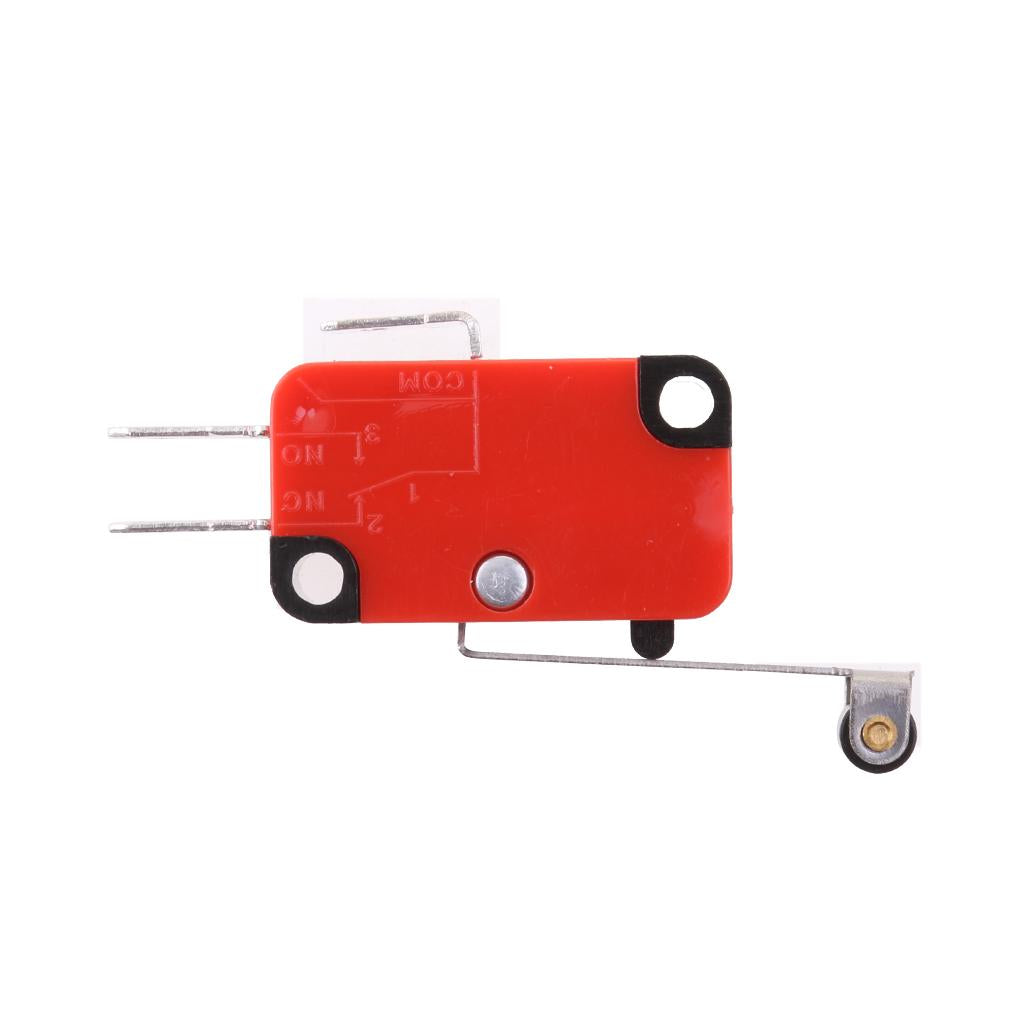

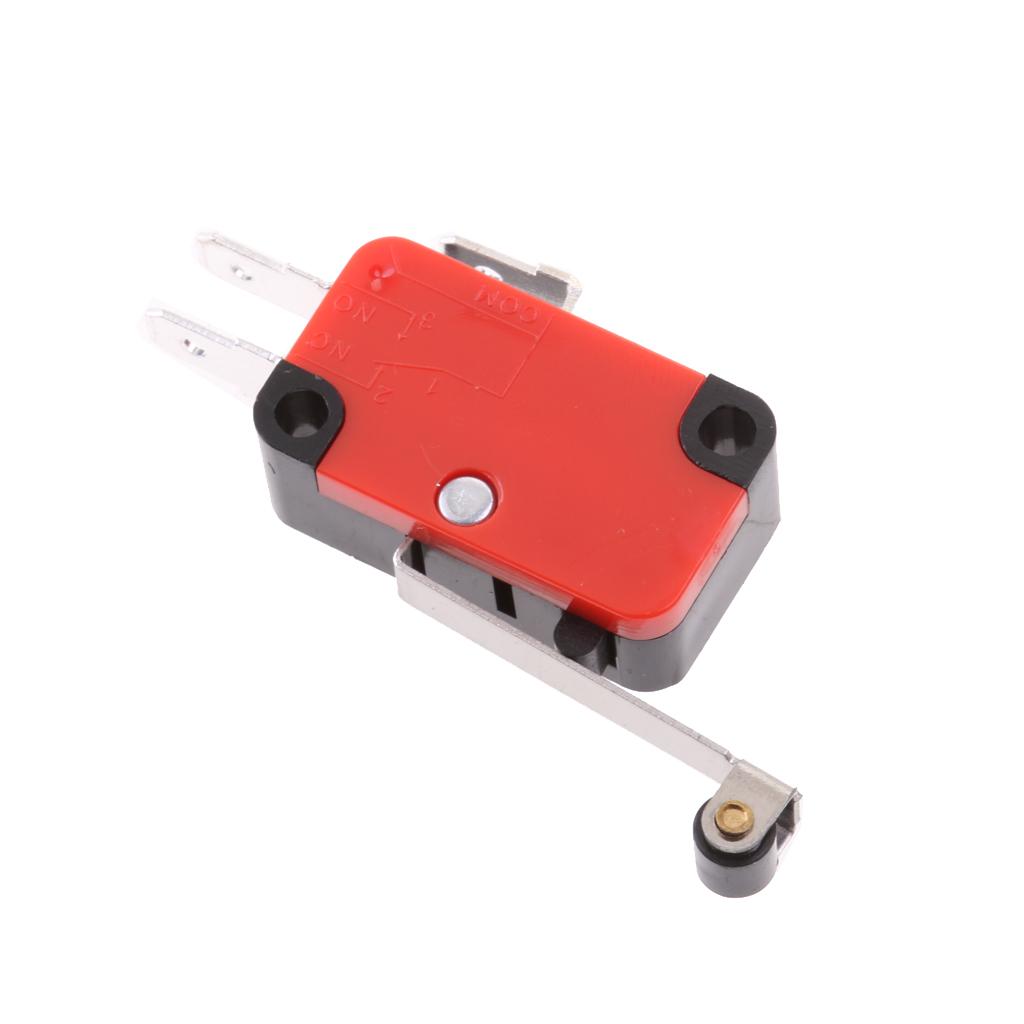

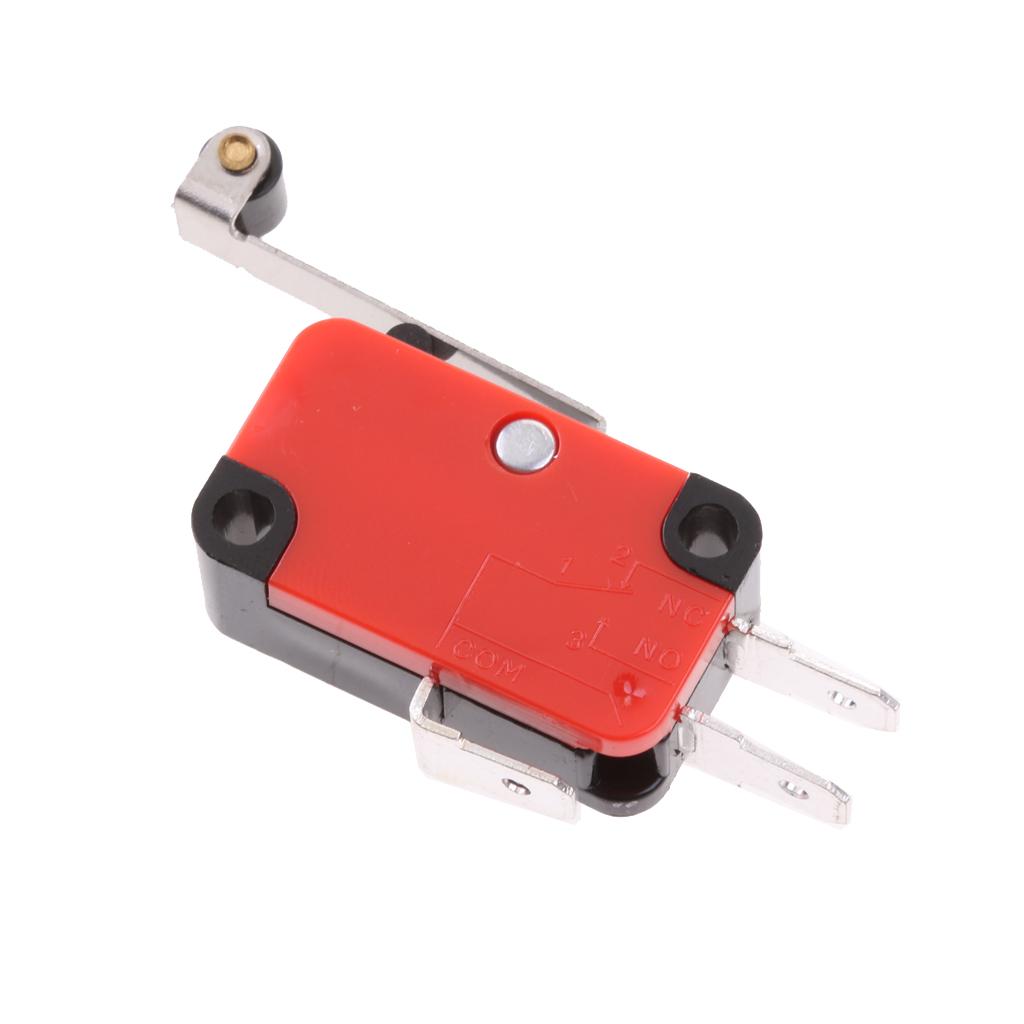

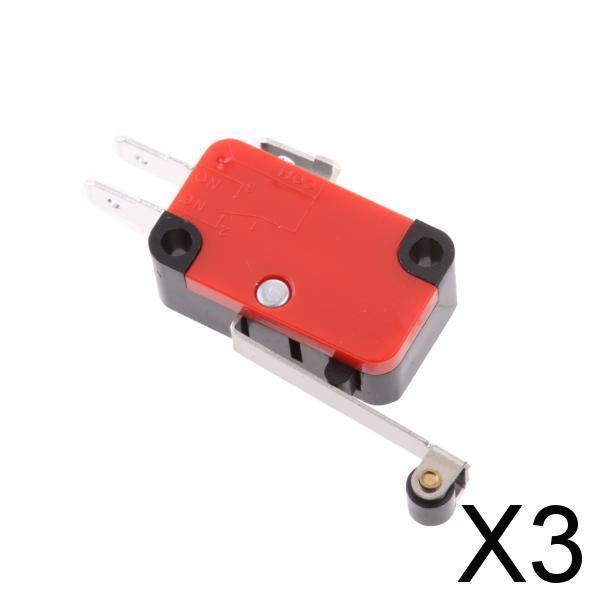

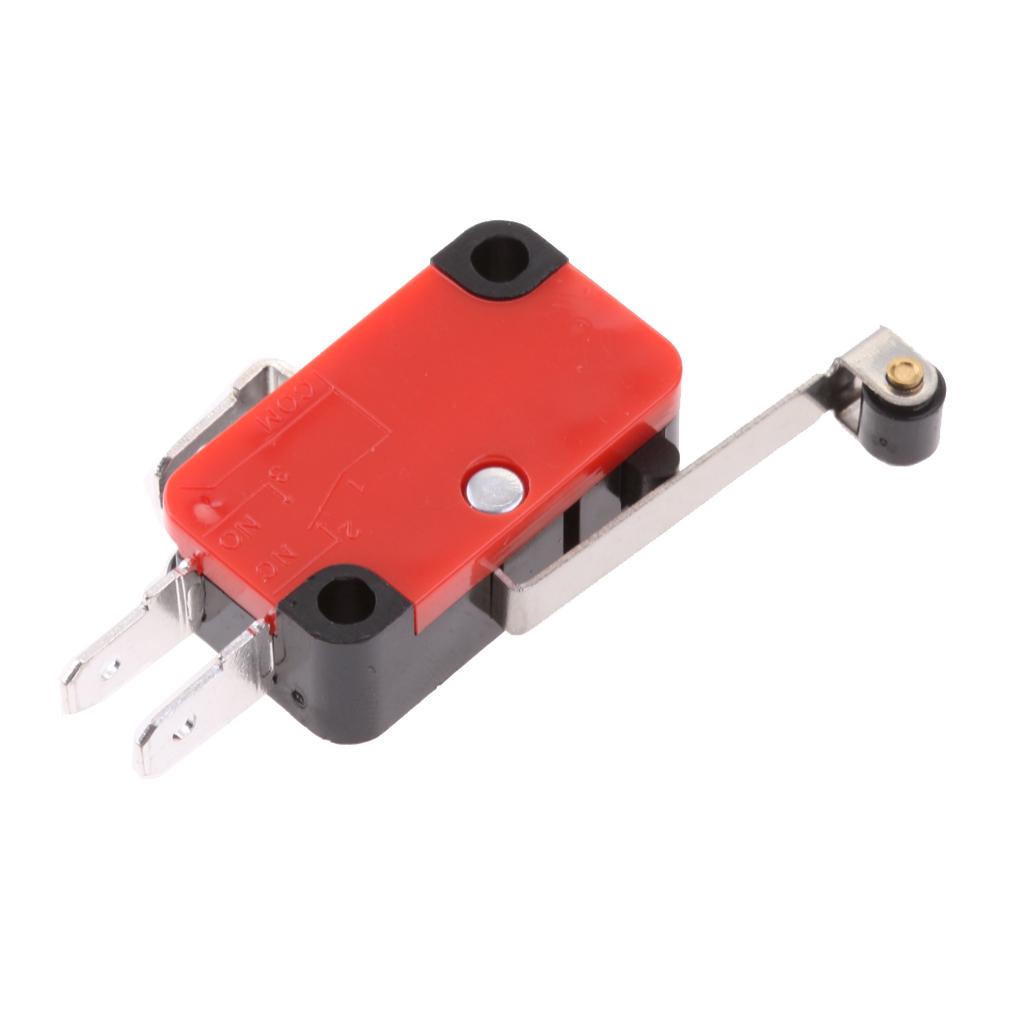

Maxbell 3x V-156-1C25 Micro Limit Switch Long Hinge Roller Lever Arm Open SPDT 15A
Description:
High precision mechanism design offering acute operation and long life.
Features with Hinge Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Terminals design.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Contact Configuration:1NO,1NC(SPDT)
Specification:
Rating : 15A, 1/2HP, 125/250VAC0.6A,125VDC; 0.3A, 250VDC;Contact Configuration : 1NO,1NC(SPDT);Switch Body Size : ~2.8 x 1 x 1.6cm / 1.1" x 0.39" x 0.63"(L*W*H)
Fixing Holes Dia. : ~0.32cm / 0.13";Button Height : ~0.3cm / 0.12";Actuator Size : ~2.8 x 0.45cm / 1.1" x 0.18"(L*W)
Terminal Width : ~0.47cm / 0.19"
Type:V-156-1C25
Rating:15A(1/2 HP 125V-250VAV) 0.3A(250VDC)
Package Includes:
1 Piece Limit Switch(3 Pack)
