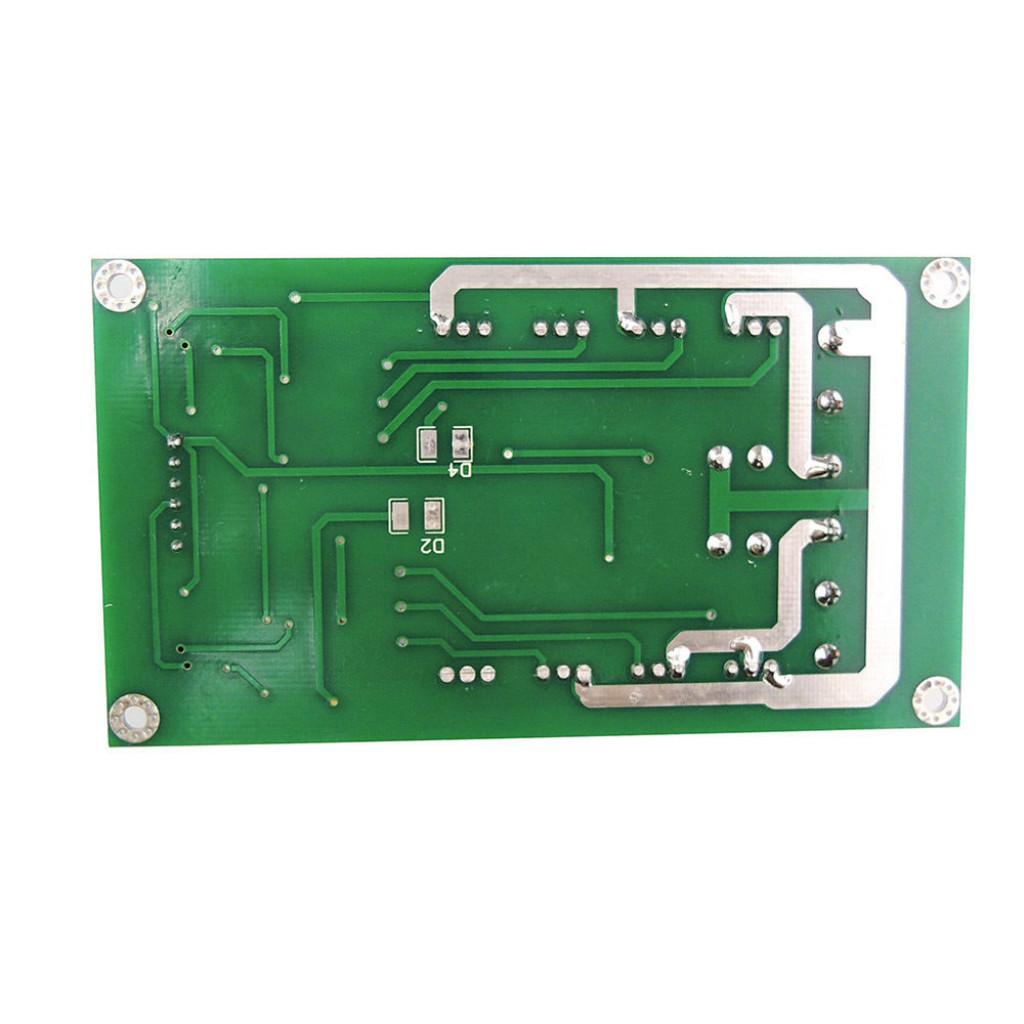

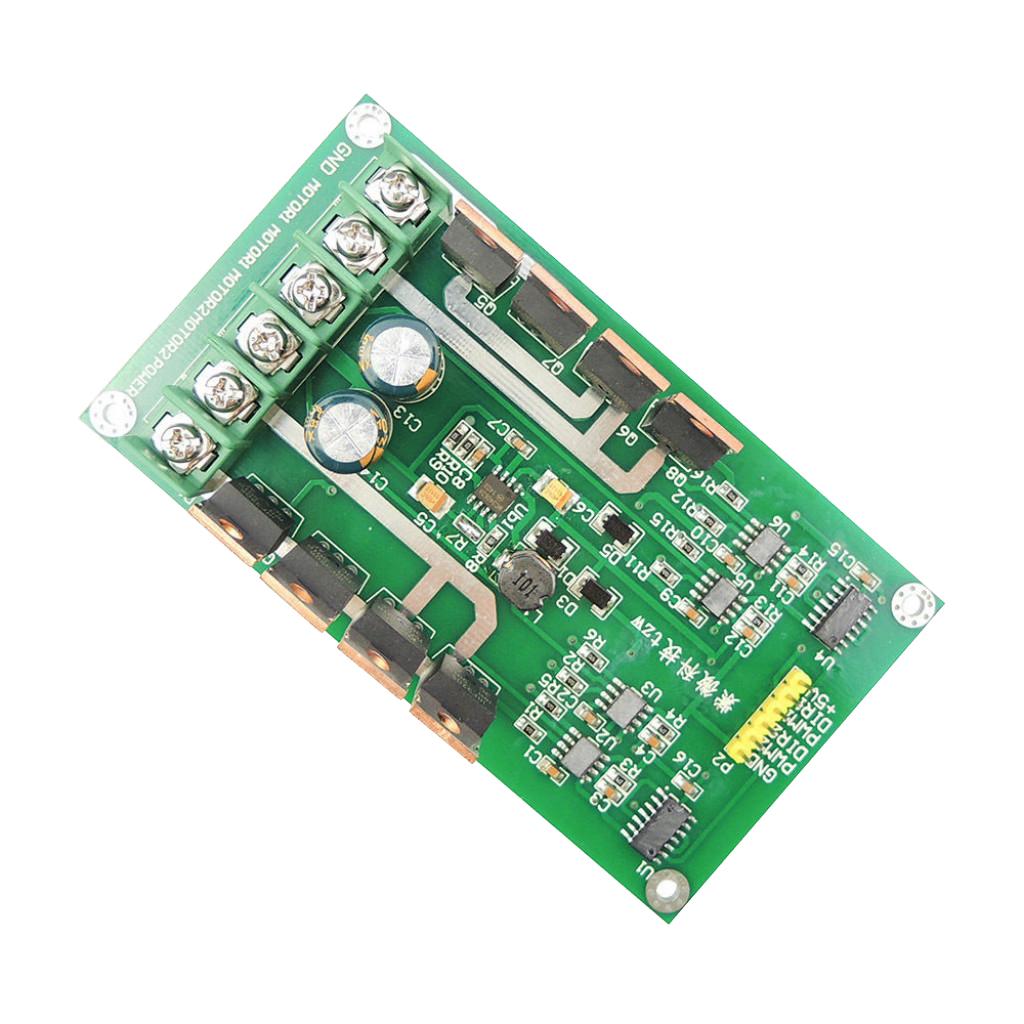

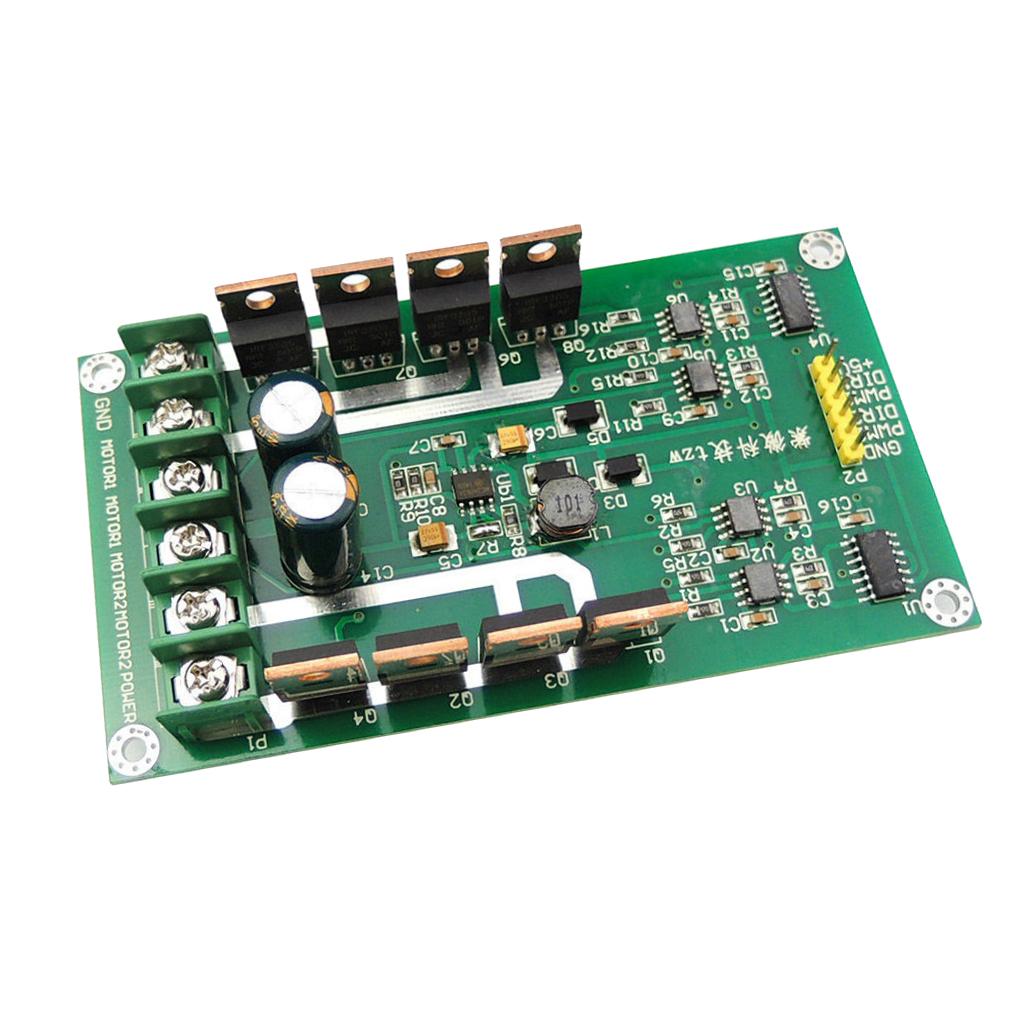

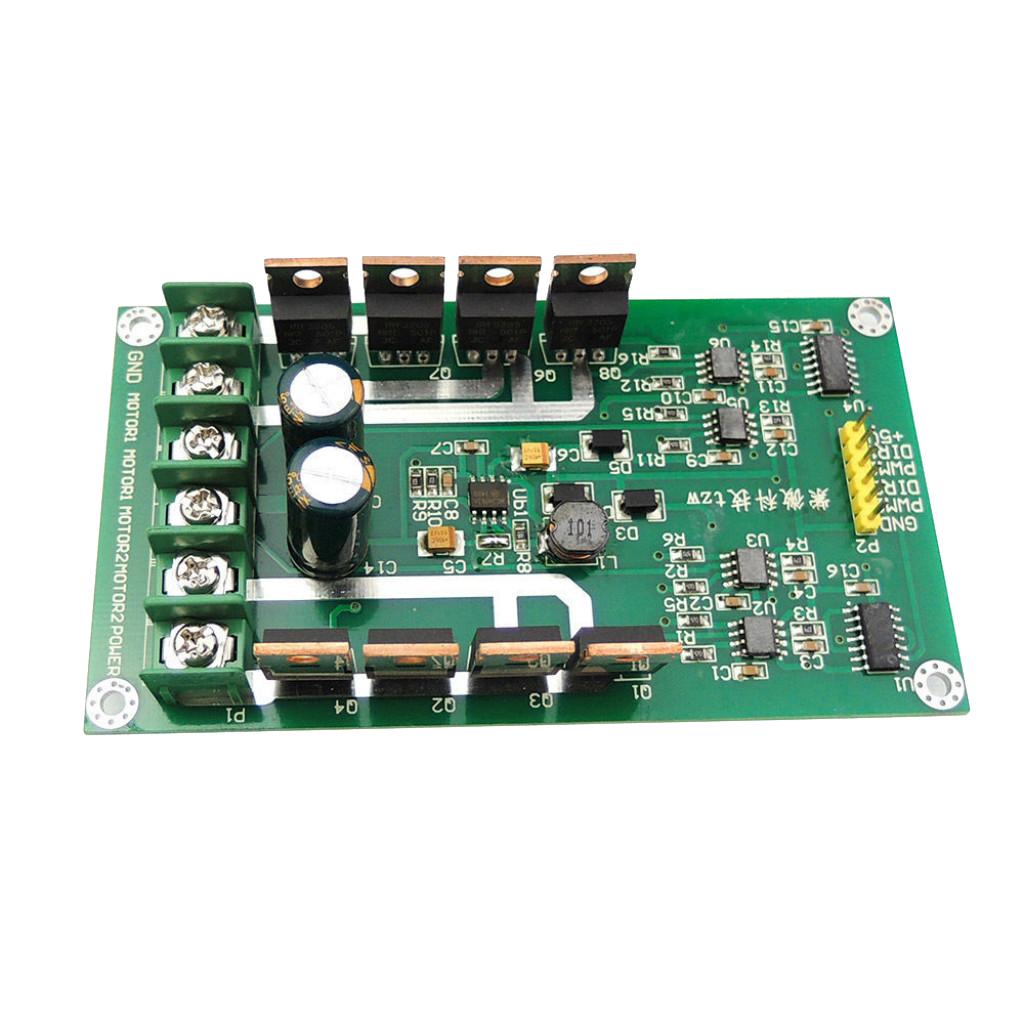

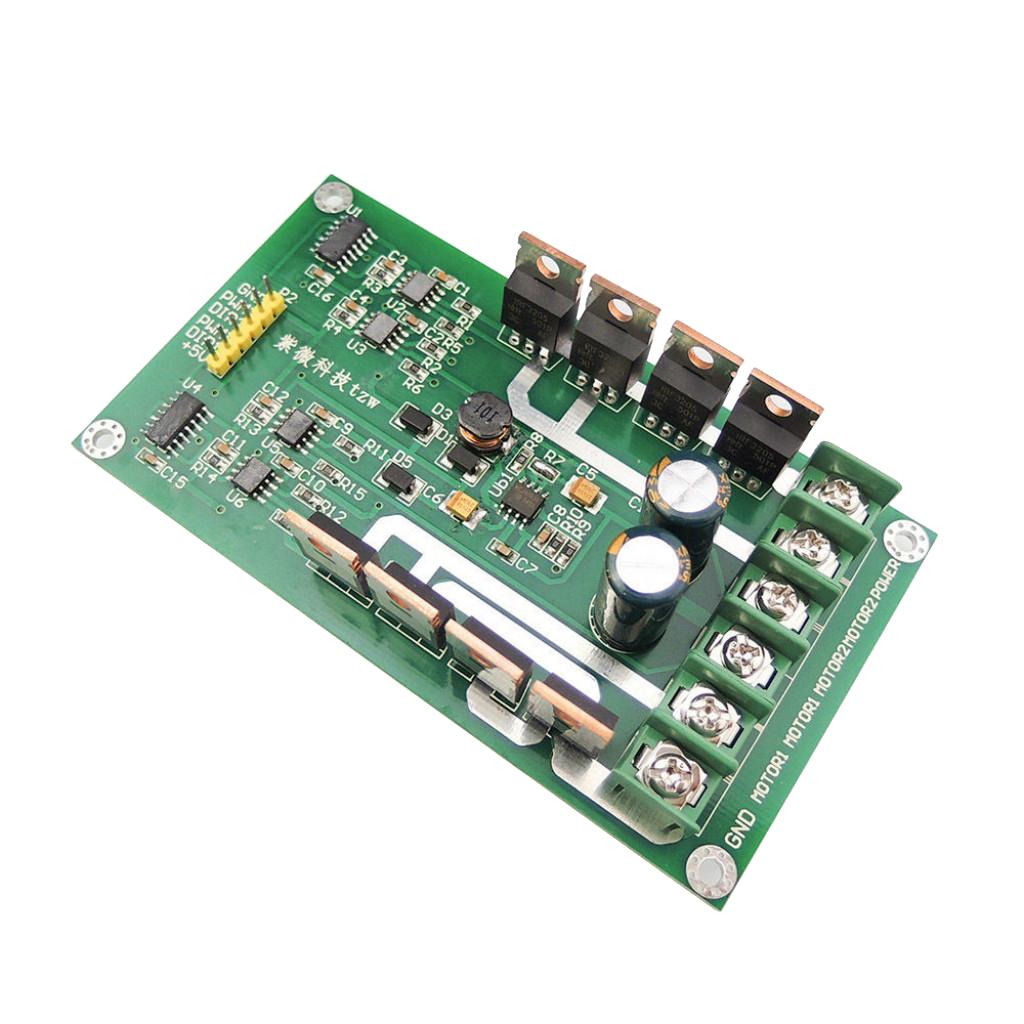

Maxbell 3V-36V Dual DC Motor Driver Board Module H-bridge MOSFET IRF3205 15A
Description:
High current 10A dual motor drive module
High power H bridge strong braking function.
DC motor drive; industrial grade.
Rated voltage: 3V-36V; Rated Current: 15A
Peak current: 30A
Specification:
1. The performance of this driver is not comparable to those of the L298 motor drive chips. The driver focuses on current and efficiency, and effectively uses motor power and battery life. Can withstand high current overload, maximum current up to 30A.
2. This drive also has a brake function that can quickly brake the motor, brake quickly, and brake clearly. This function is simple to implement.
3. The driver uses a complete two-half bridge driver chip and an extremely low internal resistance N-channel MOSFET. The complete two-half-bridge driver chip has a reliable driving mode to minimize the switching loss of the MOSFET. Improve power utilization. MOSFET driver chip comes with hardware brake function and power feedback function.
4. This driver is to the low power headroom of the integrated power chip scheme and the problem of complex timing coordination and complementary driving in other half-bridge combination schemes.
5. The MOSFET uses an N-channel HY3606 MOSFET. Two dedicated half-bridge drivers are used. A bootstrap capacitor is used on the upper tube to allow the upper tube to have sufficient driving voltage to quickly open the MOSFET channel and increase the acceleration of the motor. And it can quickly brake the motor. This can make the car start quickly and brake quickly.
6. The driver can work in 0%-99% PWM modulation duty cycle, so that the motor can get enough drive voltage.
Motor forward: DIR = 1 PWM = PWM
Motor reversal: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)

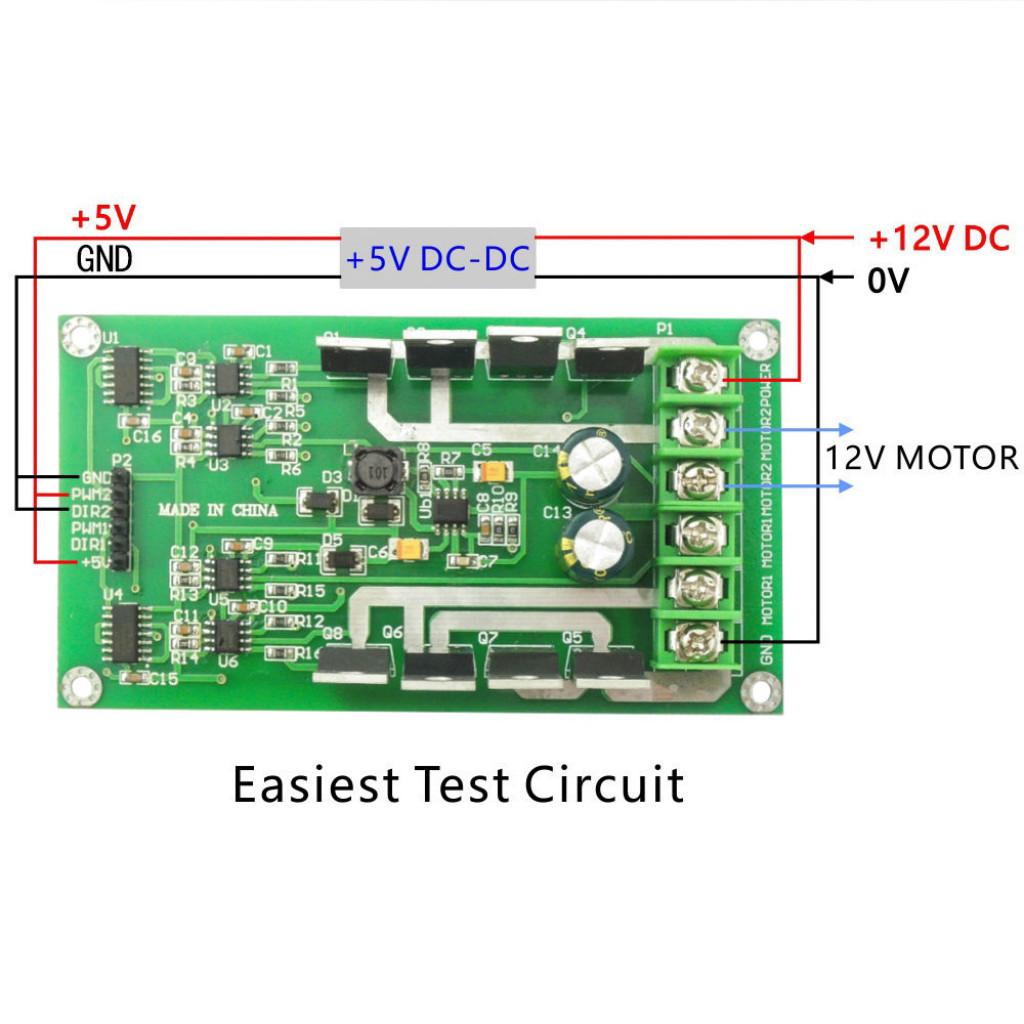

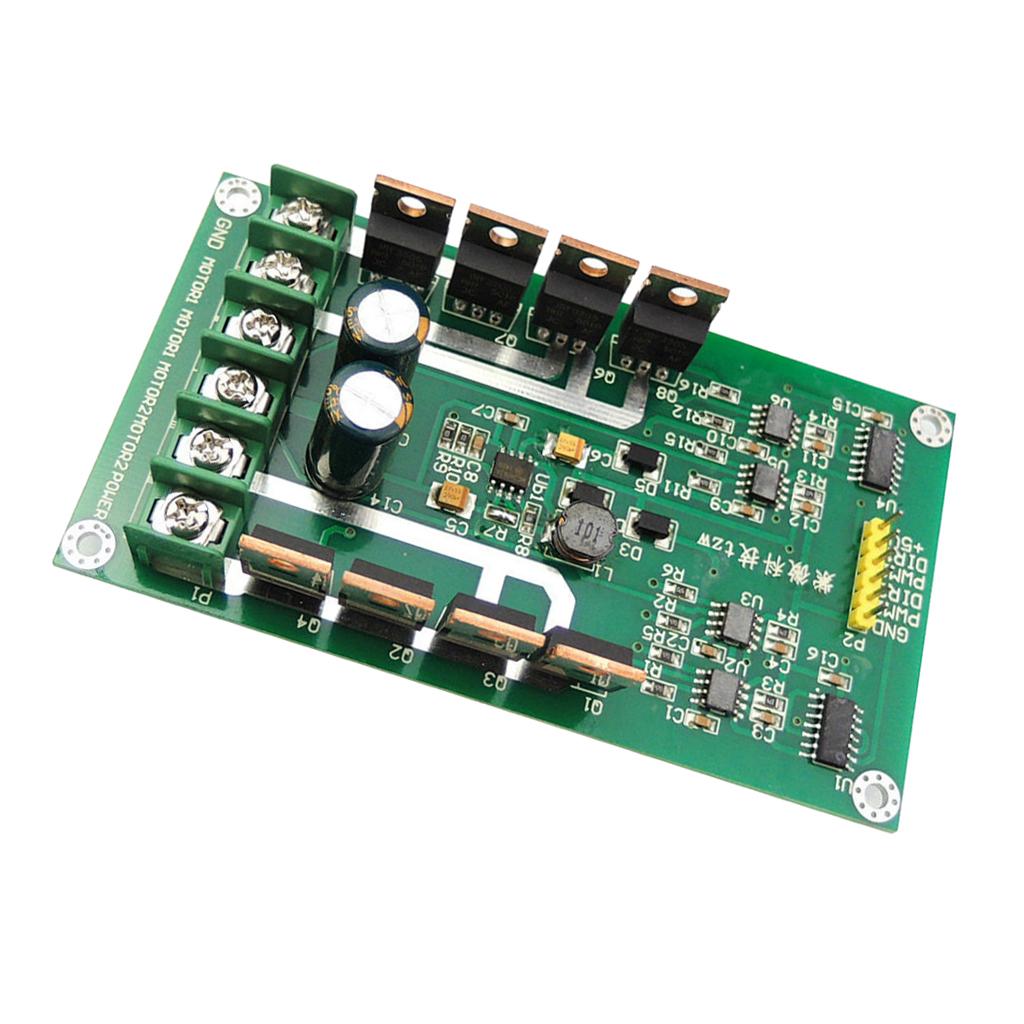

Motor and power connections:
POWER connected to the positive power supply, GND power supply is negative. Two motors connected MOTOR1 and MOTOR2.
Use: Car contest, university electronic design contest, variety of DC motor control circuit
Size: Approx. 108 x 58 x 6mm
