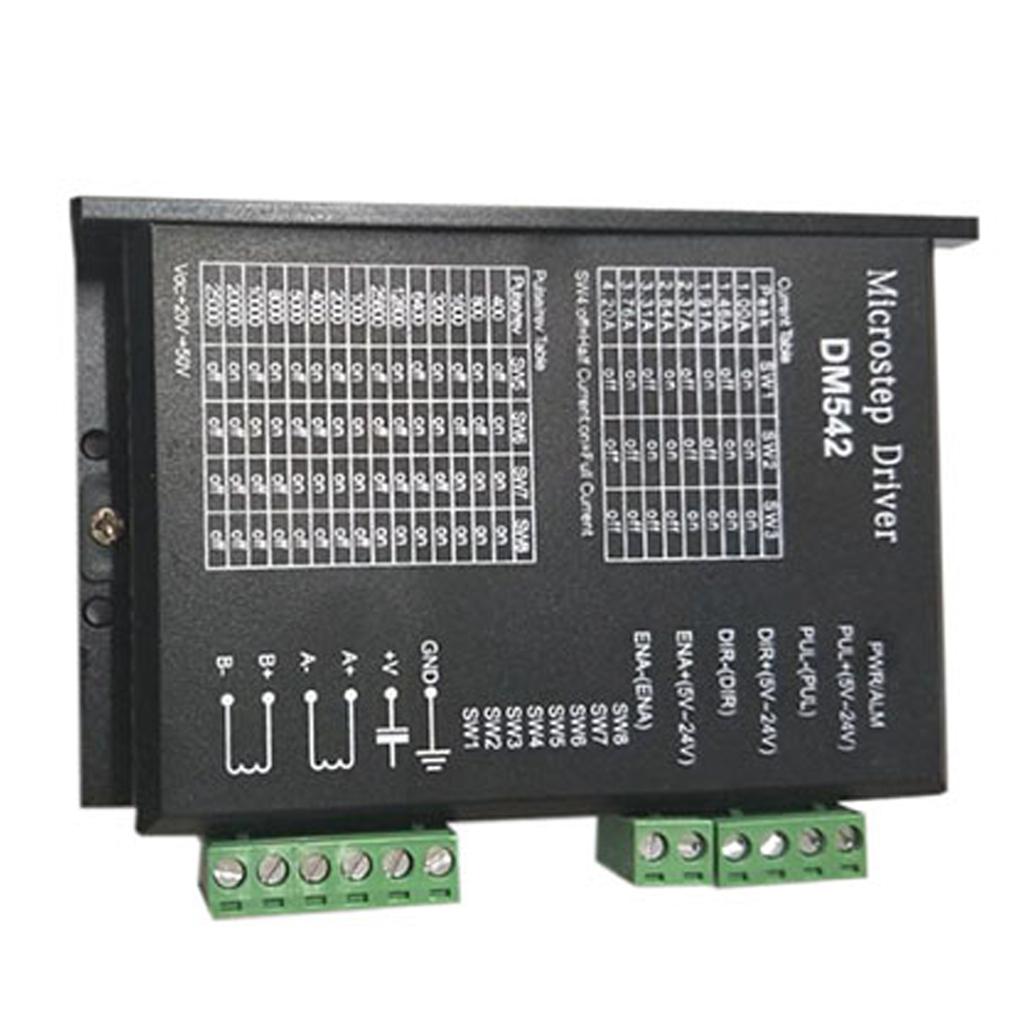

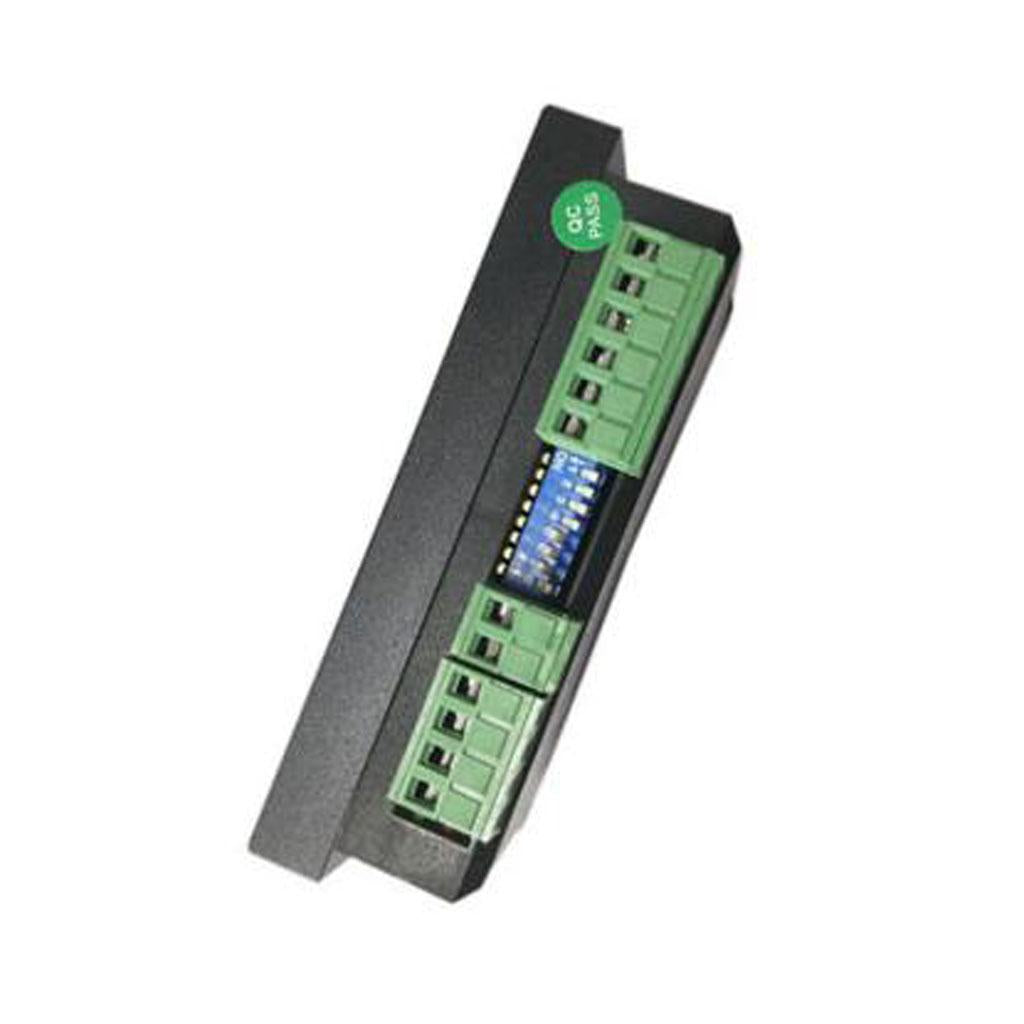

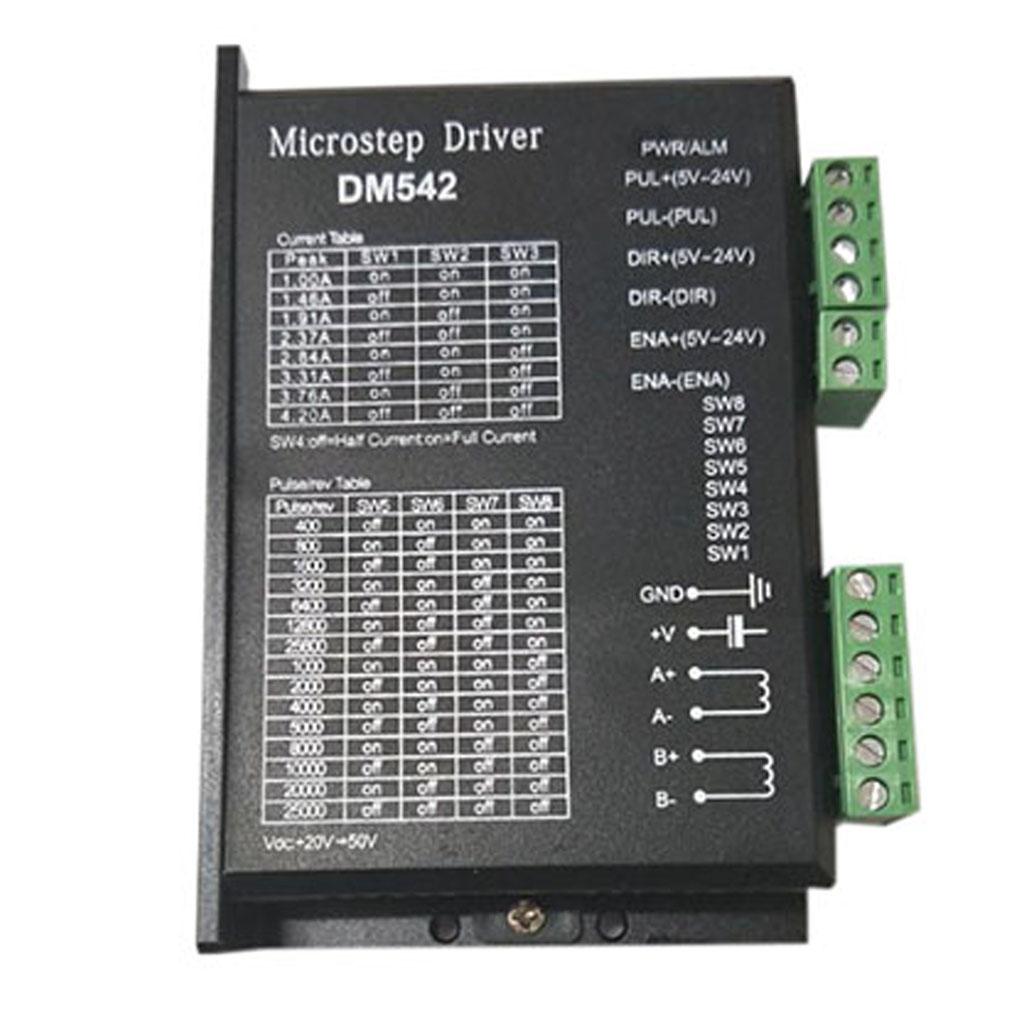

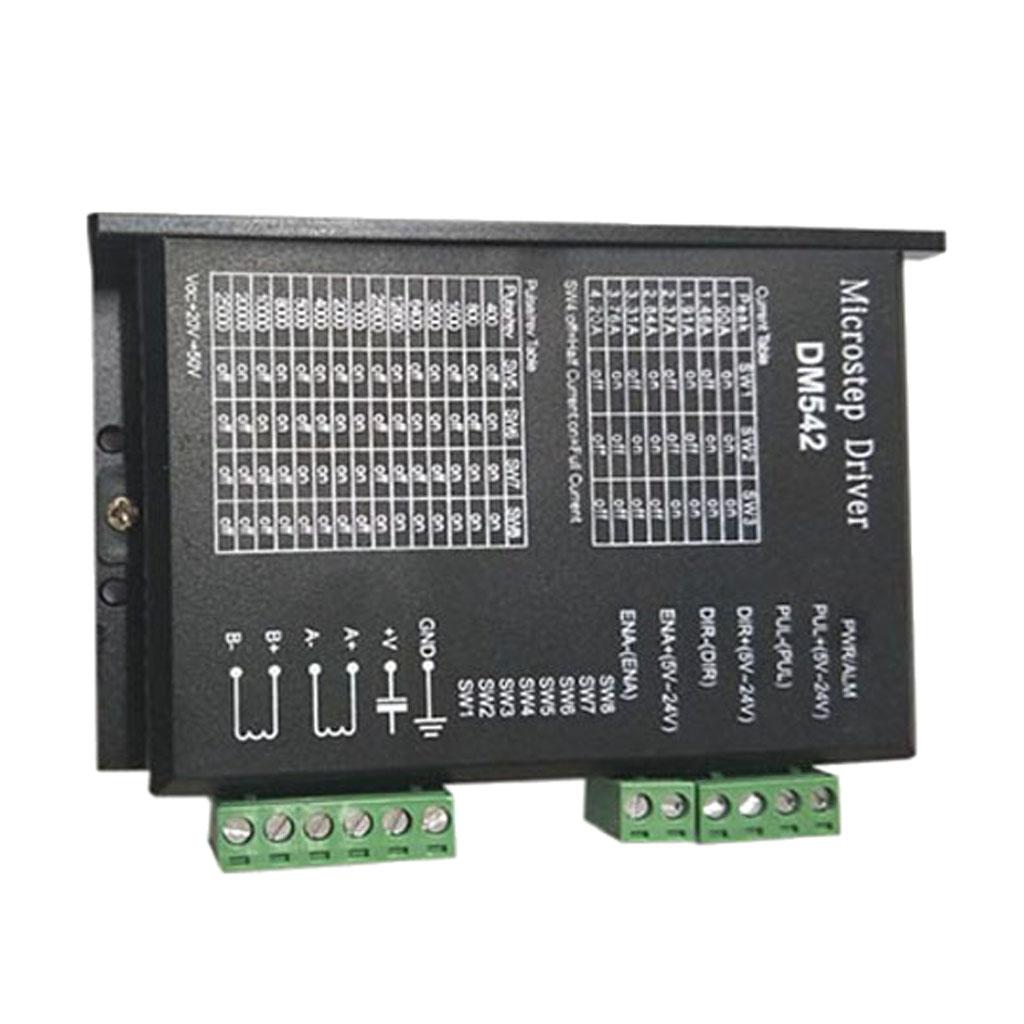

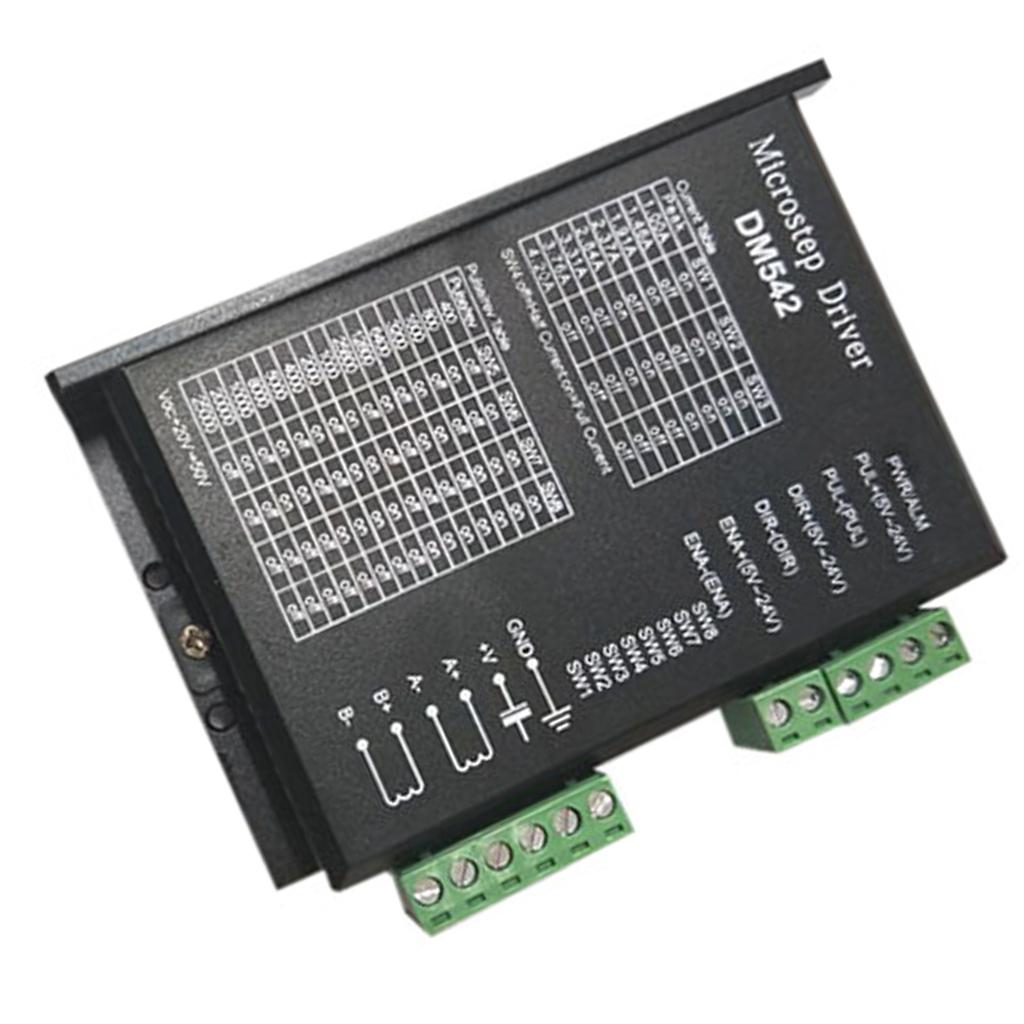

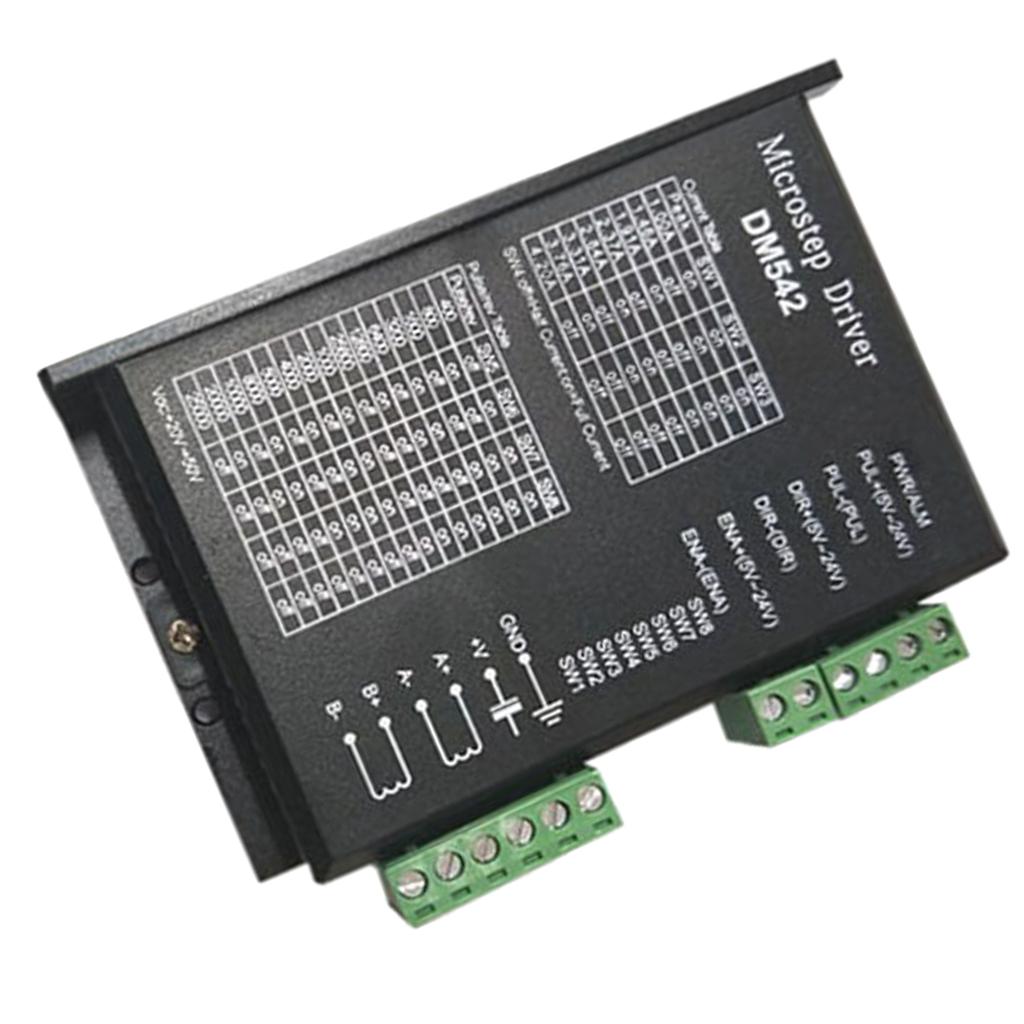

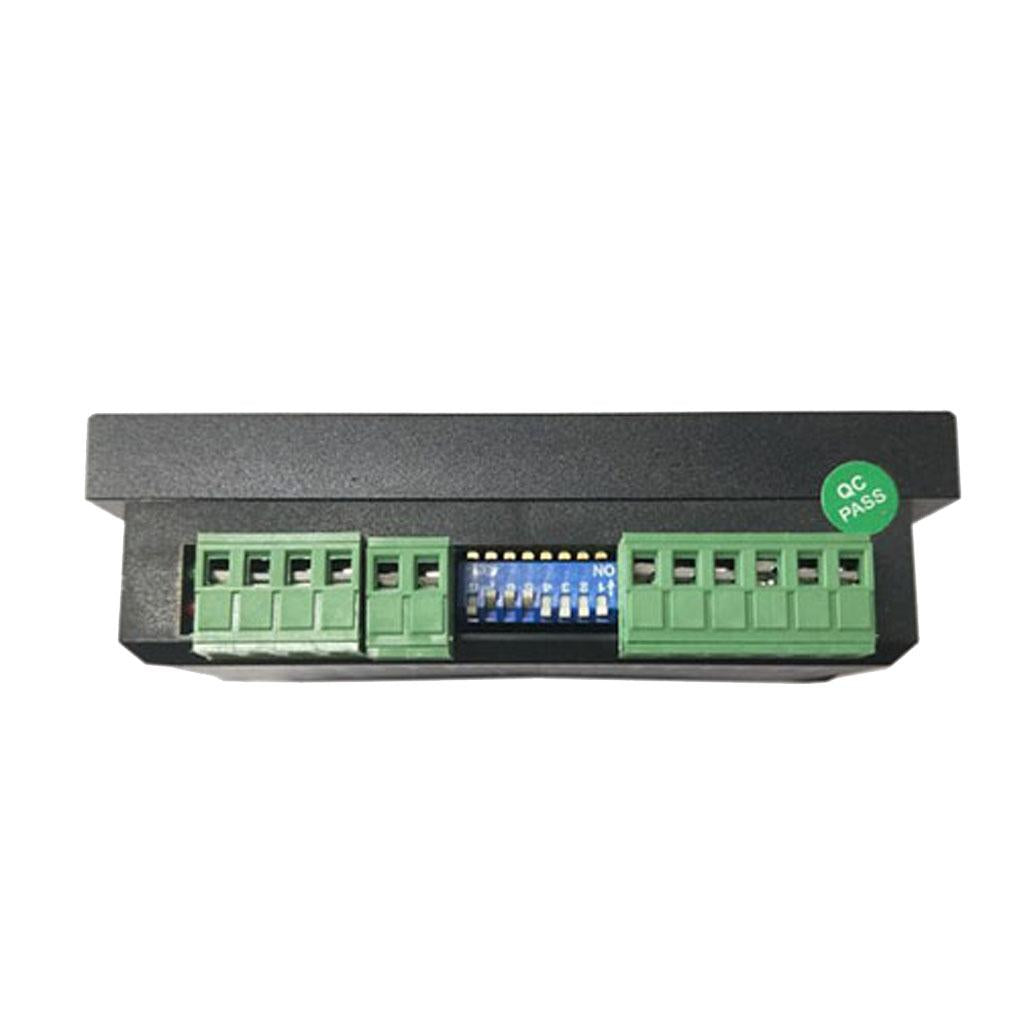

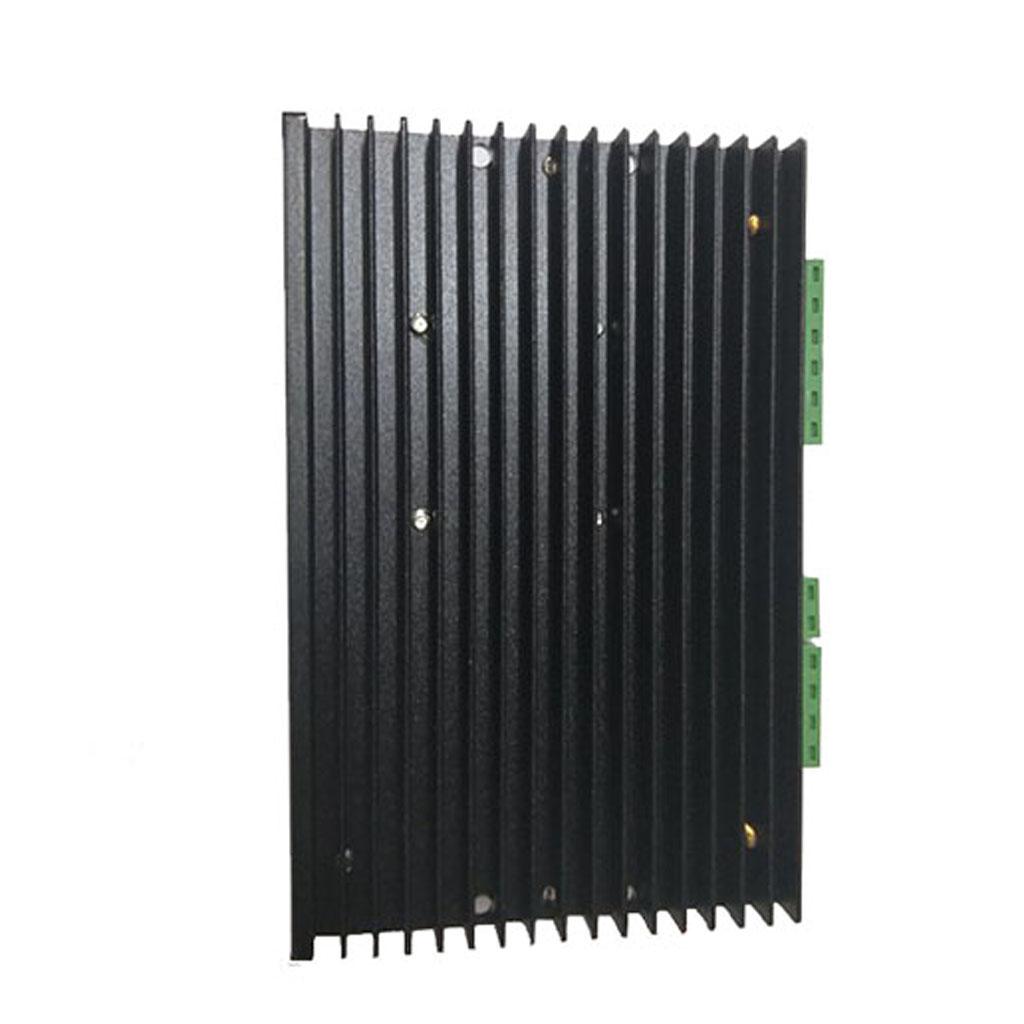

Max 32-bit Two-Phase Stepper Motor DM542 42 57 Universal Stepper Motor Driver
Description:
The DM542 digital medium and low voltage stepper motor driver adopts the latest 32-bit DSP technology and is suitable for driving 57 and 86 series motors. It has excellent medium and low speed performance and can meet the needs of most small and medium-sized equipment applications.
With built-in micro-segmentation technology, even in low-segment conditions, high subdivision can be achieved, with moderate to low-speed operation and minimal noise.
The parameter internal self-tuning function is integrated in the drive, which can automatically generate optimal operating parameters for different motors to maximize the performance of the motor.
Can drive 4-wire, 8-wire two-phase stepper motor.
Specification:
Voltage input range: 18~48 VDC
Maximum current: 4.2A, resolution: 0.1A
Subdivision range: 400~25600ppr
Signal input: differential / single-ended, pulse / direction or double pulse, 5 ~ 24VDC level compatible
Response frequency: 200KHz
Material:Plastics & Metal
Size: Approx. 76x120x34mm / 2.99x4.72x1.34 inch
Package Includes:
1 Piece DM542 Stepper Motor
