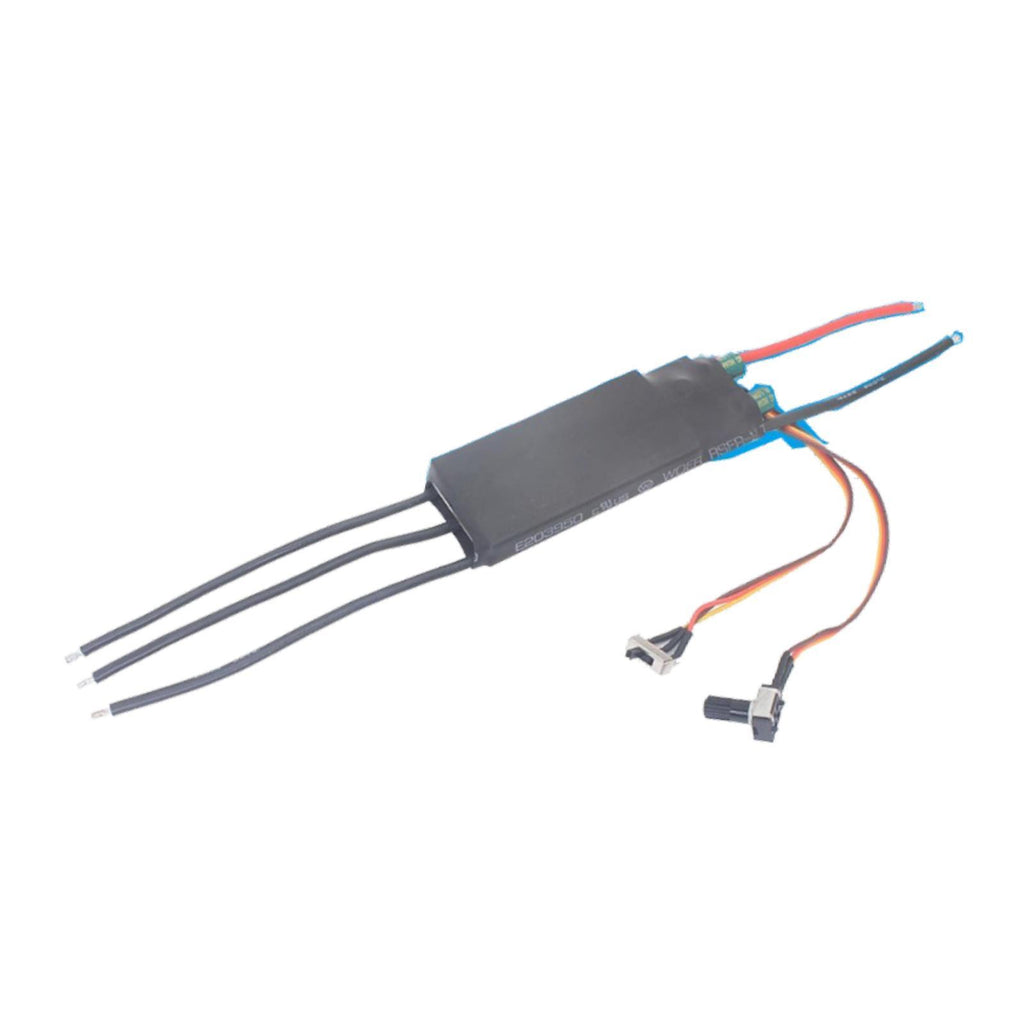

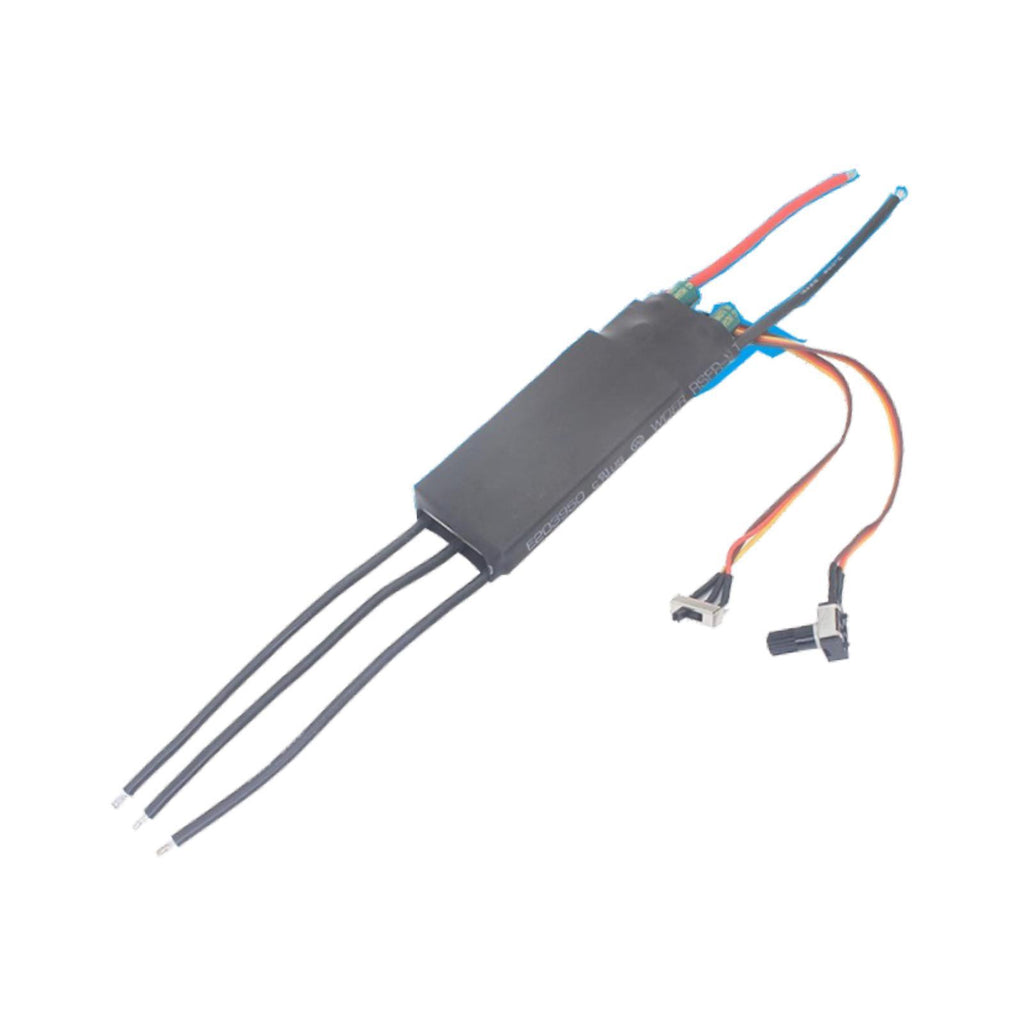

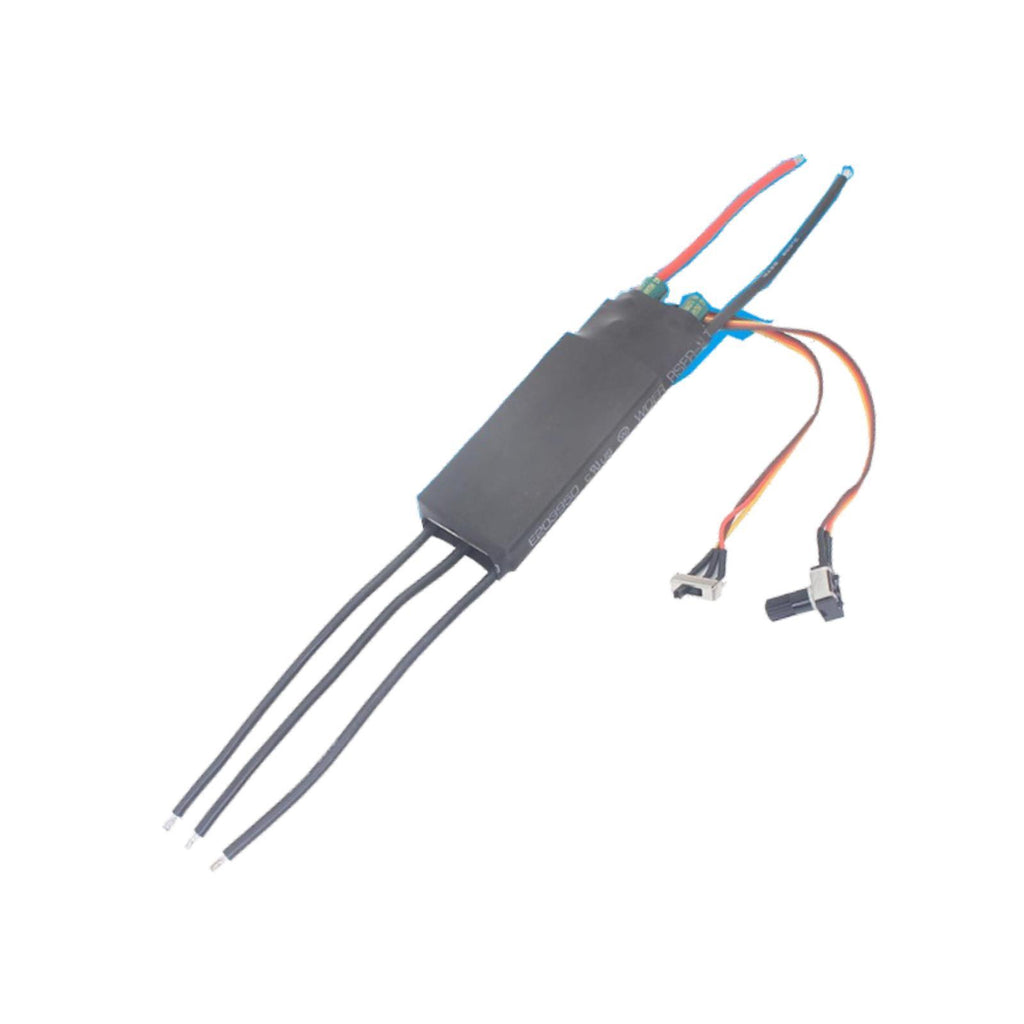

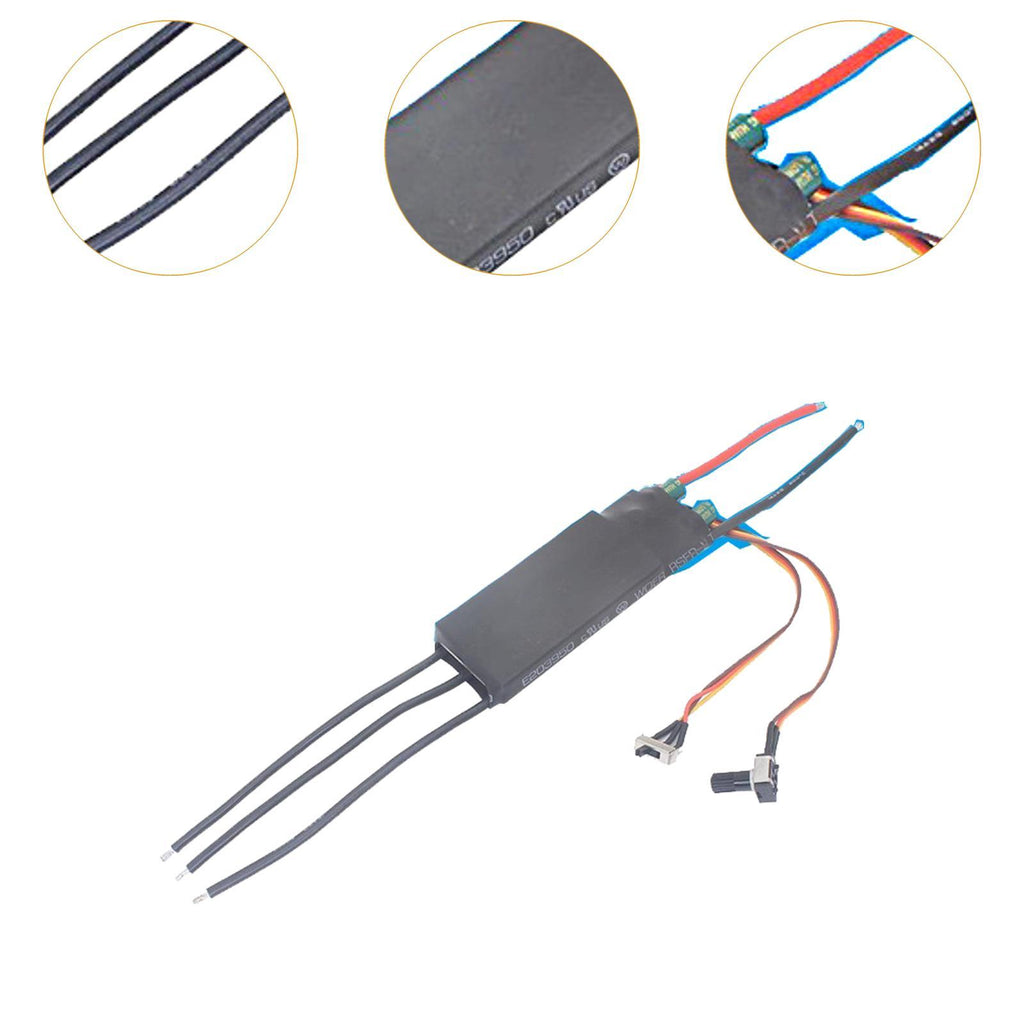

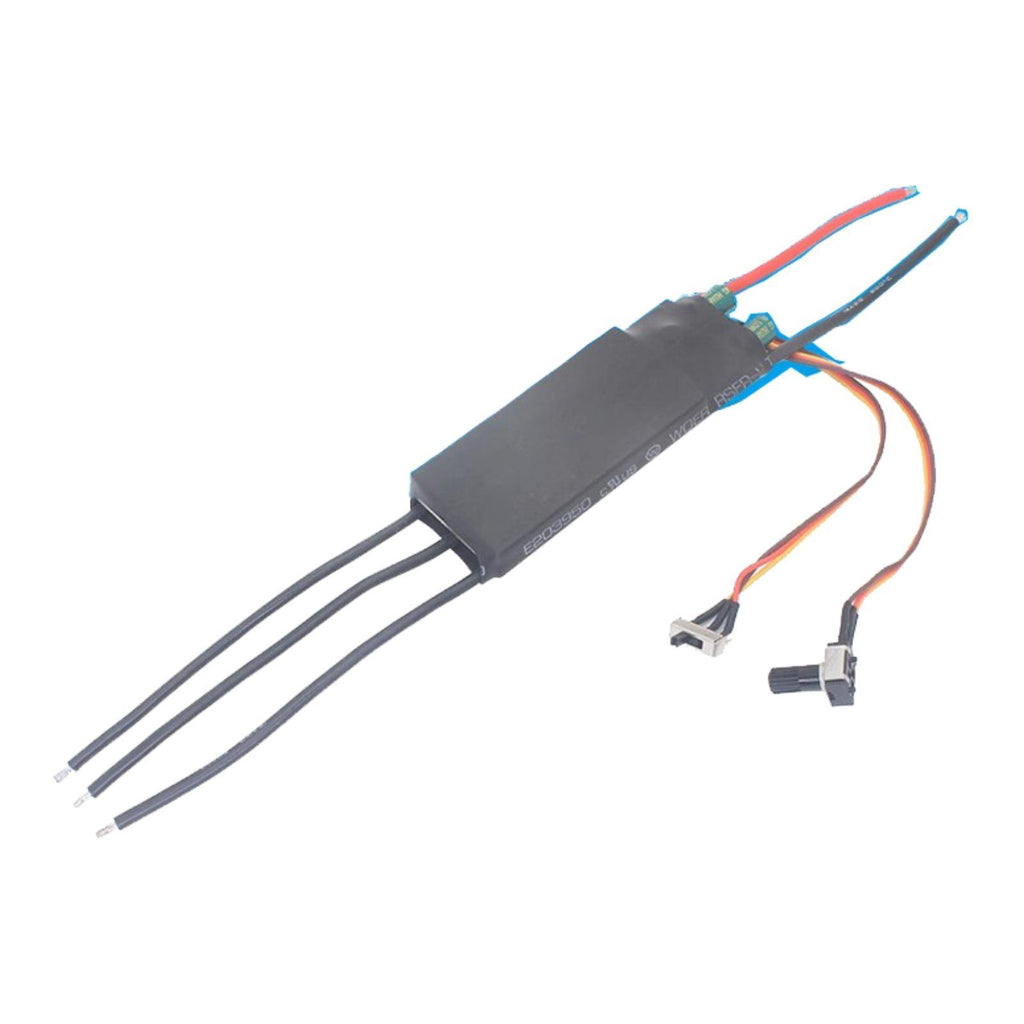

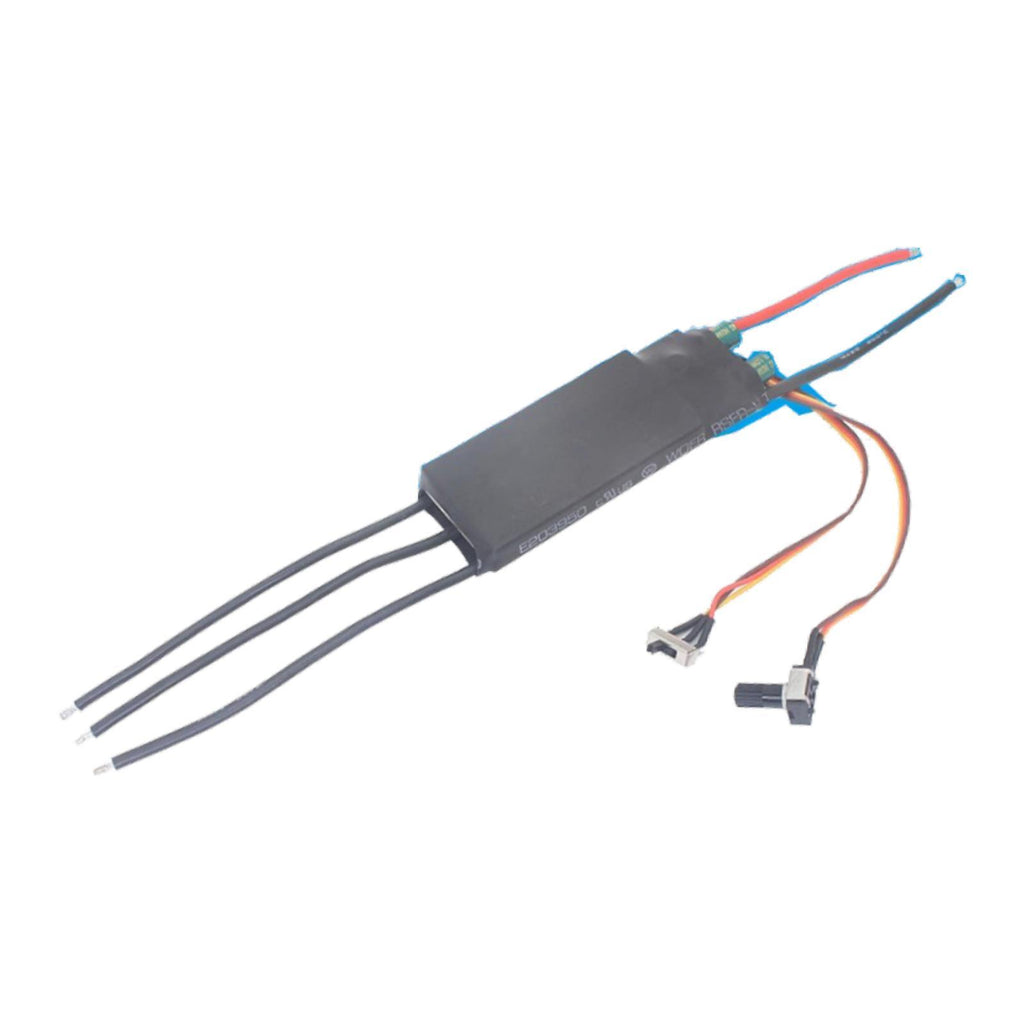

Maxbell 3 Phase DC Brushless Motor Driver Halless DC Motor Drive Board for Oil Pumps
Description:
【High Power Output】: The product features U V W 3-phase DC output, suitable for brushless motors, providing a powerful 1000W performance
【Main Power Supply】: The VCC GND drives the main power supply which can be externally connected to a DC power source, ensuring reliable and continuous operating
【Active Brake Control】: It comes with forward and backward rotation along with active brake control. Connect it to a three-gear switch on the ground for effective low-level maintenance
【Adjustable Speed Control】: This device offers seamless speed adjustment through its standard potentiometer speed control feature. It can also be externally connected to a 0-4.5V analog signal input for speed adjustment
【Sturdy and Compact】: Made from PC material, this device is designed to last long while its compact size (99mm length x 36mm width x 9mm height) makes it easy to install and use in various settings. Package includes 1 piece of the high-speed BLDC electric regulator suitable for air water pump fans
Specification:
Material: PC
Working voltage:DC6V-20V(limit 24V)
Drive current: rated 30A, 50A when air cooling
Power: Rated 600-800W, peak 1000W
Overcurrent protection: yes
Over temperature protection: Yes
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000RPM (14 pole motor).

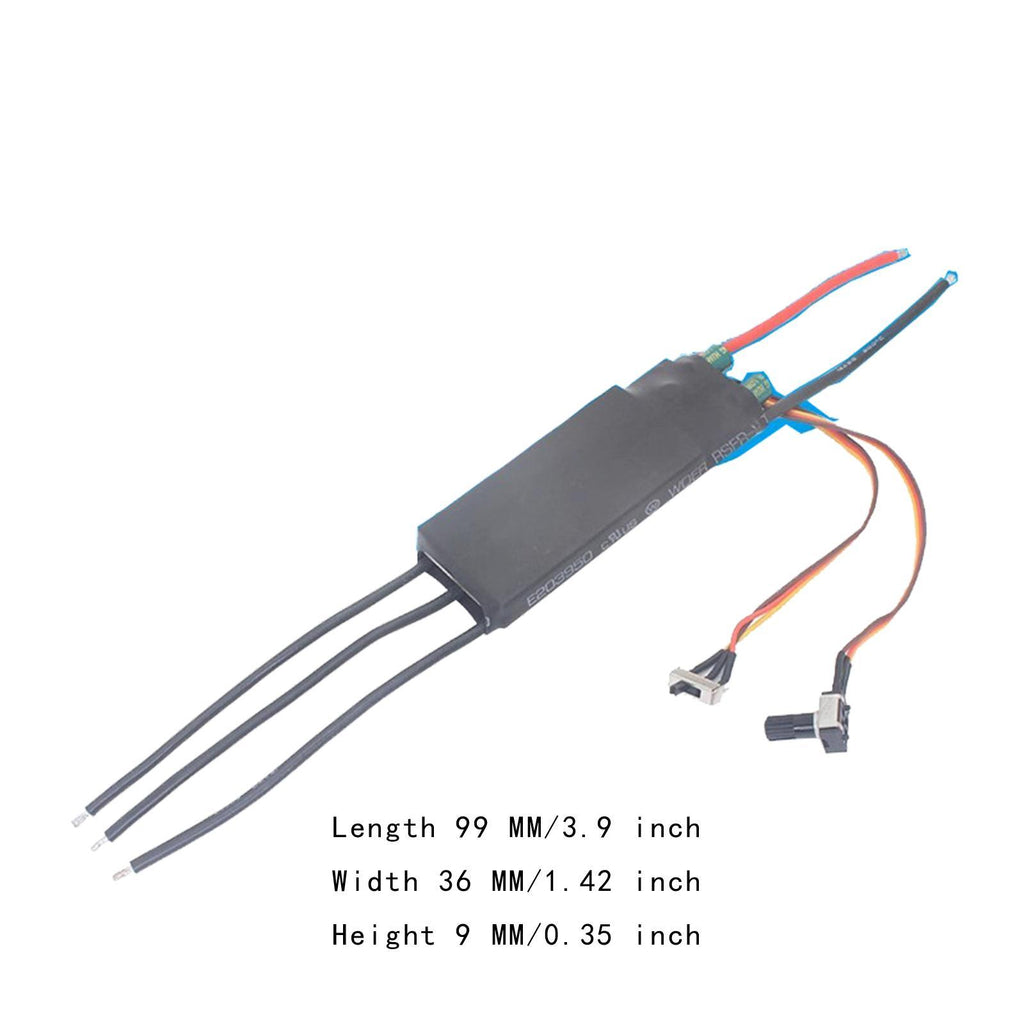

Size Chart:
9.9cmx3.6cmx0.9cm/3.90inchx1.42inchx0.35inch
Package Includes:
1x three-Phase DC Brushless Motor Driver
Note:
Please allow slightly errors due to manual measurement and different monitors.
