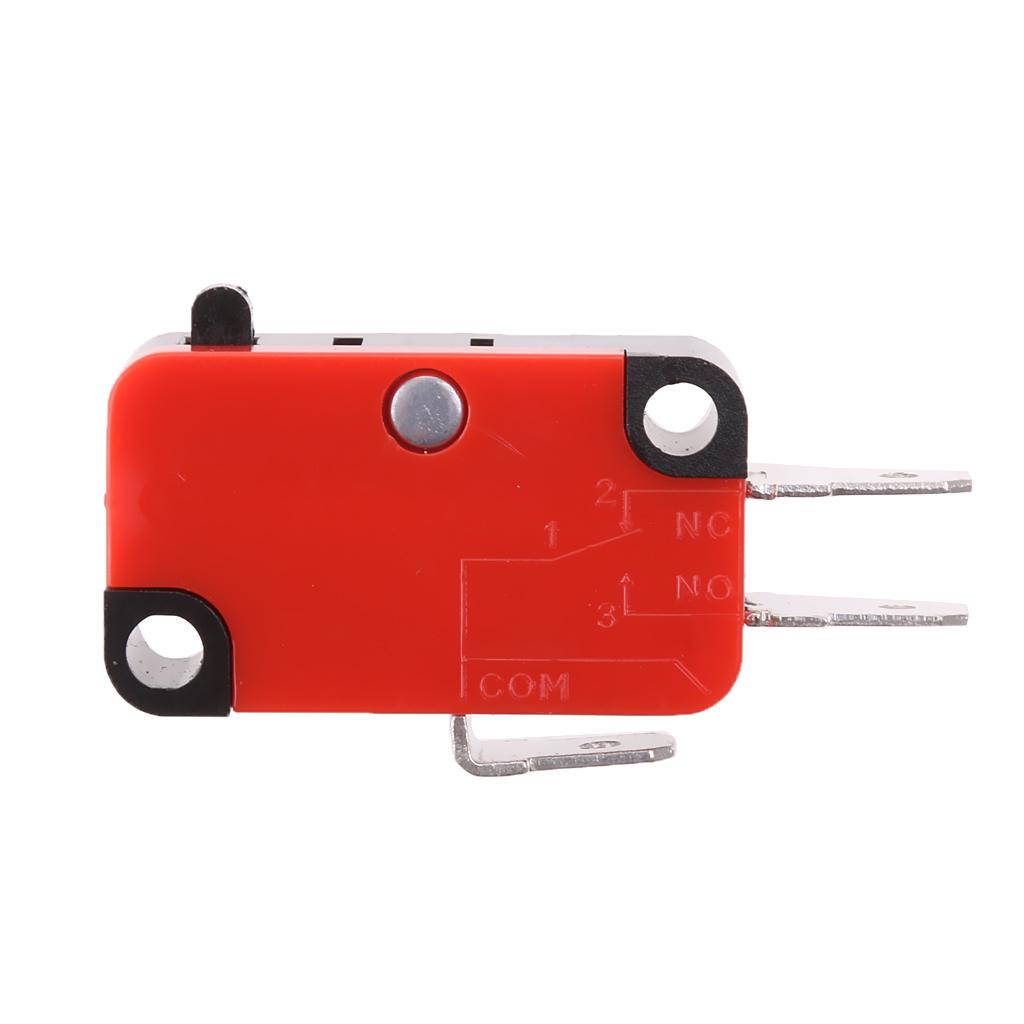

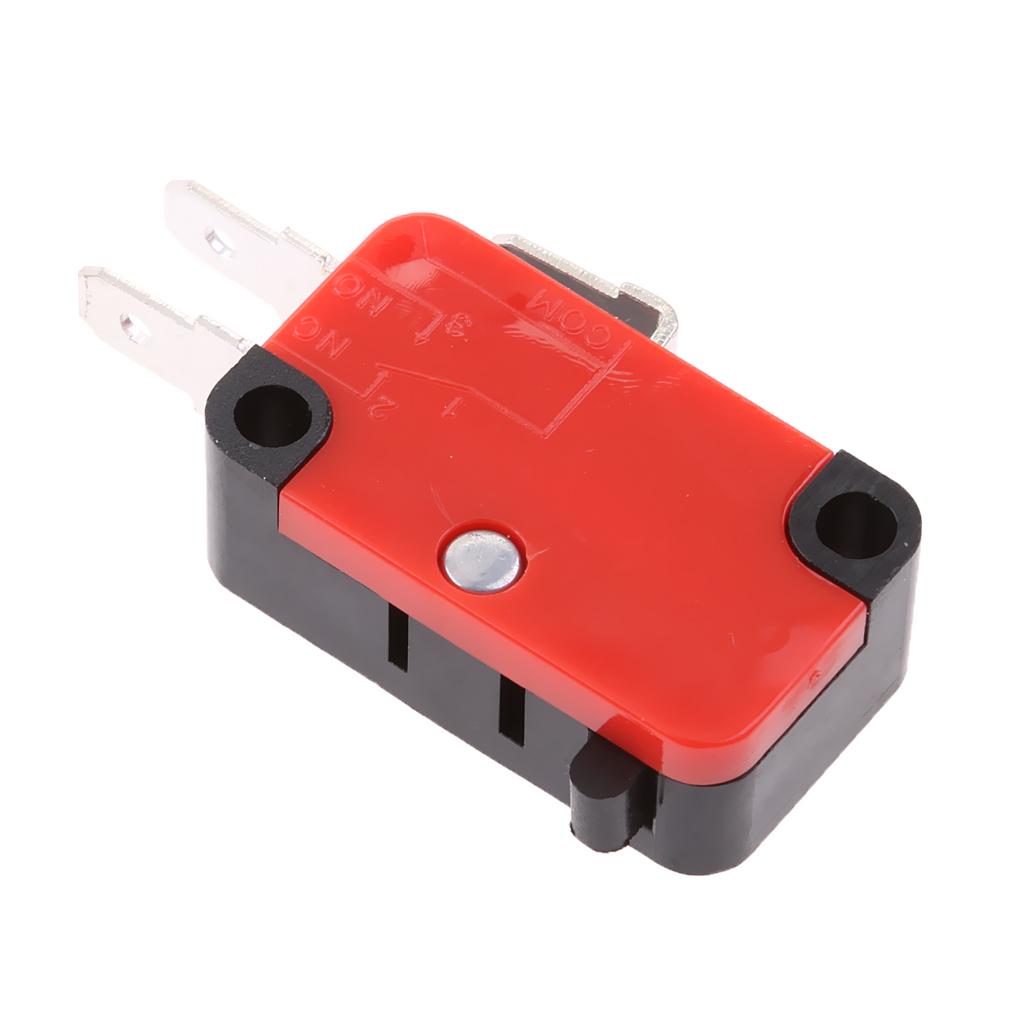

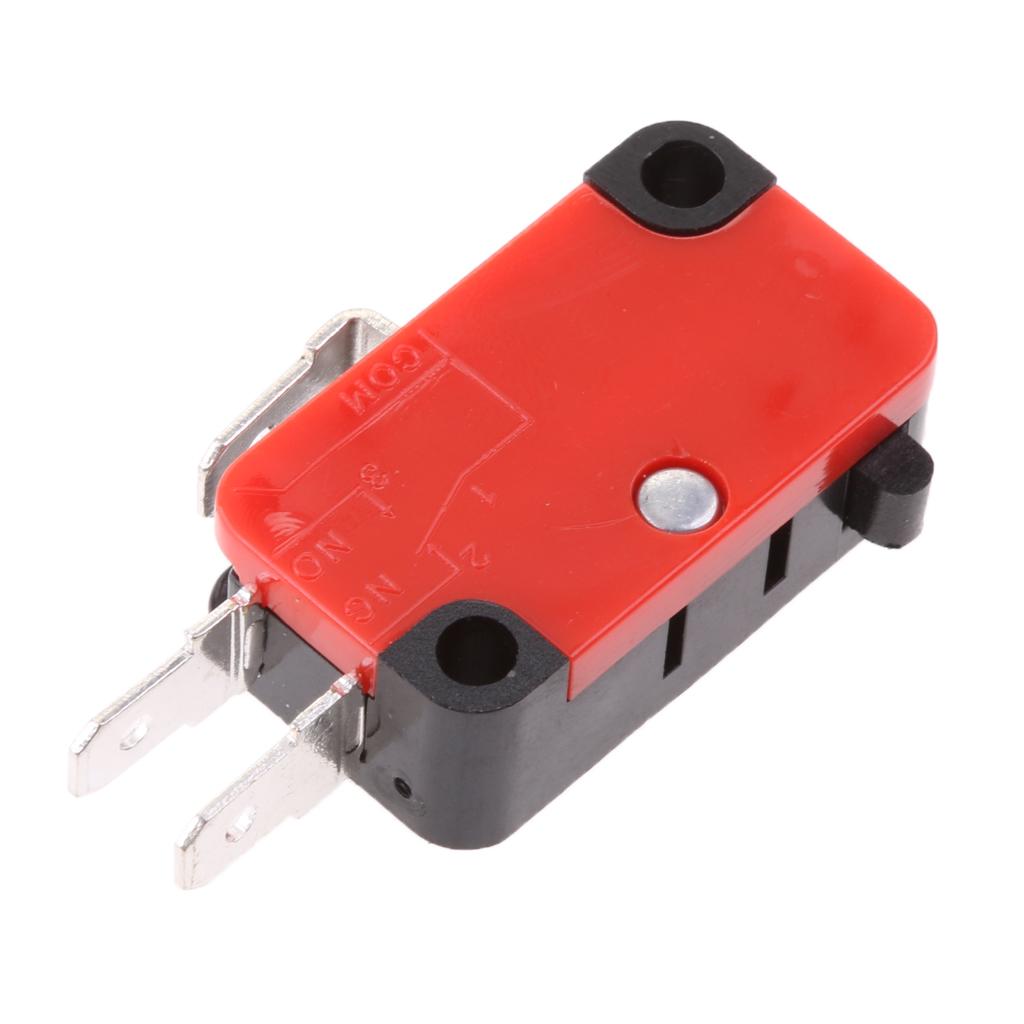

Maxbell 2x15A 250V V-15-1C25 Micro Limit Switch Roller Momentary SPDT Snap
Description:
High precision mechanism design offering acute operation and long life.
Features with Hinge Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Terminals design.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Contact Configuration:1NO,1NC(SPDT)
Specification:
Rating : 15A, 1/2HP, 125/250VAC0.6A,125VDC; 0.3A, 250VDC;
Fixing Holes Dia. : ~0.32cm / 0.13";Button Height : ~0.3cm / 0.12";
Actuator Size : ~2.8 x 0.45cm / 1.1" x 0.18"(L*W)
Terminal Width : ~0.47cm / 0.19"
Type:V-156-1C25
Rating:15A(1/2 HP 125V-250VAV) 0.6A 125VDC 0.3A 250VDC

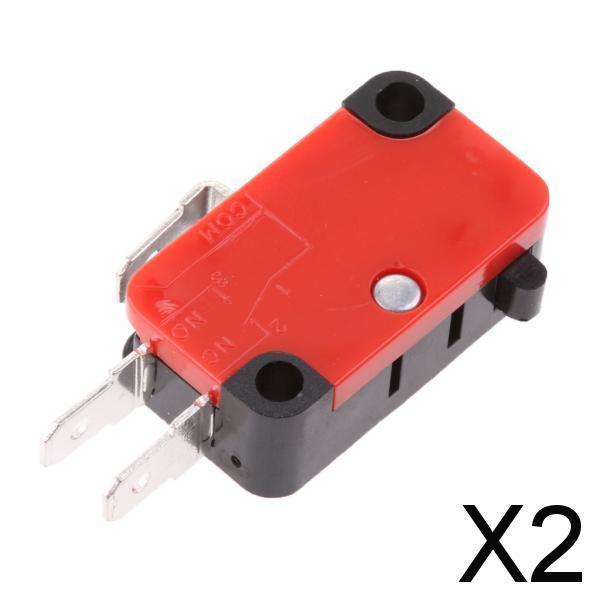

Package Includes:(2 Pack)
1 Piece Limit Switch
Delivery Time: 12-15 Days. Products are directly imported and dispatched from our Hong Kong warehouse. All India Shipping.
Return: If you have received a faulty or damaged product, please contact our support team within 7 days of delivery. We will investigate the issue and provide you with instructions on how to return the product for a replacement or a full refund.
Please Note: This is going to be a closed delivery, so if you want open delivery then it will not be possible and you can cancel your order by writing us at: support@aladdinshoppers.com before dispatch of your order.
Tracking Information will be sent to you once your product is dispatched.
