Maxbell 2430 Sensorless Brushless Motor with 25A ESC for 1/16, 1/18 RC Off-Road Car

Description:

• Motor
• Features:
• 4 poles Hi-torque motor design.
• CNC machined 6061 T6 billet alumium heatsink can.
• High purity copper windings maximizes efficiency.
• High RPM ABEC5 oversized bearings.
• Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
• Precision balanced rotor, smoothness for best reliability and maximum RPM.
• Stator - Super Thin (0.35mm) laminations.
• Removable/replaceable.
• Precision engineered for maximum energy conversion.

• Specification:
• RPM: 7200KV
• Max Current: 24A
• Max Watts: 200W
• Can Size: 2430
• Sensored: No
• Can Diameter: 24mm
• Can Length: 30mm
• Shaft Diameter: 2mm
• Shaft Length: 12mm
• Bullet Connector: 3.5mm
• Weight: 45.5g/1.6oz
• Max voltage: 7.4V(2S)

• Note: there's some little error from human measuring.

• Electric Speed Controller
• Features:
• Compatible with sensorless brushless motors.
• High anti-interference capability.
• Using advanced software interface to set up or update the software.
• Super smooth and accurate throttle linearity.
• Fast response to throttle input.
• Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
•
• Specifications:
• Cont. Current: 25A
• Burst Current: 90A/10sec
• Battery: 2 Cell Lipo / 4-6 Cell NiMh
• BEC: Yes
• BEC Output: 5V/1A
• Power Supply Plugs: T Male
• Motor Plugs: Female 3.5mm Bullet Connector
• Size: 40*27*15mm
• Weight: 29g /1oz

Package Includes:

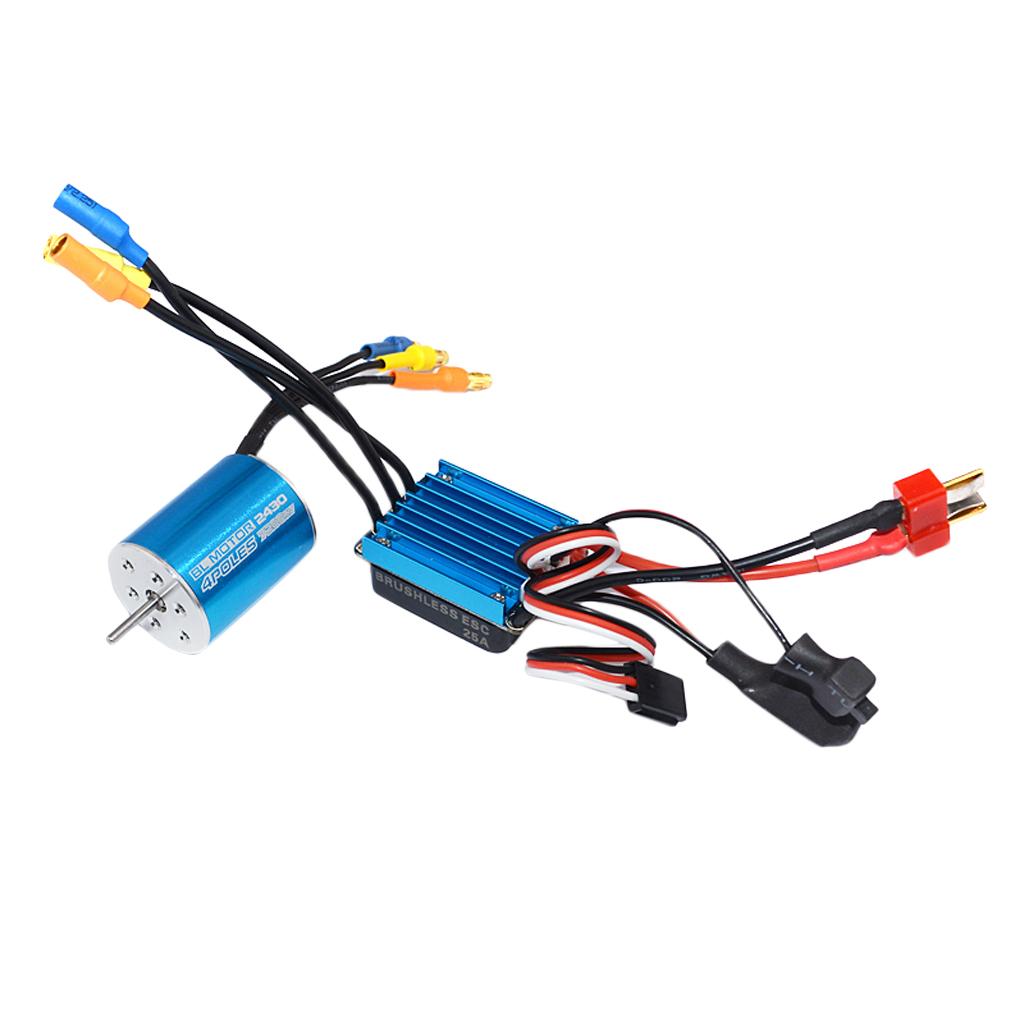

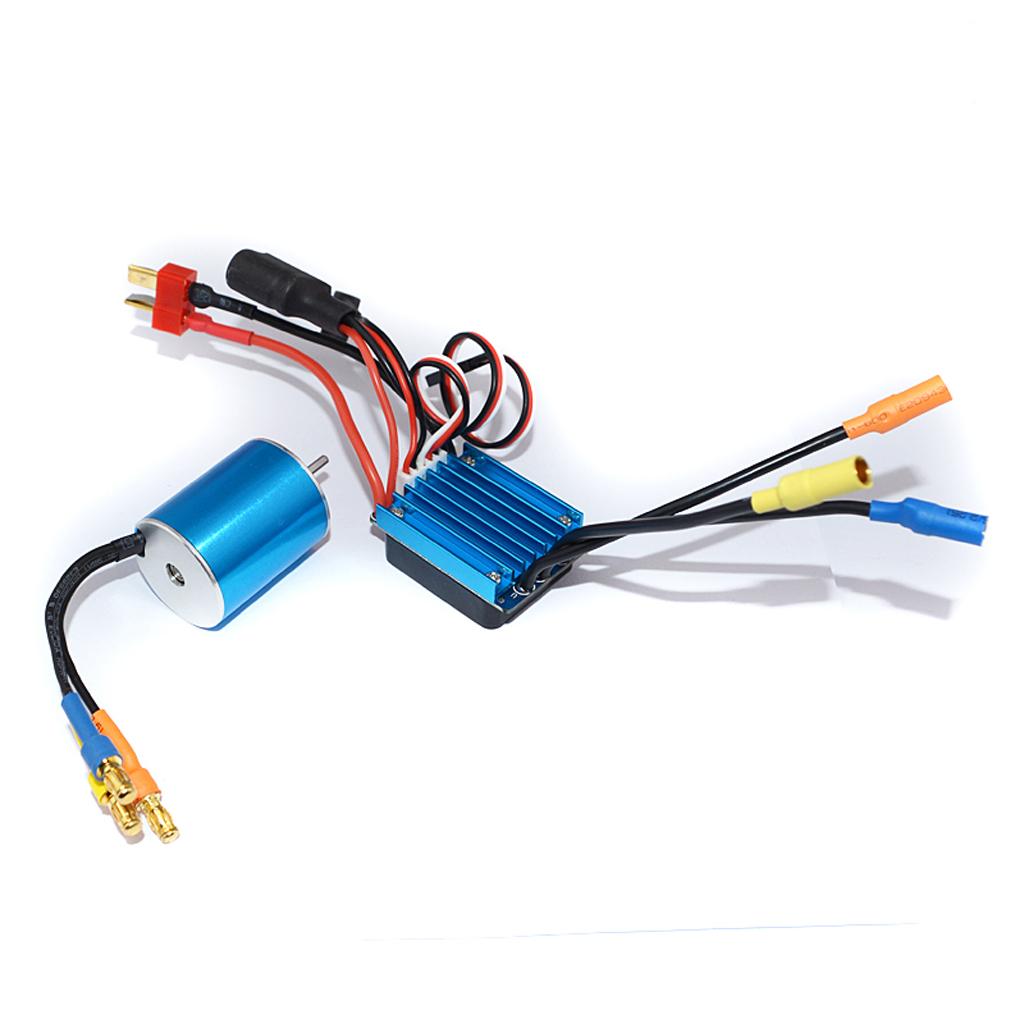

• 1 x 2430 7200KV 4P Sensorless Brushless Motor
• 1 x 25A Brushless Electric Speed Controller

Note:

• Size for manual measurement, there may be a 0 to 1 cm error, belongs to the normal phenomenon.
• Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you!
