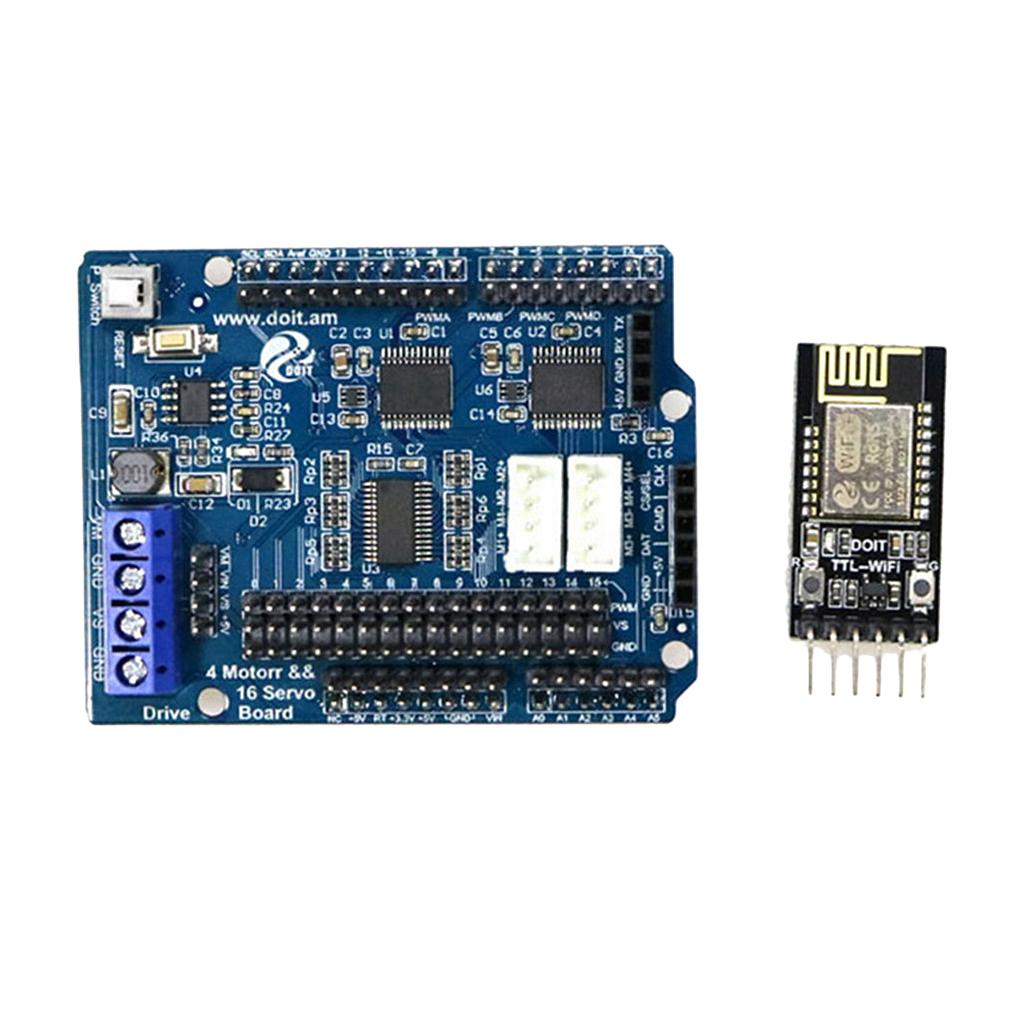

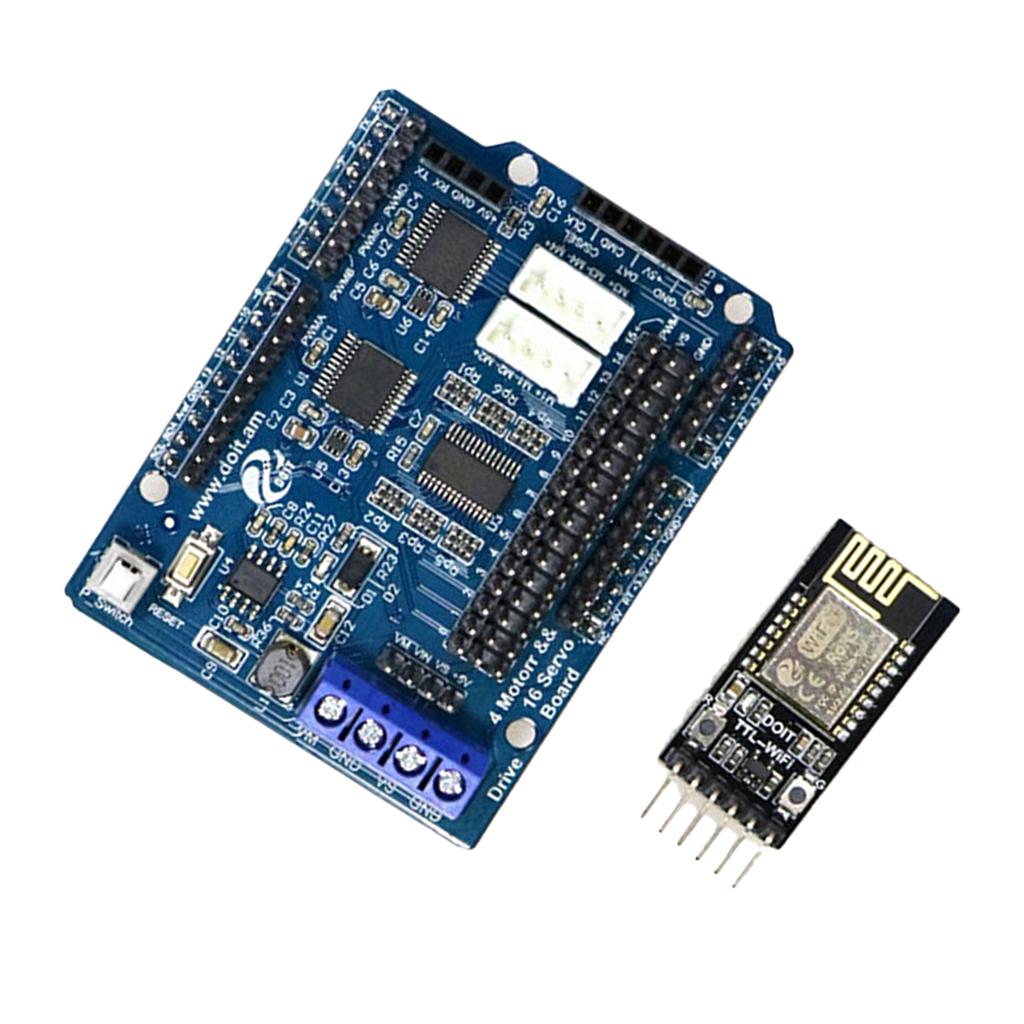

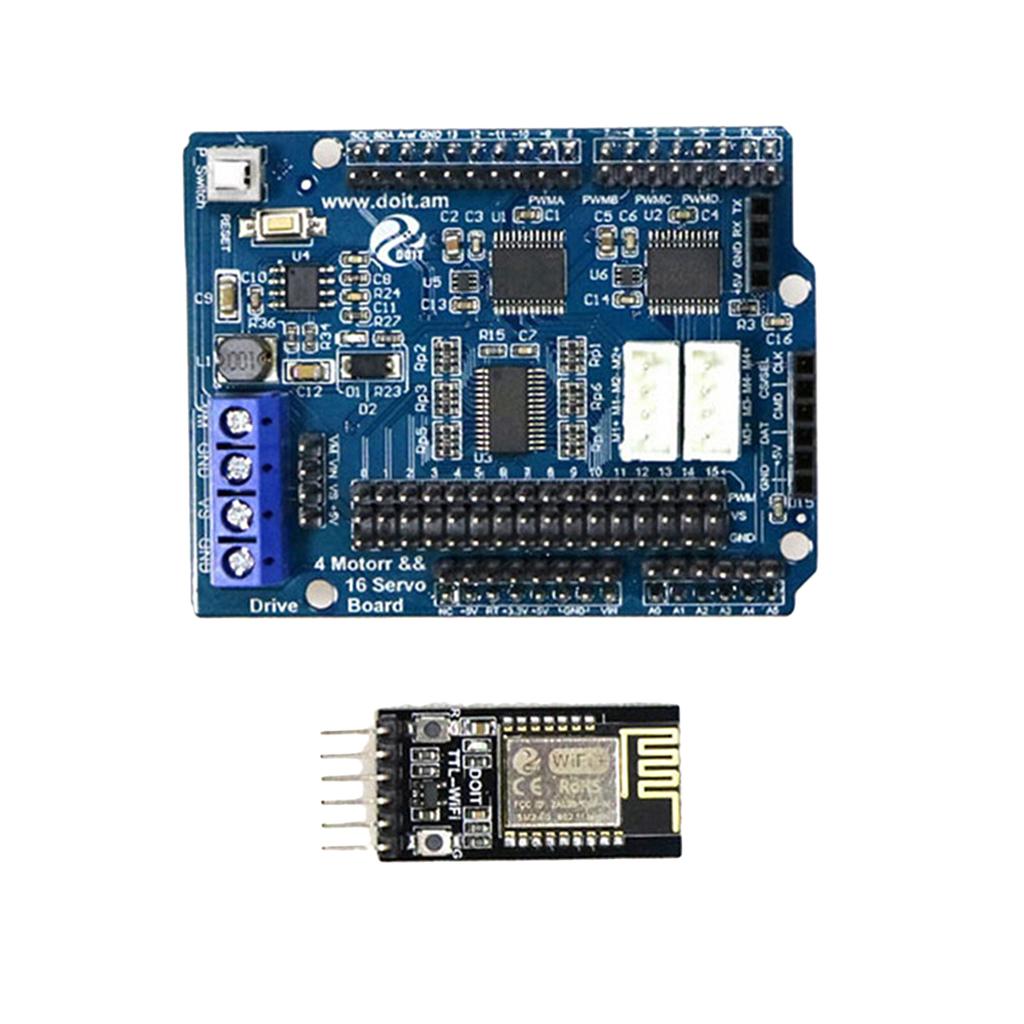

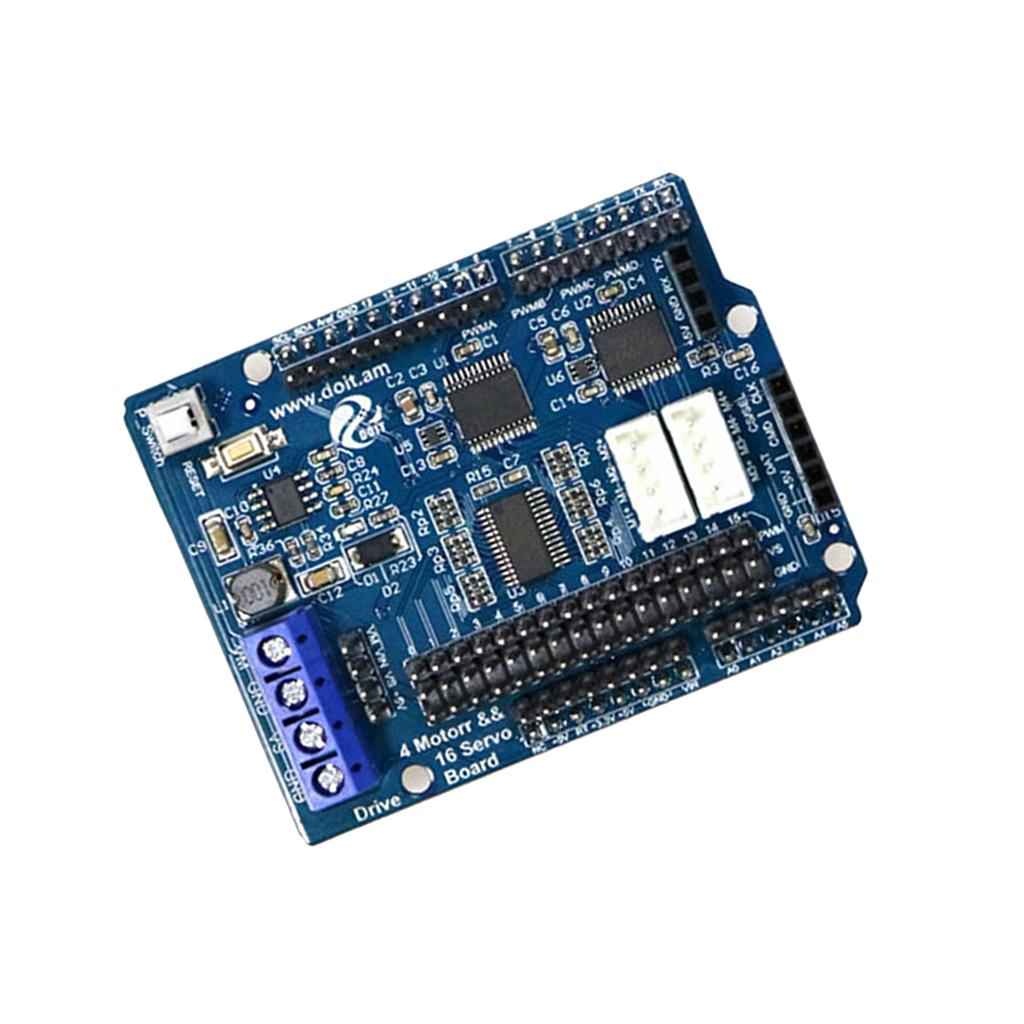

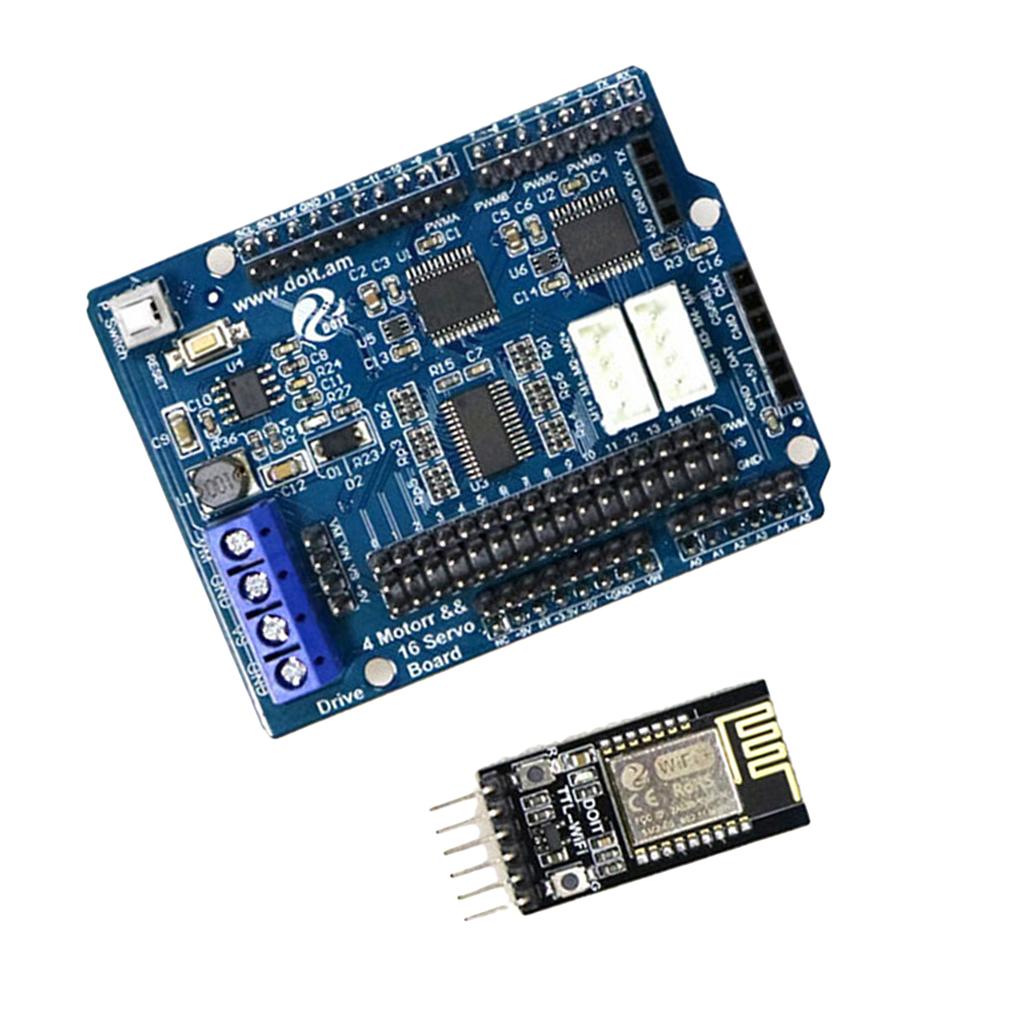

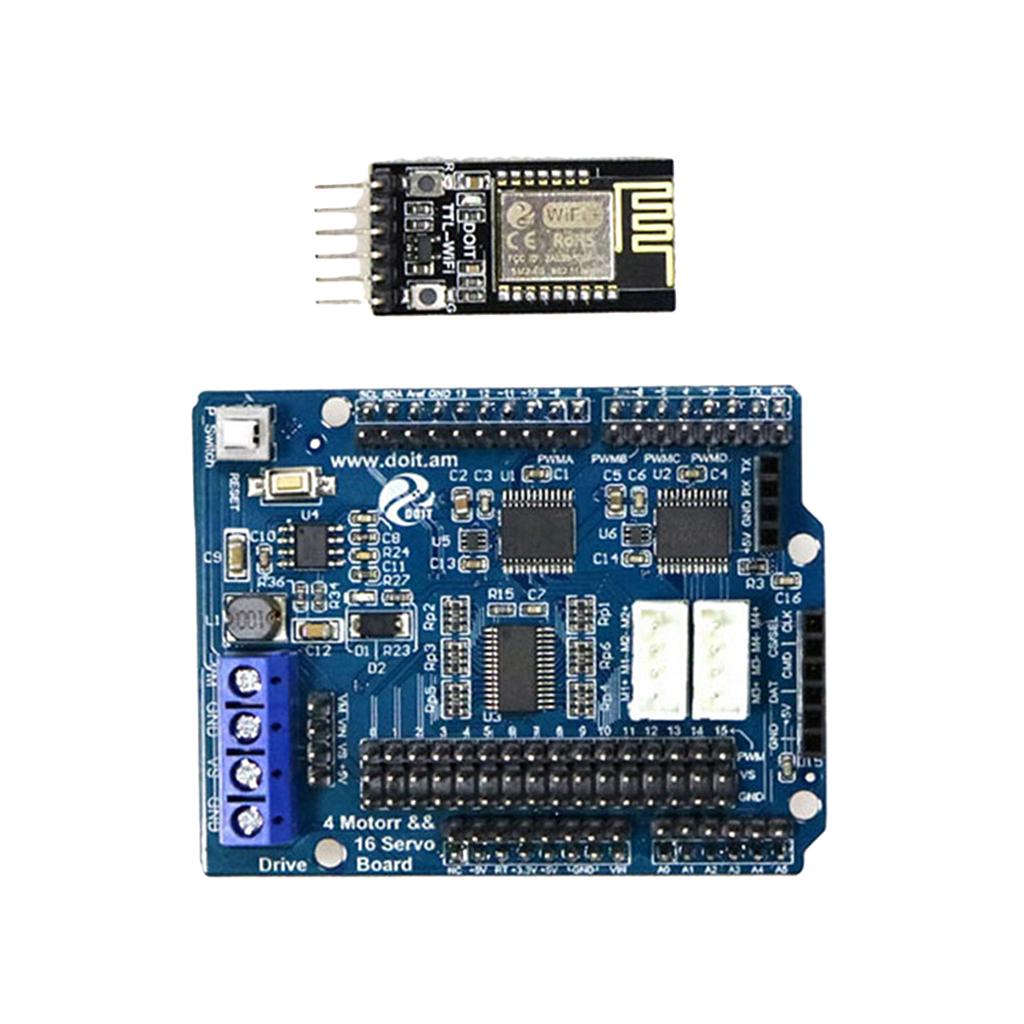

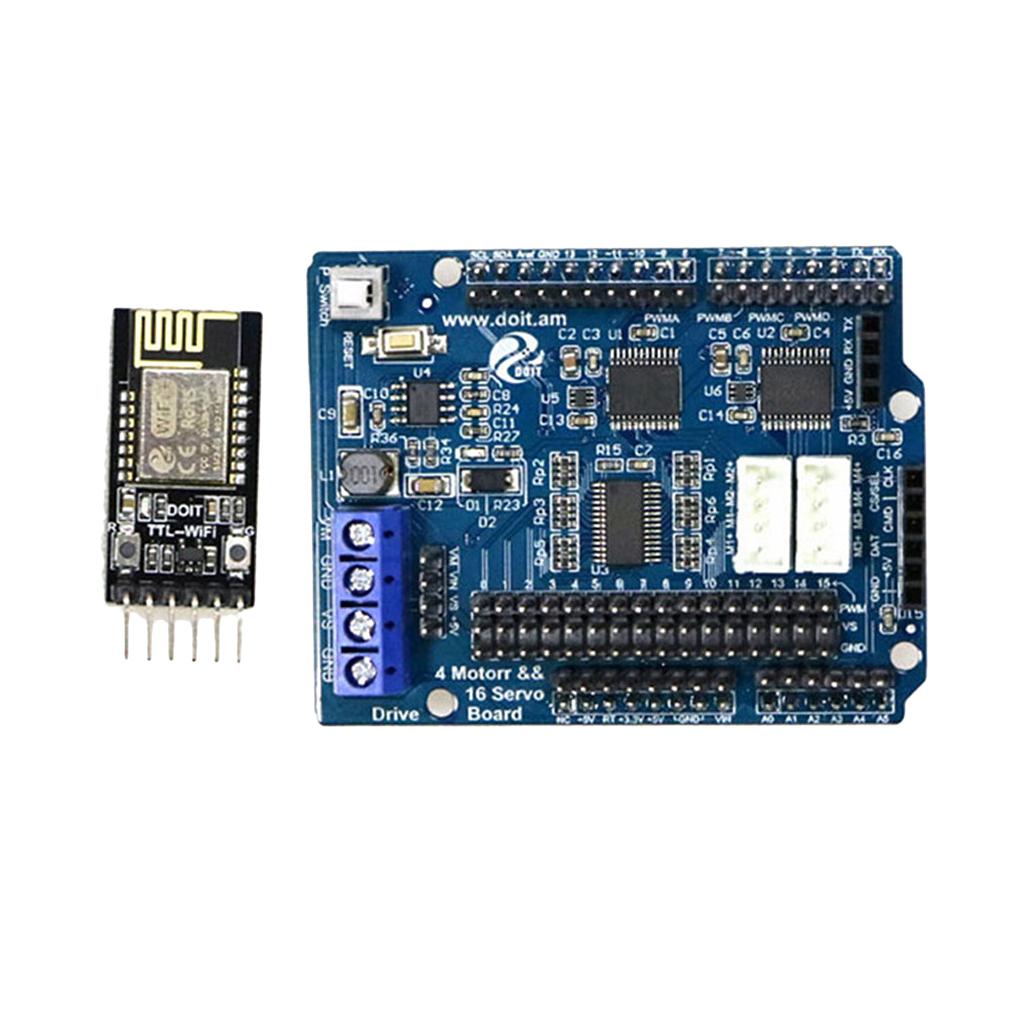

Max 2/4 DC Motor 16-Way Servo Drive Board Arduino Motor Drive Board+WiFi Module
Description:
Compatible with arduino.
Simultaniously control 4-CH DC motor and 16-CH servo.
Controlled by wifi (-06), Bluetooth (HC-06), and PS2 station.
Best choice for robot tank car chassis and robot arm.
Using TB6612 4-road drive, PCA9685 for 16-road servo control.
Independent research and development, powerful, ultra-low power consumption, can achieve rapid development.
Specification:
Size: 68x52x20mm/2.68x2.05x0.79inch.
Bring out the Arduino UNO I/O pin.
Max input voltage of the power supply is 15V DC.
Reserve Bluetooth & WIFI module sockets.
Reserve PS2 handle socket.
4 road DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak.
Drive a load of about 3-5kg.
Package Includes:
1x 2/4 Motor Drive Board
2x Motor Line
1x WiFi Module (Optional)
1x Bluetooth Module (Optional)
