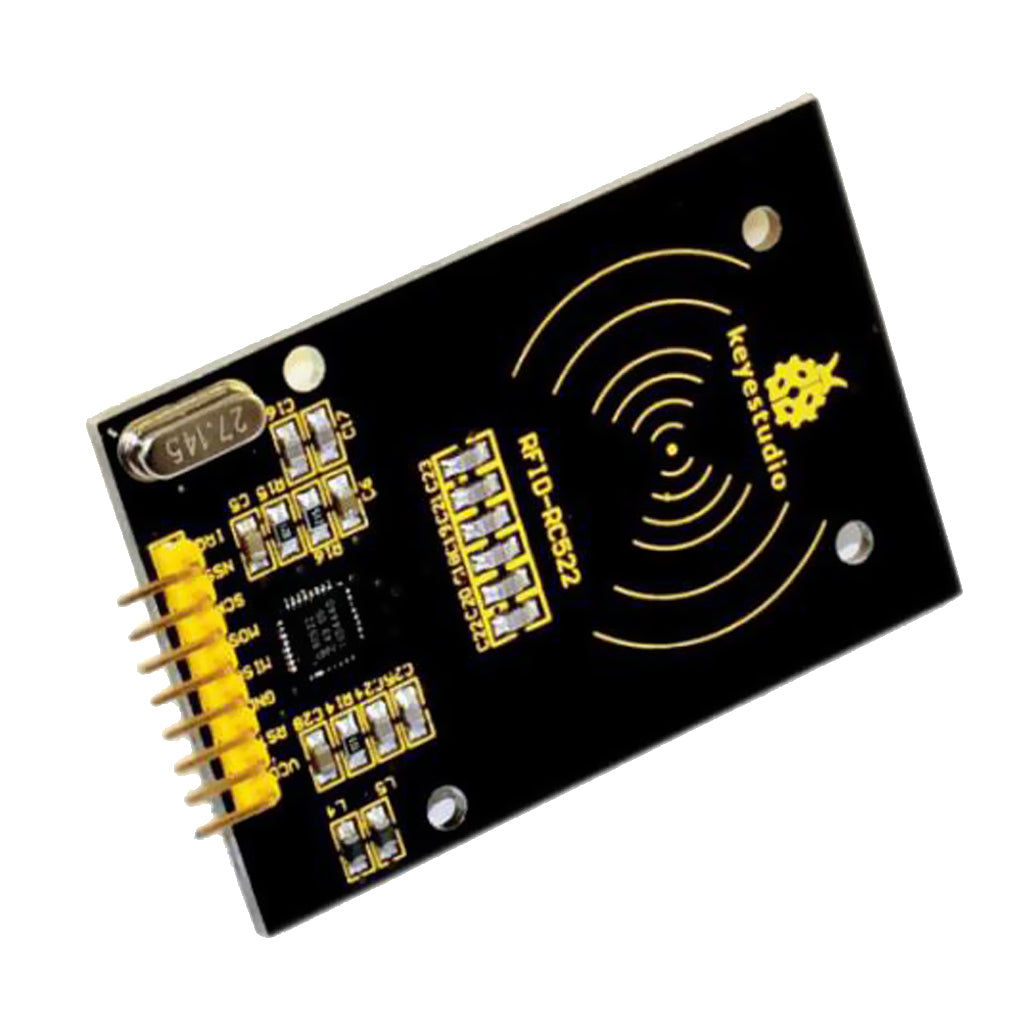

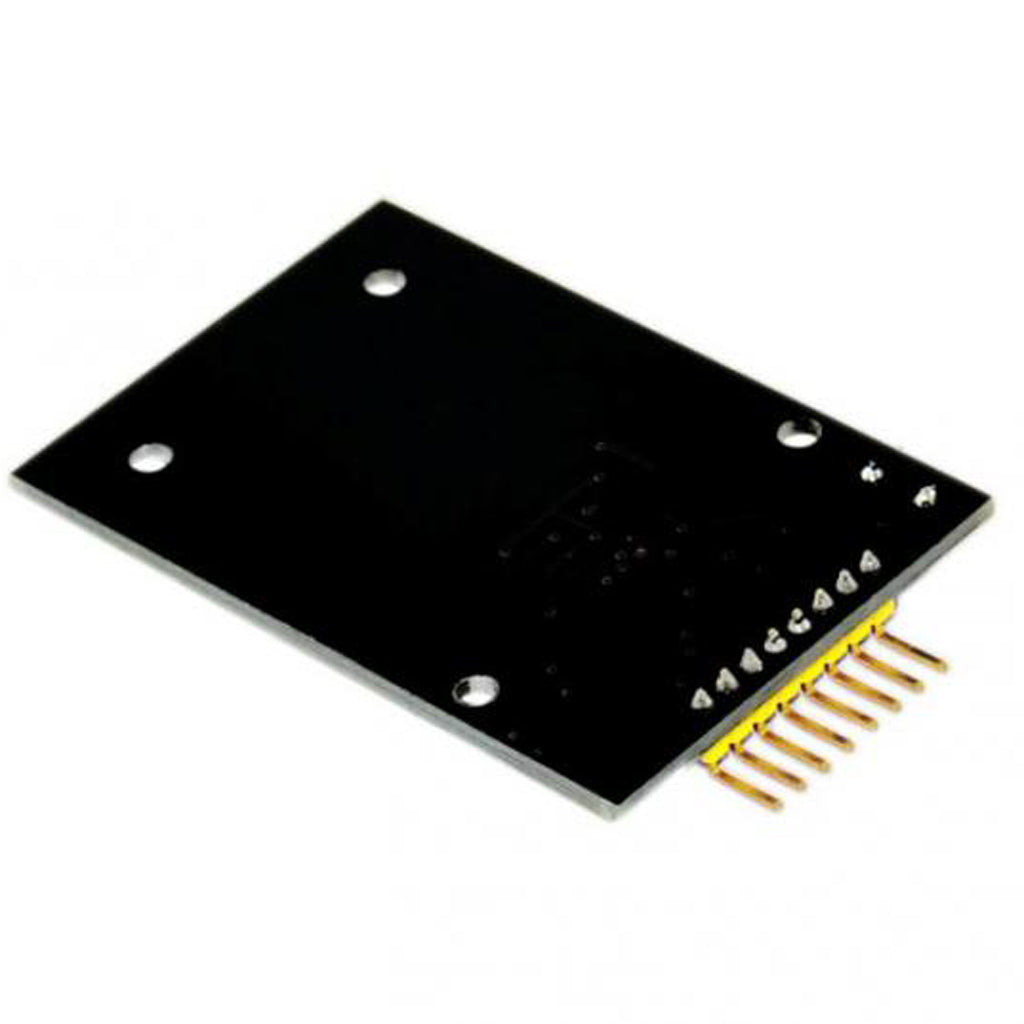

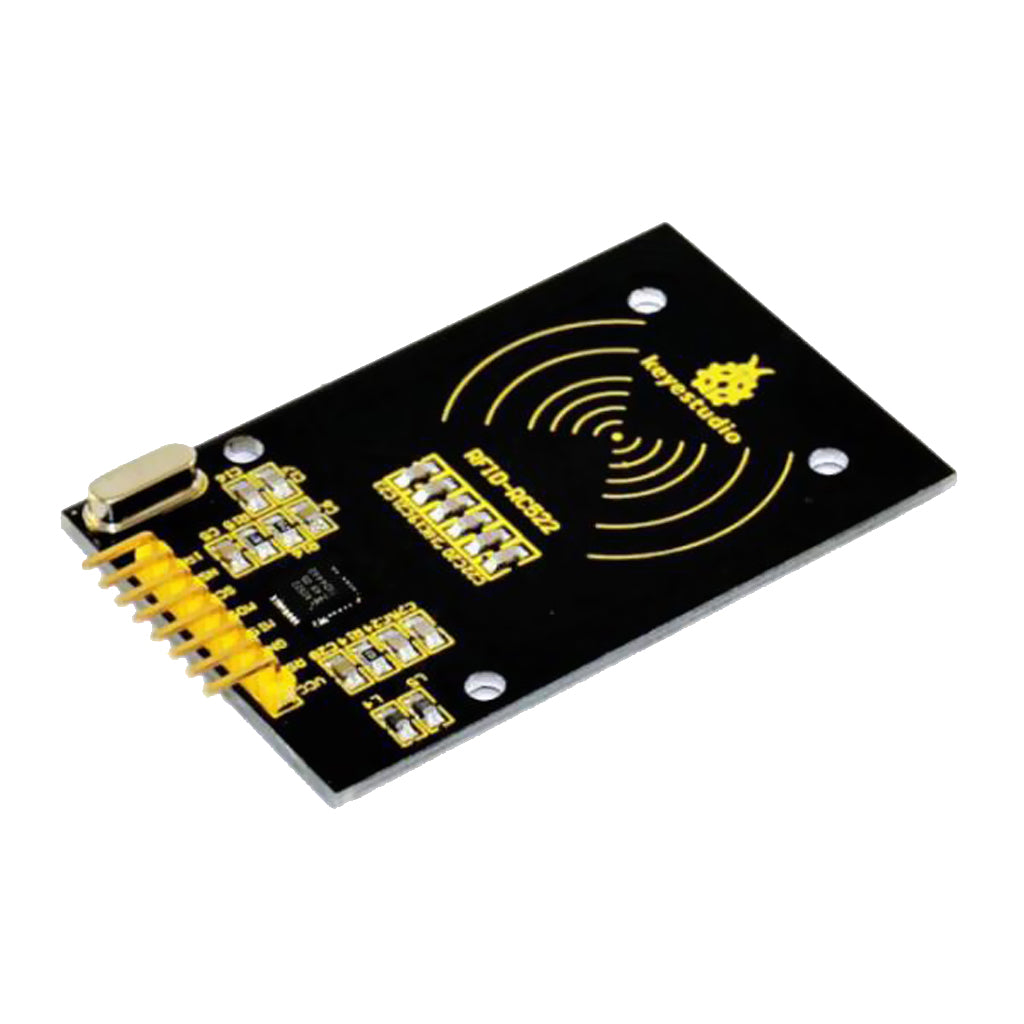

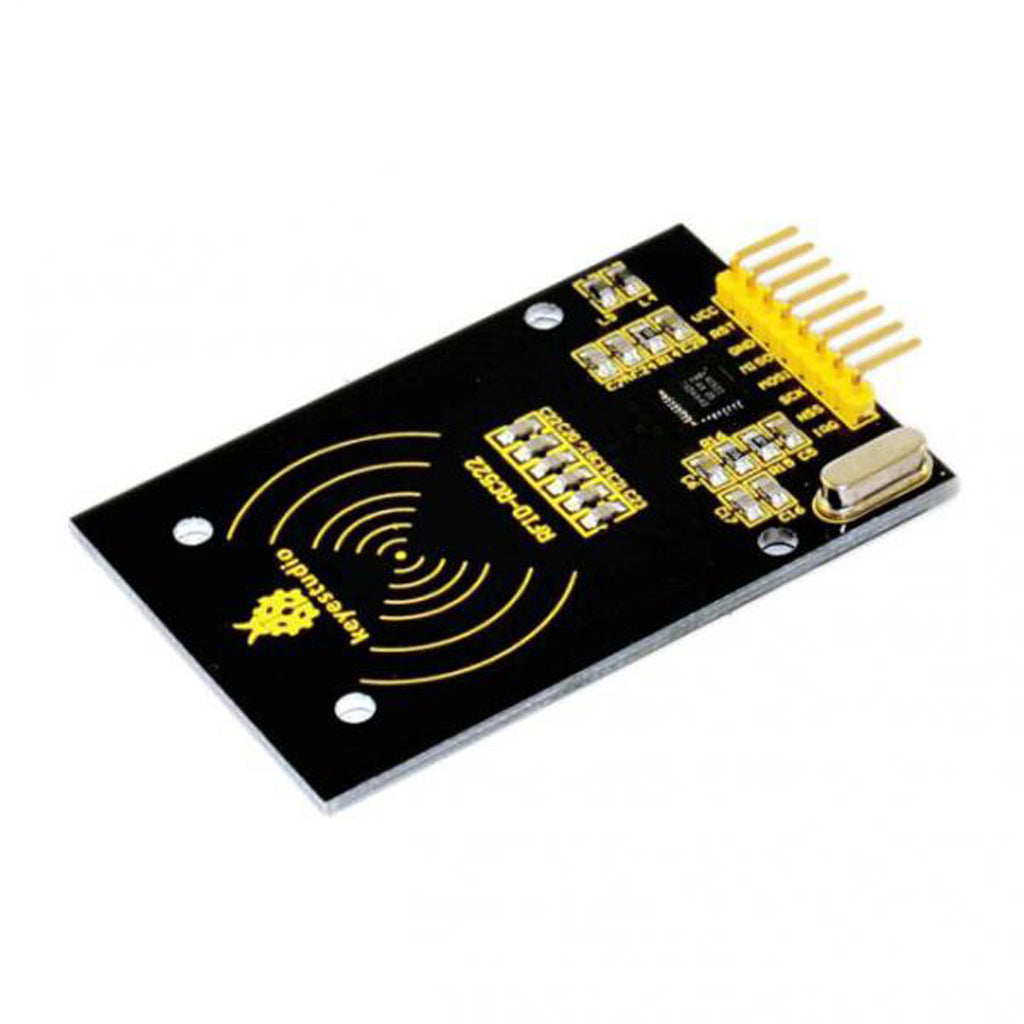

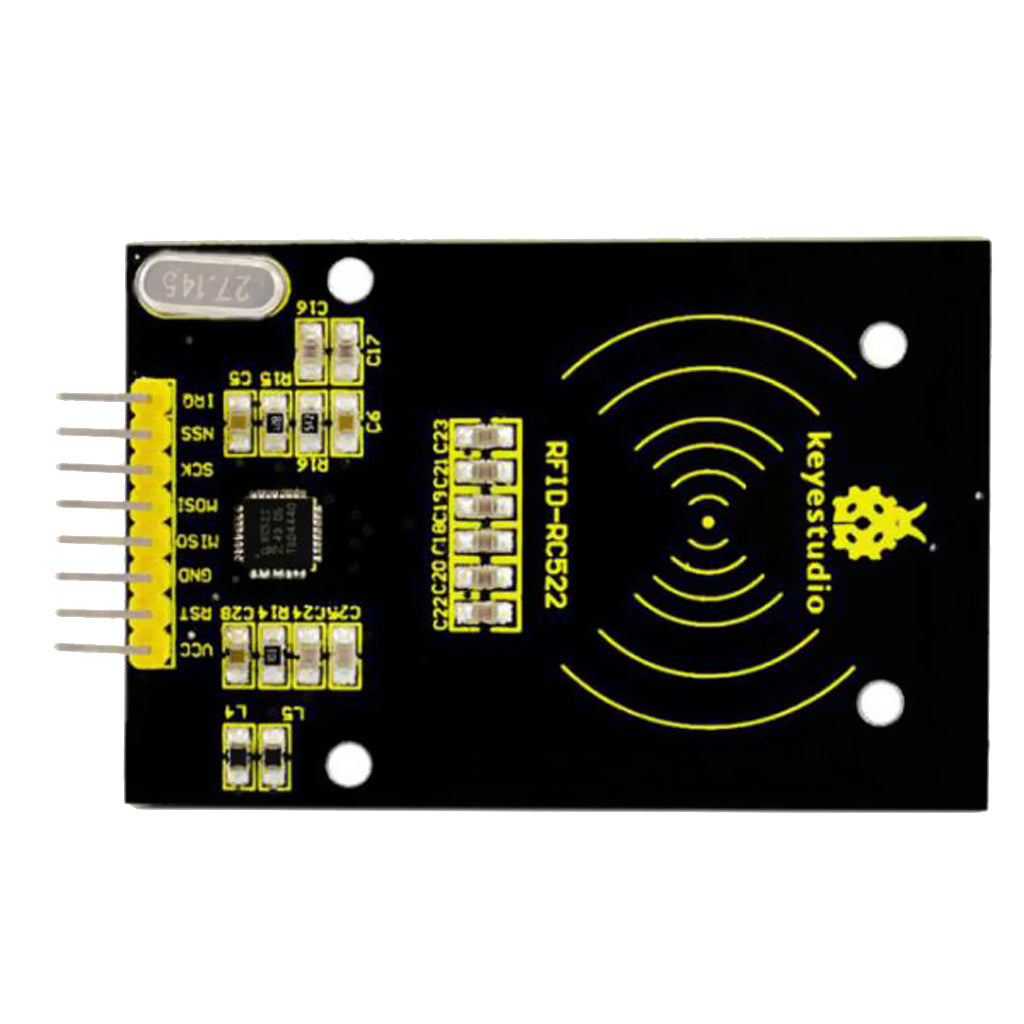

Maxbell 1pc Keyestudio RC522 RFID Module for Arduino 13.56MHz

Description:

• Current :13-26mA / DC 3.3V
• Idle Current :10-13mA / DC 3.3V
• Sleep current: <80uA
• Peak current: <30mA
• Operating Frequency: 13.56MHz

Specification:

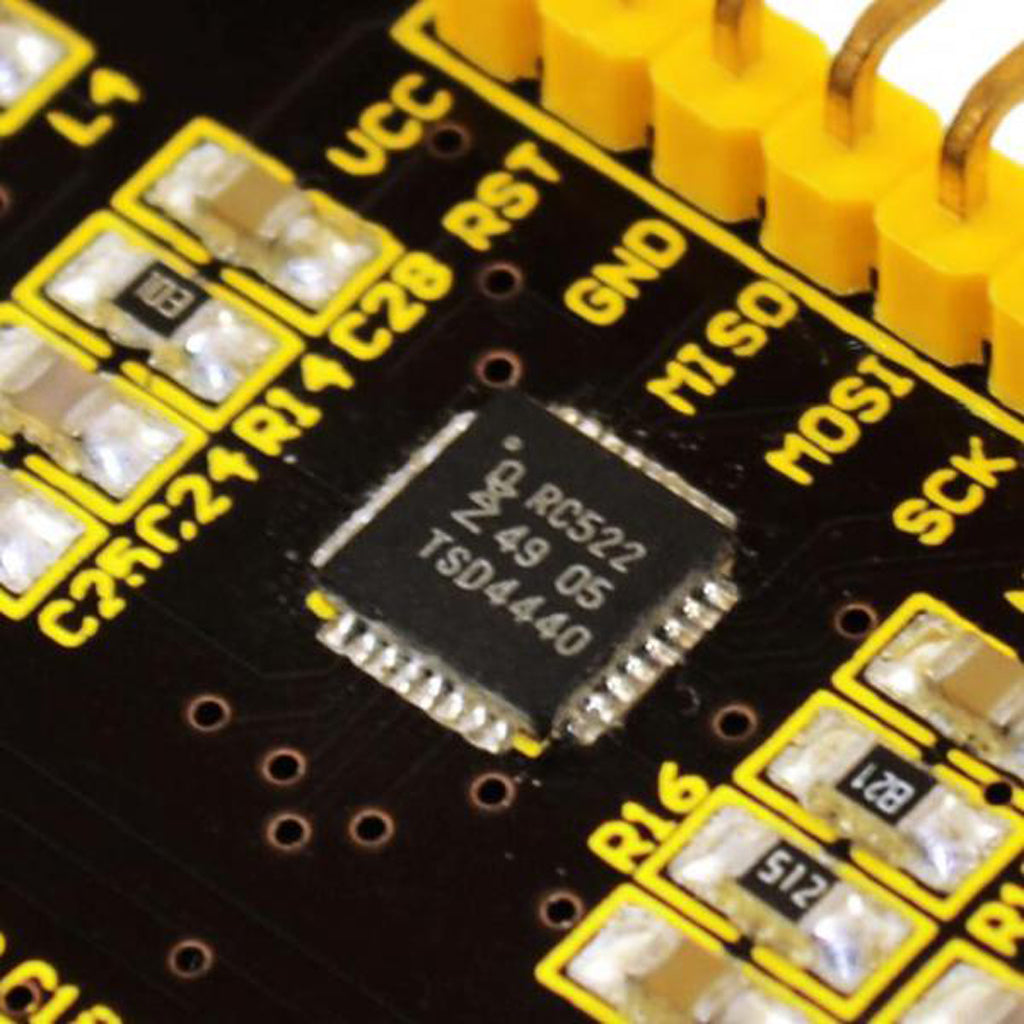

• MF522-AN module adopts Philips MFRC522 original reader circuit chip design, easy to use, low cost, suitable for equipment development, development of advanced applications such reader users, the need for RF card terminal design / production of the user. This module can be loaded directly into a variety of readers molds. Module uses voltage of 3.3V, through the SPI interface simple few lines can be directly connected to the user any CPU board communication module can guarantee stable and reliable work, reader distance;
• Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
• Environmental Operating temperature: -20-80 degrees Celsius
• Environment Storage temperature: -40-85 degrees Celsius
• Relative Humidity: 5% -95%
• Size: Approx. 6.8x4 x 0.7cm/ 2.68x 1.57x 0.28inch

Package Includes:

• 1x RFID Module

Note:

• Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
