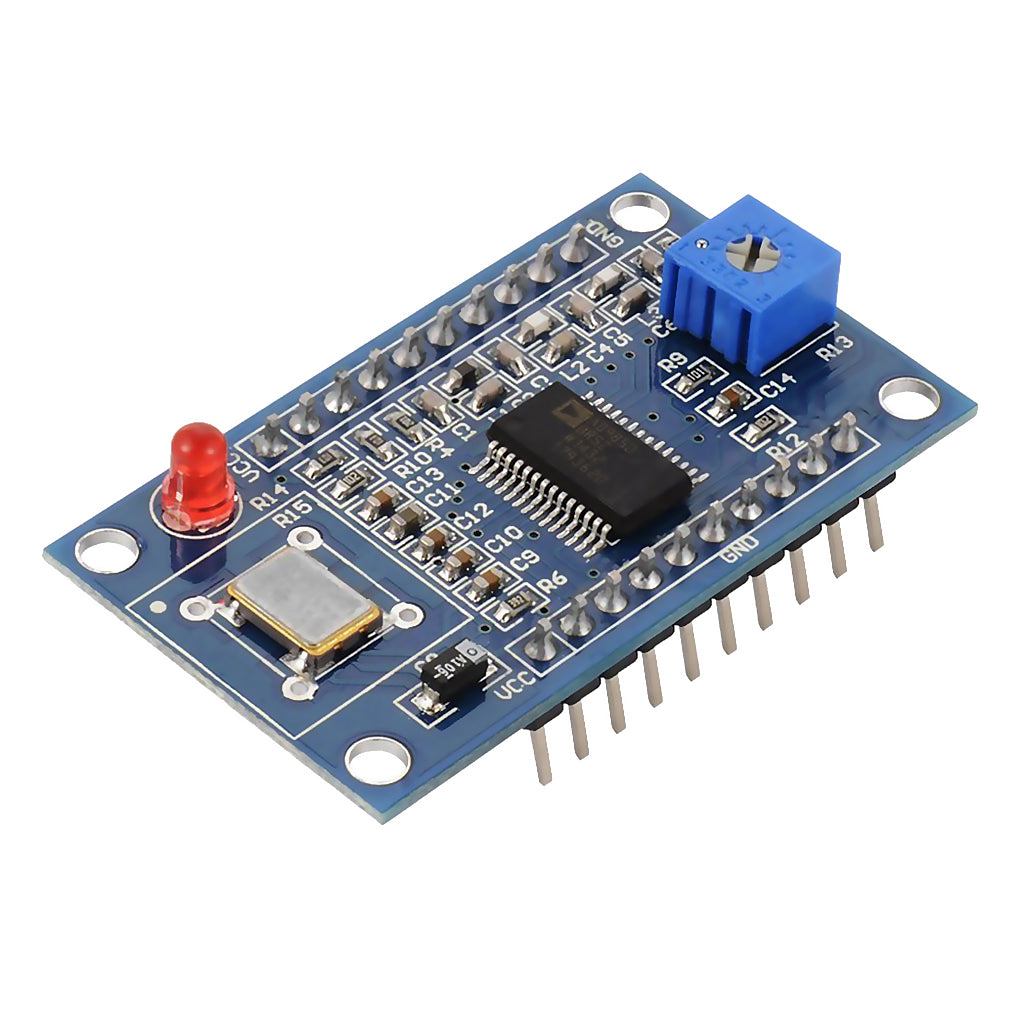

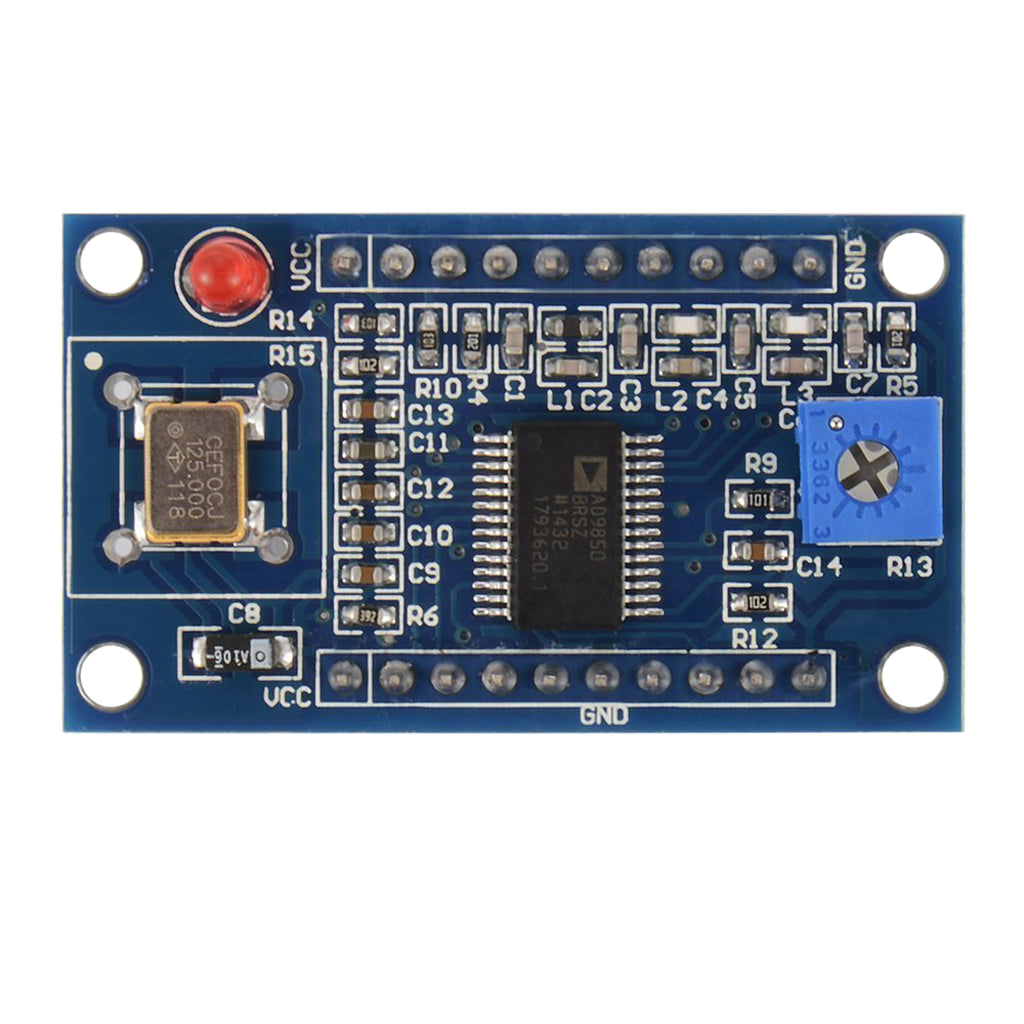

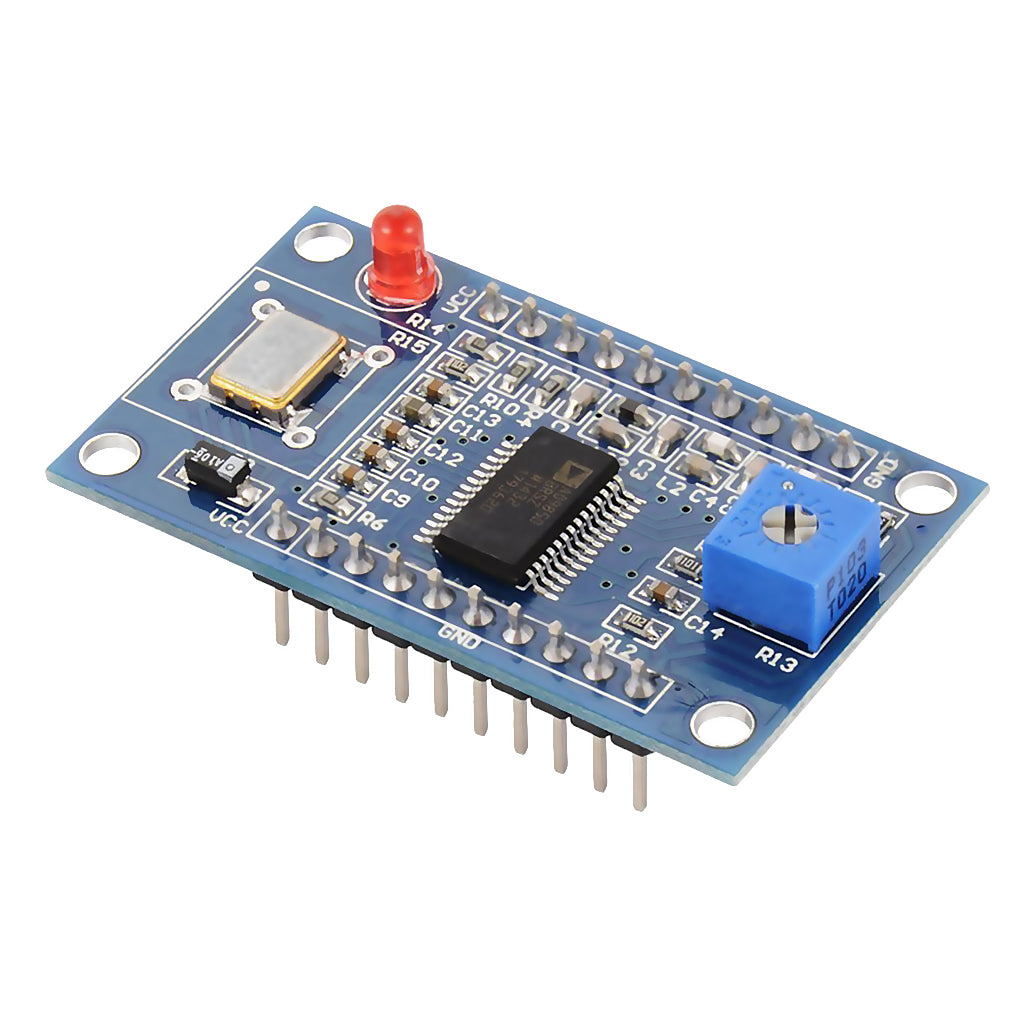

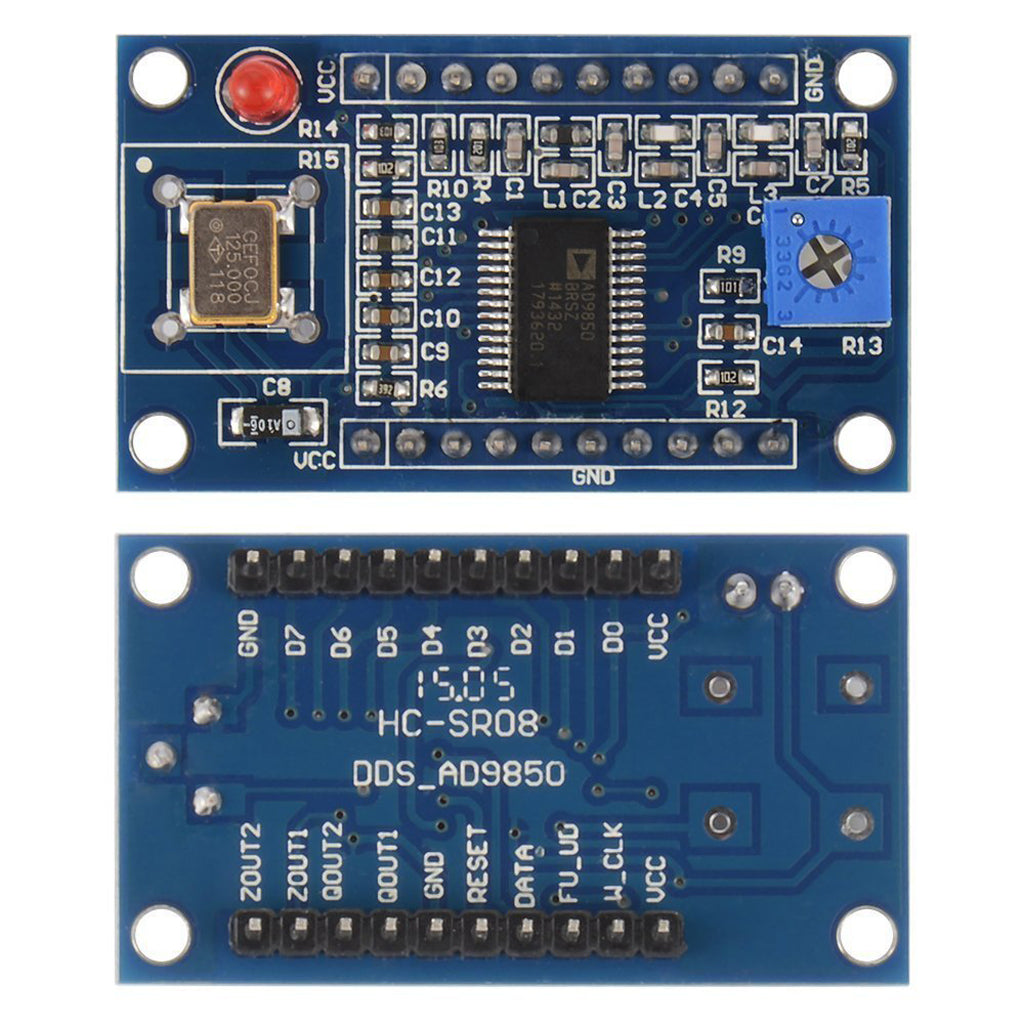

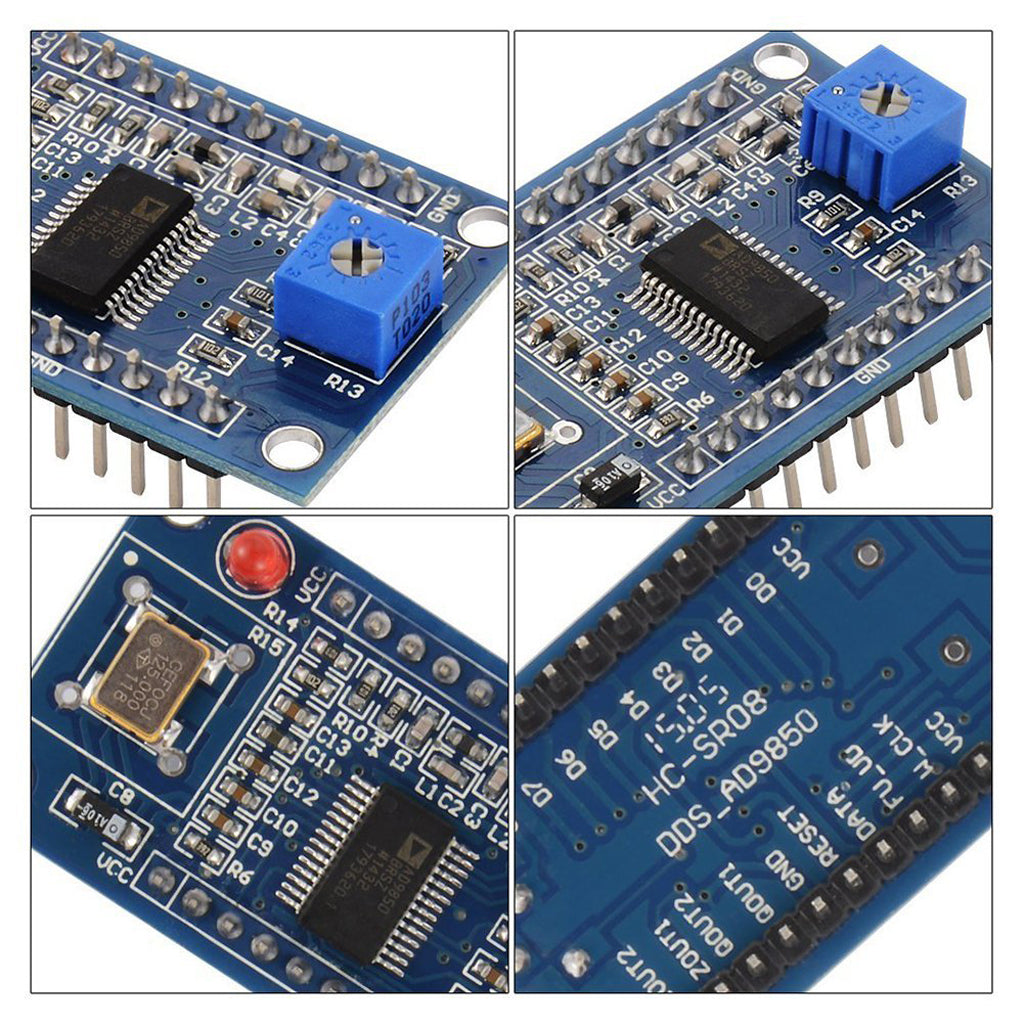

Maxbell 1pc AD9850 DDS Signal/Function Generator Module Digital Tester 0-40Mhz
Description:
Module can output sine wave and square wave, two sine wave and two square wave output. AD9850: 0-40MHz
70MHz low-pass filter, the waveform SN better
Pin that generates DA reference (PIN12) leads to amplitude adjustment applications for output waveforms.
Comparator's reference input voltage is generated by a variable resistor, which regulates the resistance to get a different duty cycle square wave
The AD9850 module uses a 125MHz active crystal
AD9850 clock frequency up to 125MHz
Specification:
Material: PCS Board
Color: As picture show

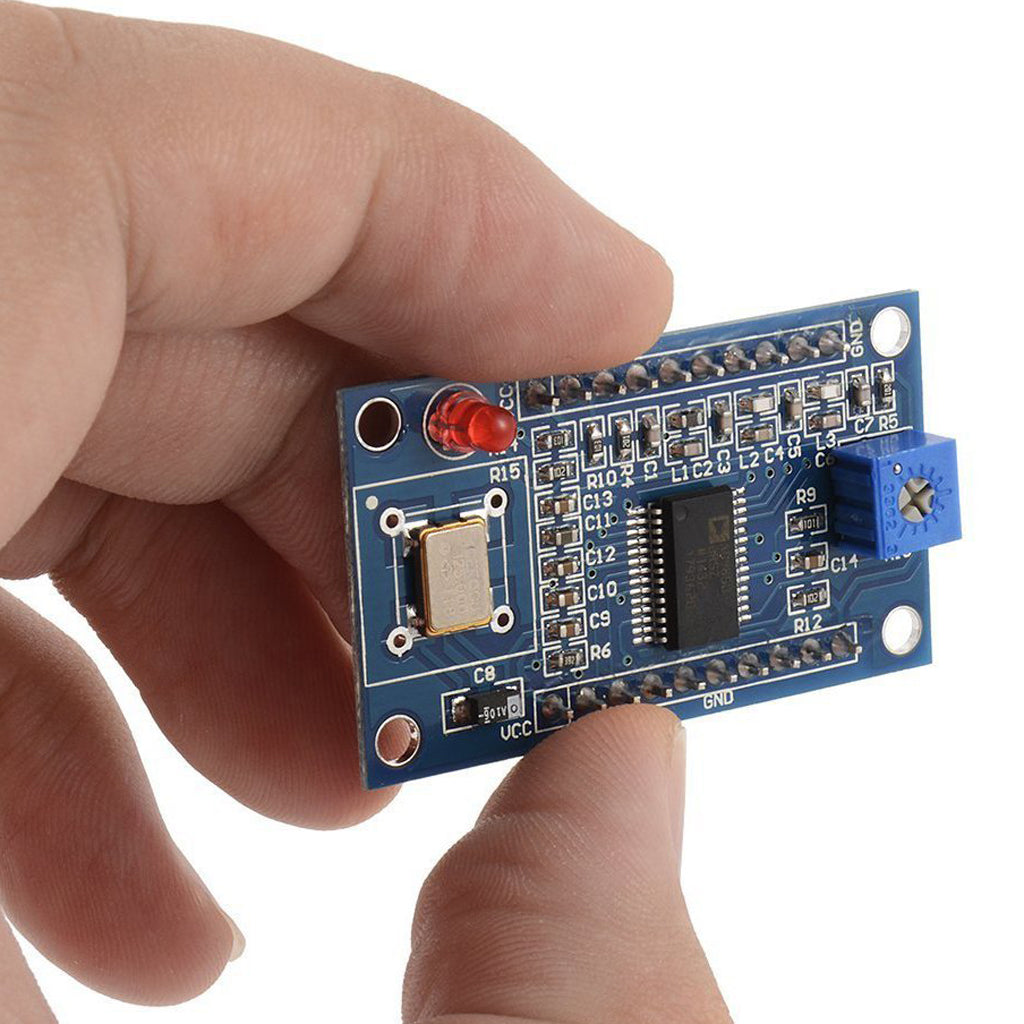

Size: Approx. 4.5x2.6cm/1.77x1.02inch
Package Includes:
1 piece DDS Signal Generator Module
Note:
Due to the light and screen setting difference, the item's color may be
slightly different from the pictures. Please allow slight dimension
difference due to different manual measurement.
