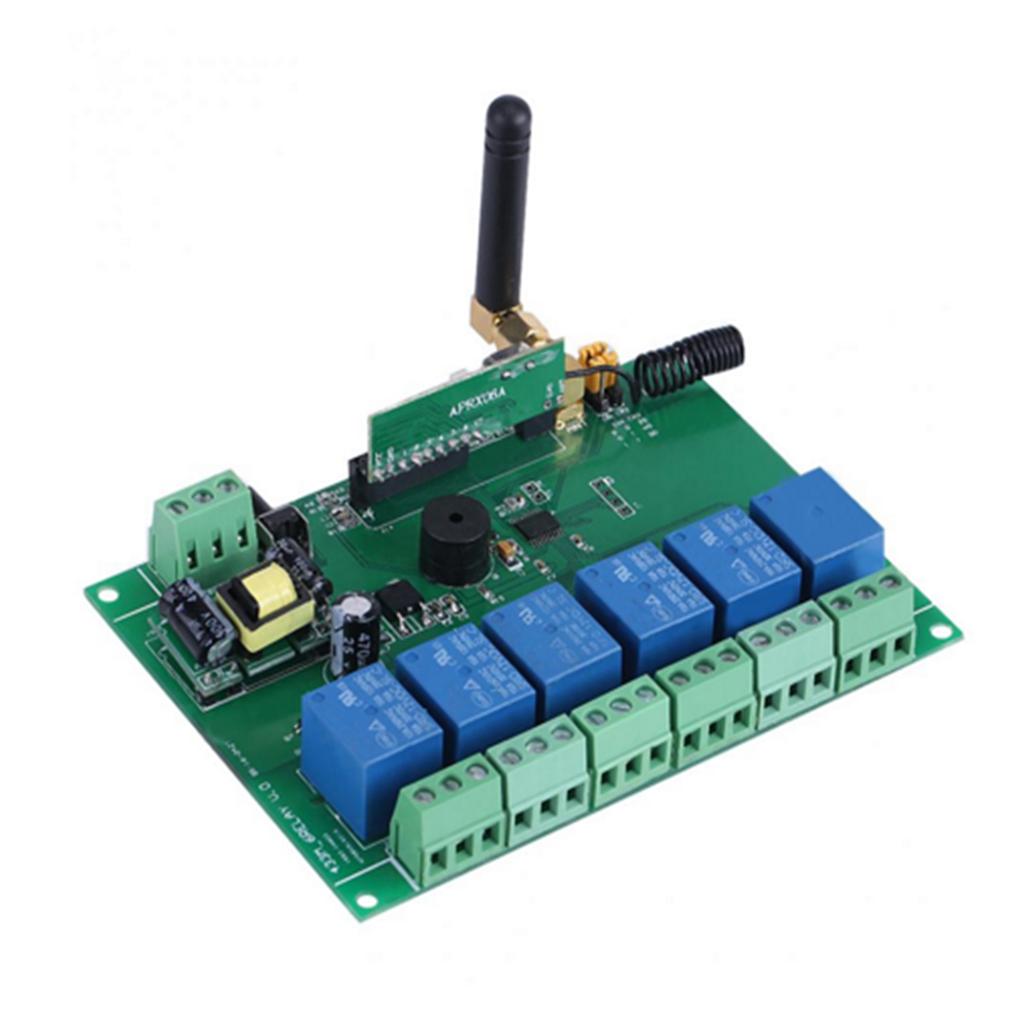

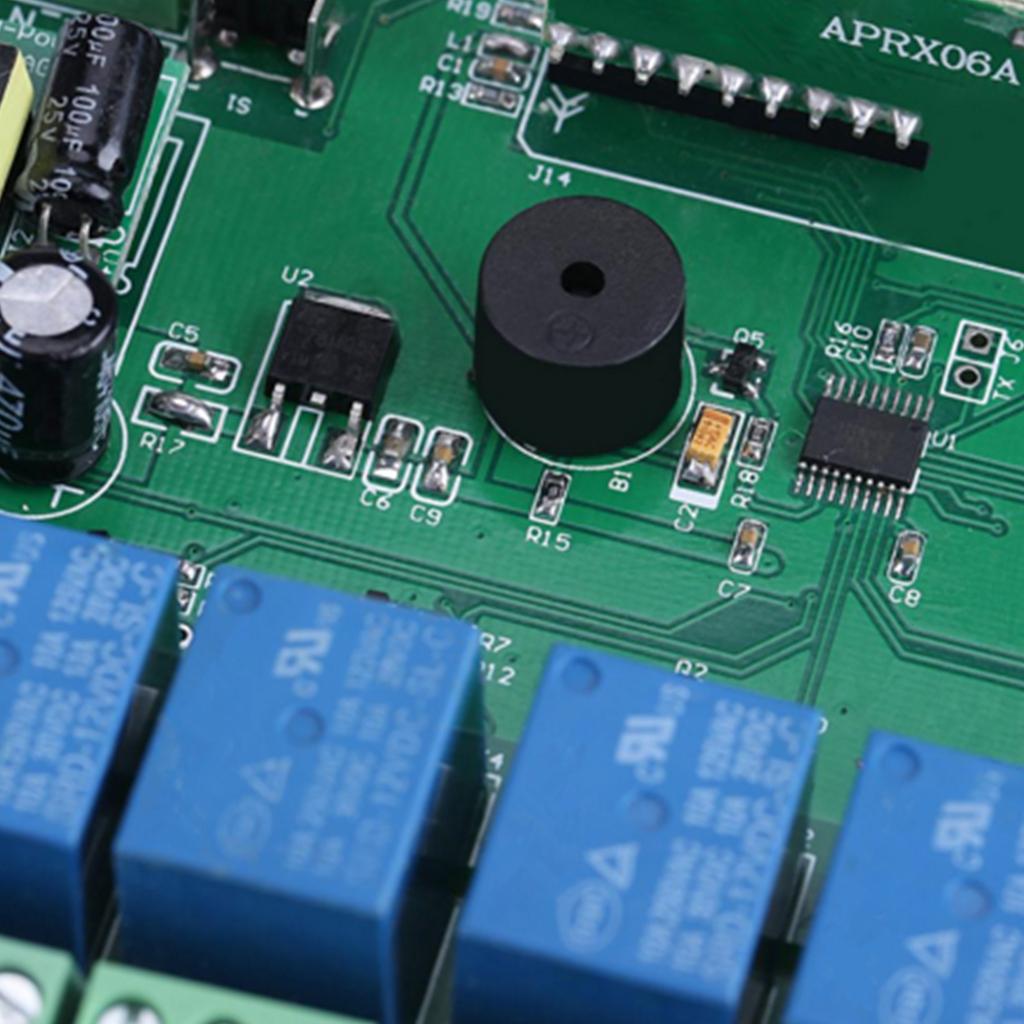

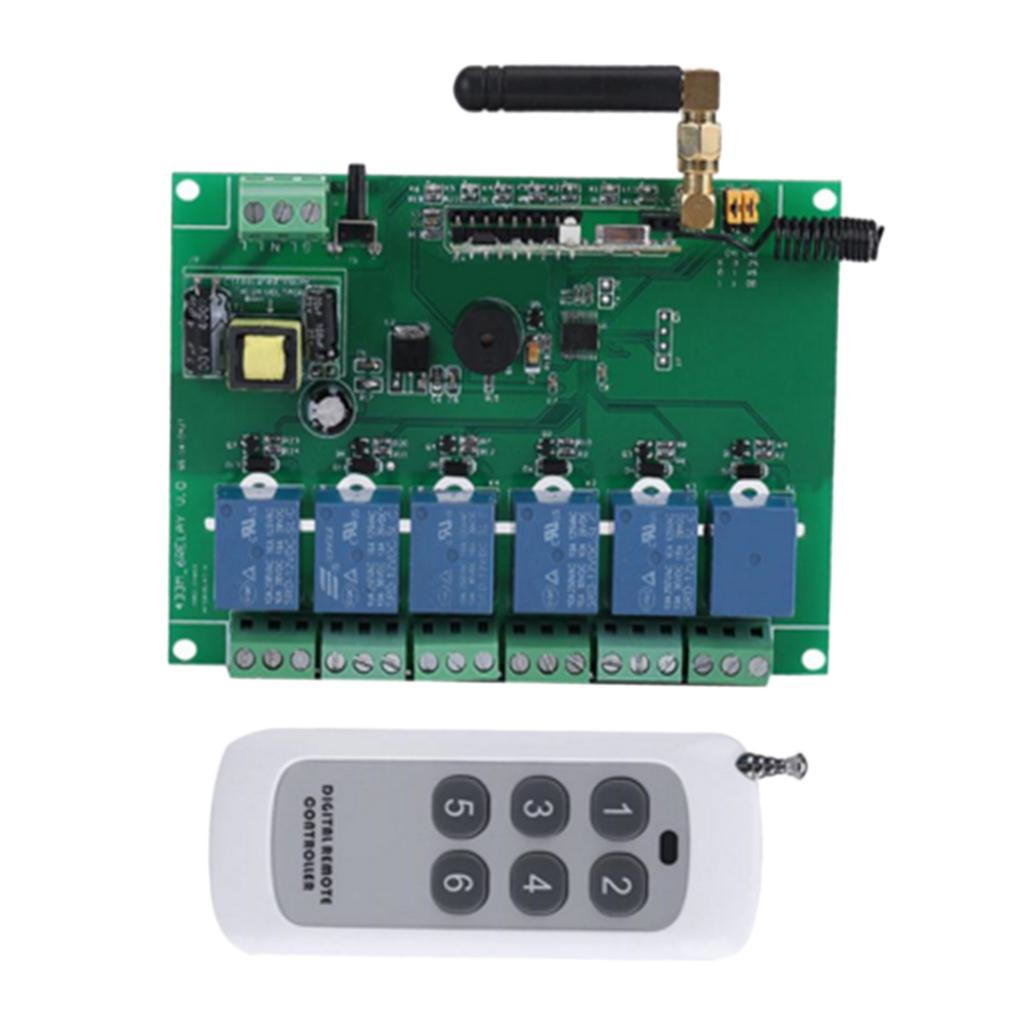

Max 110-240V Relay Module 6 Channel RF Relay Board With Remote Control Switch
Description:
Momentary, Self-locking, and Interlock, 3 Commands.

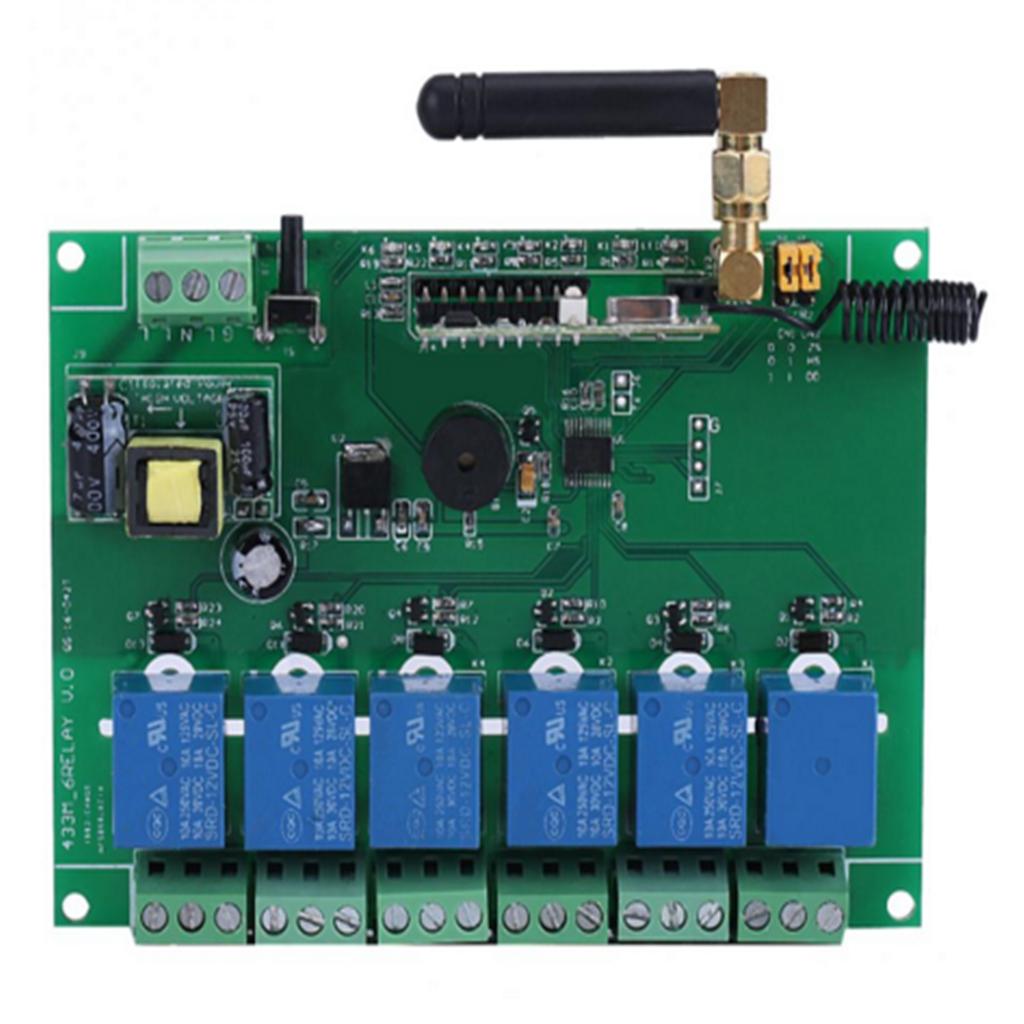

This 6-channel multifunction RF receiving controller is for sending open signal and close signal to 6 relays.
Applicate for relays include fields of electronically operated gate, windows, lifting appliance, switch, lifter, industrial control, security industry etc.
High stability, and low power.
Convenient using, just learn to match the code of the remote controller and the receiving controller.
Specification:
Operating voltage: 110-240V(input port)( L connect positive, N connect negtive, G connect GND)
Operating current: About 30mA x 6(Relay close condition)
Static current: About 4mA x 6(Relay open condition)
Work mode: momentary, self-locking, interlock
Working indication light:
Blue light: (relay switch indicator light, independently indicated on each road)
Red light: (signal receive light)
Output mode: mainly used as a switch
Receive distance: Approx. 50-1000meter
Max power: 2500W x 6
Material: Plastic
Size: 8.5 x 12 cm / 3.35 x 4.72inch

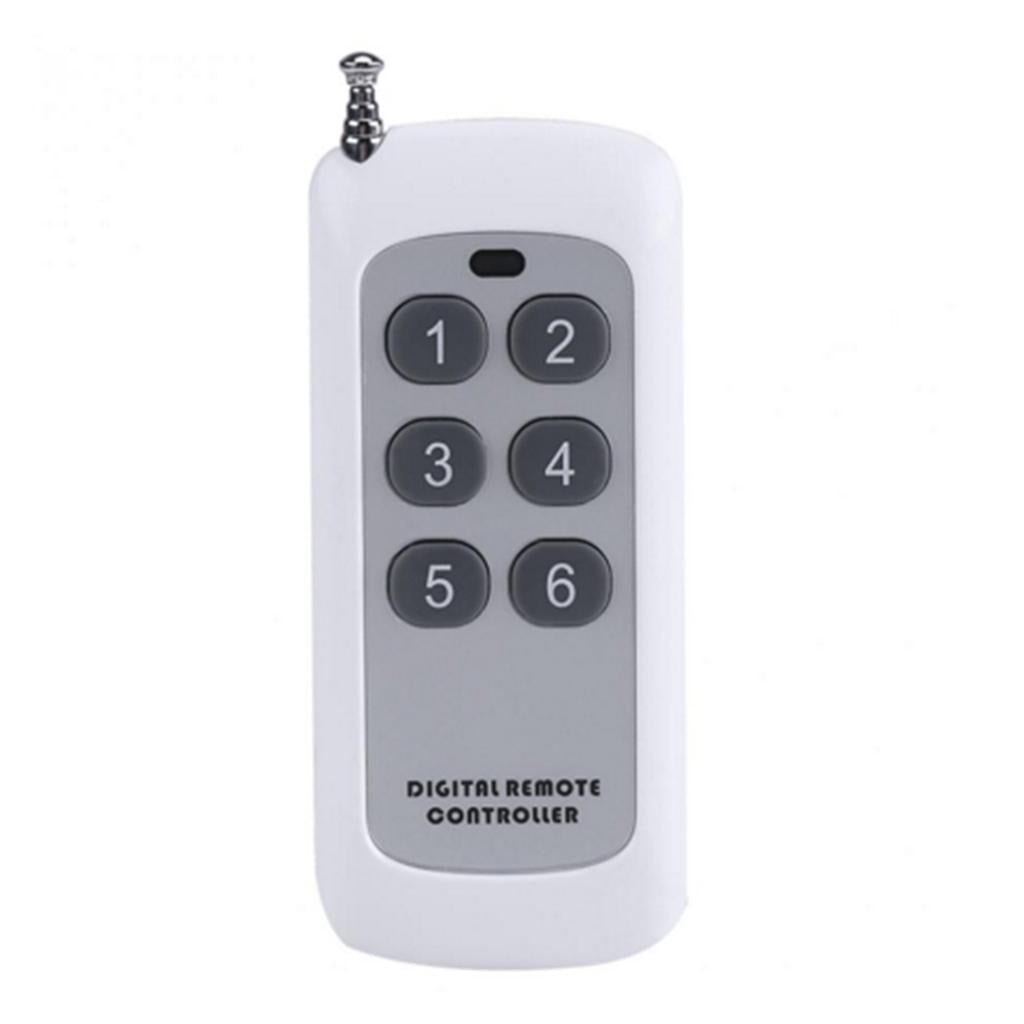

Remote Control Size: Approx. 4 x 9 cm / 1.57 x 3.54inch

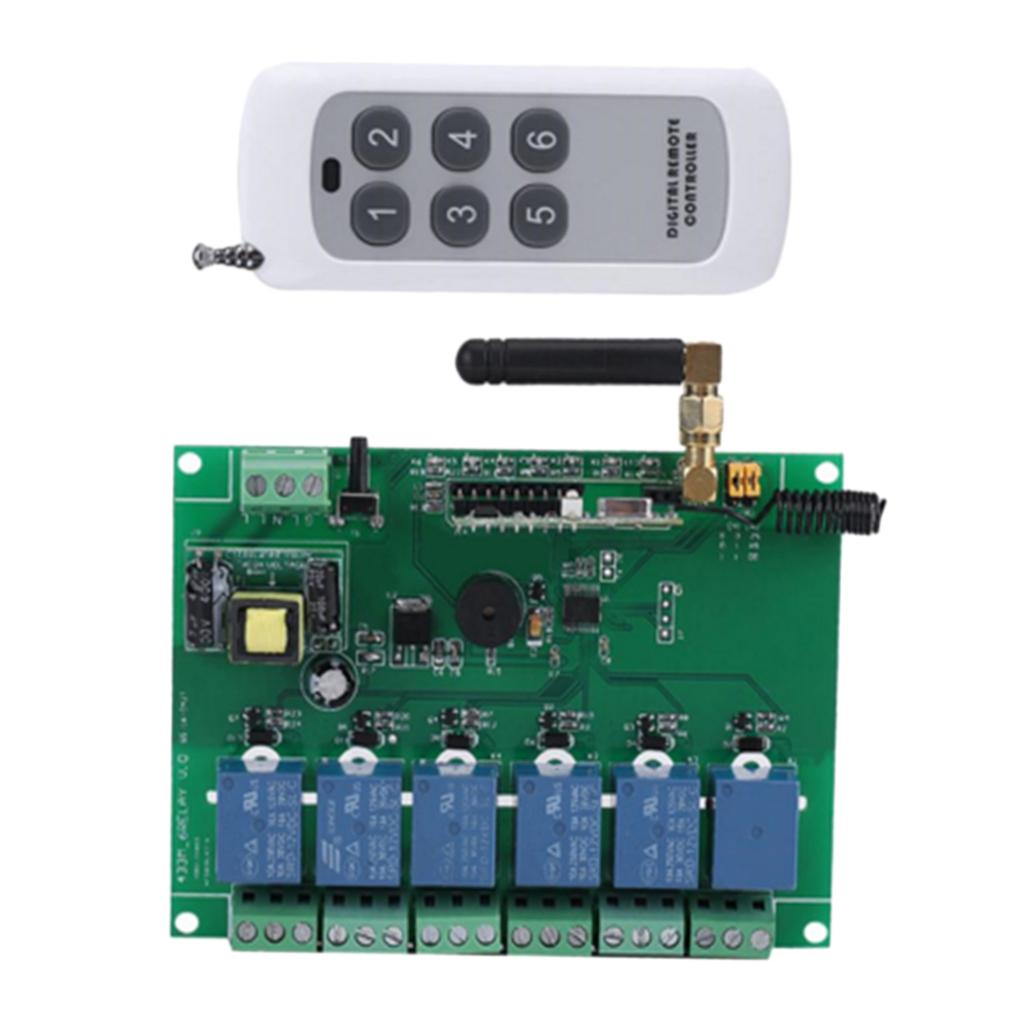

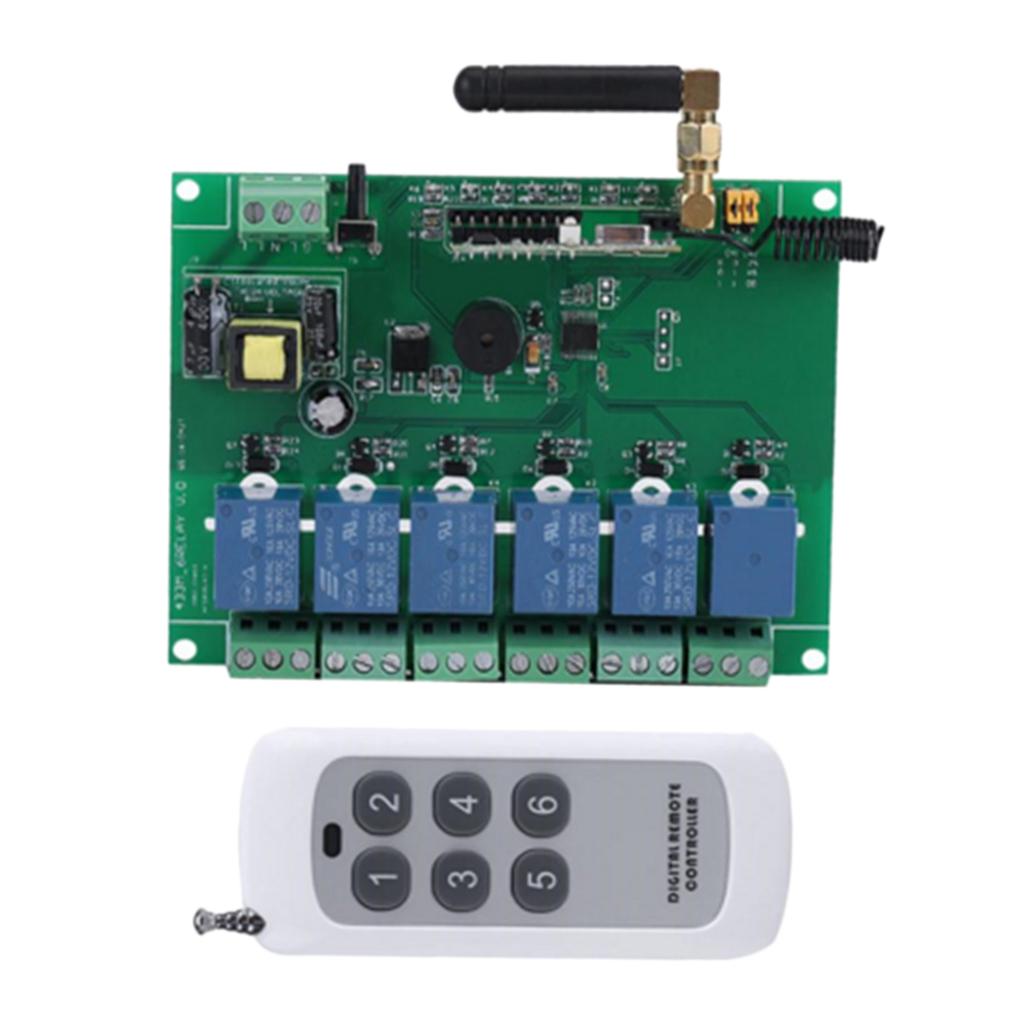

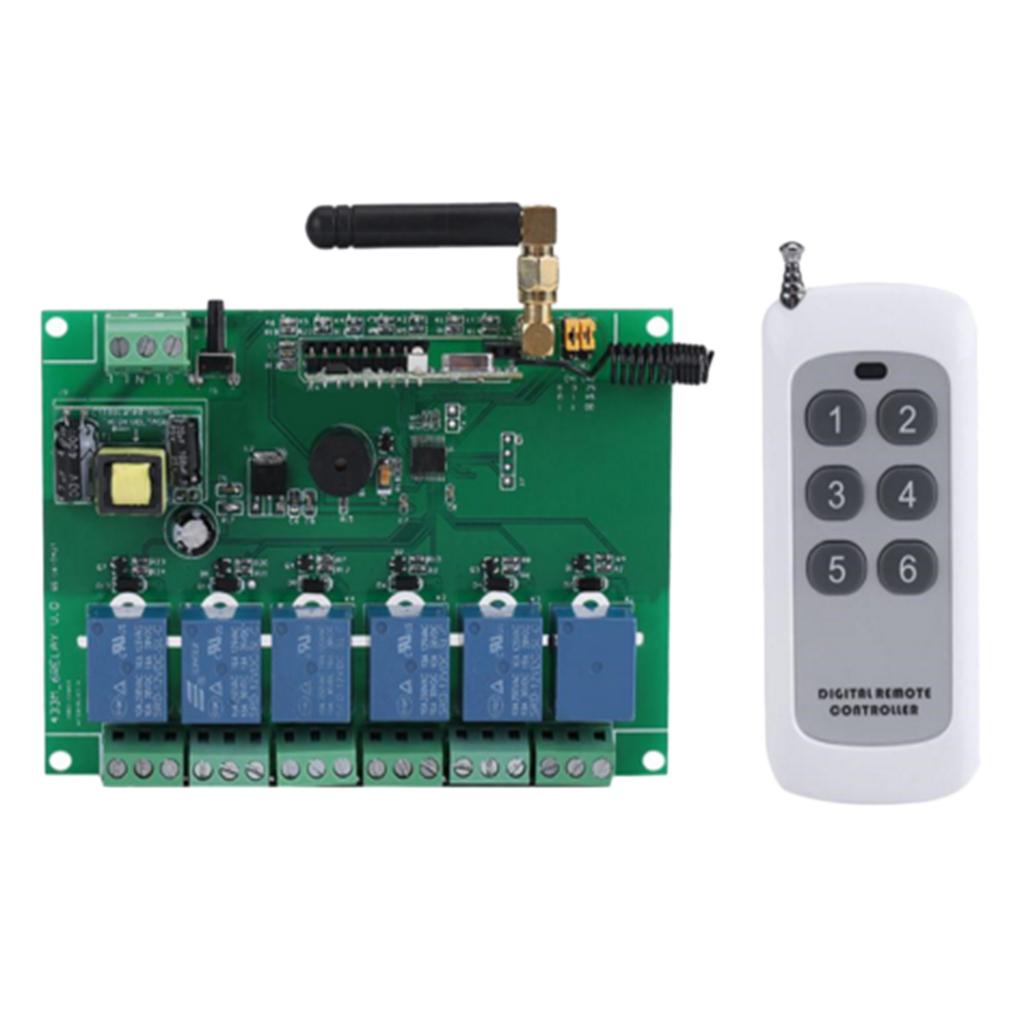

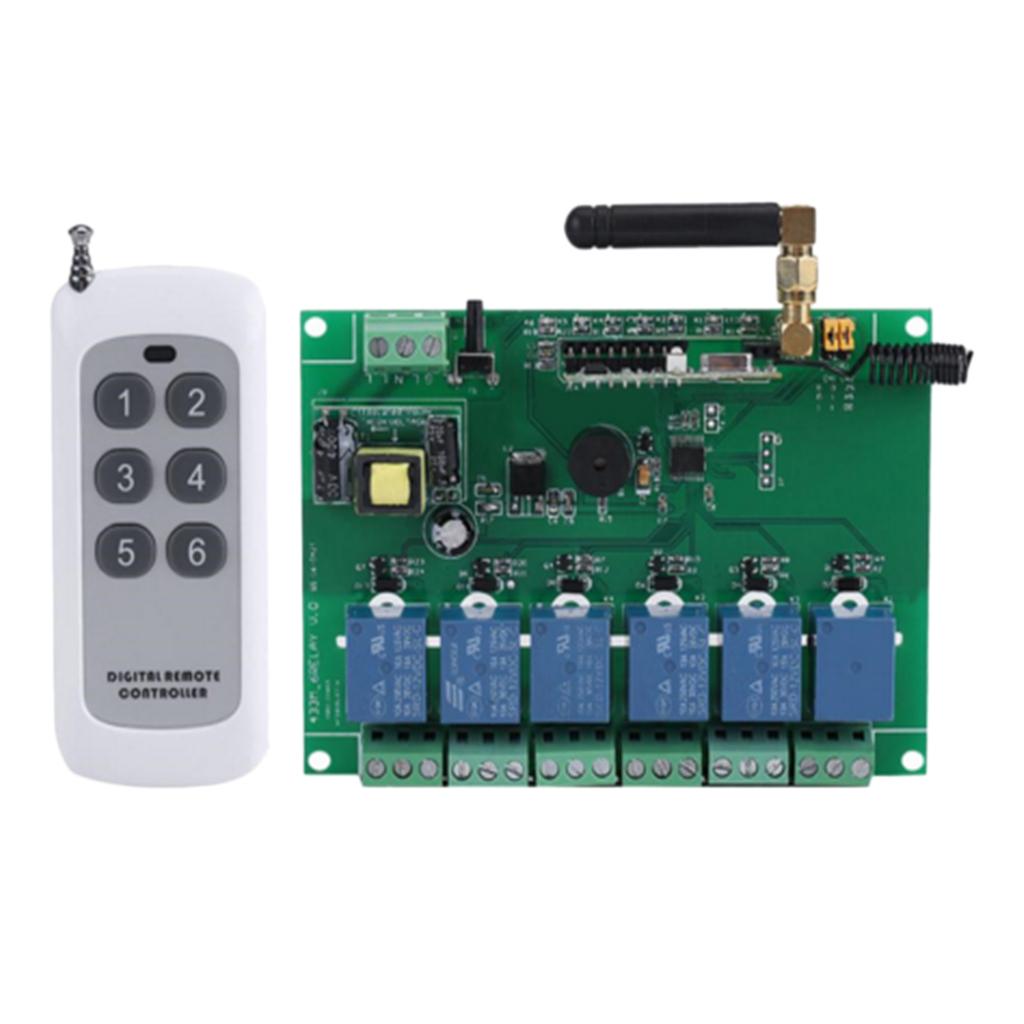

Package Includes:
1x 6 Channel Relay Module
1x Remote Controller
Note:
Momentary & Self-locking & Interlock:

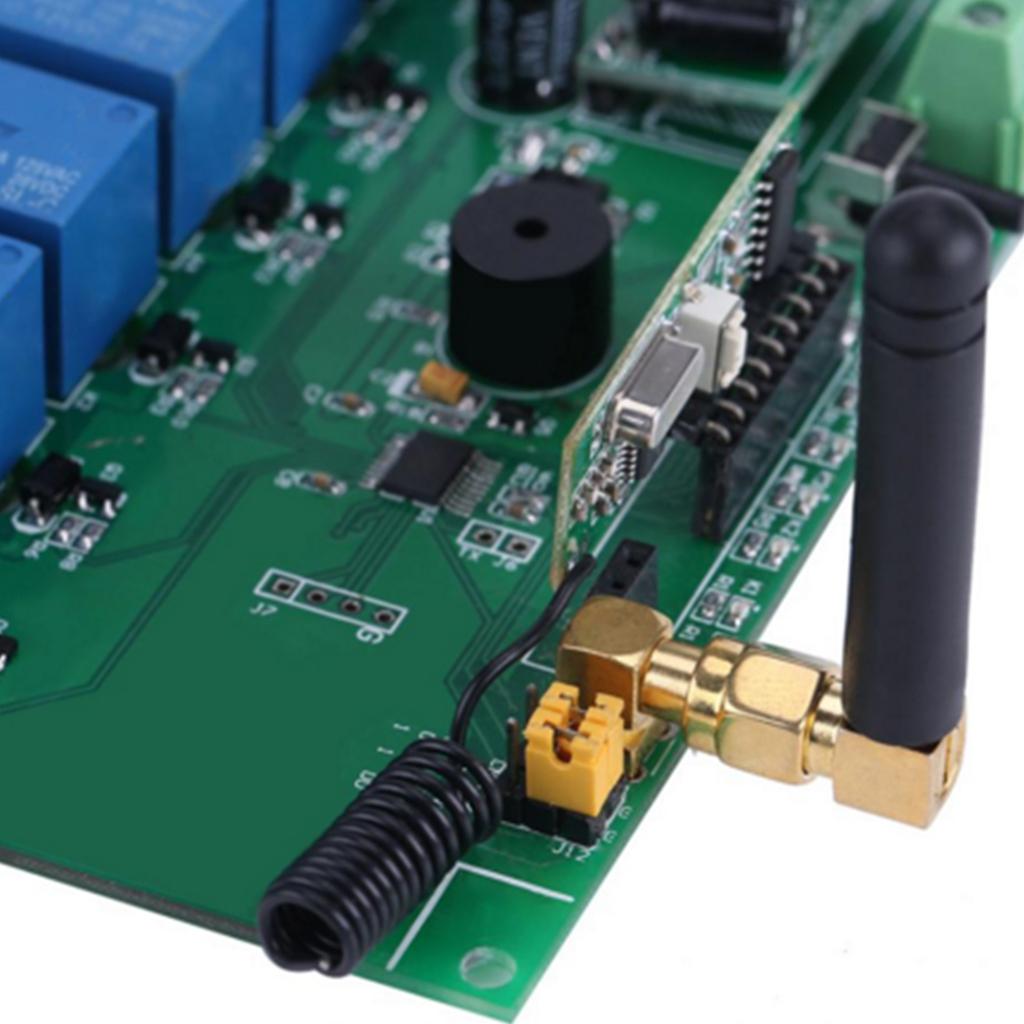

Self-locking: connect the jump cap to point 0 0 ZS(G G) when the power is off.(Press the remote control key and the corresponding output channel state of the module is the opposite)
Interlock: connect the jump cap to point 0 1 HS(G V) when the power is off.(Press the remote control key and the corresponding channel relay will open and other channel will close)
Momentary: connect the jump cap to point 1 1 DD(V V) when the power is off.(Press the remote control key and the corresponding channel relay will output. Release the key, the output will stop)
