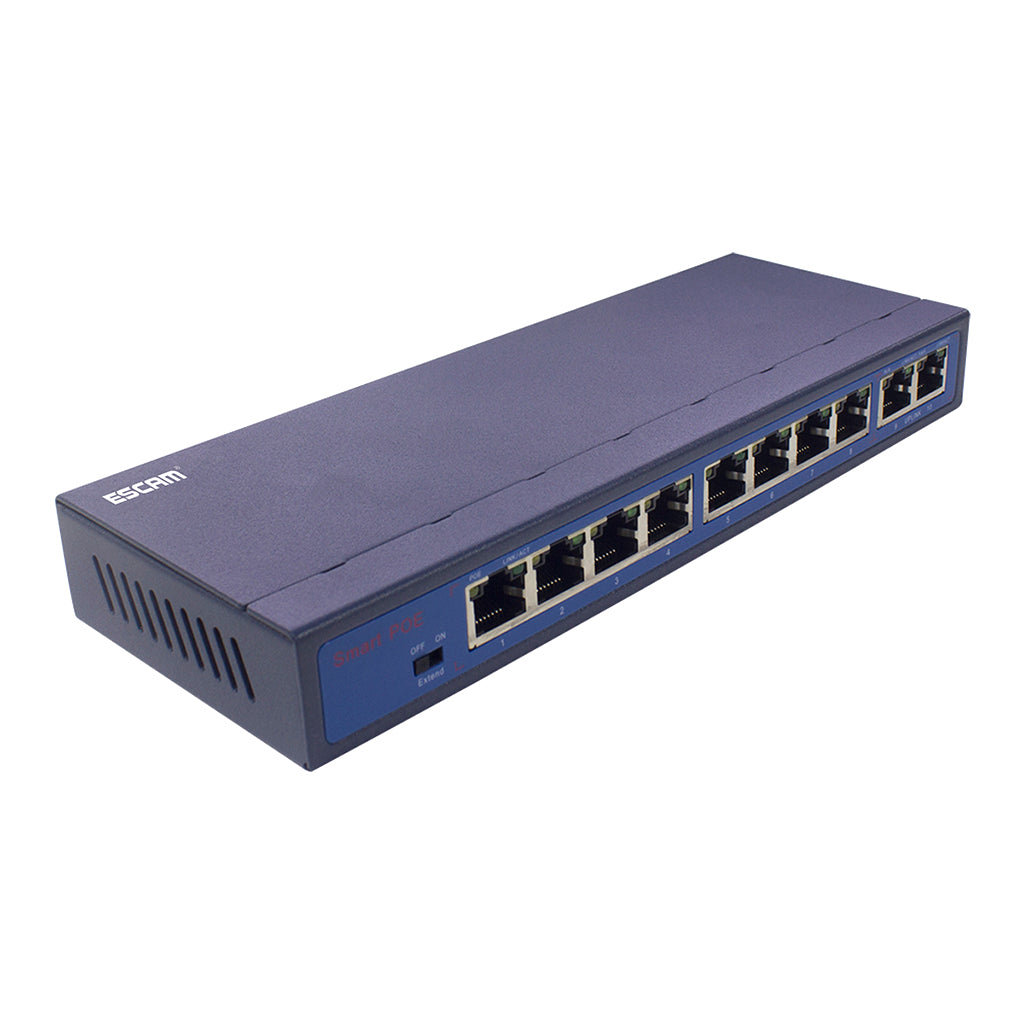

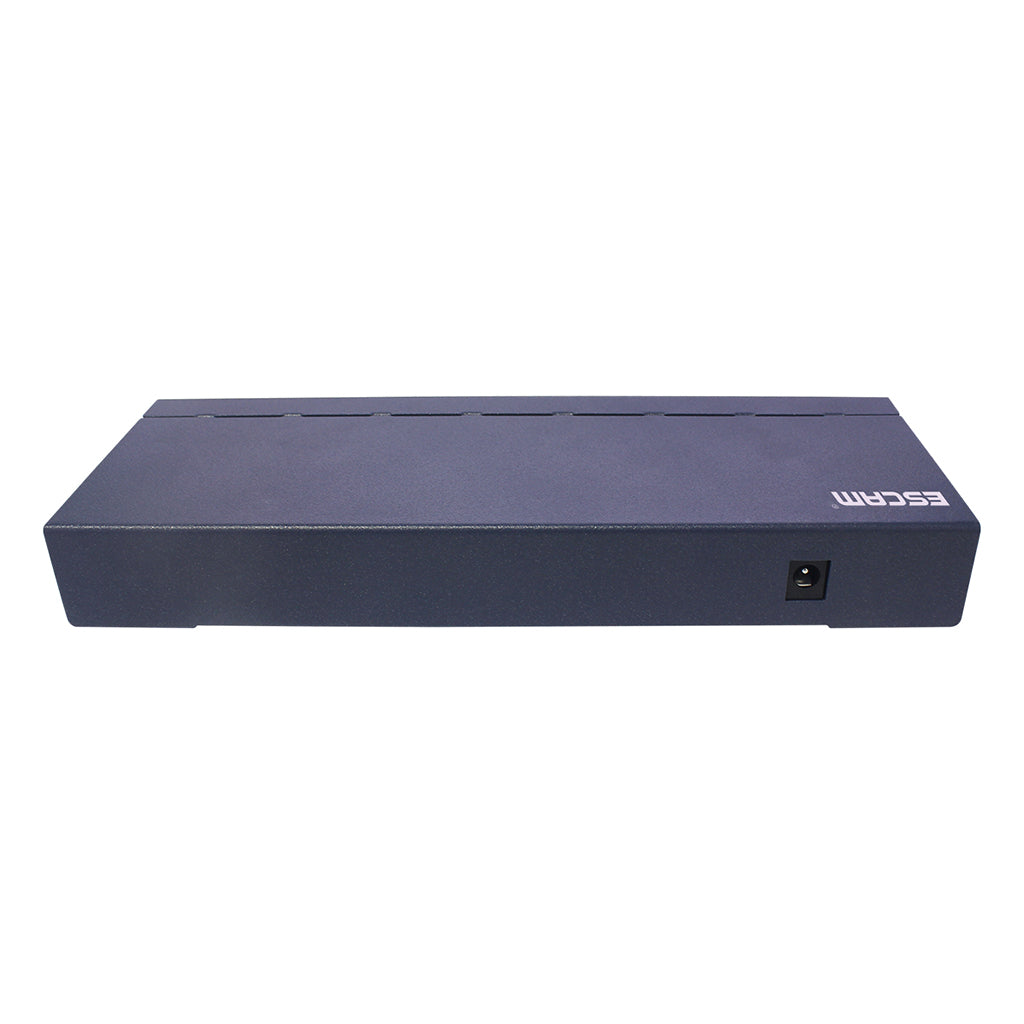

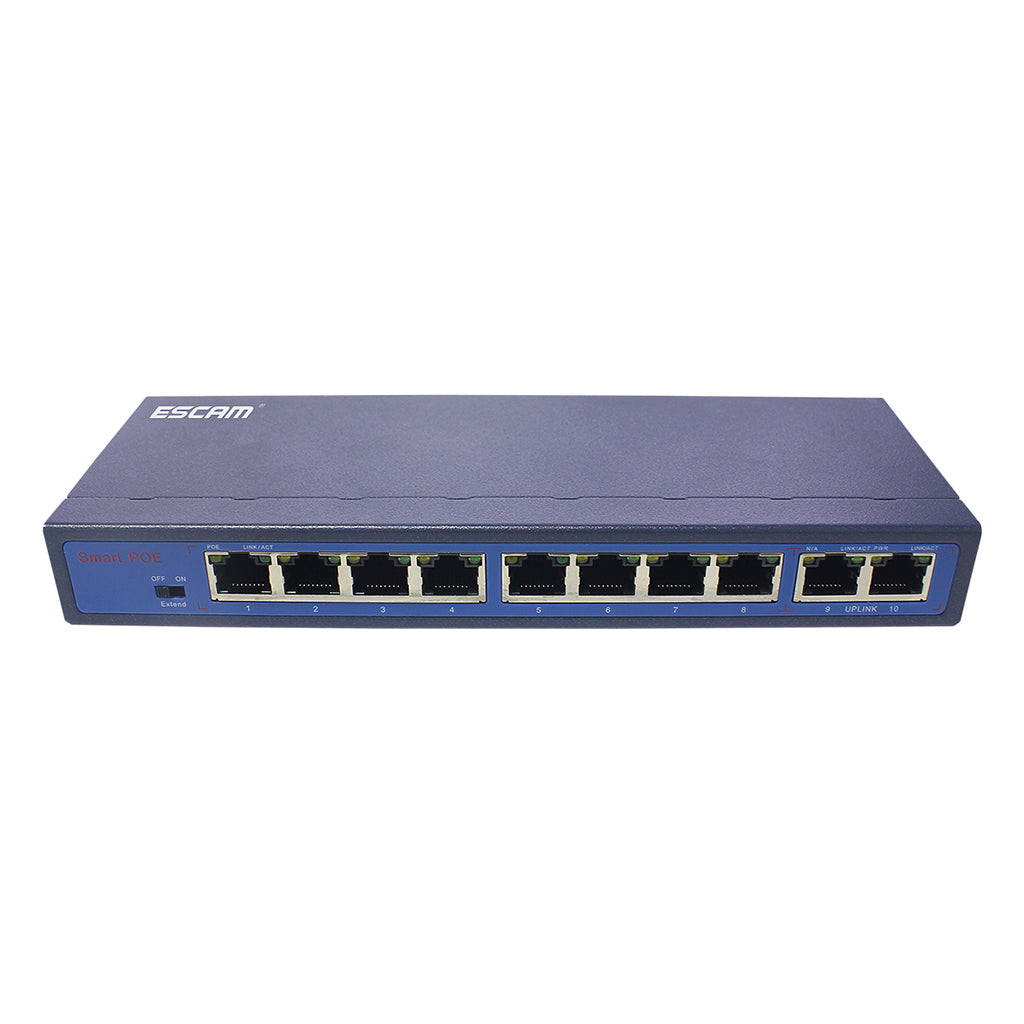

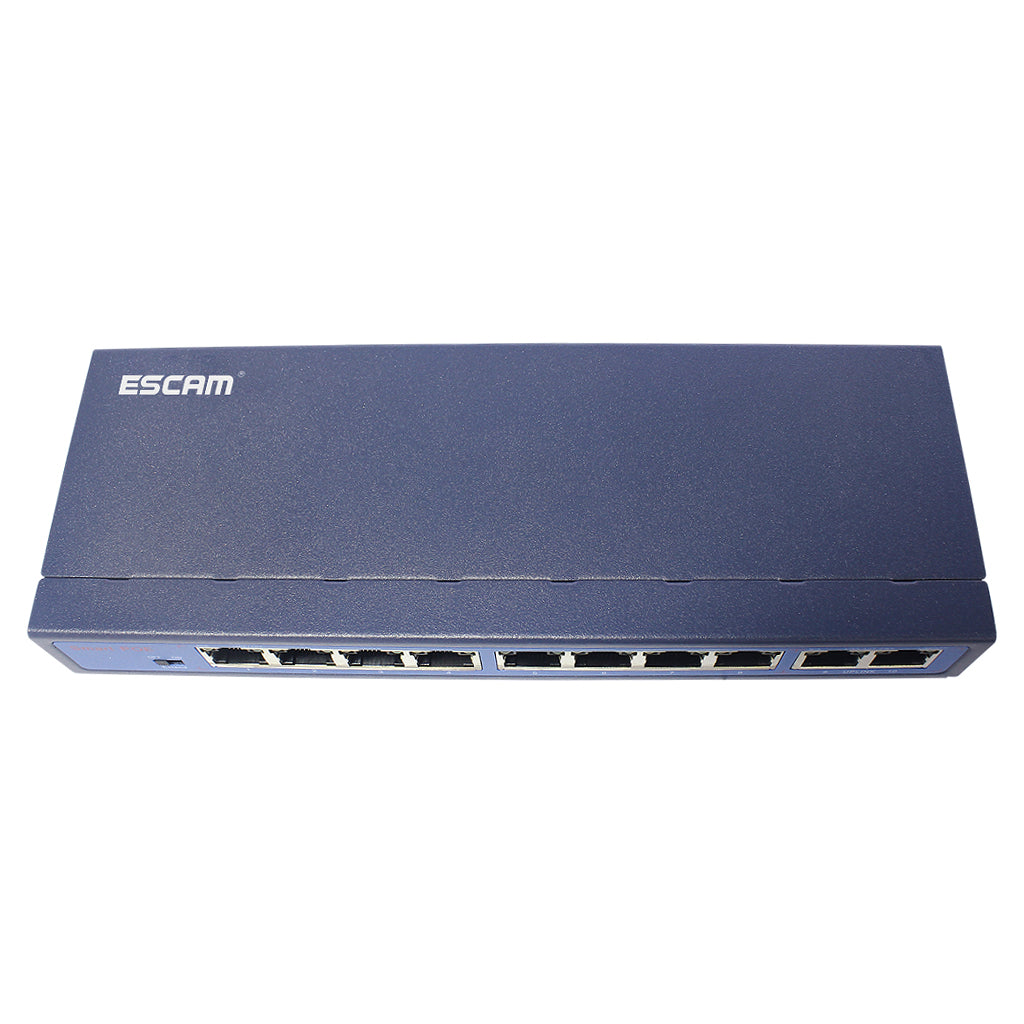

Maxbell 10-Port Ethernet POE Switch with 8 Ports POE + 2 Uplink 10/100Mbps EU Plug
Description:
This POE 8+2 series switches provide 8 PoE/PoE+ output RJ-45 ports for powered devices and two data up-link RJ-45 port for backbond network device
Support IEEE802.3,IEEE802.3U/IEEE802.3AF/IEEE802.3AT Ethernet power standard
Support 10/100M data transmission
Max distance:150m
Output:8ch
PoE Output Power:Port 1-8: 48V DC, max. 20W/port
Power Pins Assignment:1/2,3/6,or 4/5(+),7/8(-)
PoE Output Power Budget: 120W in total,depending on connected power supply
PoE Ports Assignment: Port 1-8: IEEE 802.3af(15.4W/port) or IEEE 802.3at(20W/port) PoE output
PoE/Data Extends Range: Port 10: up-link,150meters data transmission 150meters/490ft
Input Voltage: 48V DC
AC-DC Power Adapter:Optional 120W
Power Consumption(System on):2W
Power Consumption(Full load):120W
MTBF: More than 150k hours
Surge Protection: PPTC active surge current limiting. Transient Voltage Suppressor(TVS)
Dimension: Approx.192x78x29mm/7.6x2.8x0.95inches
Specification:
Material: Metal
Color: Black
Package Includes:
1Piece POE switch
1Piece EU Plug Power Adapter
1Piece User Manual
1Pack of Screws
