Maxbell 10/100M Singlemode 25KM Simplex SC Fiber Optic to Ethernet Converter EU
Description:
10/100Mbps LAN Network to SC Fiber Optic Converter, Single Mode 25KM Extend Distance, Transmitter and Receiver Set
Overview：

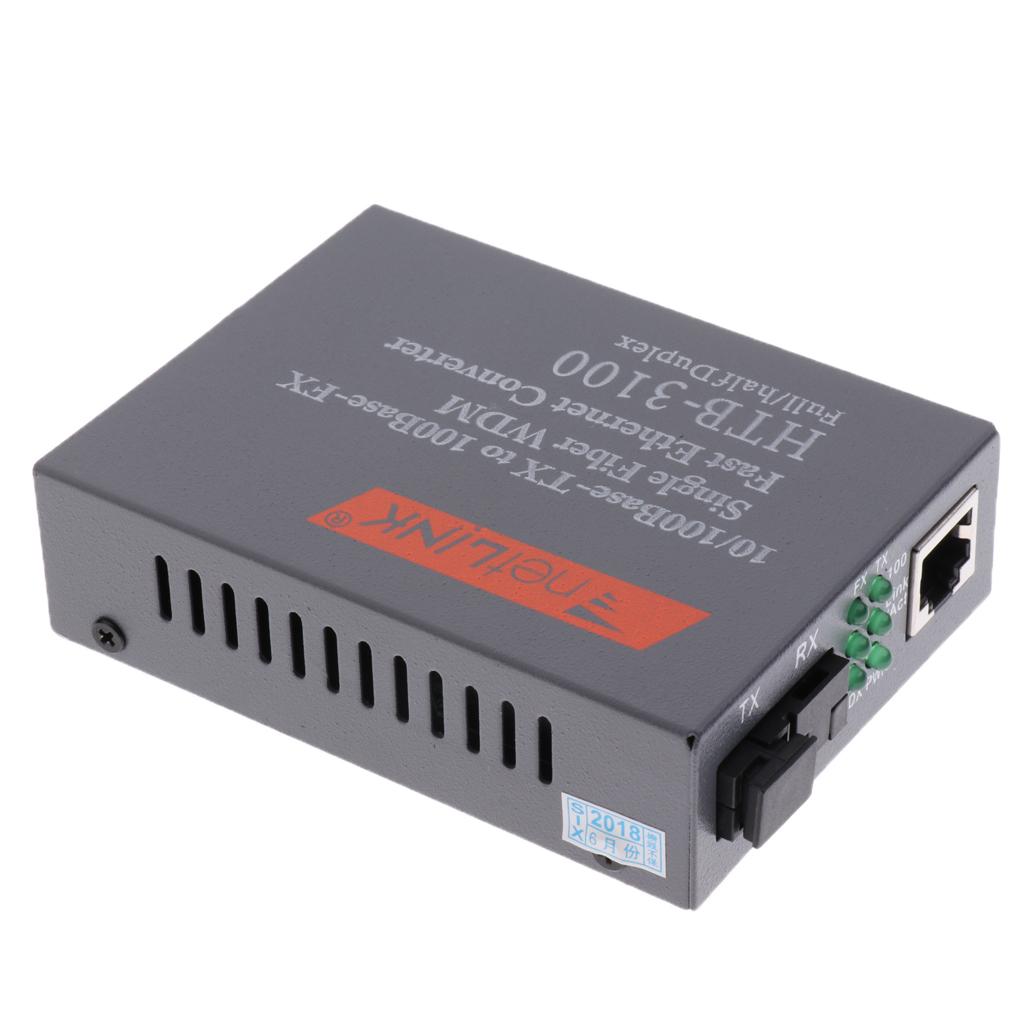

1 electrical port and 1 single-fiber SC optical port to achieve photoelectric signal conversion between twisted pair and optical fiber.
Only a single core fiber can complete the signal transmission of one way, and double the fiber to increase the data transmission capacity of the fiber by a factor of two.
Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standard.
Has 10M/100M self-adaptive ability.
The electrical port can adapt the direct line/cross line connection mode.
Specification:

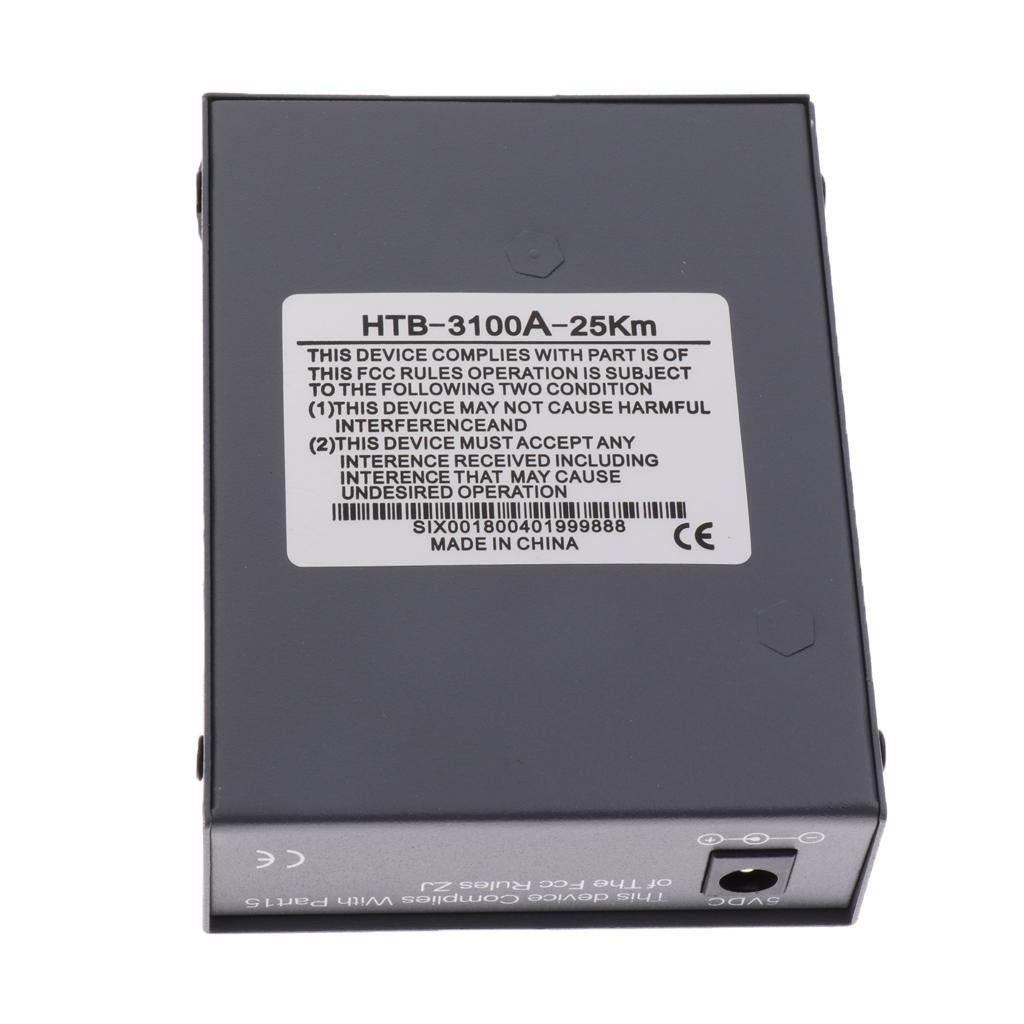

Model: HTB-3100 A/B
Support the connection of MDI/MDI-X auto crossover
Supports full-duplex/half-duplex mode of operation.
Support IEEE802.3X full-duplex flow control and half-duplex back pressure flow control.
Support to prevent broadcast storm function;
Support for 1916 Byte jumbo frames (optional).
Built-in protection circuit can greatly reduce the damage caused by induction.
Twisted pair cables are up to 100 meters long; single mode fibers are up to 100 kilometers long.

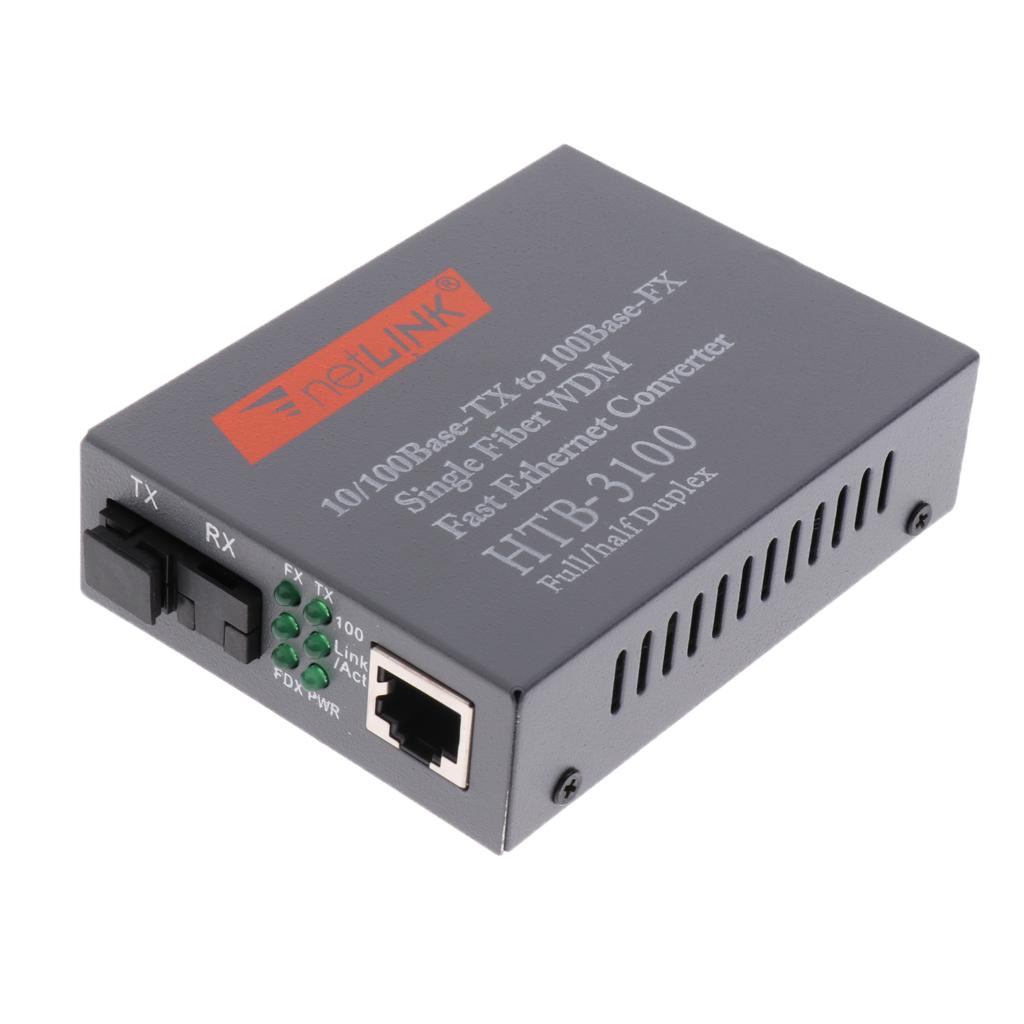

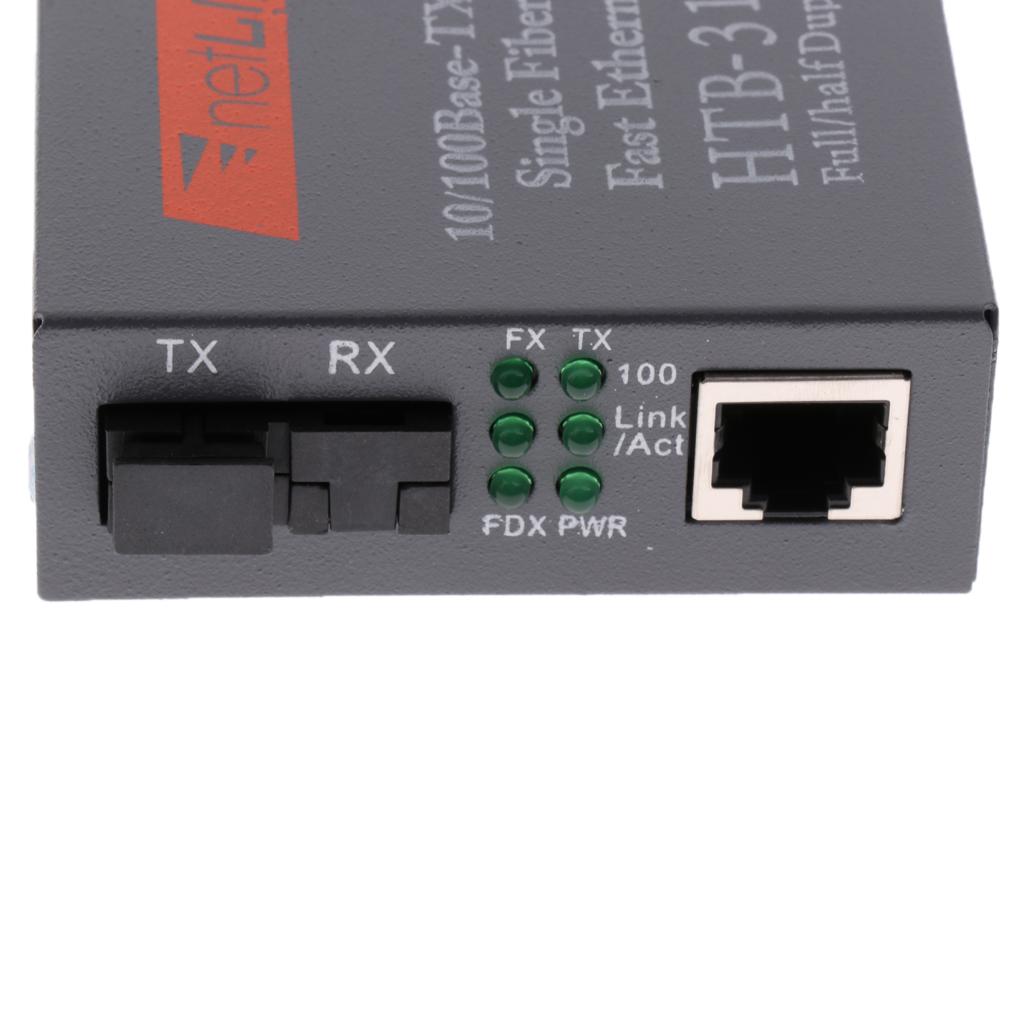

There are 6 LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; it is easy to monitor the working status of the transceiver and determine the cause of the fault.

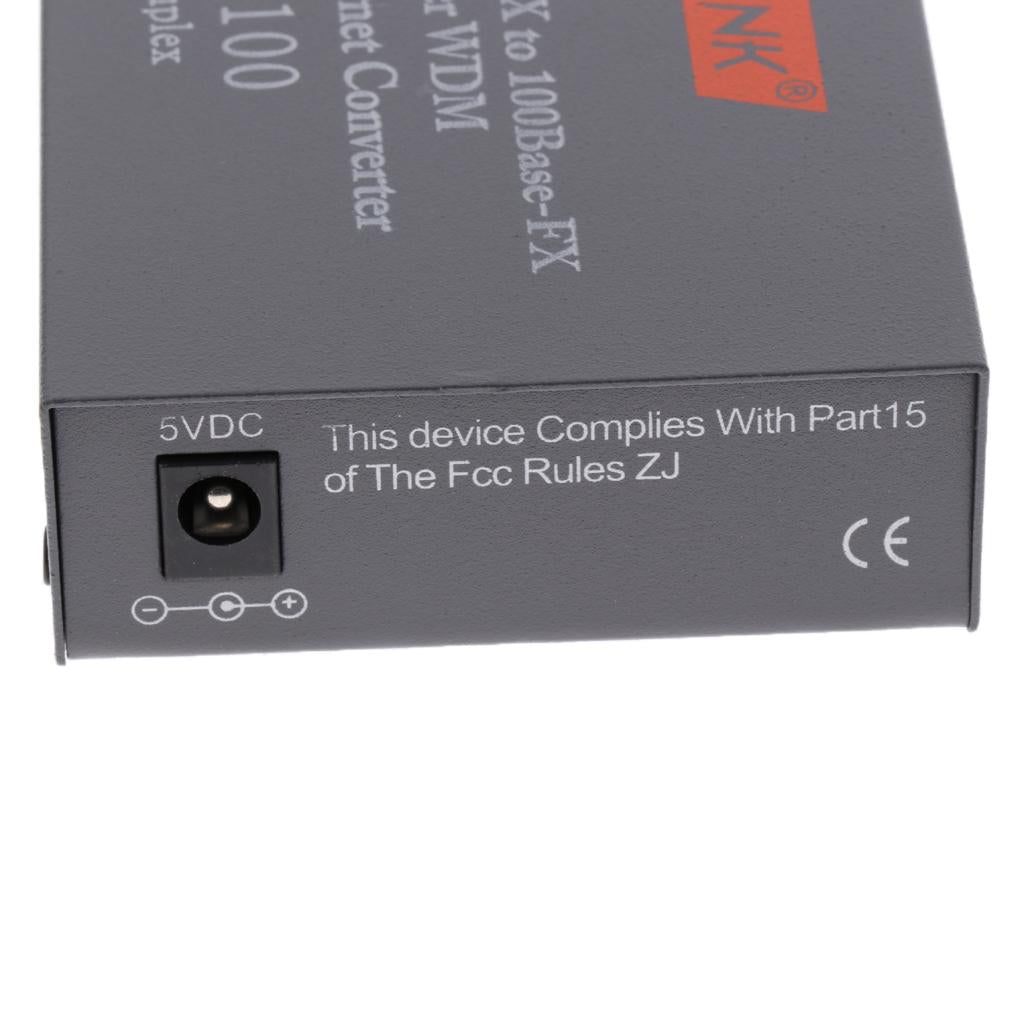

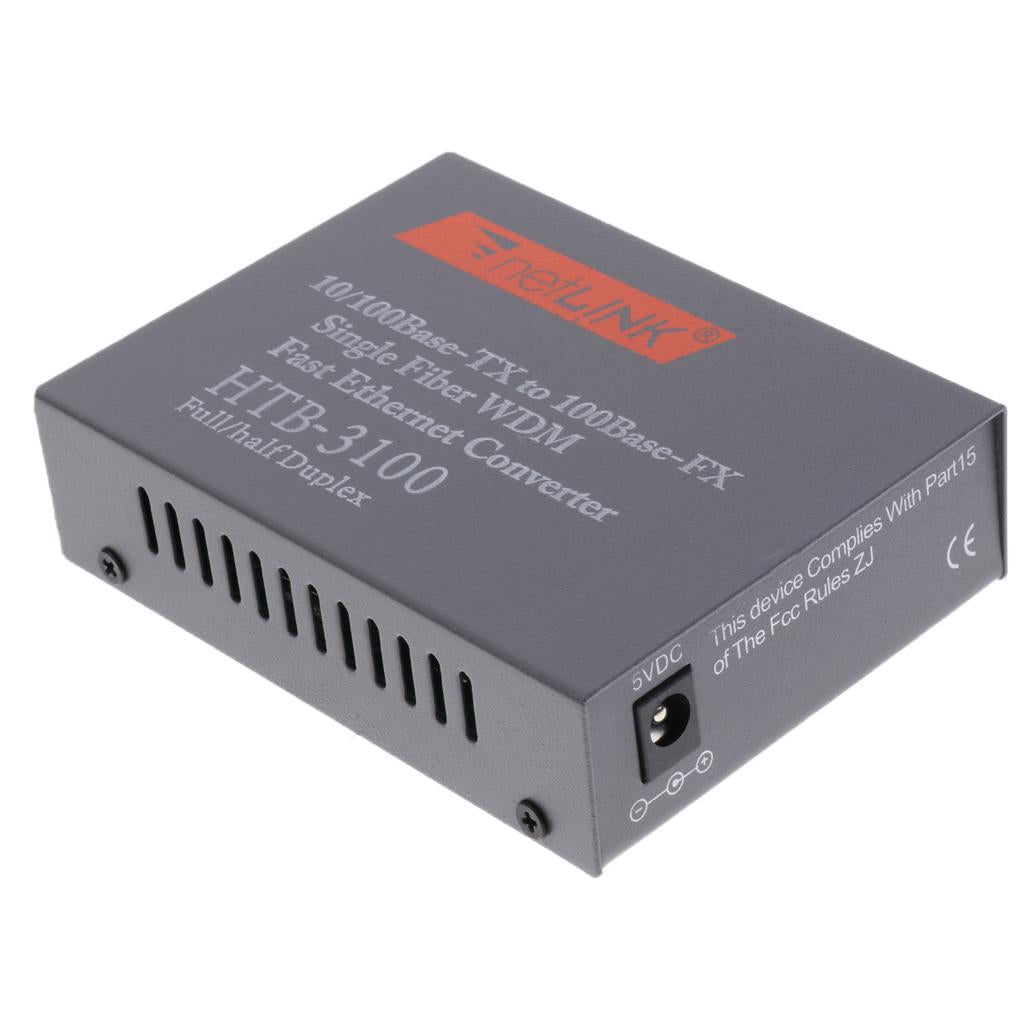

There are two types of external, built-in power: AC100 ~ 265V / DC5V switching power supply.
Package Includes:

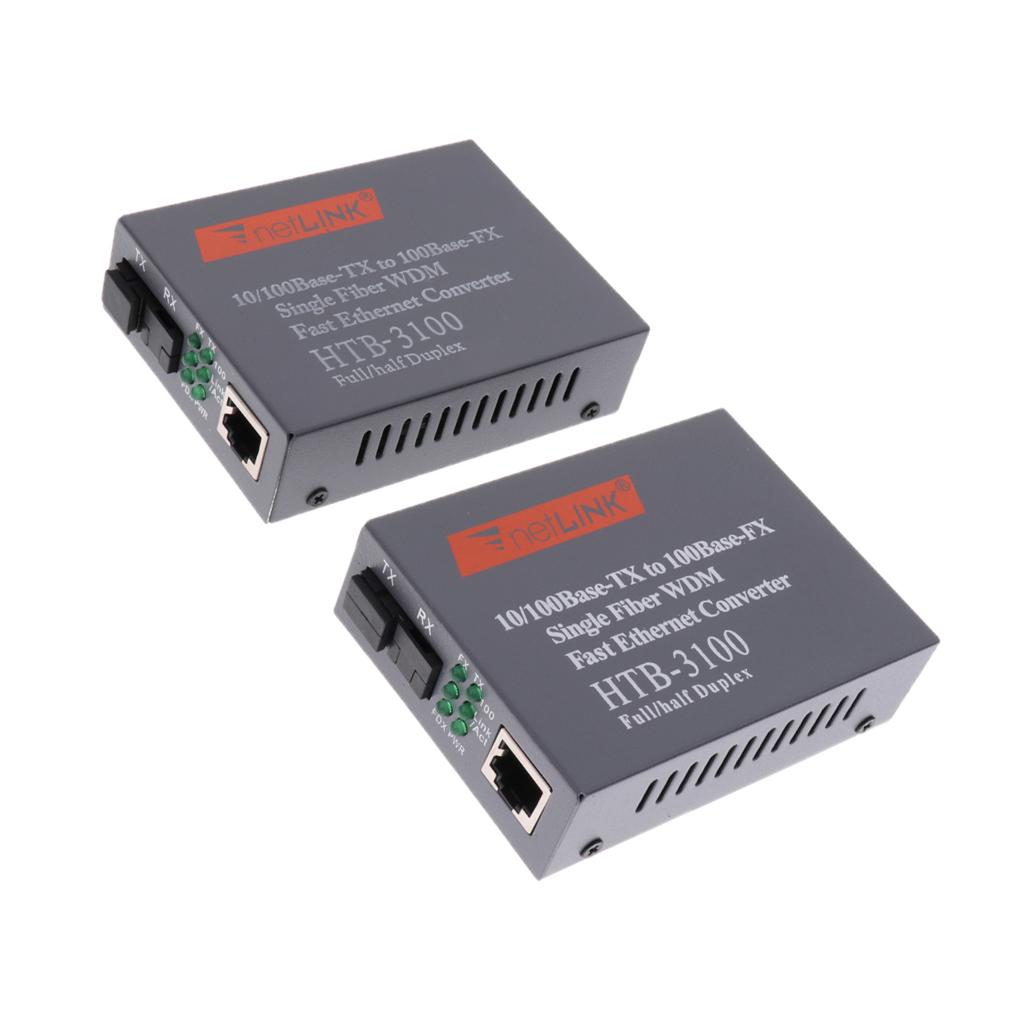

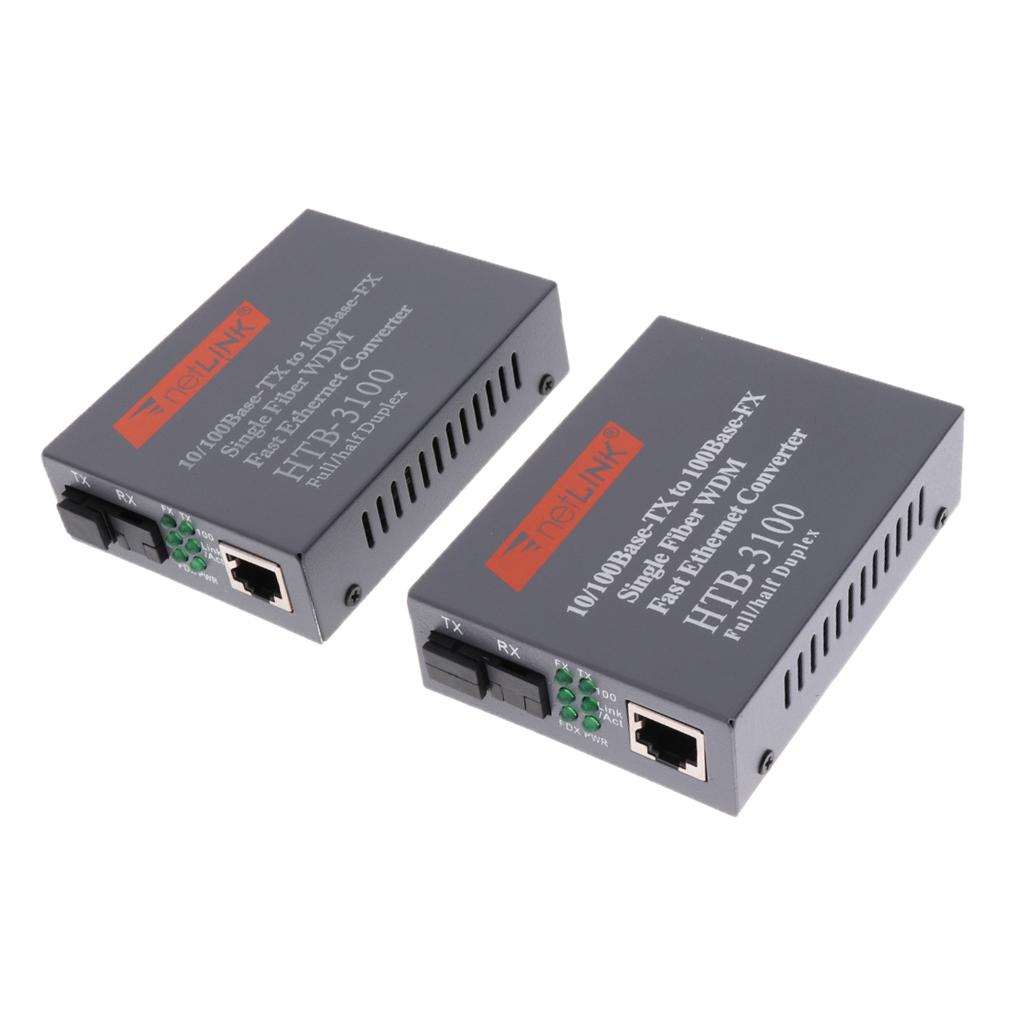

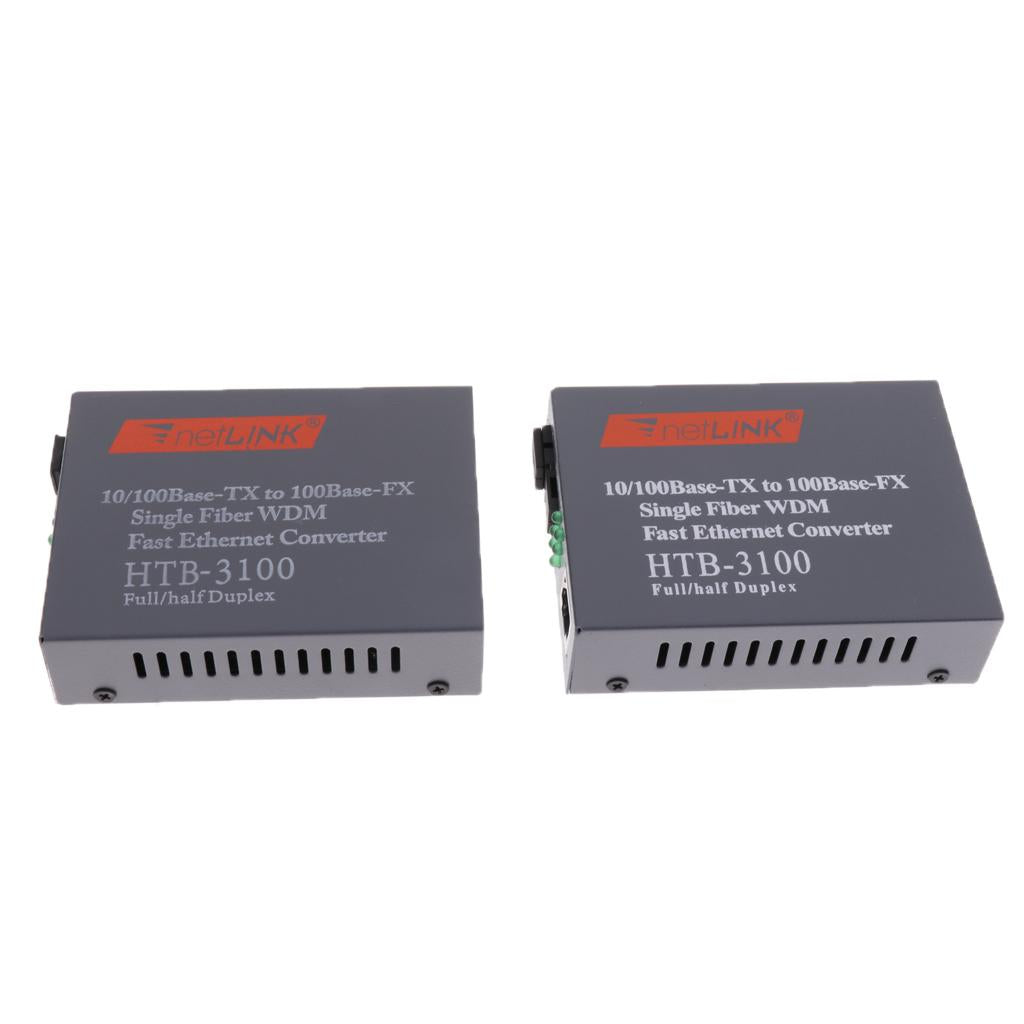

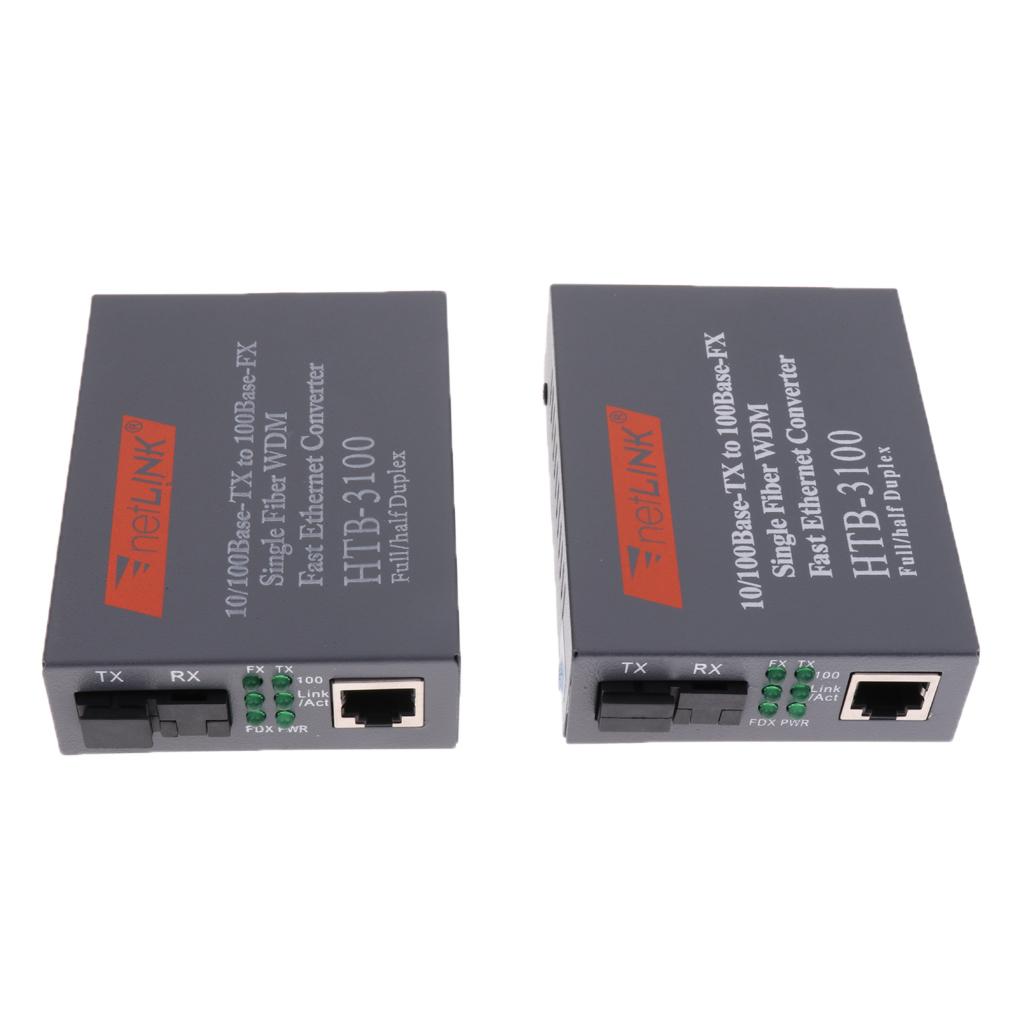

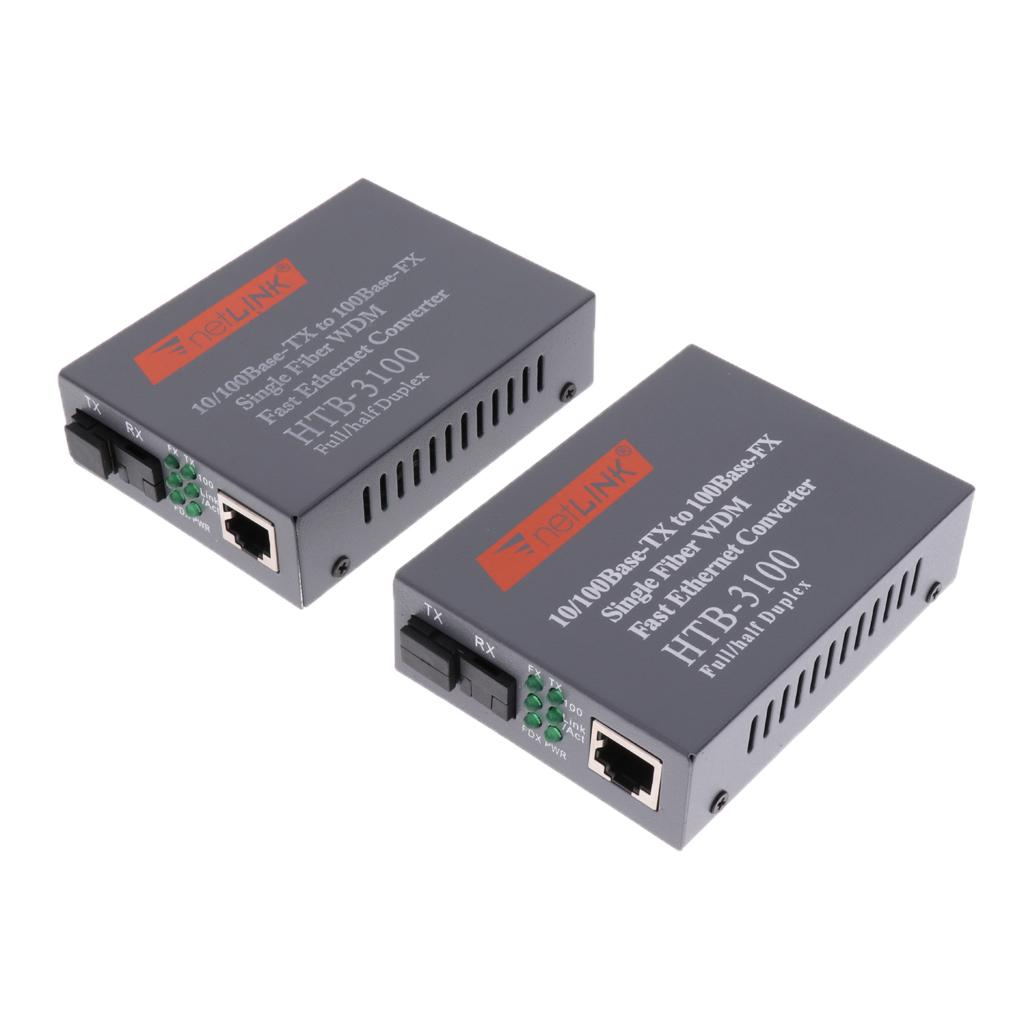

2 x Ethernet to fiber converter (A and B)
2 x Power supply （EU）
1 x Instruction manual
