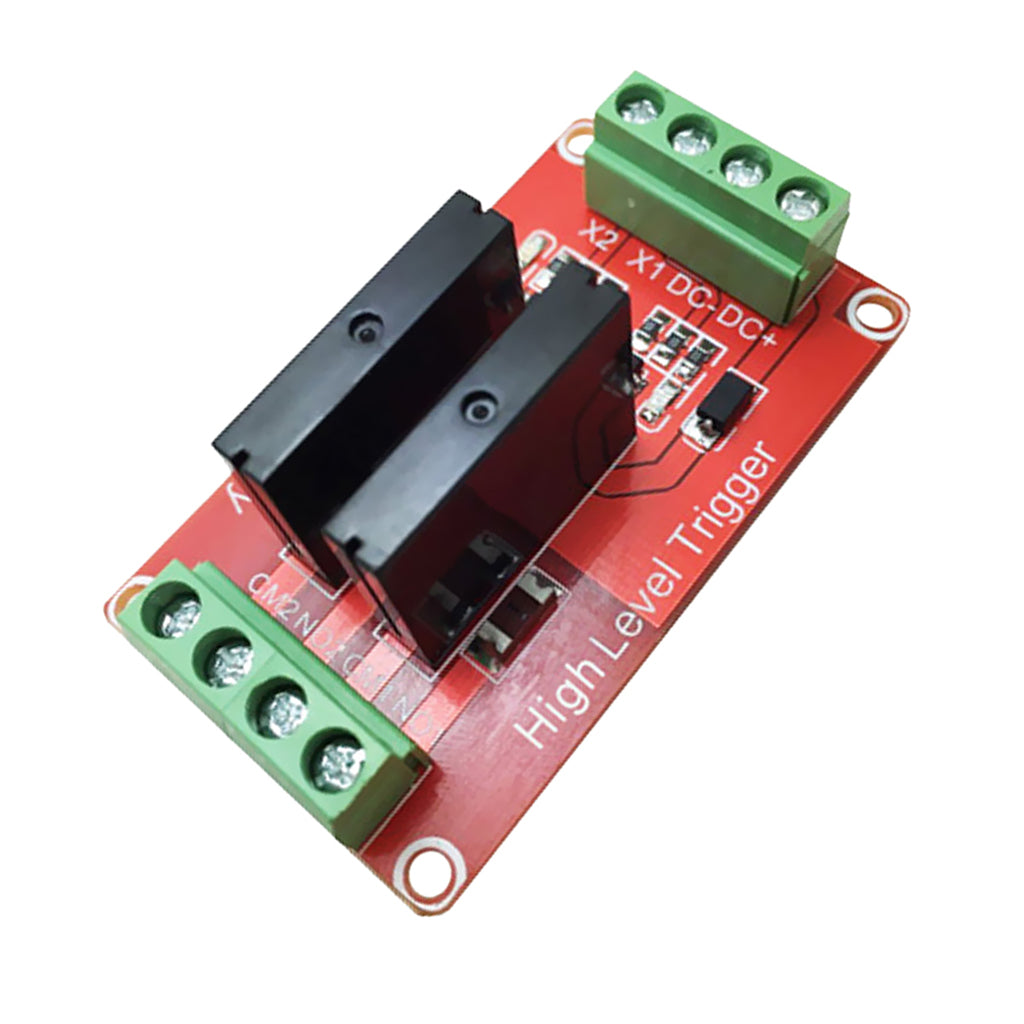

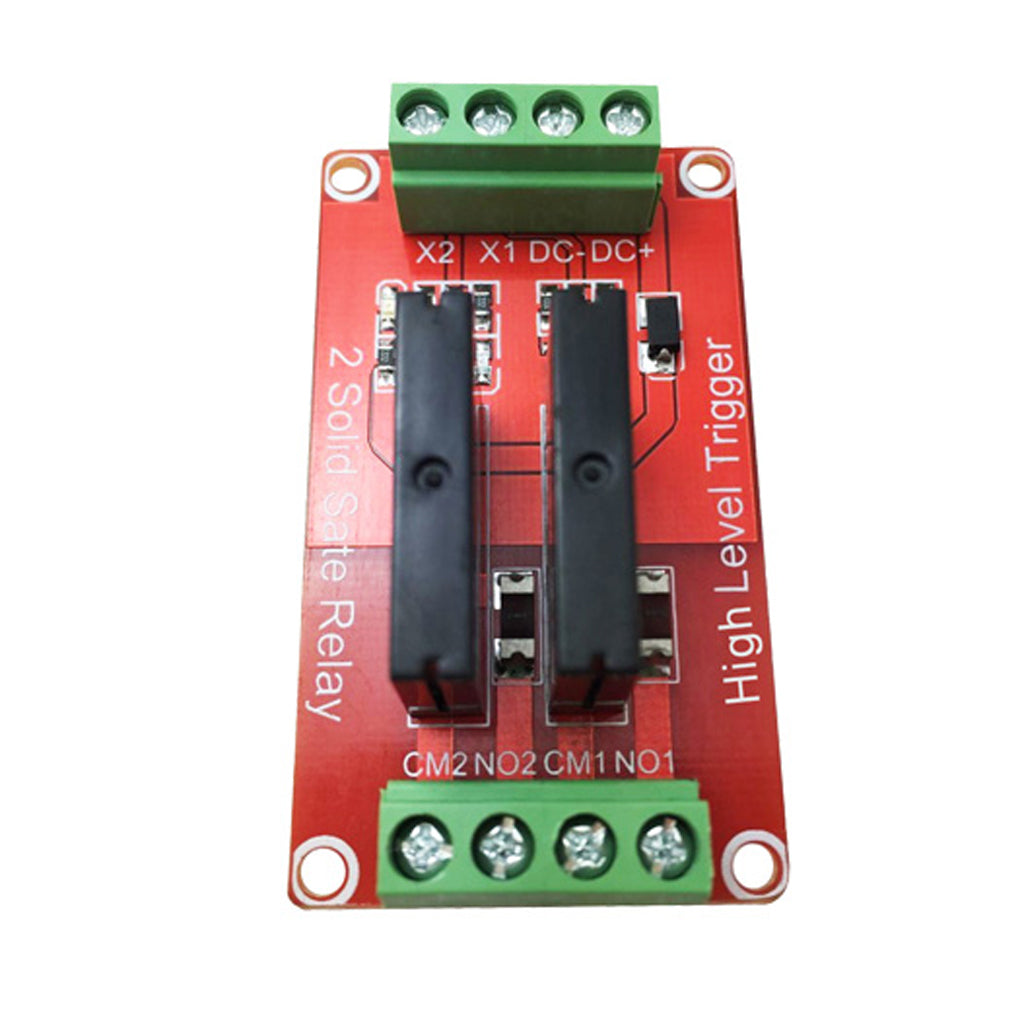

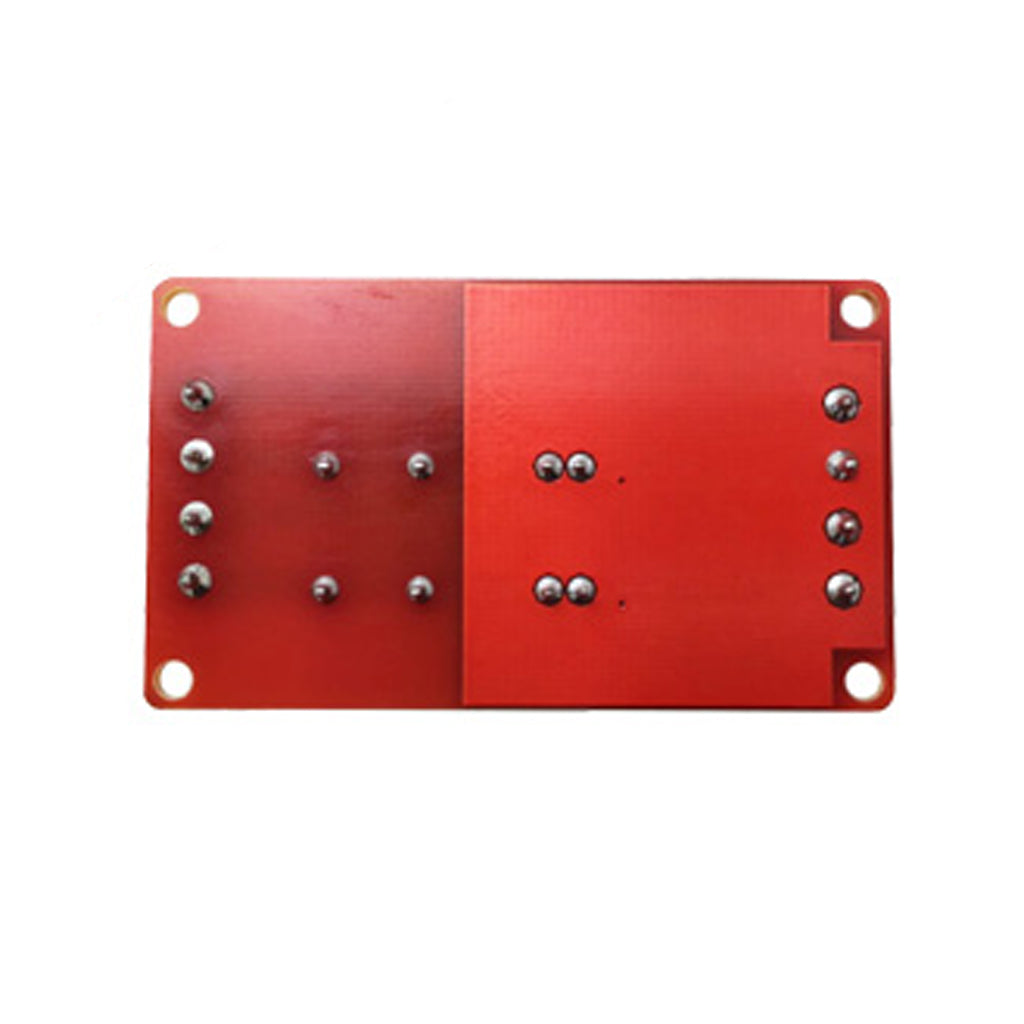

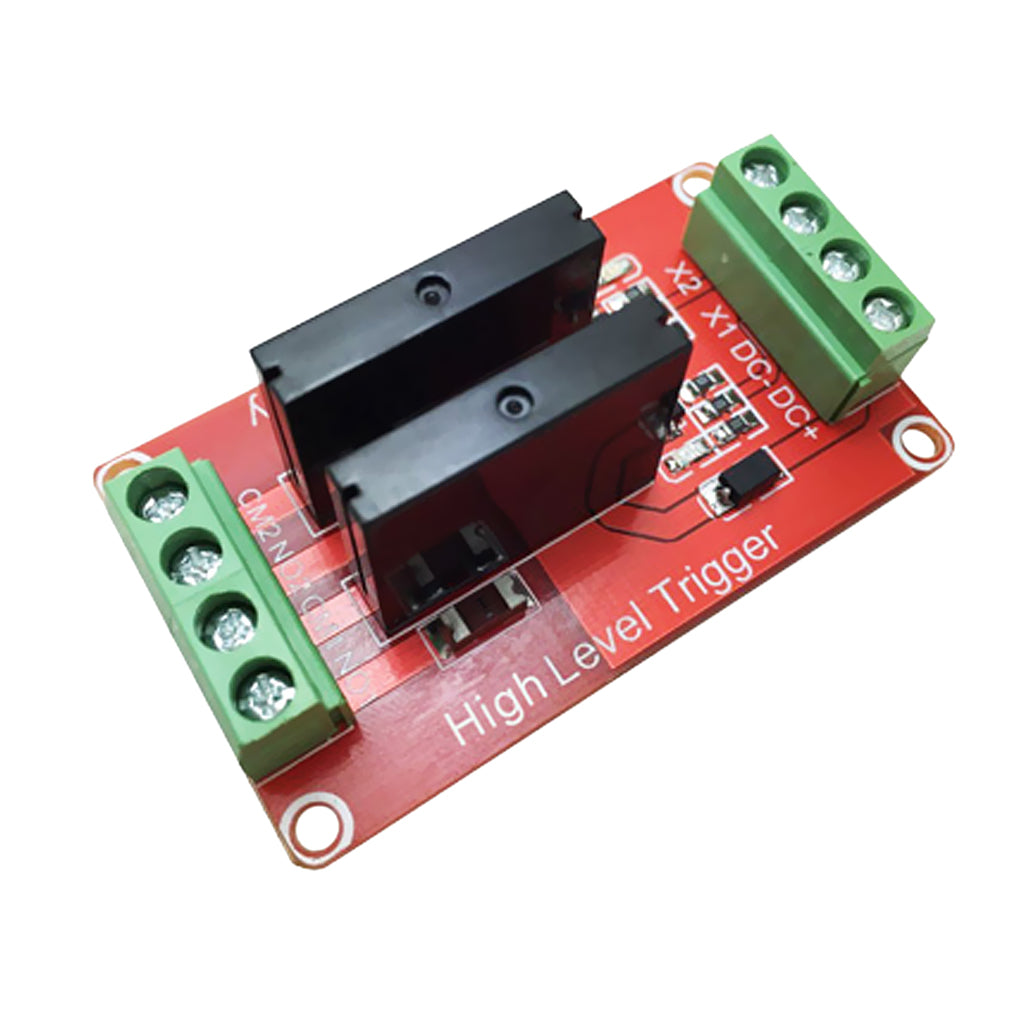

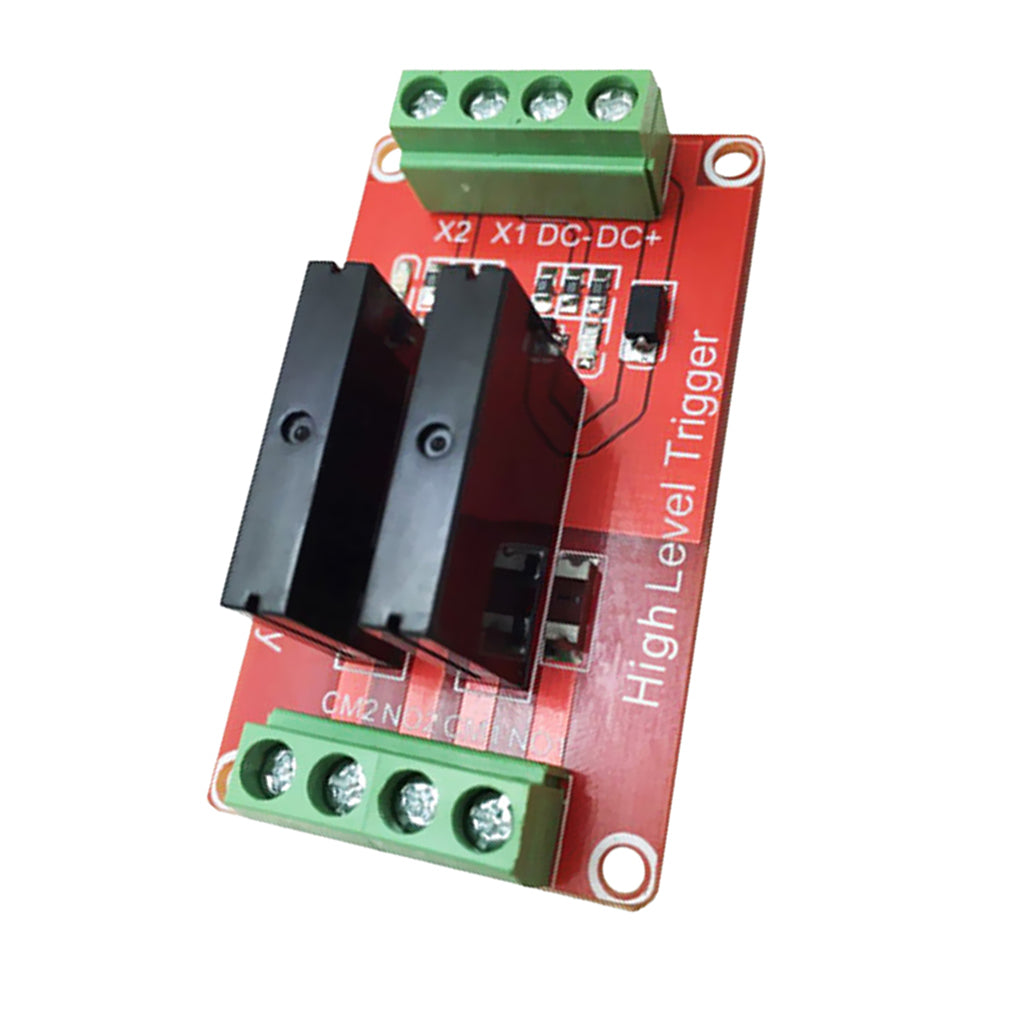

Maxbell Red Solid State Relay Module High Level with Fuse 240V 2A 2 Channel 5V

Description:

100% brand new and high quality

High-quality solid-state relay module, maximum load: AC 240V / 2A.

High-level control module

Solid state relay 240V 2A, output with resistive fuse 240V 2A

Trigger Mode: High Level Trigger

Specification:

Voltage Supply: 5V/12V/24V Optional

Channels: 1/2/4/8 Channel Optional

Max working current: 13.8mA, 26.8mA, 48mA, 70mA, 90mA Optional

Switch Max frequency: ≤5KHz

Static Current: 0mA

DC +: positive power supply (by relay voltage power supply)

DC-: connect power negative

CH1: 1 relay module signal to trigger the end (high level trigger effective)

CH2: 2-channel relay module signal to trigger the end (high level trigger effective)

CH4: 4-channel relay module signal to trigger the end (high level trigger effective)

CH8: 8-channel relay module signal to trigger the end (high level trigger effective)

Trigger Voltage Range:

5V High-level trigger module: 0-1.5VDC relay connect (ON), 2.5-5VDC relays disconnect (OFF)

12V High-level trigger module: 0-4.5VDC relay connect (ON), 5.5-12VDC relays disconnect (OFF)

24V High-level trigger module: 0-8.5VDC relay connect (ON), 10-24VDC relays disconnect (OFF)

Size Chart:

1 Channel: Size: Approx. 40x 30x 25mm/ 4.57x 1.18x 0.98inch; Hole Size: Approx. 35.6x 25.6mm/ 1.40x 1.01inch

2 Channel: Size: Approx. 60x 35x 25mm/ 2.36x 1.38x 0.98inch; Hole Size: Approx. 55x 30mm/ 2.17x 1.18inch

4 Channel: Size: Approx. 60x 56x 25mm/ 2.36x 2.20x 0.98inch; Hole Size: Approx. 55x 51mm/ 2.17x 2.01inch

8 Channel: Size: Approx. 96x 60x 25mm/ 3.78x2.36x 0.98inch; Hole Size: Approx. 55x 91mm/ 2.17x 3.58inch

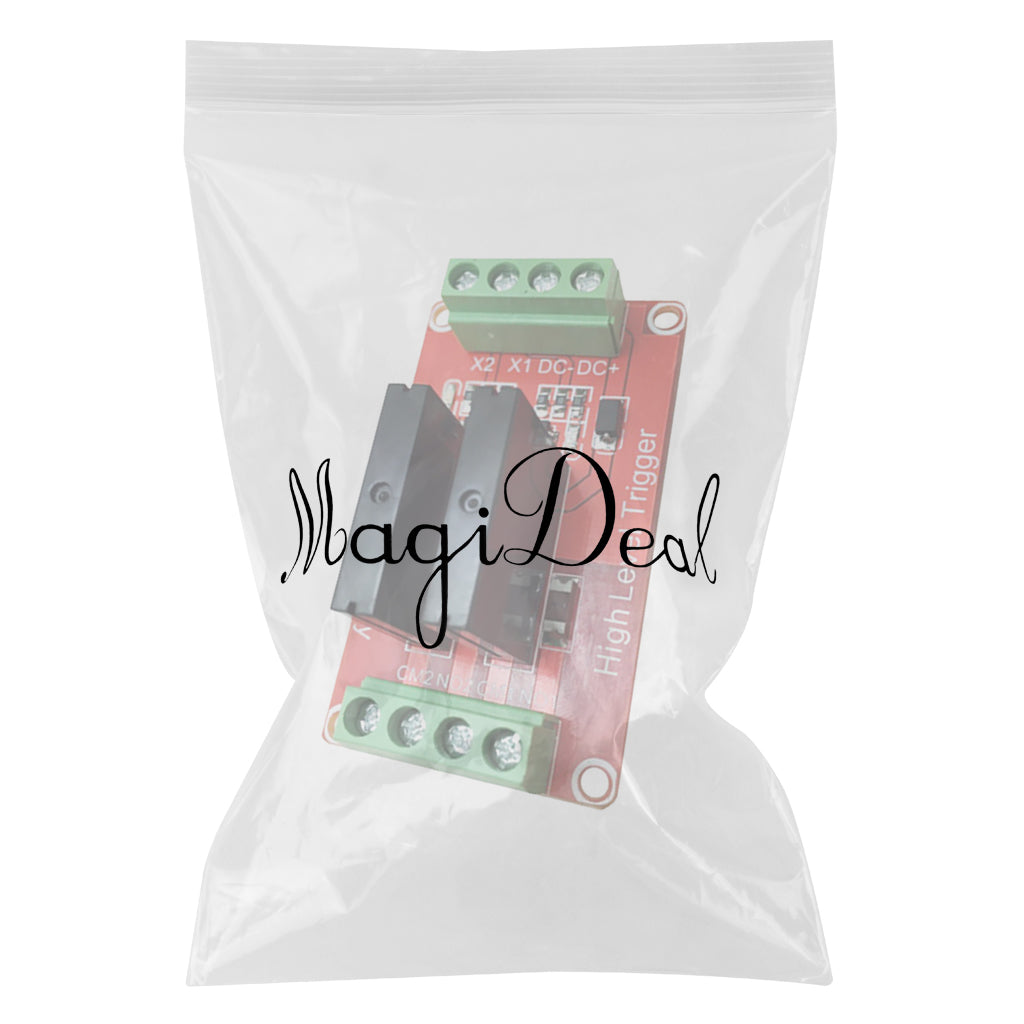

Package Includes:

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.
