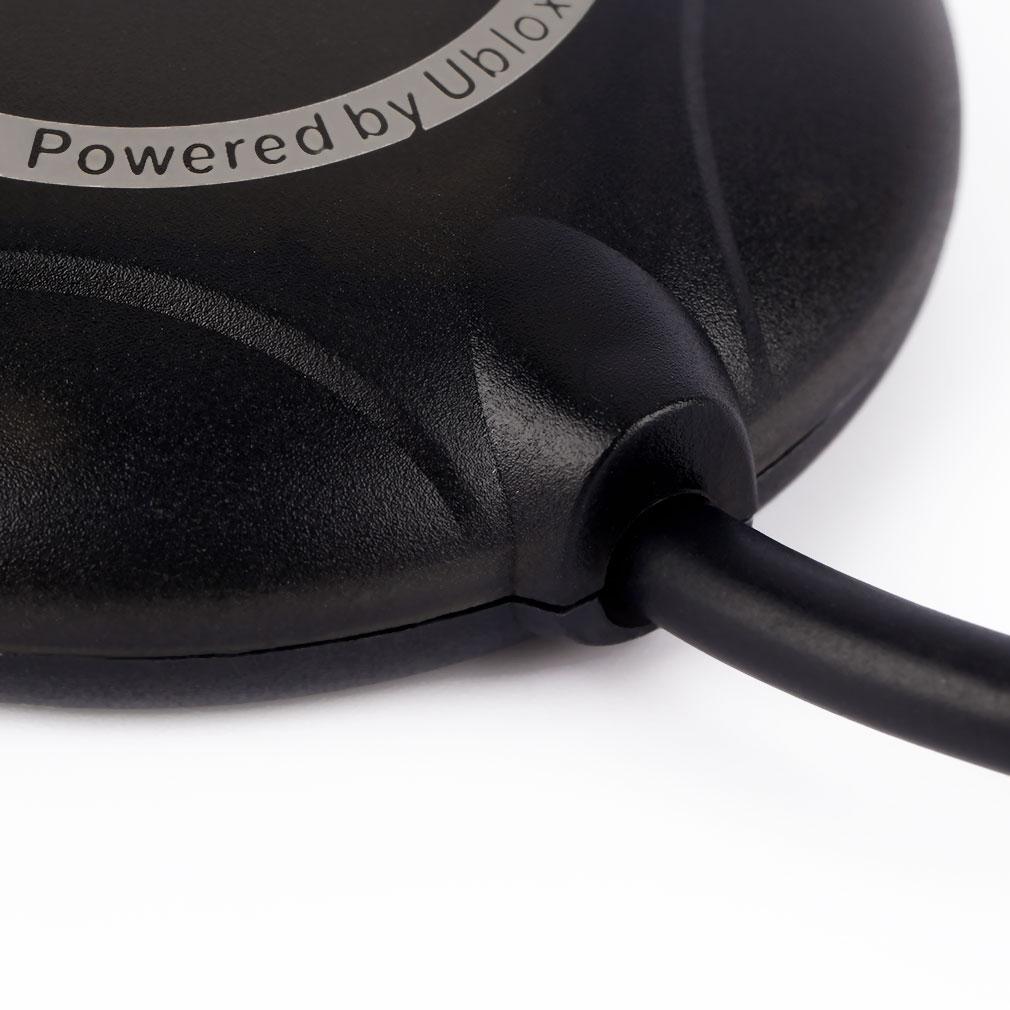

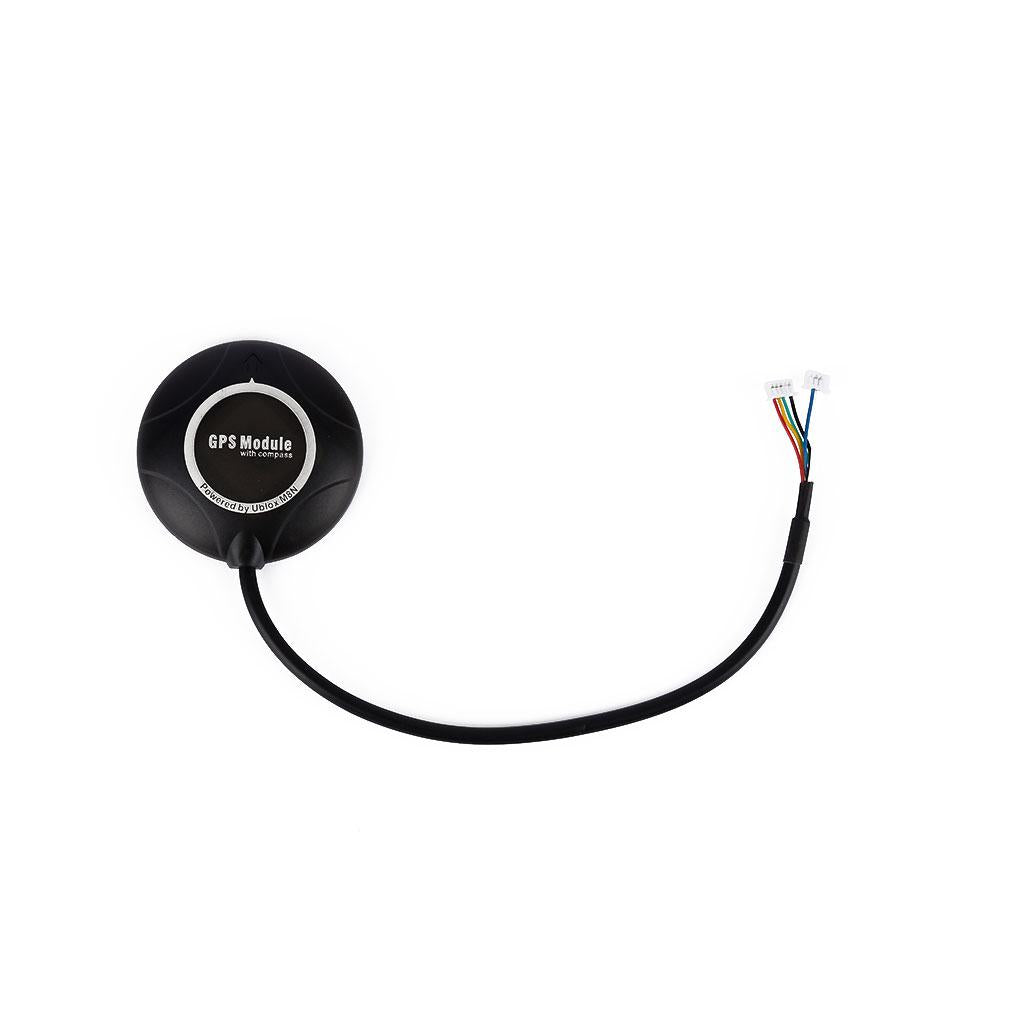

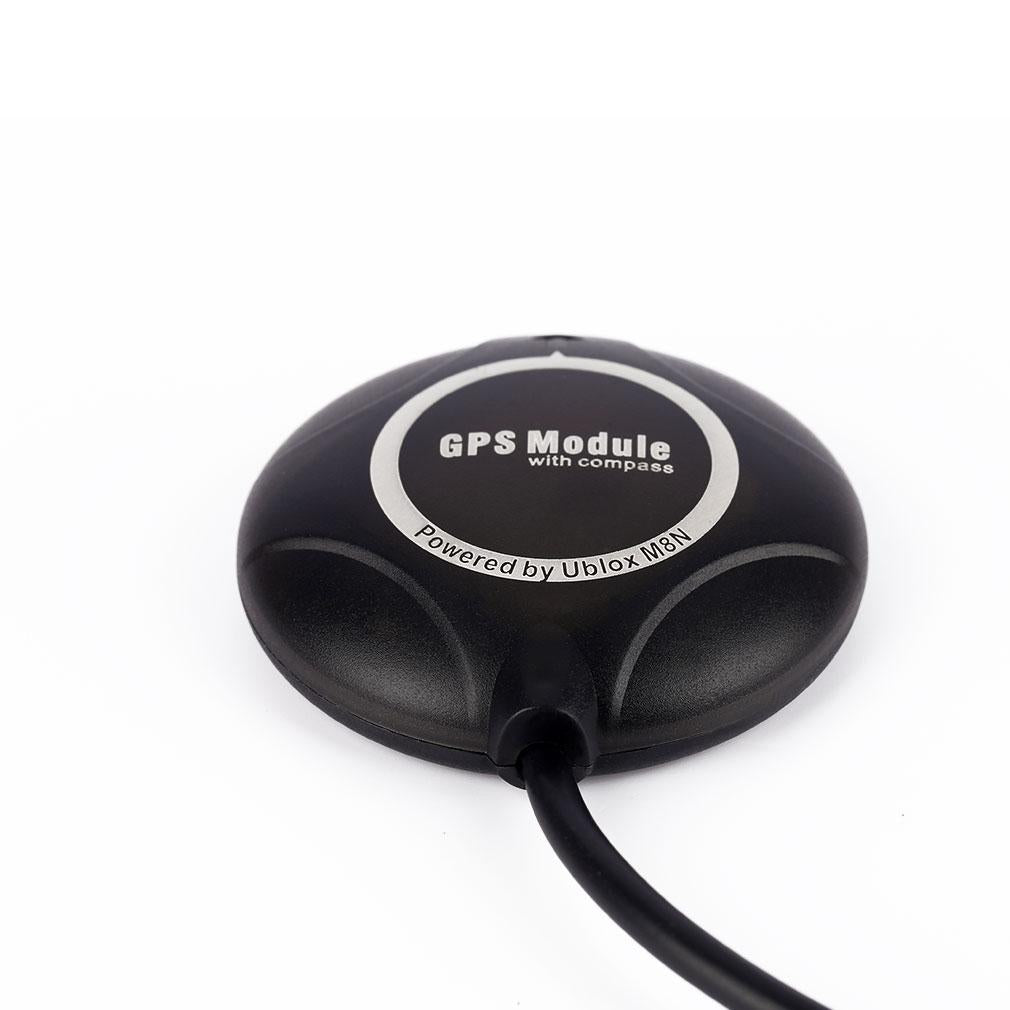

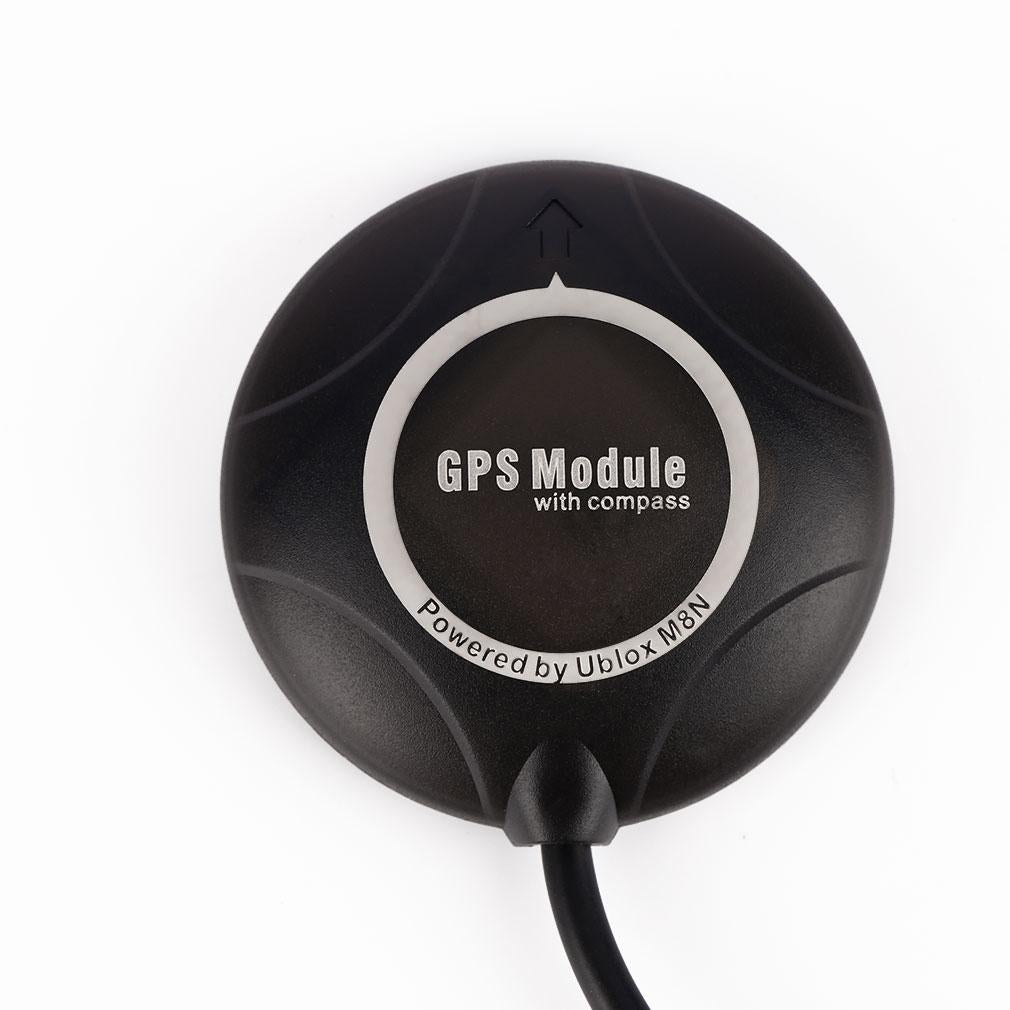

Maxbell NEO-M8N Flight Controller GPS Module Compass for OCDAY
2
sold in last
8
hours
In stock
Rs. 10,170.00
Rs. 5,085.00
customers are viewing this product
Description:
- Receiver type 72-channel u-blox M8 engine
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Concurrent GNSS: up to 10 Hz
- Position accuracy2 2.0 m CEP
- Acquisition2 Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
- Sensitivity2 Tracking & Nav: –167 dBm
- Cold starts: –148 dBm
- Hot starts: –156 dBm
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)3
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti jamming Active CW detection and removal. Extra
- onboard SAW band pass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
Specification:
- Tracking sensitivity: -161dBm
- Capture sensitivity: -148dBm
- Cold start time: 38s average
- Warm start time: 35s average
- Hot start time: 1s average
- Capture time: 0.1s Average
- Temperature: 40 to +80
- Wide power supply voltage: +3.5V~+5.5V
- Ublox GPS Module V2.0
- Color: black

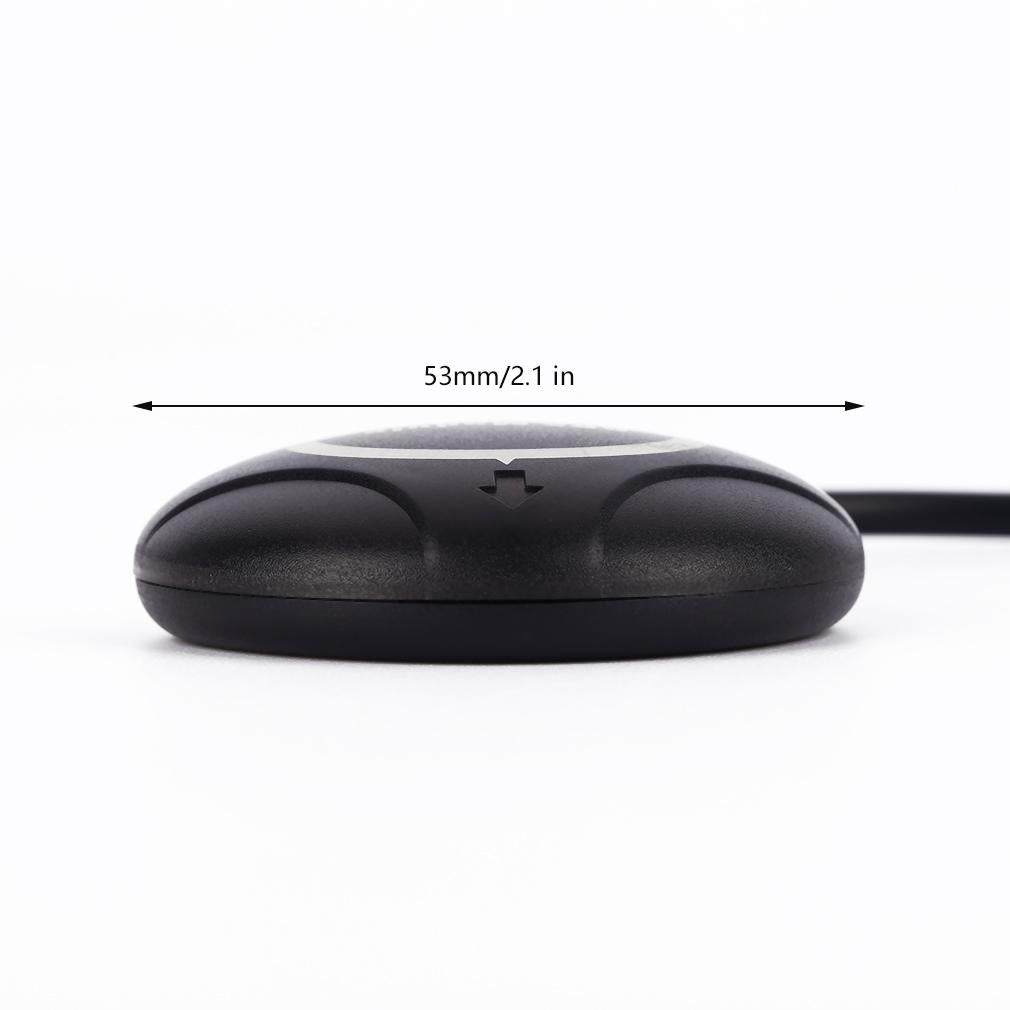

- Size: 53mm/2.1 inch(D)
- Package size: approx.145 x 90mm/5.7 x 3.5inch

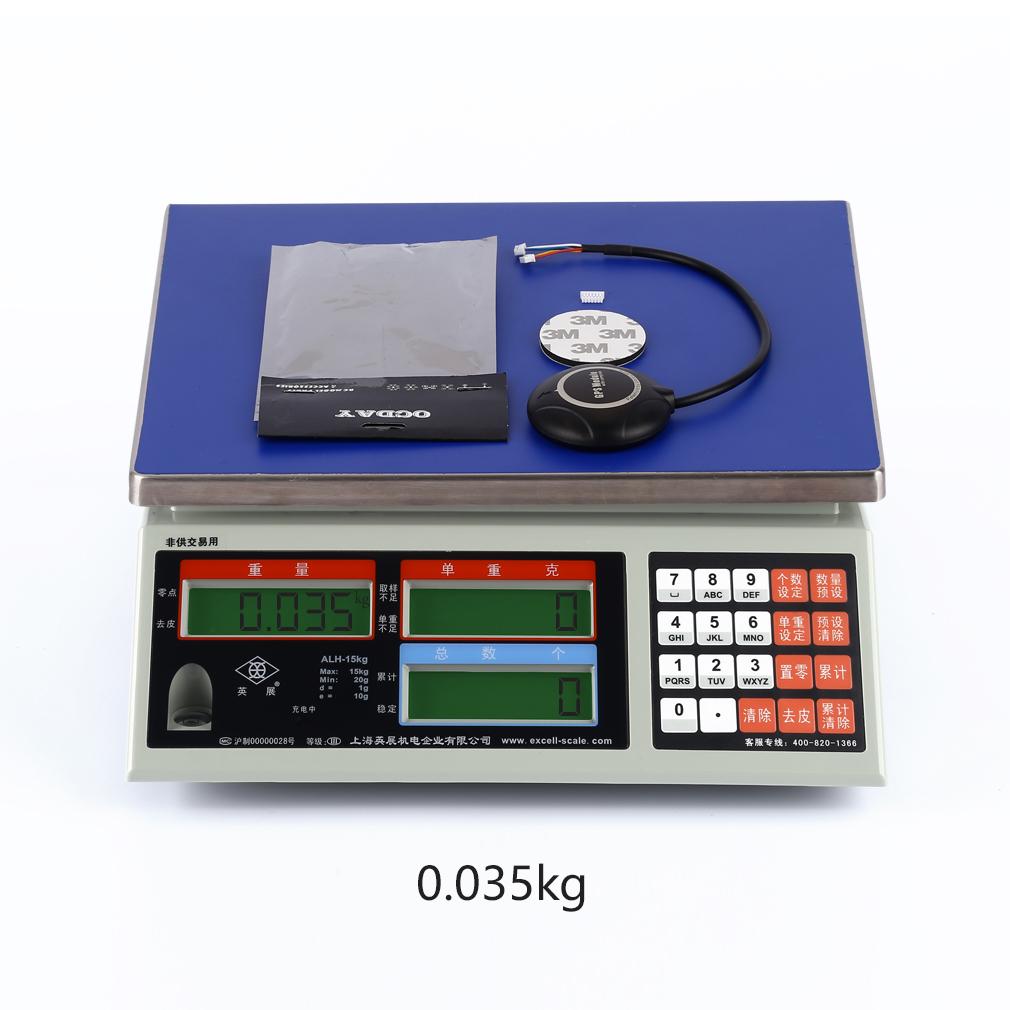

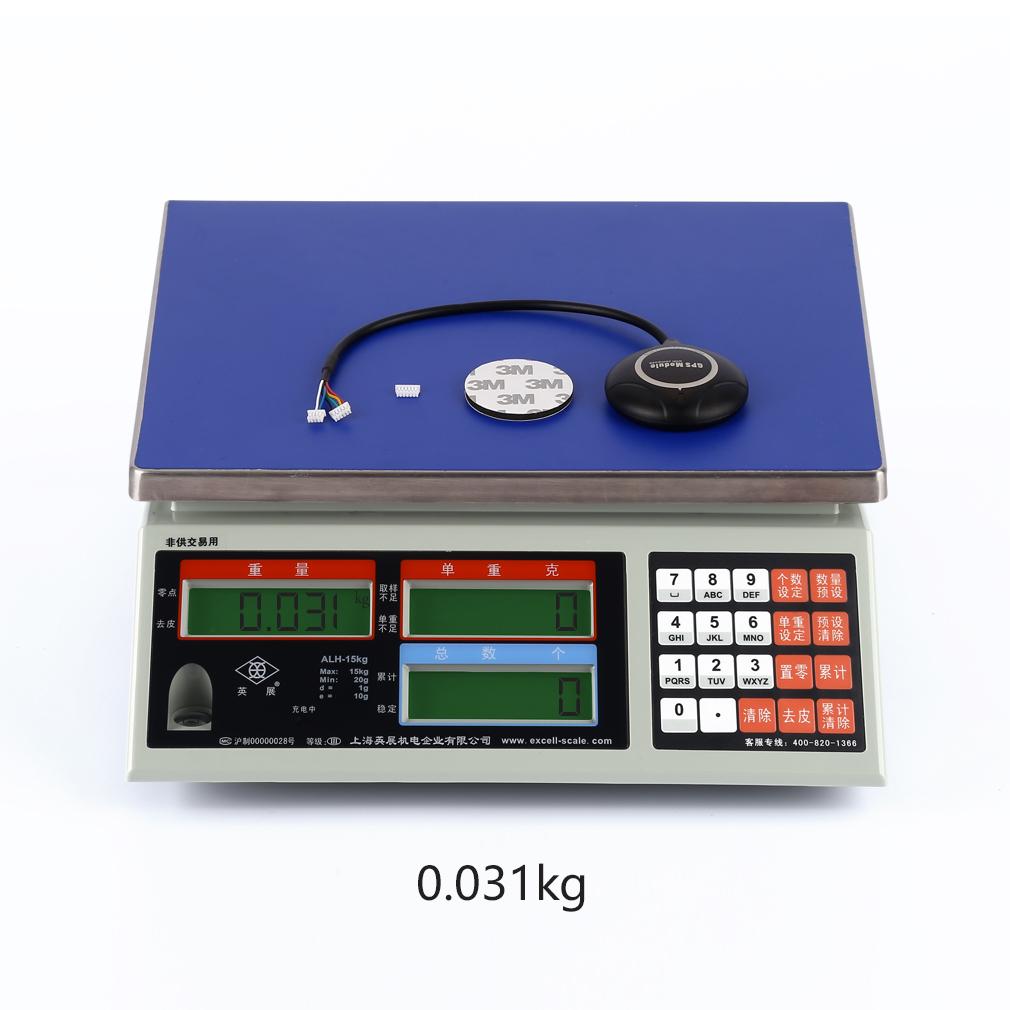

- Net weight: 31g

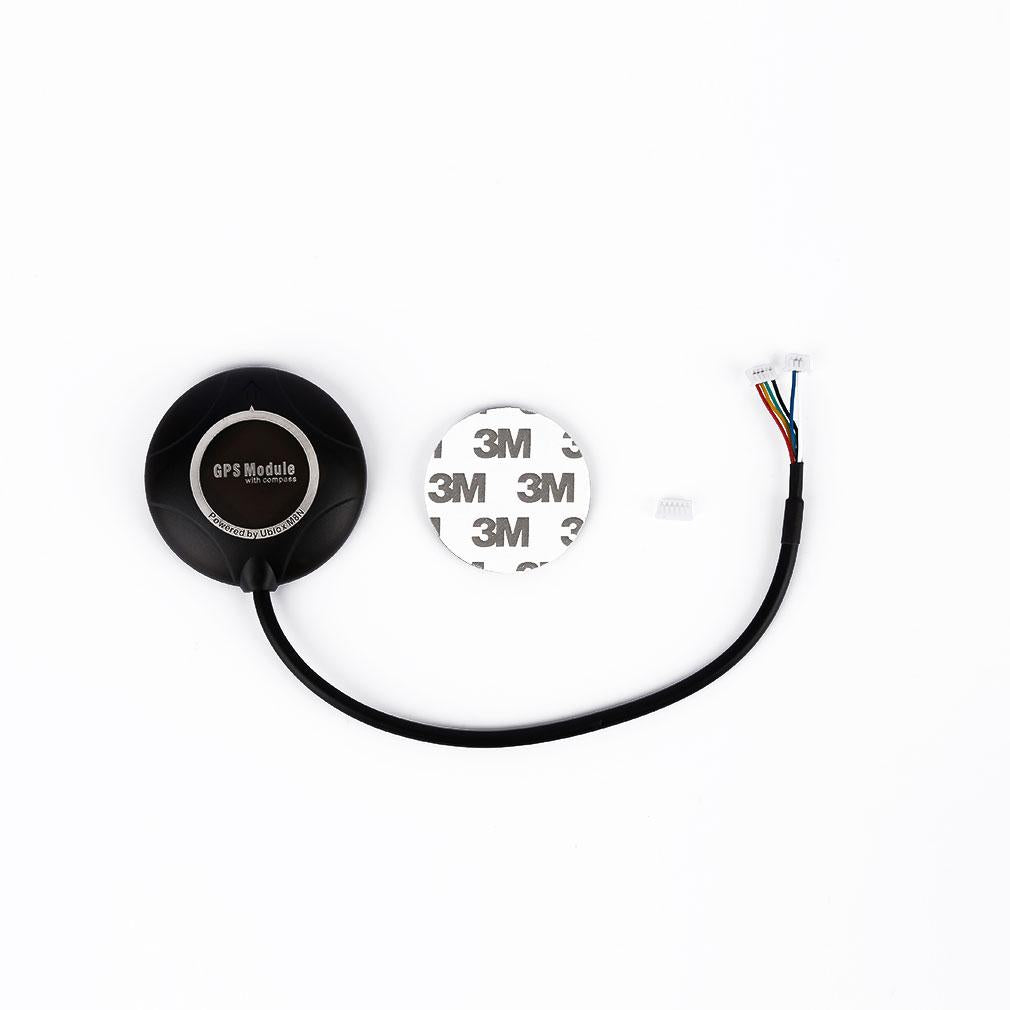

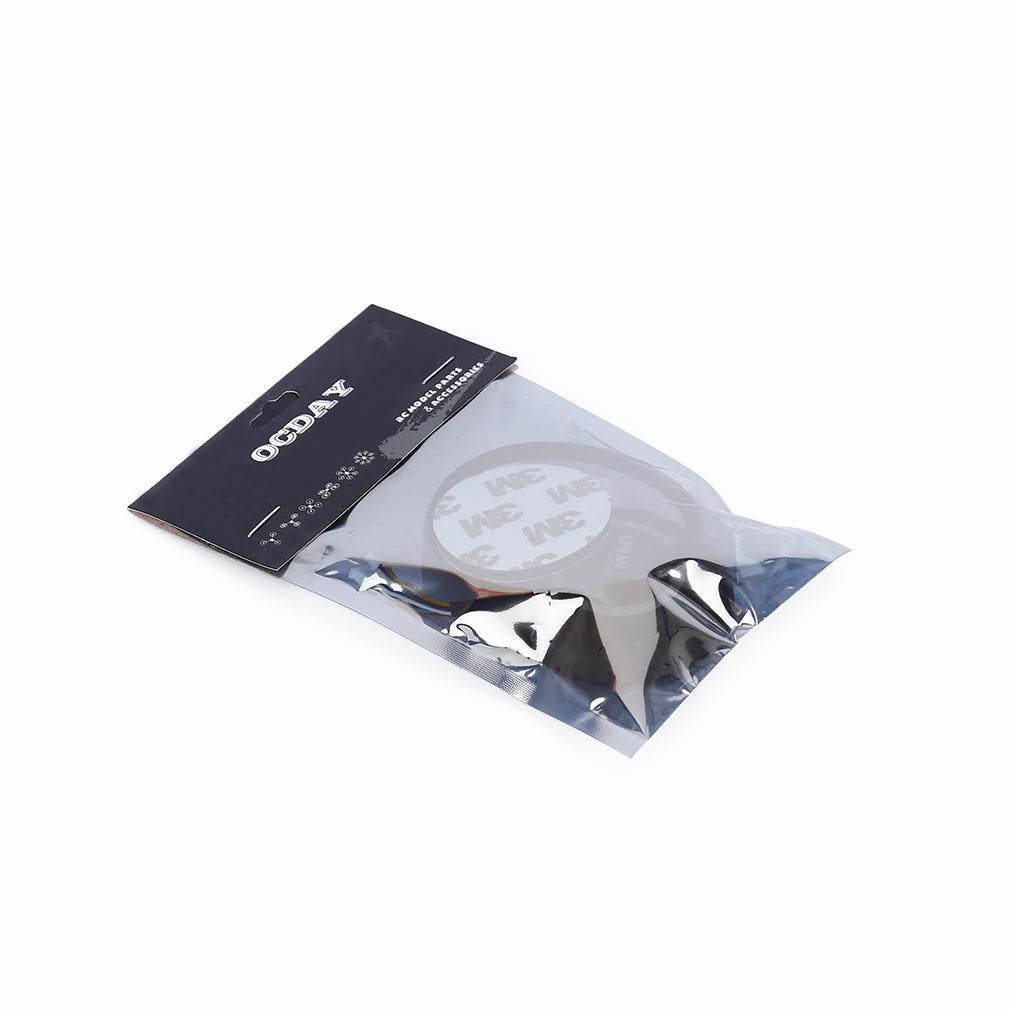

Package Includes:

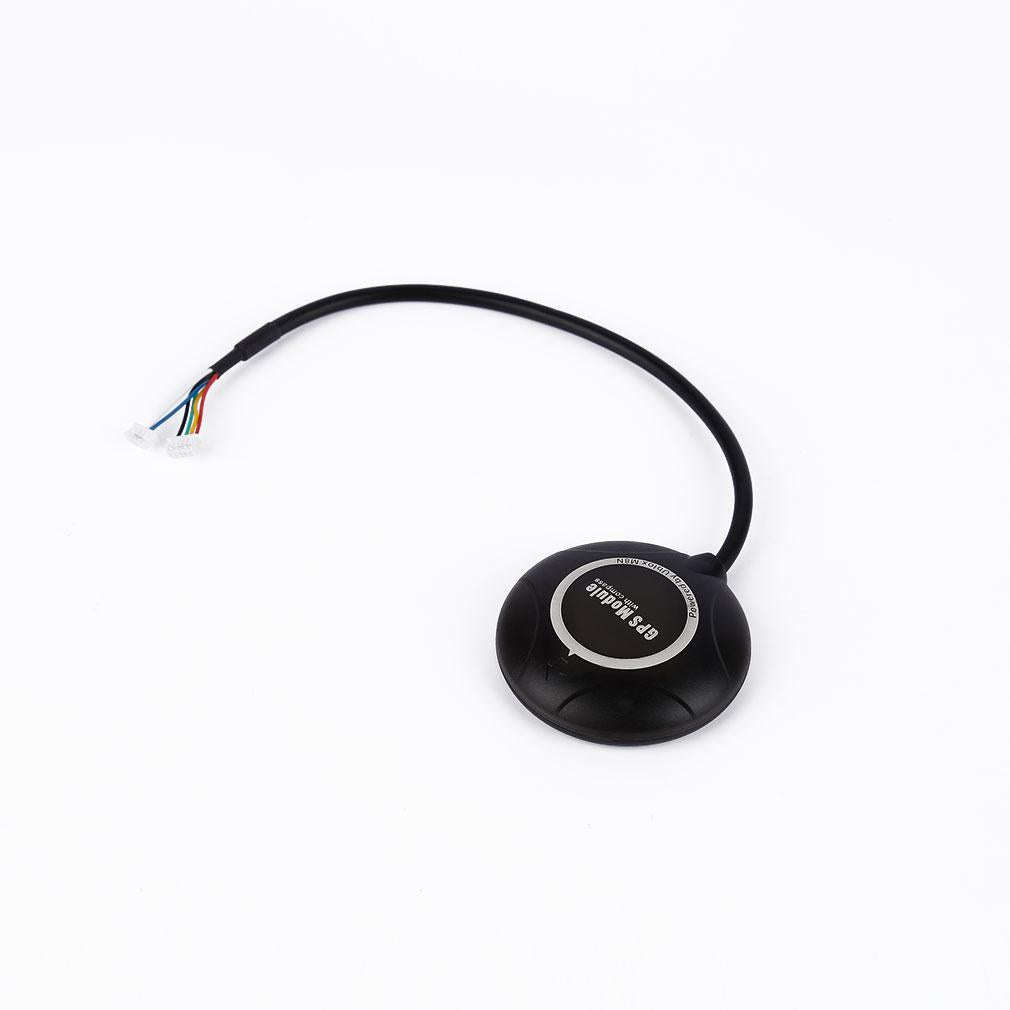

- 1x NEO-M8N GPS Module(other installation accessories are included)
- 1x sticker
