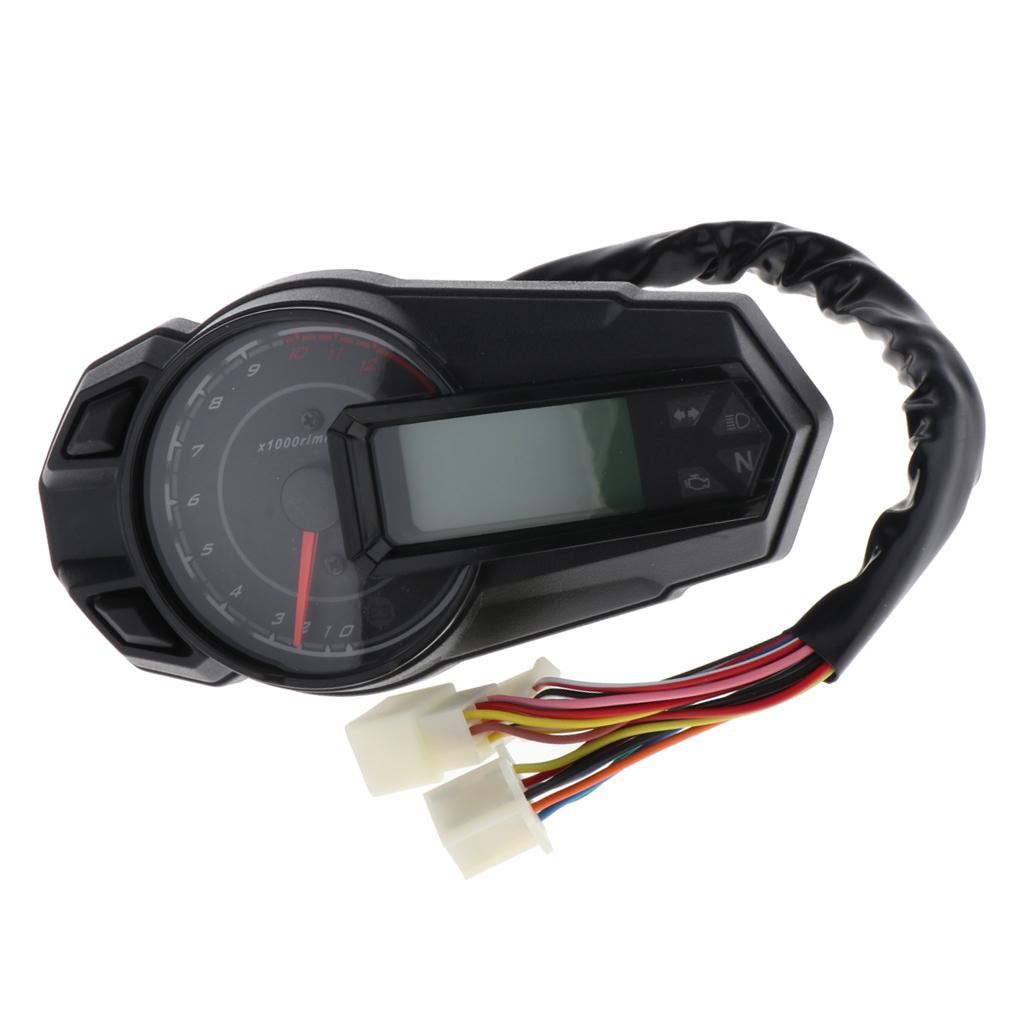

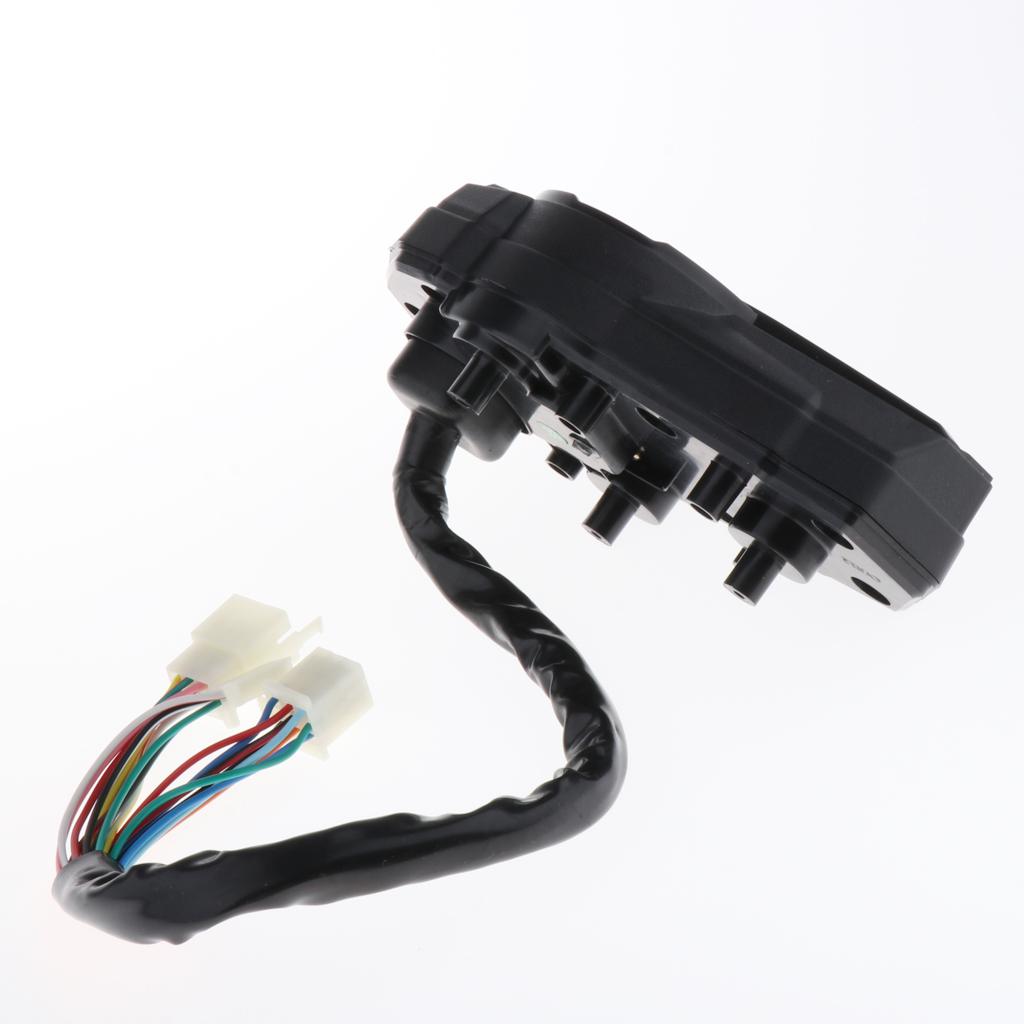

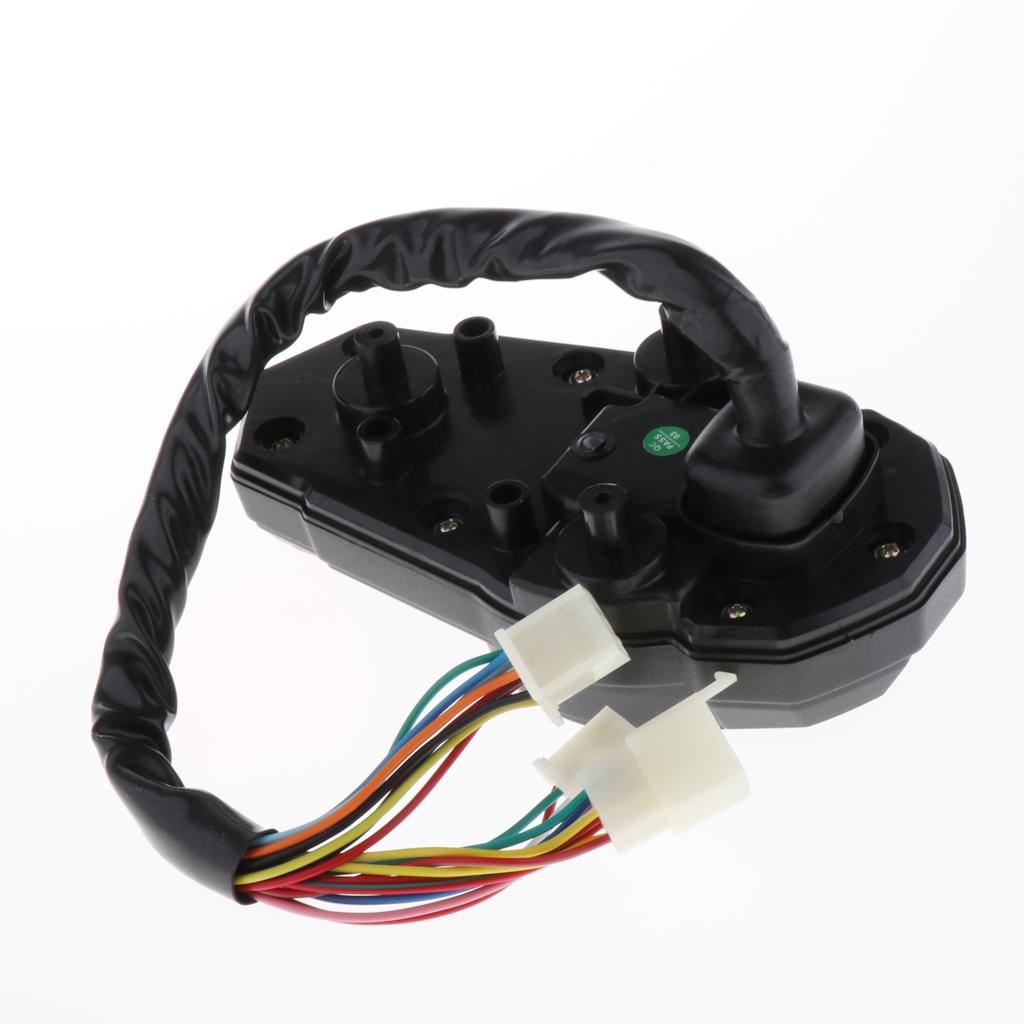

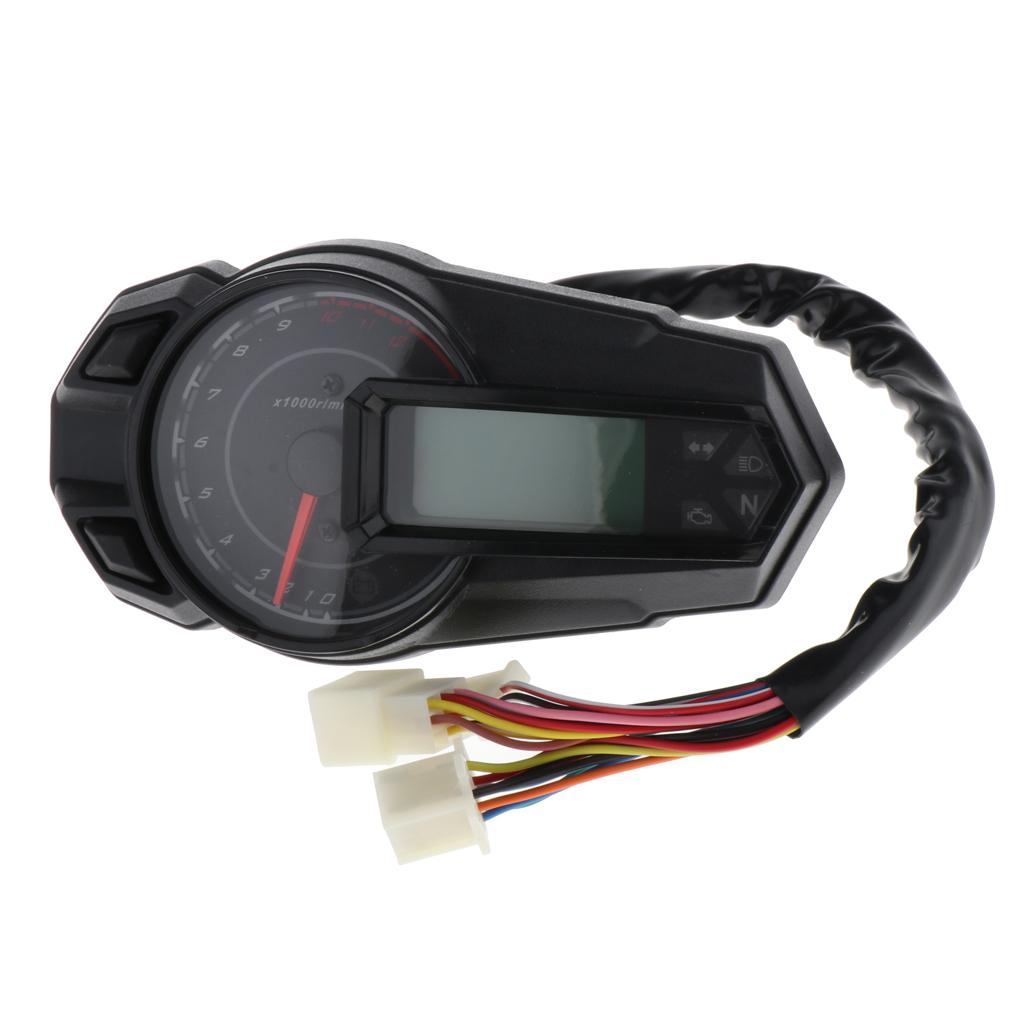

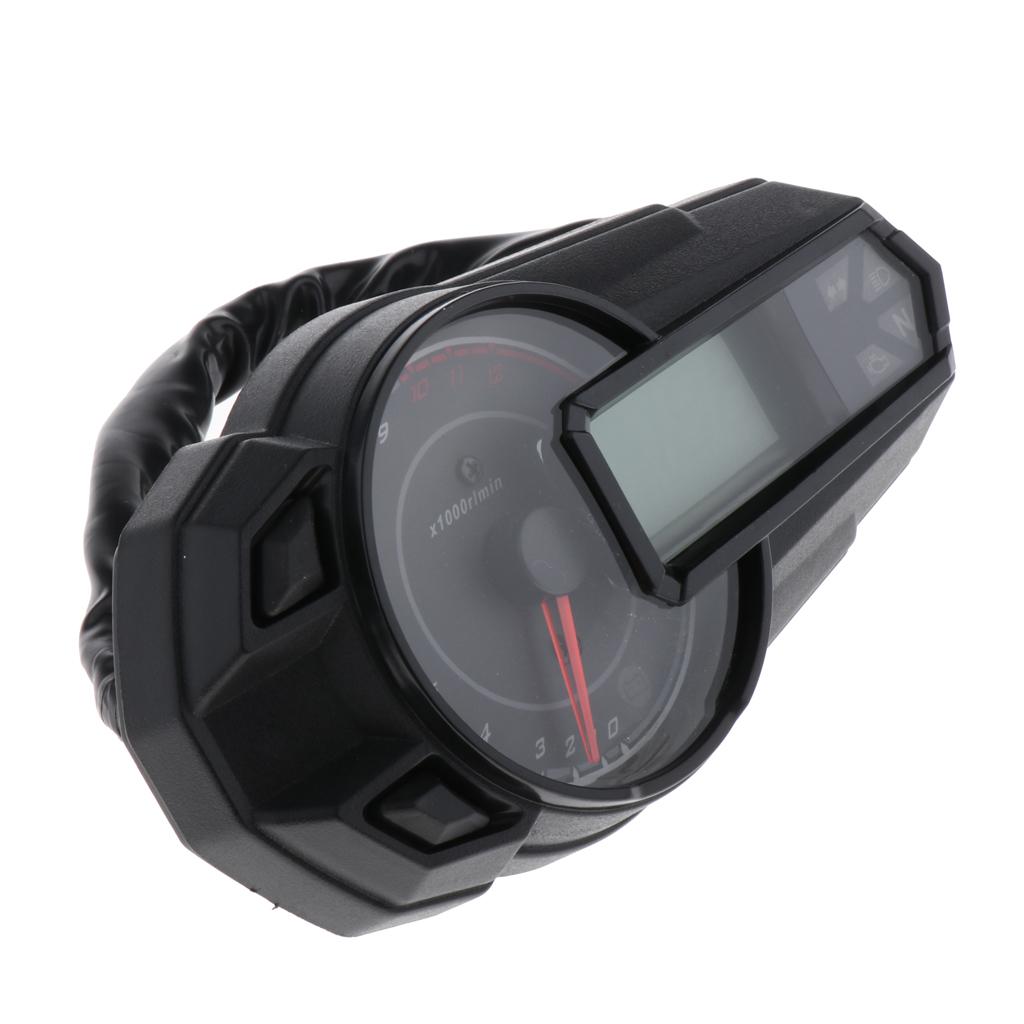

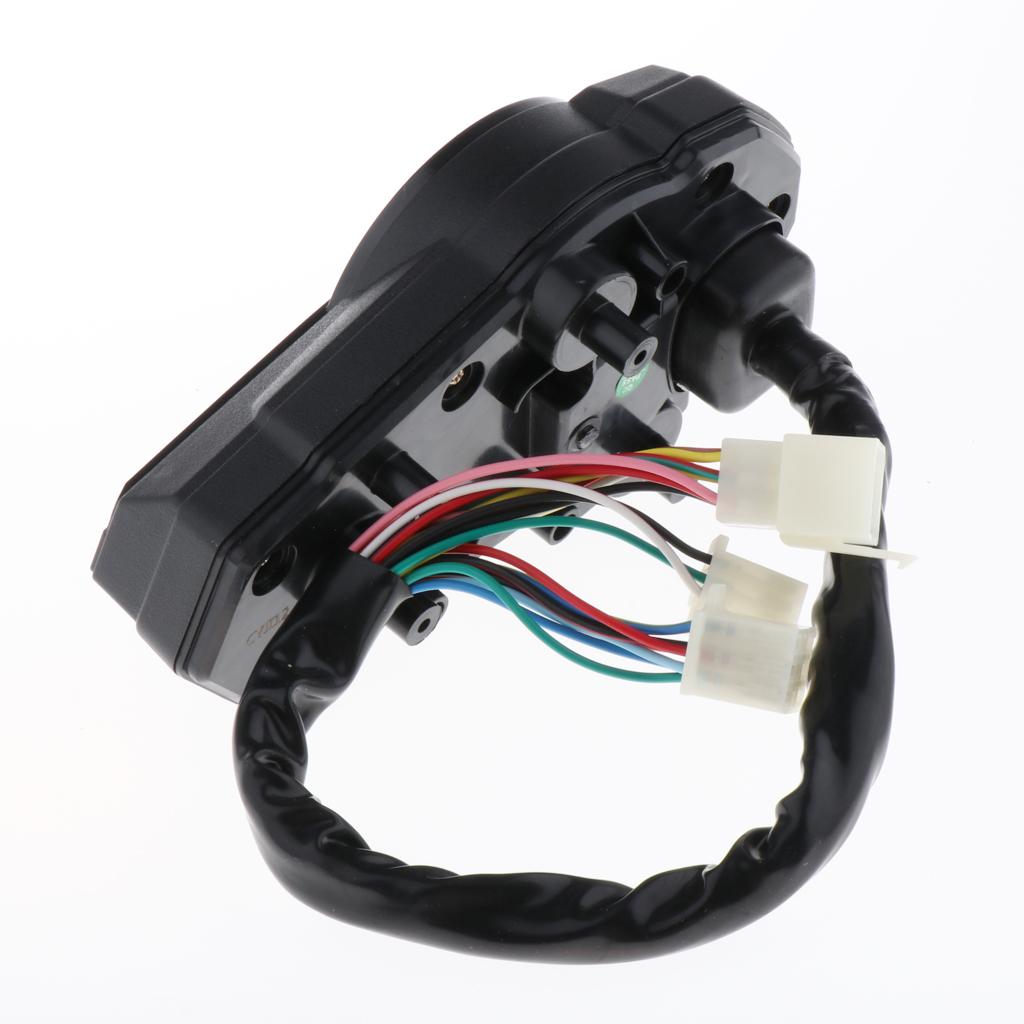

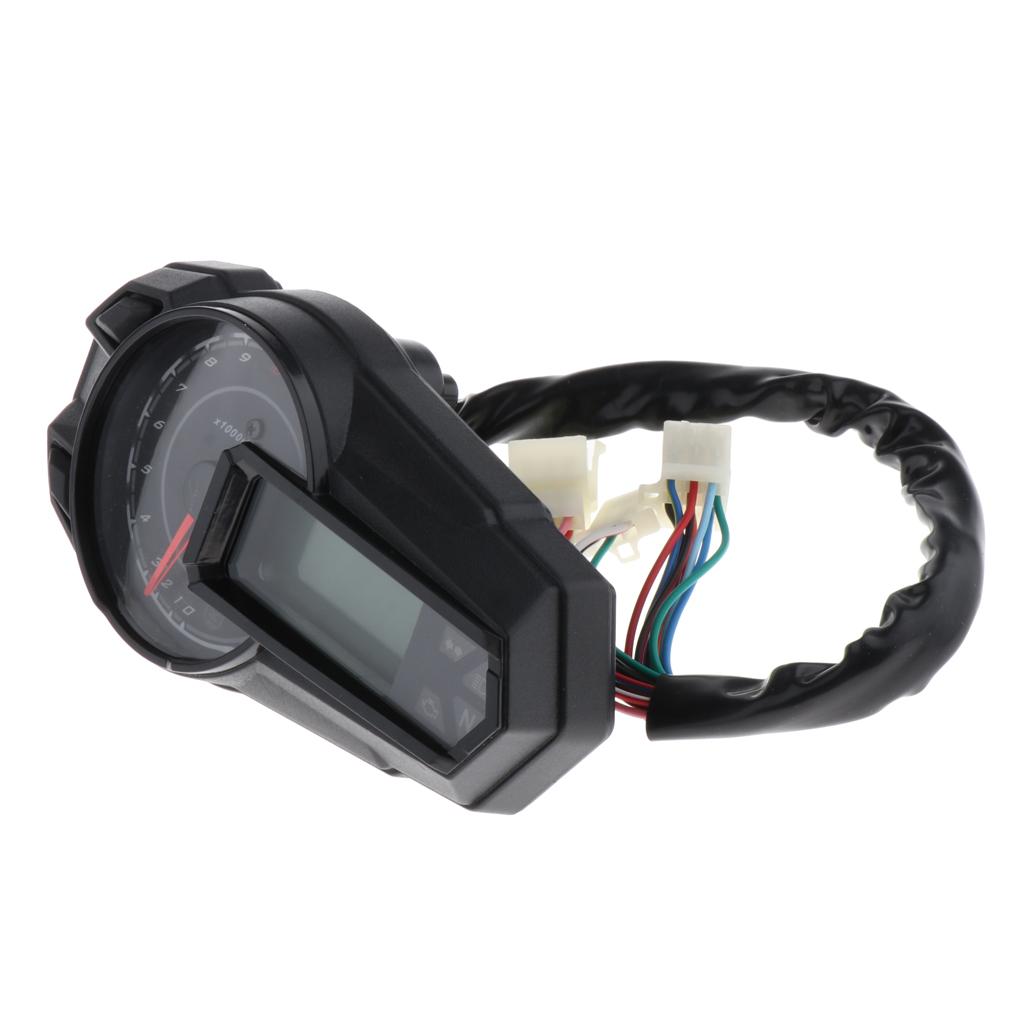

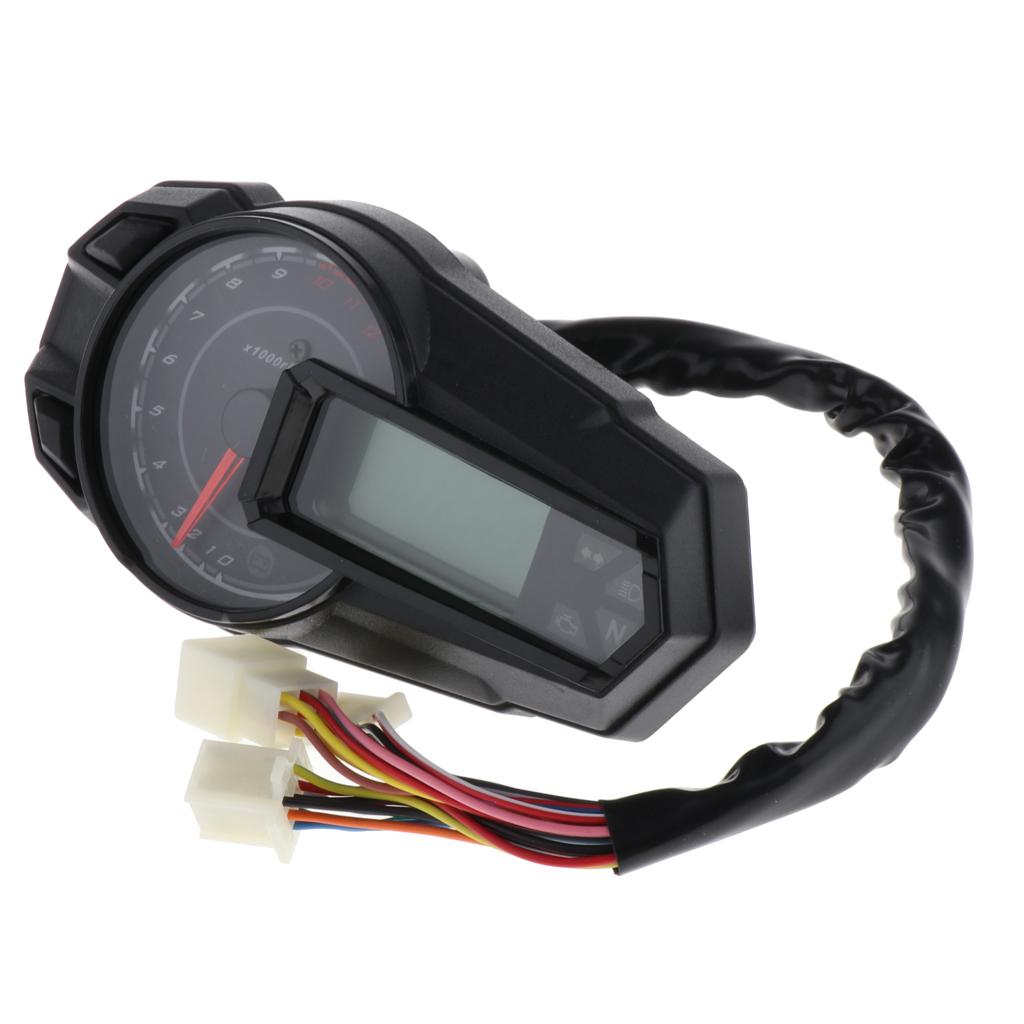

Maxbell LED Backlight Motorcycle Speedometer Odometer Tachometer Kmh 12000RPH

Description:

LED Backlight Motorcycle Speedometer Odometer Tachometer Kmh Sensor 12000RPH

Size: 17.8x9.5 cm

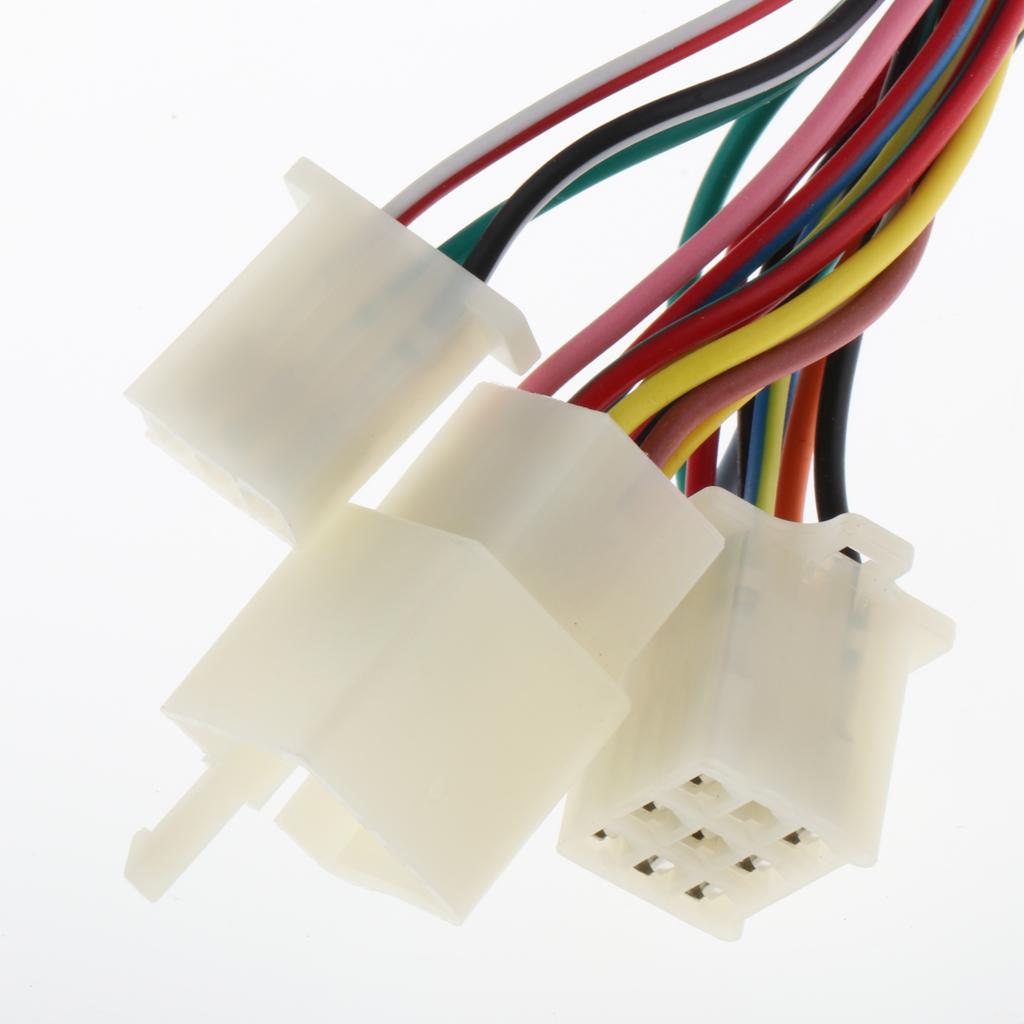

Wiring instructions:

Adjustable instrument

Black: positive Cable at the electric lock

Yellow/green: fuel

Orange: turn left, 12V positive control

Black/yellow: speed

Red: battery

Blue: high-beam, 12V positive control

Green: 12V negative

Light blue: turn right, 12V positive control

Pink: 1st gear, 12 negative controls

Blue/red: 2 files, 12 negative controls

Green/Black: 3 files, 12 negative controls

Green/Red: N file, 12 negative control

Yellow/red: 4 files, 12 negative controls

Yellow / white: 5 files, 12 negative controls

Yellow: 6 files, 12 negative controls

Brown/red: engine, 12 negative control

Adjustment method:

Turn off the power first, press and hold the button on the top, do not let go, then turn on the power, the screen will not light up when the screen is on, release the button, it will enter the adjustment mode.

A total of 5 interfaces

The first interface appears c1982, adjust the speed, that is, modify the circumference of the rim, press the first button, the number changes, release the button for about 5 seconds will automatically enter the next digit, modify the next digit until the correct .

Long press the button to enter the second interface

The second interface is to modify the number of installed magnets, 1-12 can be modified

The third interface: the number of cylinders 2-4 changes, 2 is a single cylinder 4 is a double cylinder, the default 2

The fourth interface: 1/5 change, 1 means 2 Cable oil float 100 ohms, 5 is 3 Cable oil float means 500 ohms

The fifth interface: Clear the total mileage.

Long press to exit

Package Includes:

1x Speedometer

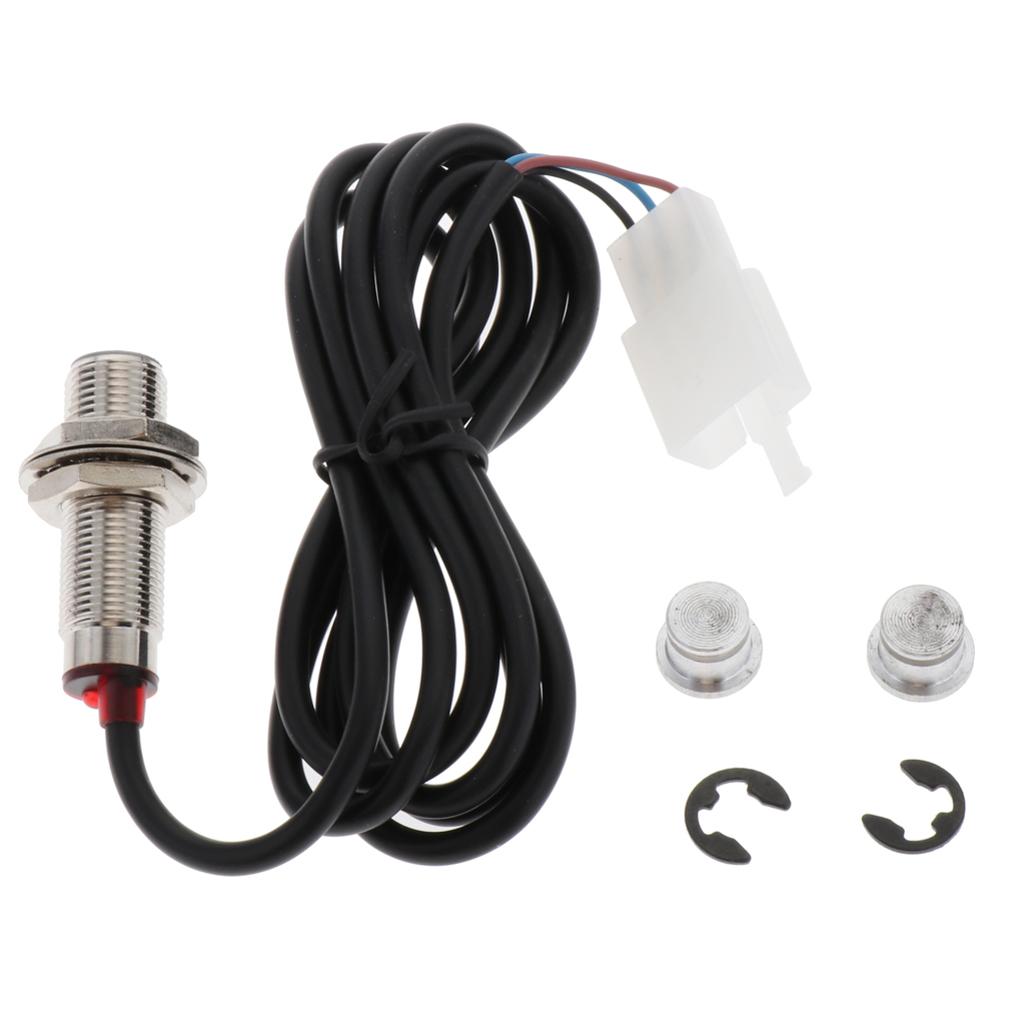

1x Sensing Cable

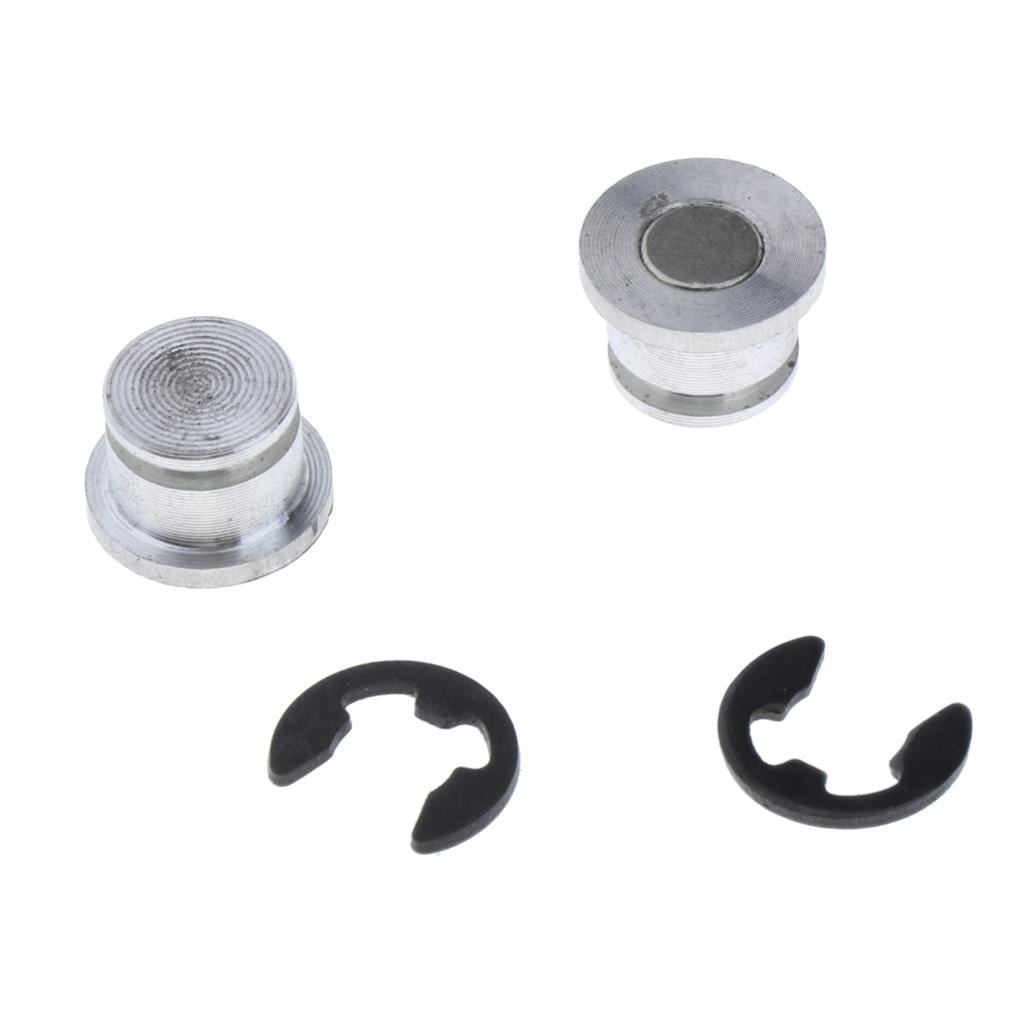

2x magnets
