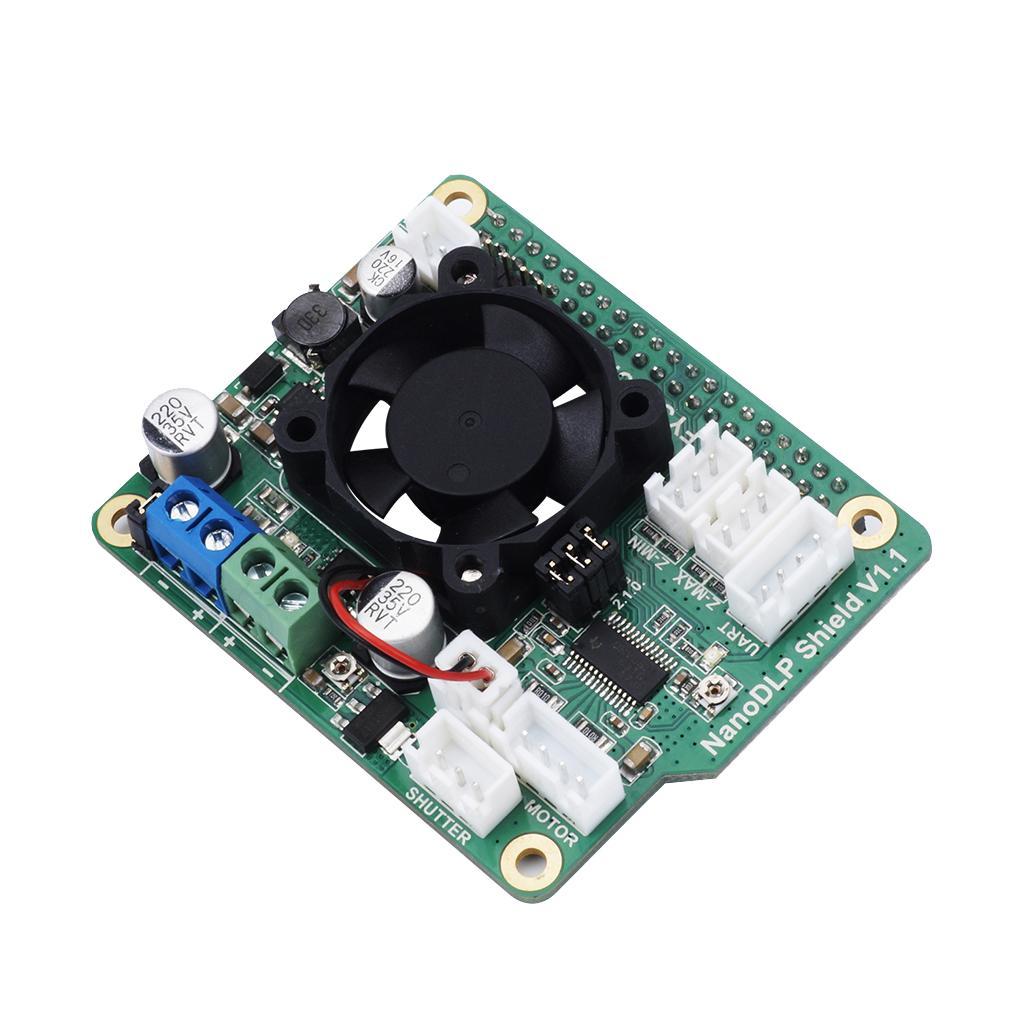

Maxbell Engraver Shield 3D Printer Expansion Board for NanoDLP Light Curing 3D Printer
Description:

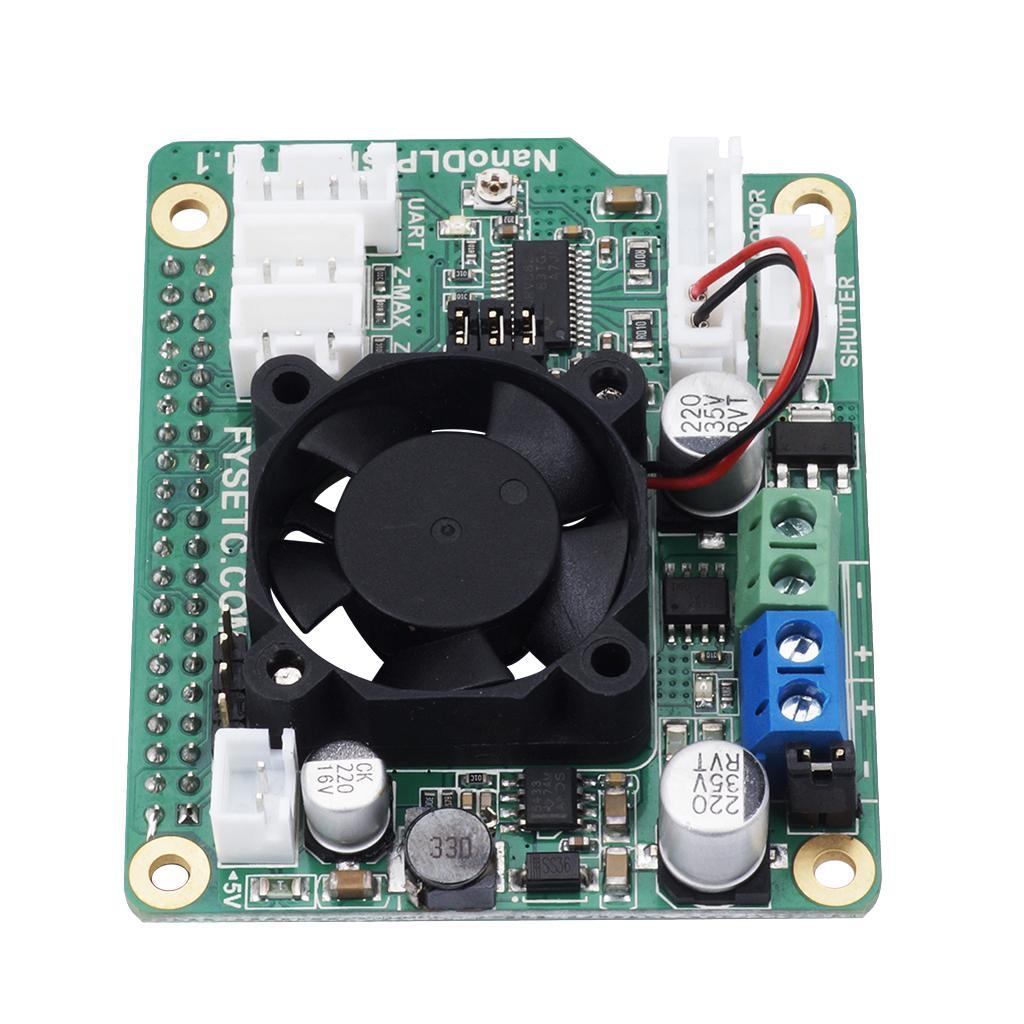

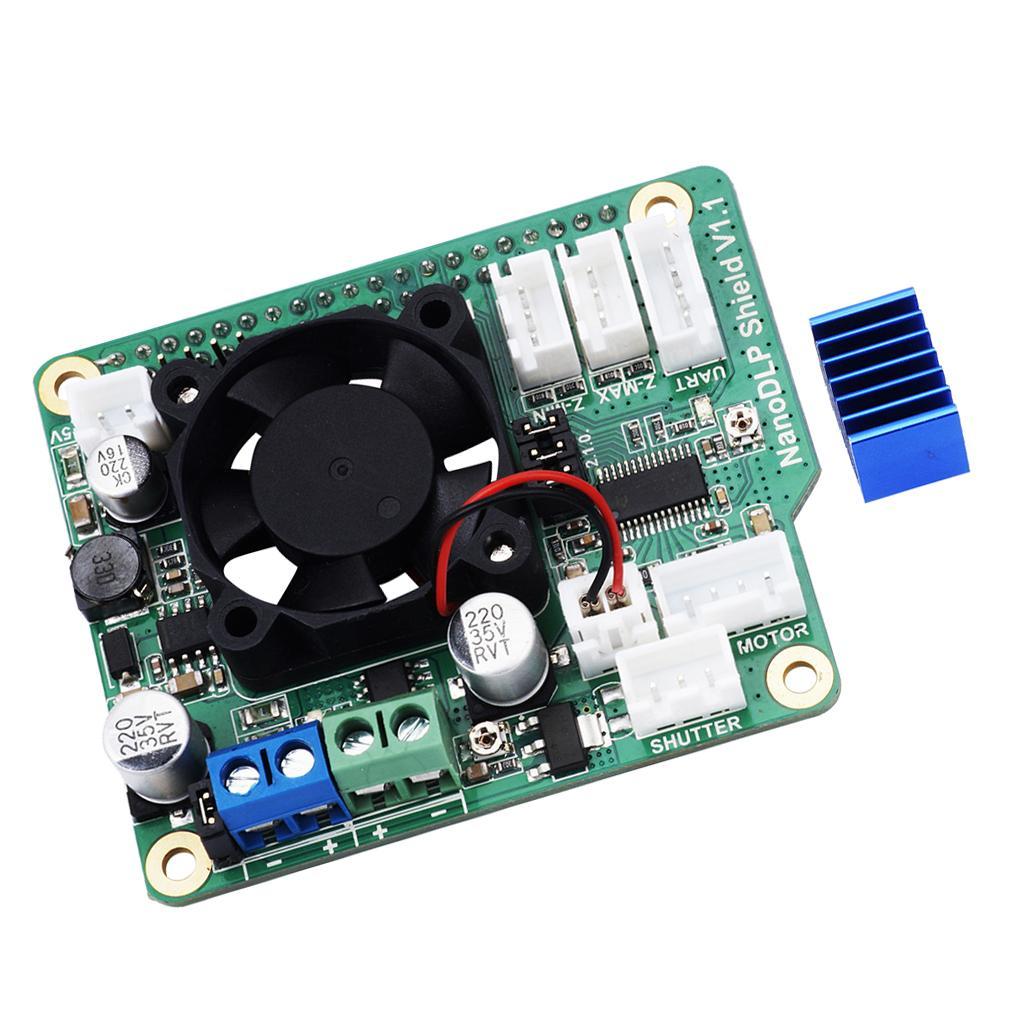

This expansion board is designed for the Raspberry Pi 3B and is used to run NanoDLP's light-cured 3D printers.

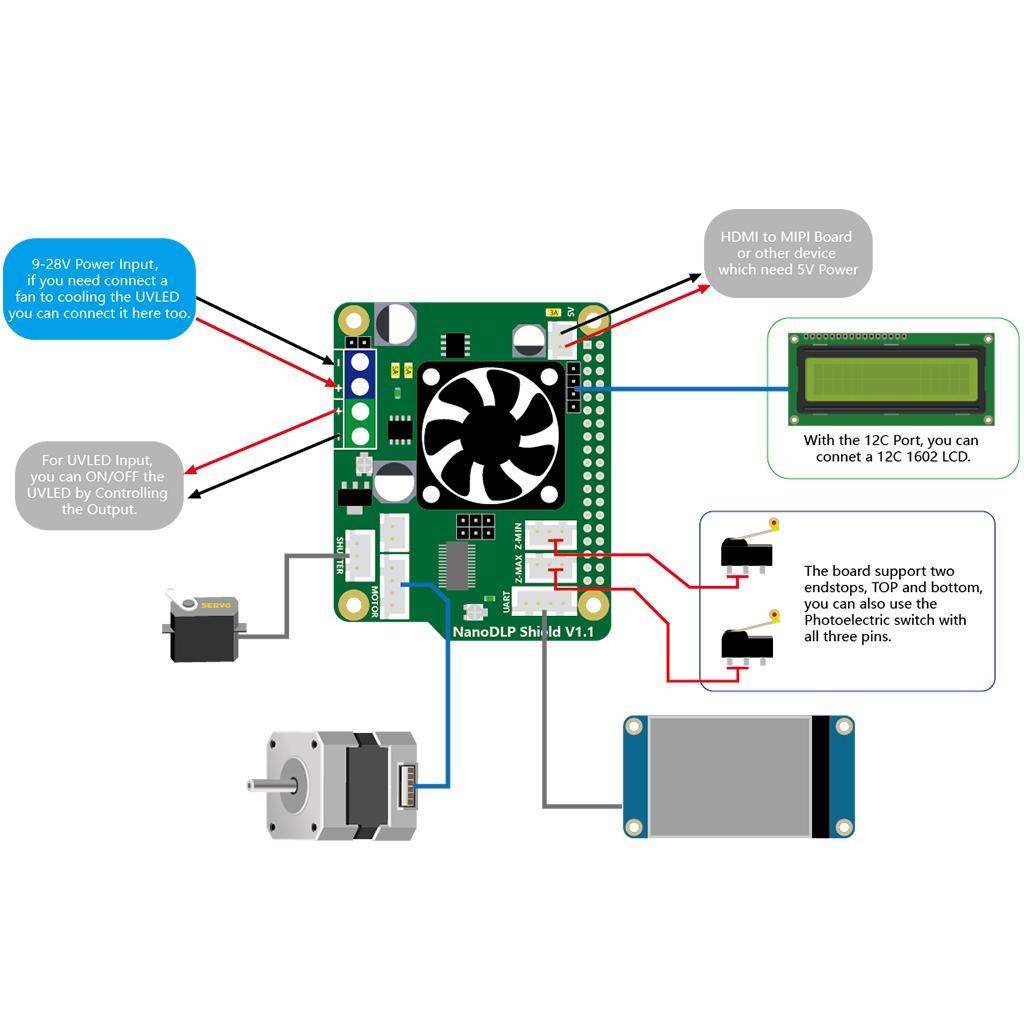

The board contains a 9-28V to 5V circuit, providing up to 3A of current, as well as the required NanoDLP 9V-28V to 5V@3A Buck Converter, DRV8825 Stepper Driver, 12V Fans (cooling the Raspberry Pi).
Controled MOS for ext LED driver.
I2C Connector for LCD1602.
Uart Connector for Touch Screen.
Support shutter.
5V OUT Connector for ext Board.
Applicable for NanoDLP software on Raspberry Pi.
Specification:
License: CPL V2
Latest Version: V1.1

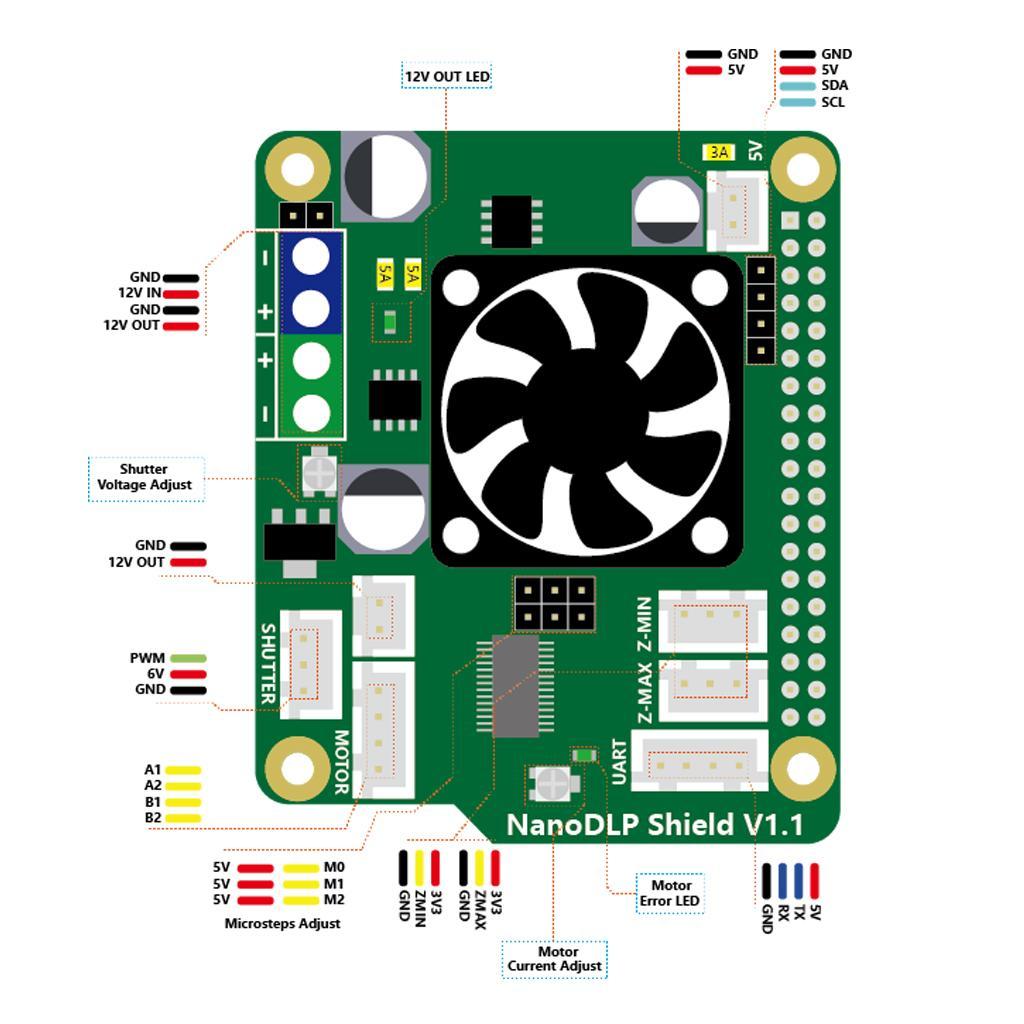

Fixed Port: 1X 12V (same as input) and 5V
Controlled Port: 1X 12V (same as input)
Endstops: Z-min/Z-max
I2C: 1X PinHeader-4P
Serial Port: 1X XH2.54-4P

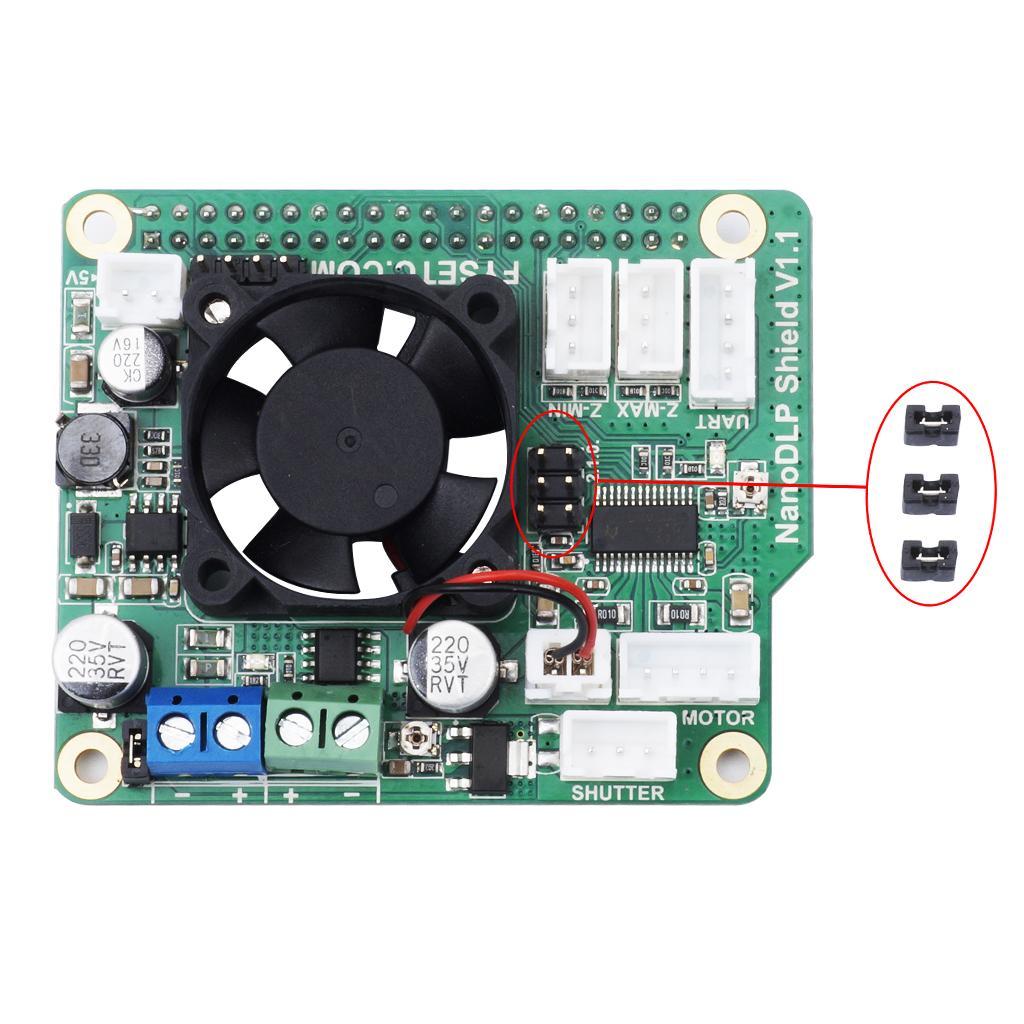

Stepper driver: 1X DRV8825@2.5A max/32 microsteps max
Input: 9V-28V
Output: 5V@3A max, 9-28V@3A max
Package Includes:

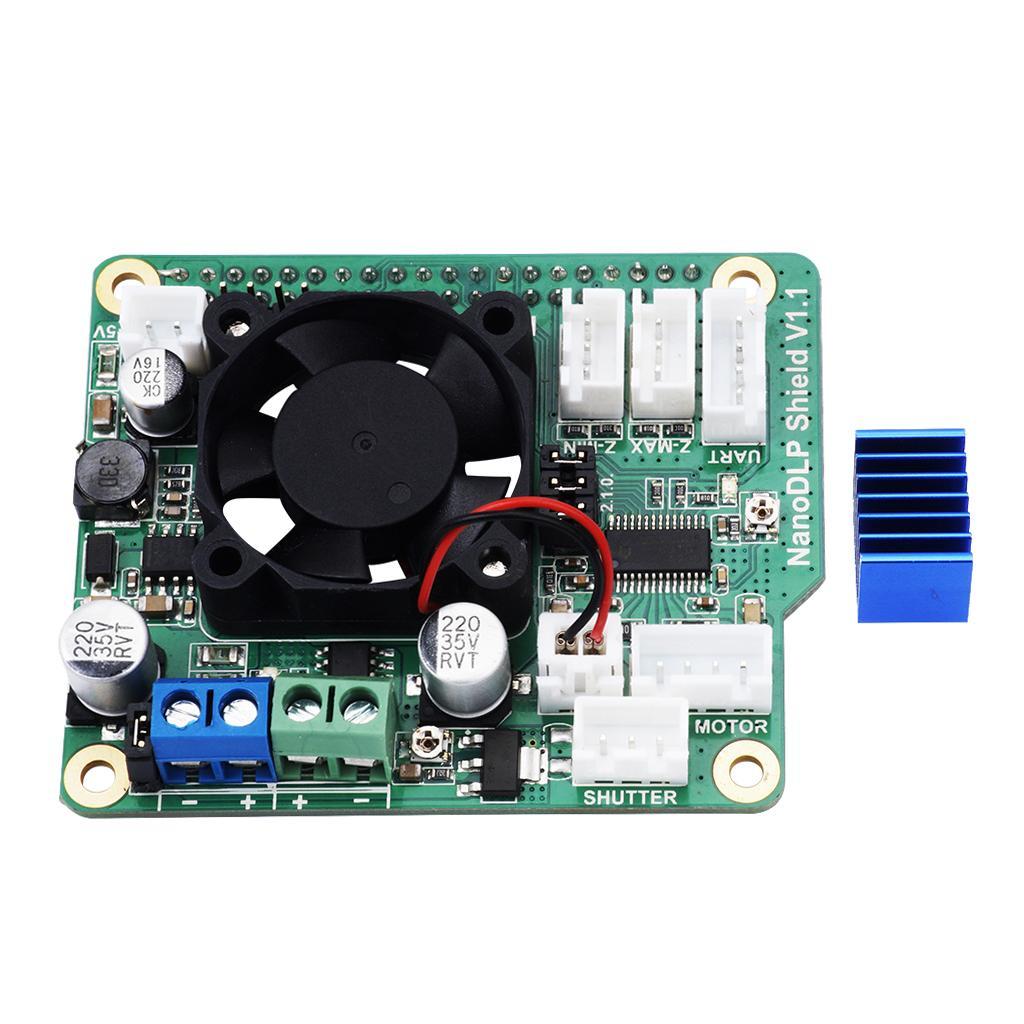

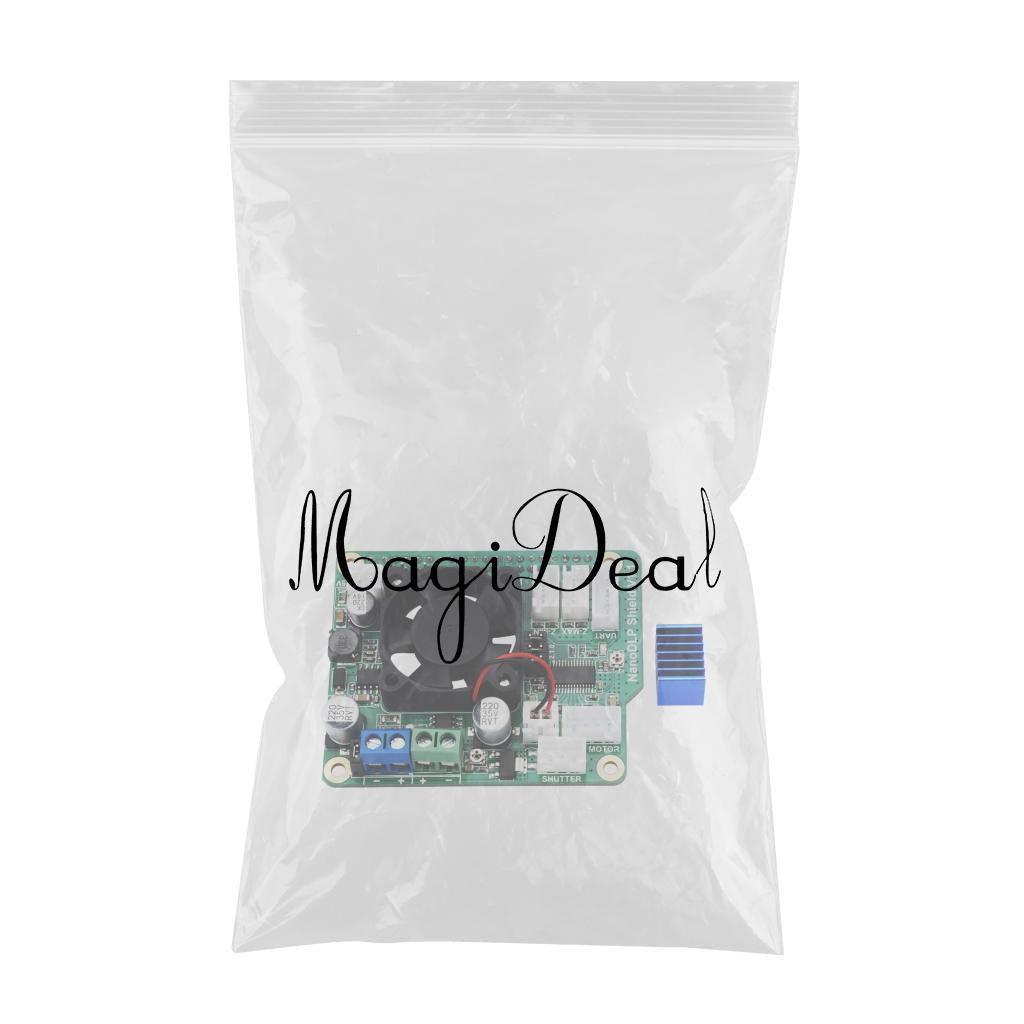

1 Piece Expansion Board

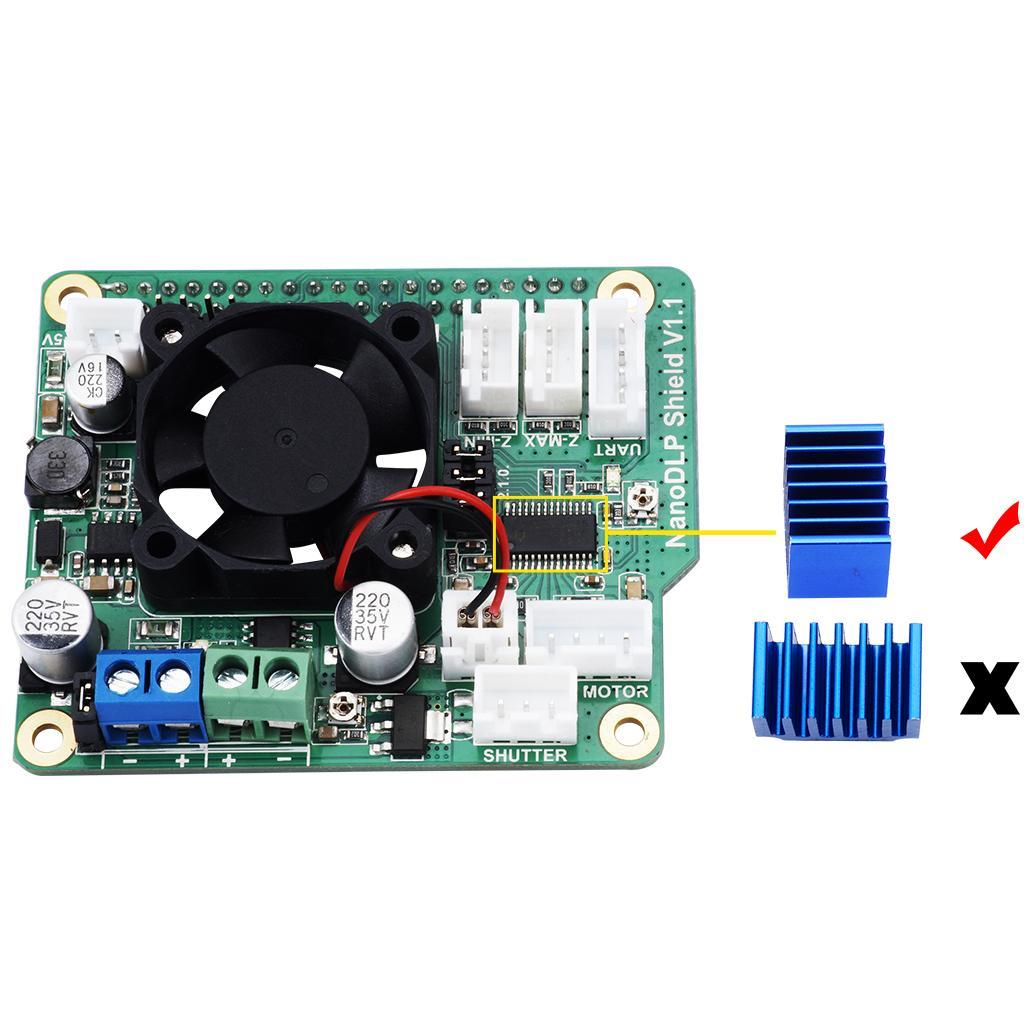

1 Piece Heatsink
