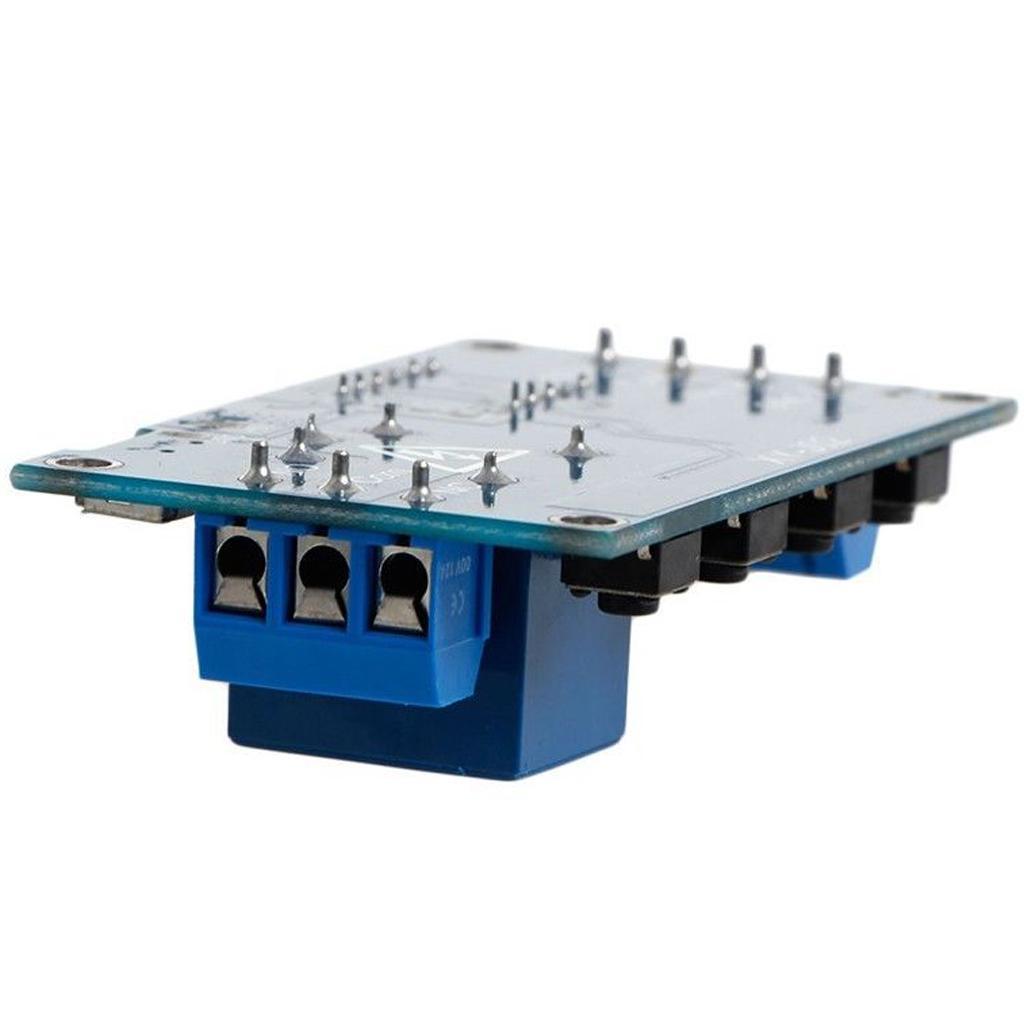

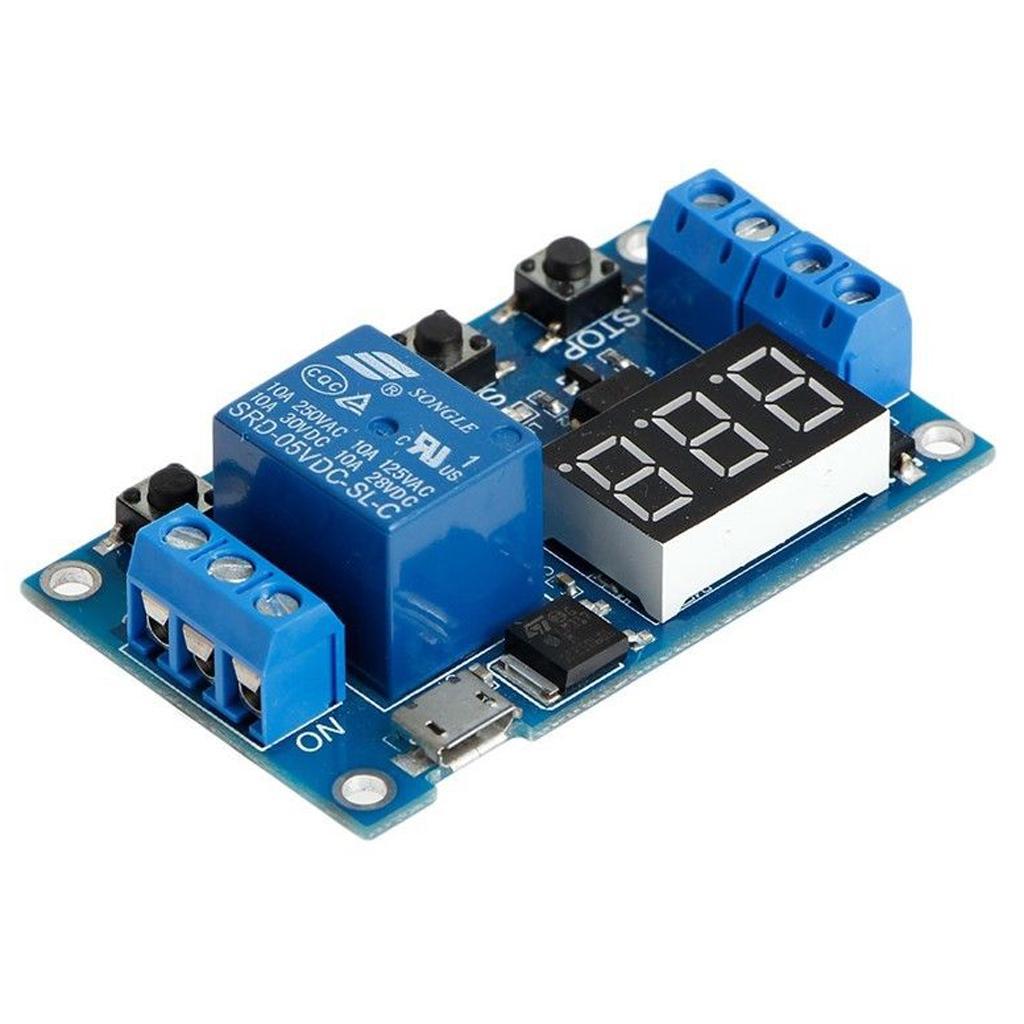

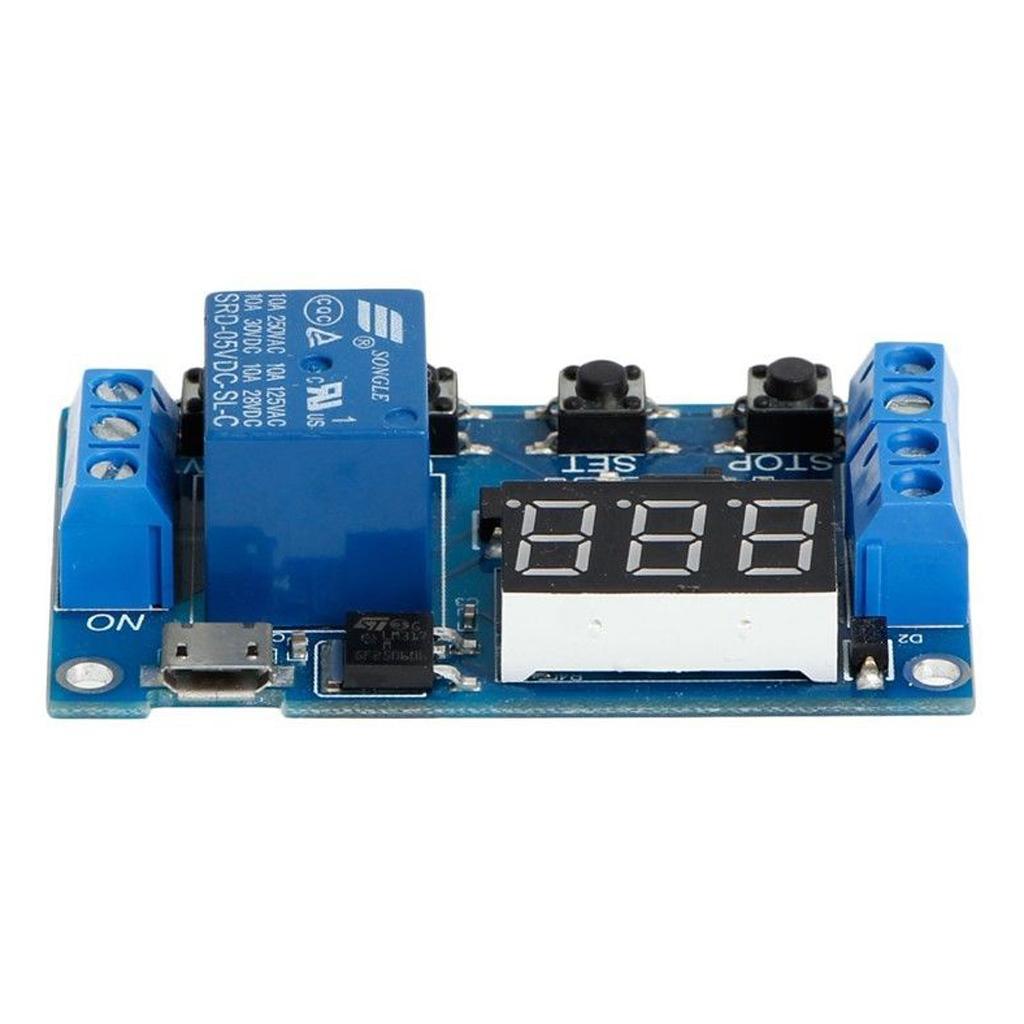

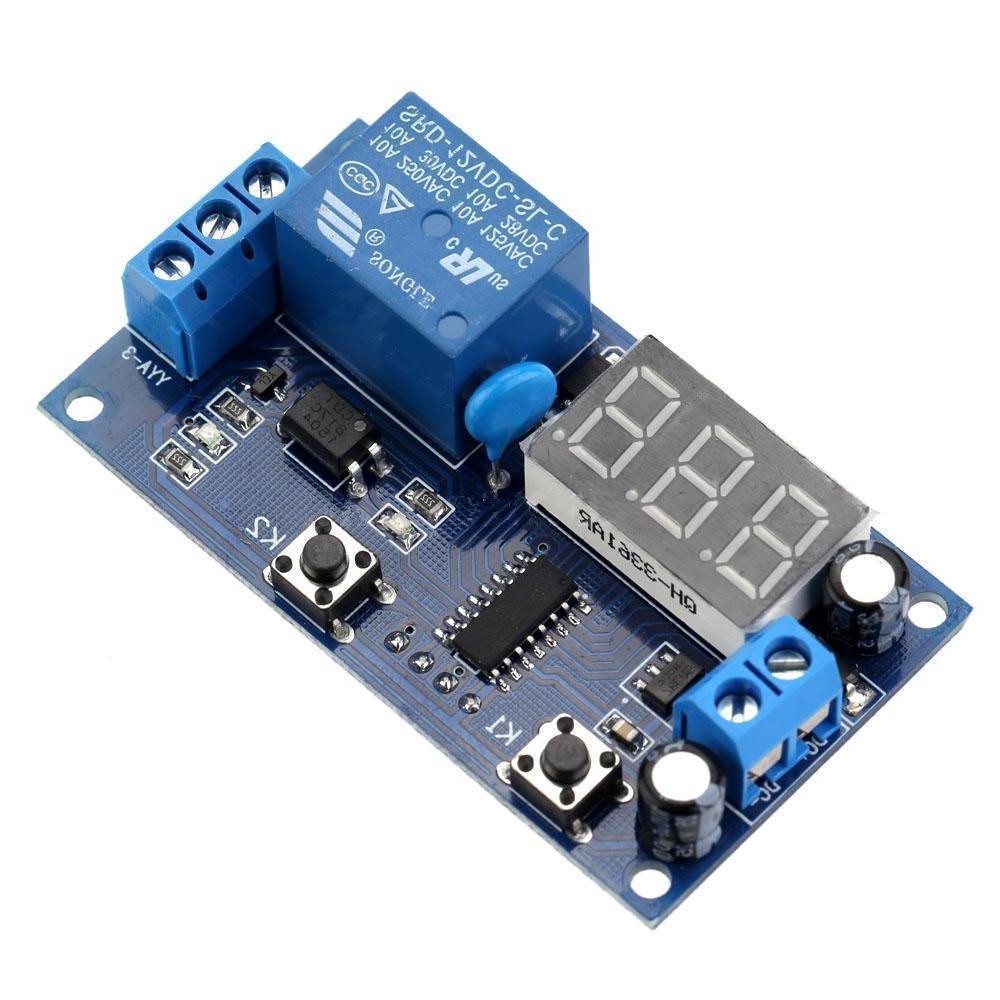

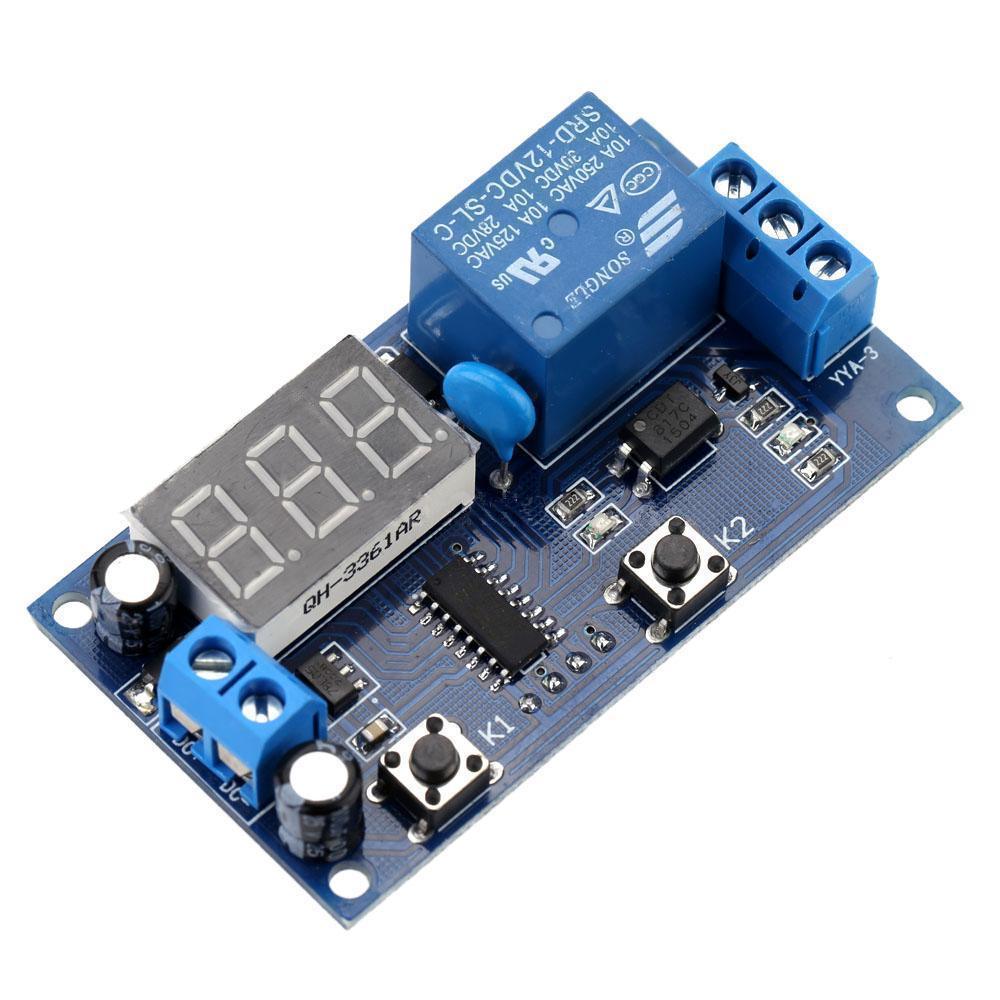

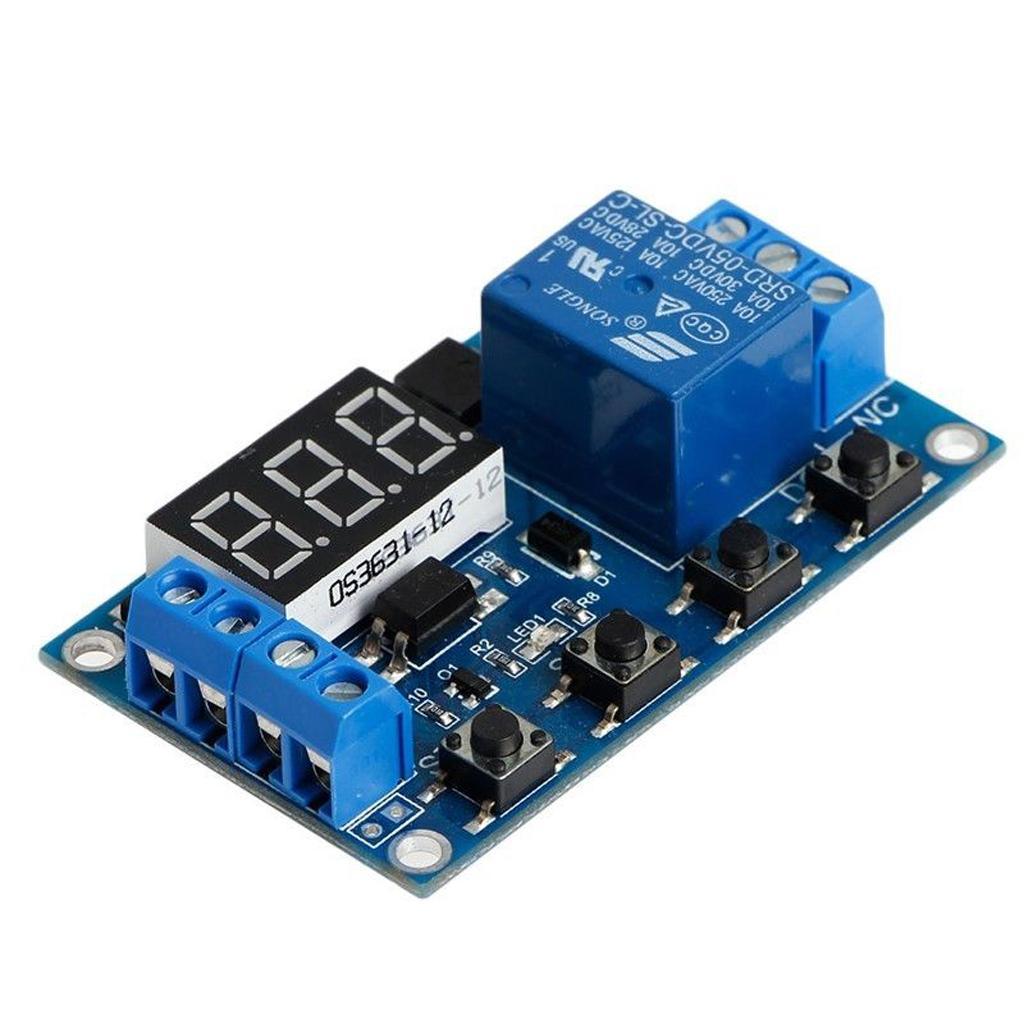

Maxbell DC 12V Delay Timer Control Switch Relay Module With LED Digital Display
Description:
Output capacity: DC 5 ~ 30V / AC 220V10A
Quiescent Current: 20mA
Working current: 50mA
Working voltage: DC12V
Material: PCB
Size: Approx. 6.5x3.6x1.8cm / 2.56x1.42x0.71inch
Specification:
Life: more than 10 million times;
Working temperature: -40 ~ 85'C;
Anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability.
Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.
Receives a trigger signal to start the countdown
Operating Instruction:
Click K1 to enter the time setting (one hundred digit starts flashing).
Then press K2 to change the hundreds digit.
Click K1 (ten digit starts flashing), then press K2 to change the tens digit.
Click K1 (last digit starts flashing) then press K2 to change single-digit. Click K1, exit the setting, LED no longer flashes.
Normal digital tube display, press K2, shifting the decimal point, a decimal point indicates 0-999 minutes in 10 digit.
From 0 to 99.9 seconds with no decimal point represent 0-999 seconds; to this time setting is completed.
Package Includes:
1 Piece of Delay Timer Control Switch/Relay Module
