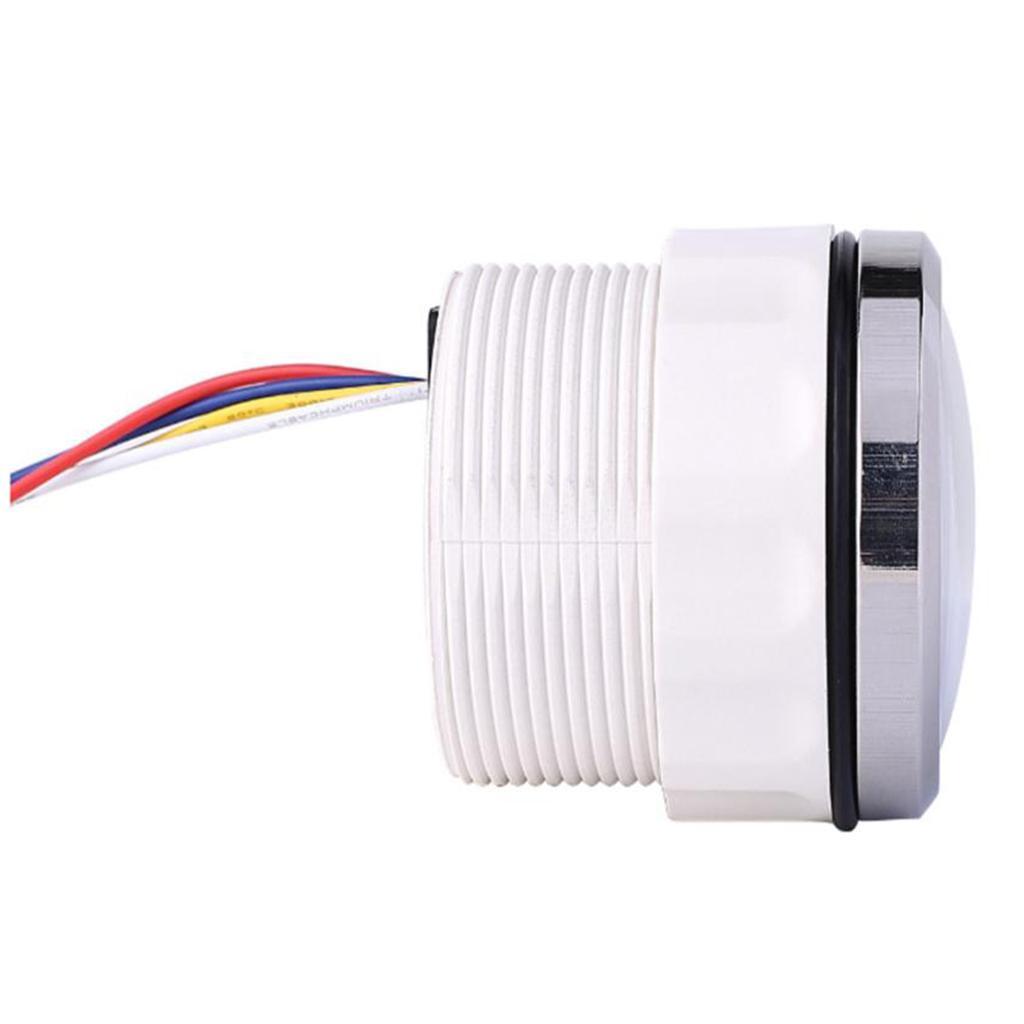

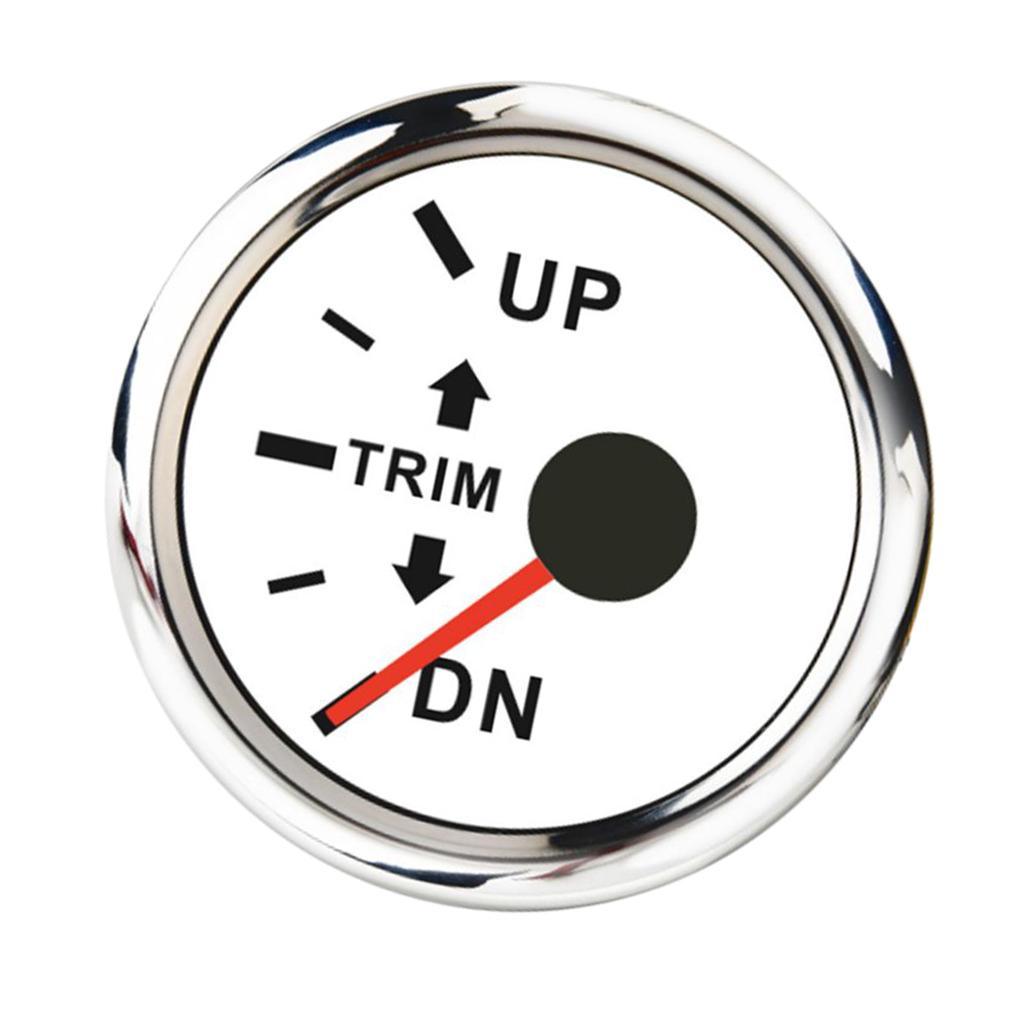

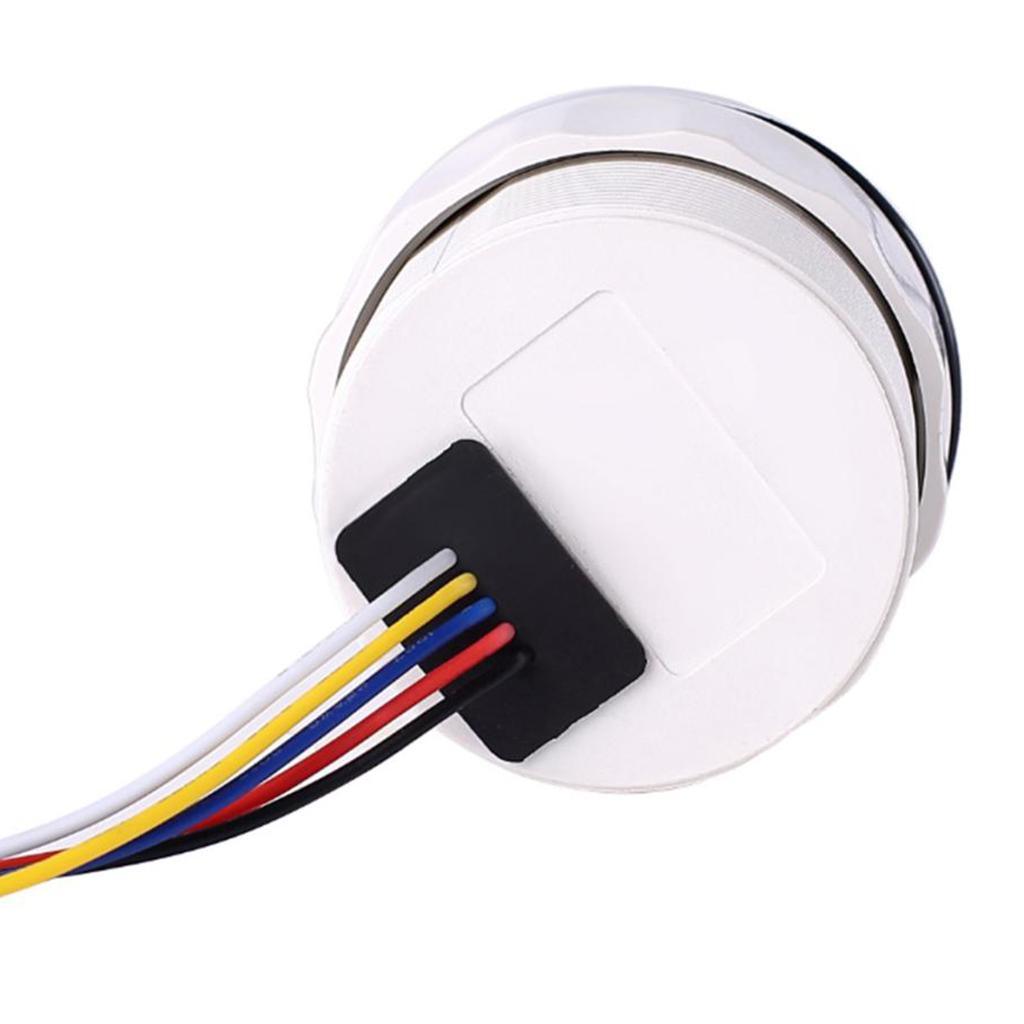

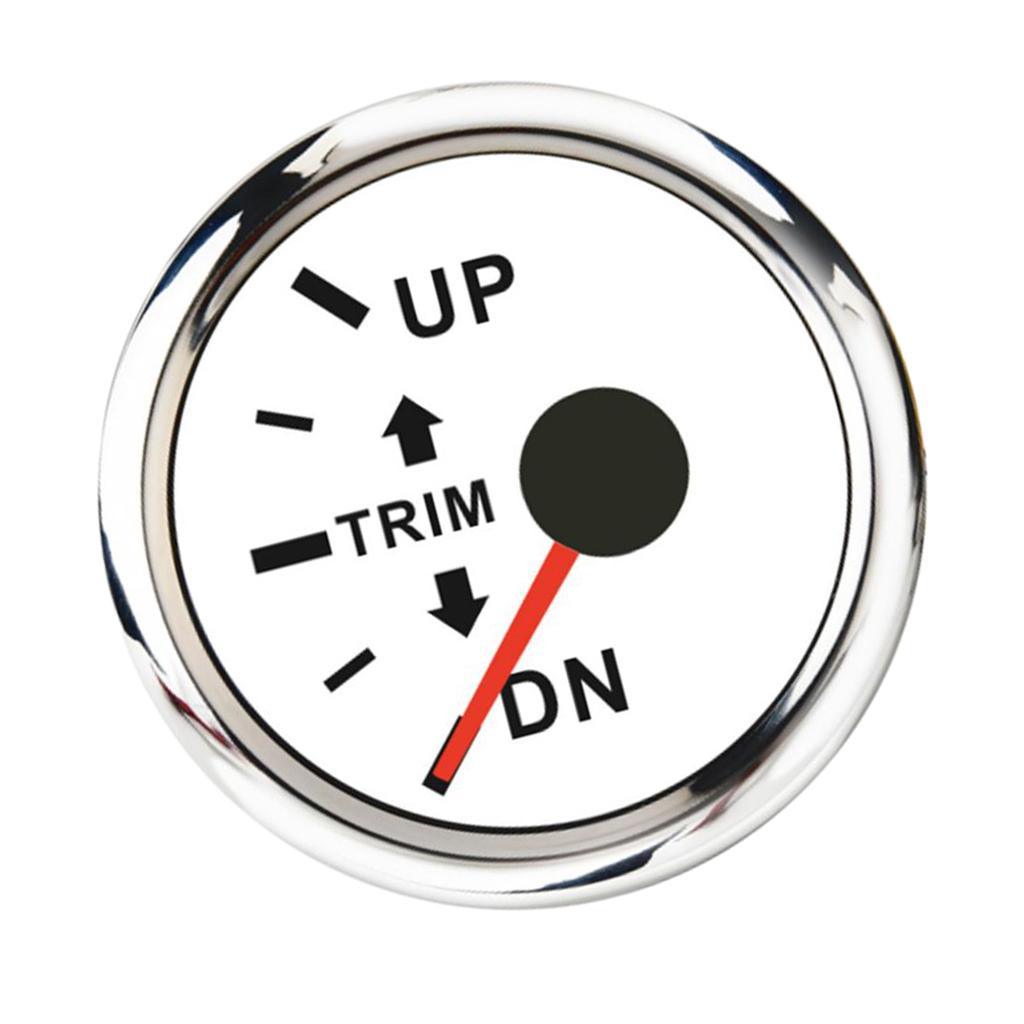

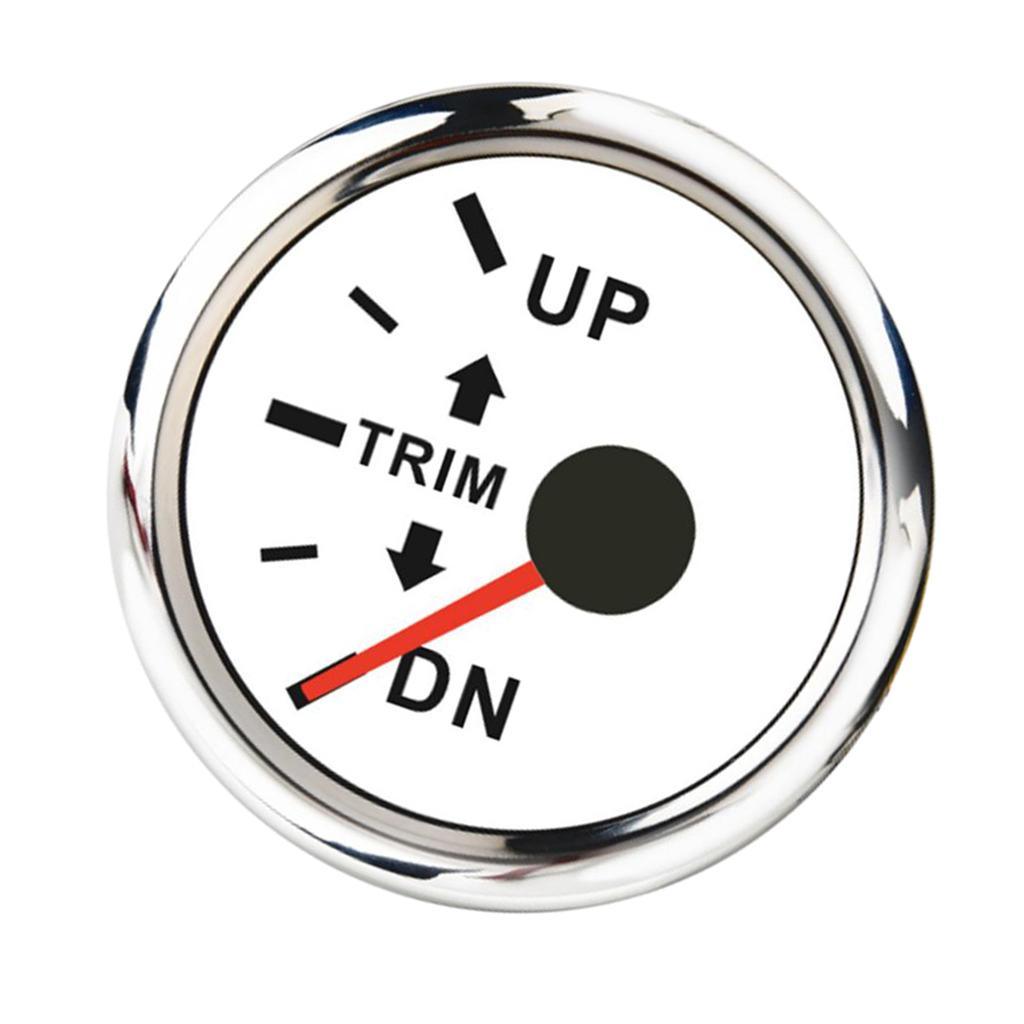

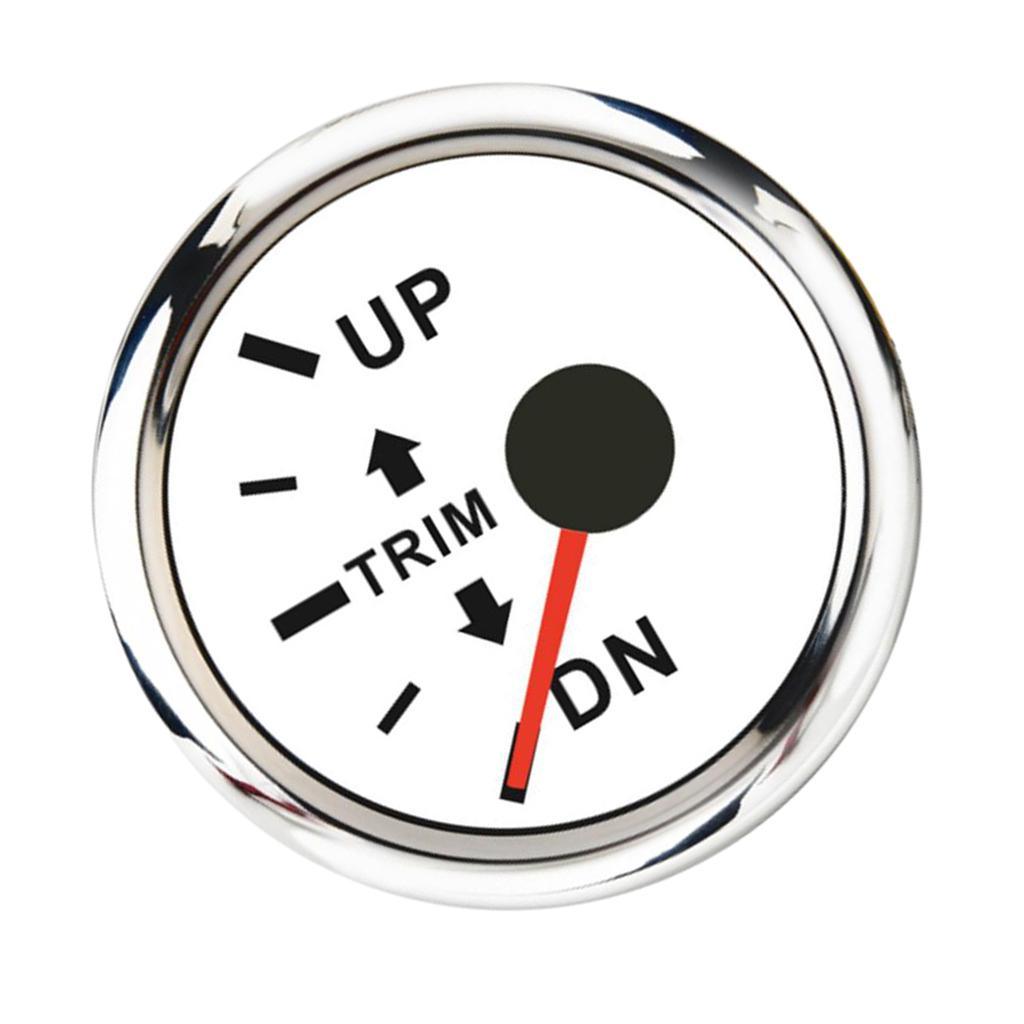

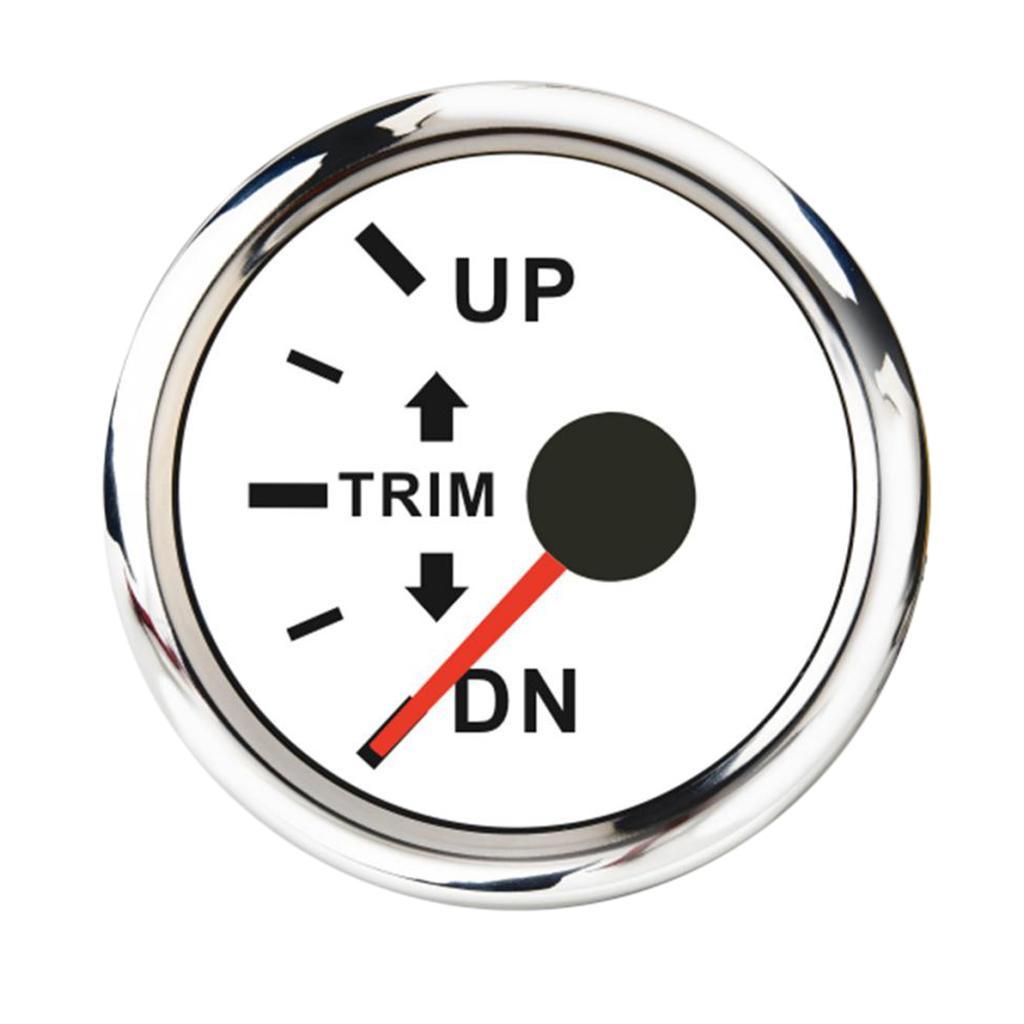

Max Boat Trim Gauge Outboard Engine Trim Tilt Gauge Left Display White Dial
Description:
Front cover is made of 316 stainless steel.
Shell is made of PBT+GF20%, melting point 220℃, high temperature resistance, chemical resistance and oil resistance.
The highly transparent curved surface PC forms a double-layer anti-fog structure with the curved glass.
Dial is made of PC material, which is resistant to high temperatures and high modulus of elasticity.
Waterproof and dustproof grade IP67.2. Can match a variety of sensor signals, in addition to 0~190Ω/240~33Ω, 0~5V/0.5~4.5V, 4~20mA, can also connect any analog signal.
The meter comes with an alarm signal and does not require an additional alarm signal from the sensor.
Using a high-precision stepper motor, the pointer acceleration and deceleration curve motion can extend the life of the motor.
High-brightness LEDs are used for backlighting, which has high brightness and long life.
Specification:
Left Side Display, White Dial
Material: PC
Size: 8x8x7cm / 3.1x3.1x2.75 inch
Working Temperature: -40~85℃
Protection Level: IP67
Working Voltage: DC 8~16V, DC 18~32V
Working Current:<100mA
Display Accuracy:<3°
90° display angle
52mm (2") mounting hole
Package Includes:
1 Piece Gauge (back screw cap, gasket)
1 Piece Cable
1 Piece Rubber Stopper
1 Piece Instruction Manual
Note:
Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
