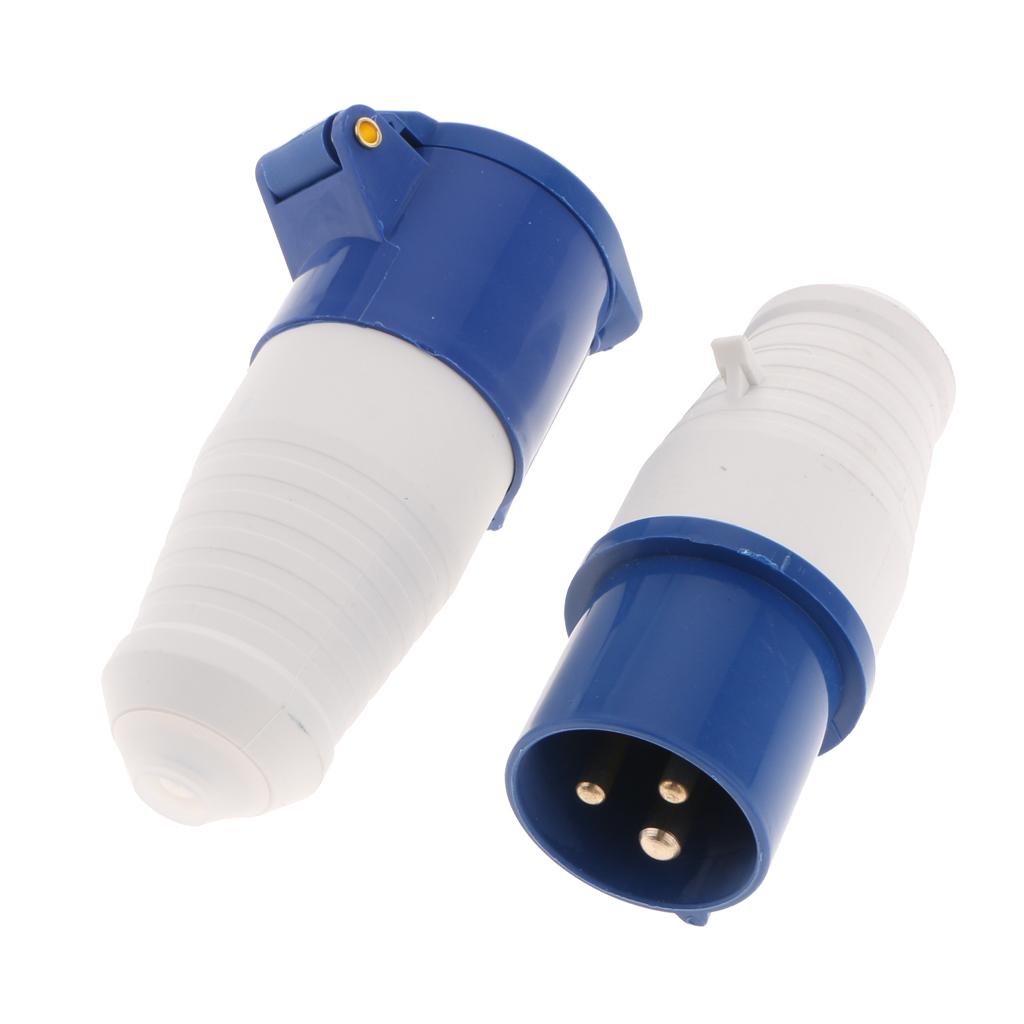

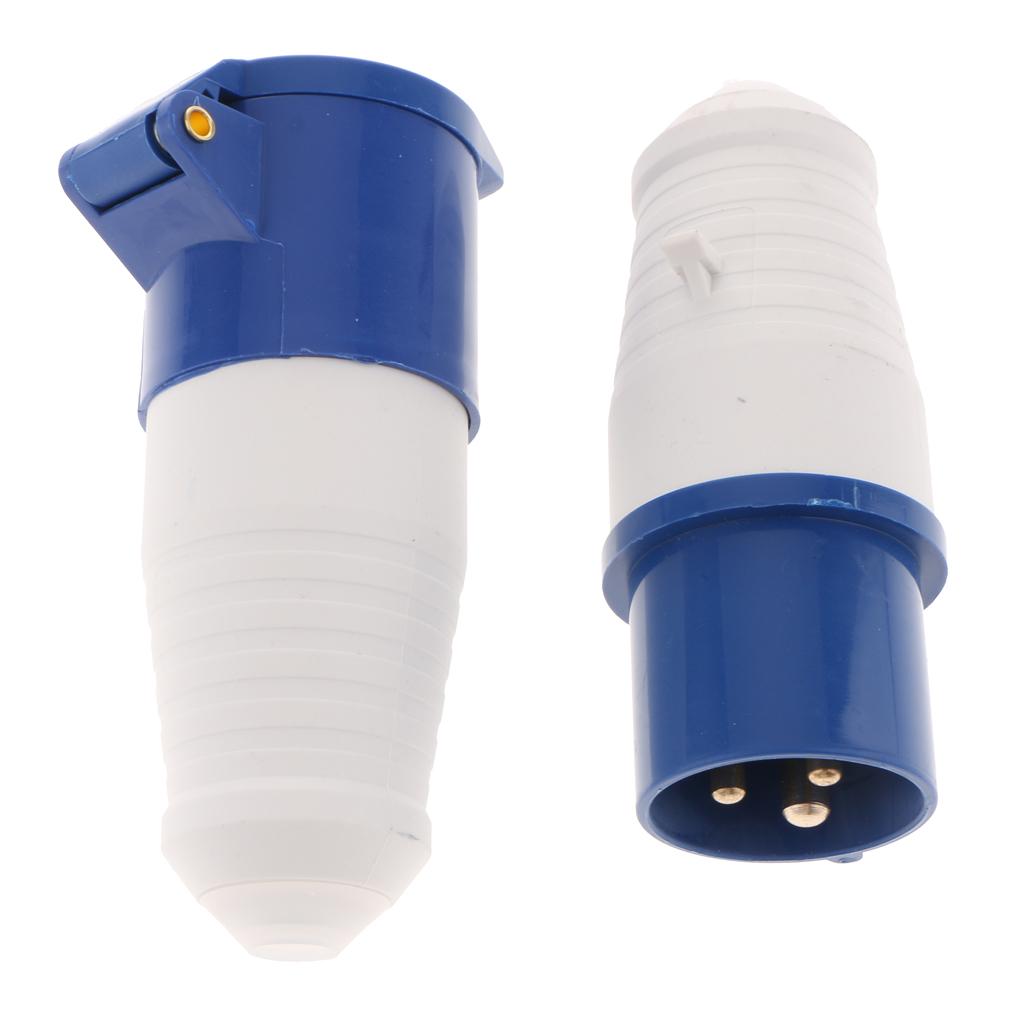

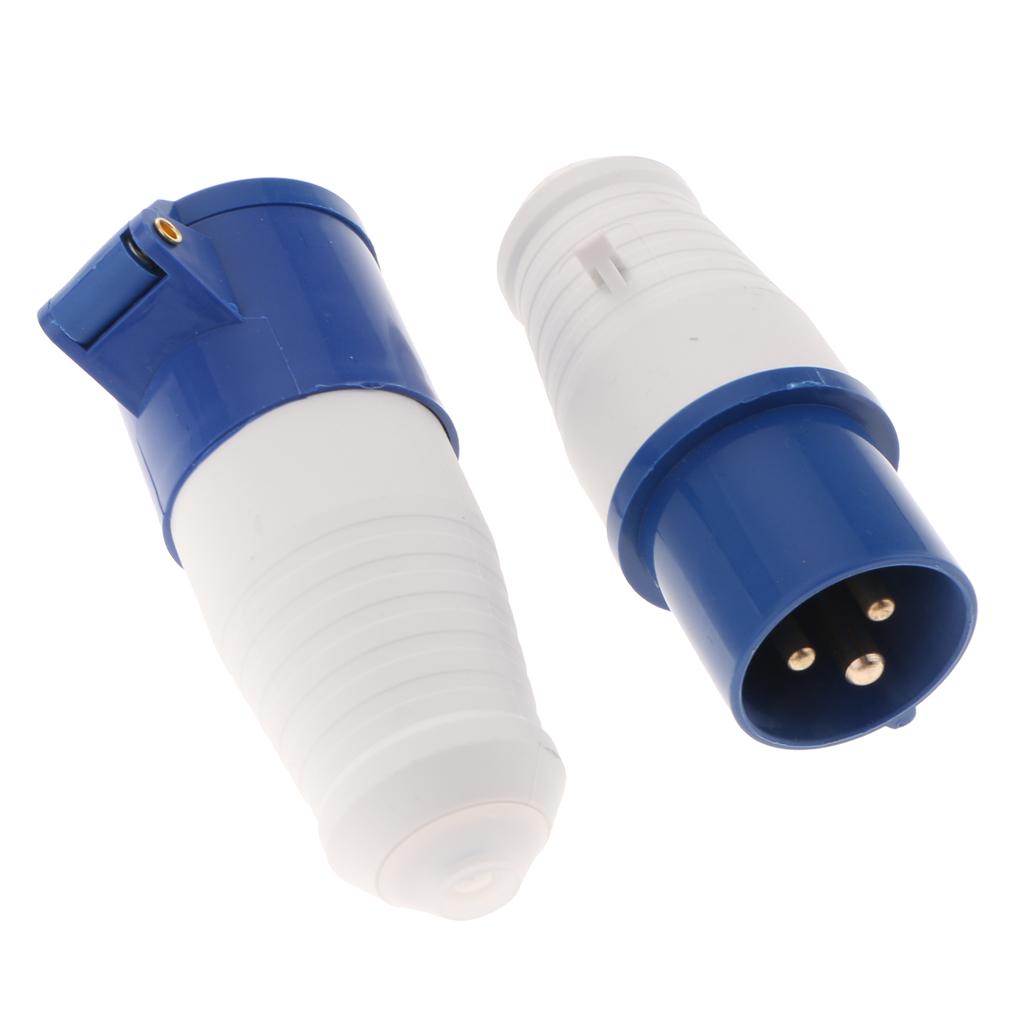

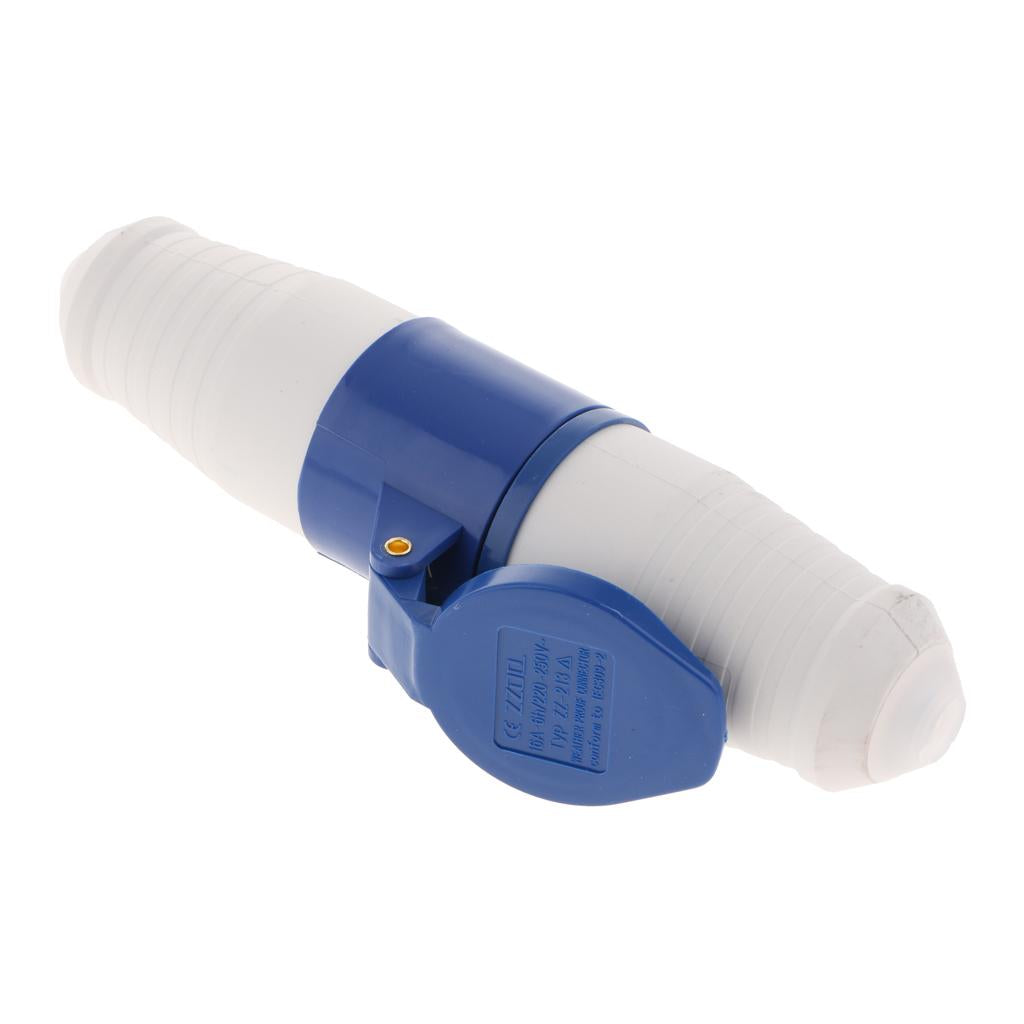

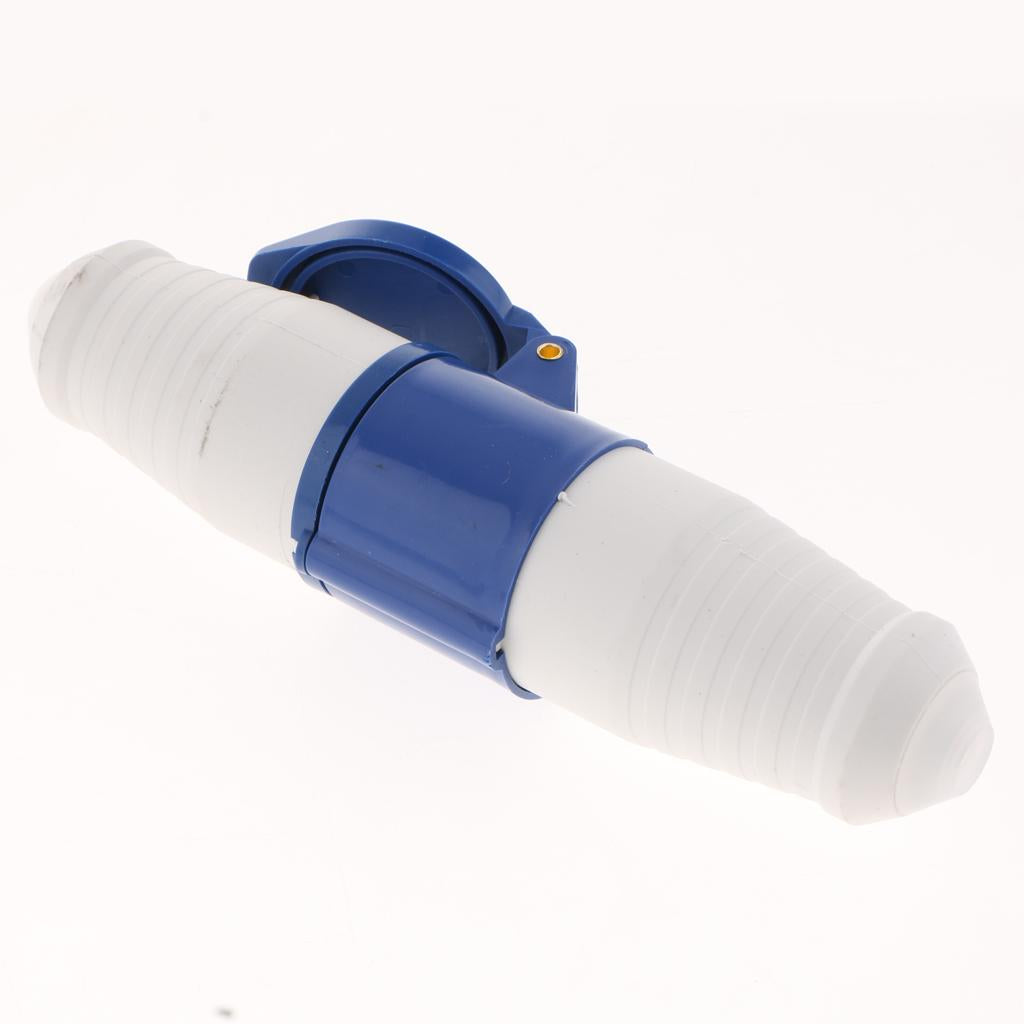

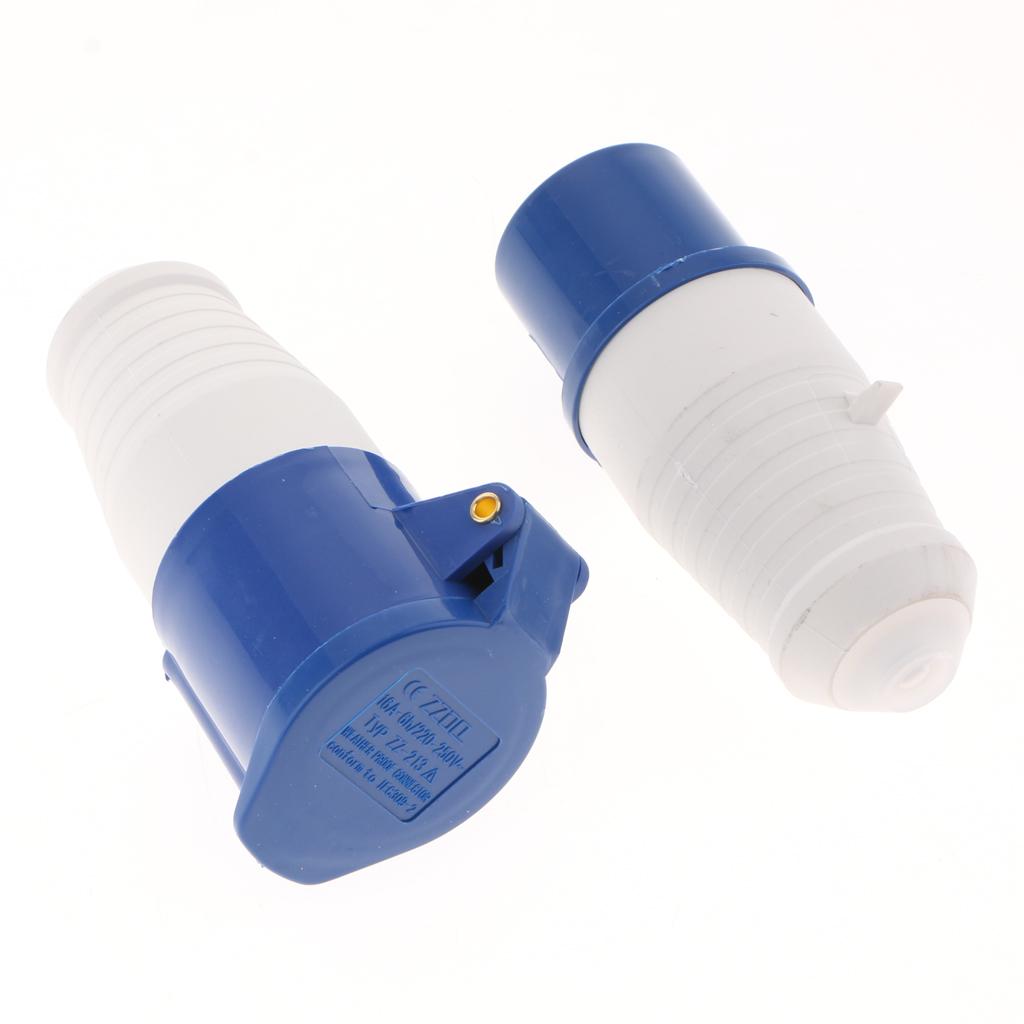

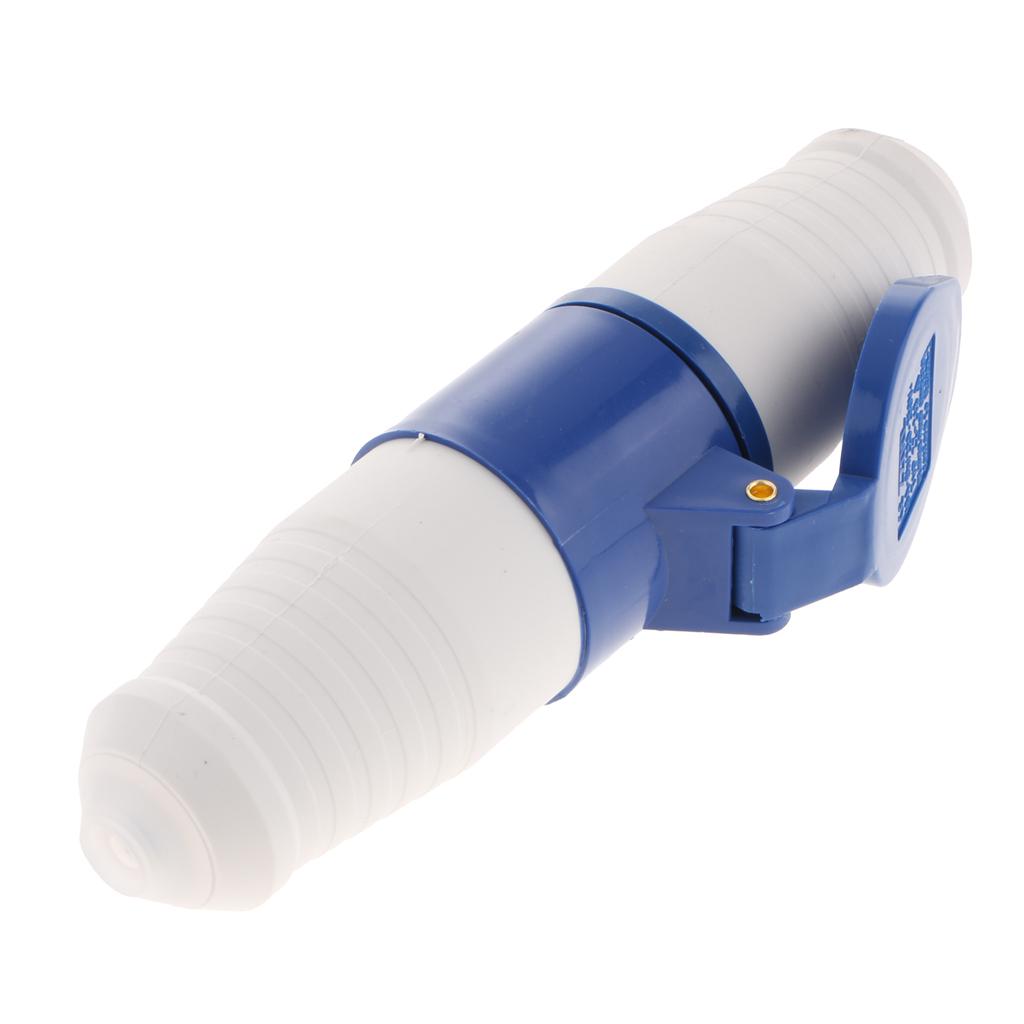

Maxbell Waterproof Power Cable Connector,Male Female Coupler 3/4P 013+213 3-Pin 16A

Description:

2/3P+E IP44 waterproof wire cable connector for industrial demand.
Direct Plug, plug-female/socket-male,16A/32A industrial standard connector.
Humanized clip,integrated design,higher protection performance,easy to operate.

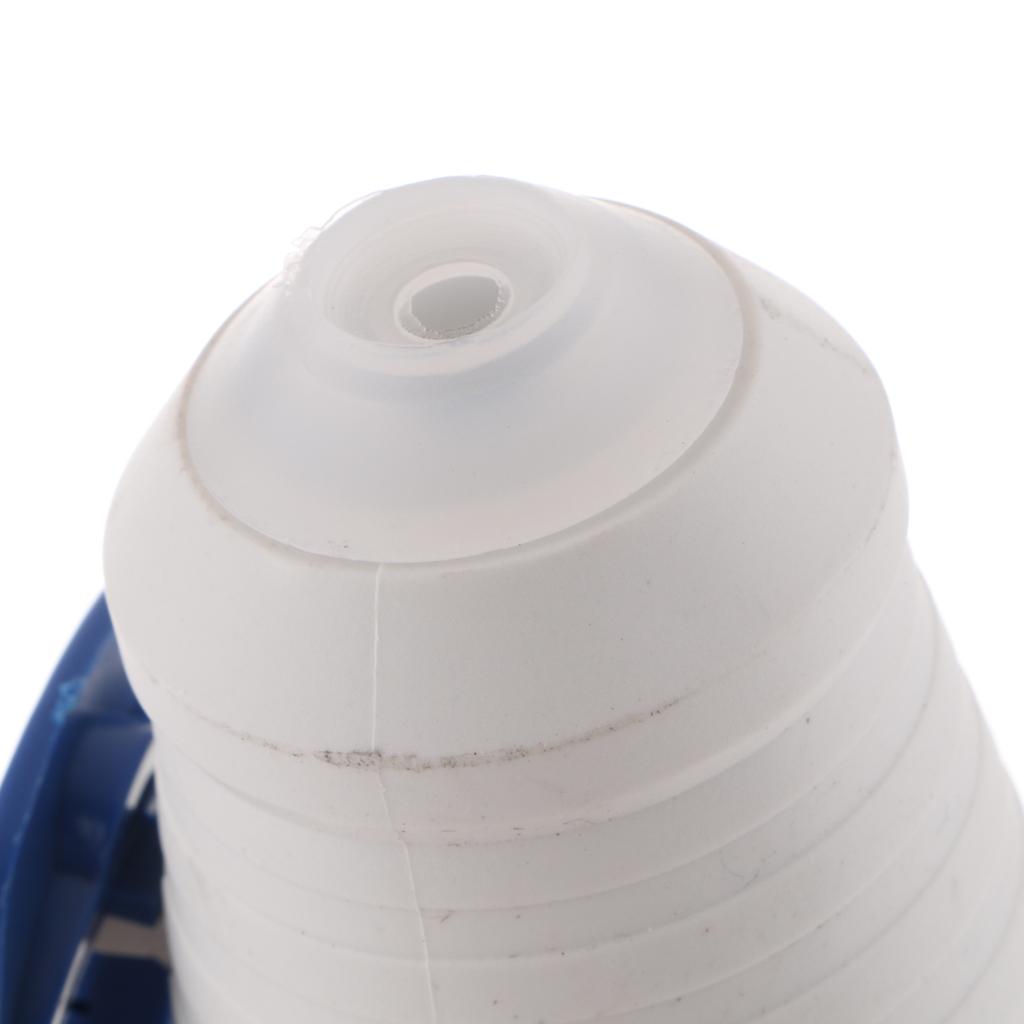

With a molded rubber gasket for better waterproofing.Special anti-dropping design,better connection stability.
Nylon material of the protective housing, with characters of dustproof,waterproof,corrosion protection and high temperature resistance.

Specification:

Product: Waterproof Power Cable Connector
Material: Nylon
013+213 / 023+223 Parameters
013+213 Rated Current: 16A
023+223 Rated Current: 32A
Voltage: 220-240V
Pin Type: 3-Pin
Color: Blue
Number of Poles: 2P+E
Protection Degree: IP44
Earth Contact Position: 6h
Cable Cross-section Area: 1-2.5mm²(013+213);
2.5-6mm²(023+223)

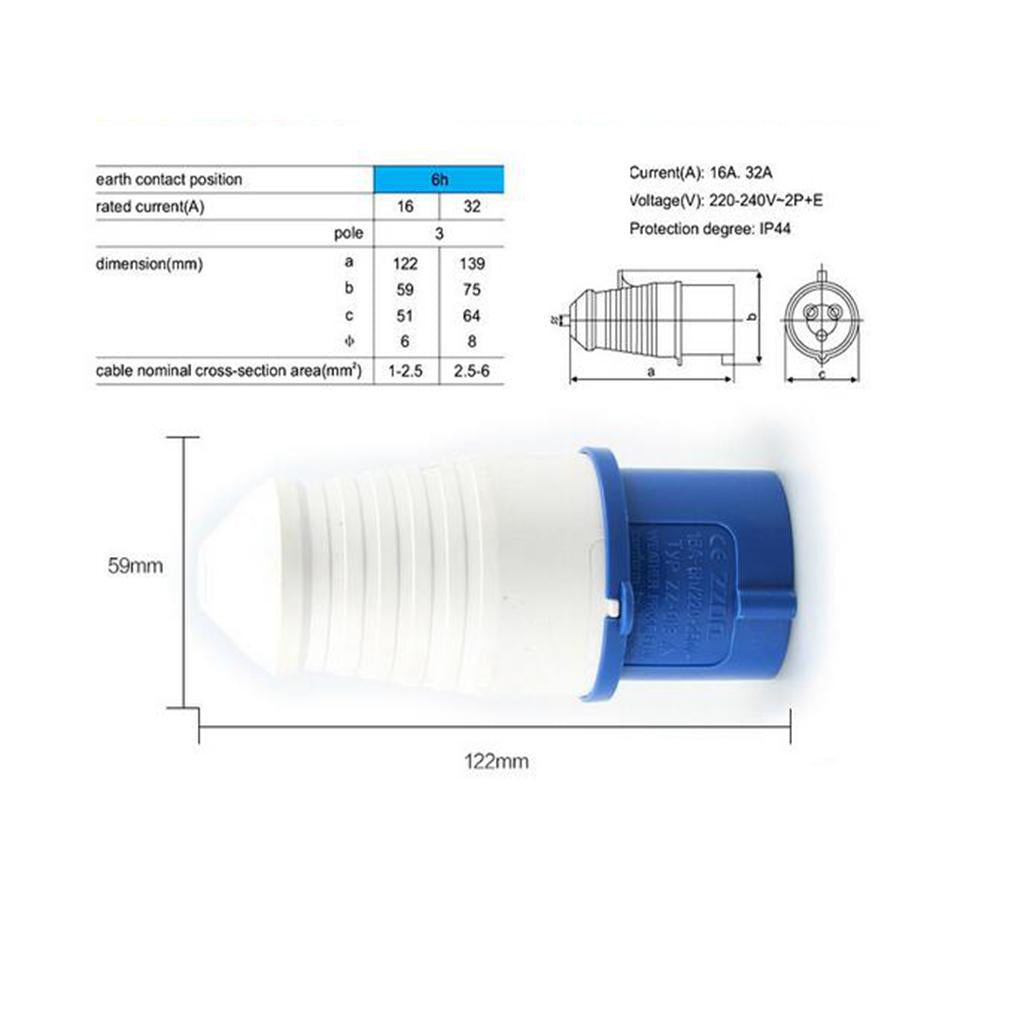

Plug Size: Approx.122x59mm/4.8x2.32inch

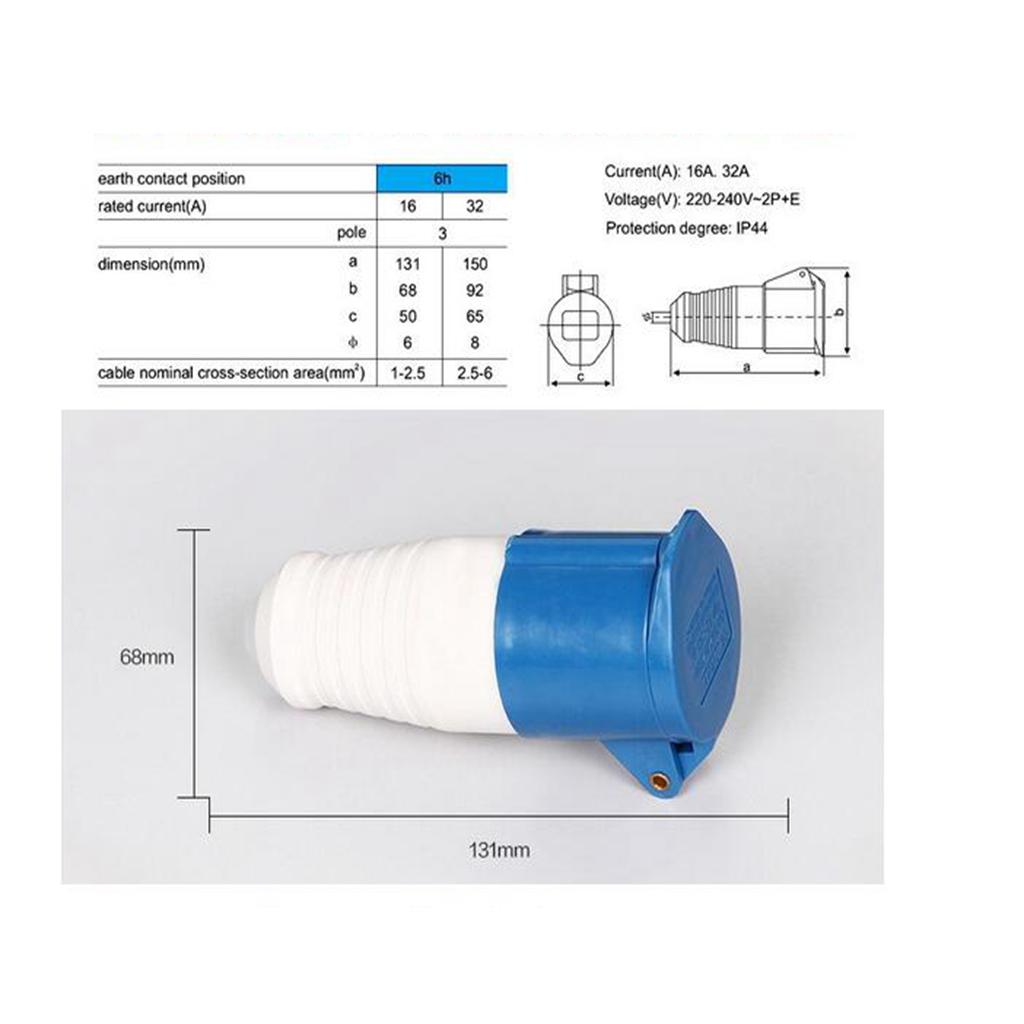

013+213 Coupler Size: Approx.131x68mm/5.16x2.68inch
023+223 Coupler Size: Approx.139x90mm/5.47x3.54inch
014+214 Parameters
Rated Current: 16A
Voltage: 380-415V
Pin Type: 4-Pin
Color: Red
Number of Poles: 3P+E
Protection Degree: IP44
Earth Contact Position: 6h
Coupler Size: Approx.131x79mm/5.16x3.11inch
Plug Size: Approx.122x65mm/4.8x2.56inch
Cable Cross-section Area: 1-2.5mm²

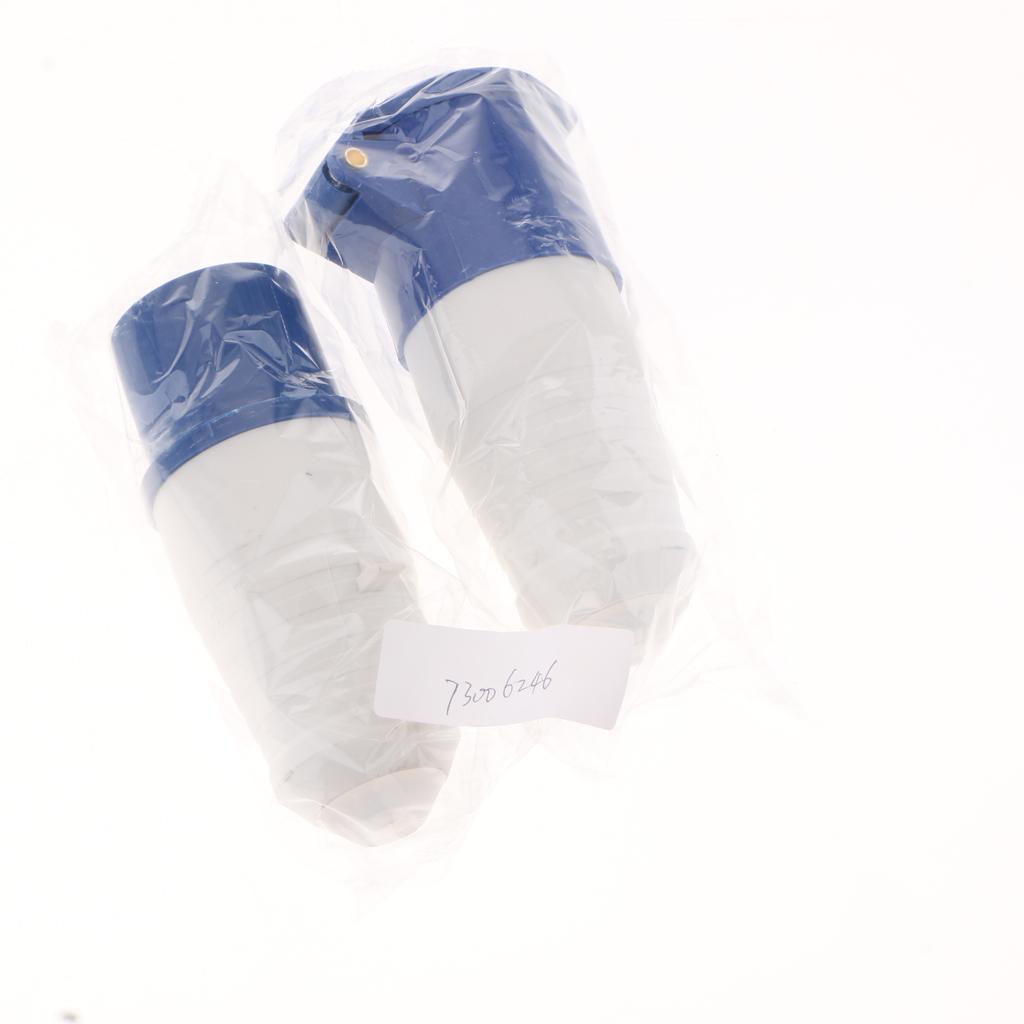

Package Includes:

1 Piece Coupler
1 Piece Plug

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
