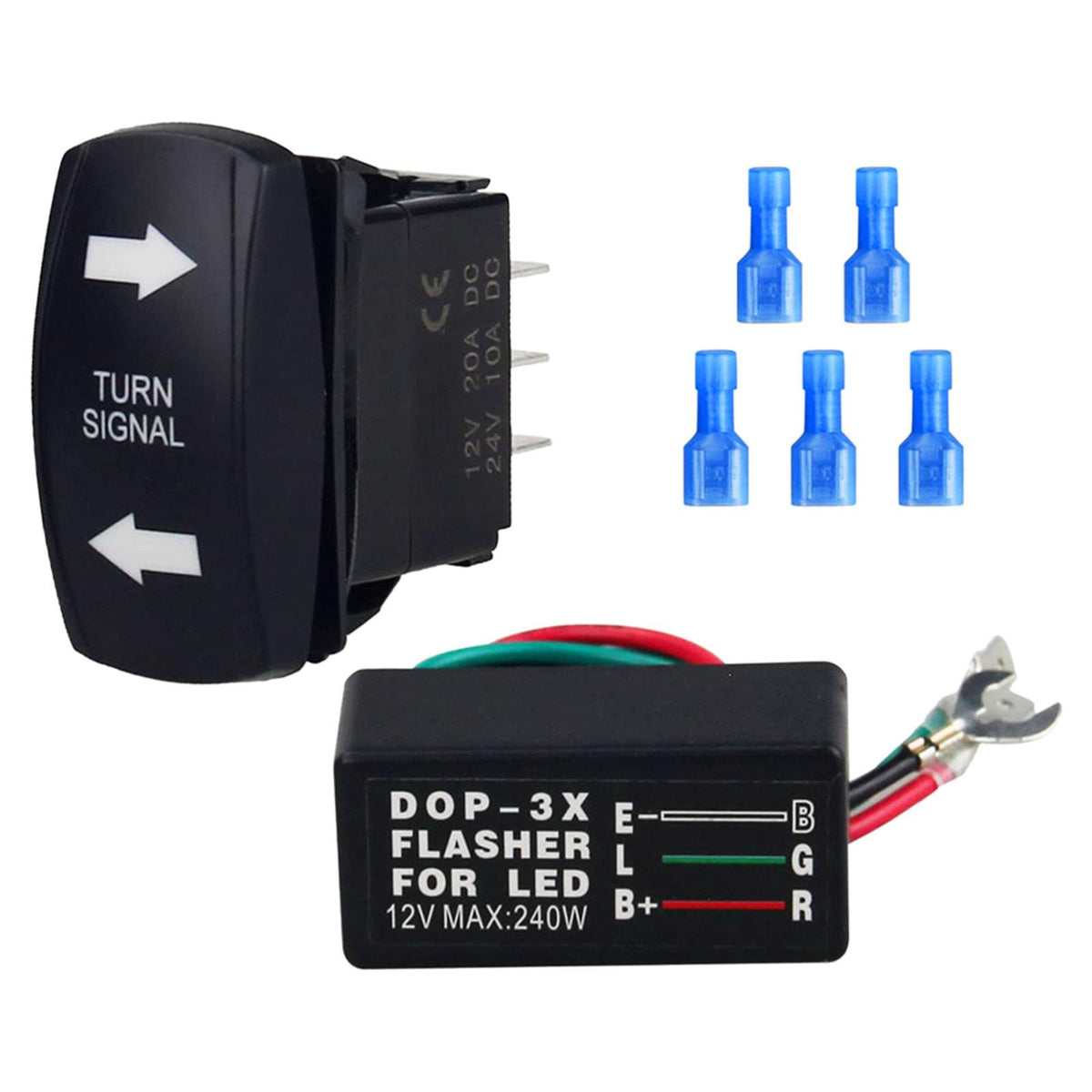

Maxbell Sturdy Rocker Switch with Terminals LED Switch for ATV Utility Vehicle Flasher Relay

Description:

Replacement Rocker Switch Kit: Useful when adding street laws equipment to your utility vehicle. Once connected, the built in LED light direction indicator will flash to indicate the direction as each location is selected
High Quality: Made of high quality metal and PP material, it has long service life and excellent performance.
Easy to Use: Bipolar double throw 3 bit rocker switch with independently controlled LED indicators for even the most complex setups.
Universal: Universal utility vehicle rocker switch turn signal kits are available for most UTVs and side by side vehicles.

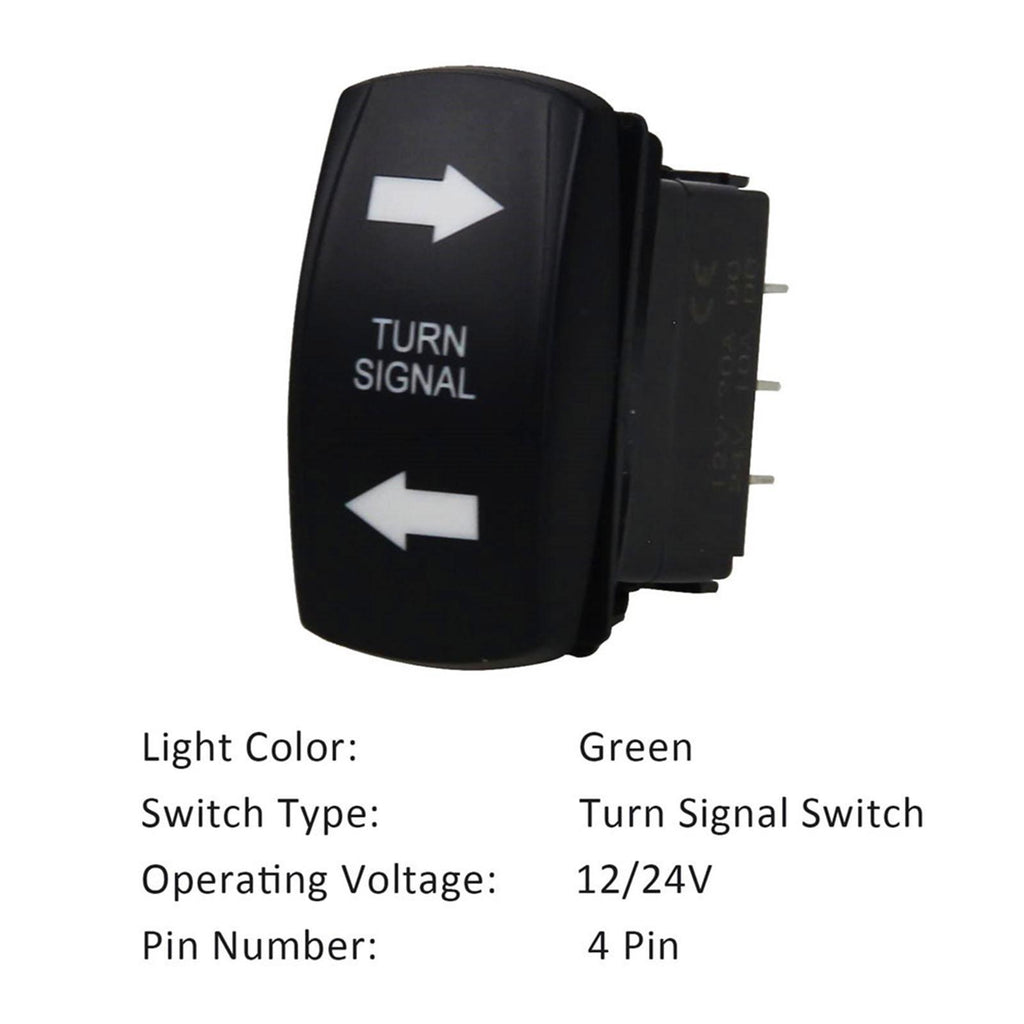

Specification:

Material: metal, pp
Waterproof: IP67
Panel Symbol: Turn signal
Switch Function: open
Operating Voltage: Operates on just 12V+ and 12V to run

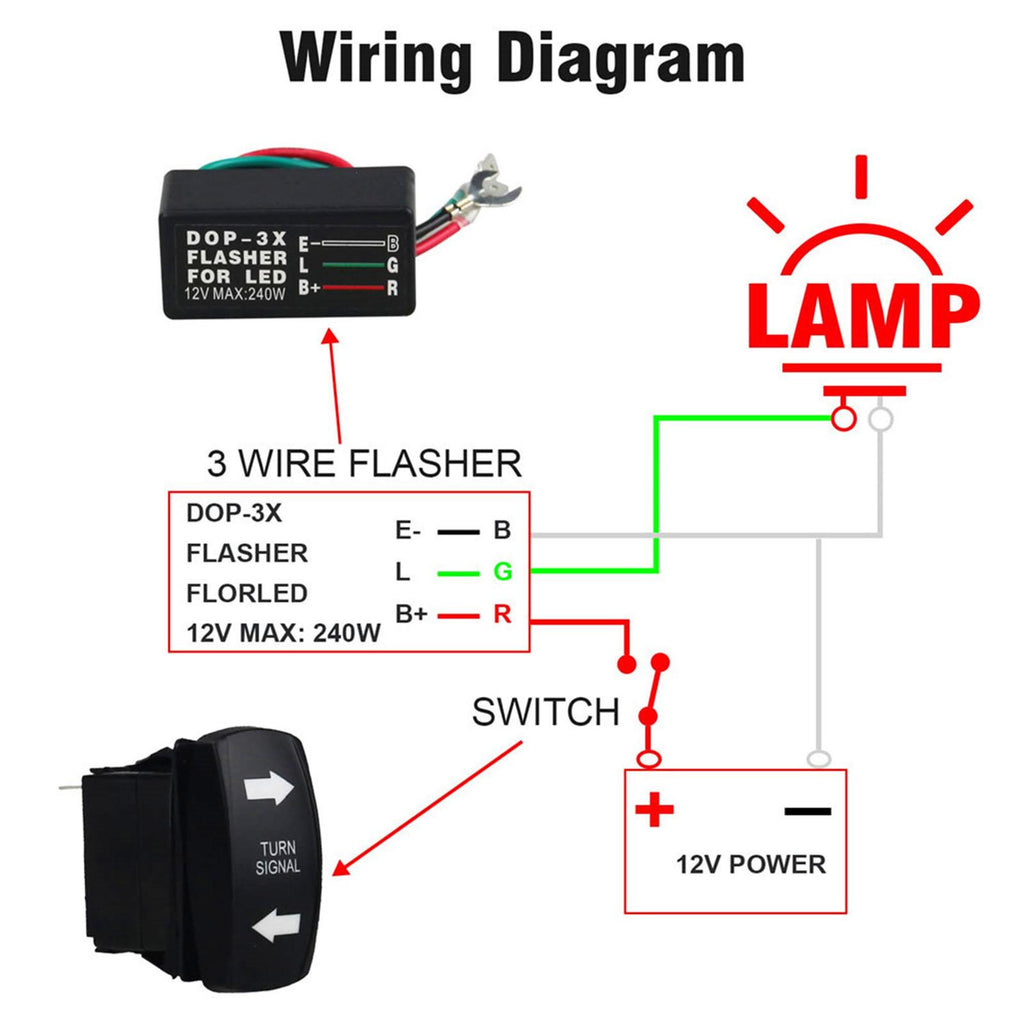

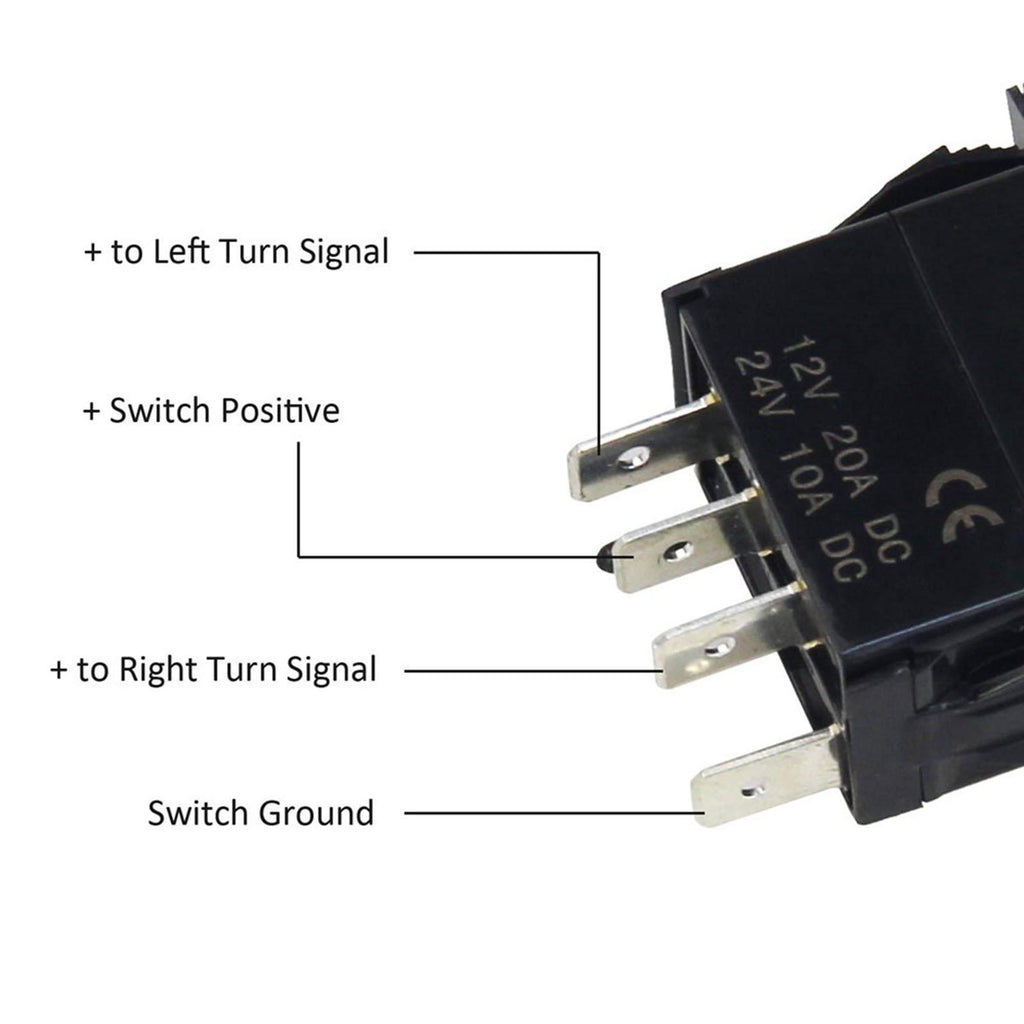

The standard configuration for steering signal application is as follows:
5: L flash relay
4: left turn signal
6: right turn signal
Select when making internal lights flash: jump 8 to 6 and 10 to 4.
Finally, 12v-(ground) is provided for terminals 7 and 9.
To simplify installation and take advantage of this switch and relay, use it in conjunction with custom pre wired and marked wiring harnesses.

Size Chart:

2.99cmx2.95cmx2.52cm/1.18inchx1.16inchx0.99inch

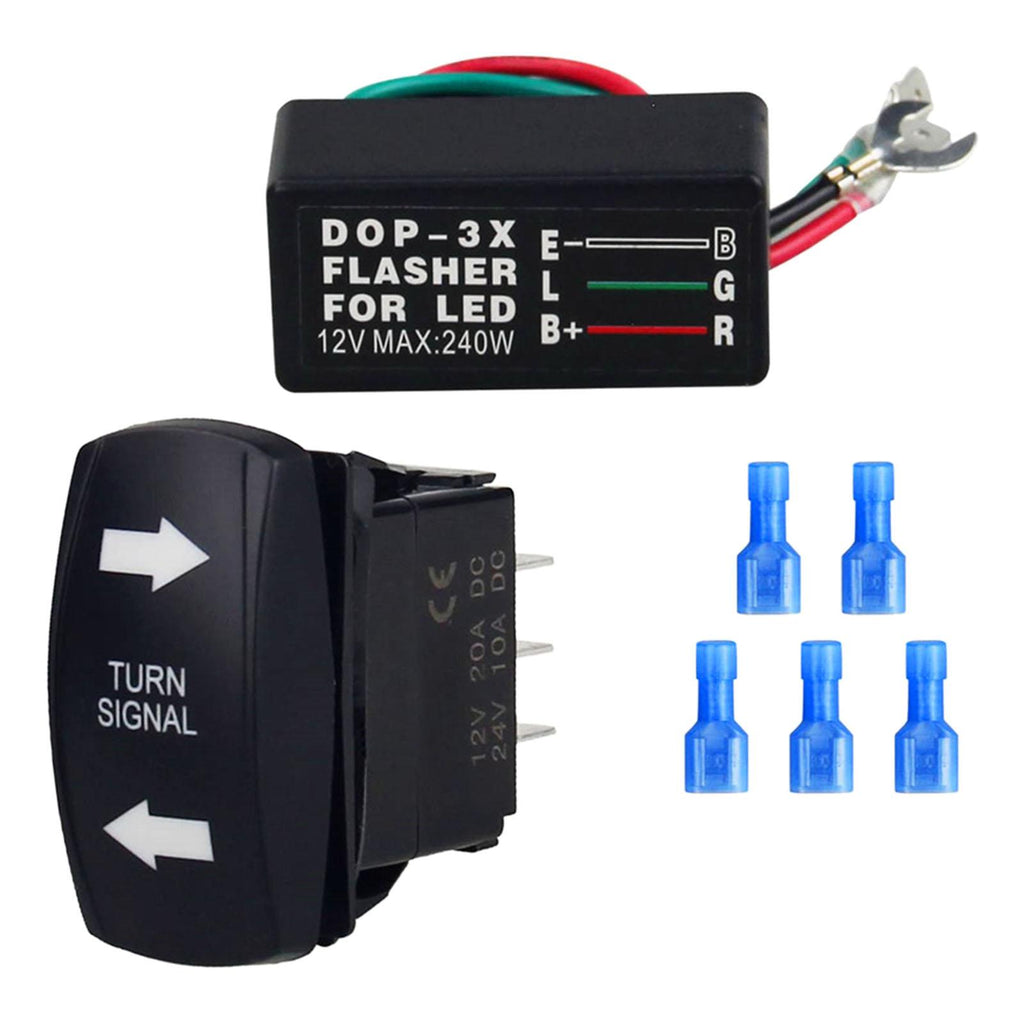

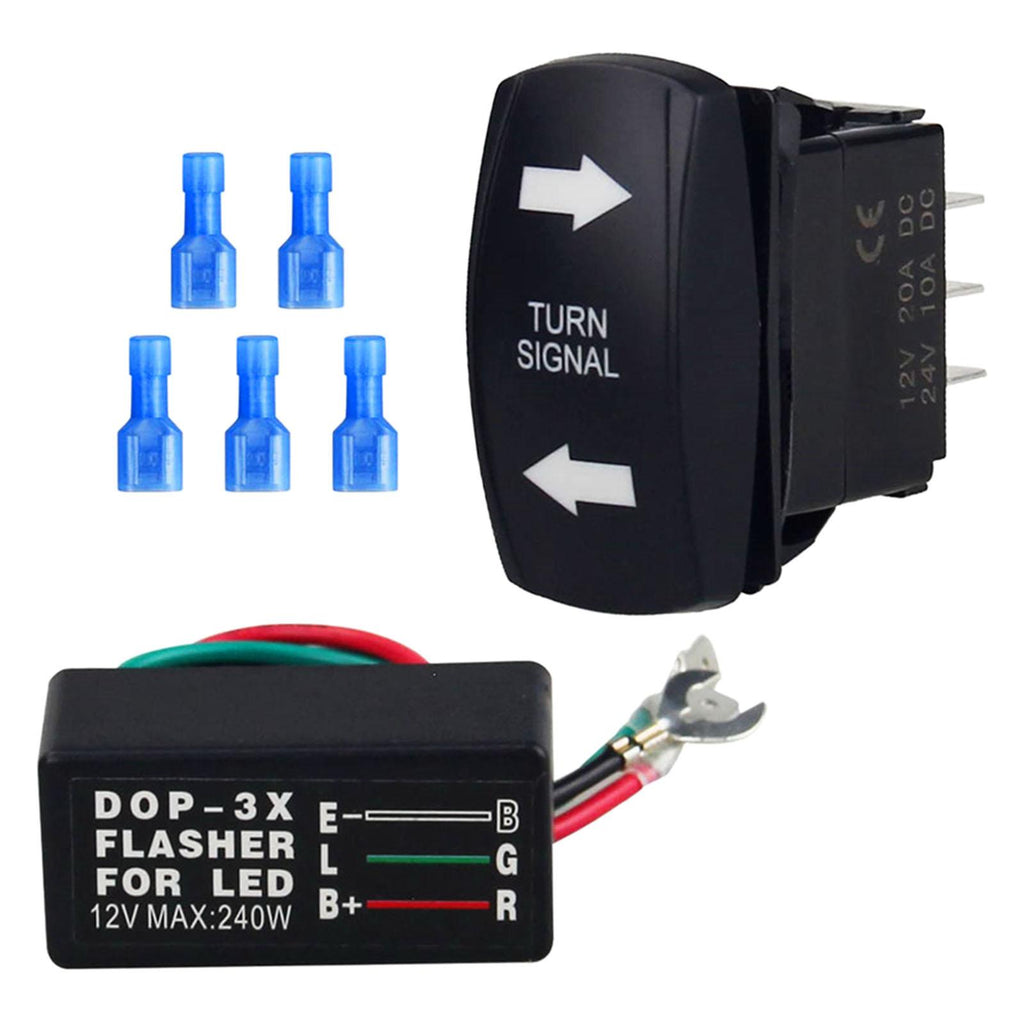

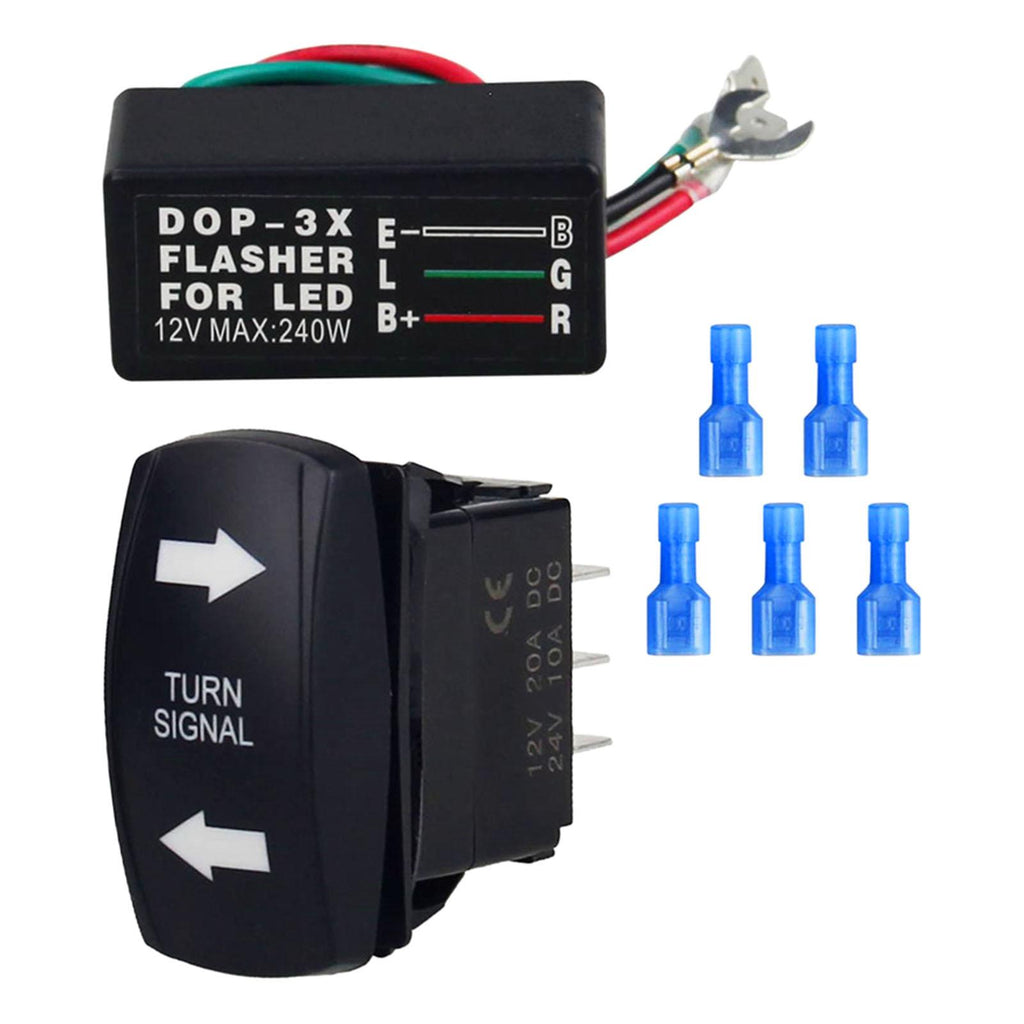

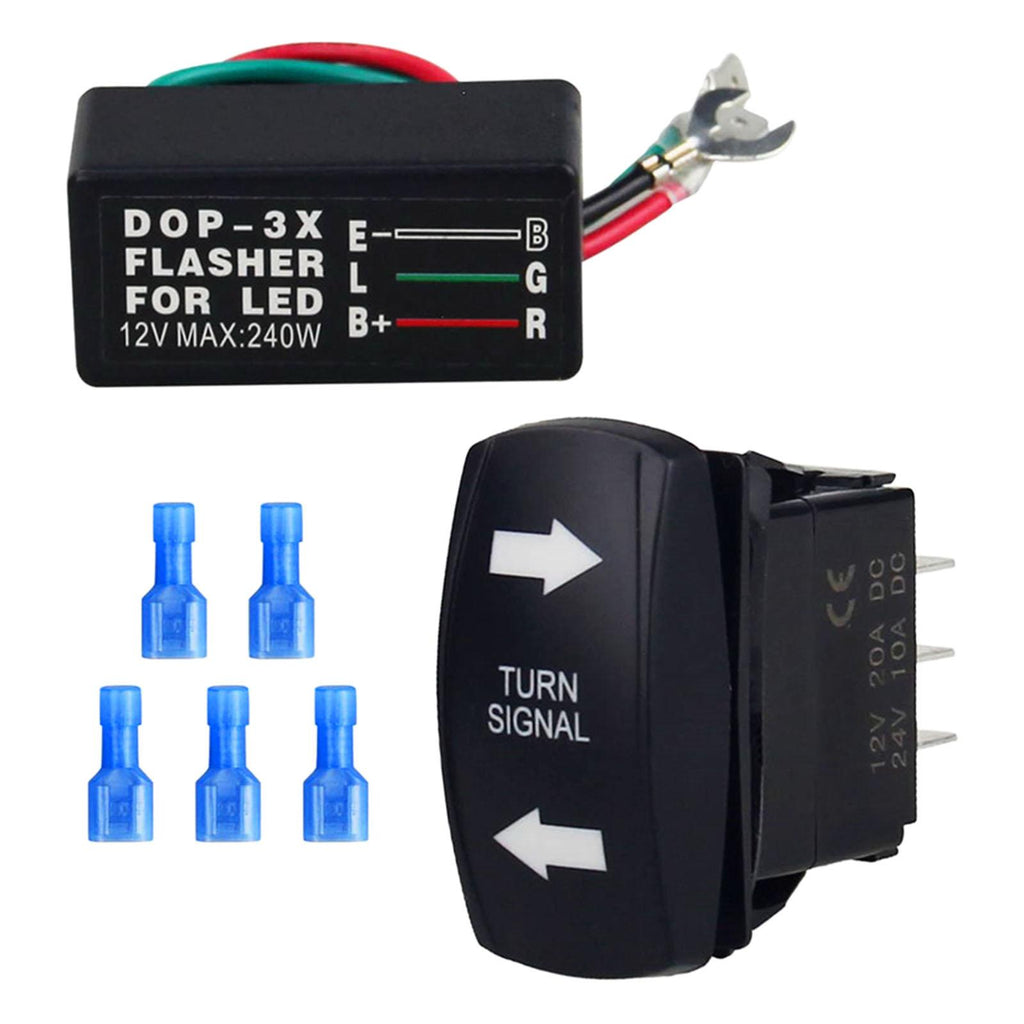

Package Includes:

1 Piece Rocker Switch for Turn Signal Lights
1 Piece on off LED
5 Pieces Terminals
or
1 Piece Rocker Switch for Turn Signal Lights
1 Piece Flasher Relay
5 Pieces Terminals

Note:

Please allow slightly errors due to manual measurement and different monitors.
