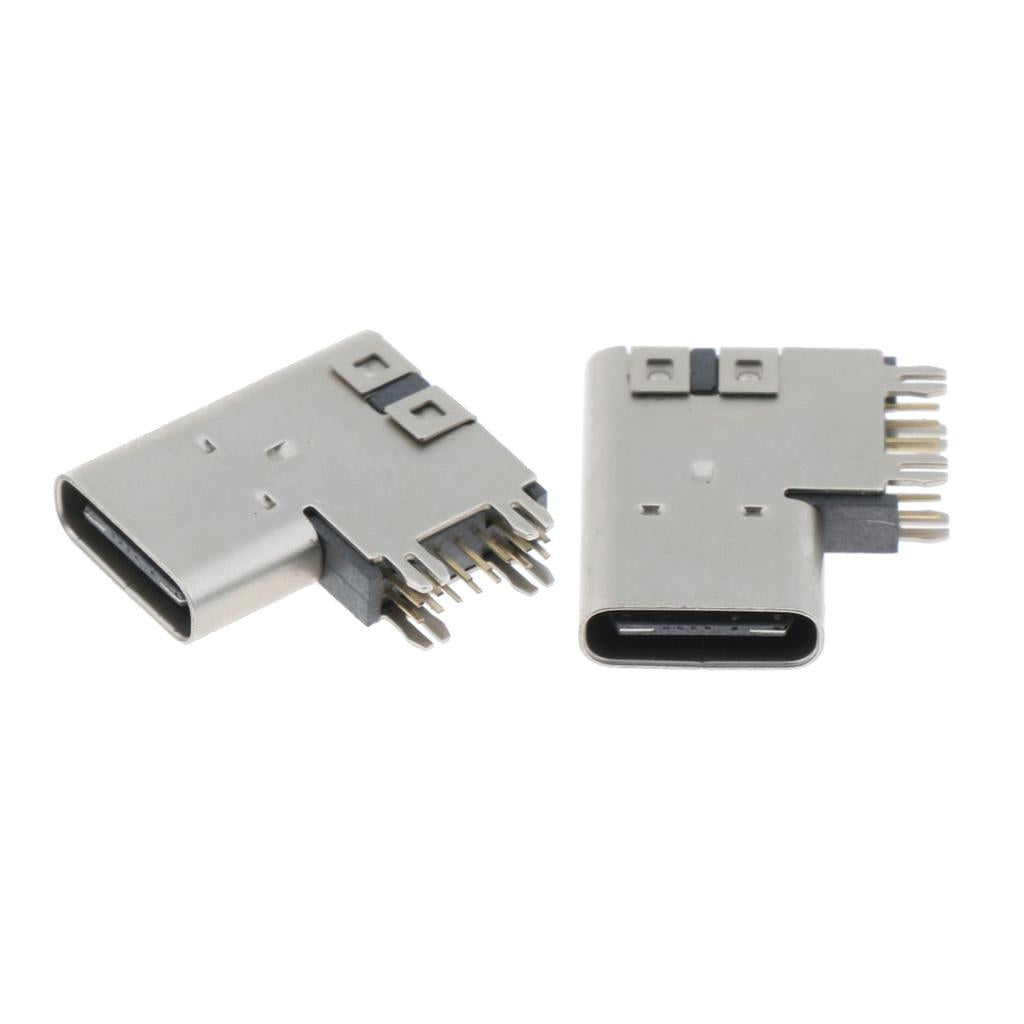

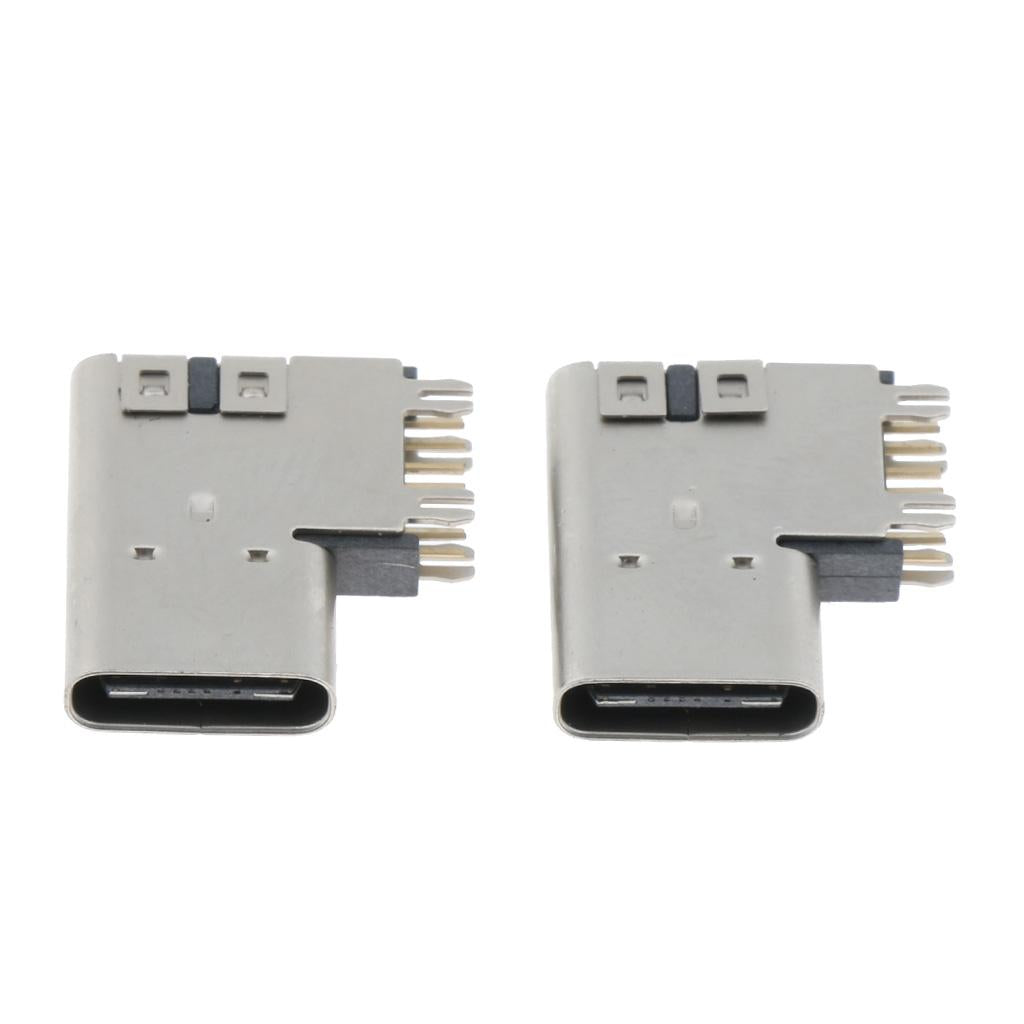

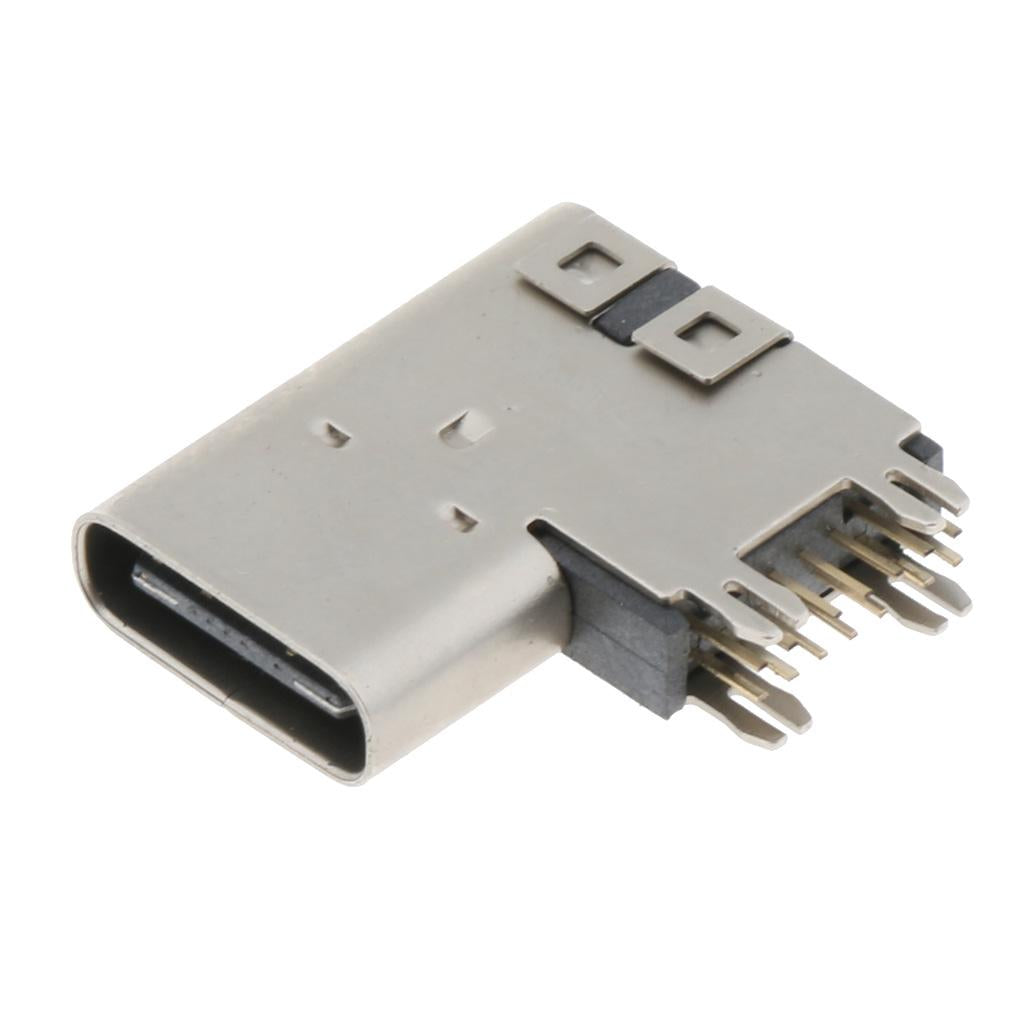

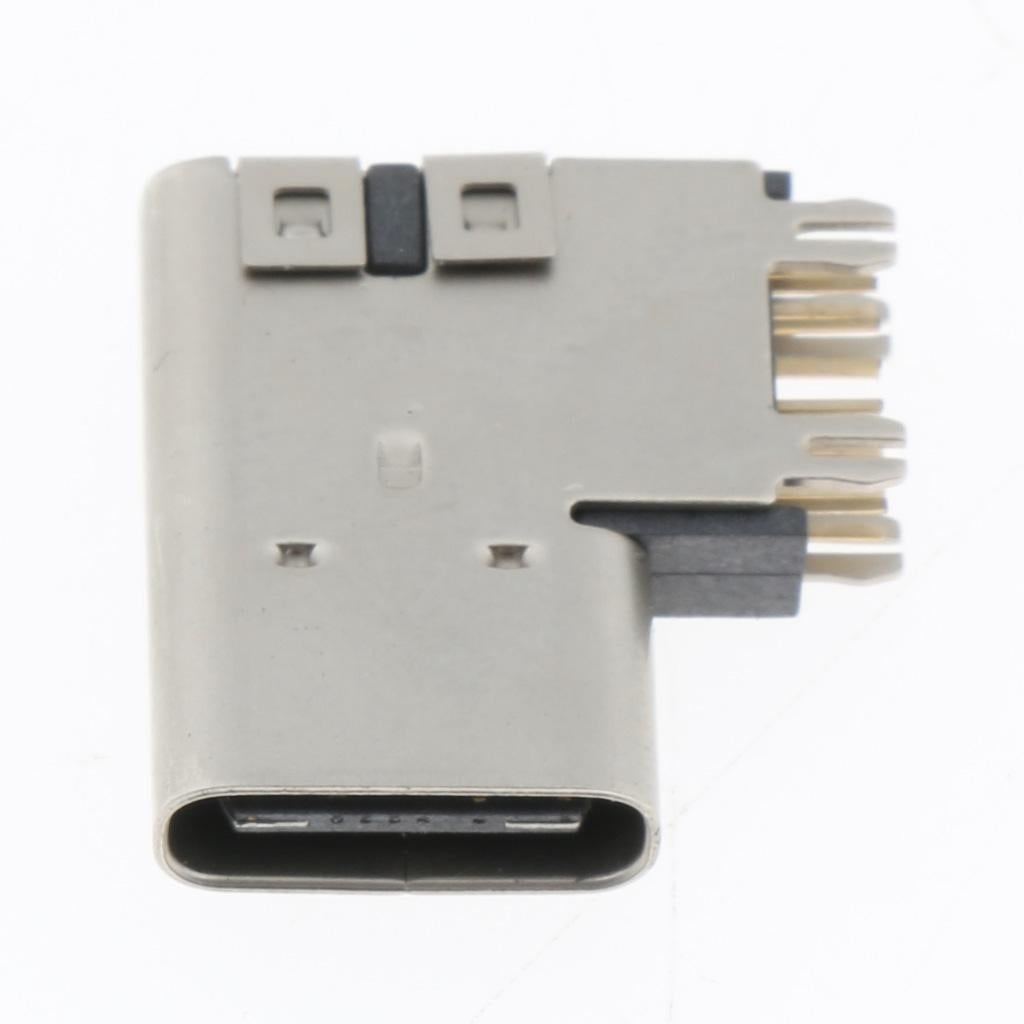

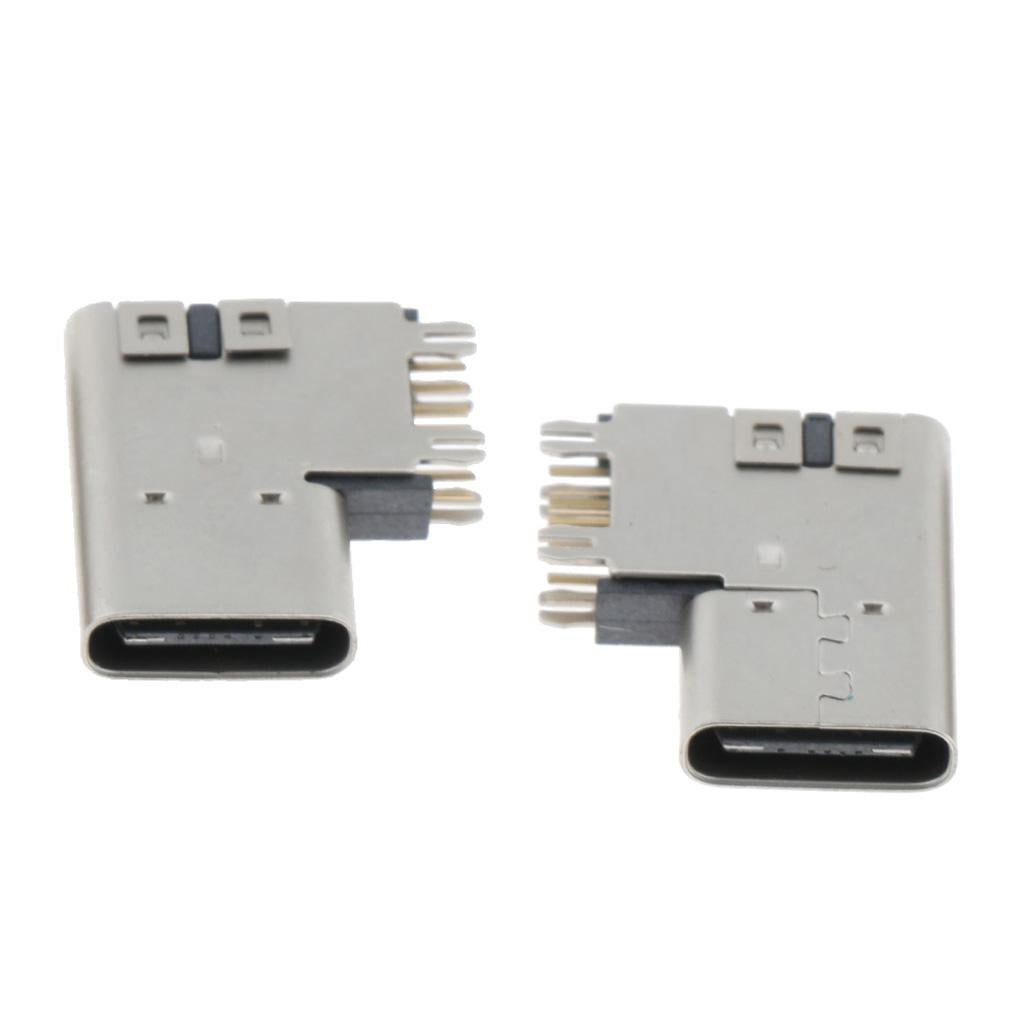

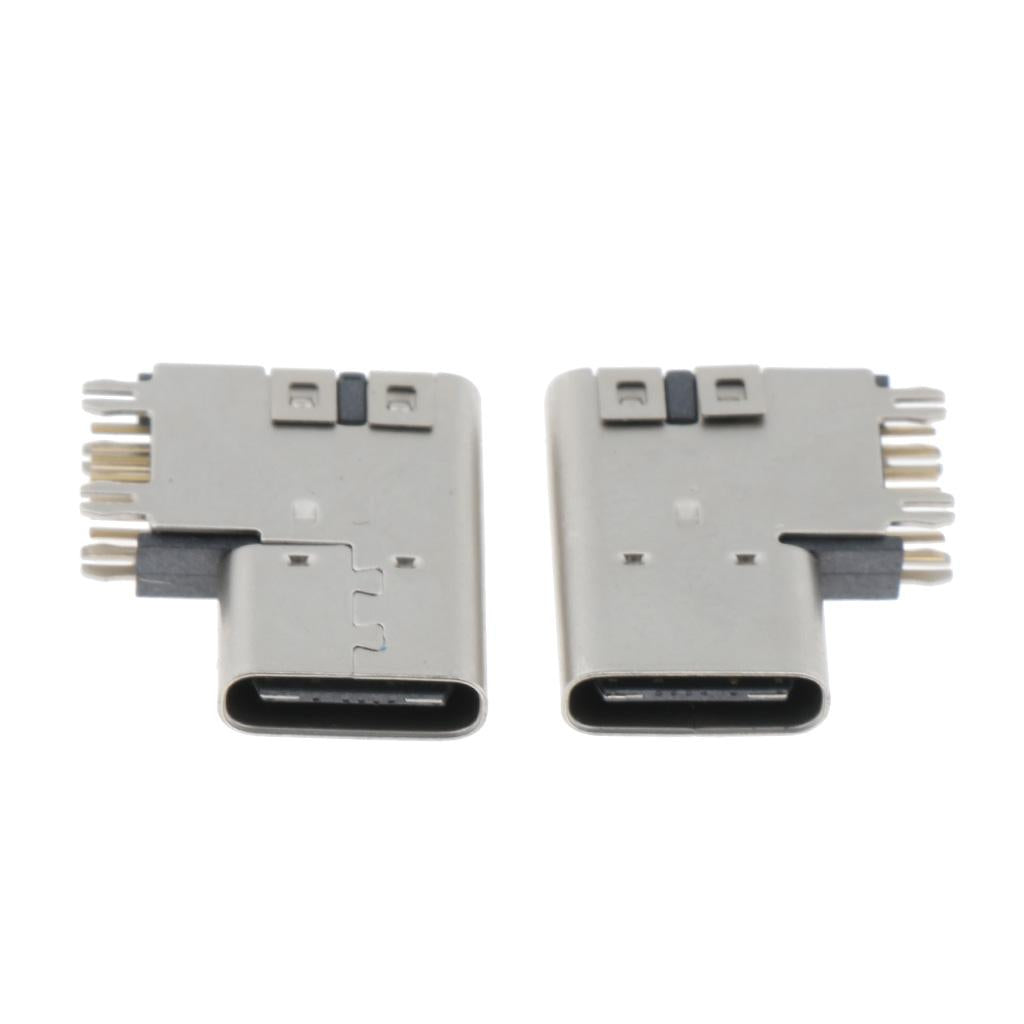

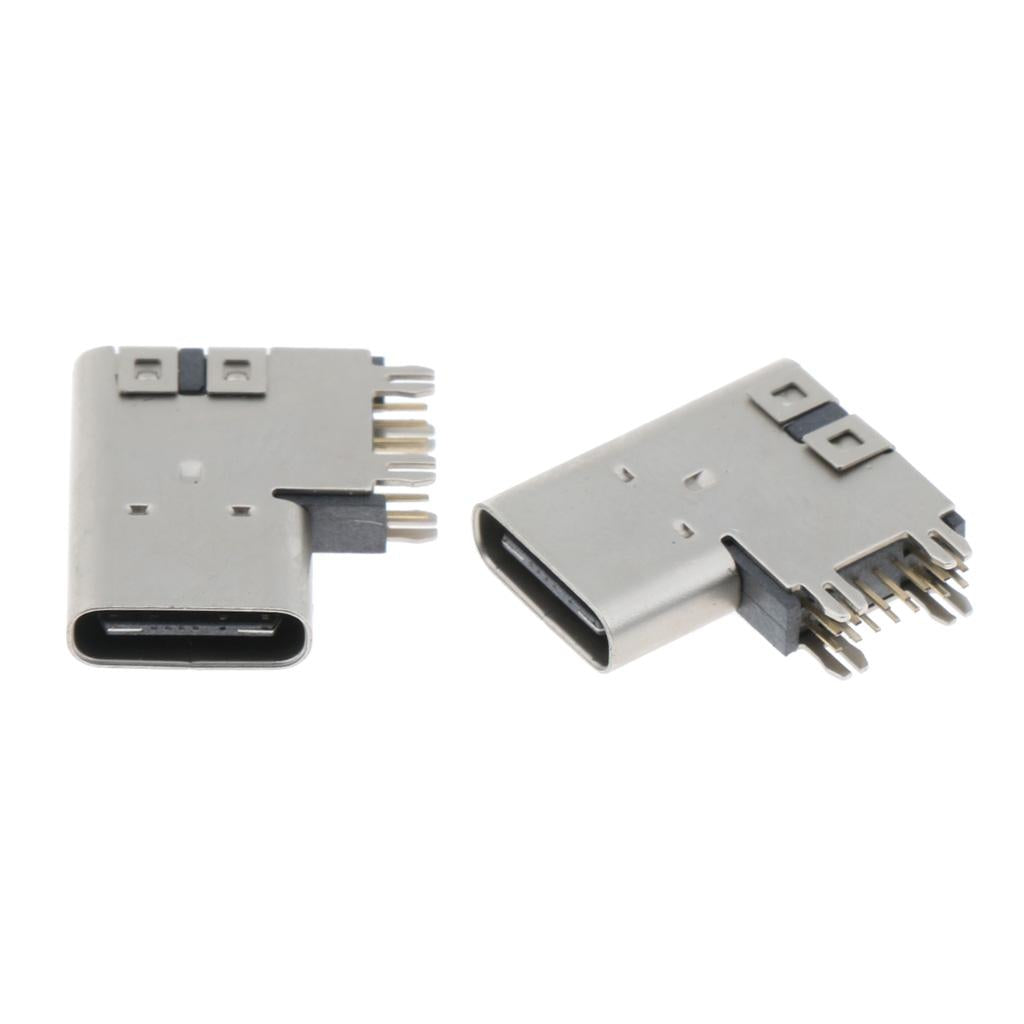

Max Side-standing USB 3.1 Female Seat Side Insert Pad High Type-C Female Seat
Rs. 388.00Rs. 776.00
Description:
Contact impedance: tested at 1KHZ, low current, maximum impedance is 40 microohms. Insulation resistance: Test with 100-250V DC voltage for 1 minute, minimum impedance 100 megohms.
Withstand voltage: AC 250V between terminal and terminal, no breakdown.
Insertion force and pull-out force: insert and remove the jig at a speed of 25 mm per minute. The insertion force is up to 50N.
Terminal strength: Pull out the terminal horizontally, and the minimum pin retention is 10N.
Durability test: The contact resistance of the terminal is up to 100 milliohms, the insertion and removal speed is...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Contact impedance: tested at 1KHZ, low current, maximum impedance is 40 microohms. Insulation resistance: Test with 100-250V DC voltage for 1 minute, minimum impedance 100 megohms.
Withstand voltage: AC 250V between terminal and terminal, no breakdown.
Insertion force and pull-out force: insert and remove the jig at a speed of 25 mm per minute. The insertion force is up to 50N.
Terminal strength: Pull out the terminal horizontally, and the minimum pin retention is 10N.
Durability test: The contact resistance of the terminal is up to 100 milliohms, the insertion and removal speed is 10 times/minute, and the pluggable speed is 5000 times.
Specification:
Material: Metal
Size: 1.9x1.3cm/1.74x0.51inch

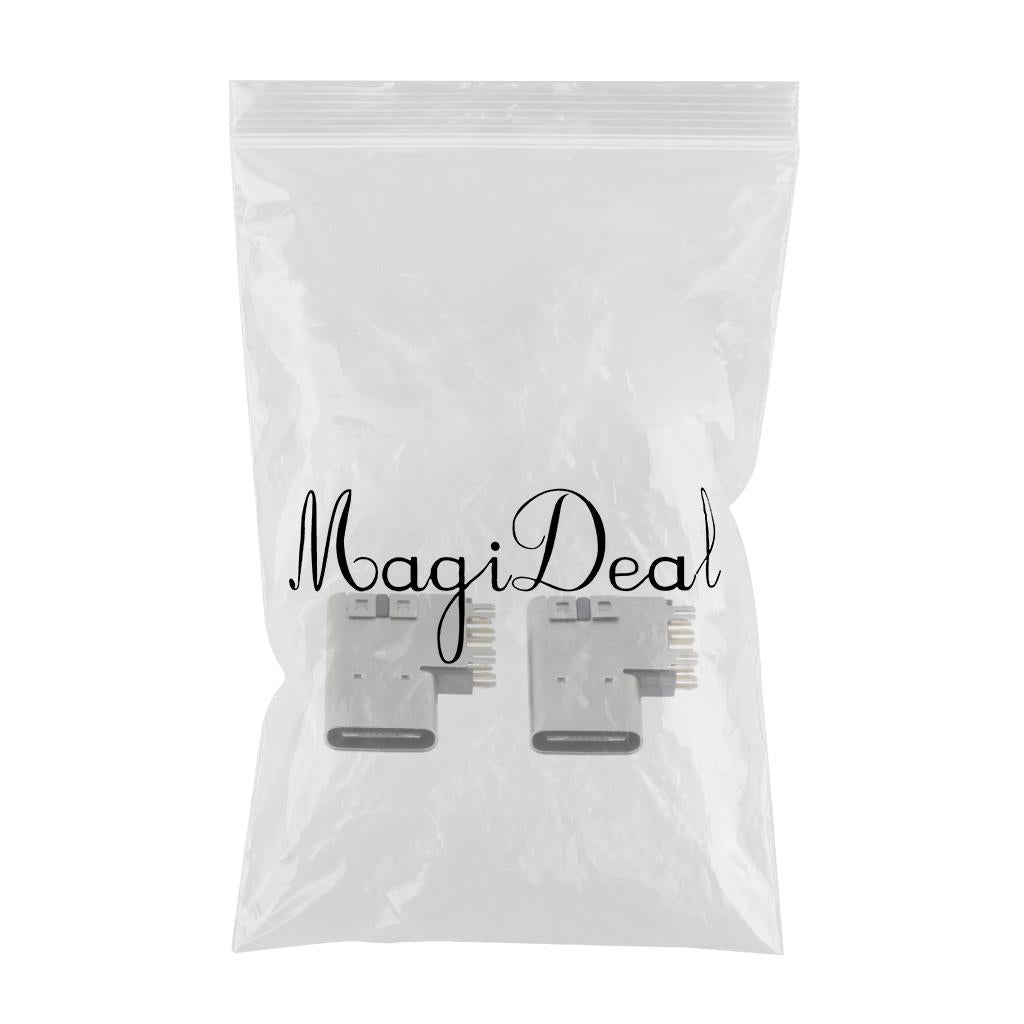

Package Includes:
2 Pieces USB 3.1 Female & Type-C Female Seat
