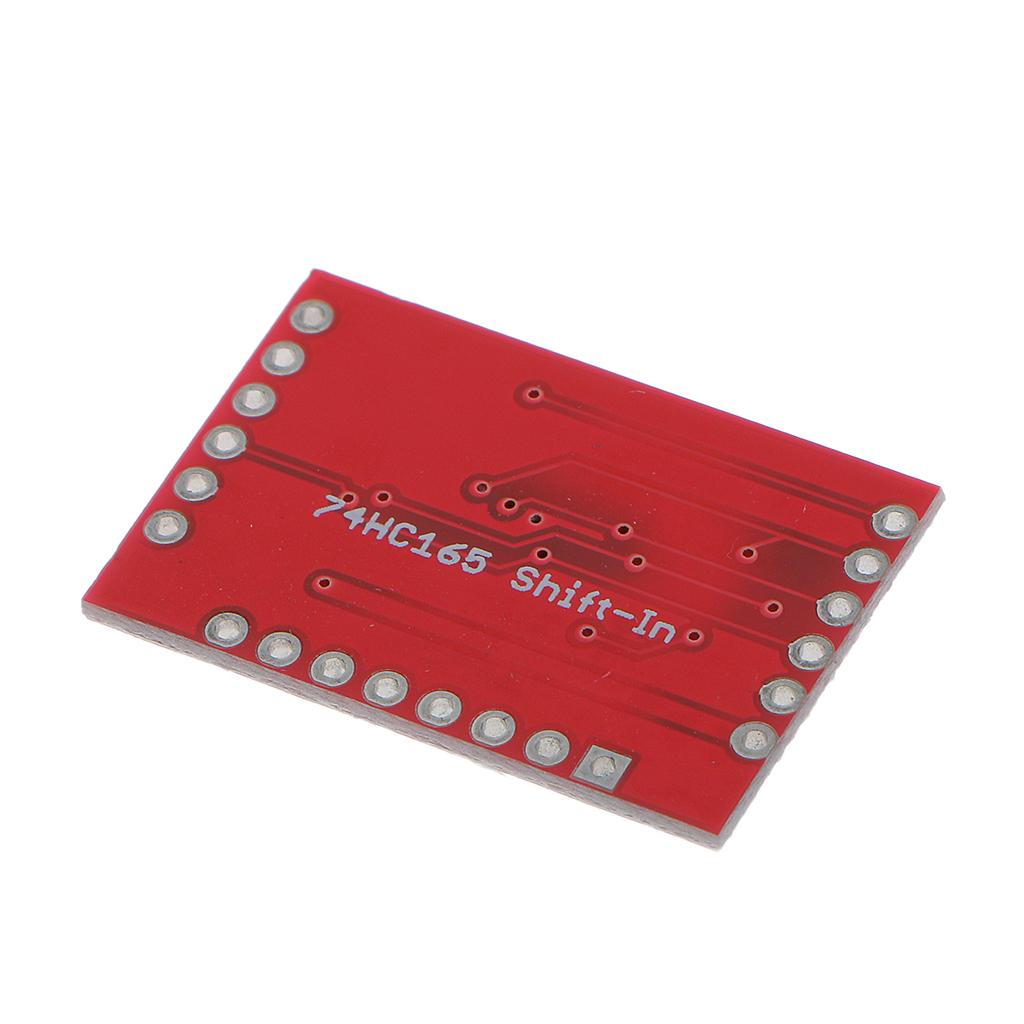

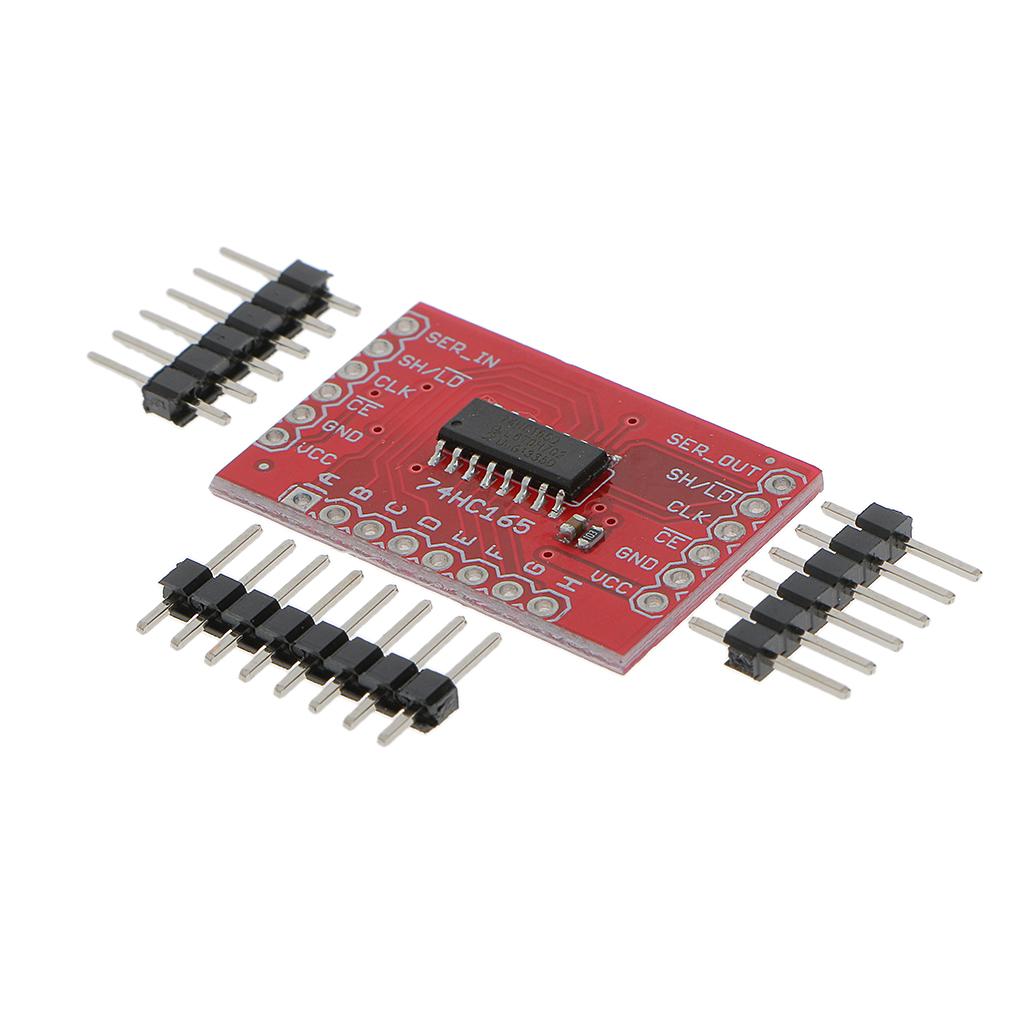

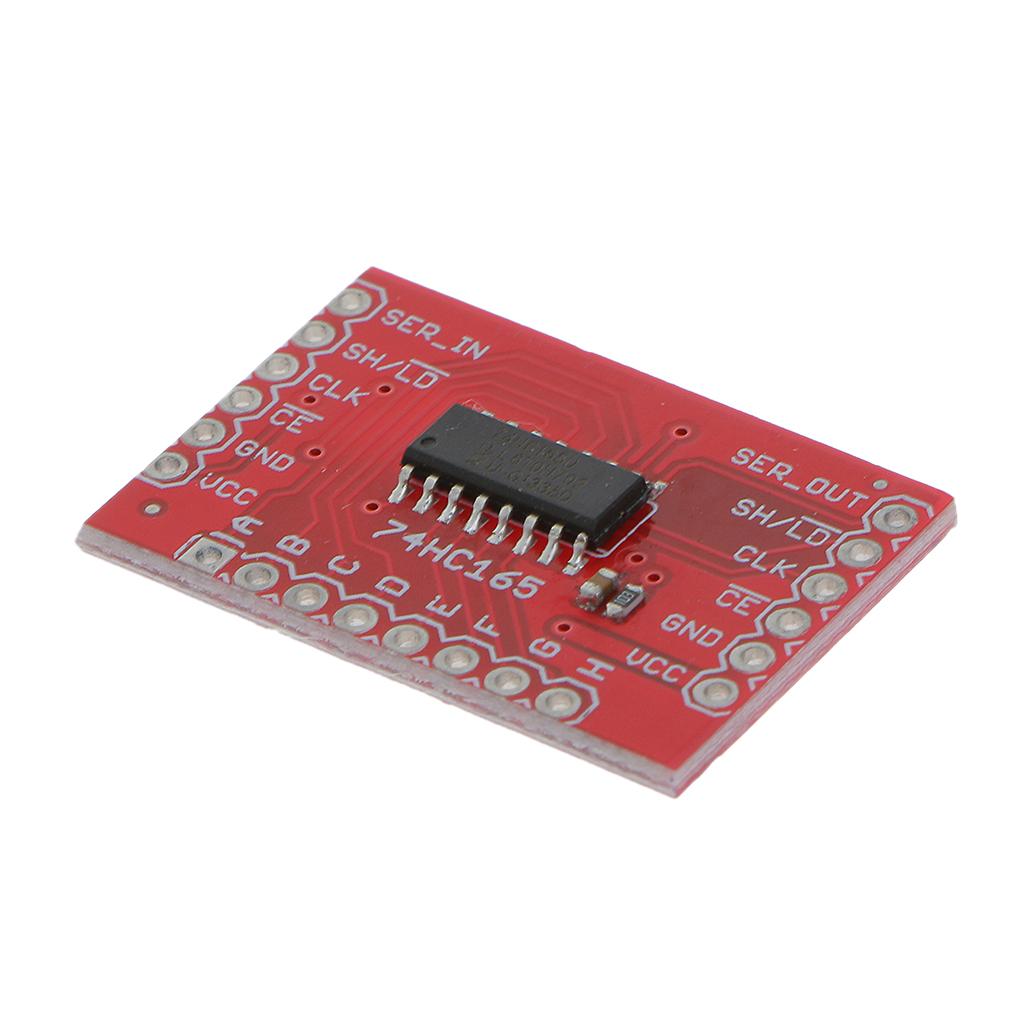

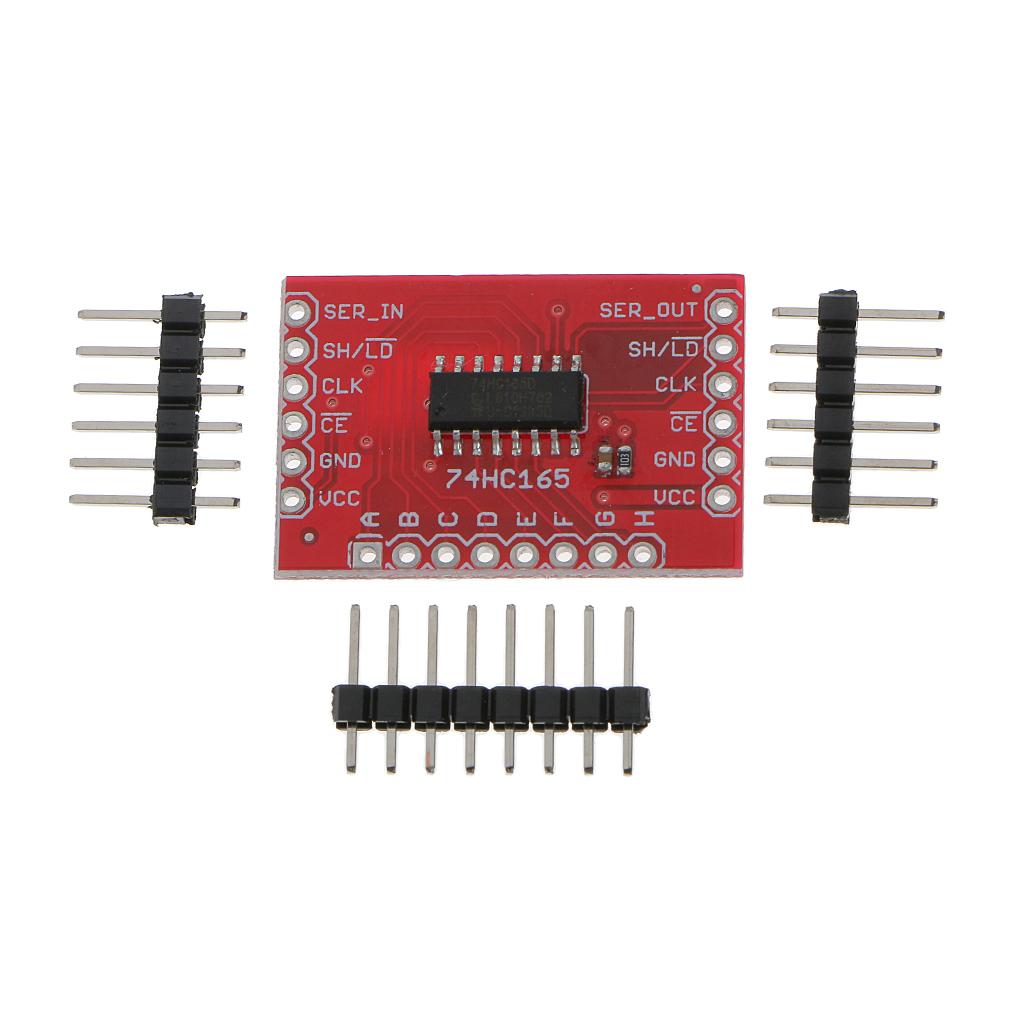

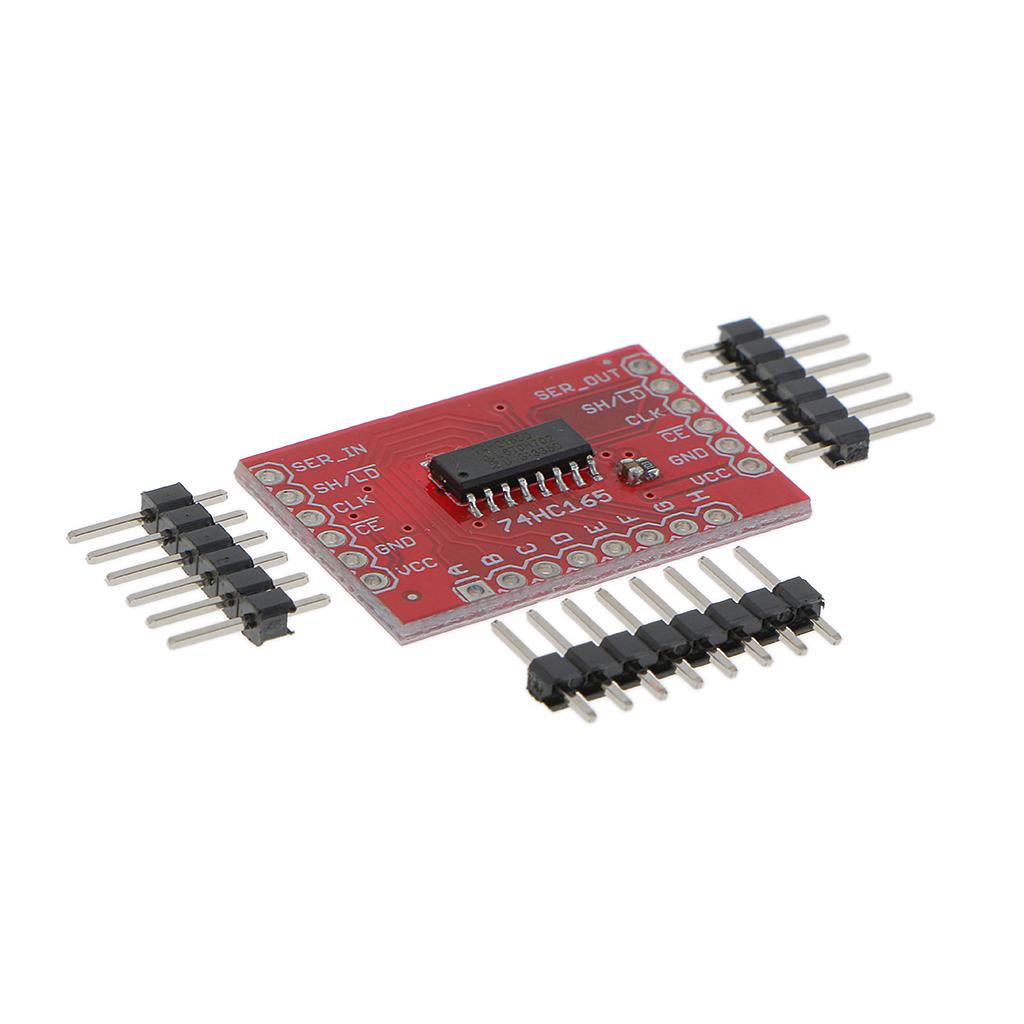

Maxbell Shift-In Breakout SN74HC165 Conversion Module Board
Rs. 442.00Rs. 884.00
Description:
- The SN74HC165N is a neat little IC that will take an input of up to 8 parallel lines and produce a single, serial output. It is a great way to increase the number of inputs on a microcontroller.
- This breakout makes it easy to prototype using the 74HC165 by breaking out all of the pins you need to standard 0.1" spaced headers.
- We also lined up the data and power pins so that you can easily make chains of them and expand the number of...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
-
The SN74HC165N is a neat little IC that will take an input of up to 8 parallel lines and produce a single, serial output. It is a great way to increase the number of inputs on a microcontroller.
-
This breakout makes it easy to prototype using the 74HC165 by breaking out all of the pins you need to standard 0.1" spaced headers.
-
We also lined up the data and power pins so that you can easily make chains of them and expand the number of outputs under your control!
-
This chip works with a voltage supply anywhere in the range of 2-6VDC, and at clock frequencies of up to 29MHz (@6VDC).
-
Wide Operating Voltage Range of 2 V to 6 V
-
Parallel-to-Serial Data Conversion
-
Outputs Can Drive Up To 10 LSTTL Loads
-
Low Power Consumption, 80-uA Max ICC
-
4mA Output at 5 V
-
Low Input Current, 1 uA Max
-
Complementary Outputs
-
Direct Overriding Load (Data) Inputs
-
Gated Clock Inputs
-
0.1" Spaced Headers
Package Includes:
-
1x SN74HC165 Shift-In Breakout Module
