Description:
For 12V/24V Car,RV, Yacht, ATV, SUV Vehicle winch electrical control.

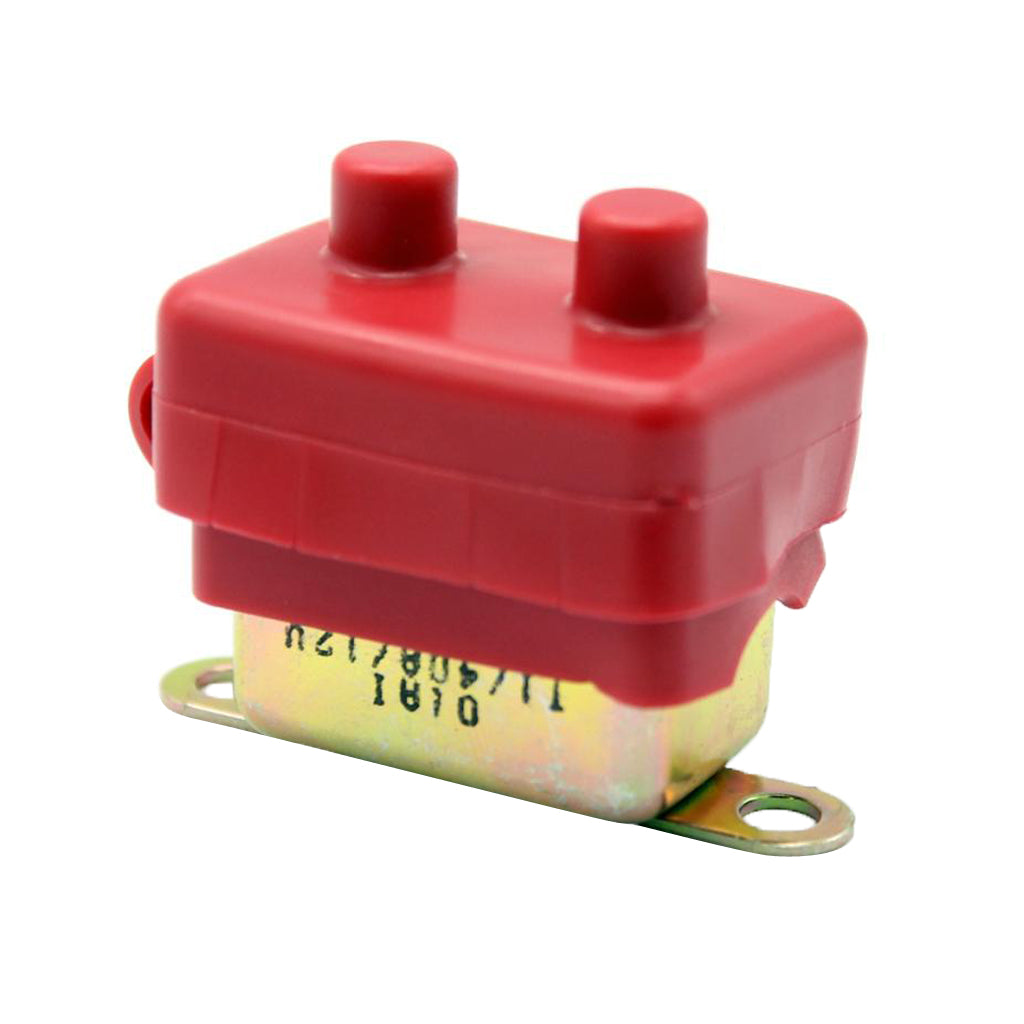

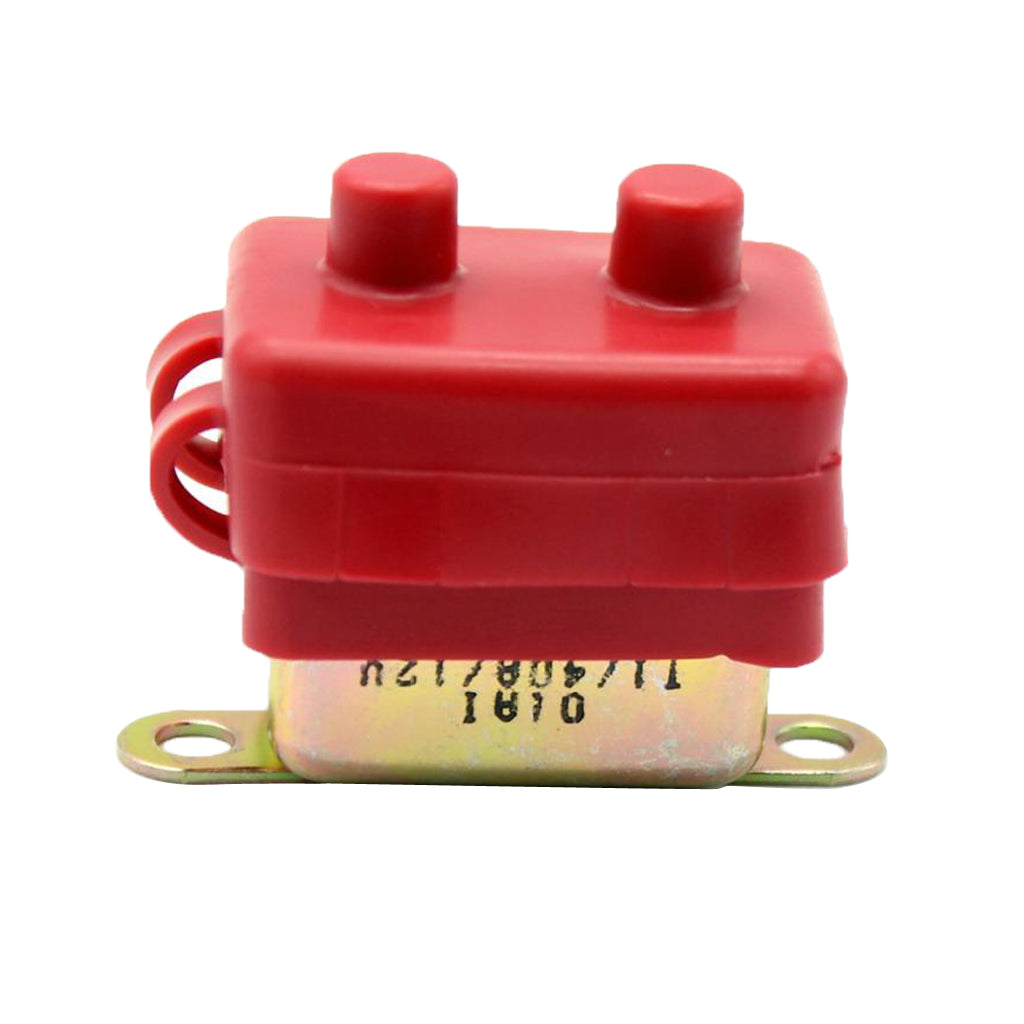

Rubber protective cover protect terminal from moisture, dust and accidental disconnects.
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection.
Widely used in special vehicles, SUV vehicles winch, yachts and ships electrical control.

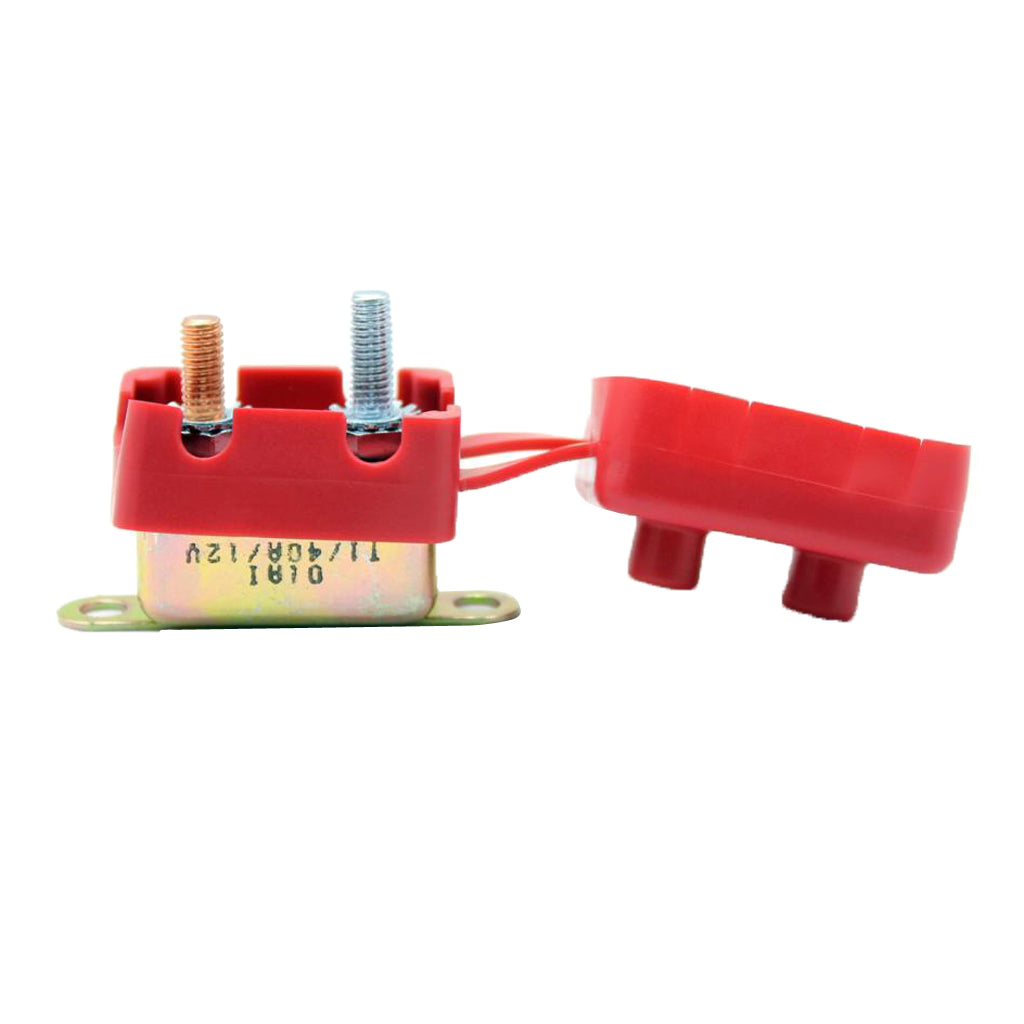

Plastic with parallel mounting bracket.
IP67 rated dustproof.
Specification:
Overcurrent circuit breaker with bi-metal structures, when the circuit is overload, can achieve rapid power off protection function.
Metal with parallel mounting bracket

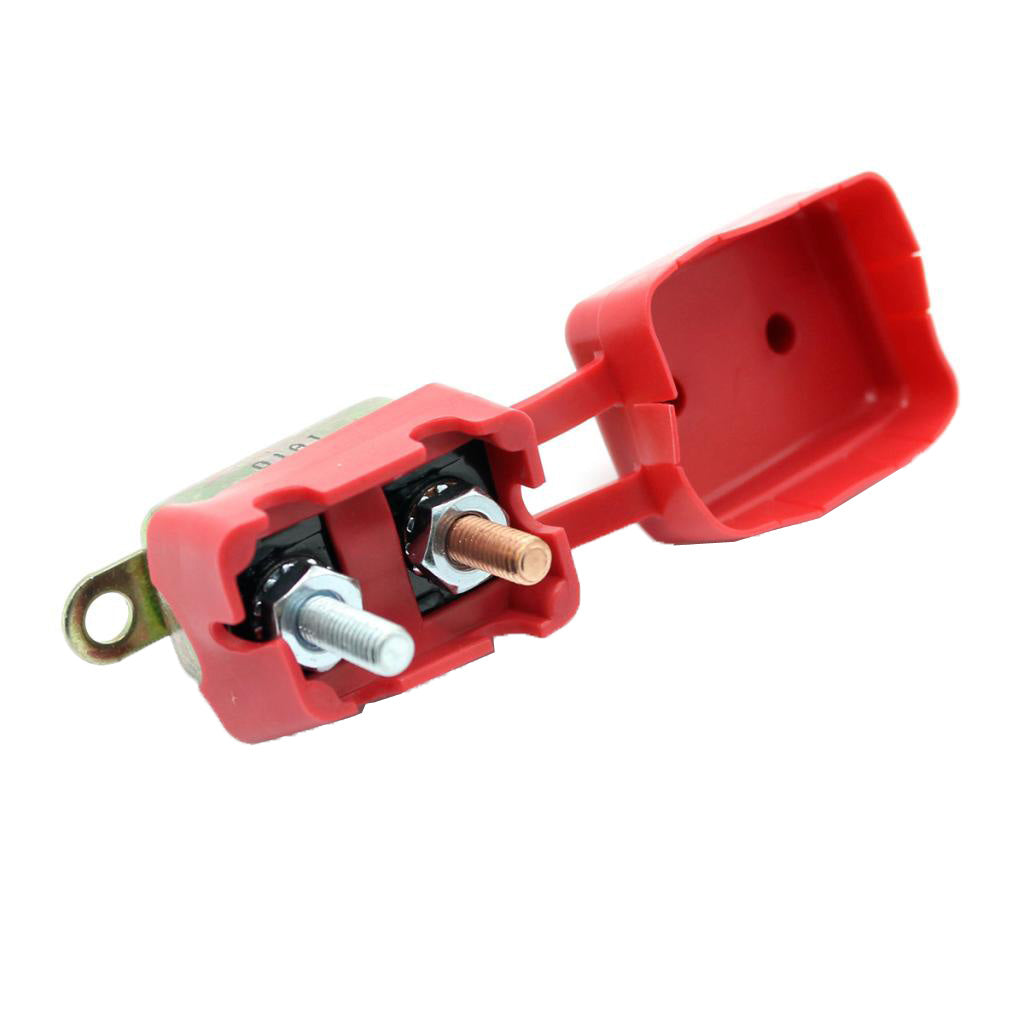

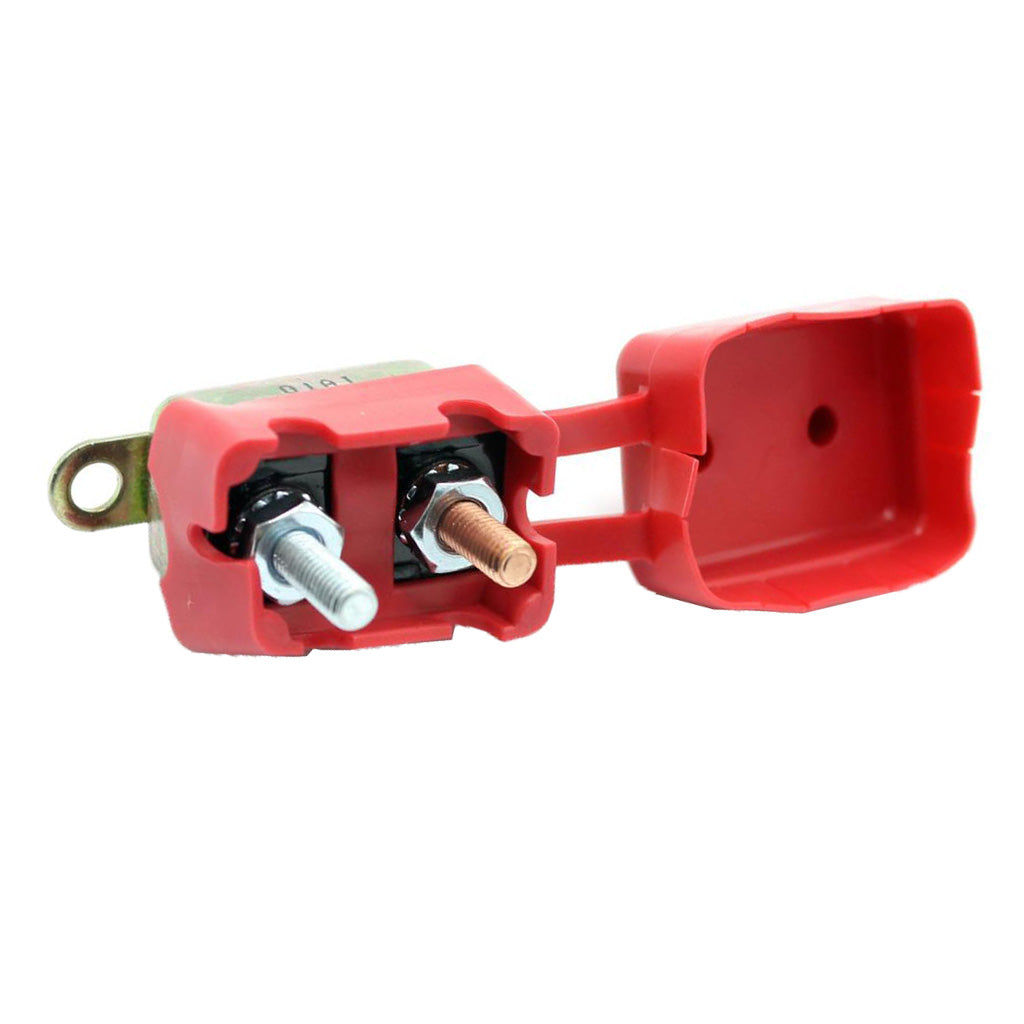

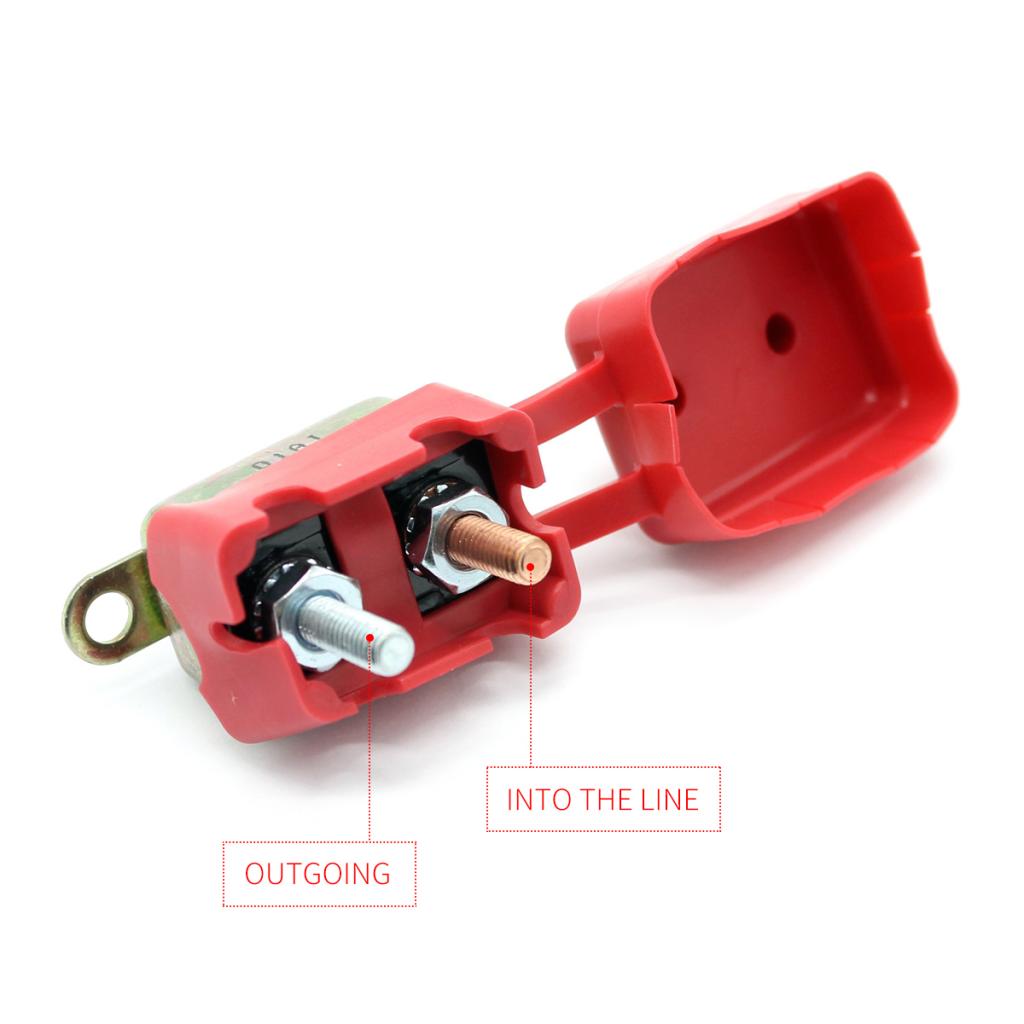

Rubber protective cover protect terminal from moisture, dust and accidental shorting.
Rated Current: 30 AMP
Interrupt Rating: 2.5KA@12VDC
Housing is thermal plastic UL rated 94V0
Splash and dust proof at IP67 grade
Operating temp: -40°C to 85°C (-40°F to 185°F)
Storage temp: -34°C to 125°C (-40°F to 260°F)
Terminal: #10-32 thread with quick connector
Torque rating: 30in-lb (3.4Nm) max
Compliance SAE J553; SAE J1171

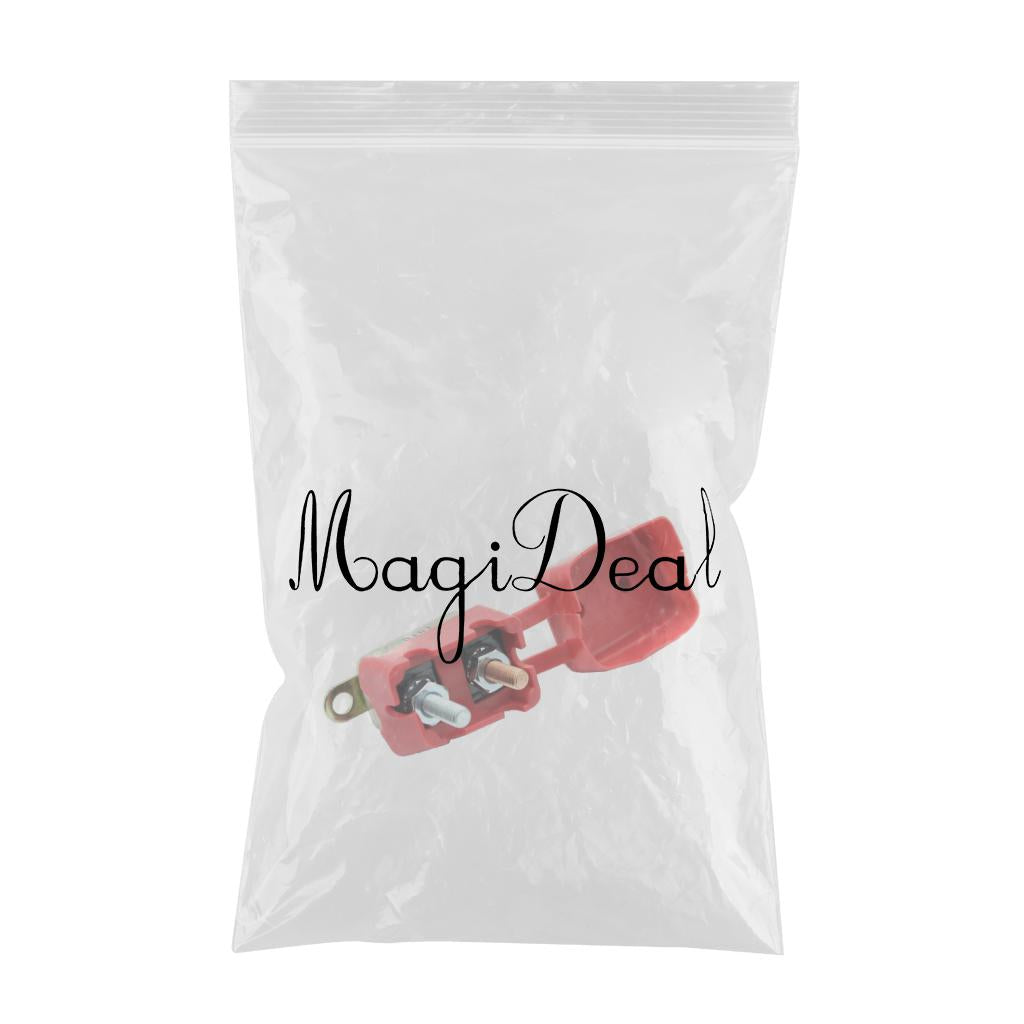

Package Includes:

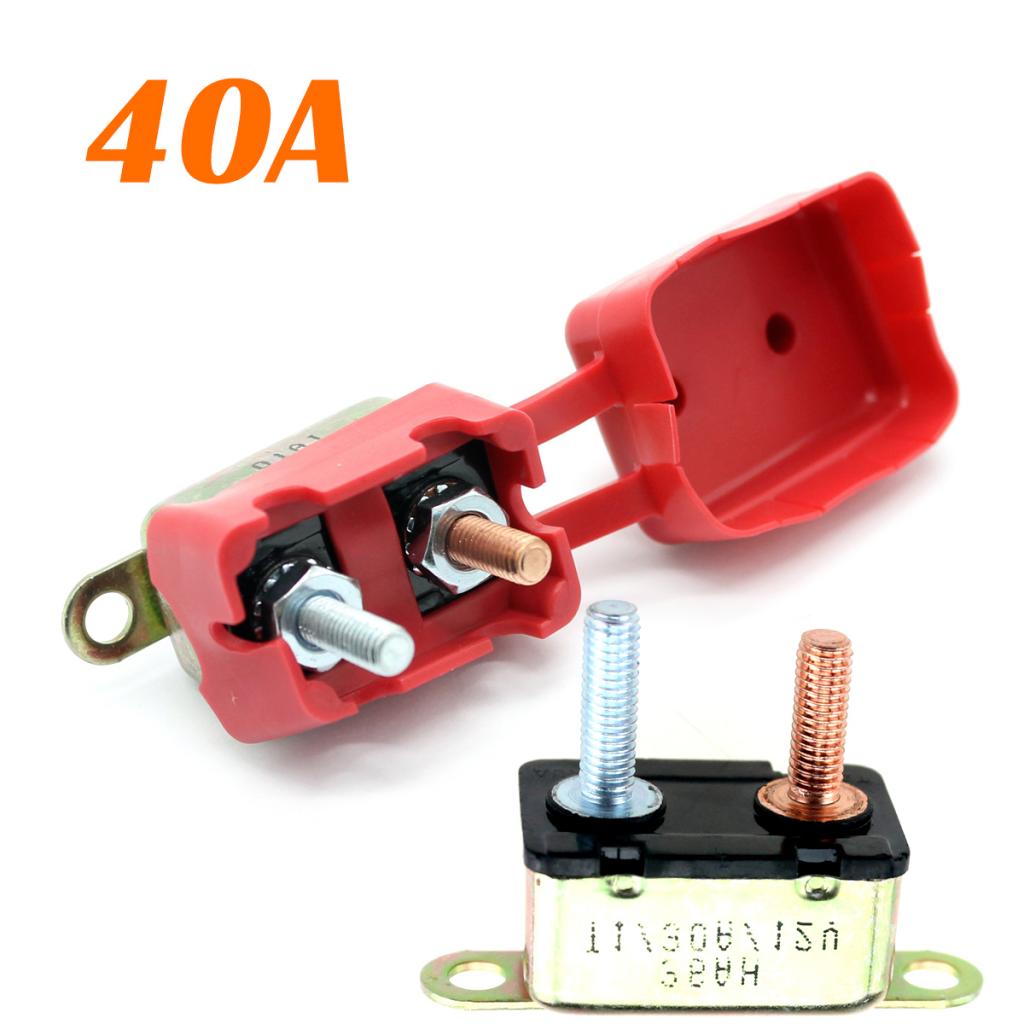

1 Piece Reset Circuit Breaker
Note:
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection. Widely used in special vehicles, yachts and ships electrical control. Plastic with parallel mounting bracket.
