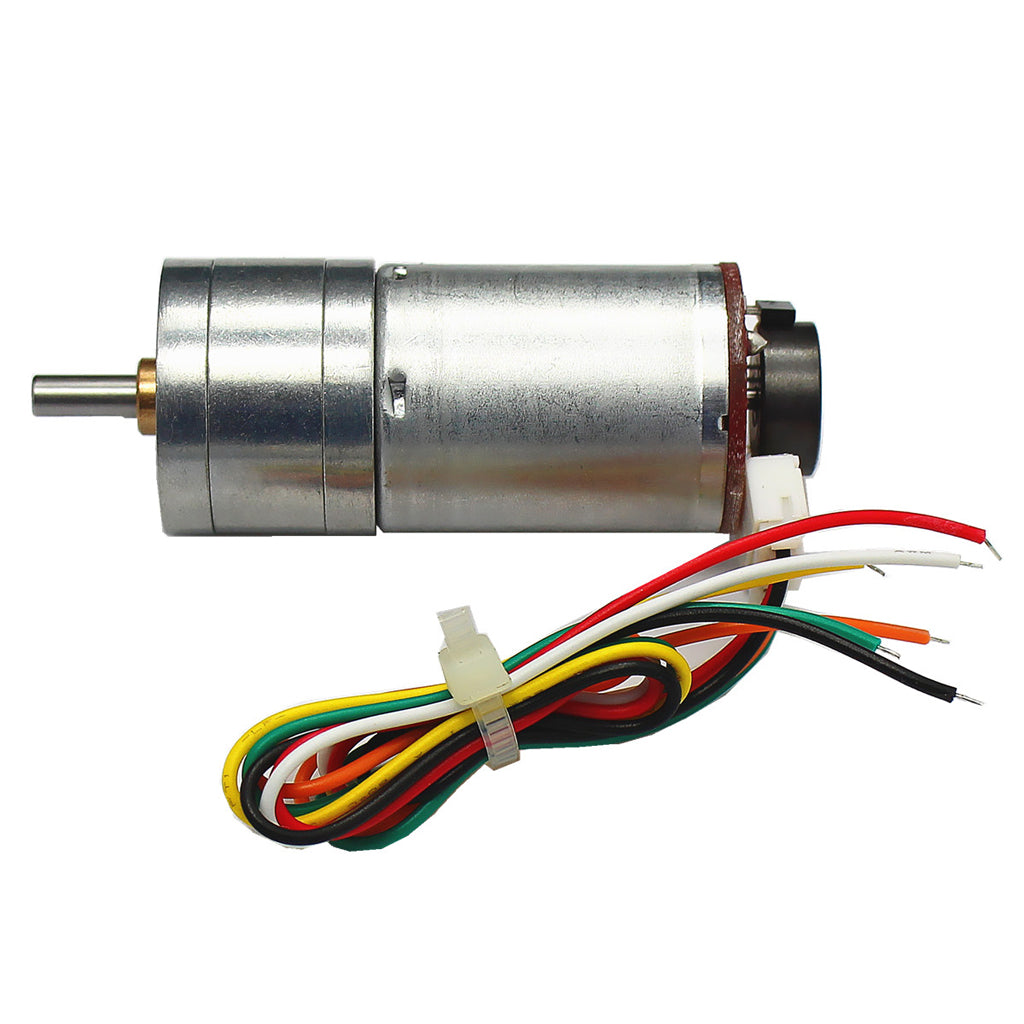

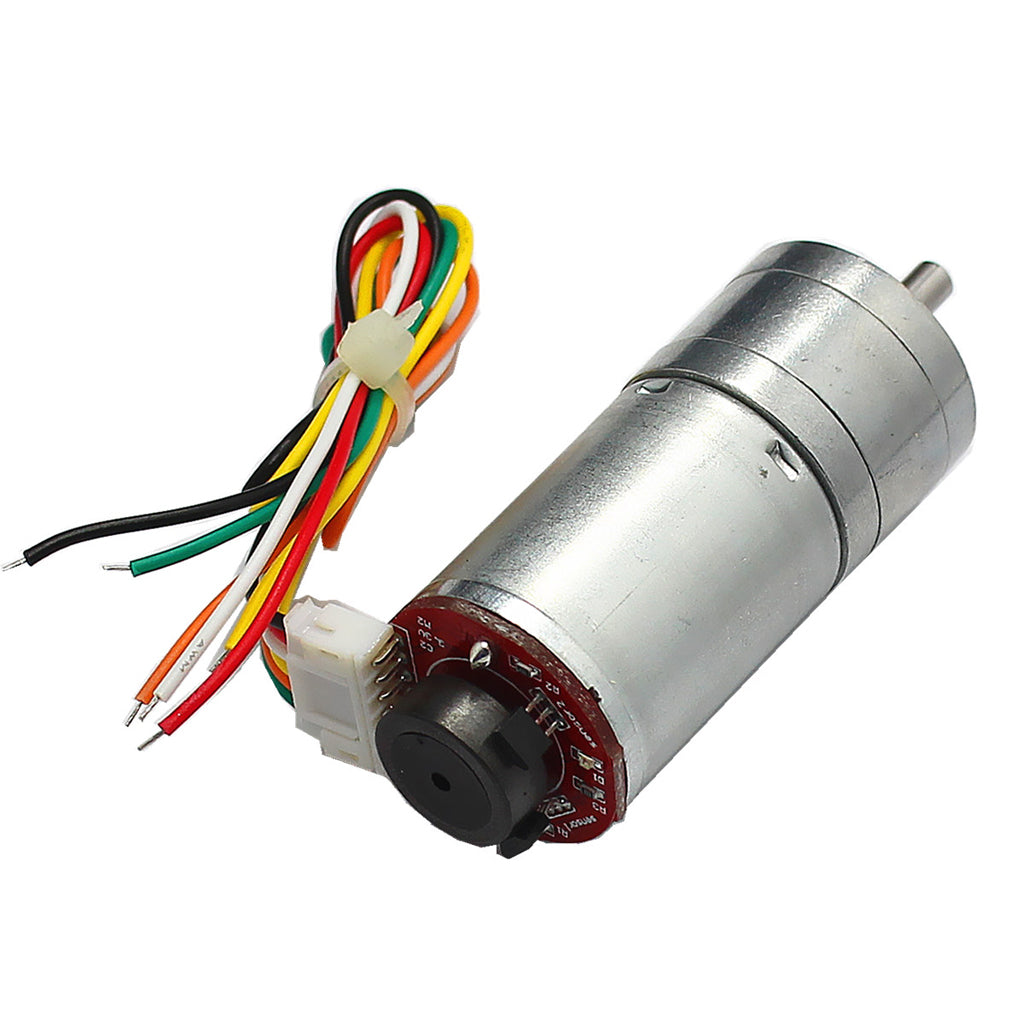

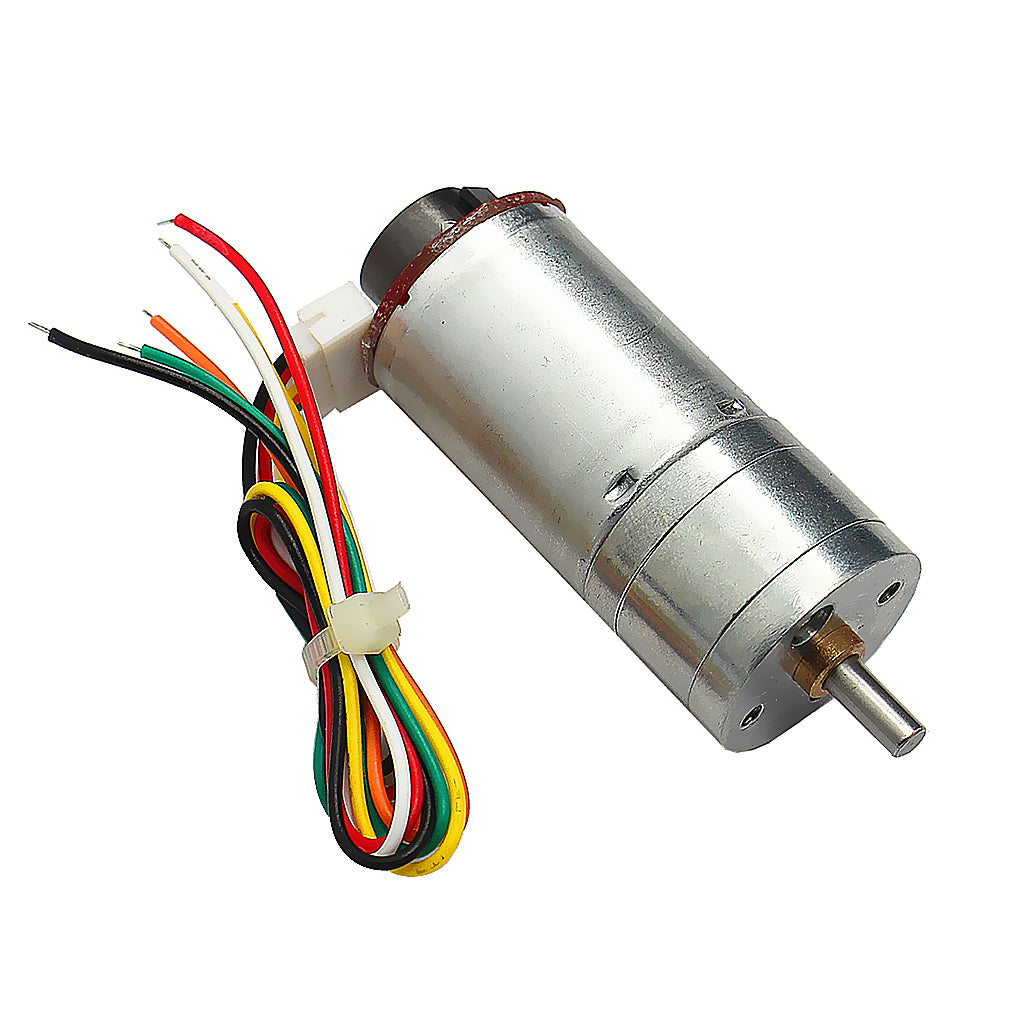

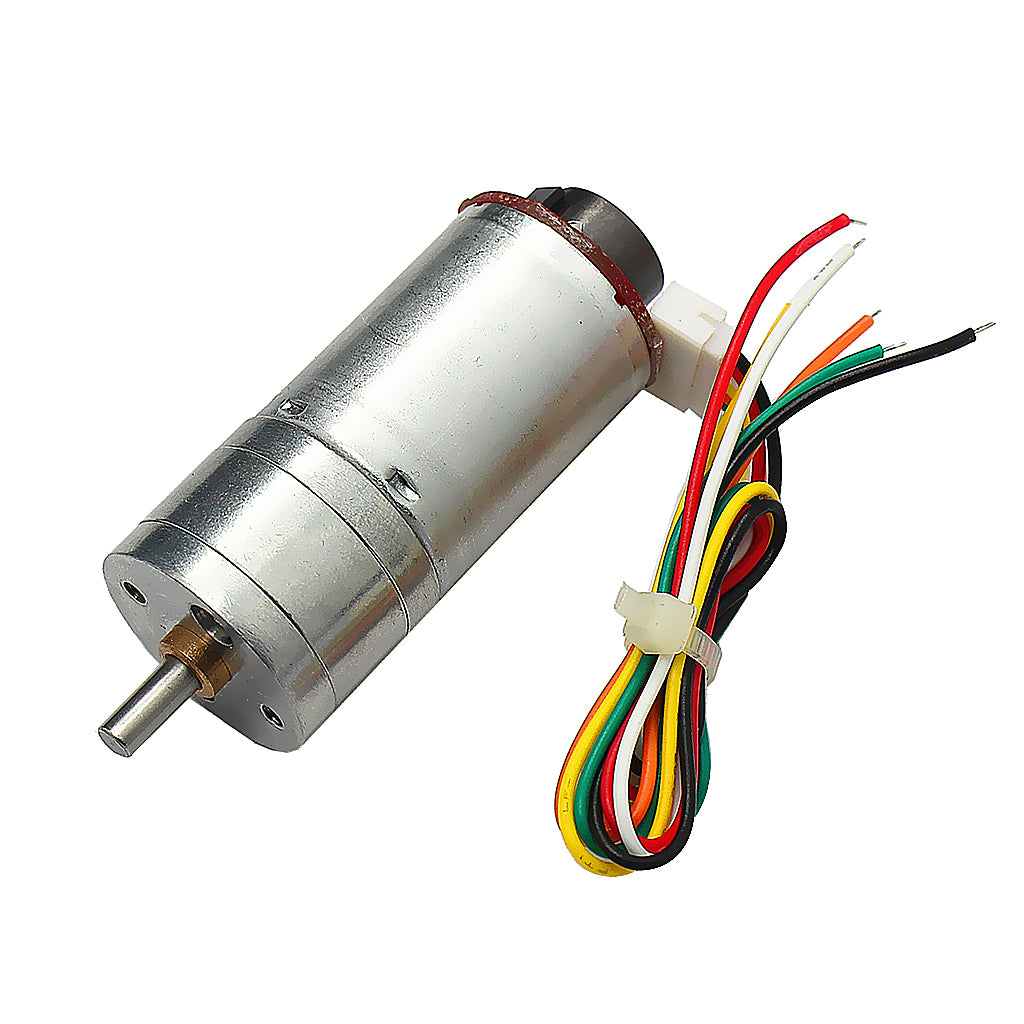

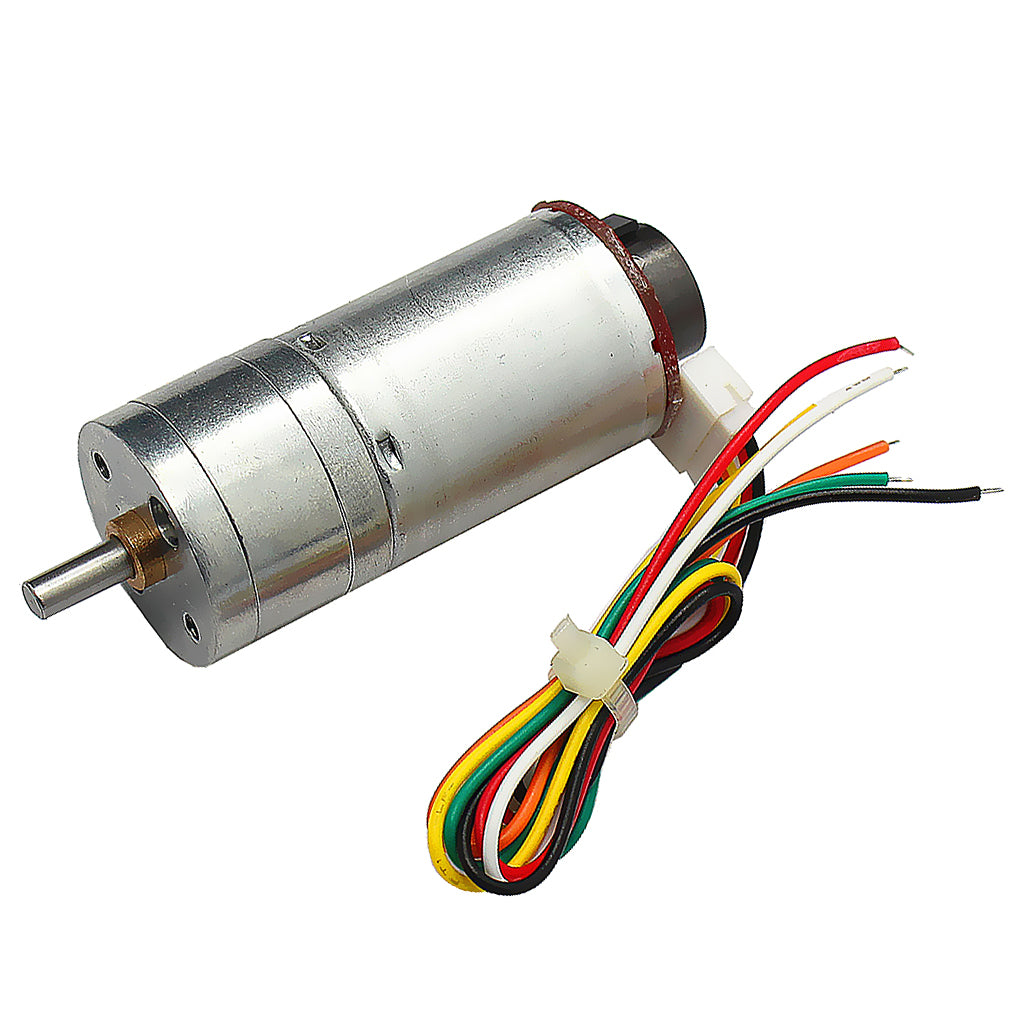

Maxbell Reducer Gear Motor With Magnetic Coded Disc Encoder Tachomotor DC24V 190RMP
Description:
Long service life, low noise, large torque.
Two-phase reduction gear motor with encoder.
Made of stainless steel
Stable and reliable performance.
Can rotate and reversal, work more accurate.
Specification:
Material: Stainless Steel
No-loading Revolving Speed: 190RMP, 250RMP, 400RMP, 915RMP, 1930RMP

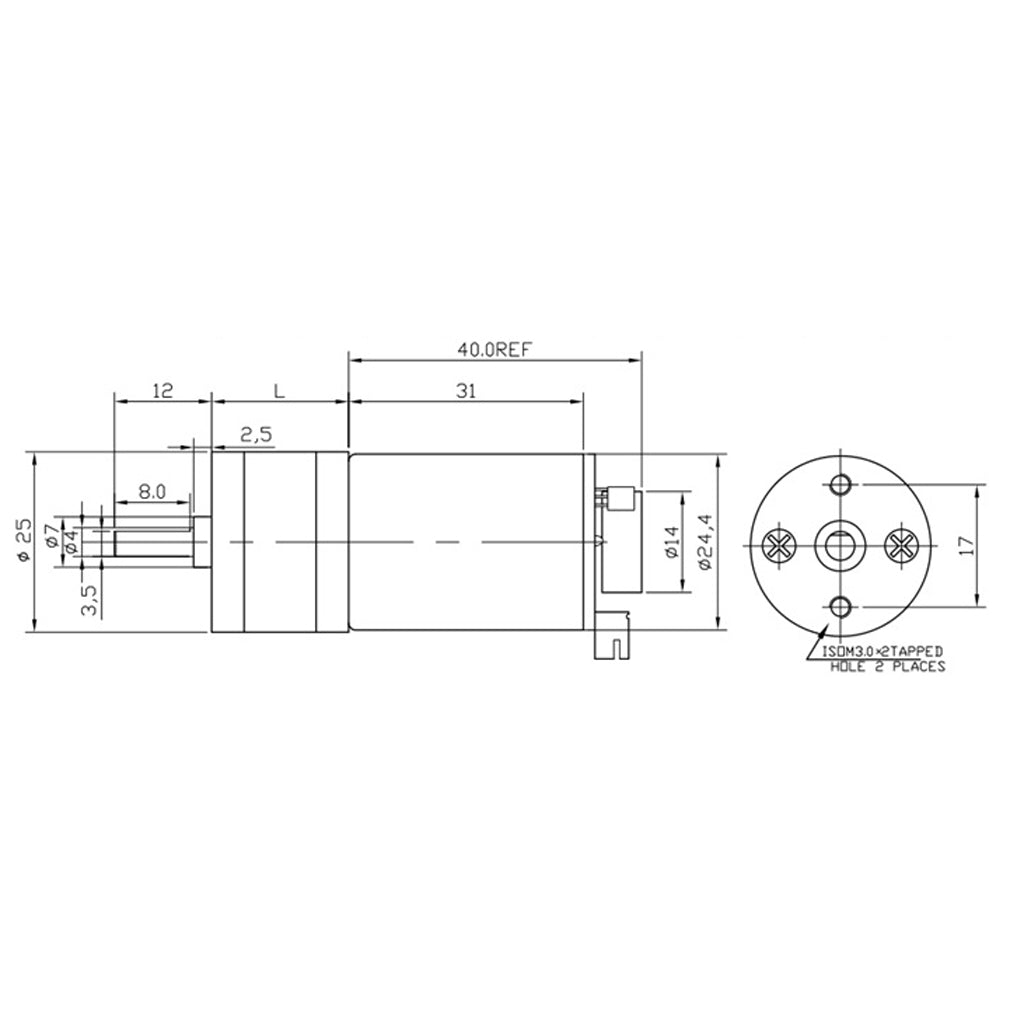

Shaft Length: Approx. 12mm/ 0.47inch
Shaft Diameter: Approx. 4mm/ 0.16inch D-shaped shaft
Working Voltage: DC 6V, 12V, 24V
Max Torque: 0.9kg/ cm
Max. Current: 1.2A
Color: As pictures show
Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing of motor)
Black: Coding power- negative (polarity cannot be wrong 3.3-5V)
Green: Signal feedback (motor rotate 1 circle 11 signal)
Yellow: Signal feedback (motor rotate 1 circle 11 signal)
Blue: Coding power + Positive (polarity cannot be wrong 3.3-5V)
White: Motor power - (exchange can control rotating and reversing of motor)
Package Includes:

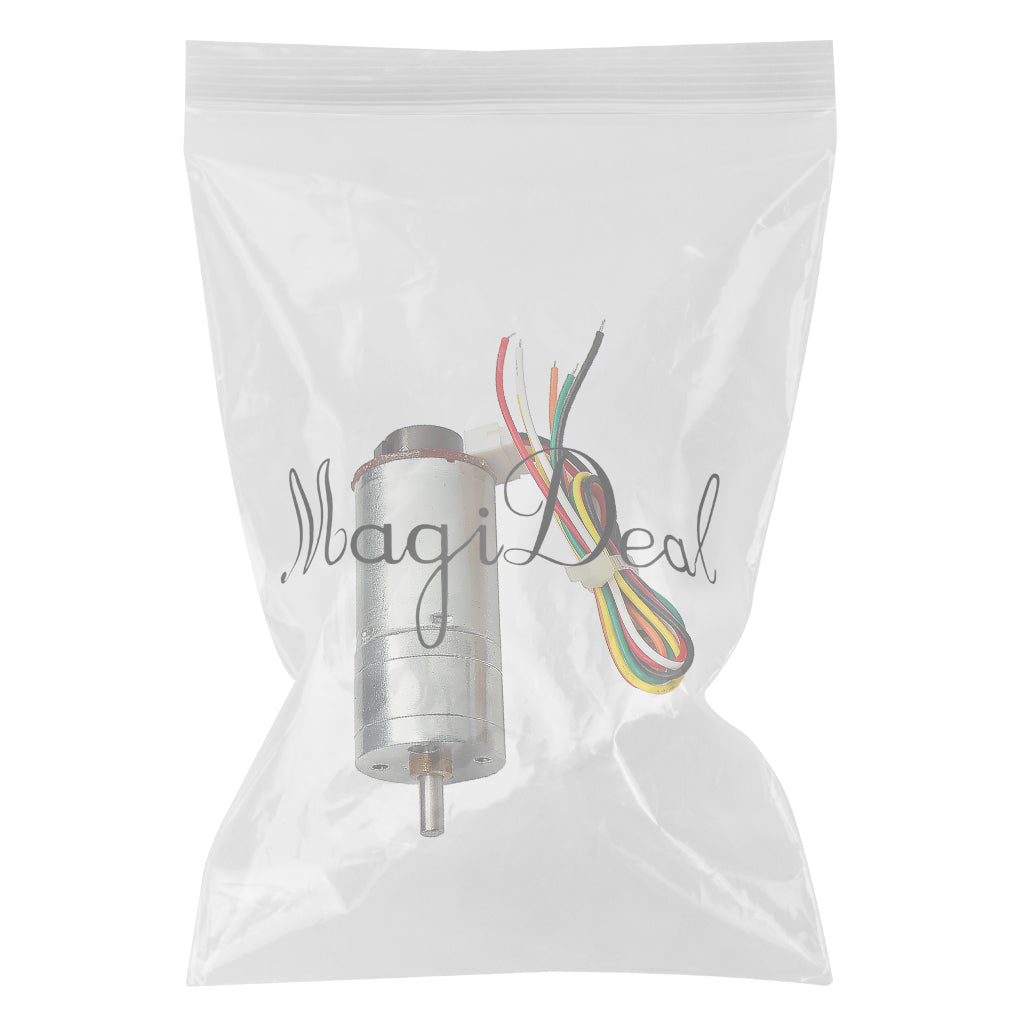

1 Piece Encoder Gear Motor
Note:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
Delivery Time: 12-15 Days. Products are directly imported and dispatched from our Hong Kong warehouse. All India Shipping.
Return: If you have received a faulty or damaged product, please contact our support team within 7 days of delivery. We will investigate the issue and provide you with instructions on how to return the product for a replacement or a full refund.
Please Note: This is going to be a closed delivery, so if you want open delivery then it will not be possible and you can cancel your order by writing us at: support@aladdinshoppers.com before dispatch of your order.
Tracking Information will be sent to you once your product is dispatched.
