Description:
100% brand new and high quality

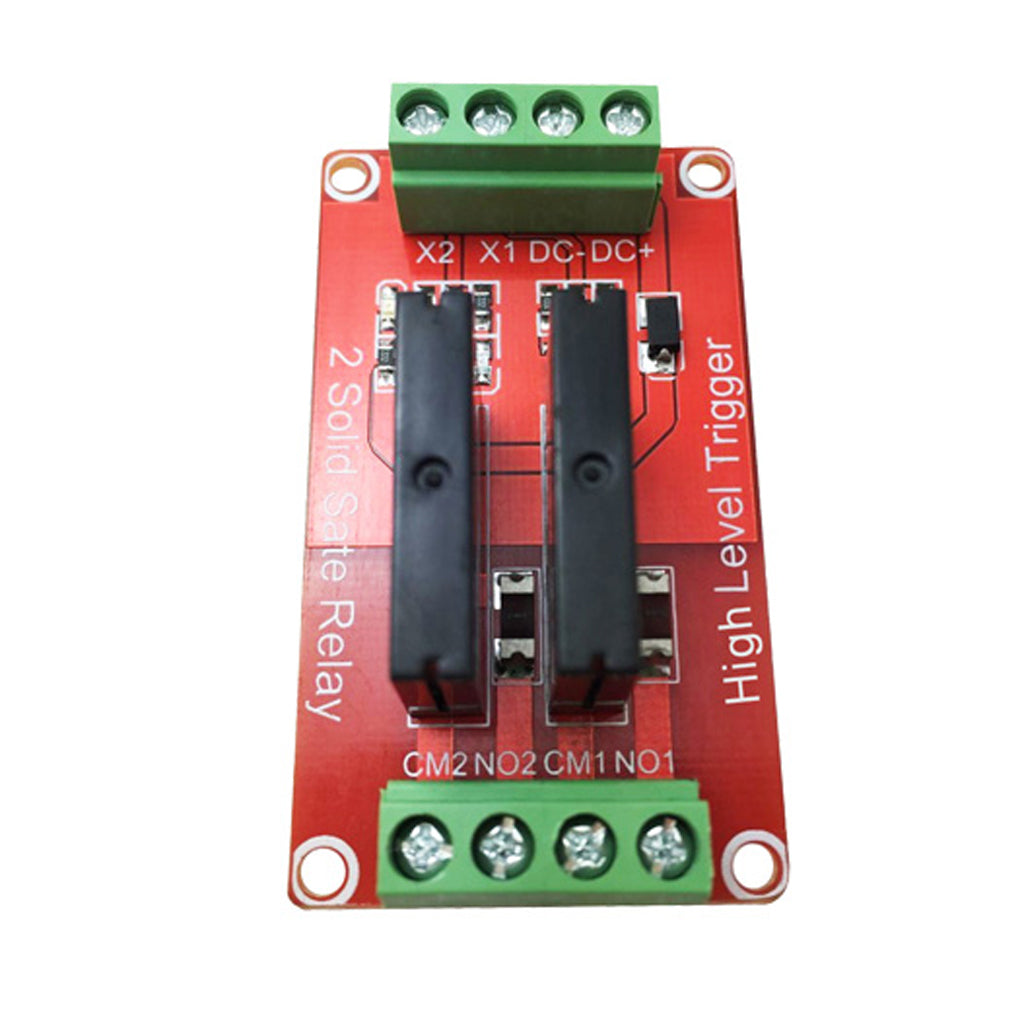

High-quality solid-state relay module, maximum load: AC 240V / 2A.
High-level control module
Solid state relay 240V 2A, output with resistive fuse 240V 2A
Trigger Mode: High Level Trigger
Specification:
Voltage Supply: 5V/12V/24V Optional
Channels: 1/2/4/8 Channel Optional
Max working current: 13.8mA, 26.8mA, 48mA, 70mA, 90mA Optional
Switch Max frequency: ≤5KHz
Static Current: 0mA
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH1: 1 relay module signal to trigger the end (high level trigger effective)
CH2: 2-channel relay module signal to trigger the end (high level trigger effective)
CH4: 4-channel relay module signal to trigger the end (high level trigger effective)
CH8: 8-channel relay module signal to trigger the end (high level trigger effective)
Trigger Voltage Range:
5V High-level trigger module: 0-1.5VDC relay connect (ON), 2.5-5VDC relays disconnect (OFF)
12V High-level trigger module: 0-4.5VDC relay connect (ON), 5.5-12VDC relays disconnect (OFF)
24V High-level trigger module: 0-8.5VDC relay connect (ON), 10-24VDC relays disconnect (OFF)
Size Chart:
1 Channel: Size: Approx. 40x 30x 25mm/ 4.57x 1.18x 0.98inch; Hole Size: Approx. 35.6x 25.6mm/ 1.40x 1.01inch
2 Channel: Size: Approx. 60x 35x 25mm/ 2.36x 1.38x 0.98inch; Hole Size: Approx. 55x 30mm/ 2.17x 1.18inch
4 Channel: Size: Approx. 60x 56x 25mm/ 2.36x 2.20x 0.98inch; Hole Size: Approx. 55x 51mm/ 2.17x 2.01inch
8 Channel: Size: Approx. 96x 60x 25mm/ 3.78x2.36x 0.98inch; Hole Size: Approx. 55x 91mm/ 2.17x 3.58inch
Package Includes:
1 Piece Solid State Relay Module
Note:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
