Description:

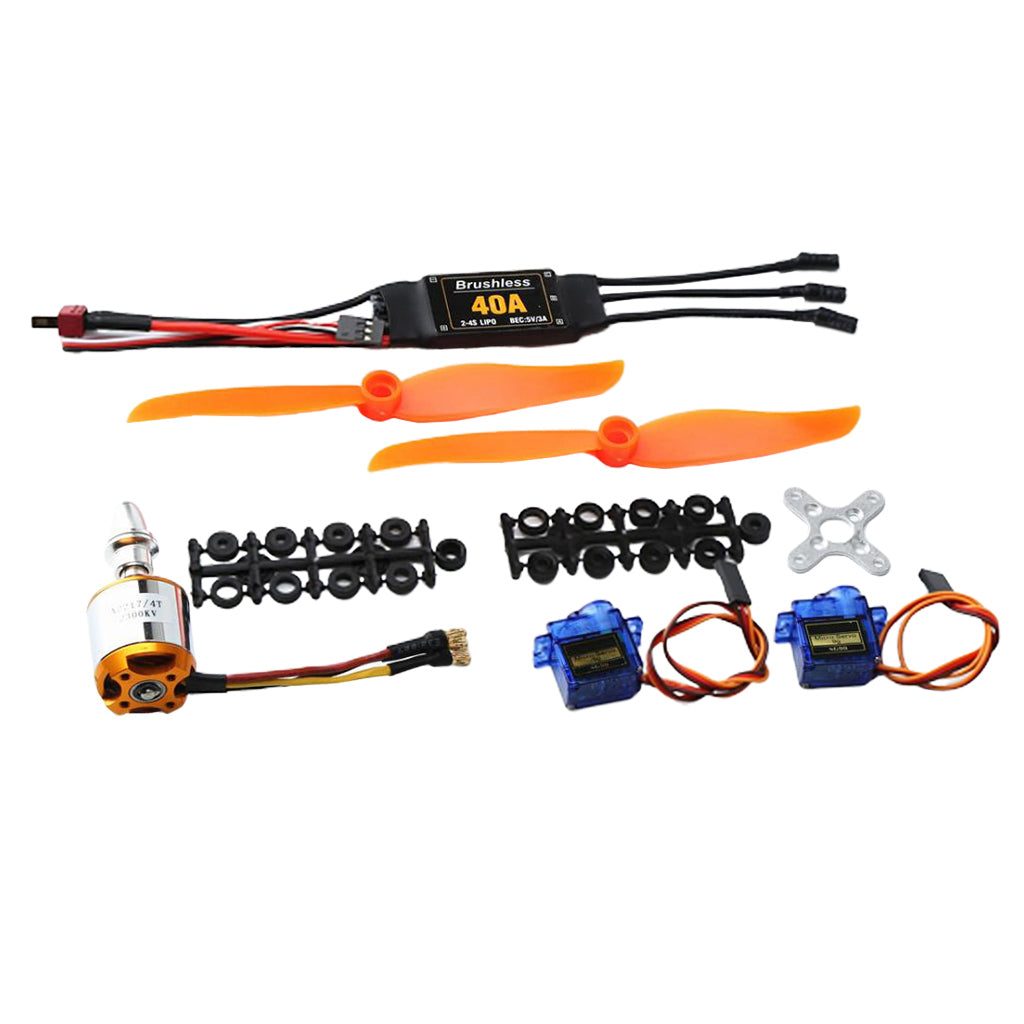

2pcs 9G Micro Servo +A2217 KV2300KV Brushless Motor + 40A ESC + 2pcs 6035 Propeller
100% Brand New and High Quality.
This is a pack of RC model vehicle parts & accs for RC airplane.
Designed to minimize power consumption.
Easy and quick Installation.
Specification:
Servo Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
2217 motor
Dimension: 27.8*32 mm
Weight: 68 g
Shaft Diameter: 4 mm
Accessories: 4.0mm prop adapter, motor mount, screws
Propeller
2217-1100KV: 11 or 10 inch props, eg. 1155, 1070, 1060, etc.
2217-1250KV: 9 inch props, eg. 9050, 9045, 9060, etc.
2217-2300KV: 6 inch props, eg. 6040, etc.
40A ESC Specification:
Types: long, short
Current: 40A
Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V 3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm
Package Includes:
1 Piece 40A Brushless ESC
2 Pieces 9G servo
1 Pieces A2217 KV2300 Motor
2 Pieces6035 Propeller
Other Mounting Parts
Note:
All dimensions are measured by hand, there may be small deviations.
Color may vary slightly due to the color setting of each individual monitor.
