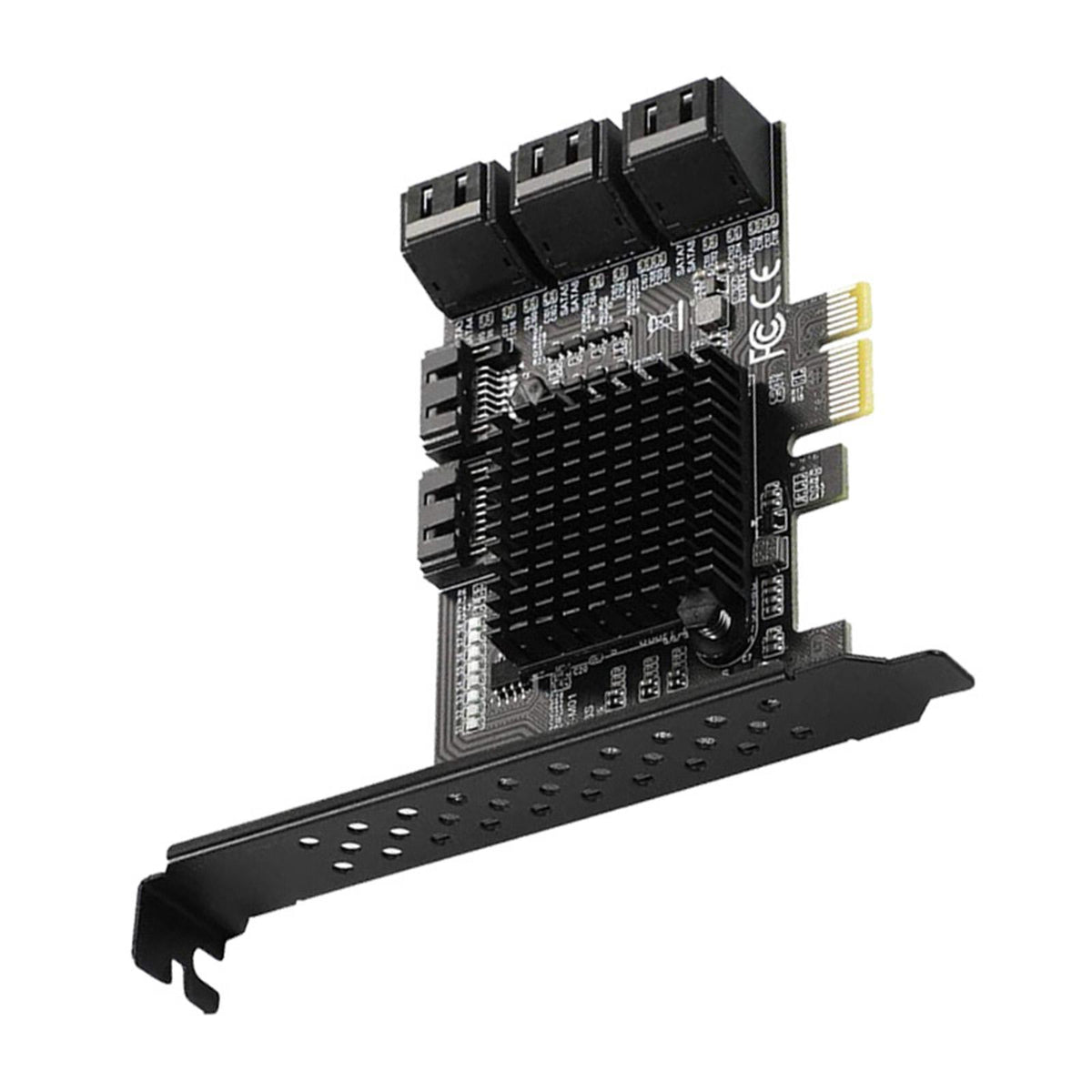

Maxbell PCIe 8 Ports SATA III 6Gbps Adapter Converter Board Expansion Card for HDD

Description:

8 Port SATA 3 PCI Express Expansion Card PCI-E SATA Controller PCIE 1X to SATA Card SATA3.0 6Gb Adapter Add On Cards for HDD SSD.
PCI Express x1 Interface, and Compatible with PCI Express x1, x2, x4, x8 and x16 Slots
Compliant with PCI-E Specification V2.0 and backward compatible with PCI-E 1.X
System Requirements: for Windows 10/8.1/8/7(32/64bit)/XP/Linux
Interface: PCI Express x1 interface. Compatible with PCI-E X1,X4,X8,X16 Slots
Installation instructions
1:Please clean the gold finger of SATA3.0 card by eraser , Plug the SATA cable of the chassis into the card. Then connect all the hard disks.
2:Turn off the power of the computer and open the back cover of the PC; Remove the bars corresponding to the free slot on the chassis.
3:Insert the expansion card into the corresponding PCI-E expansion slot of the host.
4:Secure the iron strip of the expansion card to the chassis with a screwdriver.
5:Close the chassis and plug in the power cord to boot. After entering the system, install the driver.
Driver Installation
1. Insert the companion drive CD into the CD drive;
2. Open "My Computer", find the location of the disc, open the disc;
3. Locate the "CD:\ SATA CARD\Marvell\9215\drvsetup inside the .exe driver file;
4. Then follow the instructions of the computer to complete the installation, then restart the computer

Specification:

88SE9215 chipset
Ports: 8 SATA 6GB/s Ports
Supports Native Command Queuing (NCQ)
Compatible with SATA 6G, 3G and 1.5G Hard drives
88SE9215+JMicron JMB5xx chipset
Supports 10TB hard disk drives
Non-RAID standard SATA controller
Size: 12x10cm/4.72x0.39inch

Package Includes:

1x Expansion Card
