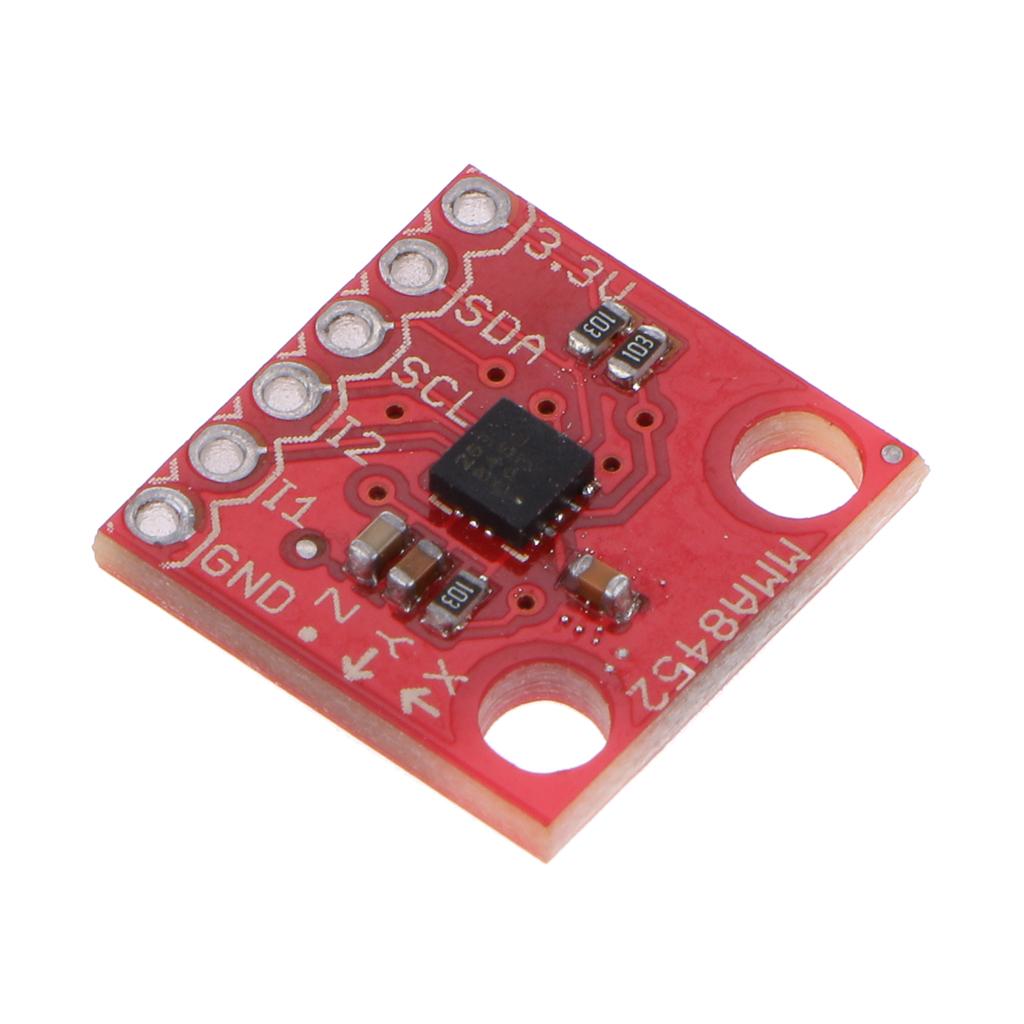

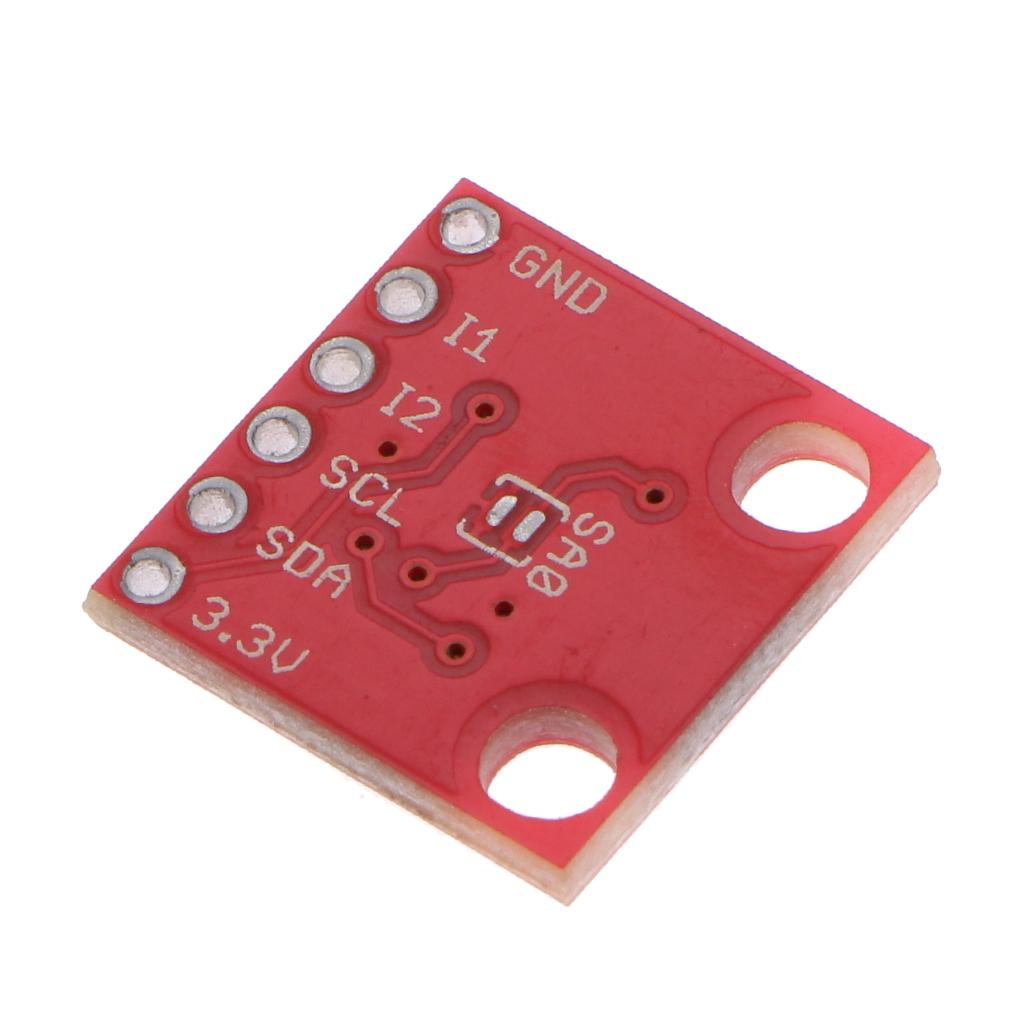

Maxbell MMA8452 3 Axis Accelerator Accelerometer Sensor Module Shield For Arduino

• The MMA8452Q is a smart low-power, three-axis, capacitive micro-machined accelerometer with 12 bits of resolution.
• This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins.
• Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data.
• The MMA8452Q has user selectable full scales of ±2g/±4g/±8g with high pass filtered data as well as non filtered data available real-time.
• The device can be configured to generate inertial wake-up interrupt signals from any combination of the configurable embedded functions allowing the MMA8452Q to monitor events and remain in a low power mode during periods of inactivity.

• 1.95 V to 3.6 V supply voltage
• 1.6 V to 3.6 V interface voltage
• ±2g/±4g/±8g dynamically selectable full-scale
• Output Data Rates (ODR) from 1.56 Hz to 800 Hz12-bit and 8-bit digital output
• I2C digital output interface (operates to 2.25 MHz with 4.7 kΩ pullup)
• Two programmable interrupt pins for six interrupt sources
• Three embedded channels of motion detection
• Orientation (Portrait/Landscape) detection with set hysteresis
• High Pass Filter Data available real-time
• Current Consumption: 6 μA – 165 μA

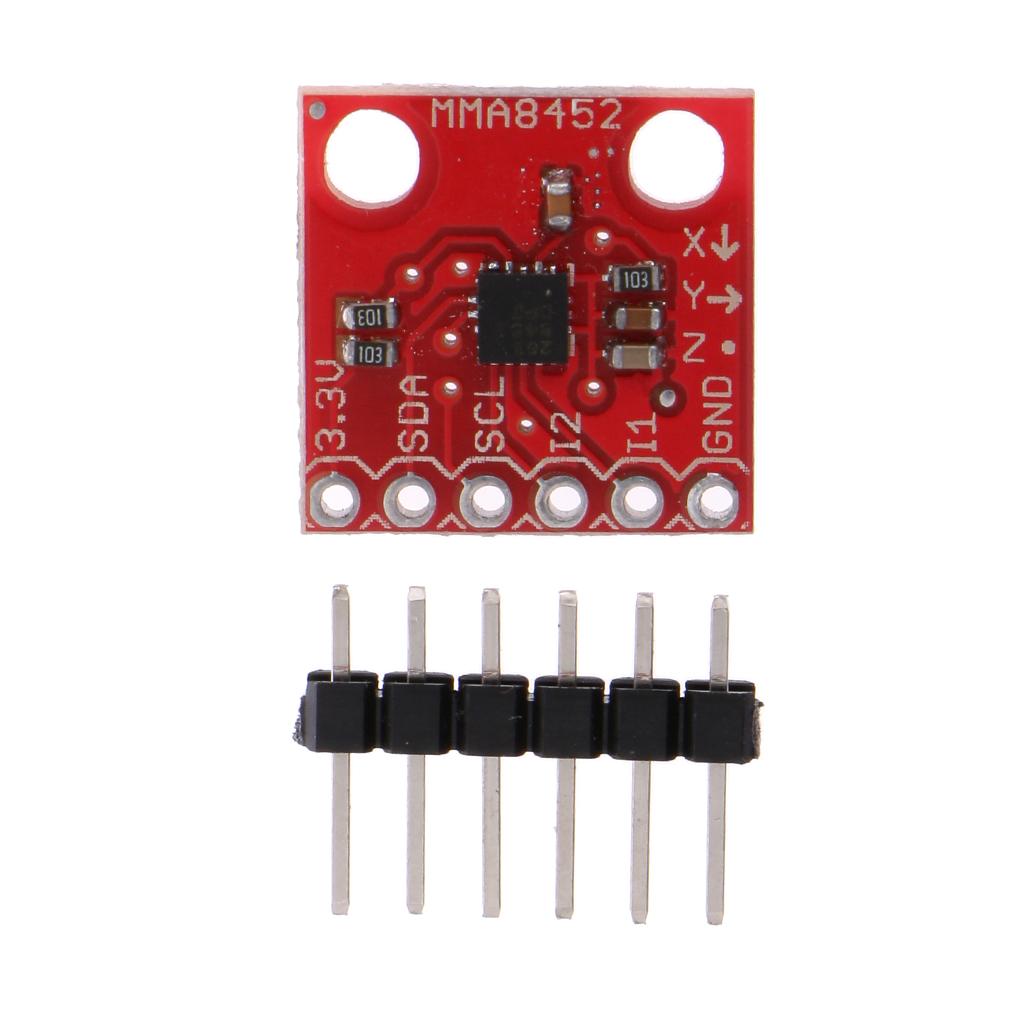

Package includes:

• 1x Module

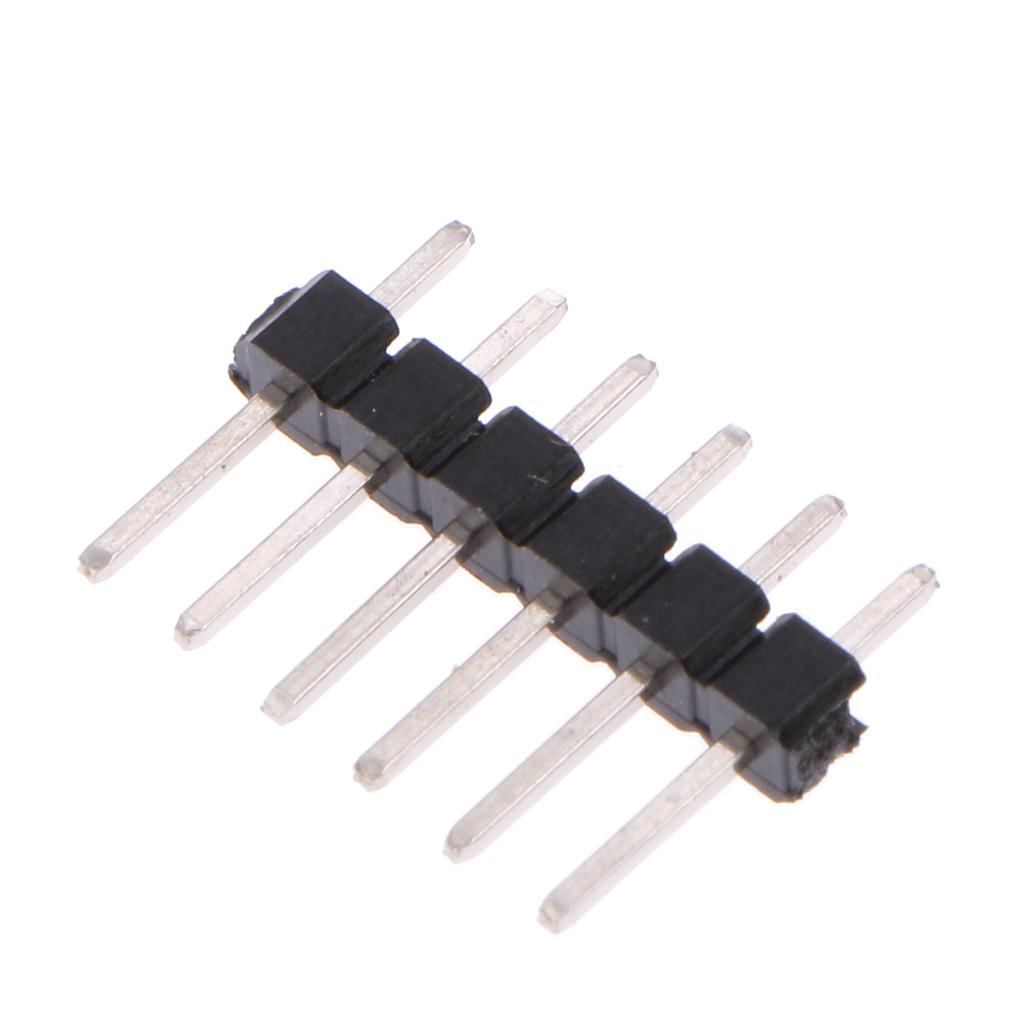

• 1x Pin
