Maxbell MCP2515 Module CAN Bus Module TJA1050 Receiver for Arduino Raspberry Pi Blue
Rs. 913.00Rs. 1,826.00
Description:
Support CAN V2.0B specification, the communication speed 1Mb / S
0 to 8-byte data field
Standard frame and expand the frame and remote frame
5V DC power supply module, SPI interface protocol control
120 ohm termination resistors. Impedance matching, ensure drive capacity long-distance data transmission against signal radiation
Working current: typ. 5mA, 1 microamp standby current. Except the power indicator
Working temperature: Industrial grade to 85 ℃ -40 ℃
Specification:

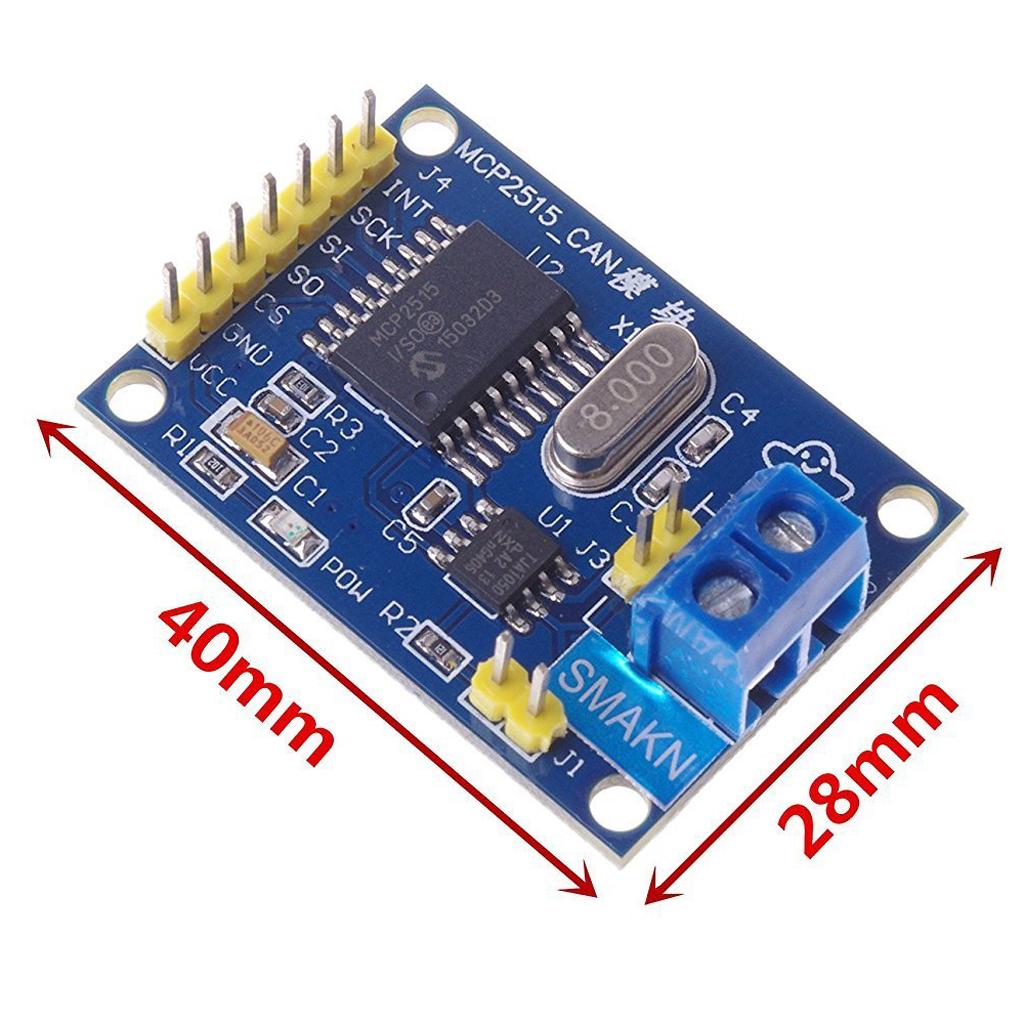

Size: Approx. 4.4x 2.8cm/ 1.73x 1.10inch
Screw hole center spacing: Approx. 23x 38mm/ 0.91x 1.50inch
Package Includes:
1 Piece MCP2515 CAN Bus Module
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Support CAN V2.0B specification, the communication speed 1Mb / S
0 to 8-byte data field
Standard frame and expand the frame and remote frame
5V DC power supply module, SPI interface protocol control
120 ohm termination resistors. Impedance matching, ensure drive capacity long-distance data transmission against signal radiation
Working current: typ. 5mA, 1 microamp standby current. Except the power indicator
Working temperature: Industrial grade to 85 ℃ -40 ℃
Specification:
Size: Approx. 4.4x 2.8cm/ 1.73x 1.10inch
Screw hole center spacing: Approx. 23x 38mm/ 0.91x 1.50inch
Package Includes:
1 Piece MCP2515 CAN Bus Module
