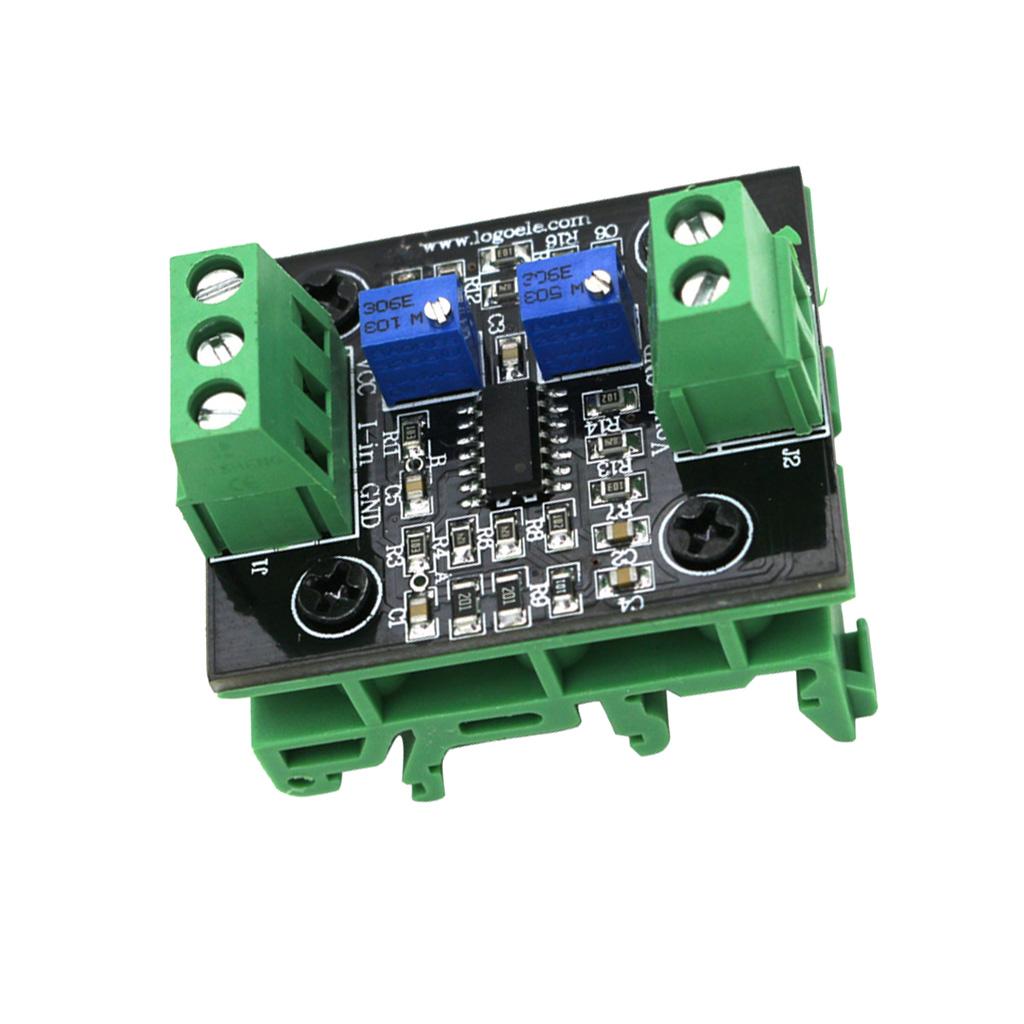

Maxbell Current to Voltage Module 4-20mA to 0-10V Isolation Transmitter Signal Converter with Green Base
Rs. 1,350.00Rs. 2,700.00
Description:
The working voltage: 12-24V
The input current: 4-20mA
The output voltage: 0-10V
Size: approx. 35 x 43 x 35mm/1.4 x 1.7 x 1.4inch
Control Mode: the input current is converted to the corresponding voltage
Zero and full range can be adjusted (potentiometer adjustment).
With insulation properties, non-optical coupling insulation.
Package Includes:
1 Piece Current to Voltage Converter Module
Note:
Only three-wire and four-wire current signals can be converted.
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
The working voltage: 12-24V
The input current: 4-20mA
The output voltage: 0-10V
Size: approx. 35 x 43 x 35mm/1.4 x 1.7 x 1.4inch
Control Mode: the input current is converted to the corresponding voltage
Zero and full range can be adjusted (potentiometer adjustment).
With insulation properties, non-optical coupling insulation.
Package Includes:
1 Piece Current to Voltage Converter Module
Note:
Only three-wire and four-wire current signals can be converted.
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
