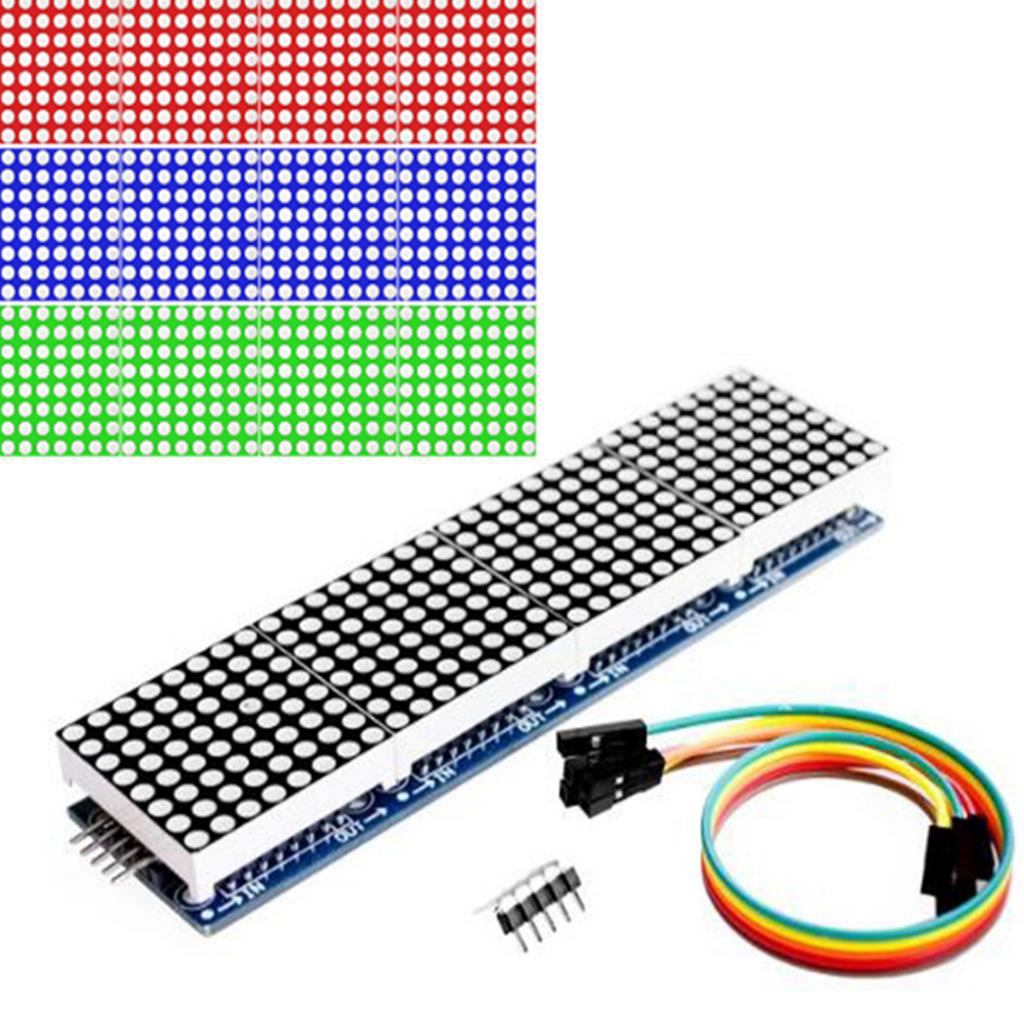

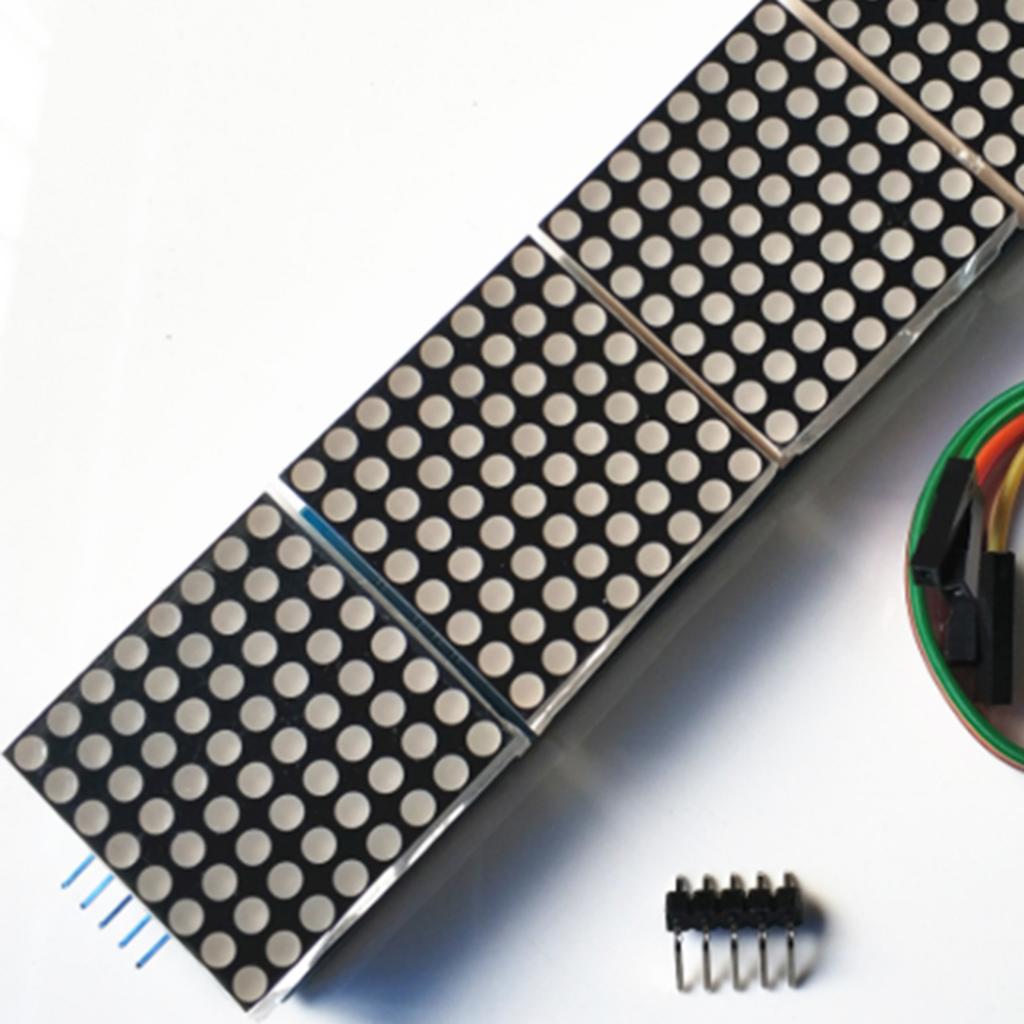

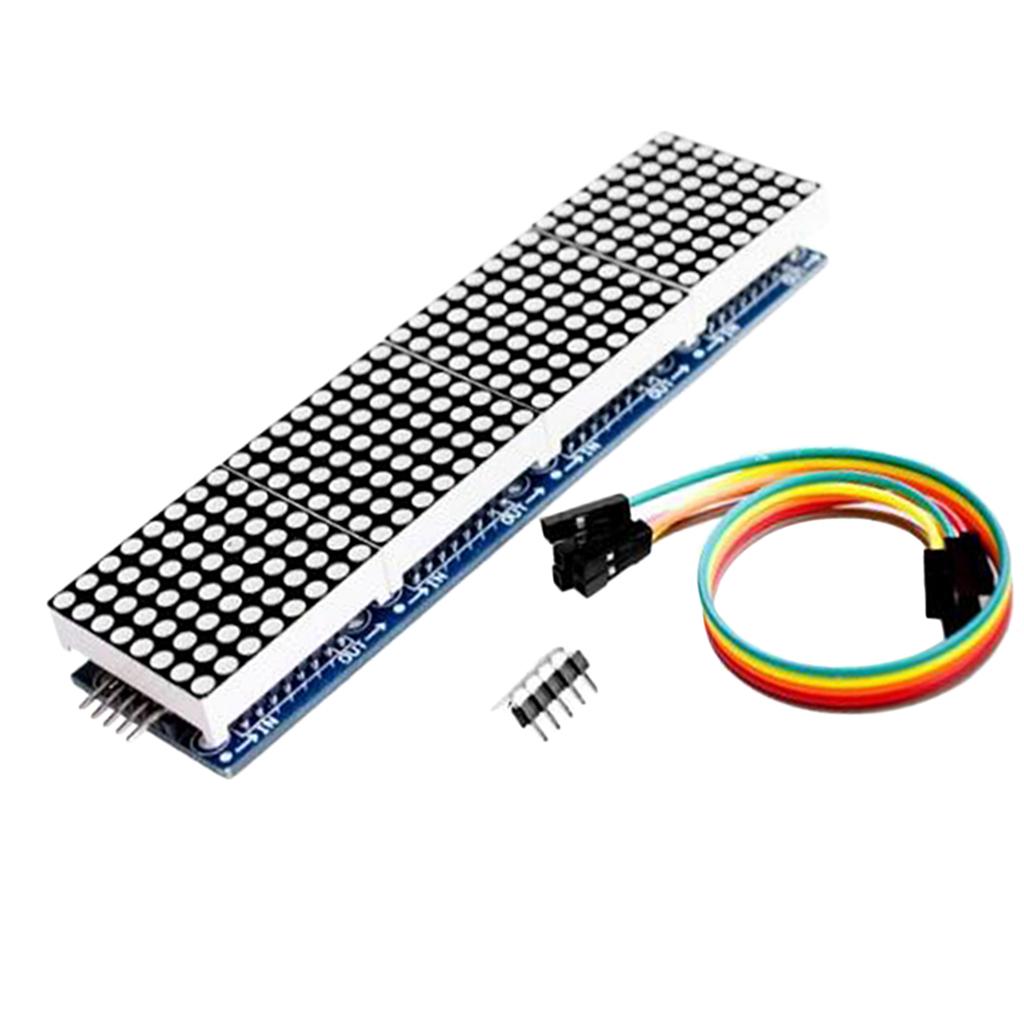

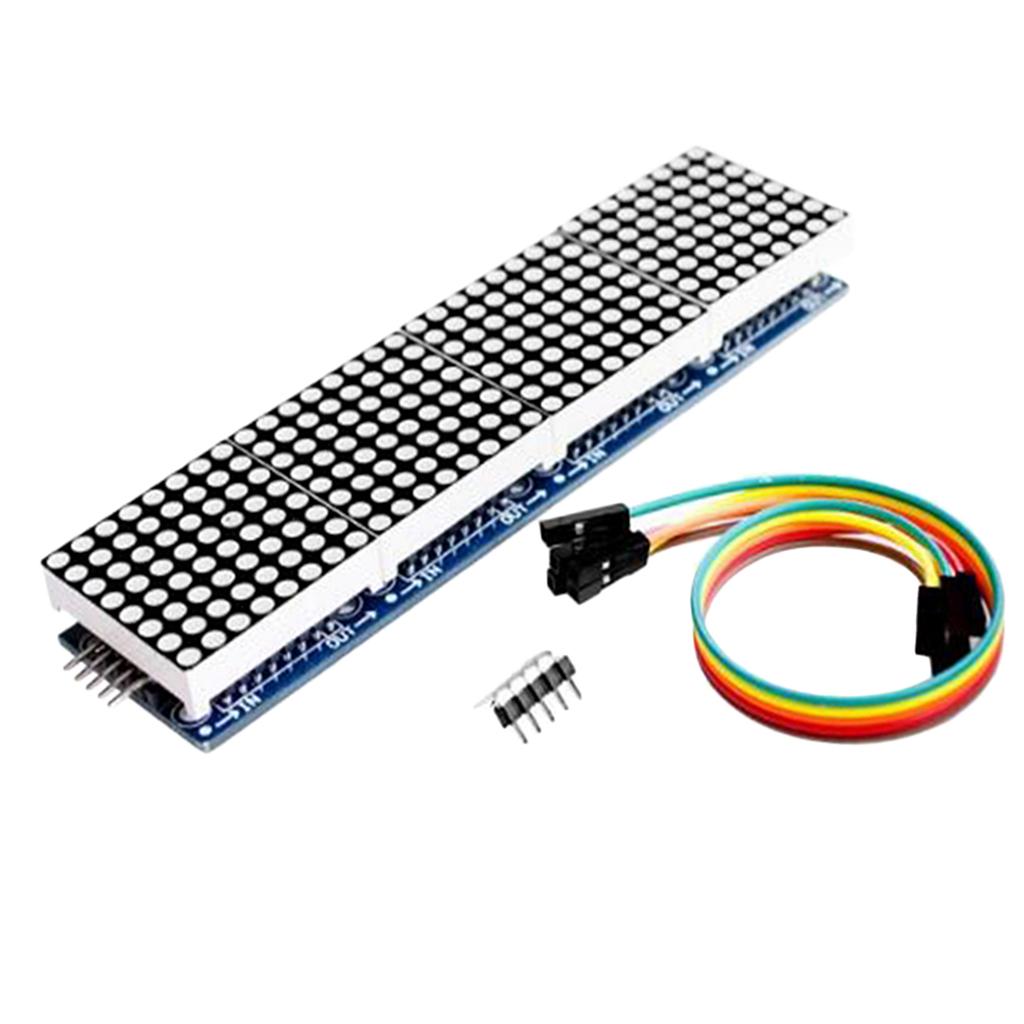

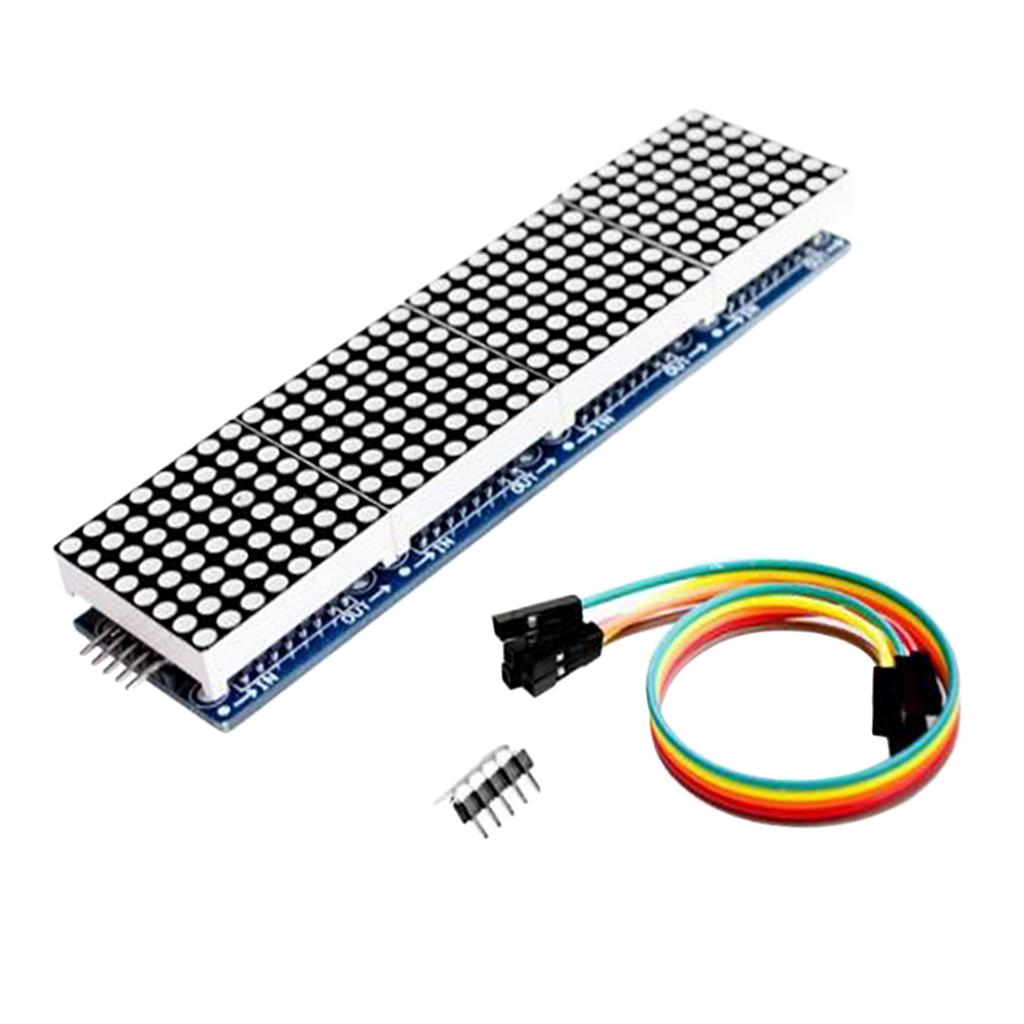

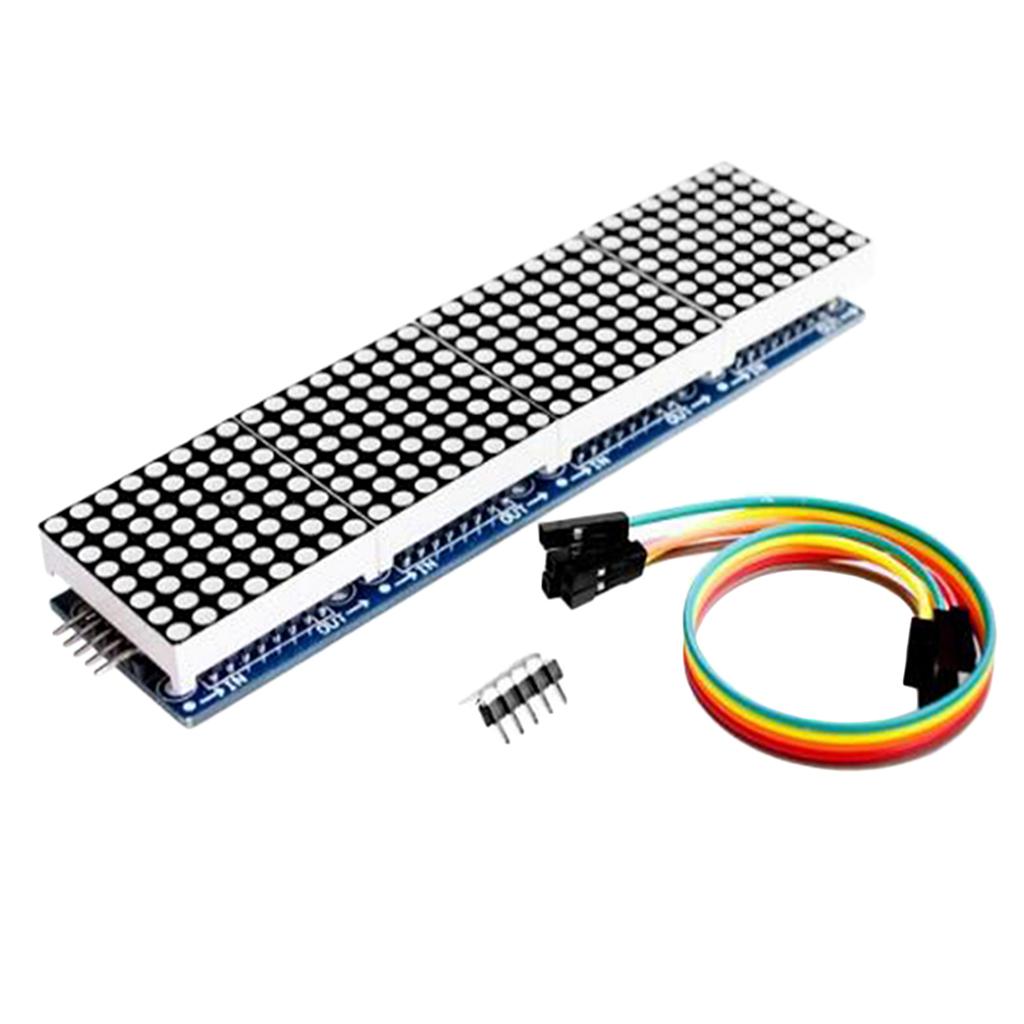

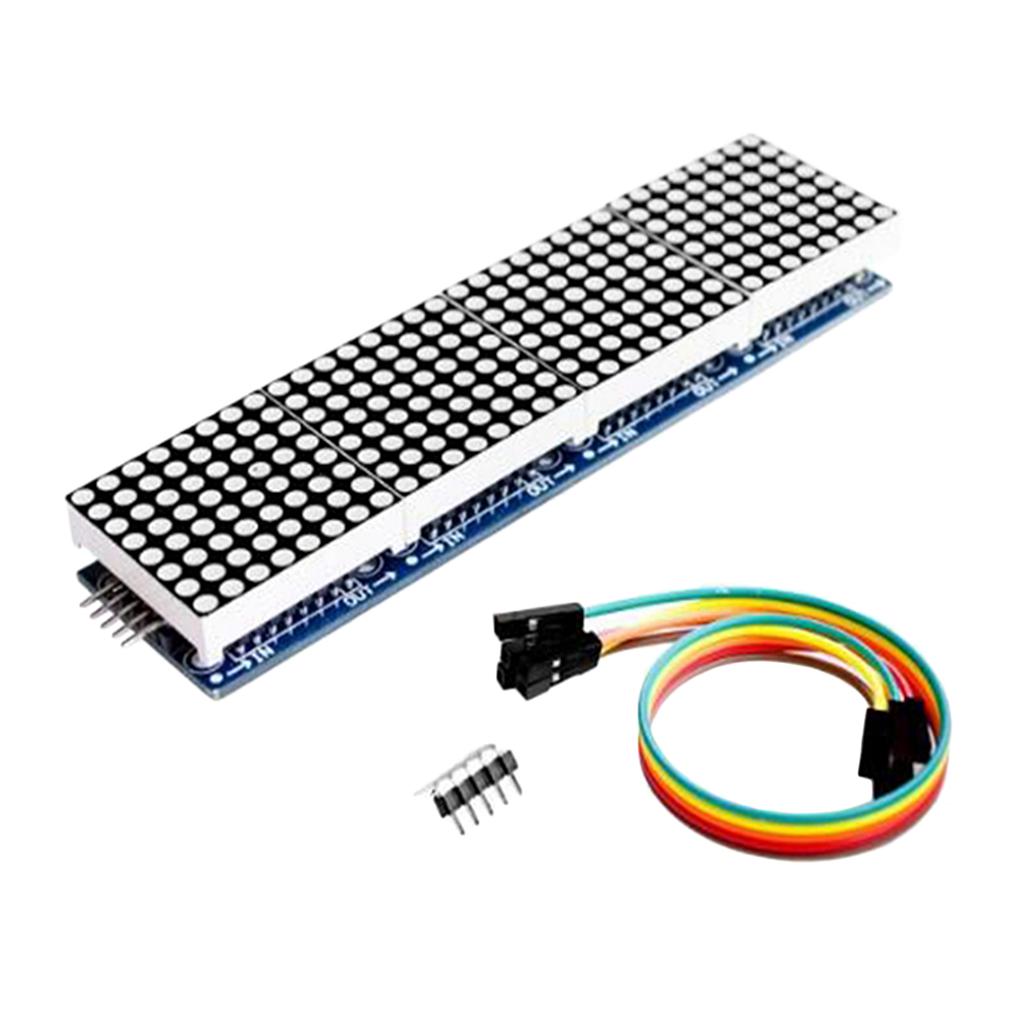

Max MAX7219 LED Dot Matrix 8-Digit Display Control Module for Arduino Blue
Rs. 1,652.00Rs. 3,304.00
Description:
A single module can drive an 8*8 common cathode lattice
Module Operating voltage: 5V
Fixing screws with 64 holes with a diameter about 3mm
Module with input and output interfaces, supports multiple modules cascade
The control of a single module, just need to input ports from the CPU
Specification:
Take 51 microcontroller as an example:
VCC → 5V
GND → GND
DIN → P2.0
CS → P2.1
CLK → P2.2
Size Chart:
Size: Approx. 128x32x13mm / 5.04x1.26x0.51inch

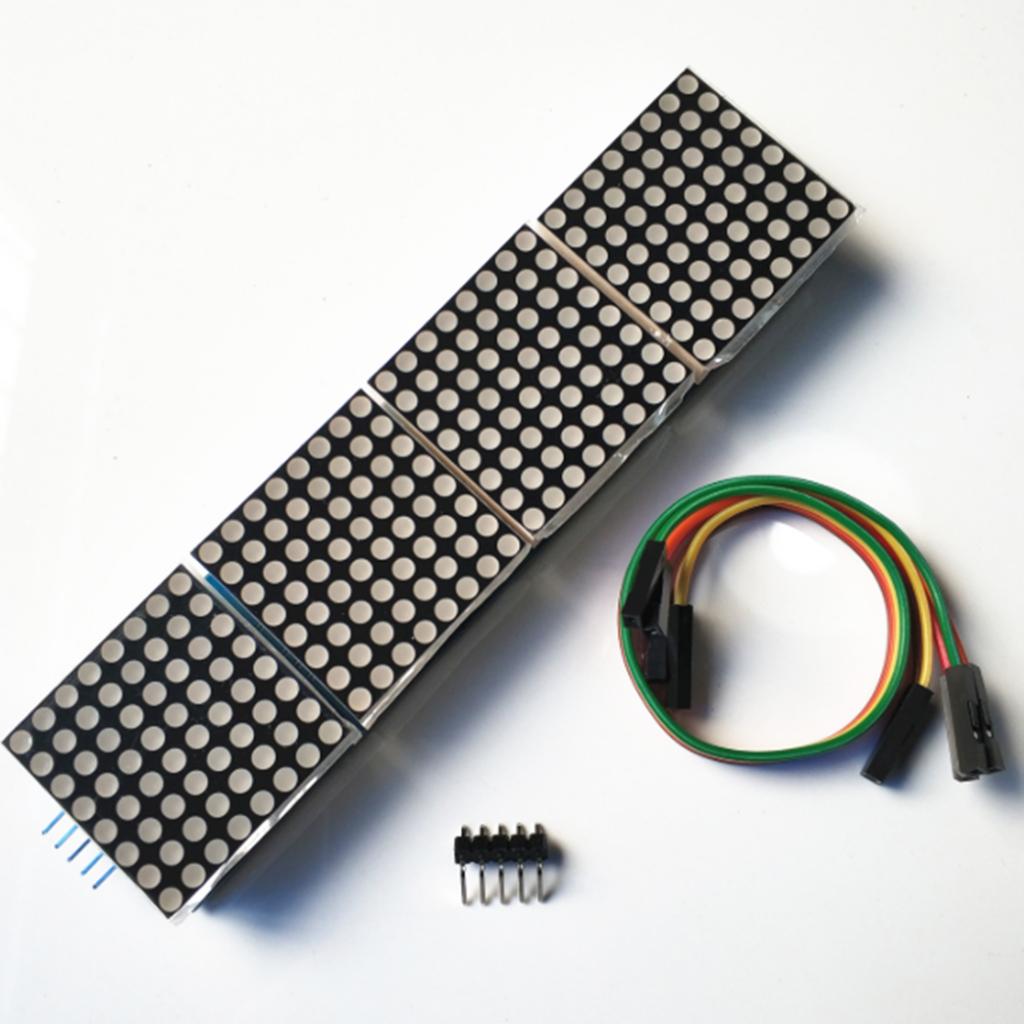

Package Includes:
1 Piece MAX7219 LED Dot matrix Module
1 Piece 5P Line
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
A single module can drive an 8*8 common cathode lattice
Module Operating voltage: 5V
Fixing screws with 64 holes with a diameter about 3mm
Module with input and output interfaces, supports multiple modules cascade
The control of a single module, just need to input ports from the CPU
Specification:
Take 51 microcontroller as an example:
VCC → 5V
GND → GND
DIN → P2.0
CS → P2.1
CLK → P2.2
Size Chart:
Size: Approx. 128x32x13mm / 5.04x1.26x0.51inch
Package Includes:
1 Piece MAX7219 LED Dot matrix Module
1 Piece 5P Line
