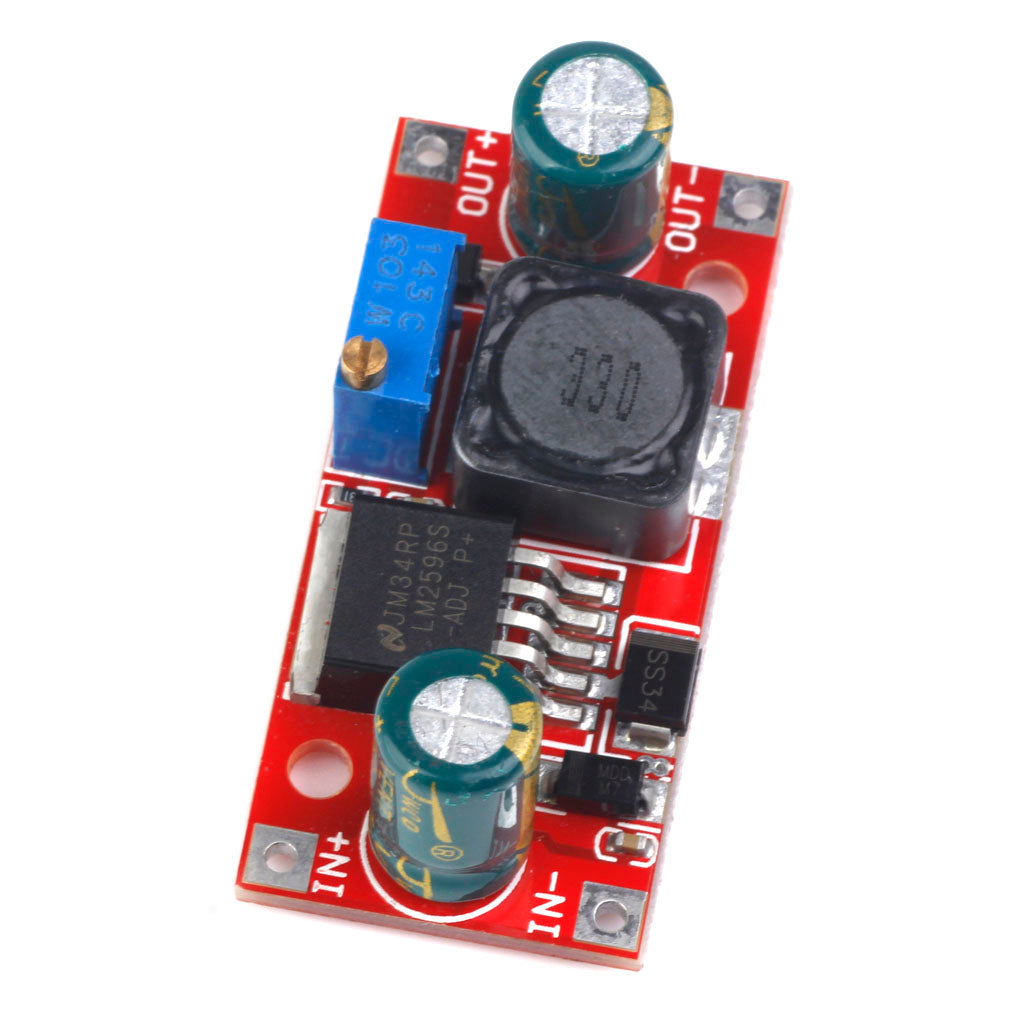

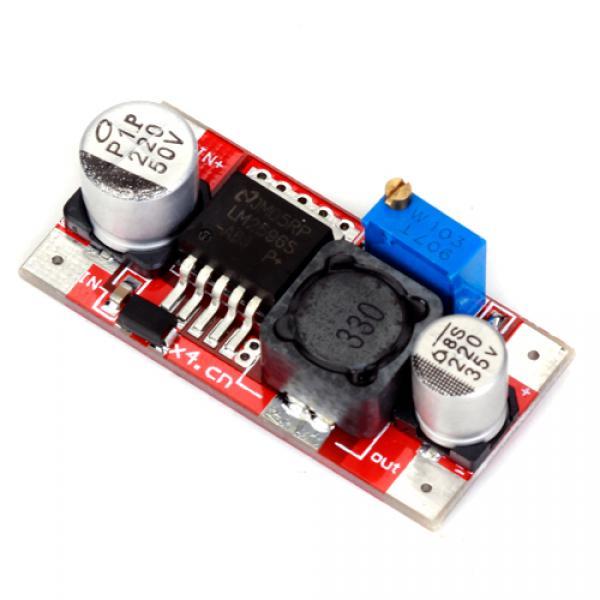

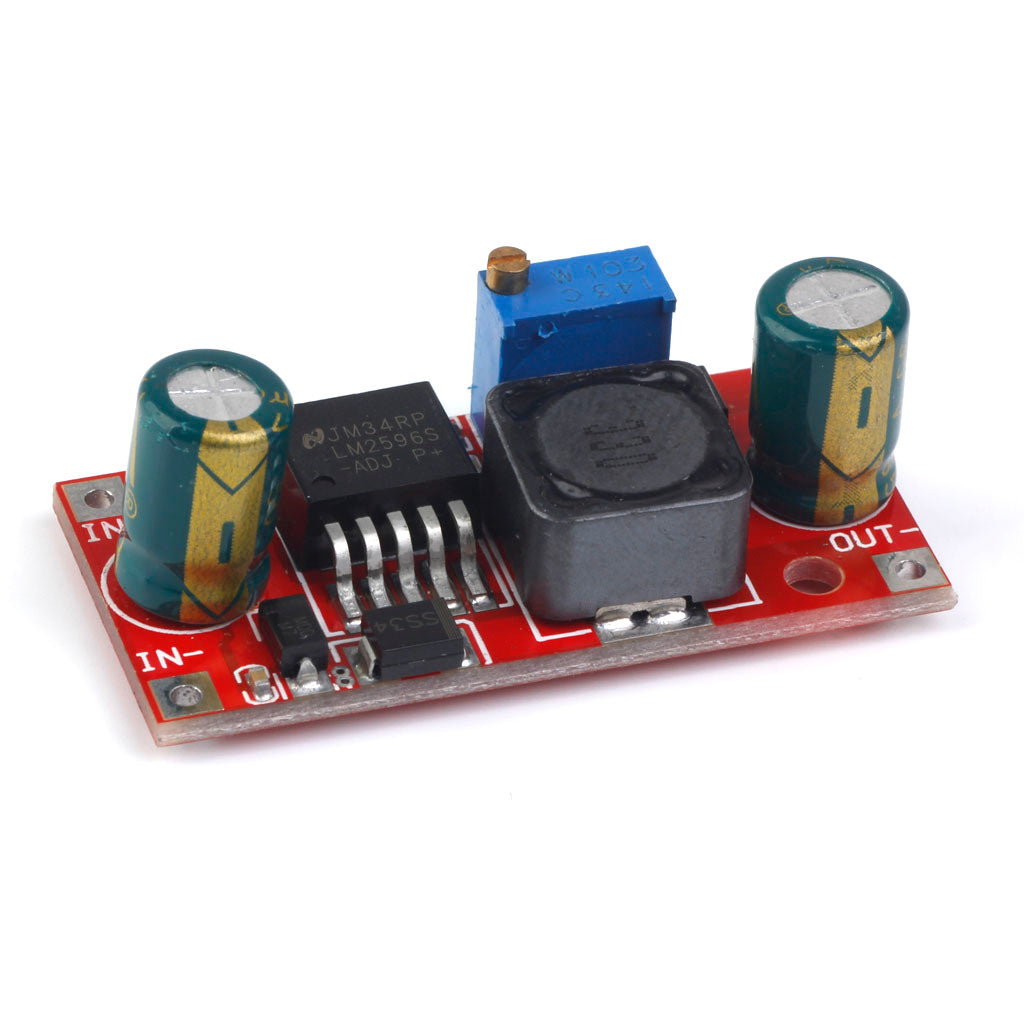

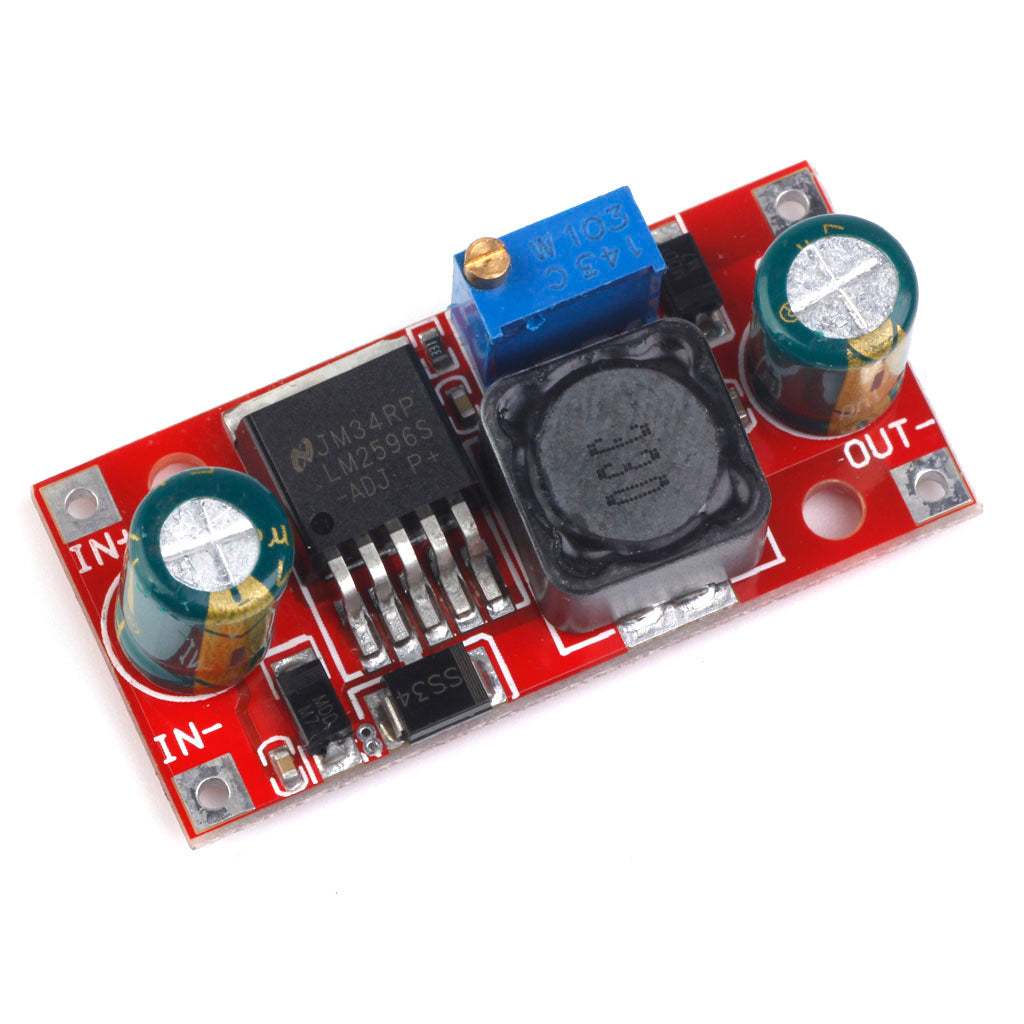

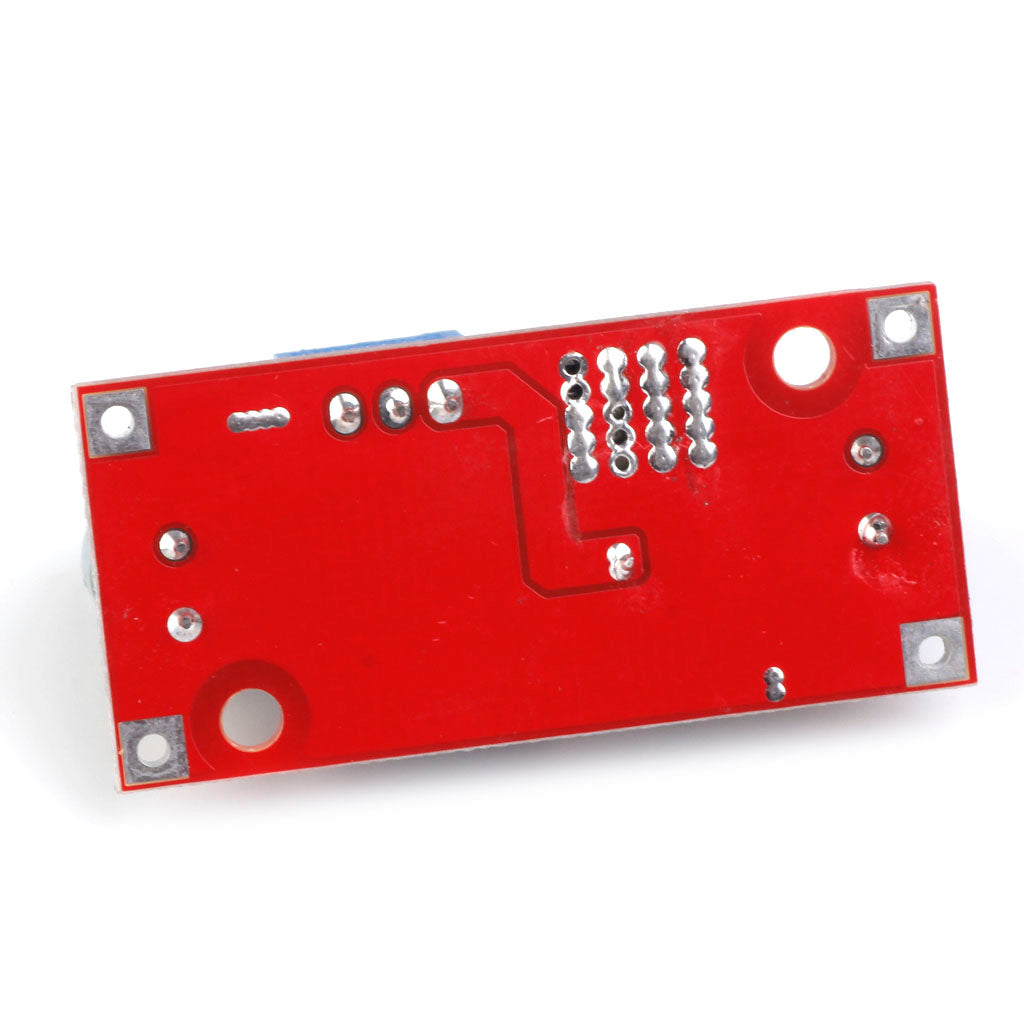

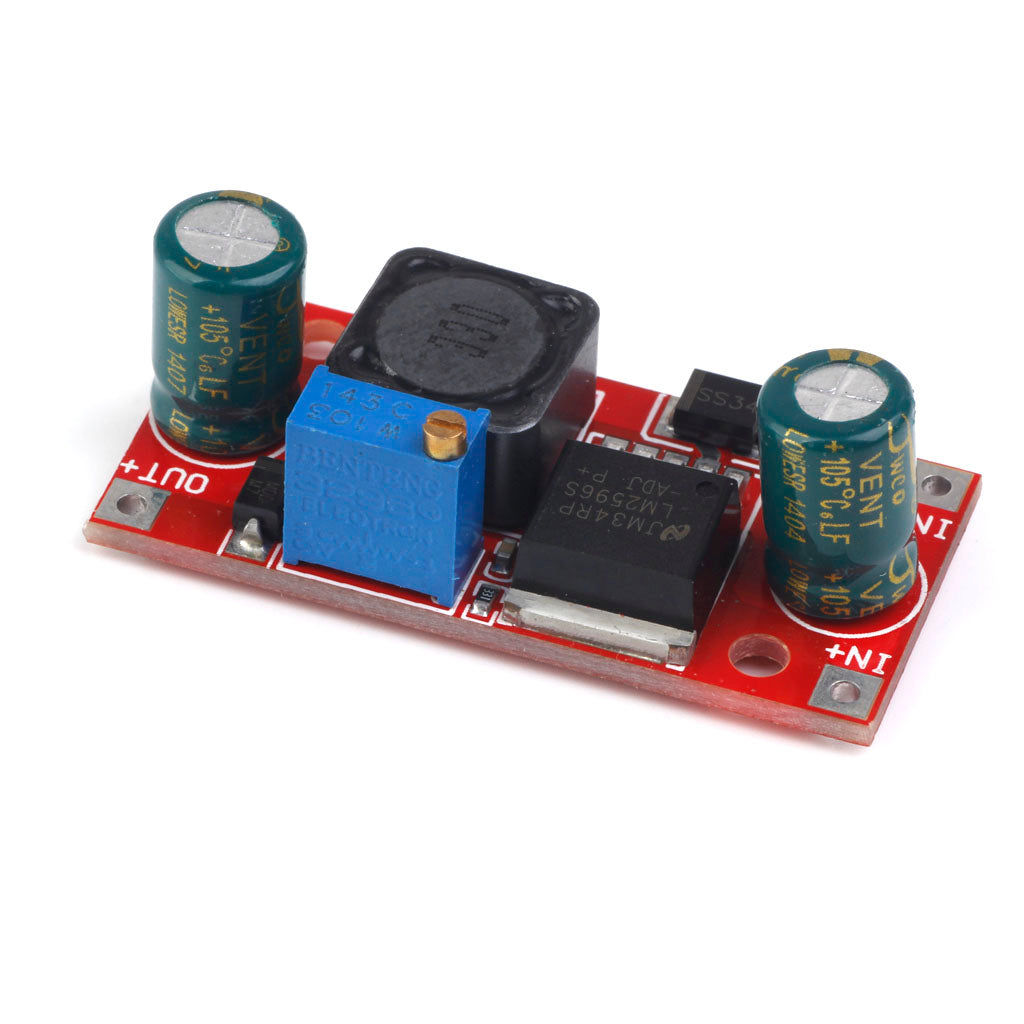

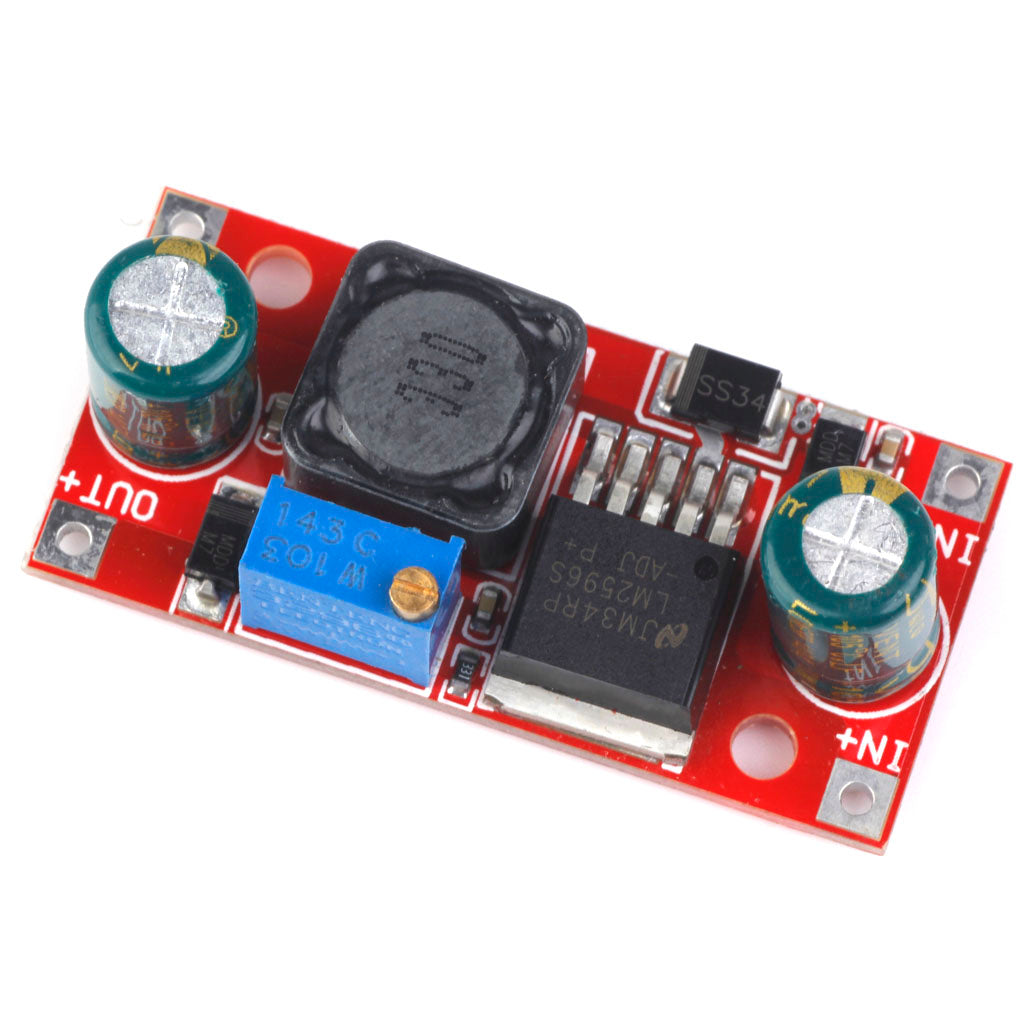

Maxbell LM2596 DC-DC Step-down Adjustable Power Supply Module
Rs. 1,291.00Rs. 2,581.00
Description:
- Dimension(L x W x H): Approx. 43 x 21 x 14mm(With potentiometer)
- Input Voltage: 4.5 - 40V
- Output Voltage: 1.5 - 35V (adjustable)
- Output Current: Rated current 2A, maximum 3A (Additional heat sink is required)
- Conversion Efficiency: Up to 92%
- Potentiometer Adjustment Direction: Clockwise (increase), Anti-clockwise (decrease)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous rectification
- Module Properties: Non-isolated step-down module (buck)
- Short Circuit Protection: Current limiting, since the recovery
- Operating Temperature: -40 to 85 degrees Celsius (output power...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
-
Dimension(L x W x H): Approx. 43 x 21 x 14mm(With potentiometer)
-
Input Voltage: 4.5 - 40V
-
Output Voltage: 1.5 - 35V (adjustable)
-
Output Current: Rated current 2A, maximum 3A (Additional heat sink is required)
-
Conversion Efficiency: Up to 92%
-
Potentiometer Adjustment Direction: Clockwise (increase), Anti-clockwise (decrease)
-
Switching Frequency: 150KHz
-
Rectifier: Non-Synchronous rectification
-
Module Properties: Non-isolated step-down module (buck)
-
Short Circuit Protection: Current limiting, since the recovery
-
Operating Temperature: -40 to 85 degrees Celsius (output power 10W or less)
-
Full Load Temperature Rise: 40 degrees Celsius
-
Load Regulation: ± 0.5%
-
Voltage Regulation: ± 0.5%
-
Dynamic Response Speed: 5% 200uS
-
Connection Mode: Welded, plus pin can be directly soldered PCB
Output Ripple:
-
Input 12V, Output 5V 3A 60mV (MAX)
-
Input 24V, Output 12V 3A 120mV (MAX)
Package Includes:
-
1 x adjustable power supply module
Keywords: Power module, power supply module, adjustable power module
