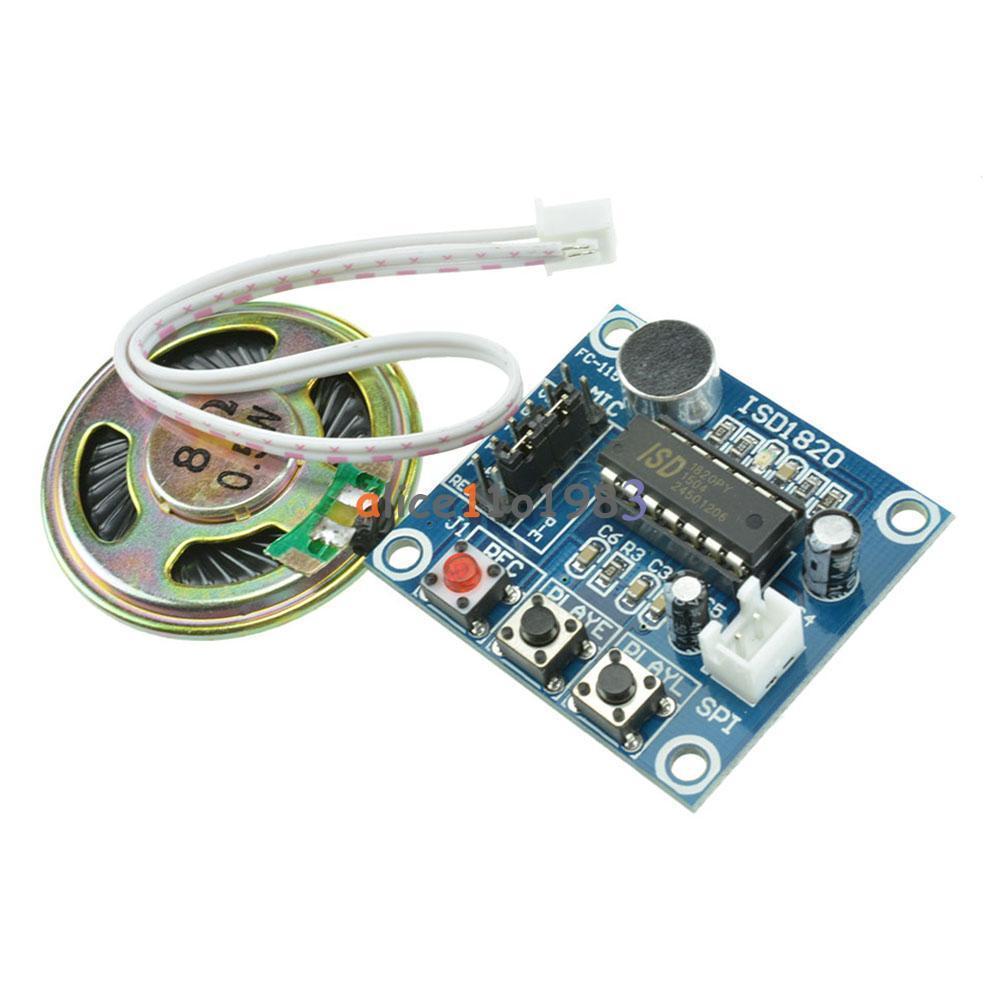

Maxbell ISD1820 Sound Voice Recording Playback Module With Mic Audio + Loudspeaker

Description:

An easy to use 10 seconds of voice recording

High-quality, natural voice restored

Can be used as propaganda module

With looping, jog playback, single-pass play function

Available single-chip control

This module can directly drive a small speaker 8 ohm 0.5W (Speaker with magnetic)

Specification:

Size: Approx. 38x42.5x12mm / 1.5x1.67x0.47inch

Power supply: 3-5V, which can be accessed pin power;

Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control;

Buttons control audio recording method of operation:

REC button: record button, you can press and hold the recording, release the button to stop recording;

RLAYE key: trigger mode playback, press will play this whole speech;

PLAYL key: jog mode playback, press and hold until playback, release to stop playback;

RPL Jumper: loop mode control, loop playback;

FT Jumper: direct control, microphone voice through the speaker can playback

Package Includes:

1 Piece of Module

1 Piece of Loudspeaker

1 Piece of Free cable
