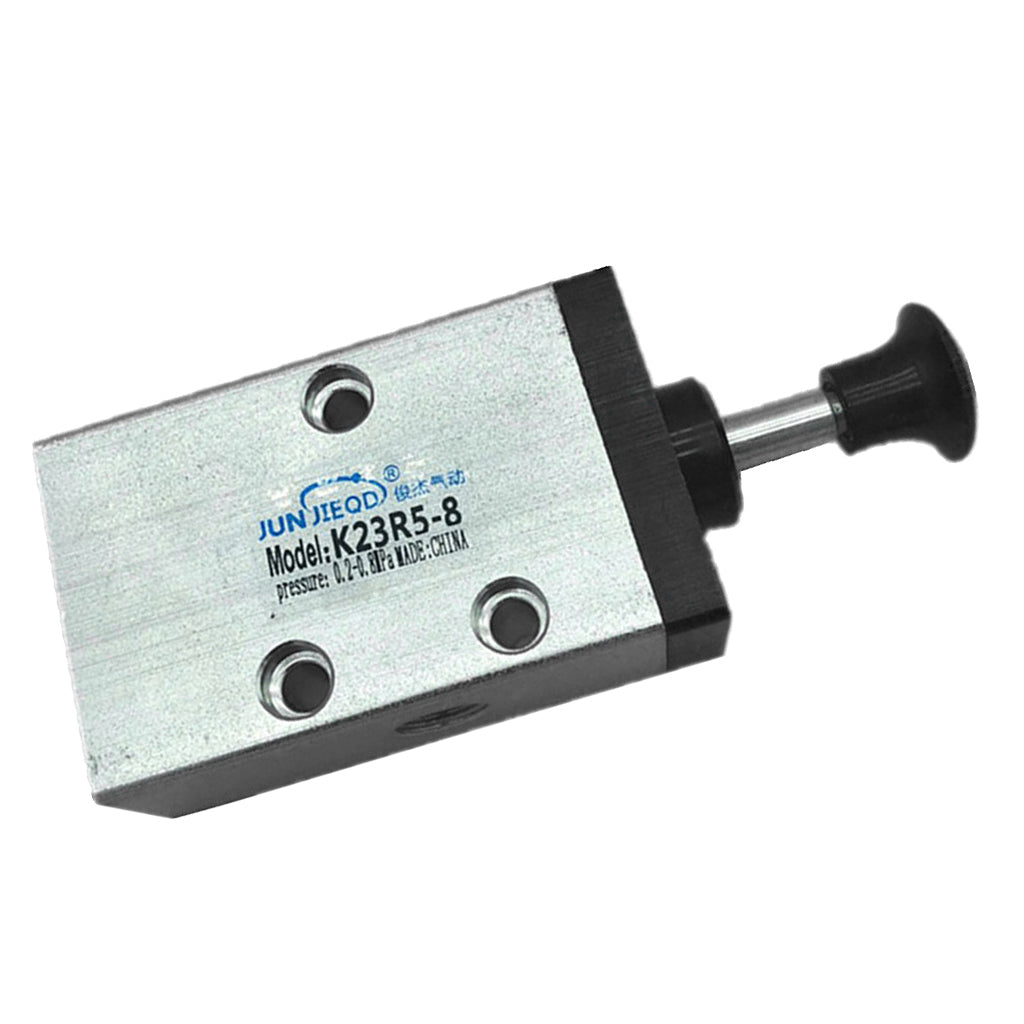

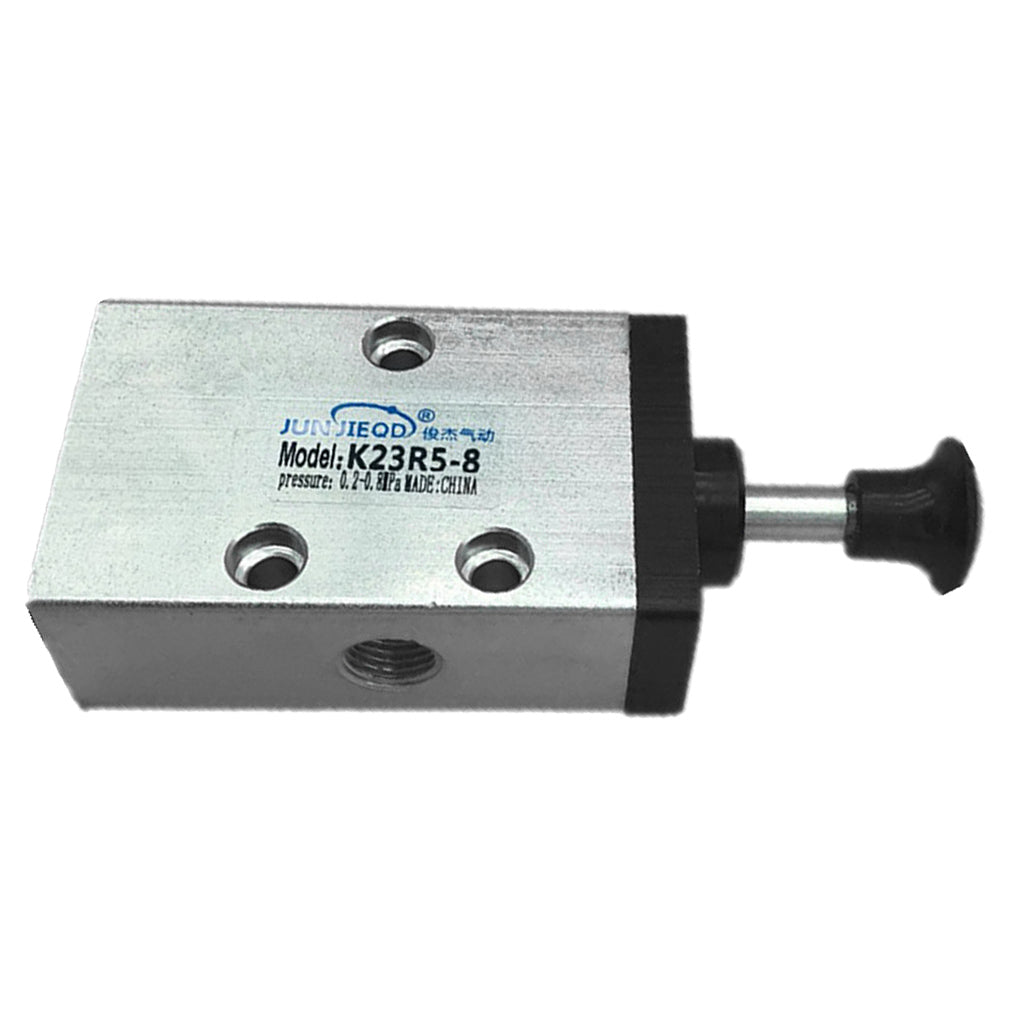

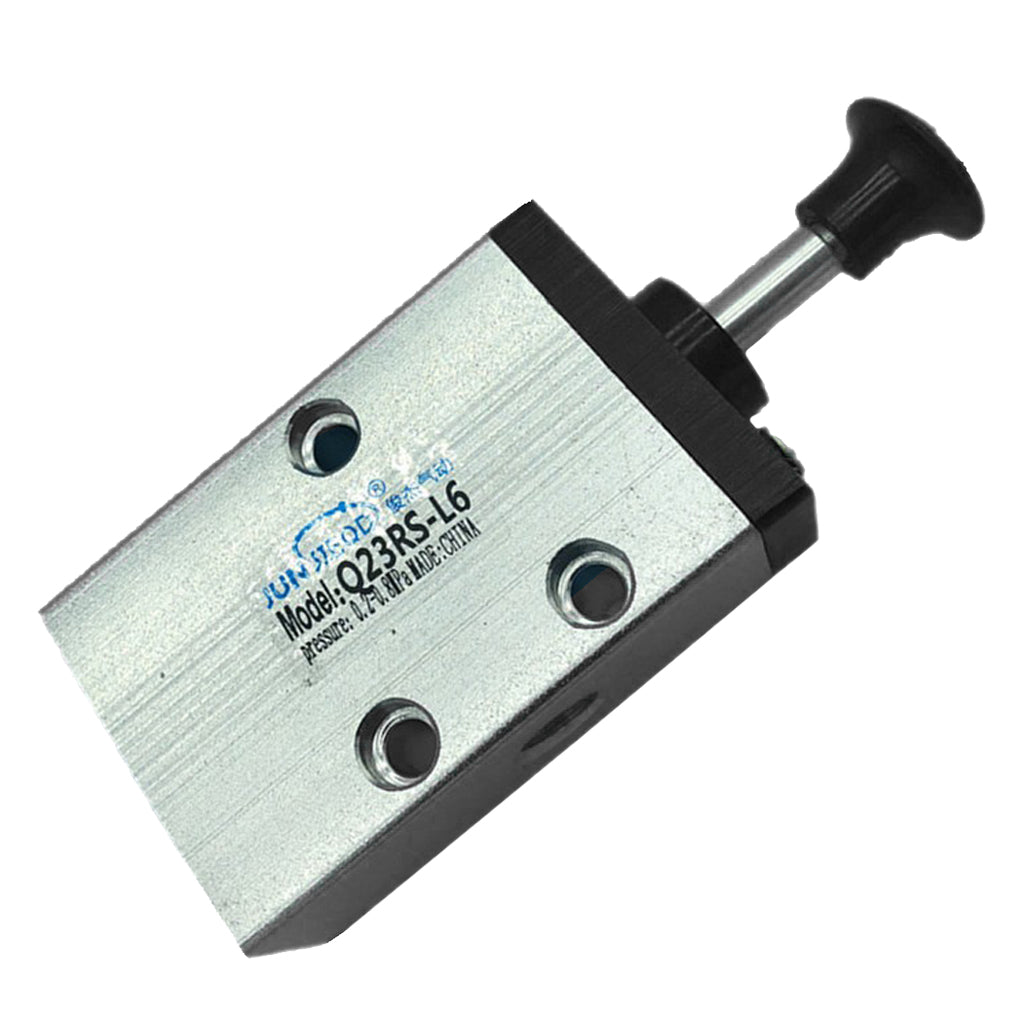

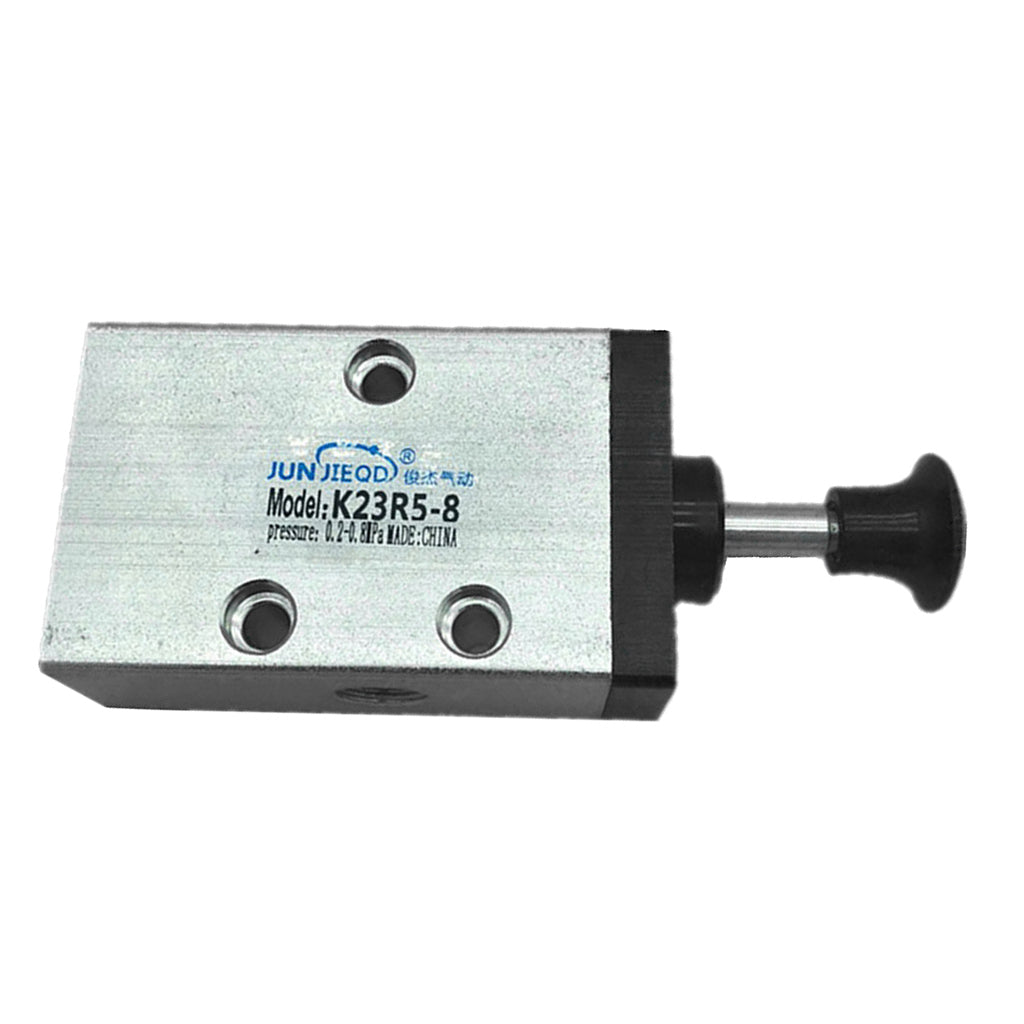

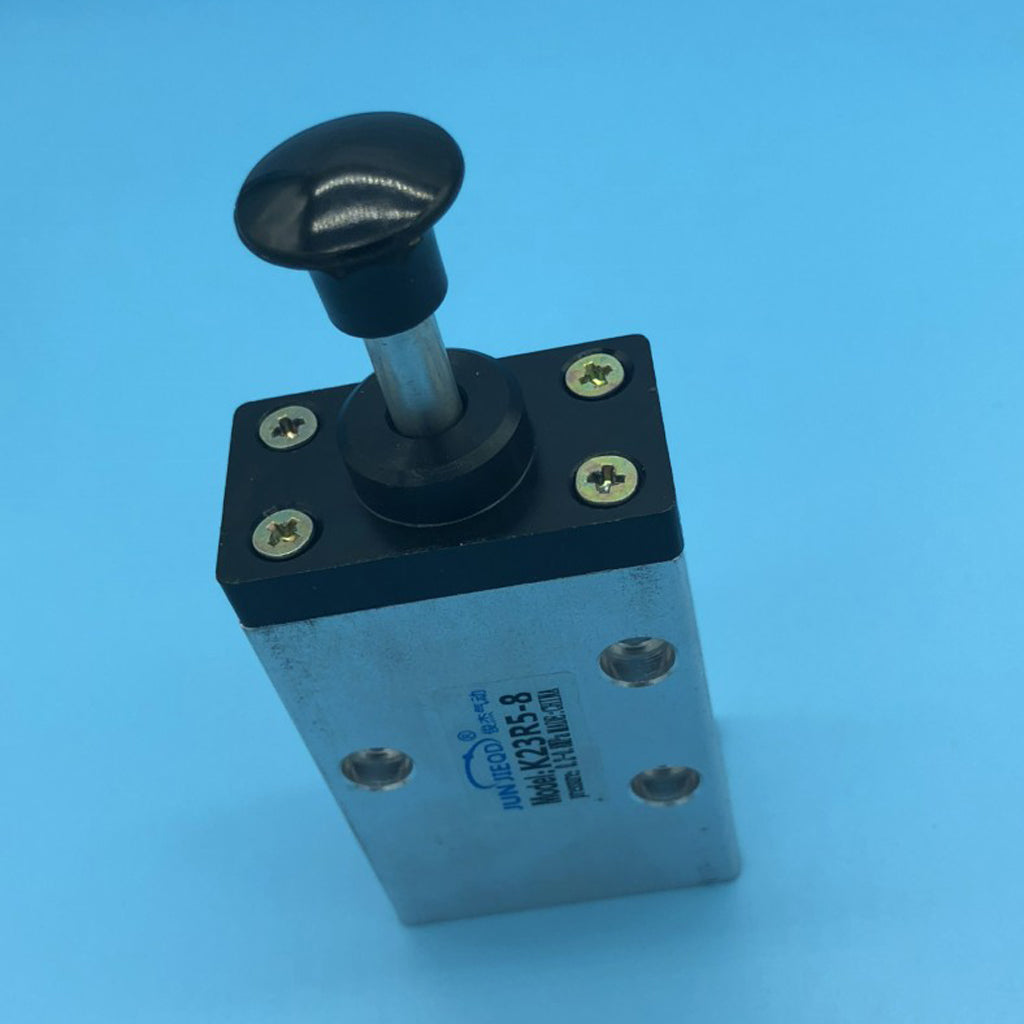

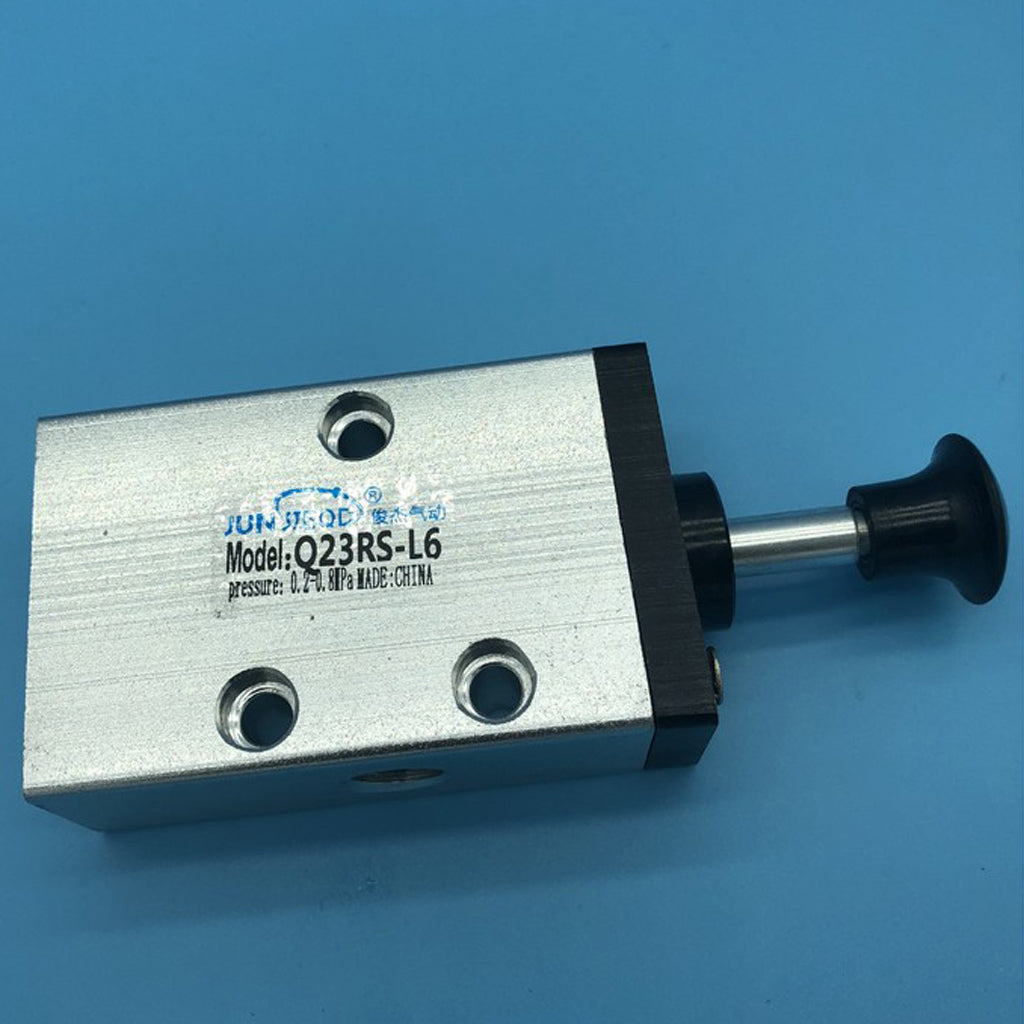

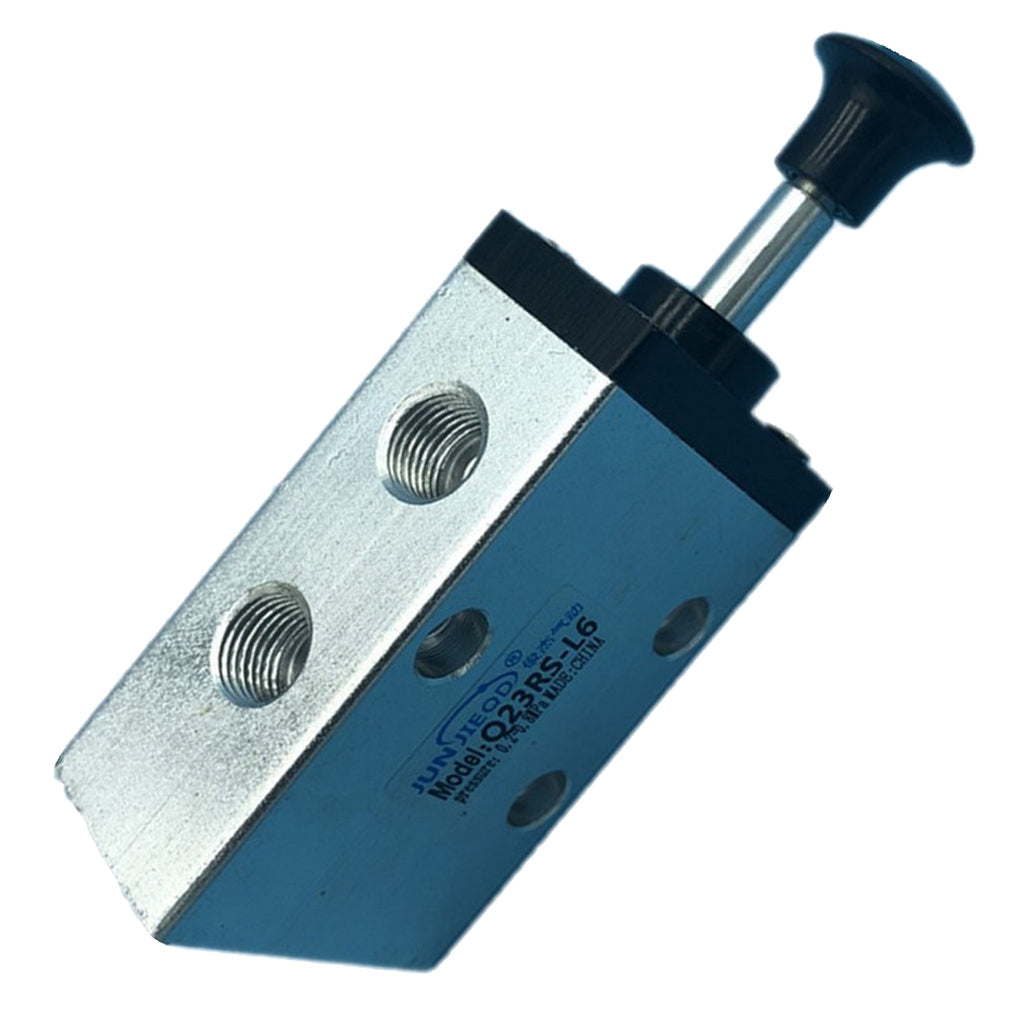

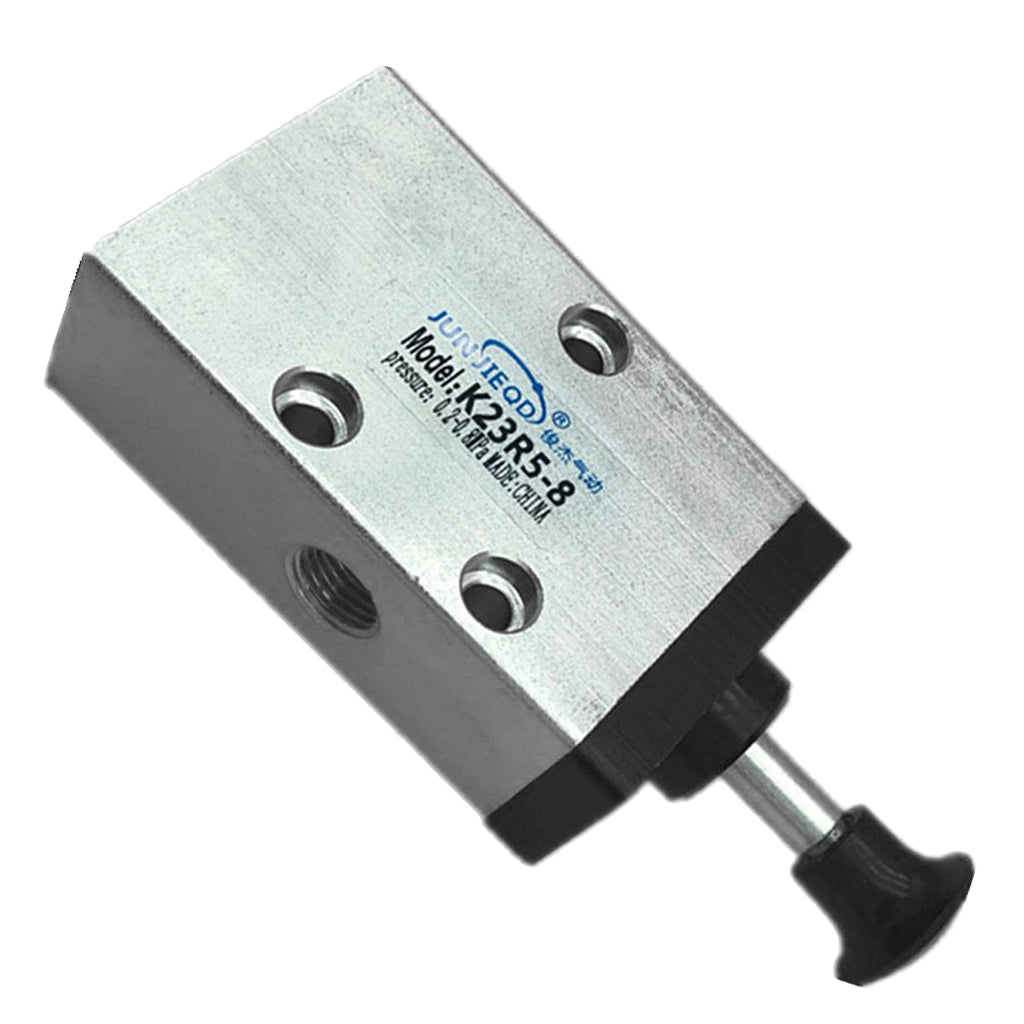

Max Hand valve K23R5-L10

Description:

Hand Lever Operated Pneumatic Valve

Includes 5 way 2 position and 3 Way 2 Position for you to choose

hand operated manual controlled valve used for controlling larger valves, small cylinders, or any pressure system that is alternatively pressurized and exhausted.

Constructed of industrial grade aluminum alloy components

2 Position 3 Ways: K23R5-L6 K23R5-L8 K23R5-L10 K23R5-L15

2 Positon 5 Ways: K25R5-L6 K25R5-L8 K25R5-L10 K25R5-L15

Specification:

Material: Aluminium Alloy

Length: K25R5-L6: 5cm K25R5-L8: 5cm K25R5-L10:6cm K25R5-L15:6cm K23R5-L6: 5cm K23R5-L8:5cm

K23R5-L10:5cm K23R5-L15: 6.5cm

Width: K25R5-L6: 2.5cm K25R5-L8:2.5cm K25R5-L10:3cm K25R5-L15:3cm K23R5-L6:2.5cm K23R5-L8:2.5cm

K23R5-L10:2.5cm K23R5-L15: 3.5cm

Height: K25R5-L6: 12cm K25R5-L8:12cm K25R5-L10:16cm K25R5-L15:16cm K23R5-L6:12cm K23R5-L8:12cm

K23R5-L10:14.5cm K23R5-L15:13cm

2 Position 3 Ways: K23R5-L6 K23R5-L8 K23R5-L10 K23R5-L15

2 Positon 5 Ways: K25R5-L6 K25R5-L8 K25R5-L10 K25R5-L15

Tread Size: K25R5-L6 K23R5-L6 G1/8 K25R5-L8 K23R5-L8 G1/4 K25R5-L10 K23R5-L10 G 3/8 K25R5-L15 K23R5-L15 G1/2

Working Temperatrue: -5~60℃

Pressure: 0~1.0mpa

Package Includes:

1 Piece of Hand Lever Operated Valve
