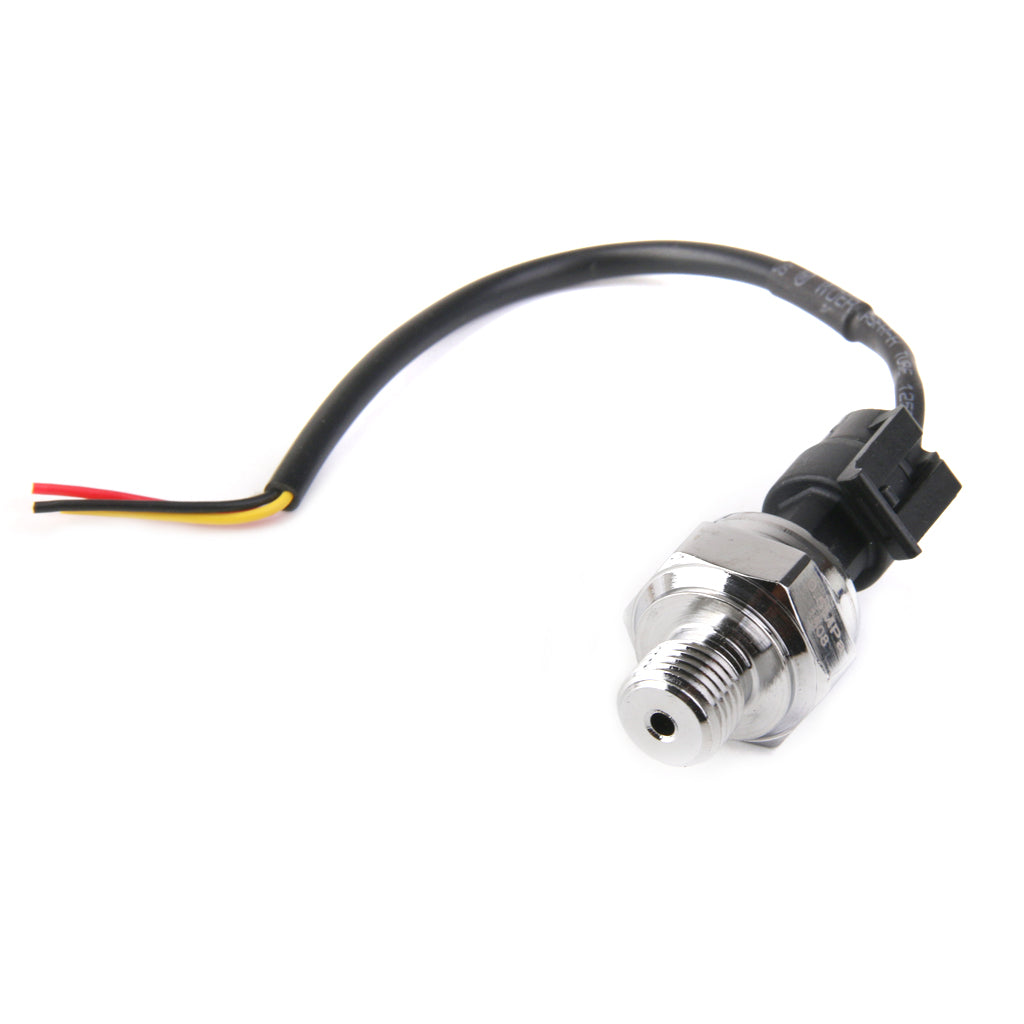

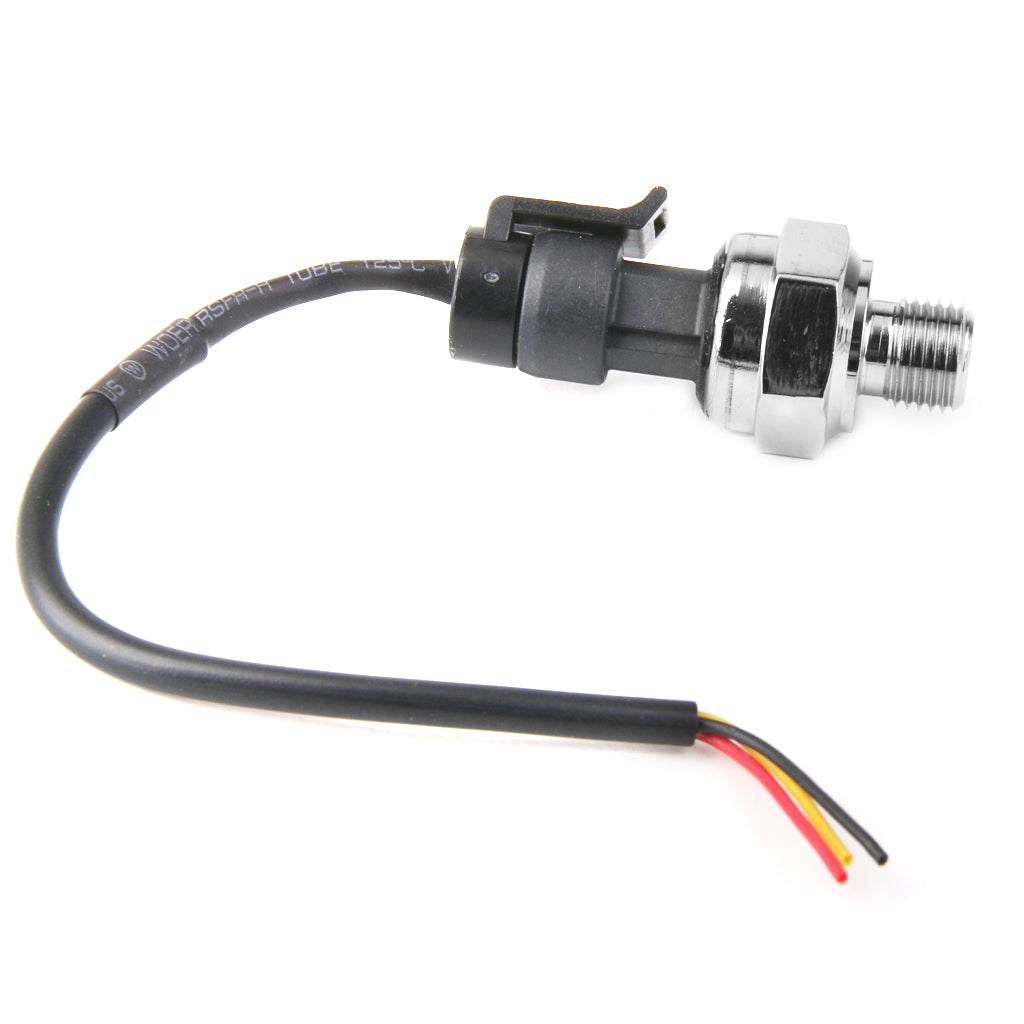

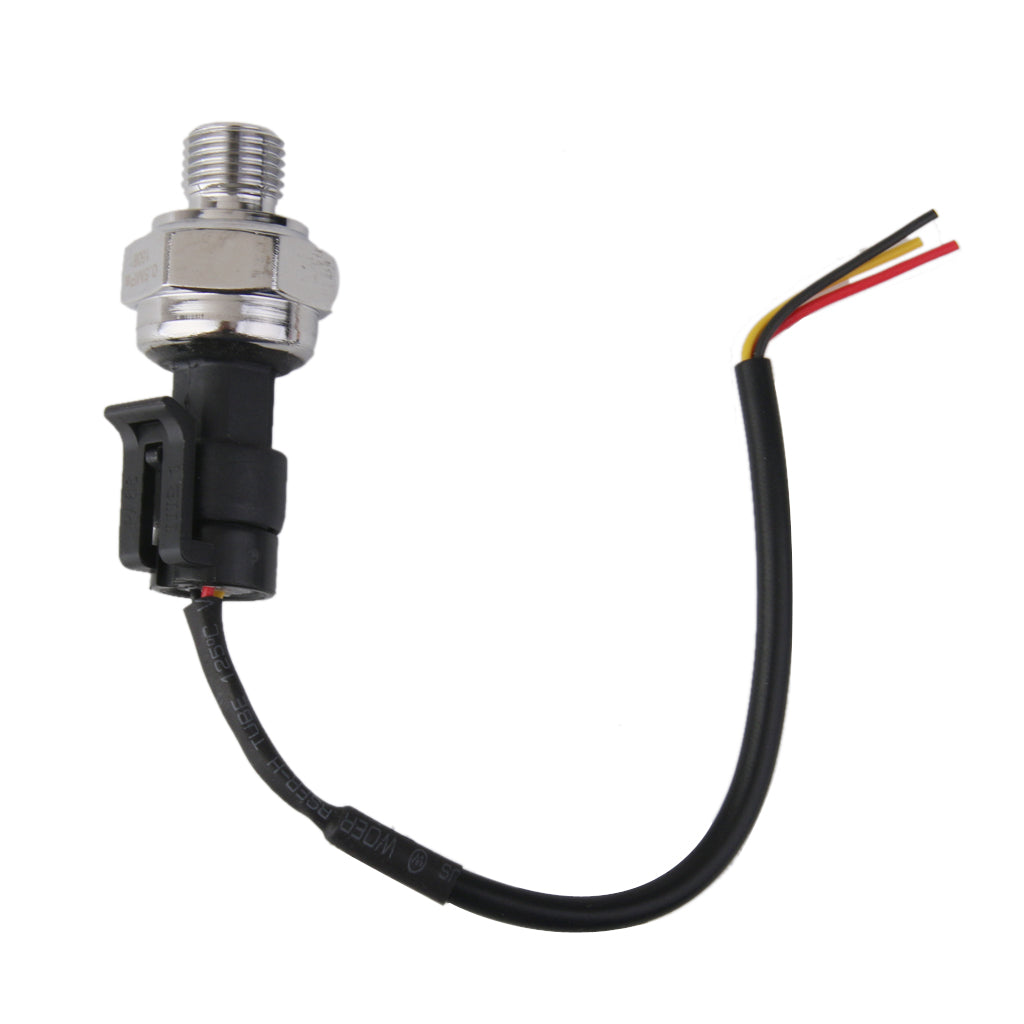

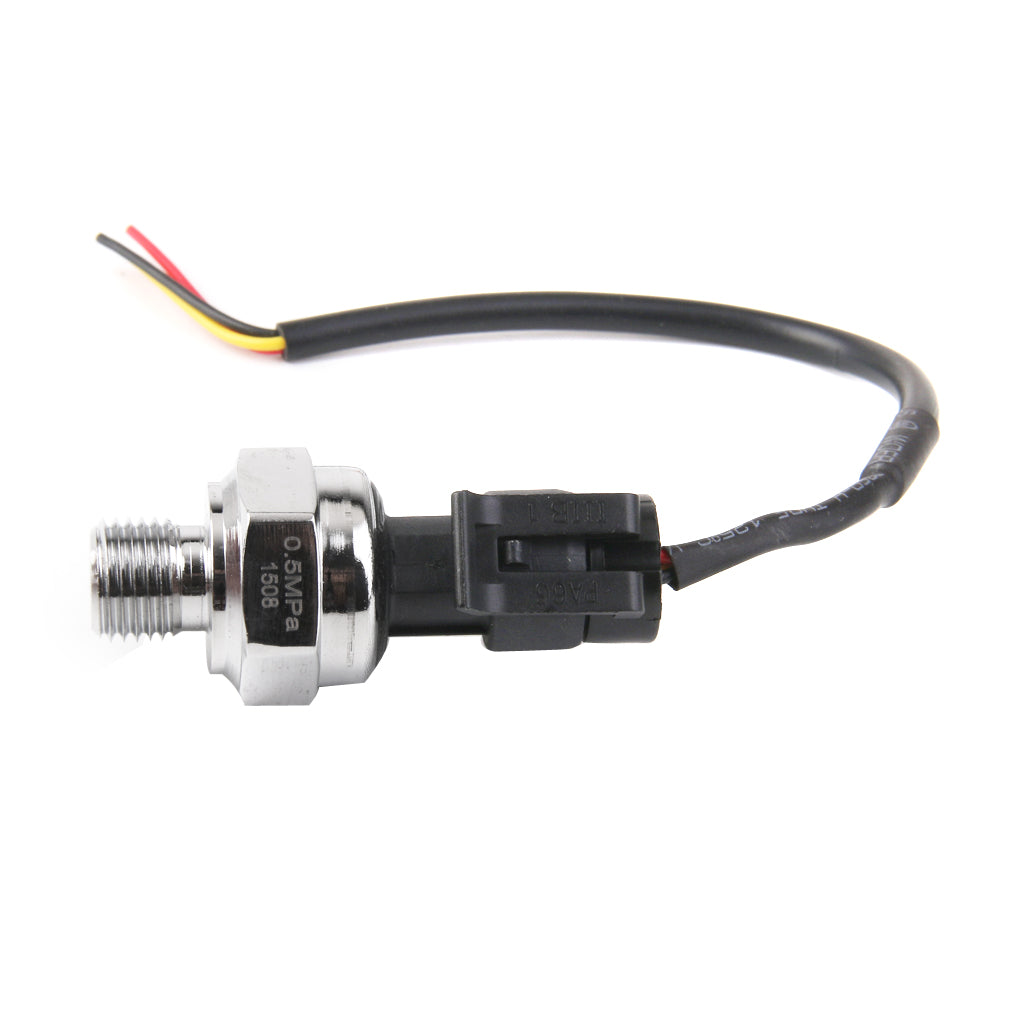

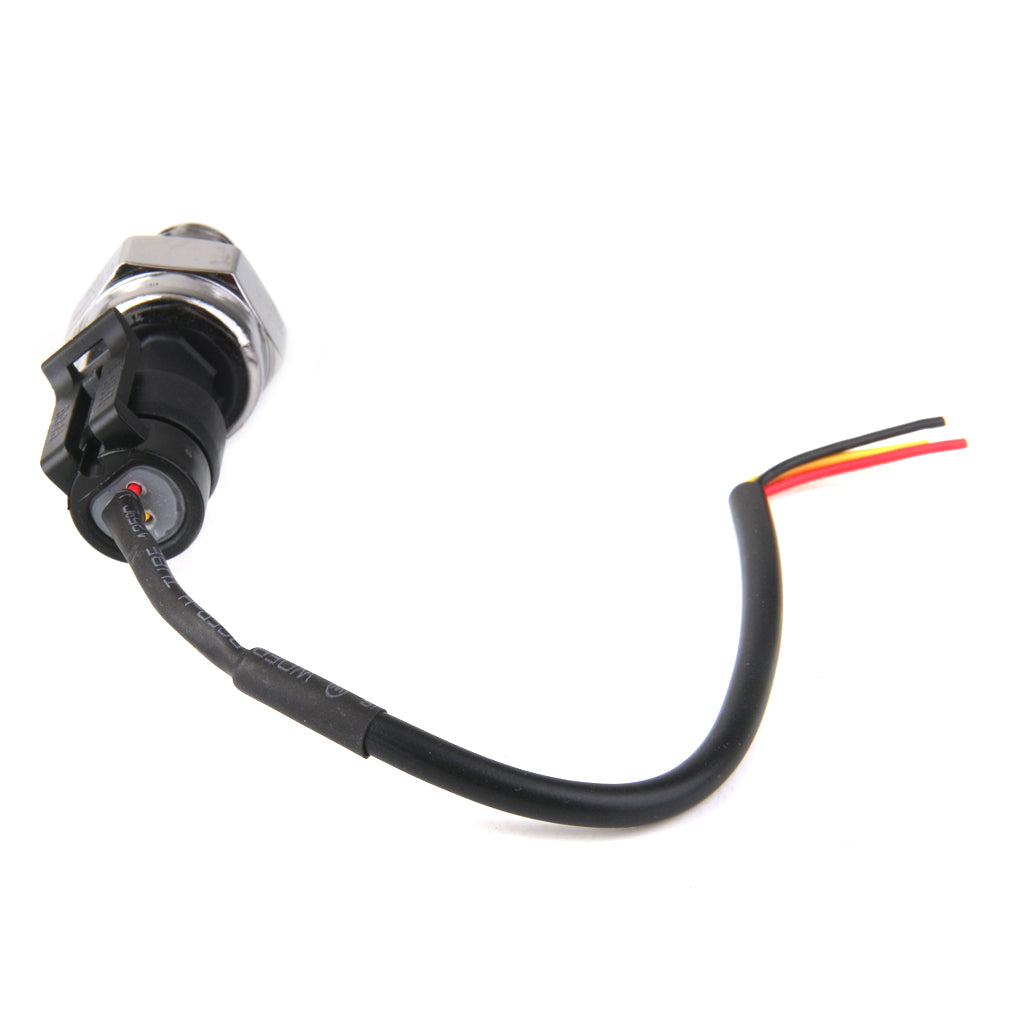

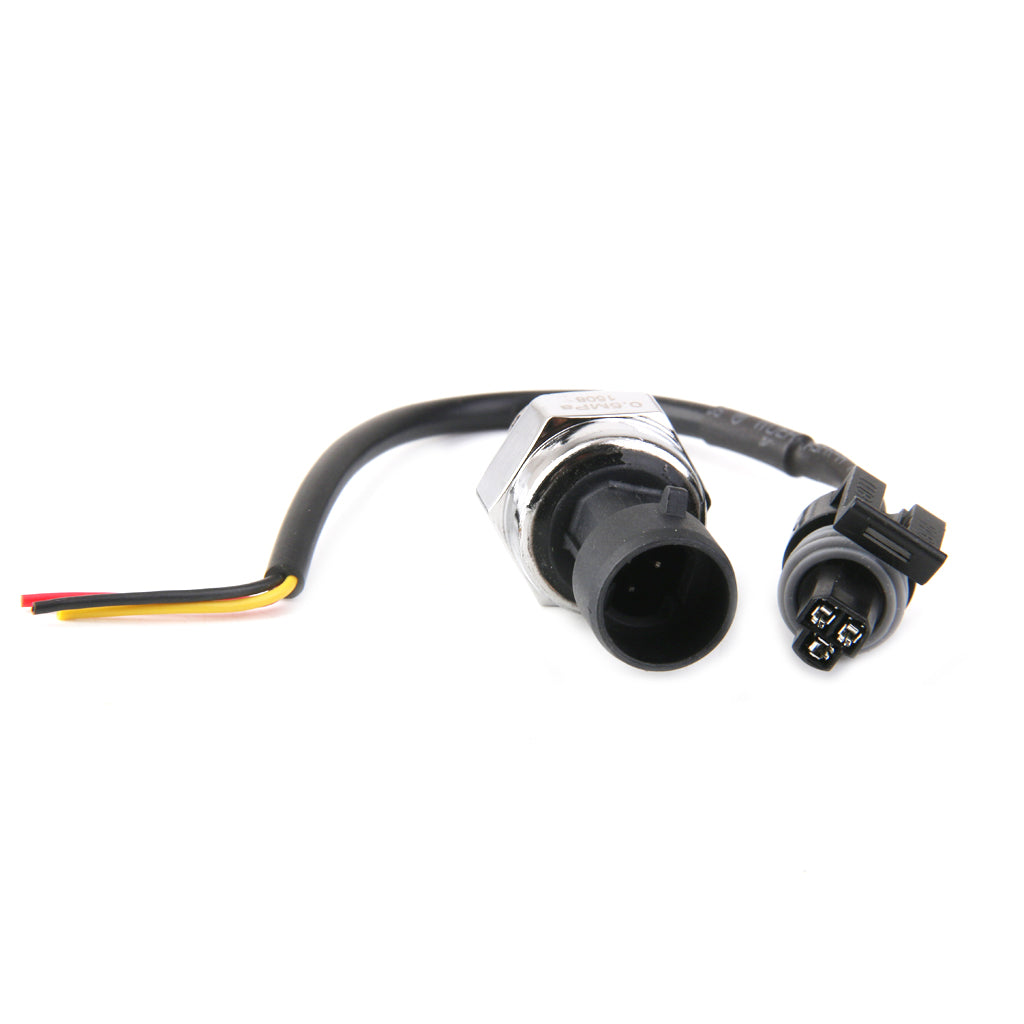

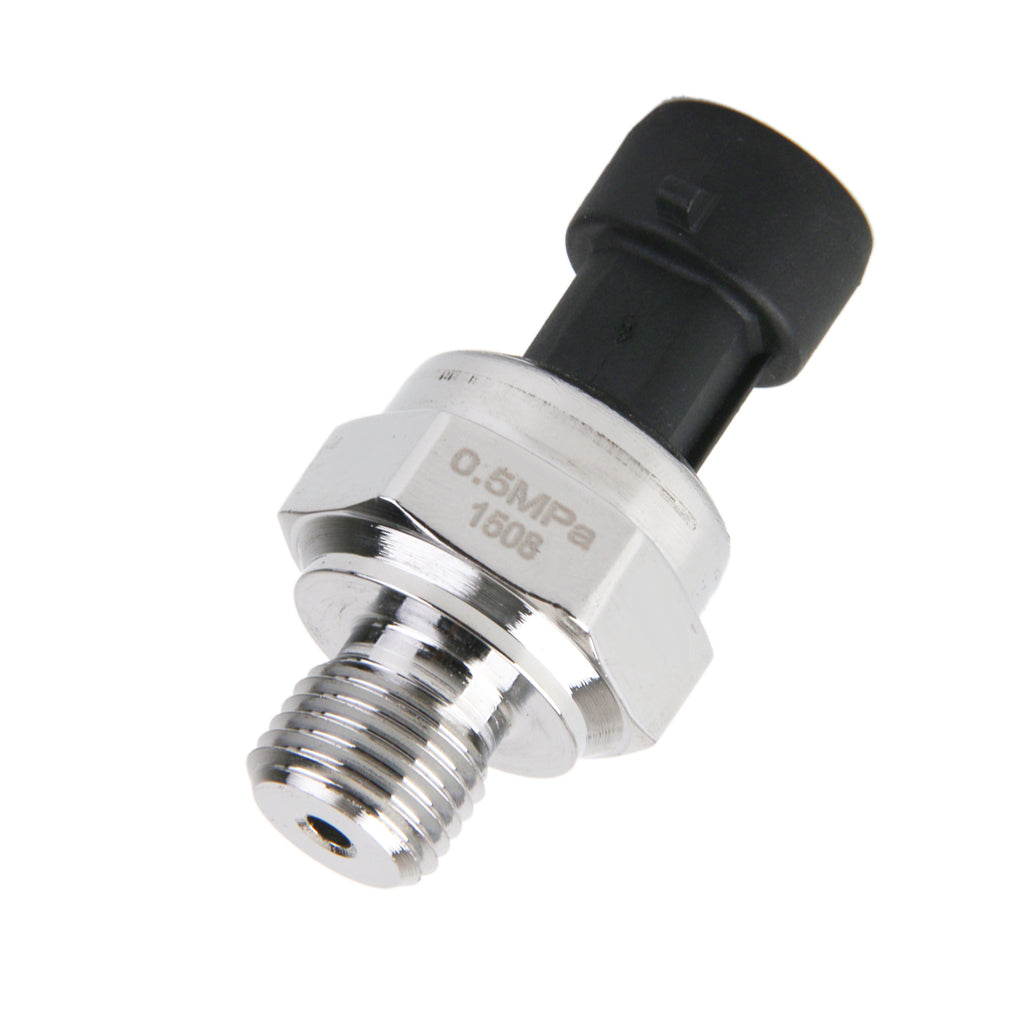

Maxbell G1/4 Pressure Transducer Sensor 0-0.5 MPa for Oil Fuel Diesel Gas Water Air
Rs. 2,659.00Rs. 5,318.00
Description:
- Working Voltage: 5VDC
- Output Voltage: 0.5-4.5 VDC
- Sensor material: Carbon steel alloy
- Working Current: <=10 mA
- Working Pressure Range: 0-0.5 MPa
- Cable length: 17cm / 6.69inch
- Sensor Length: Approx. 5.1cm / 2.01inch
- Screw Diameter: 1.3cm / 0.51inch
- Storage Temperature Range: 0-85 Celsius Degree
- Measuring Error: +_ 1.5 %FSO
- Temperature Range Error: +_3.5 %FSO
- Response Time: <=2.0 ms
Pressure Range:
| | Max. Pressure | ...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
-
Working Voltage: 5VDC
-
Output Voltage: 0.5-4.5 VDC
-
Sensor material: Carbon steel alloy
-
Working Current: <=10 mA
-
Working Pressure Range: 0-0.5 MPa
-
Cable length: 17cm / 6.69inch
-
Sensor Length: Approx. 5.1cm / 2.01inch
-
Screw Diameter: 1.3cm / 0.51inch
-
Storage Temperature Range: 0-85 Celsius Degree
-
Measuring Error: +_ 1.5 %FSO
-
Temperature Range Error: +_3.5 %FSO
-
Response Time: <=2.0 ms
Pressure Range:
|
|
Max. Pressure |
Destroy Pressure |
Working Temperature |
|
G1/4" 0-0.5mpa
|
1.5mpa
|
3.0mpa
|
0-85℃
|
|
G1/4" 0-0.8mpa |
1.5mpa |
3.0mpa |
0-85℃ |
|
G1/4" 0-1.0mpa |
2.0mpa |
3.0mpa |
0-100℃ |
|
G1/4" 0-1.2mpa |
2.4mpa |
3.0mpa |
0-85℃ |
|
G1/4" 0-5.0mpa |
7.5mpa |
10.0mpa |
-20~85℃ |
|
G1/4" 0-10mpa |
15.0mpa |
20.0mpa |
-20~85℃ |
|
G1/2" 0-2.5mpa |
5.0mpa |
7.0mpa |
0-105℃ |
Package Includes:
-

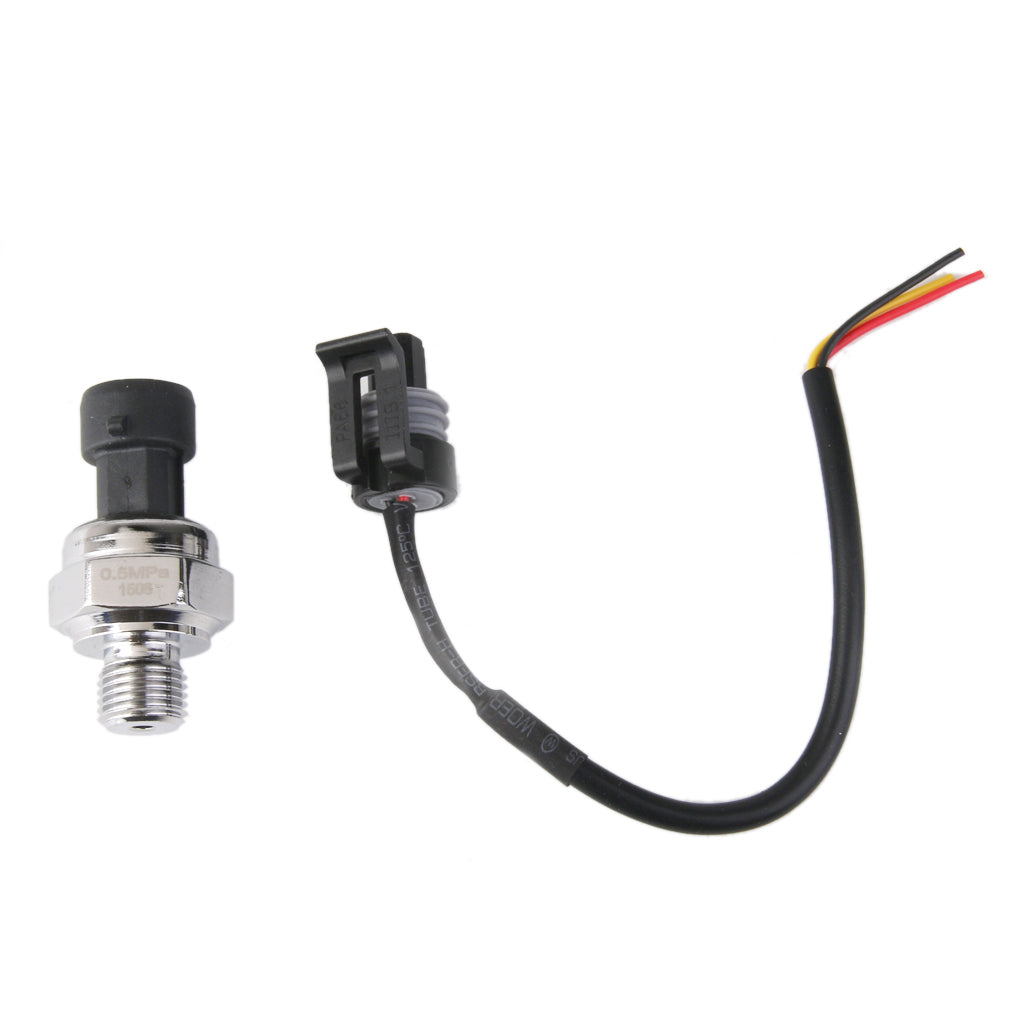

1 x Pressure Transducer Sensor
-
1 x Cable
