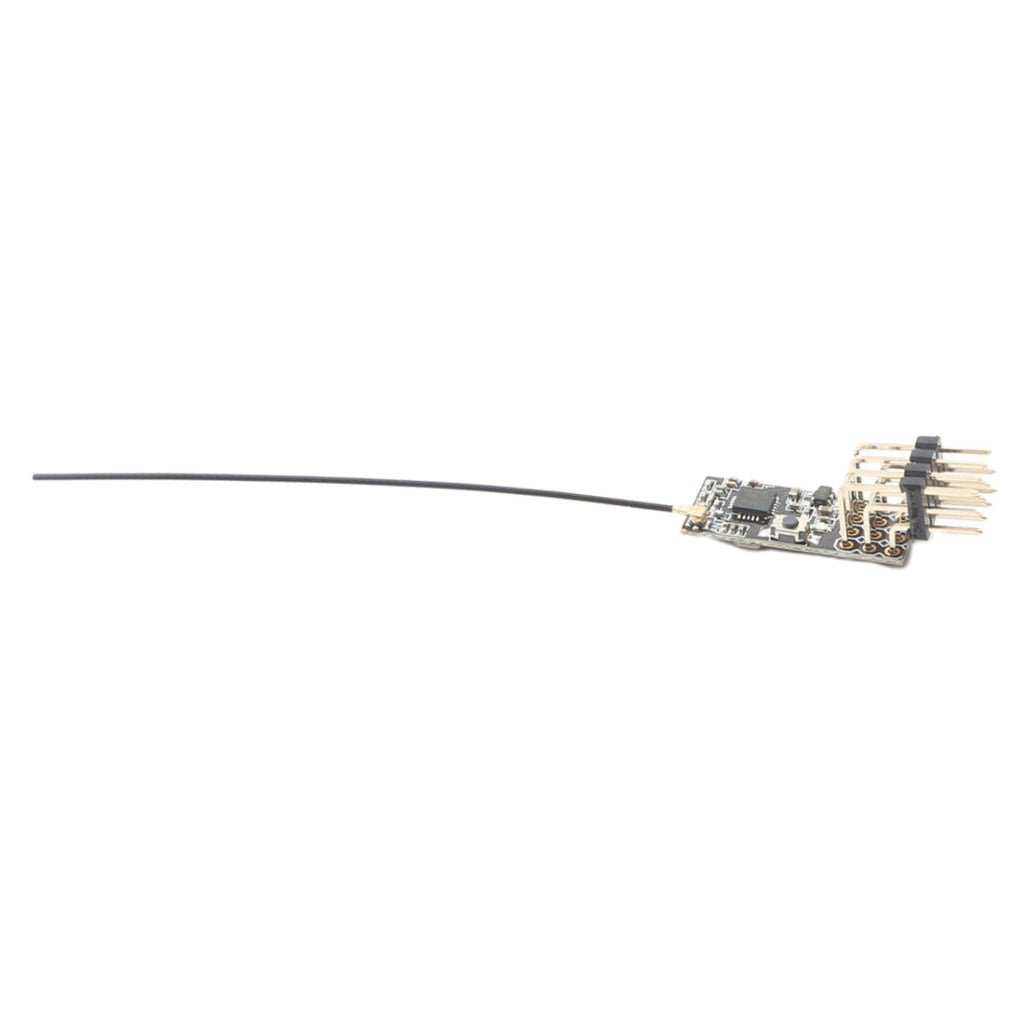

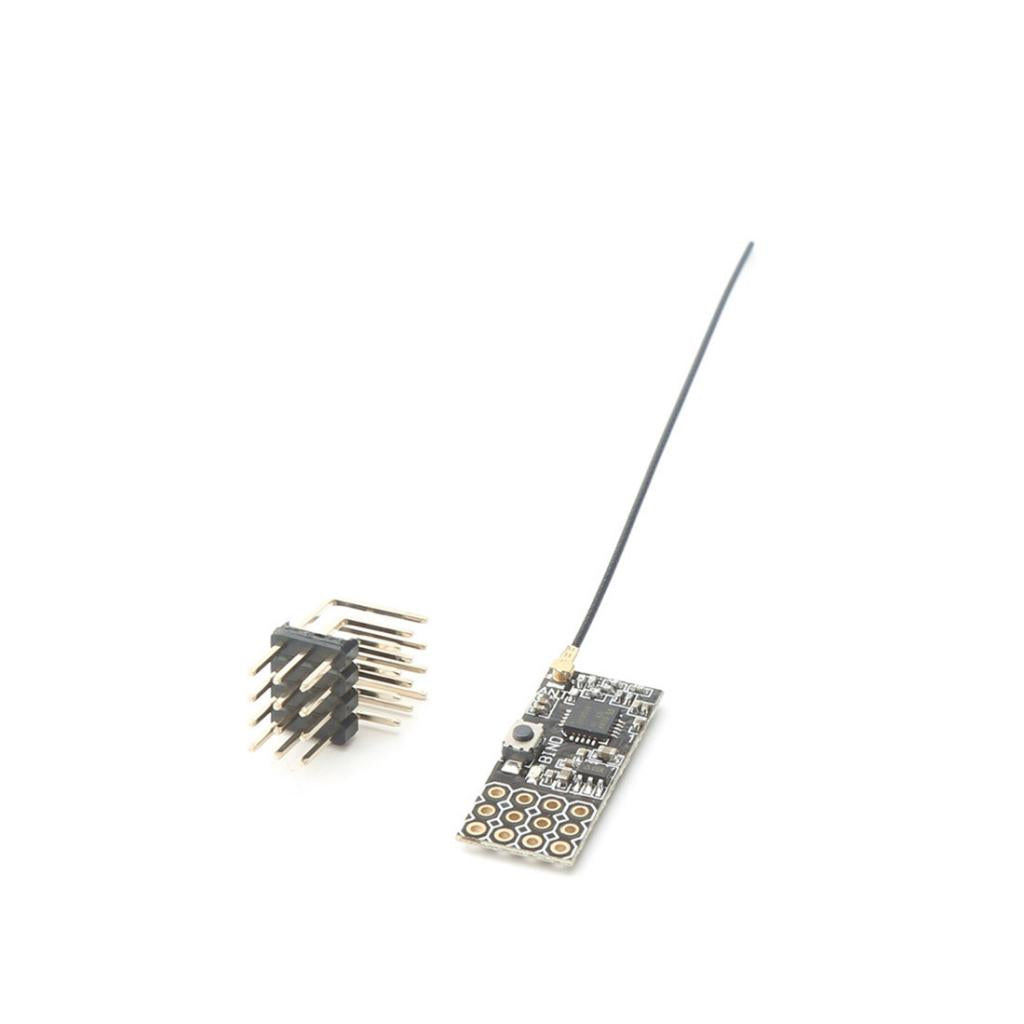

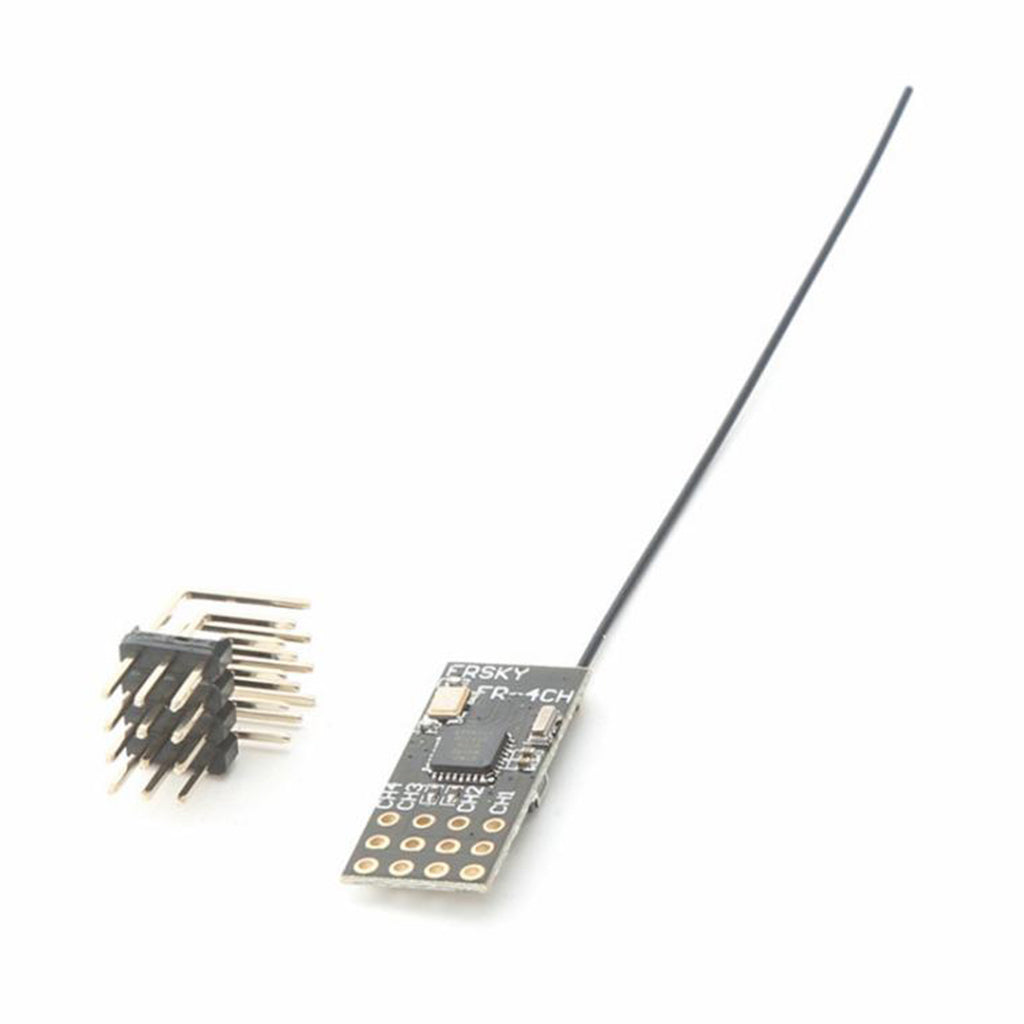

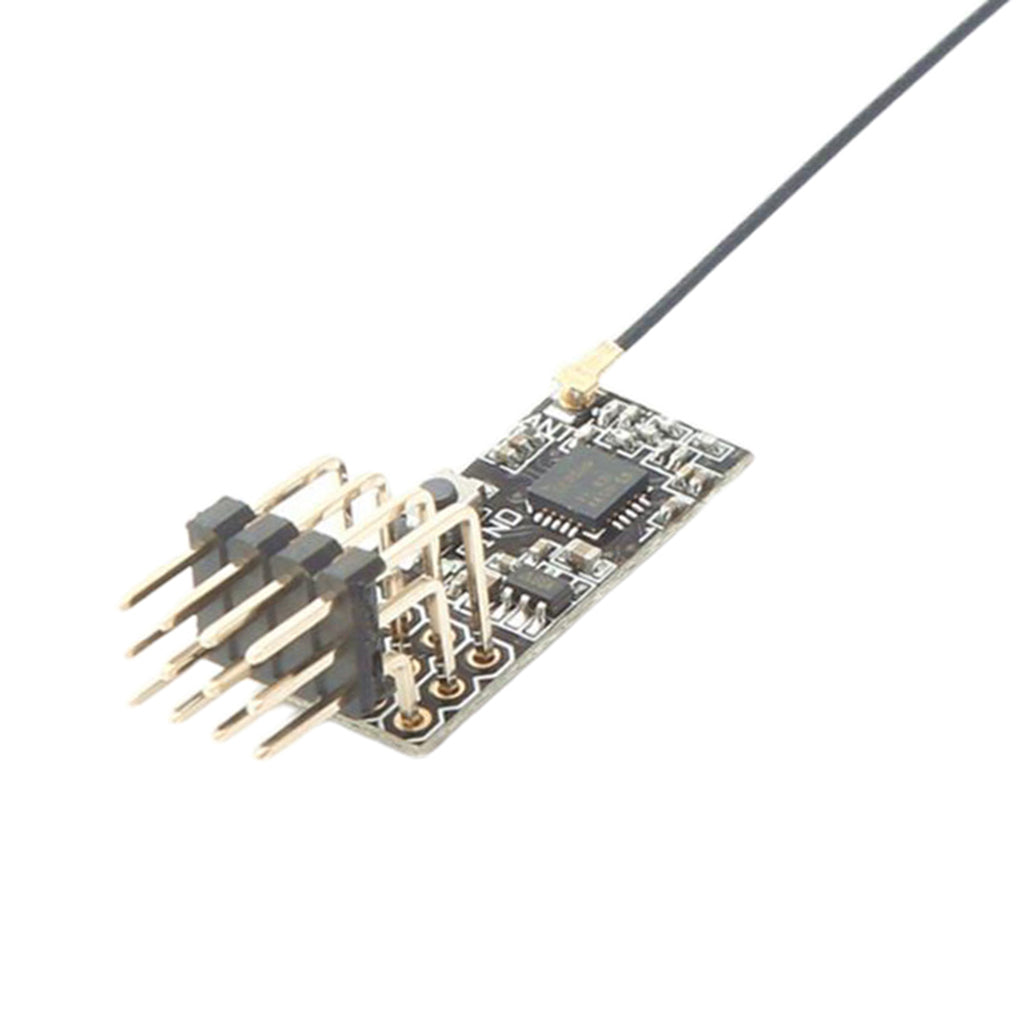

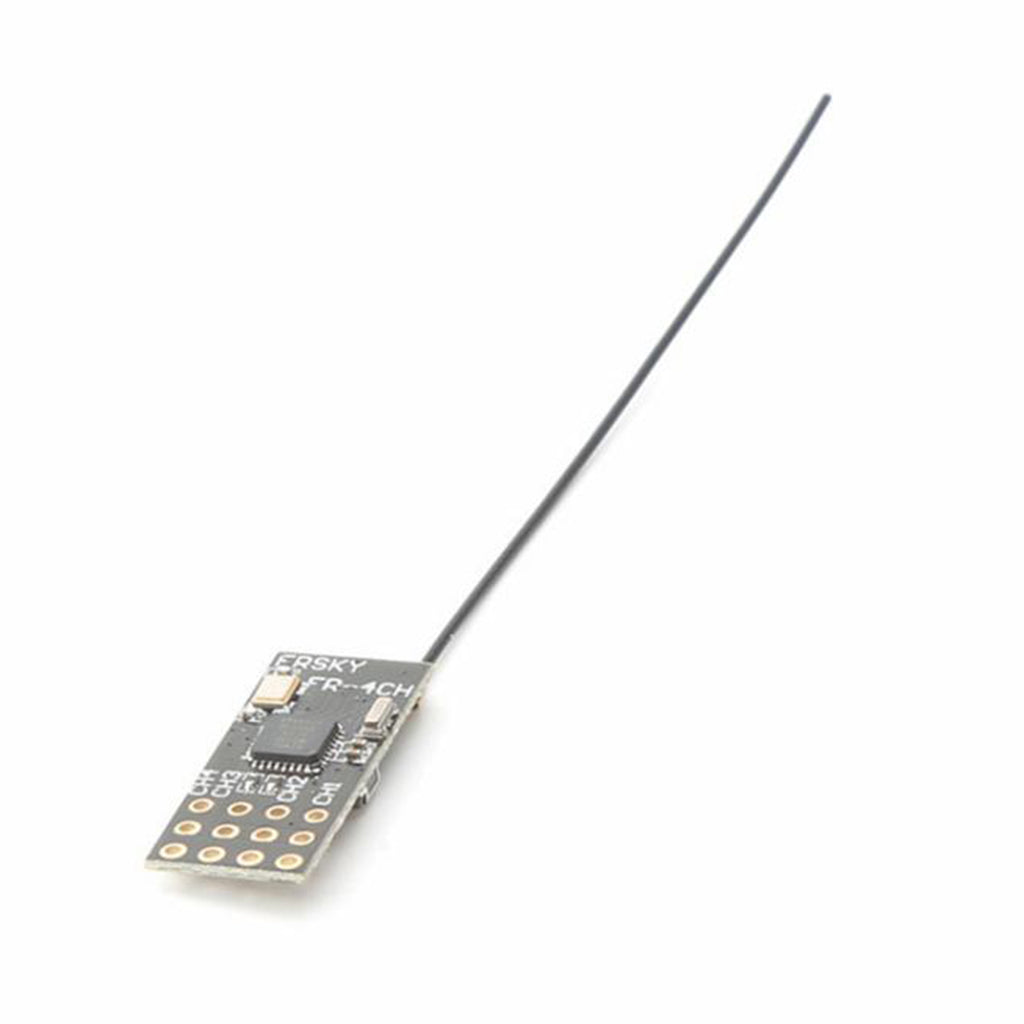

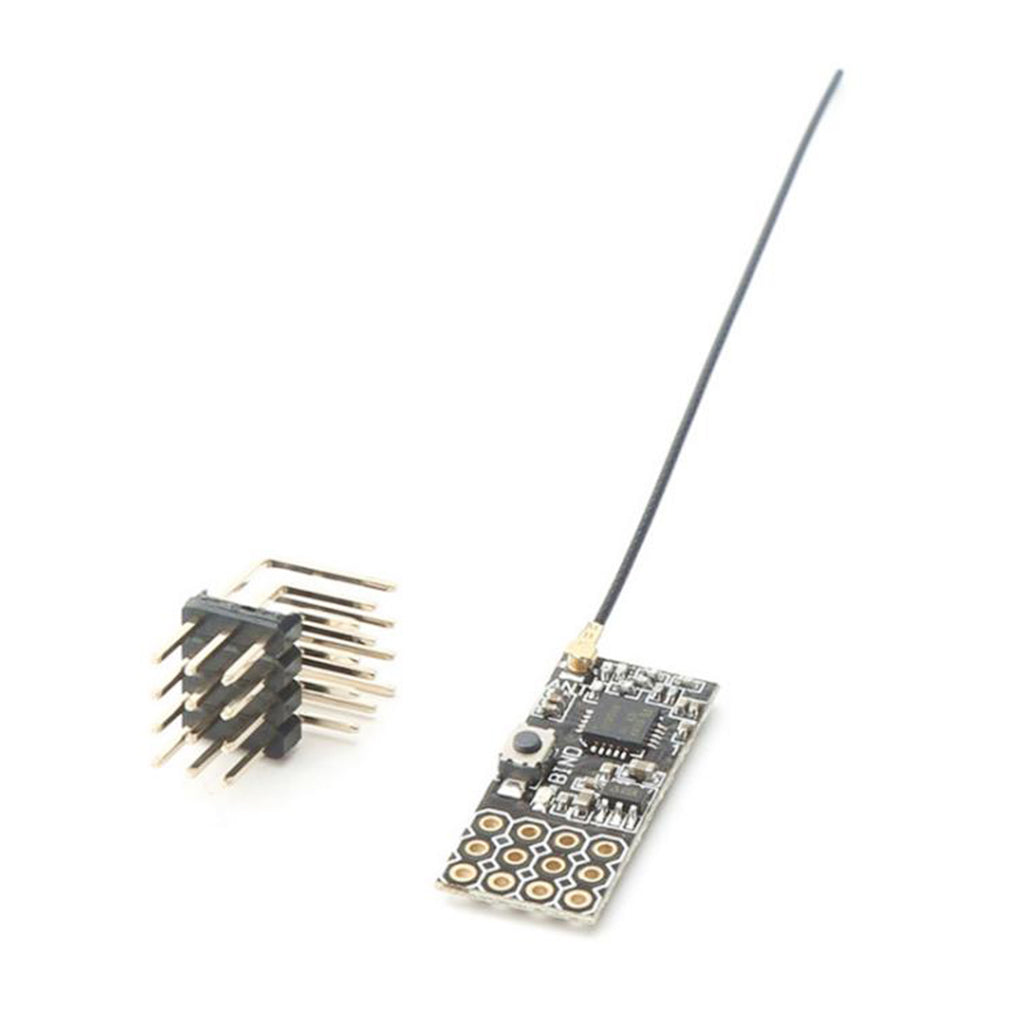

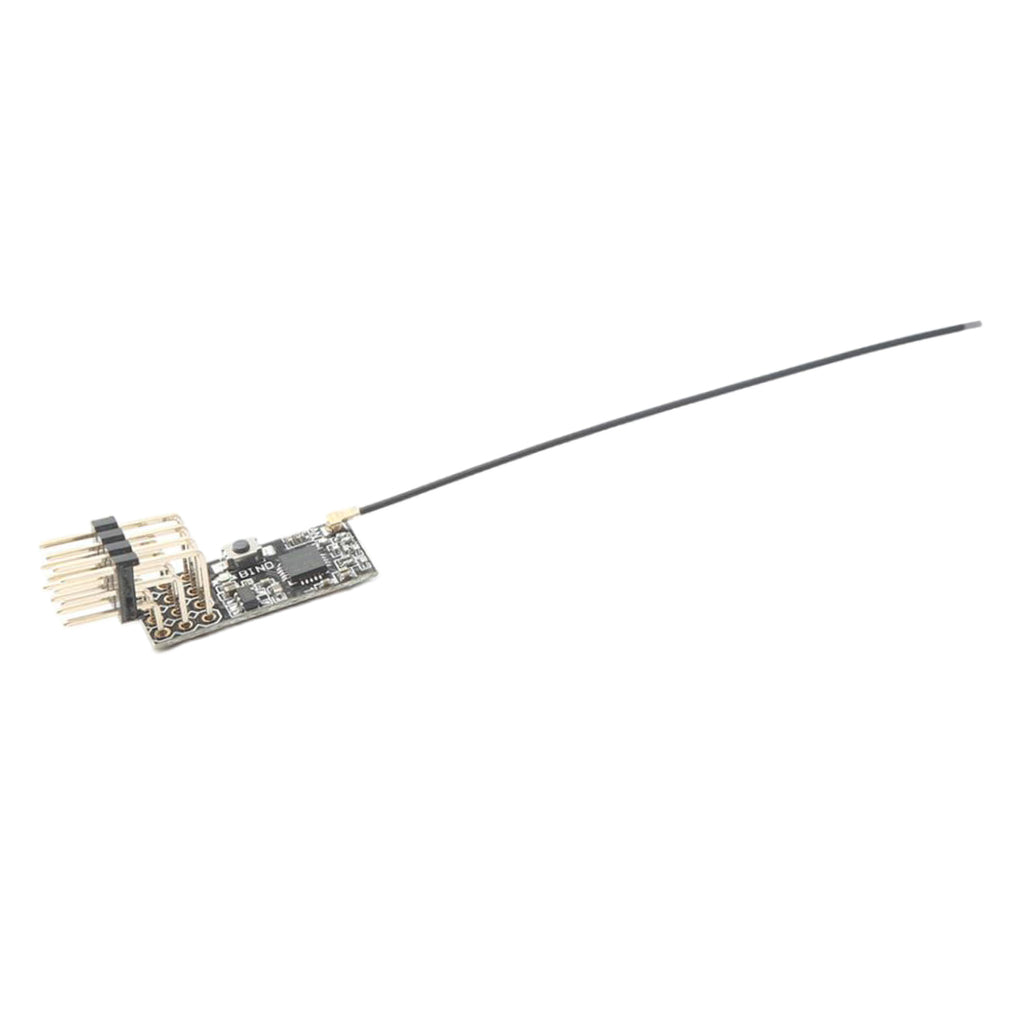

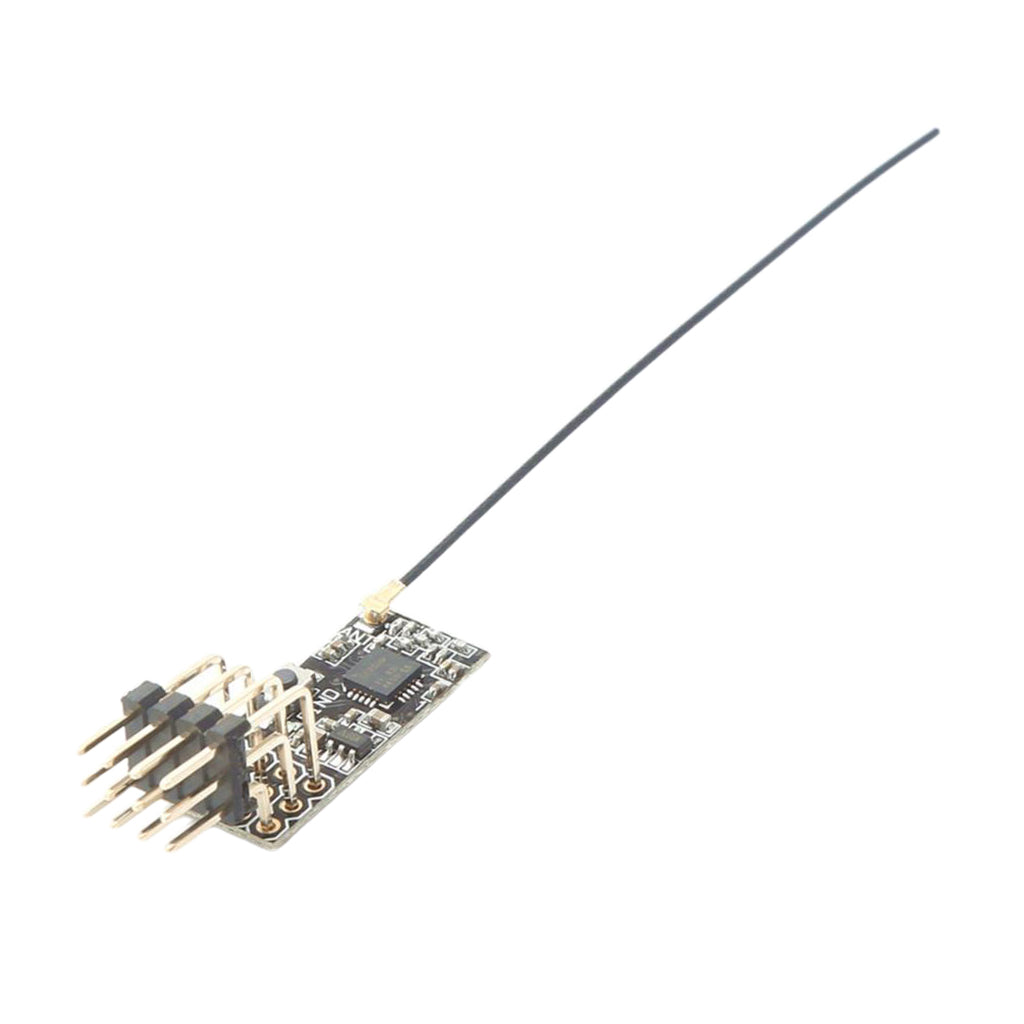

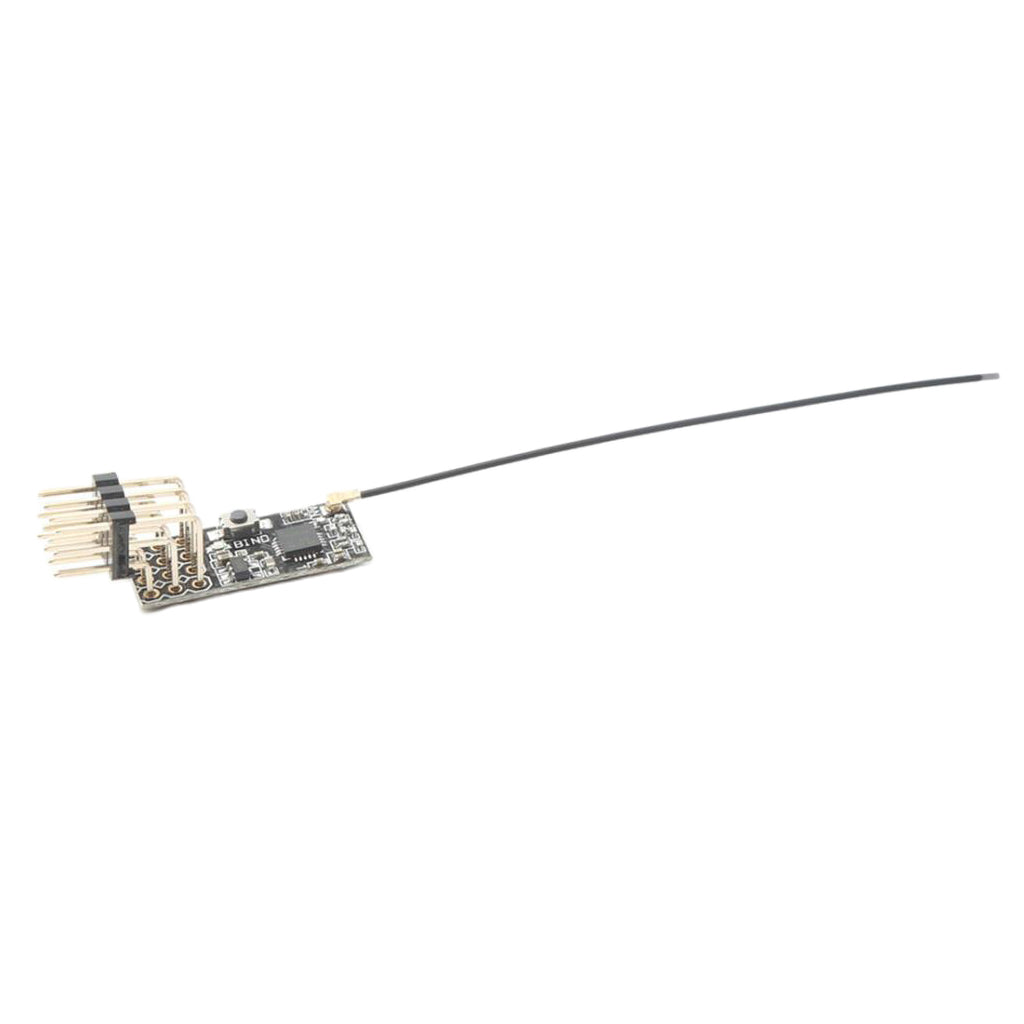

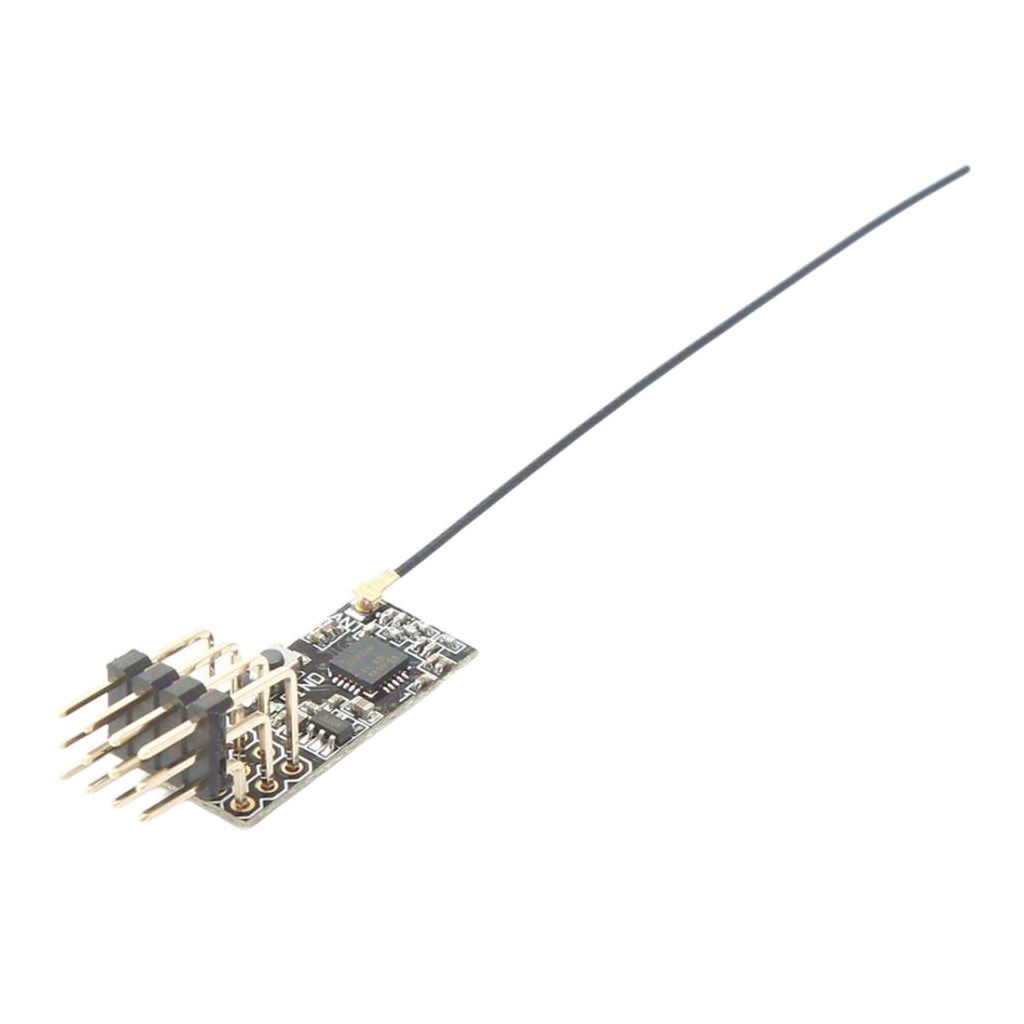

Max Maxb For Frsky Mini 4CH Receiver 2.4G D8 for Multirotor Aircraft Spare Part
Rs. 2,009.00Rs. 4,018.00
Description:
100% brand new, high quality
Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT
Suitable RC Multirotor Spare Part For RC Models Quadcopter
Channel: 4CH
Resolution: 1024
PWM Output: Yes
Specification:
Material: Metal

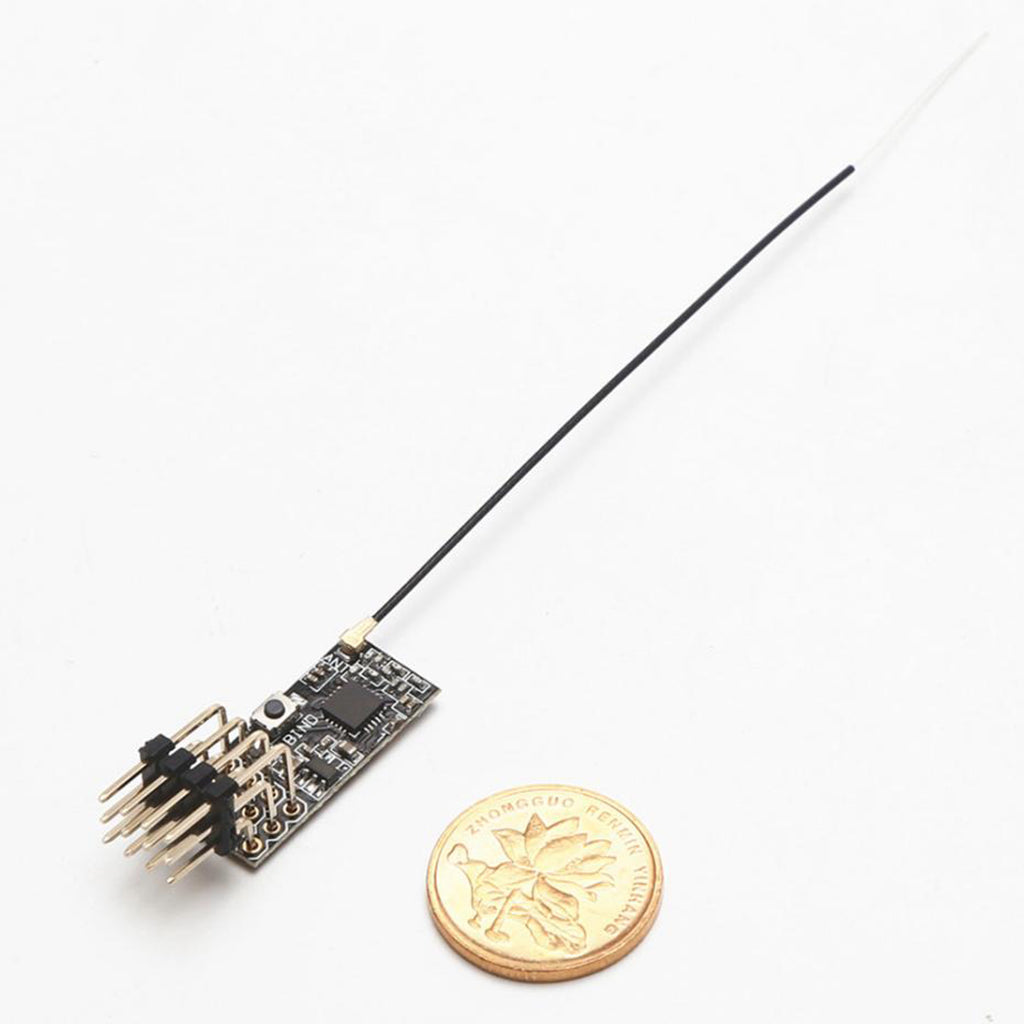

Size: 11x24.5mm/0.43x0.96inch
Operating Voltage: 3.5-10V
Current: 50MA
Antenna Length: 100mm
Control Range: >500m
Size Chart:
How To Bind:
X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.
DJT, DFT: Hold the TX module button and power on transmitter, at this point the TX module get...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
100% brand new, high quality
Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT
Suitable RC Multirotor Spare Part For RC Models Quadcopter
Channel: 4CH
Resolution: 1024
PWM Output: Yes
Specification:
Material: Metal
Size: 11x24.5mm/0.43x0.96inch
Operating Voltage: 3.5-10V
Current: 50MA
Antenna Length: 100mm
Control Range: >500m
Size Chart:
How To Bind:
X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.
DJT, DFT: Hold the TX module button and power on transmitter, at this point the TX module get into binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restar receiver.
XJT: Dip switch select D8 mode, and then the same way as above.
Package Includes:
1pc Mini Receiver
Note:
Currently only support the third channel failsafe, can not be defined by yourself, so keep the throttle channel in the third channel.
