Description:

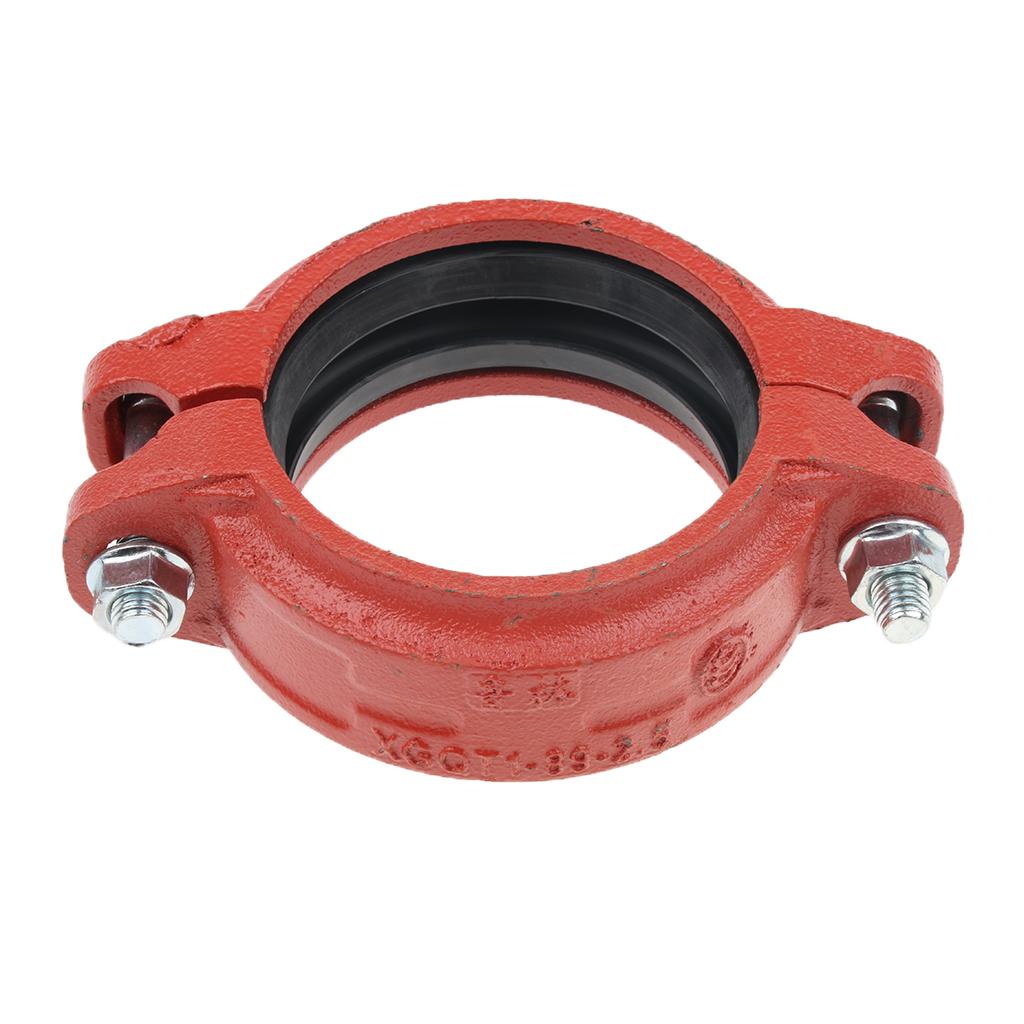

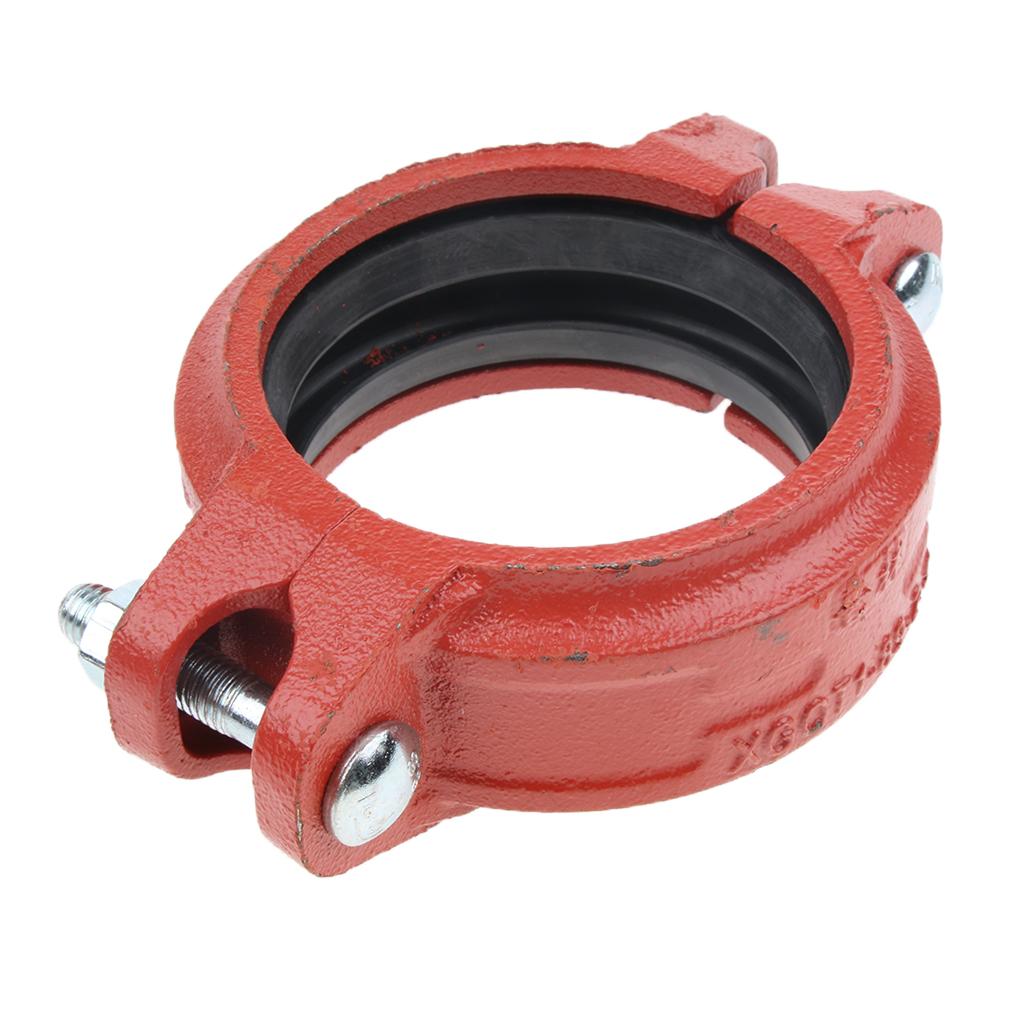

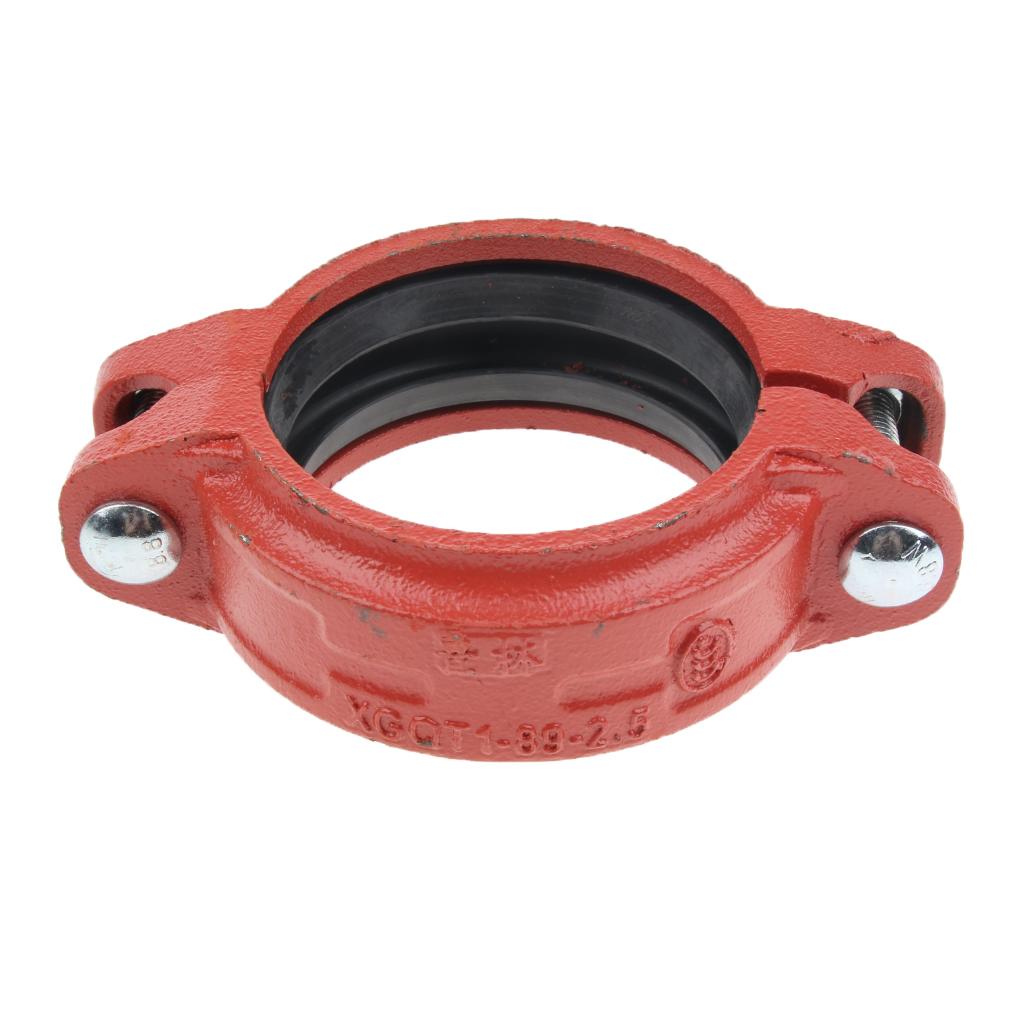

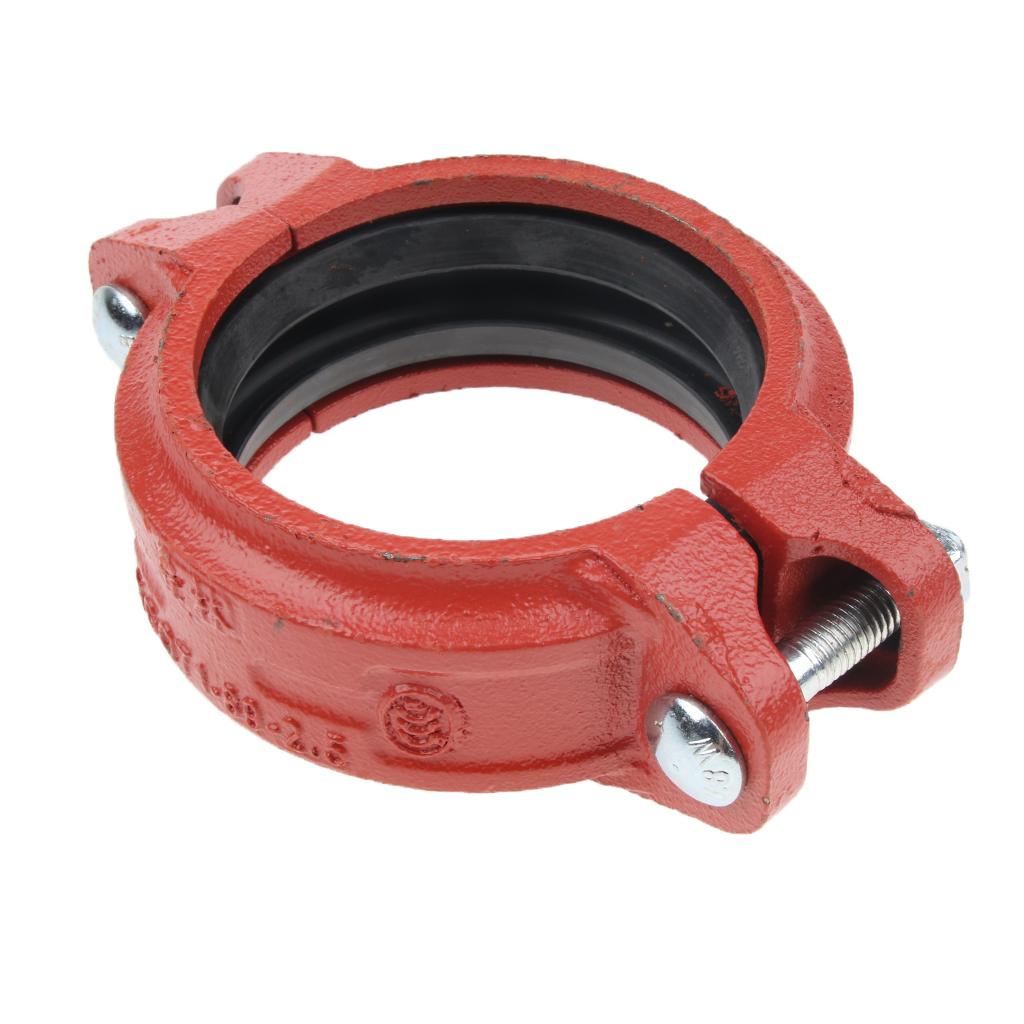

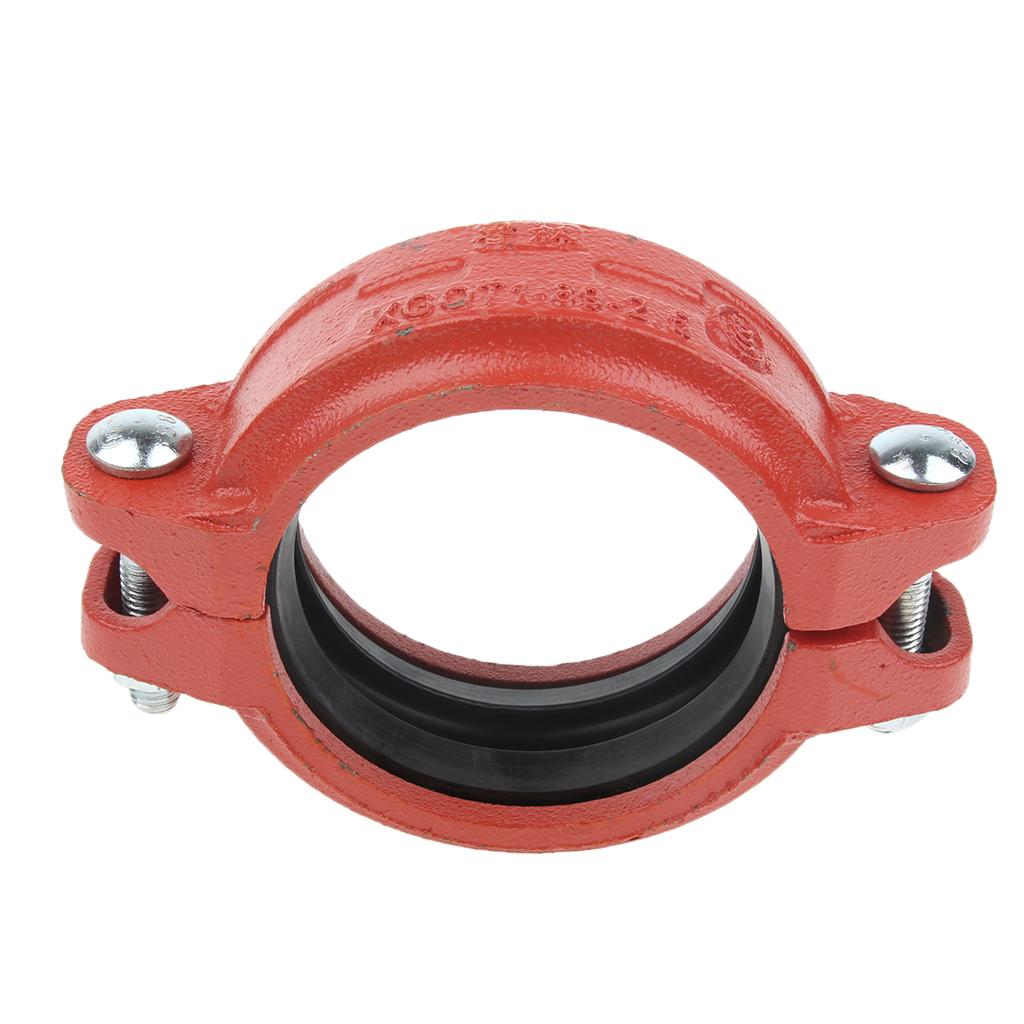

60mm-165mm Dia, 8 size available high quality couplings clamp for Fire Sprinkler Pipes
Brand new with gasket.
Ductile Iron construction.
Non-lead orange paint.
Material: Iron.
Size Chart:
DN159 -
Nominal diameter: 150mm
Pipe outer diameter: 159mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 243
Maximum external dimensions H (mm): 48
Overall dimensions (mm): 191
DN108 -
Nominal diameter: 100mm
Pipe outer diameter: 108mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 184
Maximum external dimensions H (mm): 48
Overall dimensions (mm): 134
DN165 -
Nominal diameter: 150mm
Pipe outer diameter: 165mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 252
Maximum external dimensions H (mm): 48
Overall dimensions (mm): 199
DN89 -
Nominal diameter: 80mm
Pipe outer diameter: 89mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 155
Maximum external dimensions H (mm): 45
Overall dimensions (mm): 112
DN114 -
Nominal diameter: 100mm
Pipe outer diameter: 114mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 193.5
Maximum external dimensions H (mm): 48
Overall dimensions (mm): 143
DN76 -
Nominal diameter: 65mm
Pipe outer diameter: 76mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 138
Maximum external dimensions H (mm): 44
Overall dimensions (mm): 97
DN60 -
Nominal diameter: 50mm
Pipe outer diameter: 60mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 125
Maximum external dimensions H (mm): 44
Overall dimensions (mm): 84
DN140 -
Nominal diameter: 125mm
Pipe outer diameter: 140mm
Nominal pressure: 2.5mpa
The largest external dimensions L (mm): 220
Maximum external dimensions H (mm): 48
Overall dimensions (mm): 172

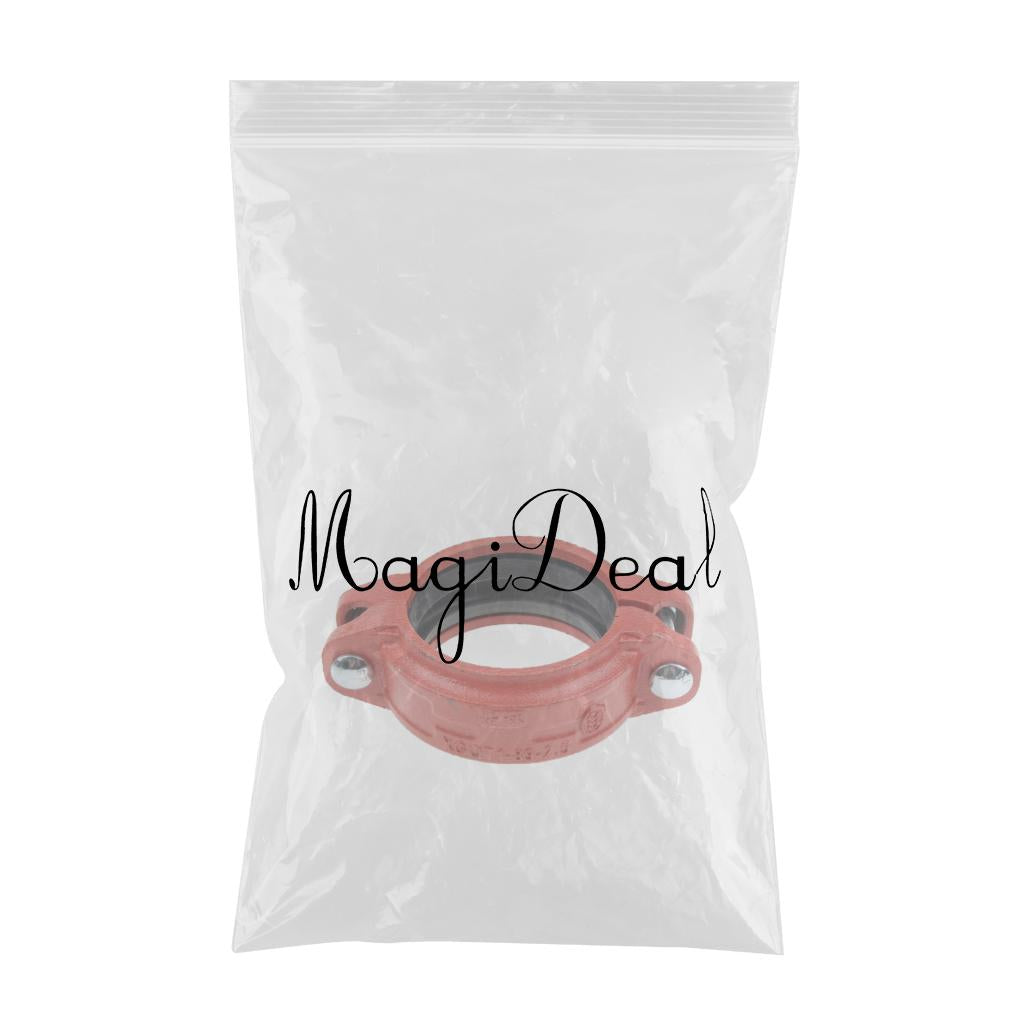

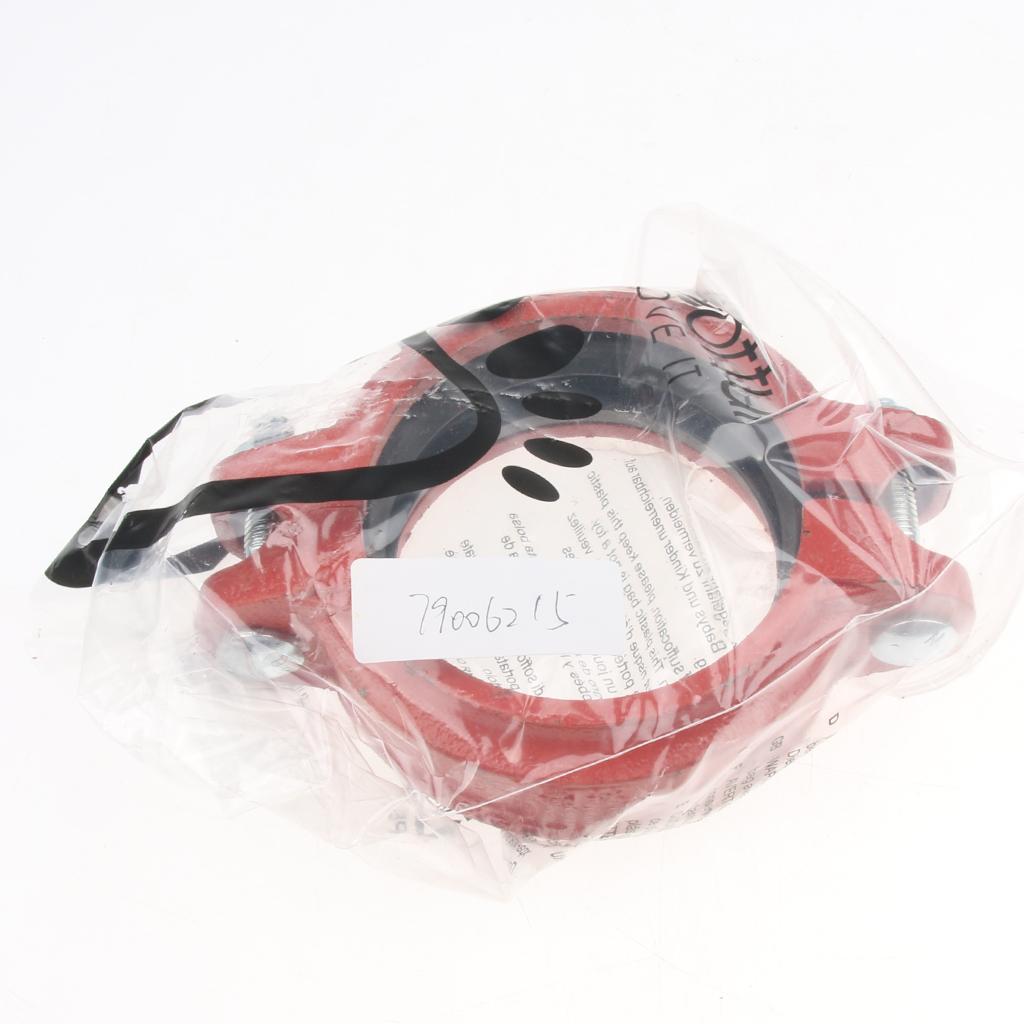

Package Includes:
1 Piece Coupling
Note:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
