Product details
Description:

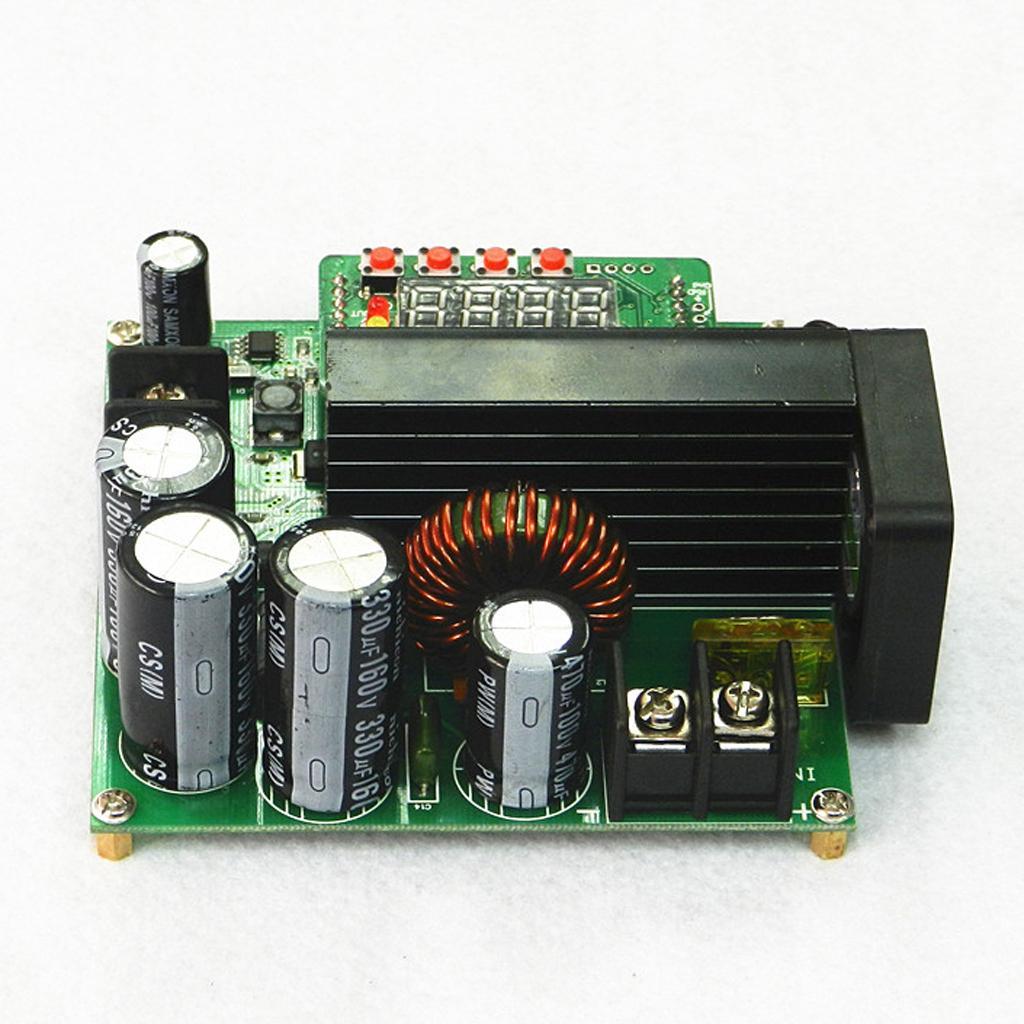

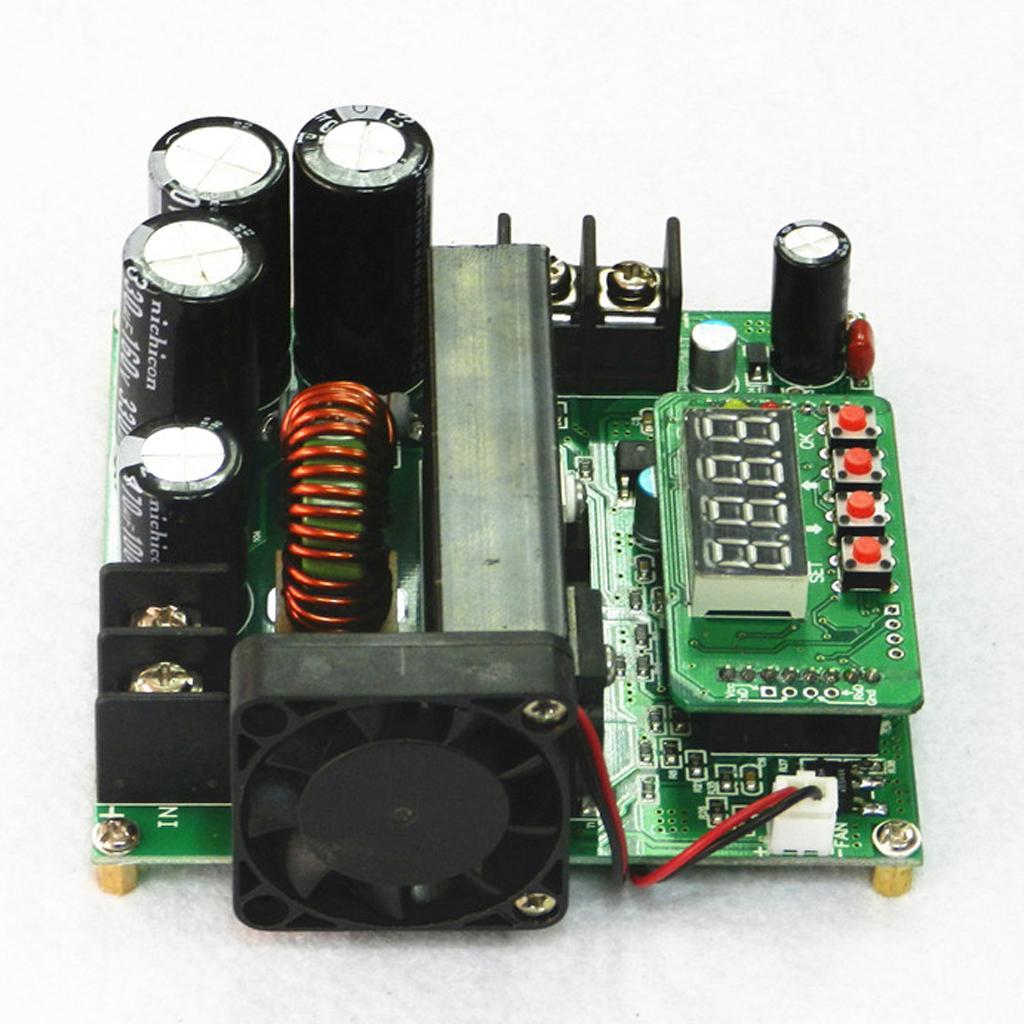

Built-in fan cooling, can be long-term and stable work.
Adopt advanced microprocessor,can accurately adjust the output voltage and current.
With memory function, can store 10 group of parameters, and the free storage,bring out.
Digital display, convenient and easy to use, with constant voltage and constant current state.
The use of advanced microprocessors, can precisely regulated output voltage and current;
High-quality power devices, with the periphery of precision op amps CV and CC loop configuration, which greatly improves the overall performance of the module;
With an input voltage protection;
Having a constant voltage, constant current function;

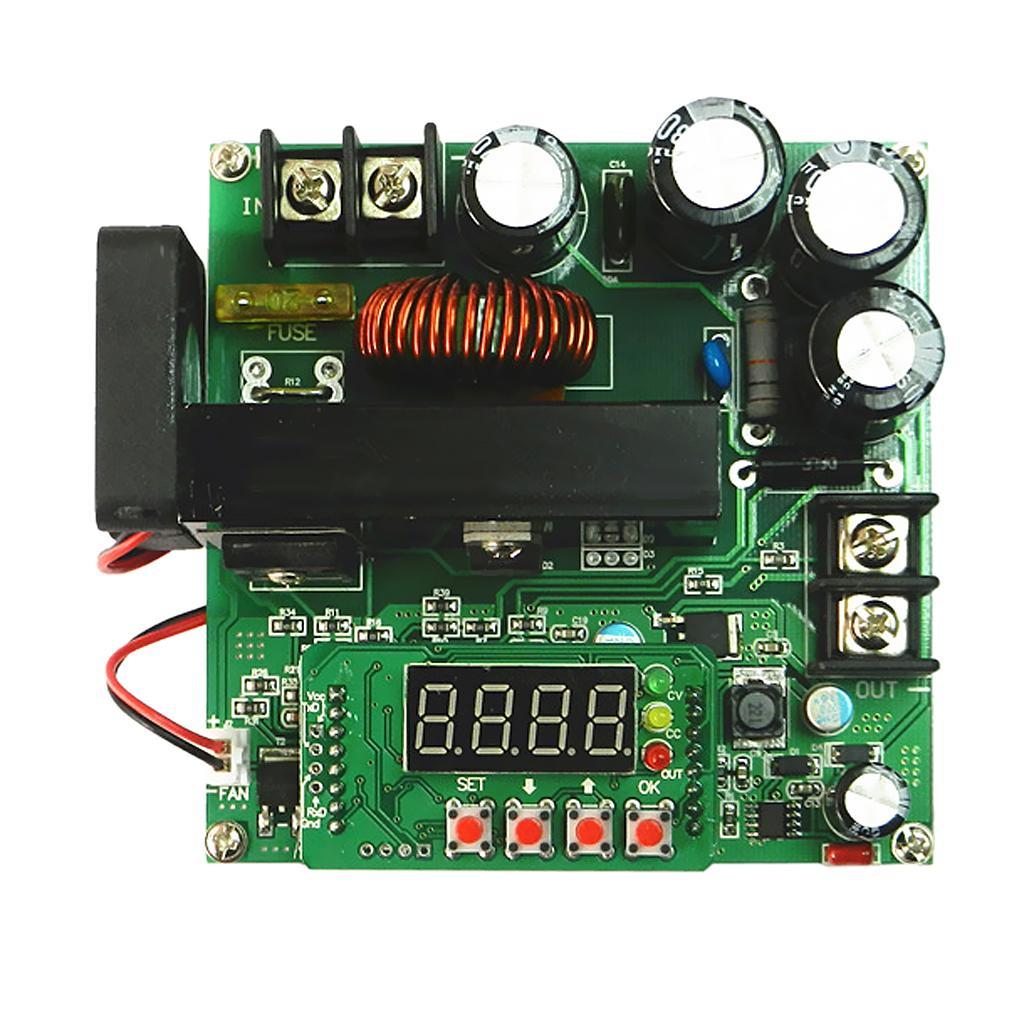

Using 4 high brightness LED, can display the output voltage, current, power and capacity and other parameters in real time;
Automatic / manual switching display voltage, current, power, capacity and other parameters;
with the output OUT, constant voltage CV, constant current CC indicator, you
Can view real-time job status;
Can be set whether to automatically output after power;
Can be a key to save the voltage and current values for the current setting.
Specification:
The modular nature :8V~60V
Input Voltage :0~15A
Output Current :10V~120V
Output voltage :0~15A
Conversion efficiency: 85%
Frequency :150KHz
Short circuit protection Constant Current
Operating Temperature:-40~+85degree
Control method :Digital control + LED display
The voltage regulator / displayresolution:<100V / 0.01V; >100V / 0.1V
The minimum resolution of power Display:0.001W
The current regulator / display resolution:<10A / 0.01A; >10A / 0.1A
The minimum resolution of capacity: 0.001AH
Output Ripple: ≤50mV
Package Includes:

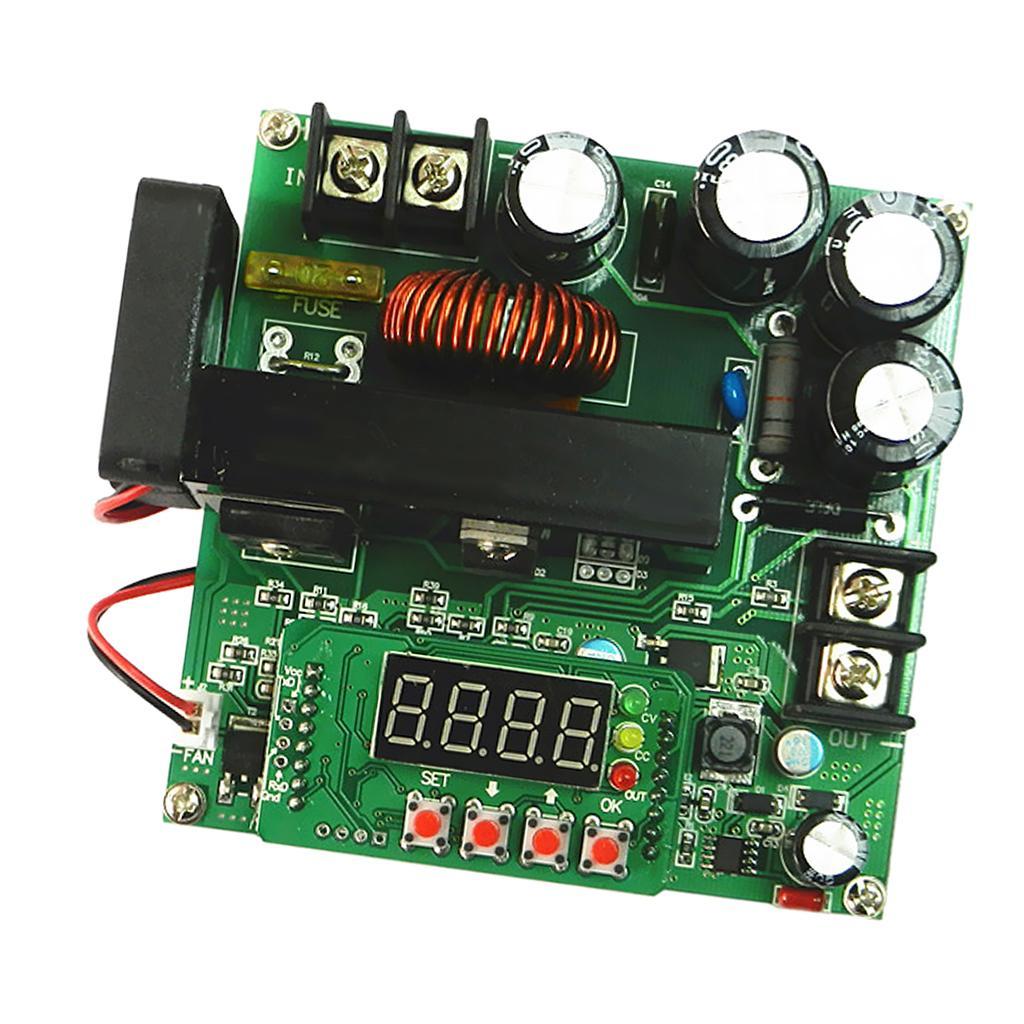

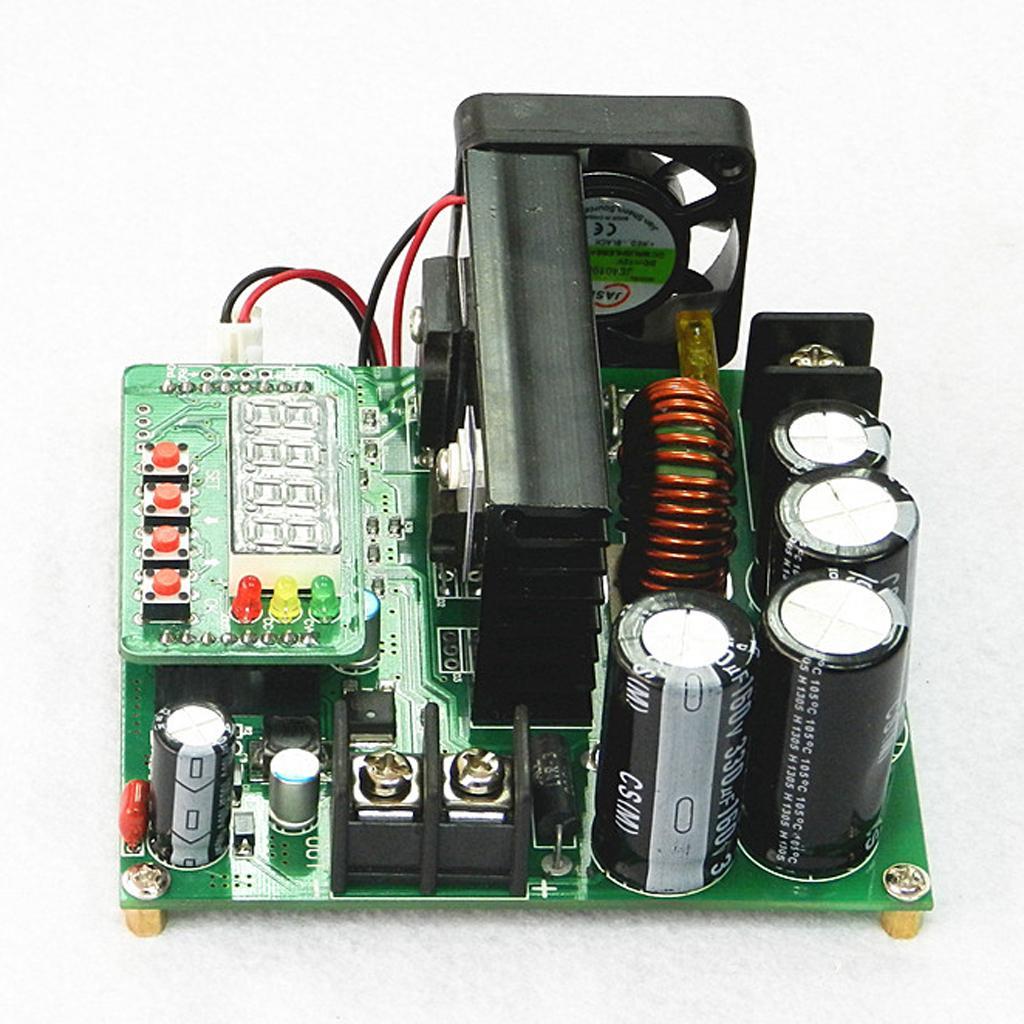

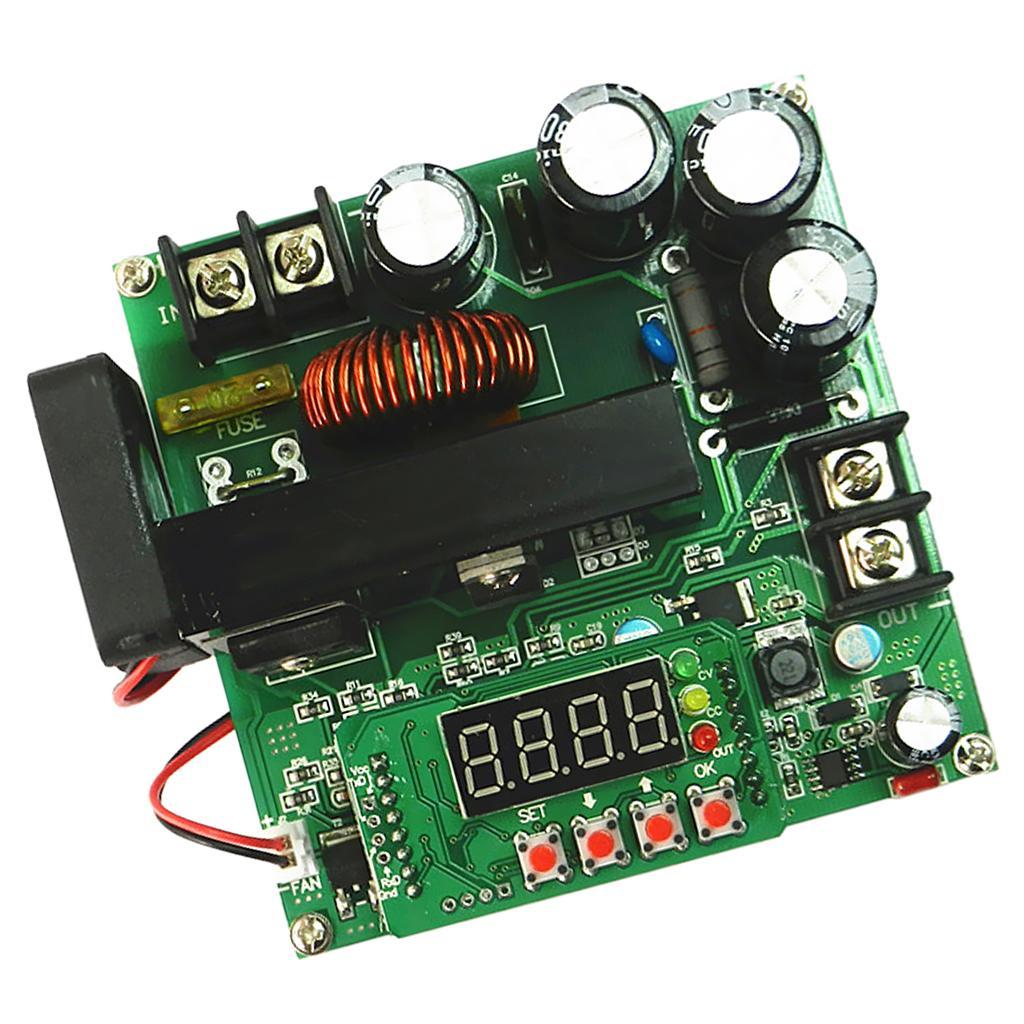

1 Piece of DC-DC boost Converter 8-60V Step-up 10-120V Module
