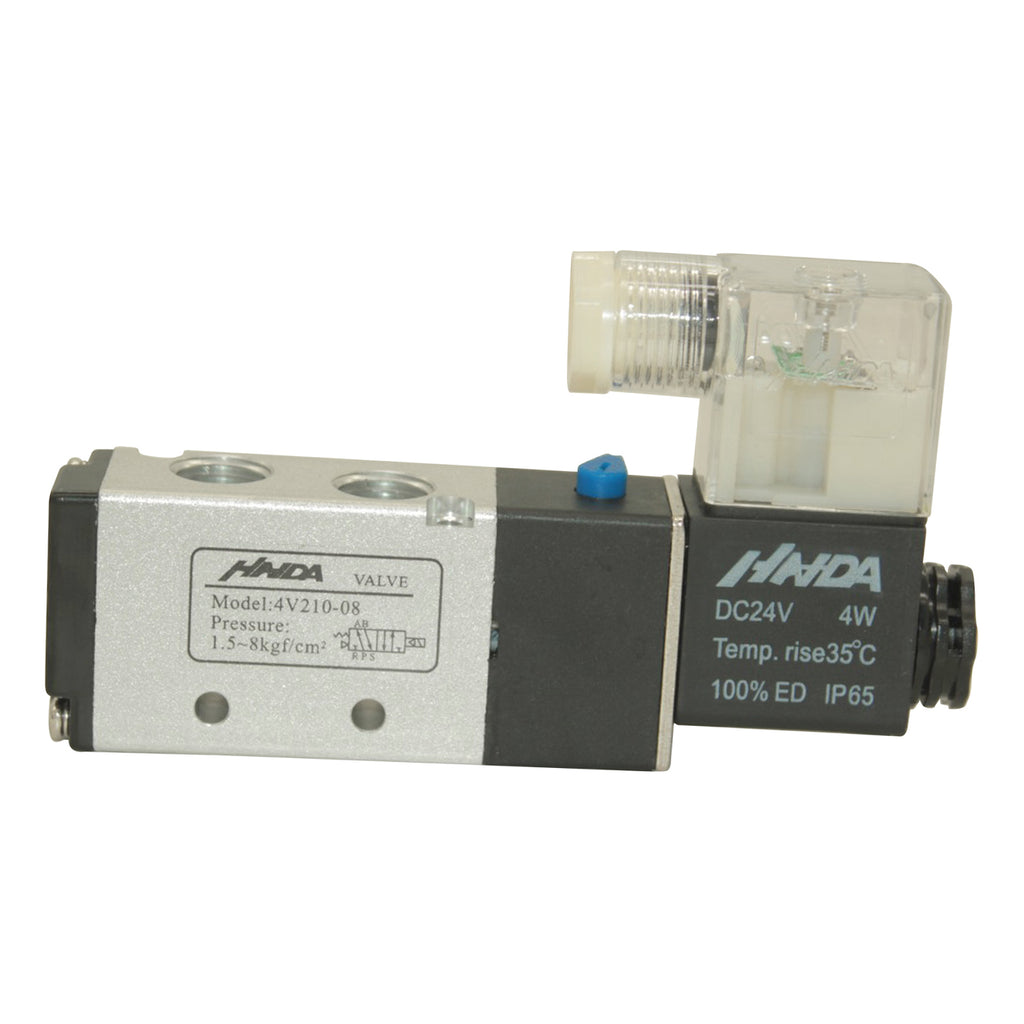

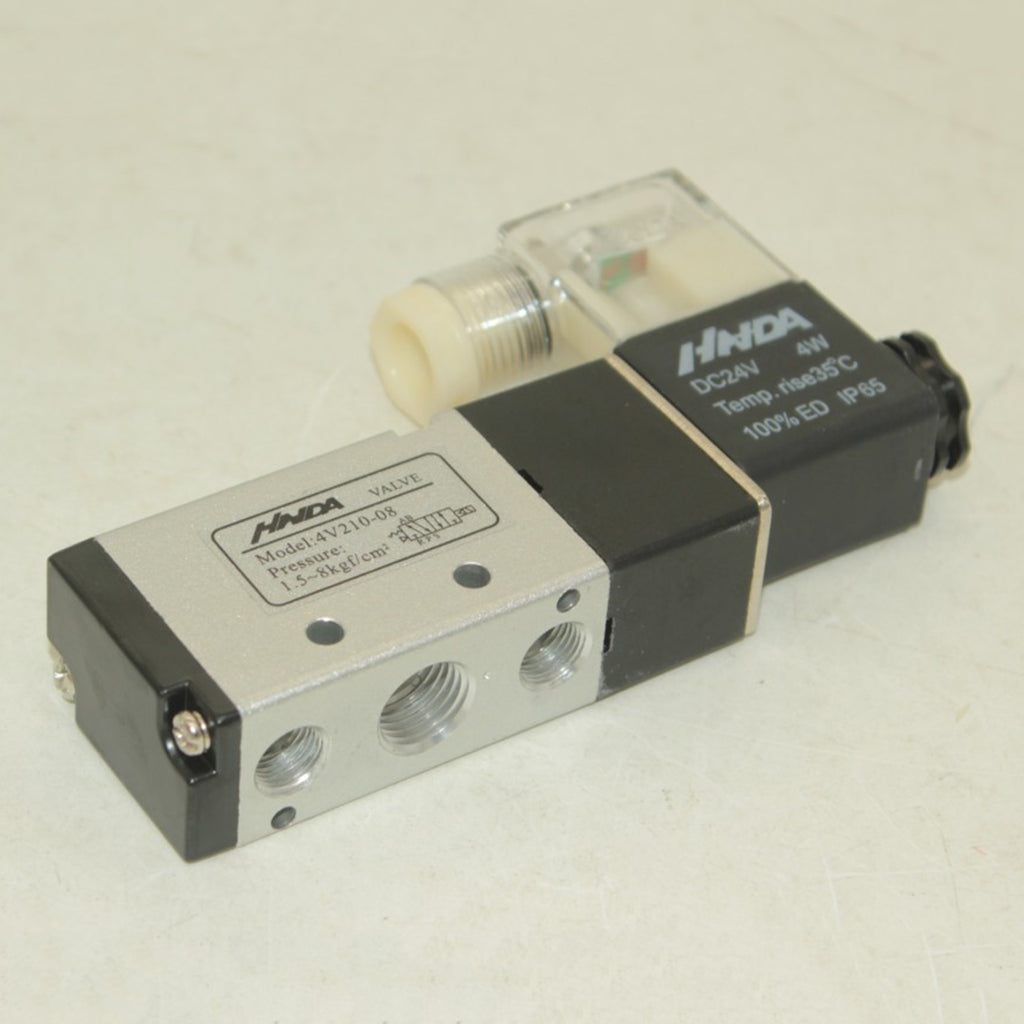

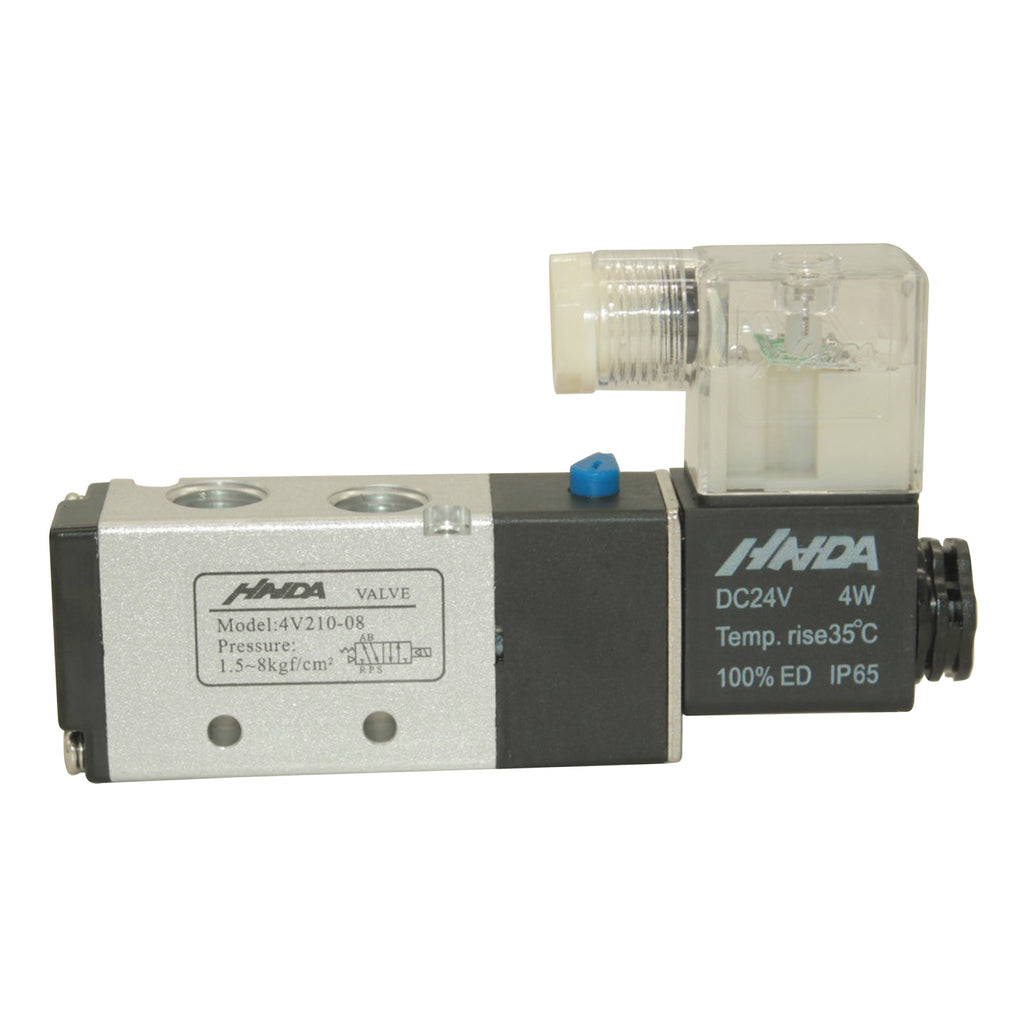

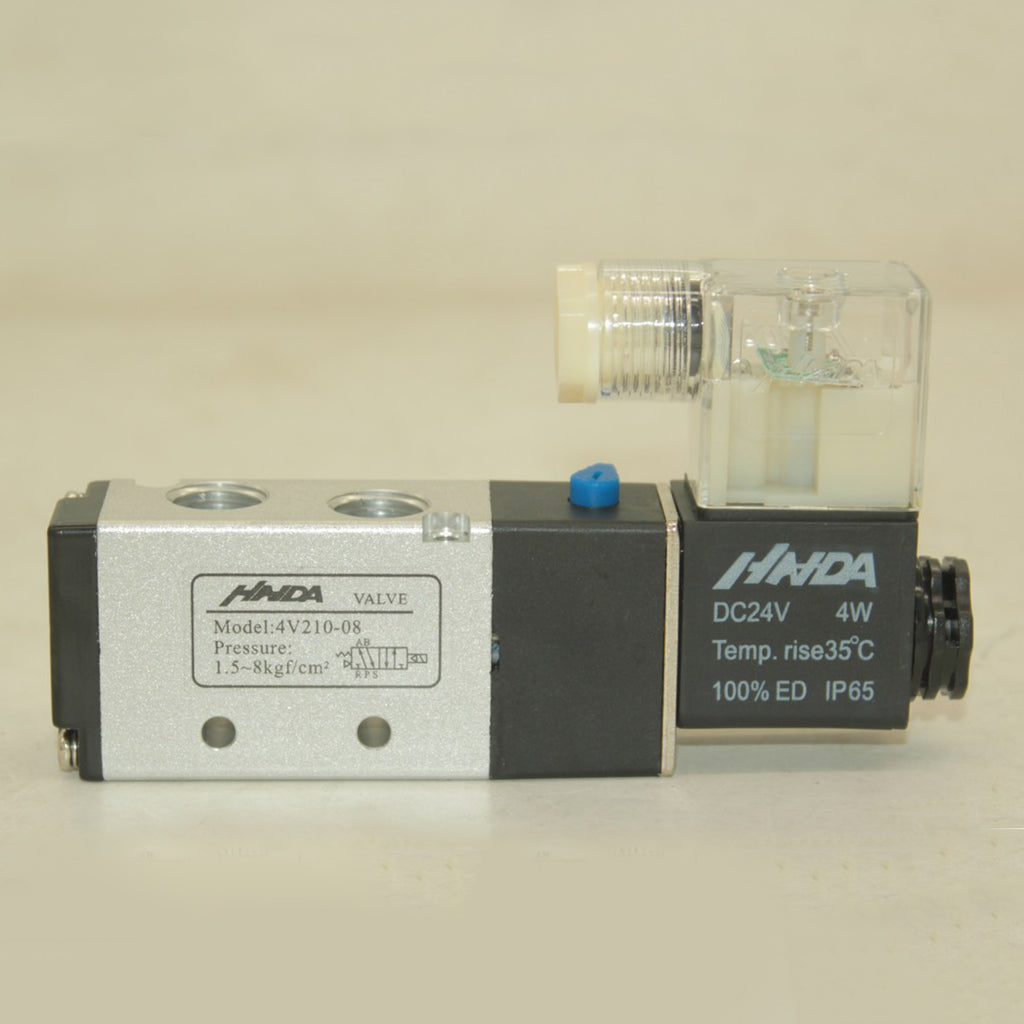

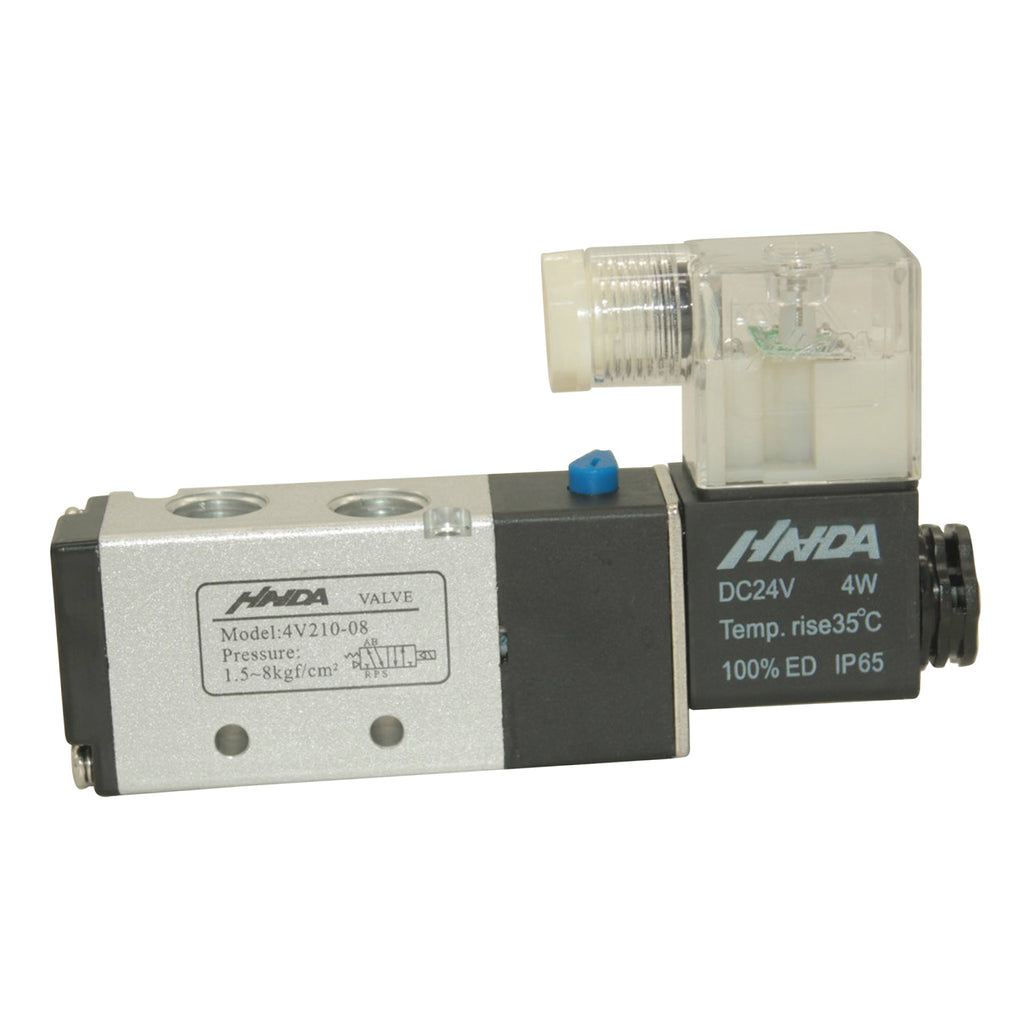

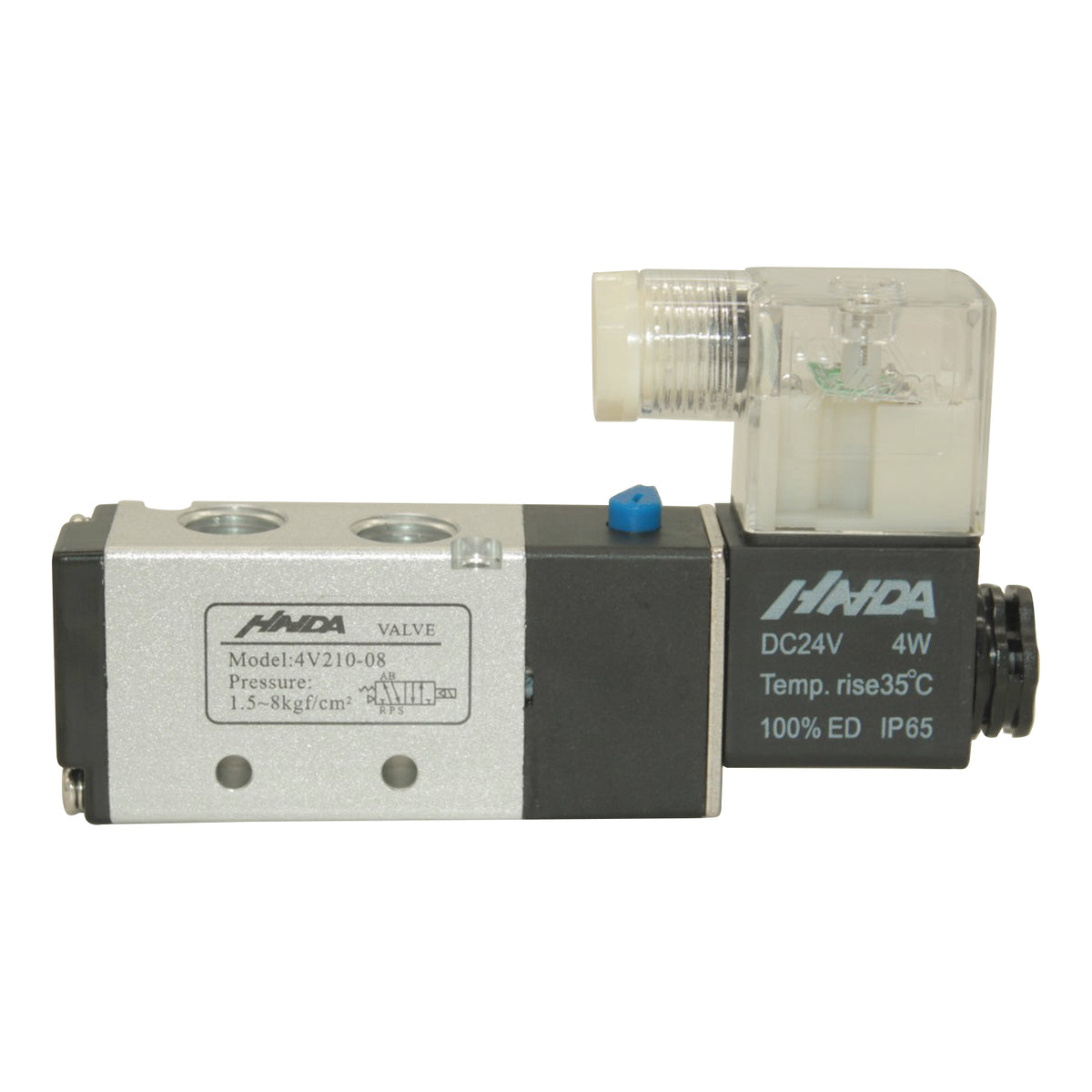

Maxbell DC 24V Solenoid Air Valve 5 Port 2 Position 4V210-08

Maxbell DC 24V Solenoid Air Valve 5 Port 2 Position 4V210-08

Rs. 1,874.00Rs. 3,748.00

Description:

  • Brand new and High quality
  • Voltage: DC 24V  2.5W
  • Position & Way Number Two-position, Five-way
  • Media: Air
  • Working Pressure: 0.17~0.7Mpa
  • Max. Pressure Resistance: 1.05Mpa
  • Fluid Temperature: 5-50℃
  • Effective Sectional Area 16mm2 (CV=0.78)
  • Joint Pipe Bore Inlet=Outlet=1/4'', Exhaust=1/8"
  • Hole: R/S thread (G1/8) : Approx. 9.7mm / 0.38inch
  • P thread (G1/4) : Approx. 12.7mm / 0.5inch
  • A,B thread (G1/4) : Approx. 12.7mm / 0.5inch
  • Valve Body: Brass

Package Includes:

  • 1 x Solenoid...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance

Product details

Description:

  • Brand new and High quality
  • Voltage: DC 24V  2.5W
  • Position & Way Number Two-position, Five-way
  • Media: Air
  • Working Pressure: 0.17~0.7Mpa
  • Max. Pressure Resistance: 1.05Mpa
  • Fluid Temperature: 5-50℃
  • Effective Sectional Area 16mm2 (CV=0.78)
  • Joint Pipe Bore Inlet=Outlet=1/4'', Exhaust=1/8"
  • Hole: R/S thread (G1/8) : Approx. 9.7mm / 0.38inch
  • P thread (G1/4) : Approx. 12.7mm / 0.5inch
  • A,B thread (G1/4) : Approx. 12.7mm / 0.5inch
  • Valve Body: Brass

Package Includes:

  • 1 x Solenoid Air Valve
