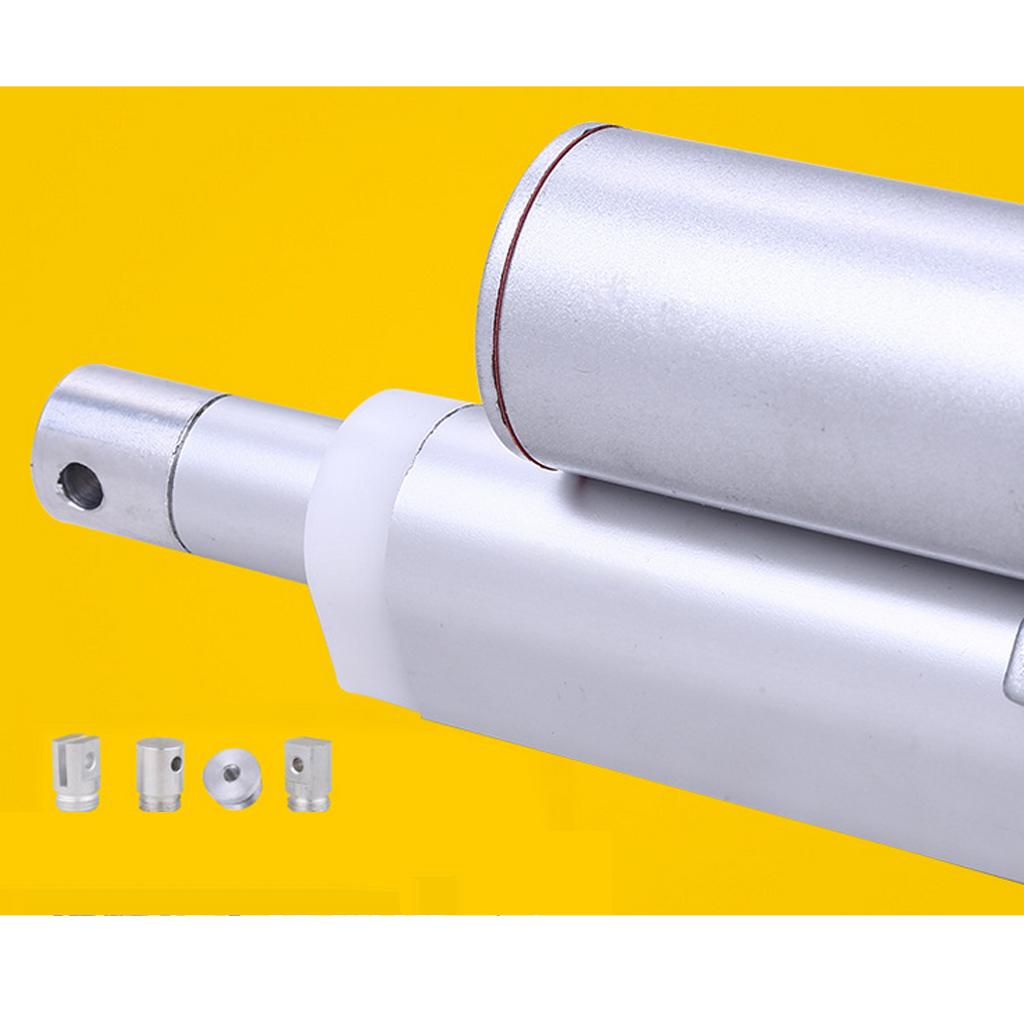

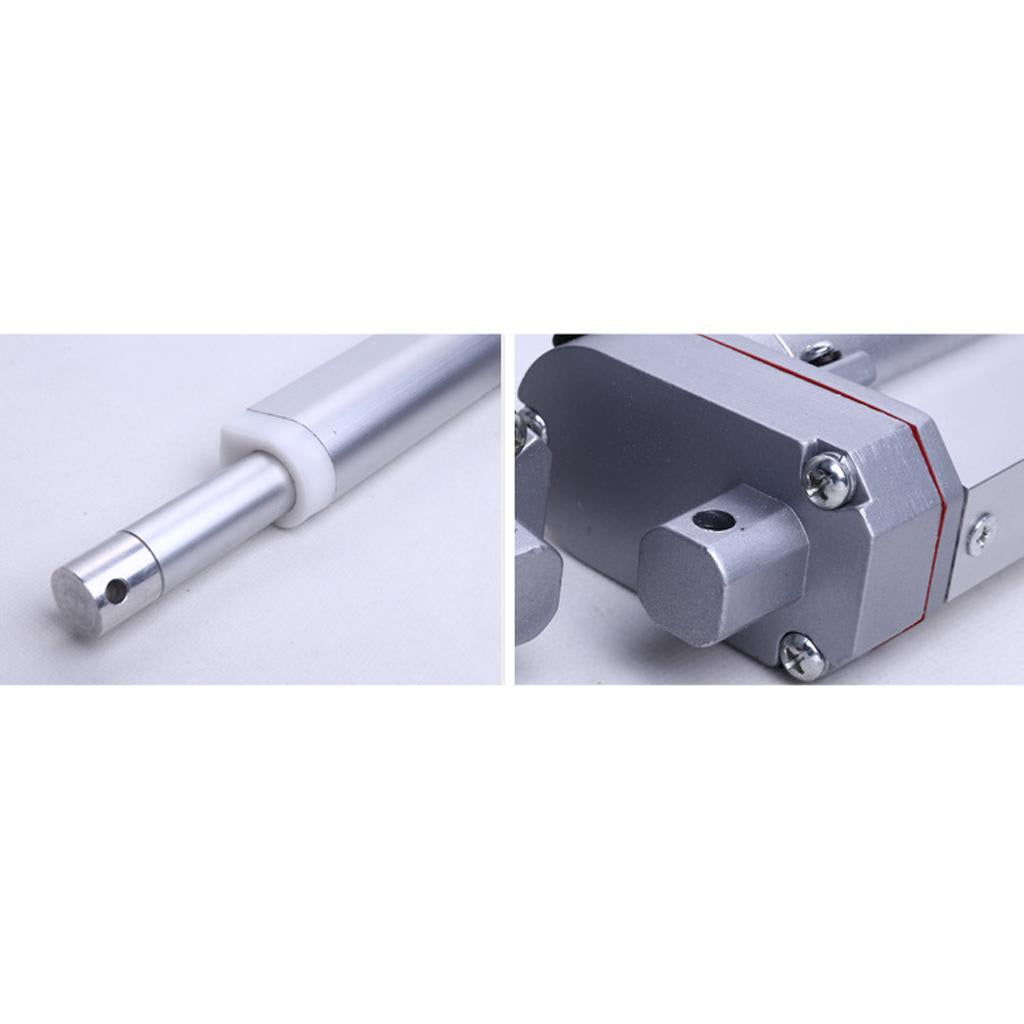

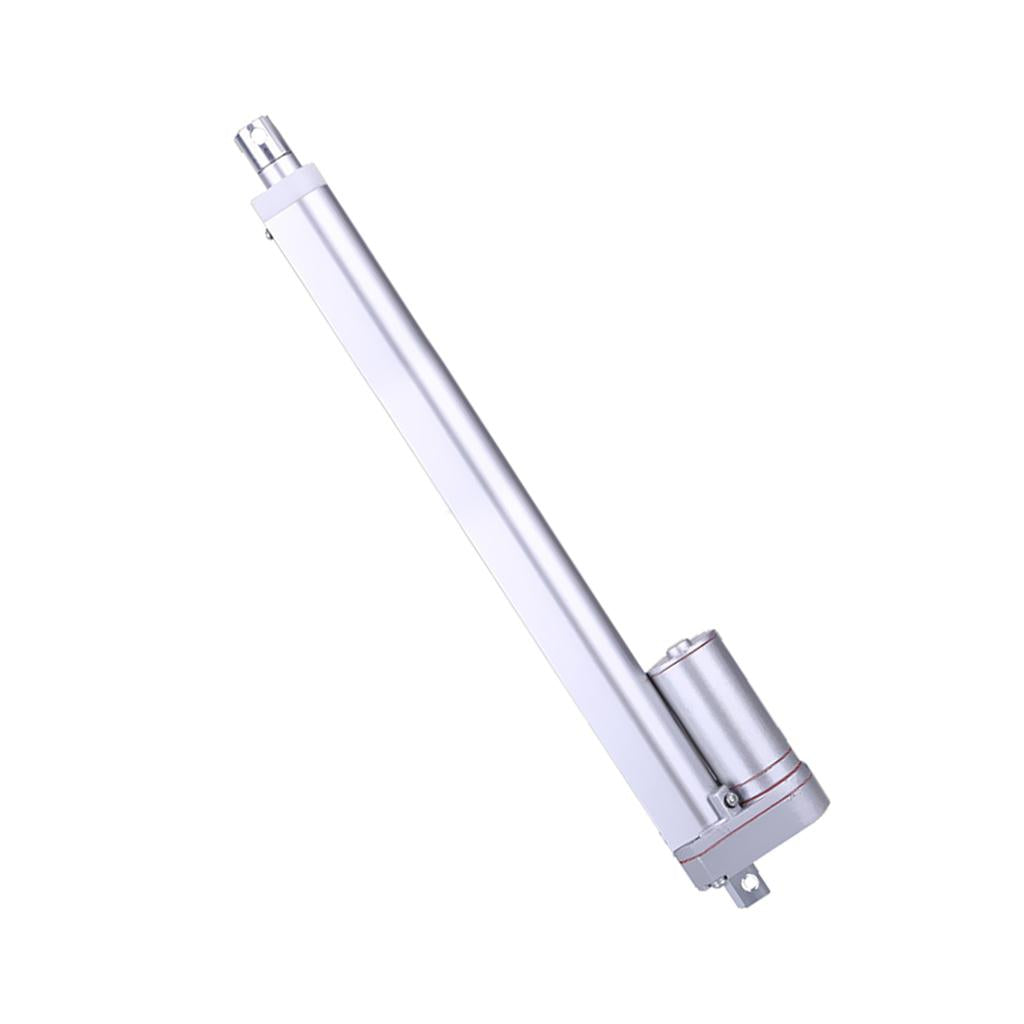

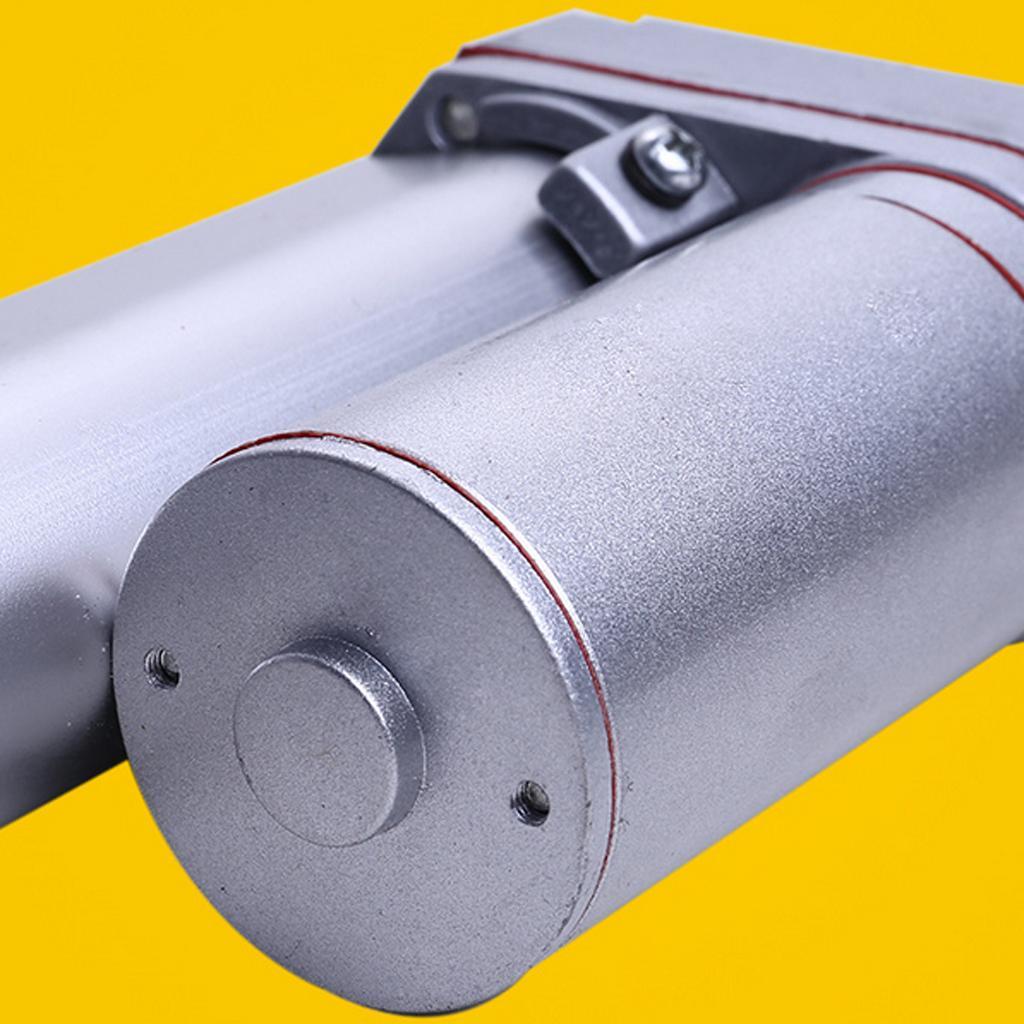

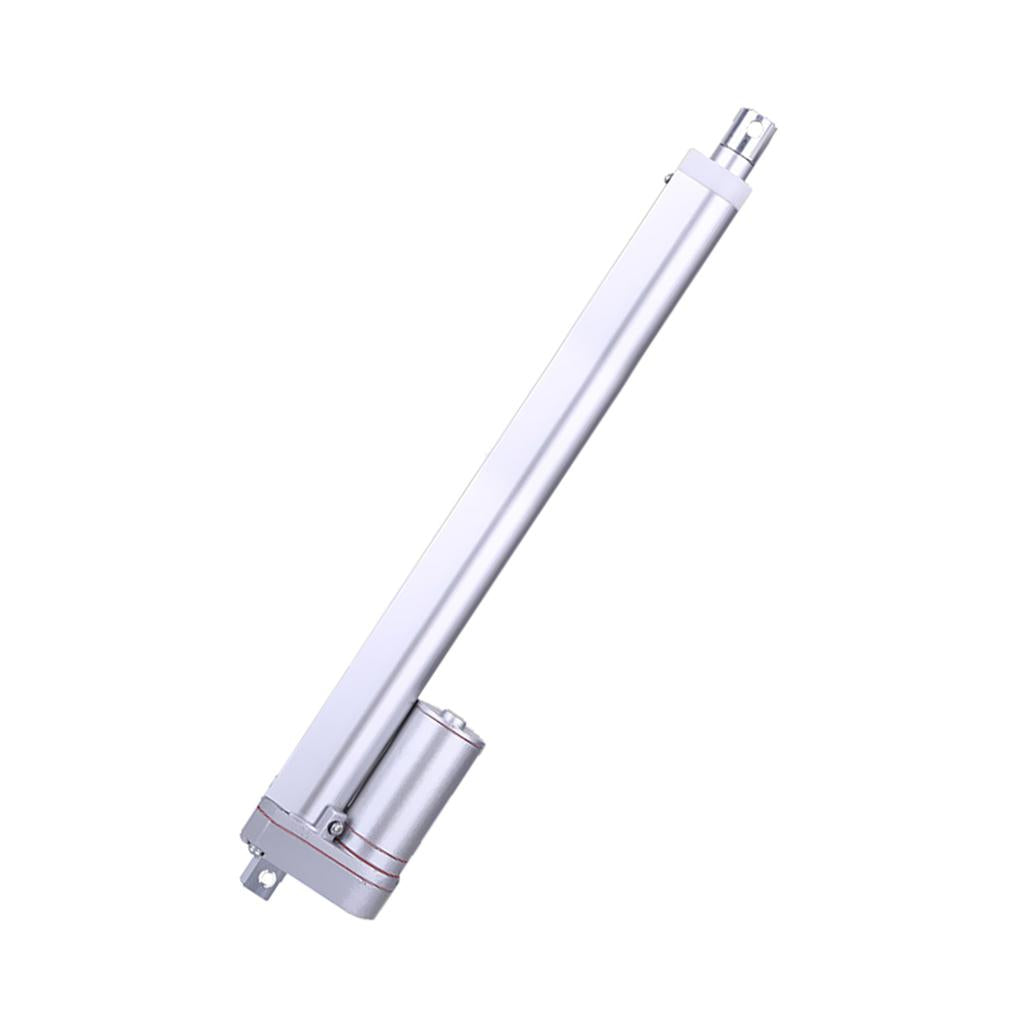

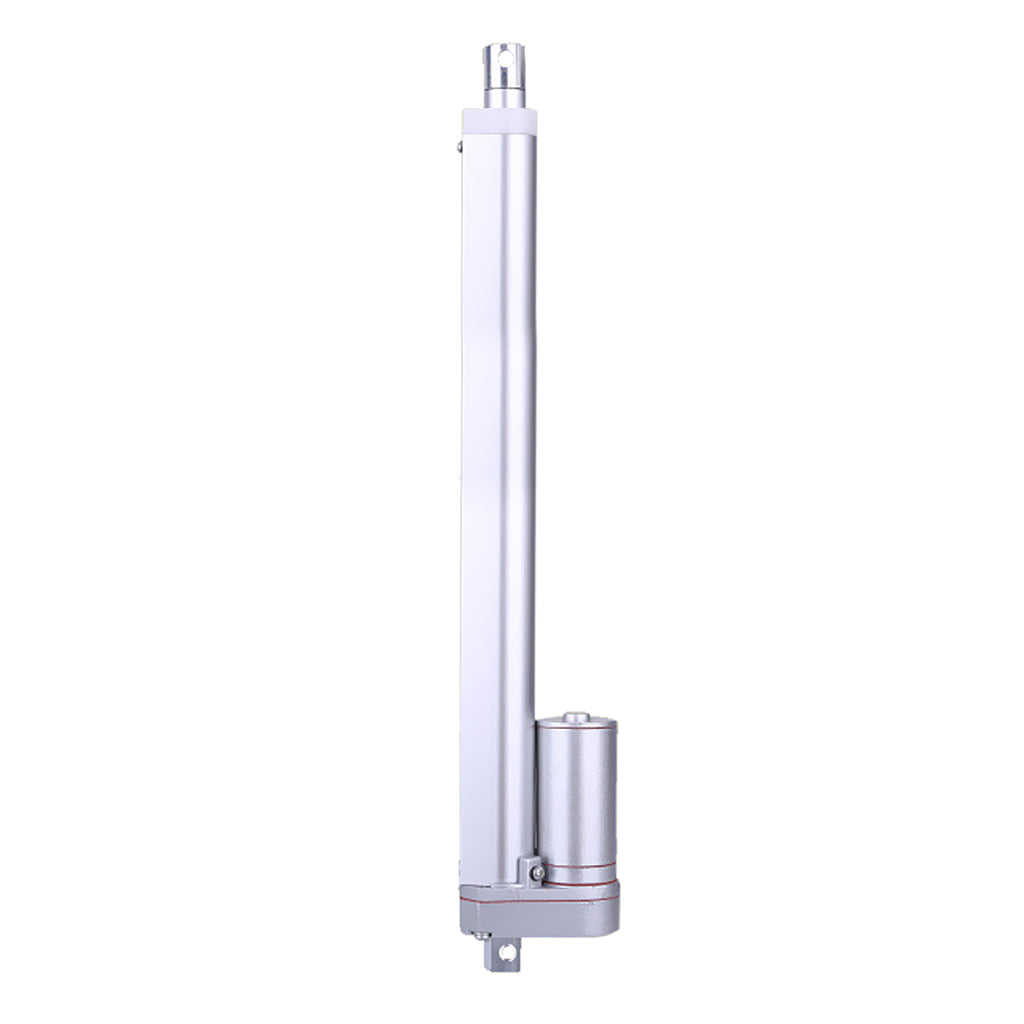

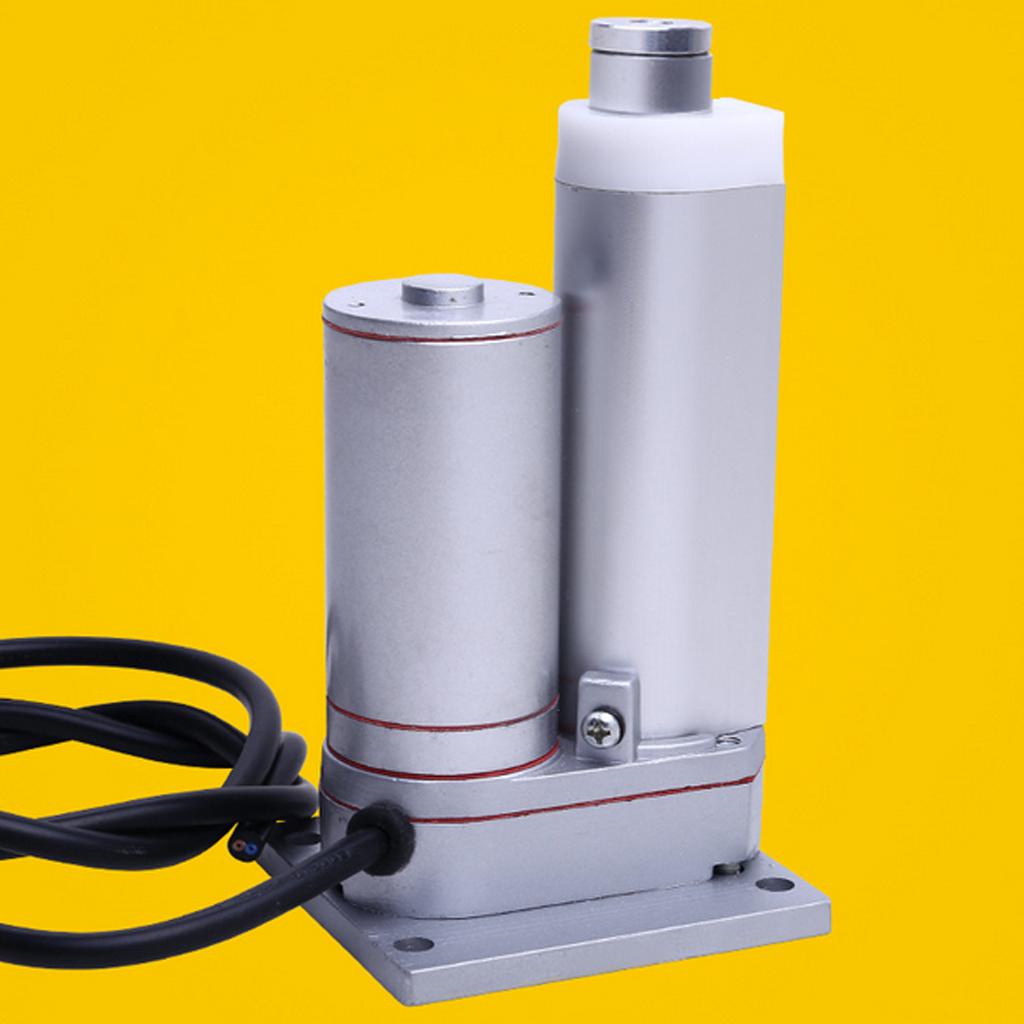

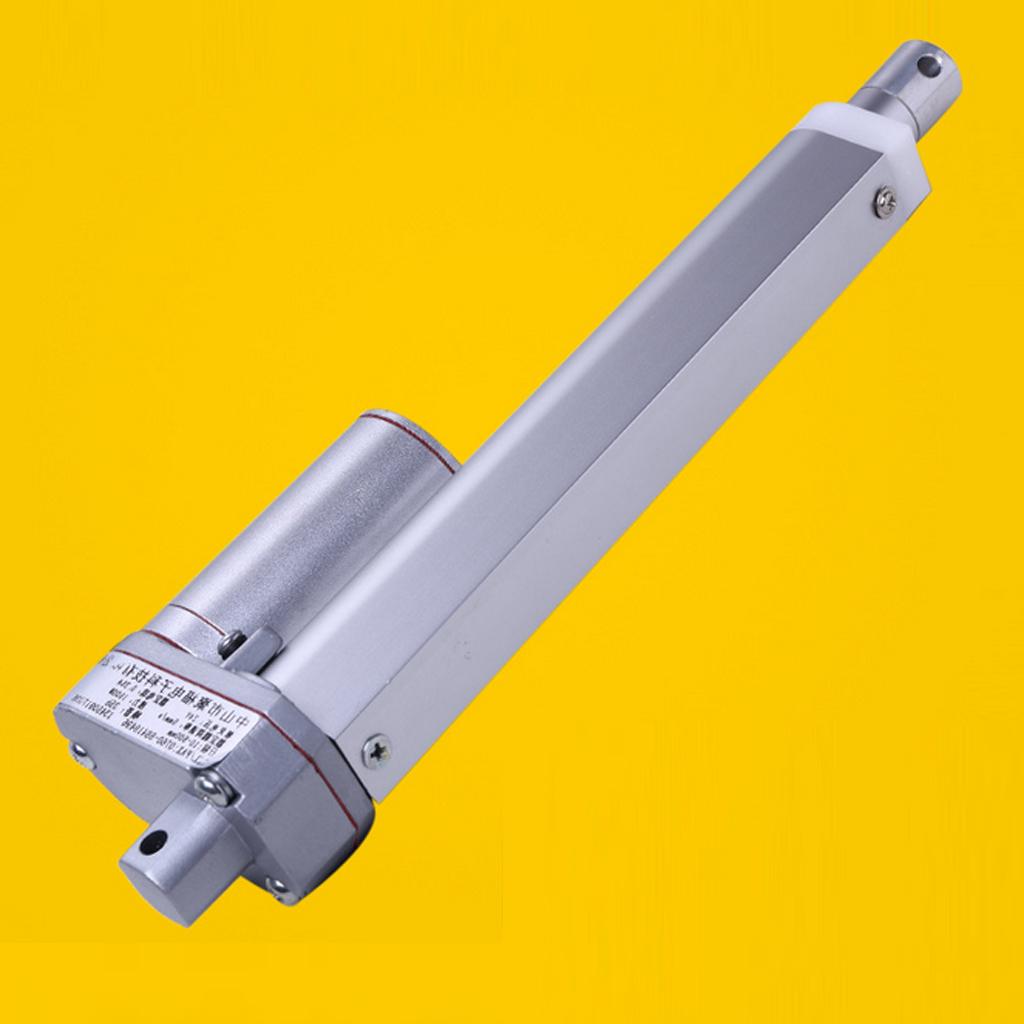

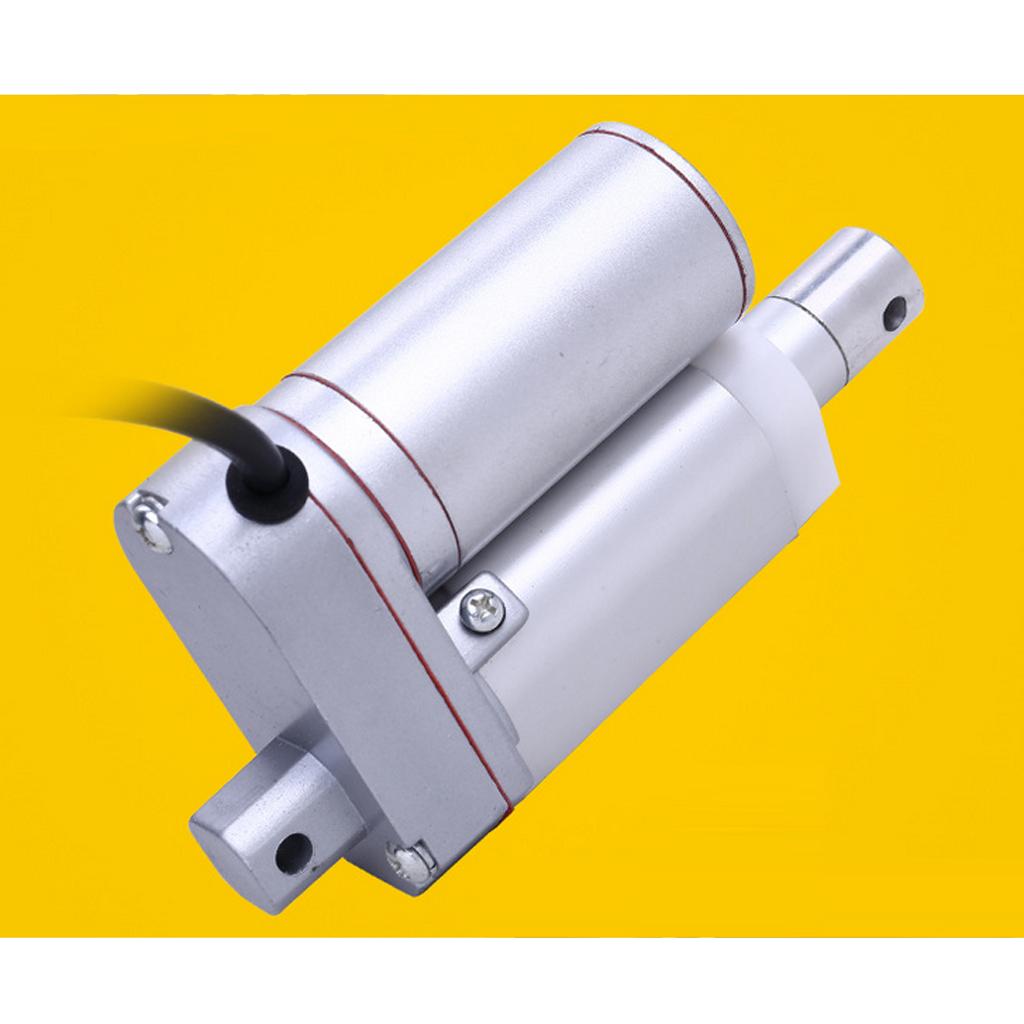

Description:
This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo, planes and many other applications.
It can replace hydraulic, pneumatic products for saving energy consumption.
Using DC motor drive screw rod, small-size, widely used.
Telescopic rod can be stopped anywhere in the process, and it will stop as the power is off.

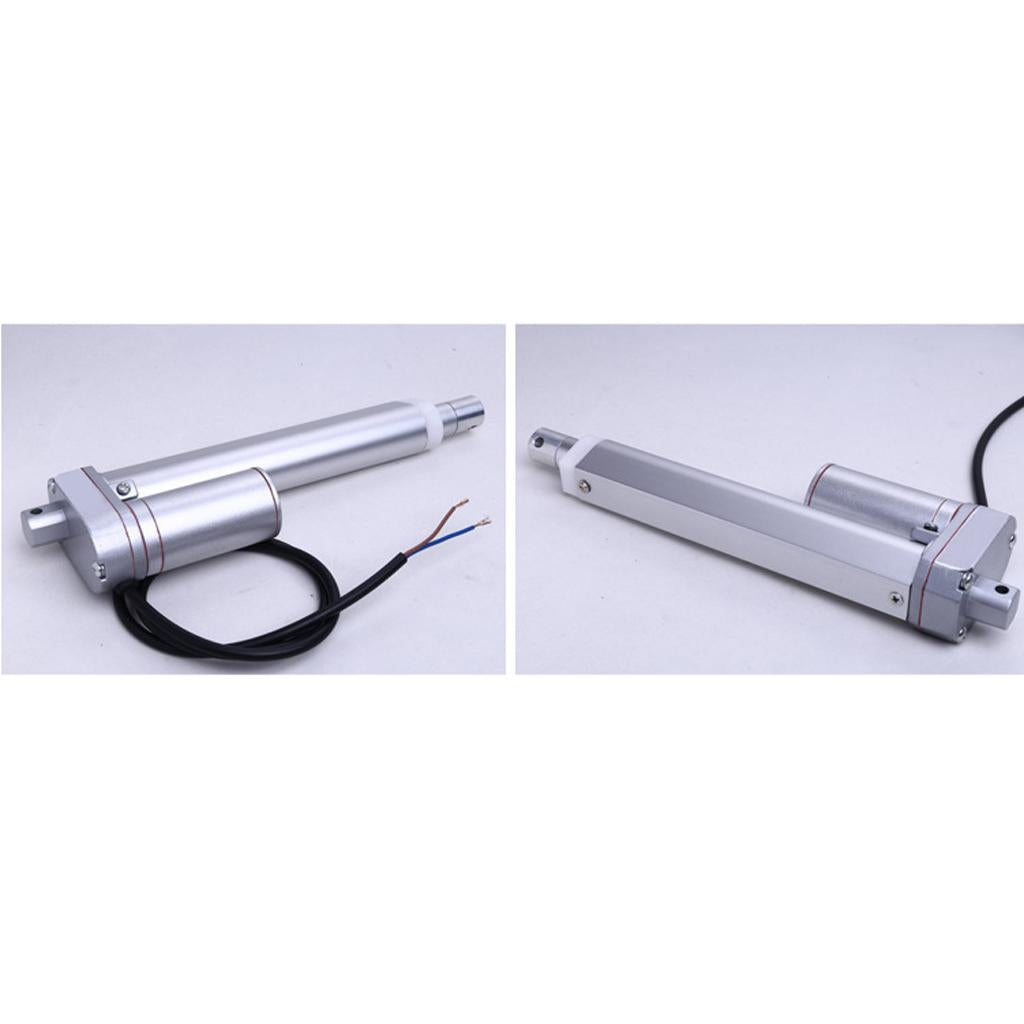

The motor has positive and negative poles. Replace the input way can change the stretching direction of the rod.
Aluminum alloy, compact structure, light weight, built-in micro-switch, can automatically stop the process.
Specification:
Material: Aluminum alloy
Input Voltage: 12V DC
Working frequency: 20%
Speed: 3-40mm/s
Load capacity: 100N-1500N(22-331lbs)
Size Chart:
10mm/0.4inch Stroke: Length: Approx. 105mm/4.13inch
20mm/0.8inch Stroke: Length: Approx. 115mm/4.53inch
30mm/1.2inch Stroke: Length: Approx. 135mm/4.13inch
40mm/1.6inch Stroke: Length: Approx. 145mm/5.31inch
50mm/2inch Stroke: Length: Approx. 155mm/6.1inch
60mm/2.4inch Stroke: Length: Approx. 165mm/6.5inch
70mm/2.8inch Stroke: Length: Approx. 175mm/6.89inch
80mm/3.15inch Stroke: Length: Approx. 185mm/7.28inch
90mm/3.5inch Stroke: Length: Approx. 195mm/7.68inch
100mm/3.9inch Stroke: Length: Approx. 205mm/8.07inch
110mm/4.3inch Stroke: Length: Approx. 215mm/8.46inch
120mm/4.7inch Stroke: Length: Approx. 225mm/8.86inch
130mm/5.1inch Stroke: Length: Approx. 235mm/9.25inch
140mm/5.5inch Stroke: Length: Approx. 245mm/9.65inch
150mm/5.9inch Stroke: Length: Approx. 255mm/10.04inch
160mm/6.3inch Stroke: Length: Approx. 265mm/10.43inch
170mm/6.7inch Stroke: Length: Approx. 275mm/10.83inch
180mm/7.1inch Stroke: Length: Approx. 285mm/11.22inch
190mm/7.5inch Stroke: Length: Approx. 295mm/11.61inch
200mm/7.9inch Stroke: Length: Approx. 320mm/12.6inch

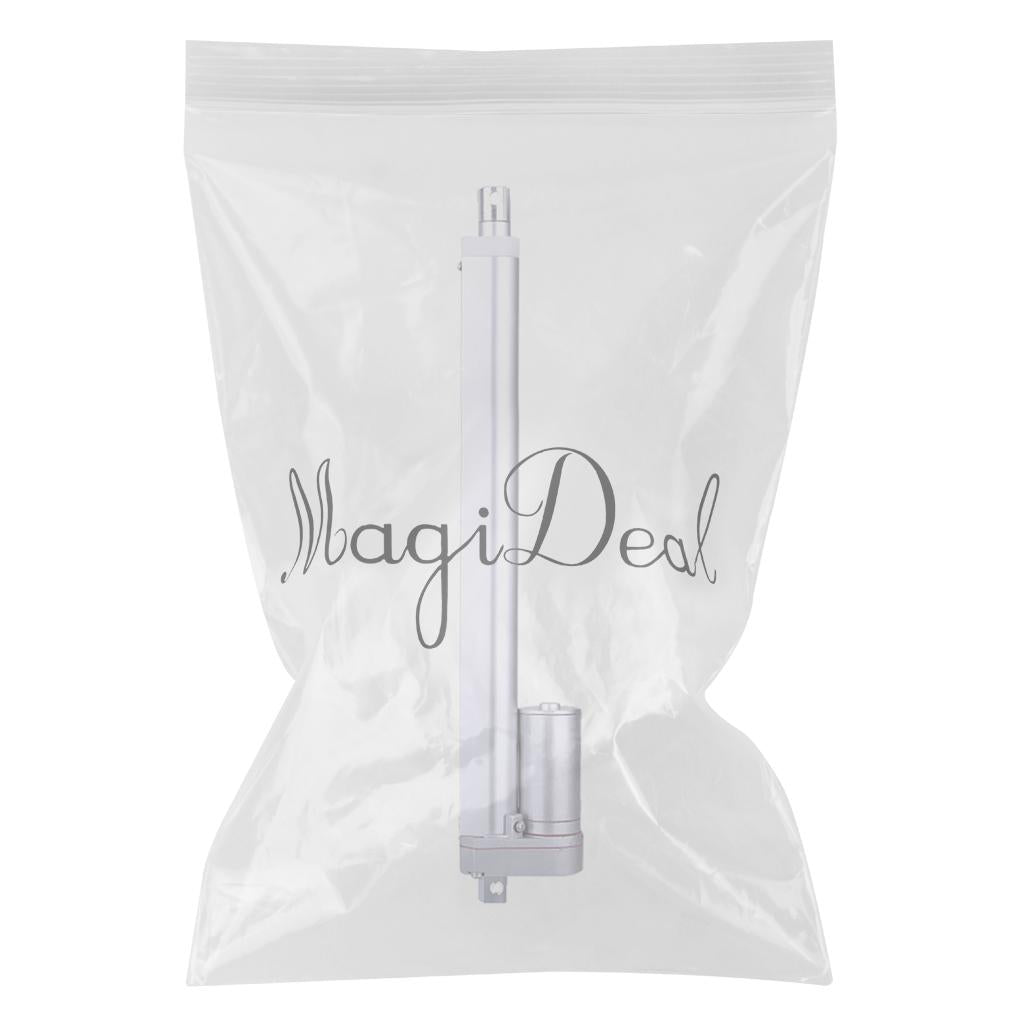

Package Includes:
1 Piece of Linear Actuator Motor
