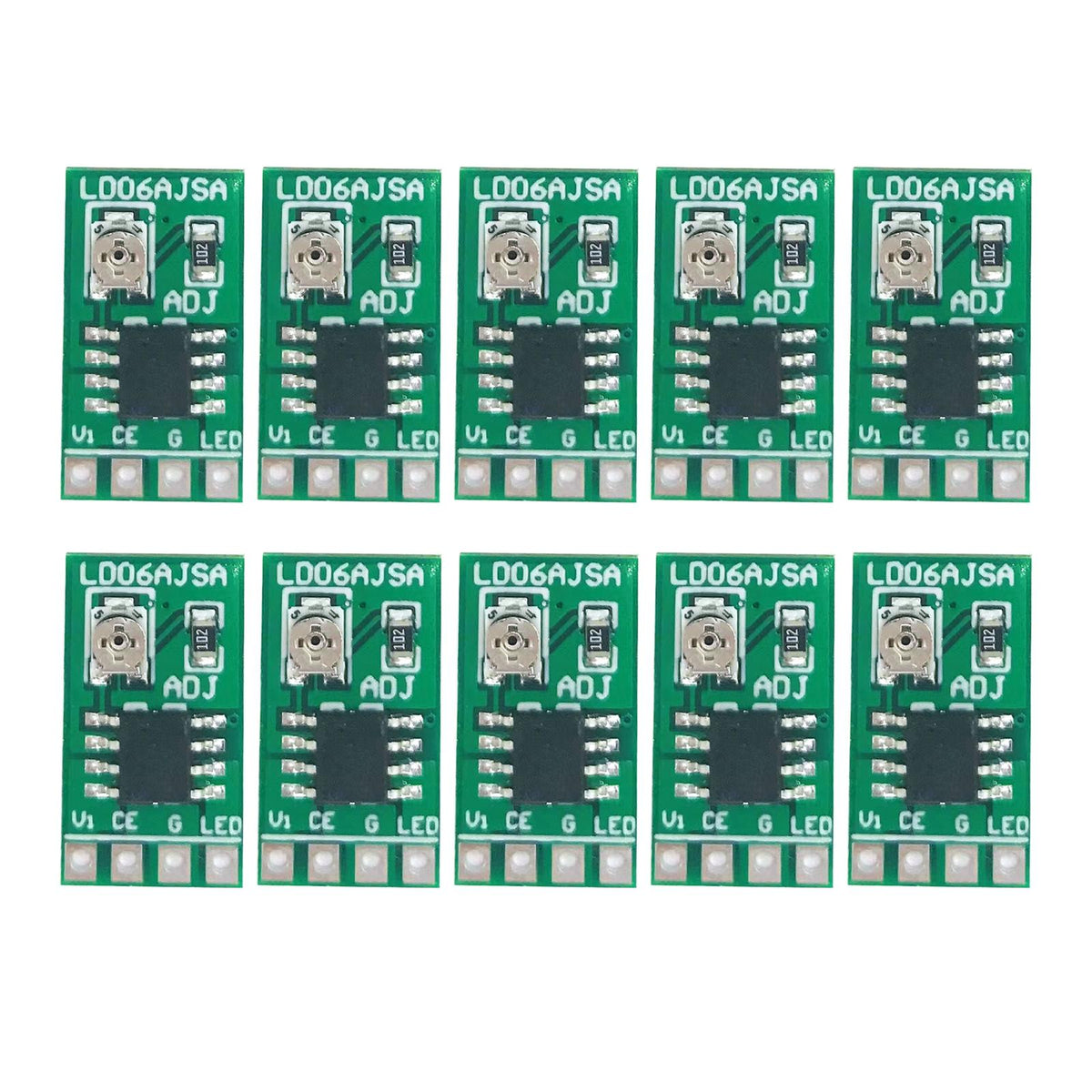

Maxbell Adjustable Current LED Driver Constant Current Converter Integrated Circuits
Rs. 4,017.00Rs. 8,034.00
Description:
ADJUSTABLE CURRENT LED DRIVER: Current regulation integrated circuit, input voltage 2.8V to 6V.
SUITABLE: It consists of high precision reference voltage, amplifier, current mirror, etc. Great for LED driver.
FEATURES: Temperature regulation instead of temperature protection.
CONSTANT CURRENT ADJUSTABLE MODULE: With chip enable function, which can shutdown the whole chip, the current consumption within 1uA.
OVERCURRENT PROTECTION: Overcurrent Protection. When LED current approaches 1.9A, the overcurrent protection block begins to function to prevent LED current from increasing further.
Specification:
Material: Electronic Components
2.8-6V (Perfect for 3V 3.3V 3.7V 4.5V 5V 6V LED Driver)
Output Current: 30~1500mA
9W
Size Chart:
18mmx10.3mmx2.8mm/0.71inchx0.41inchx0.11inch
Package Includes:
10...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
ADJUSTABLE CURRENT LED DRIVER: Current regulation integrated circuit, input voltage 2.8V to 6V.
SUITABLE: It consists of high precision reference voltage, amplifier, current mirror, etc. Great for LED driver.
FEATURES: Temperature regulation instead of temperature protection.
CONSTANT CURRENT ADJUSTABLE MODULE: With chip enable function, which can shutdown the whole chip, the current consumption within 1uA.
OVERCURRENT PROTECTION: Overcurrent Protection. When LED current approaches 1.9A, the overcurrent protection block begins to function to prevent LED current from increasing further.
Specification:
Material: Electronic Components
2.8-6V (Perfect for 3V 3.3V 3.7V 4.5V 5V 6V LED Driver)
Output Current: 30~1500mA
9W
Size Chart:
18mmx10.3mmx2.8mm/0.71inchx0.41inchx0.11inch
Package Includes:
10 Adjustable Current LED Driver
Note:
Please allow slightly errors due to manual measurement and different monitors.
