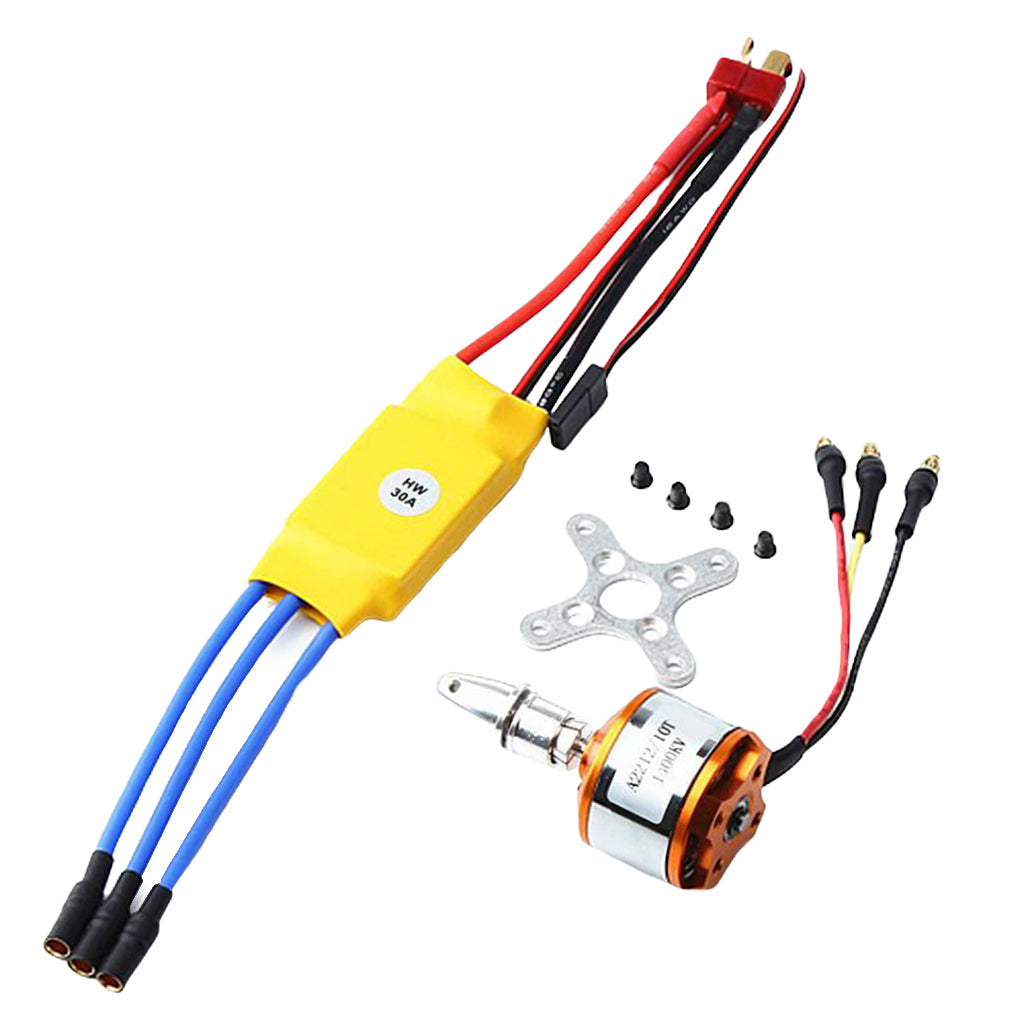

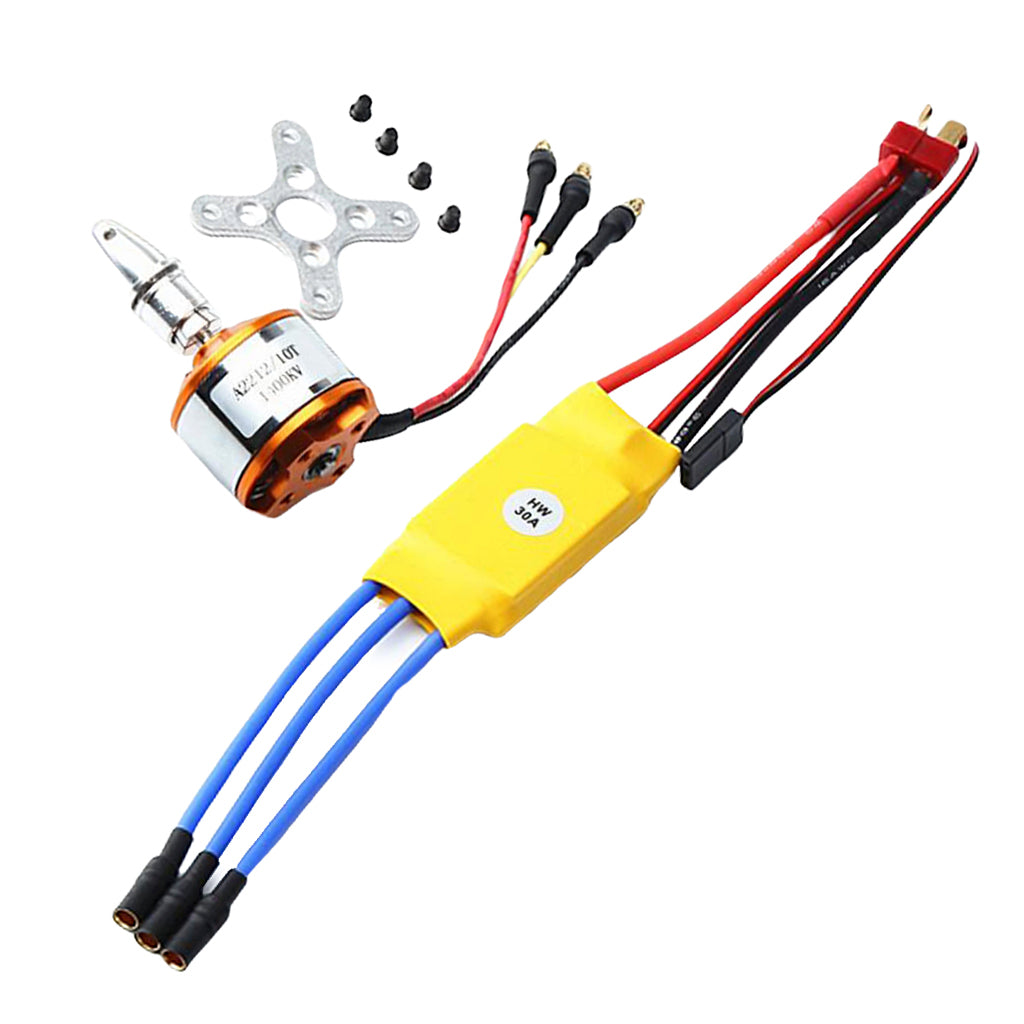

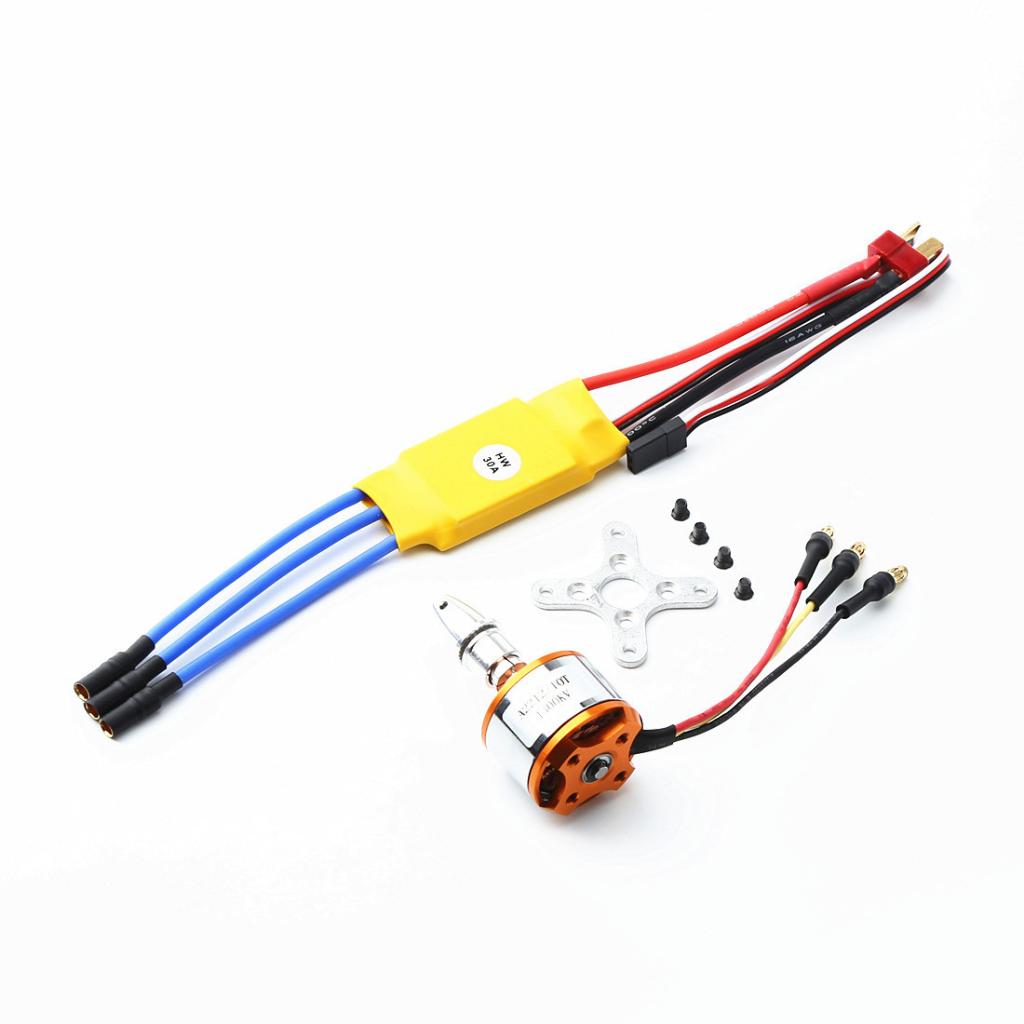

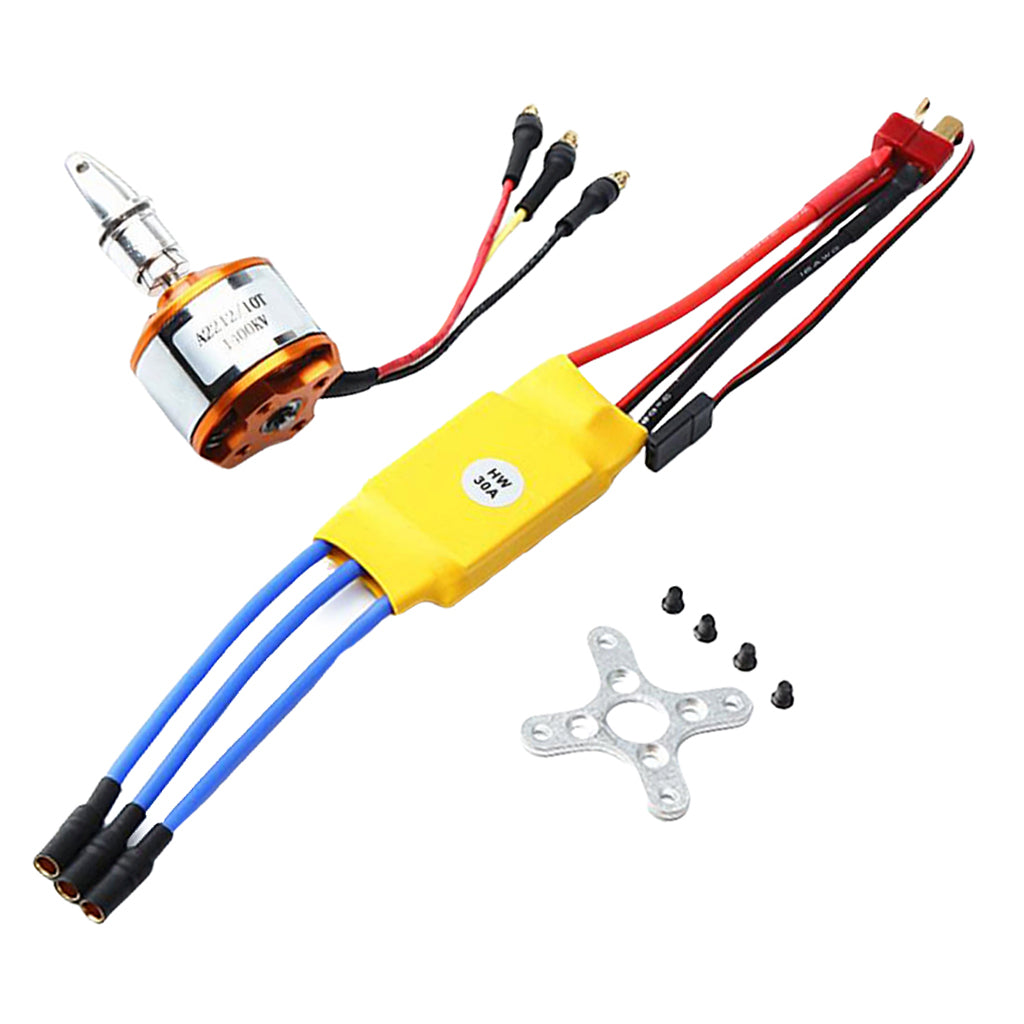

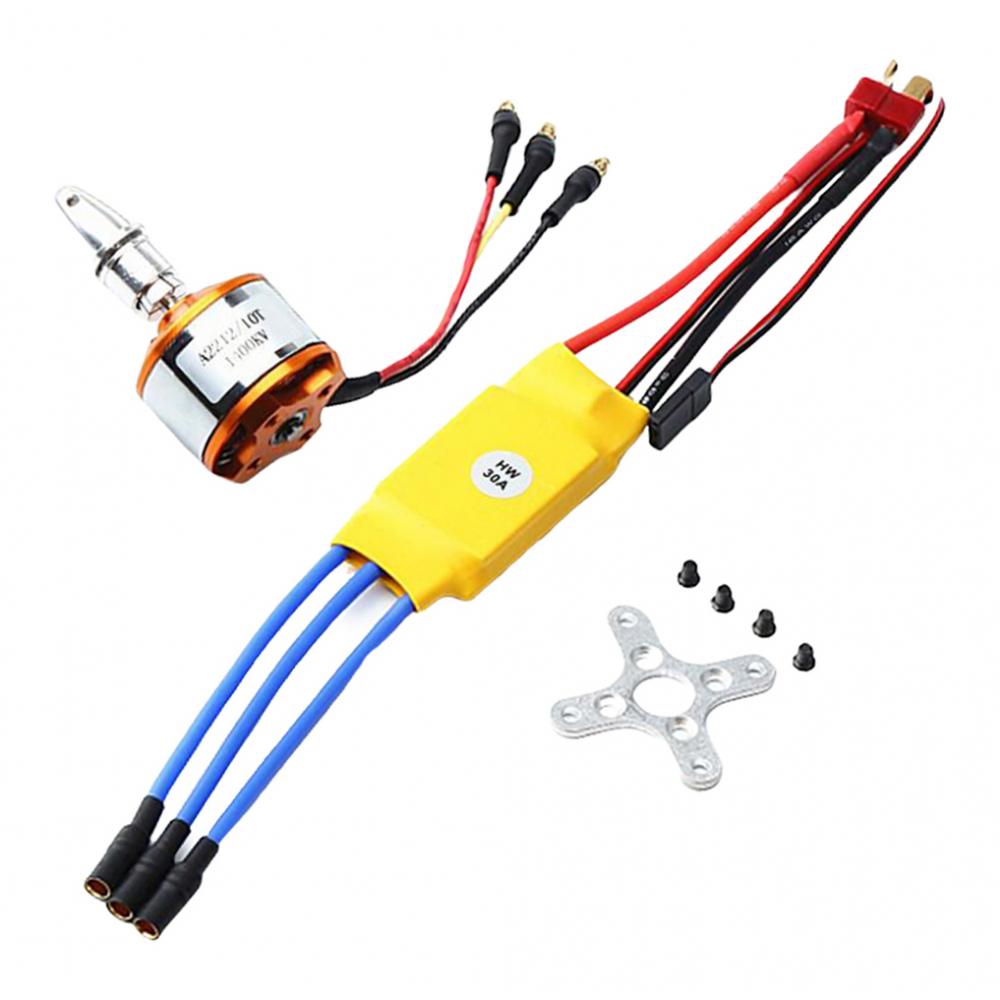

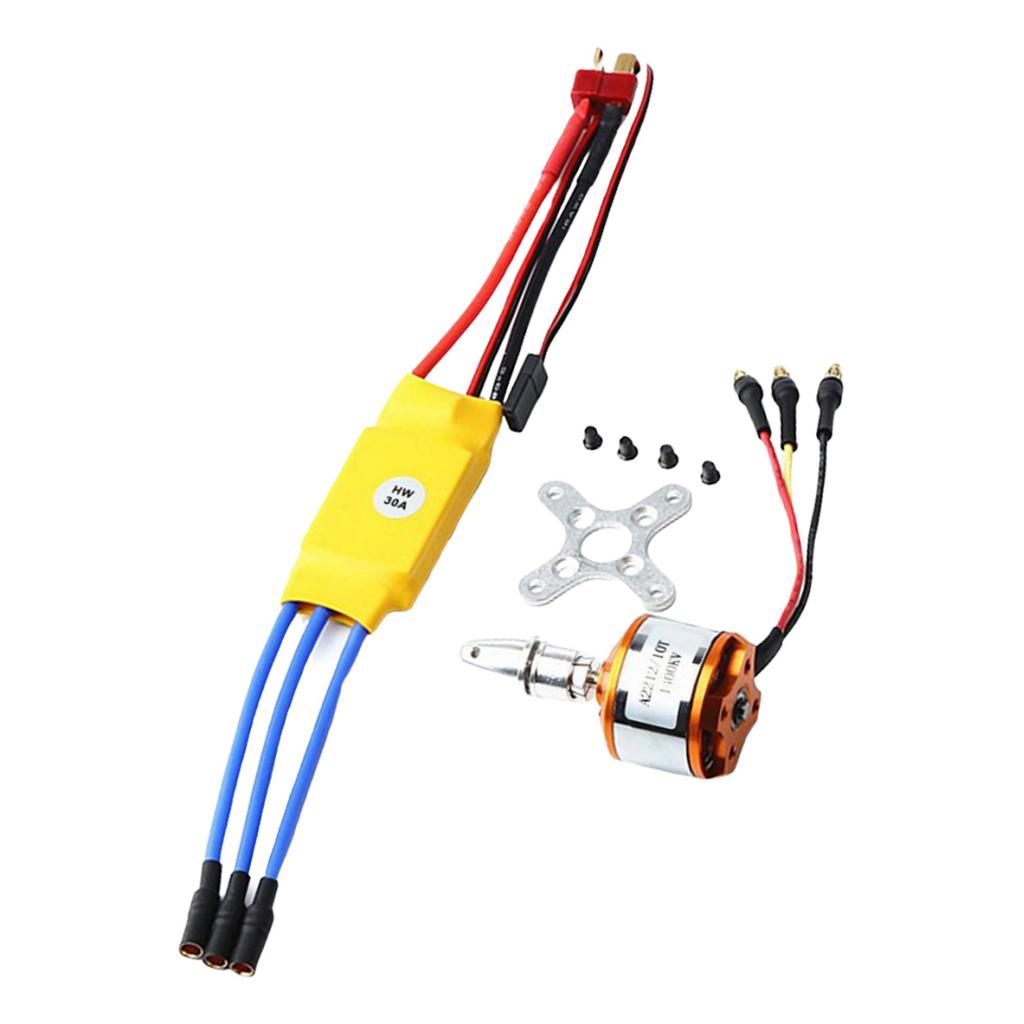

Maxbell A2212 Brushless Motor 30A ESC With T Plug & 3.5mm Banana Connectors KV2200
Description:
100% Brand New and High Quality.
Compatible with Lipo and NiMH battery.
Timing can be changed to be suitable for different brushless motors.
Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Easy and quick Installation.
Specification:

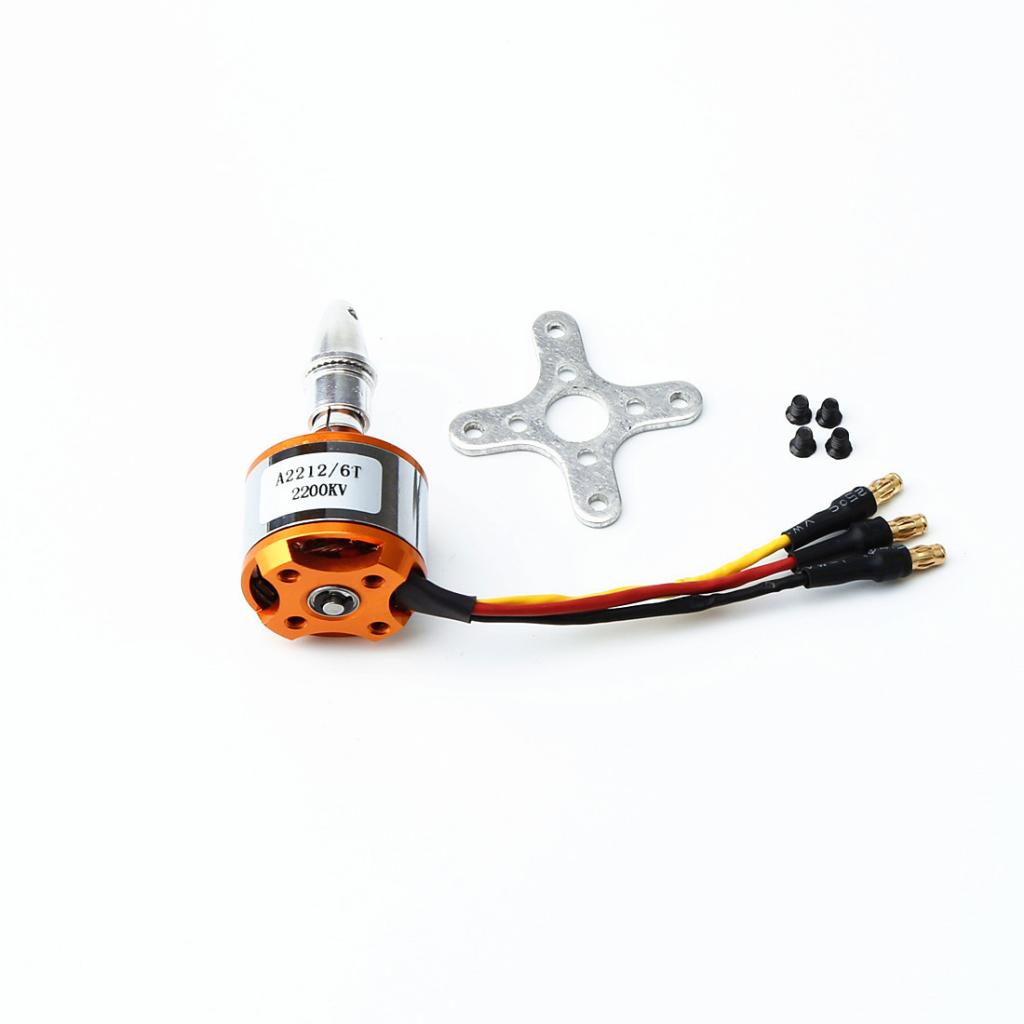

A2212 Motor Specification:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Weight: 47g

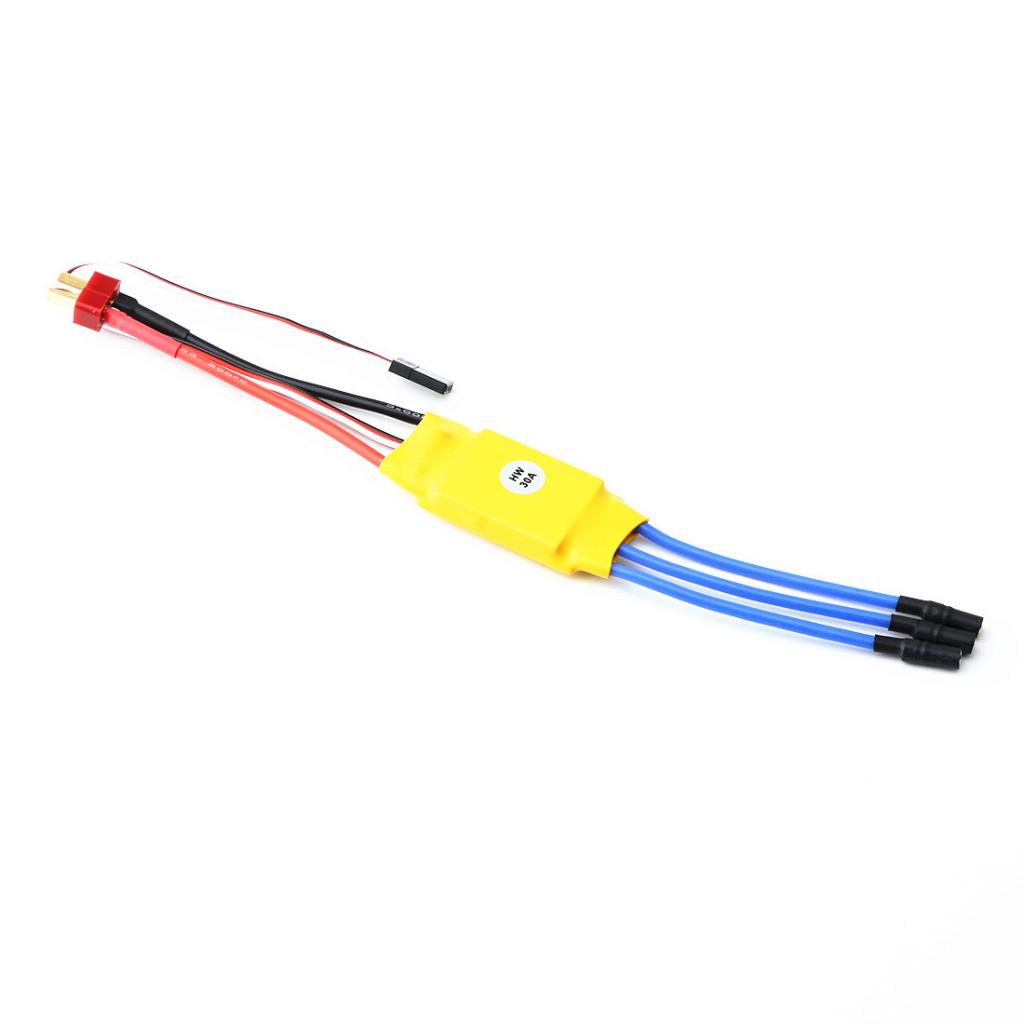

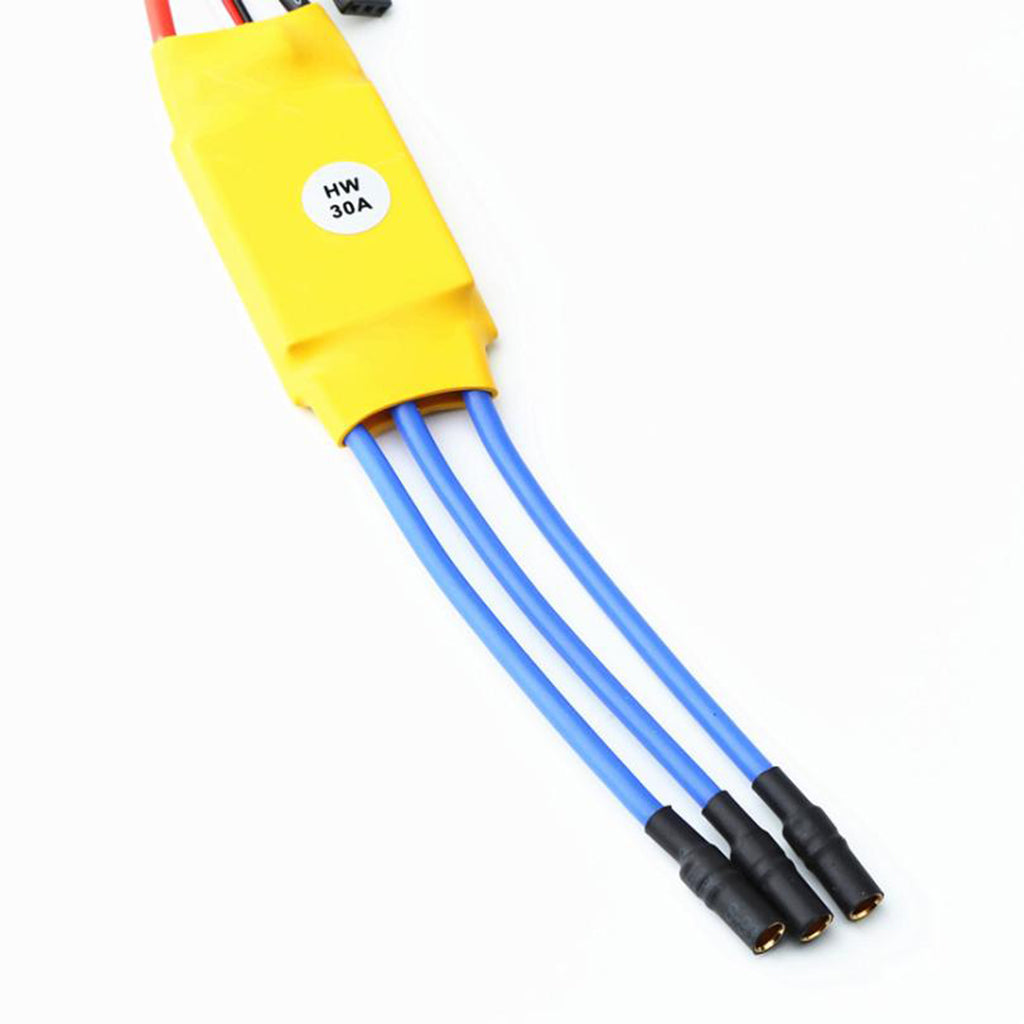

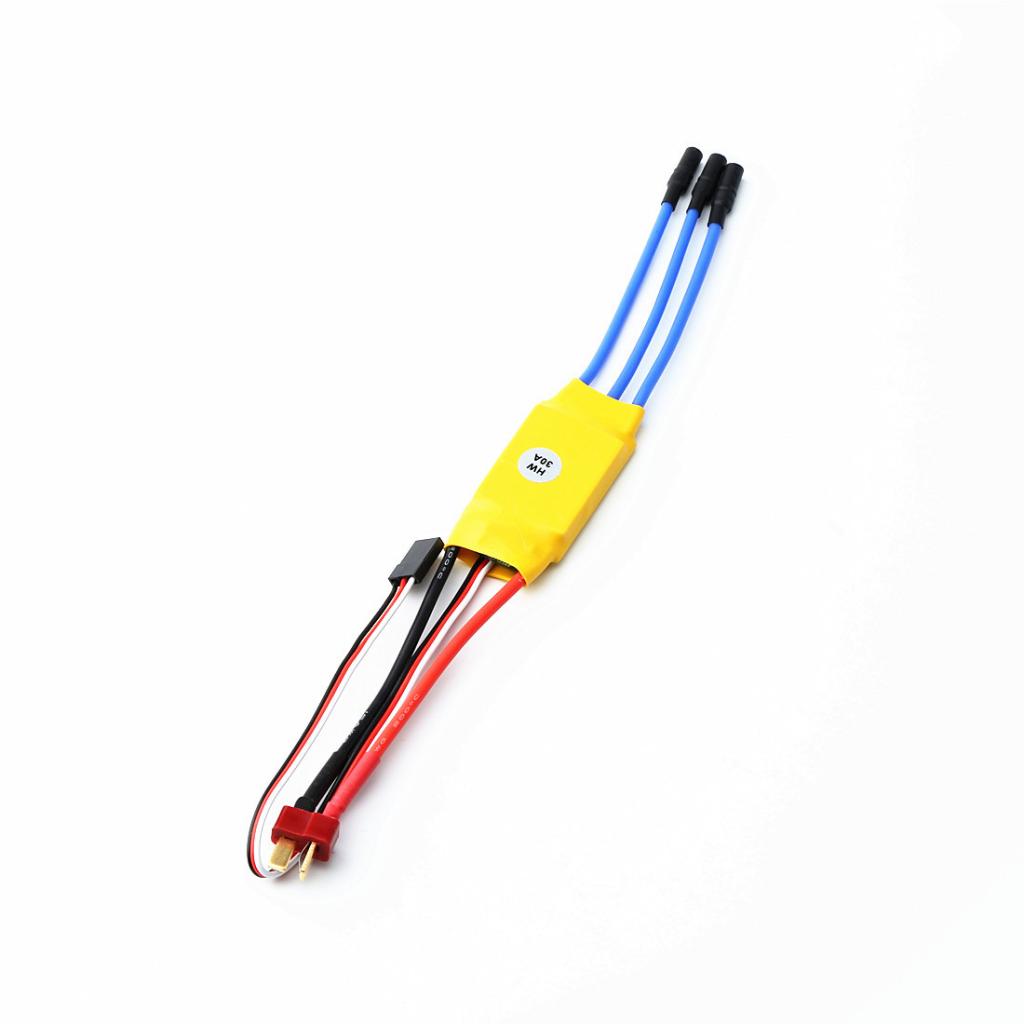

30A Brushless ESC Specification:
Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
BEC: 2A / 5V (Linear mode).
Max Speed: 210,000rpm for 2 Poles BrushLess Motor, 70,000rpm for 6 poles BrushLess Motor, 35,000rpm for 12 poles BrushLess Motor.

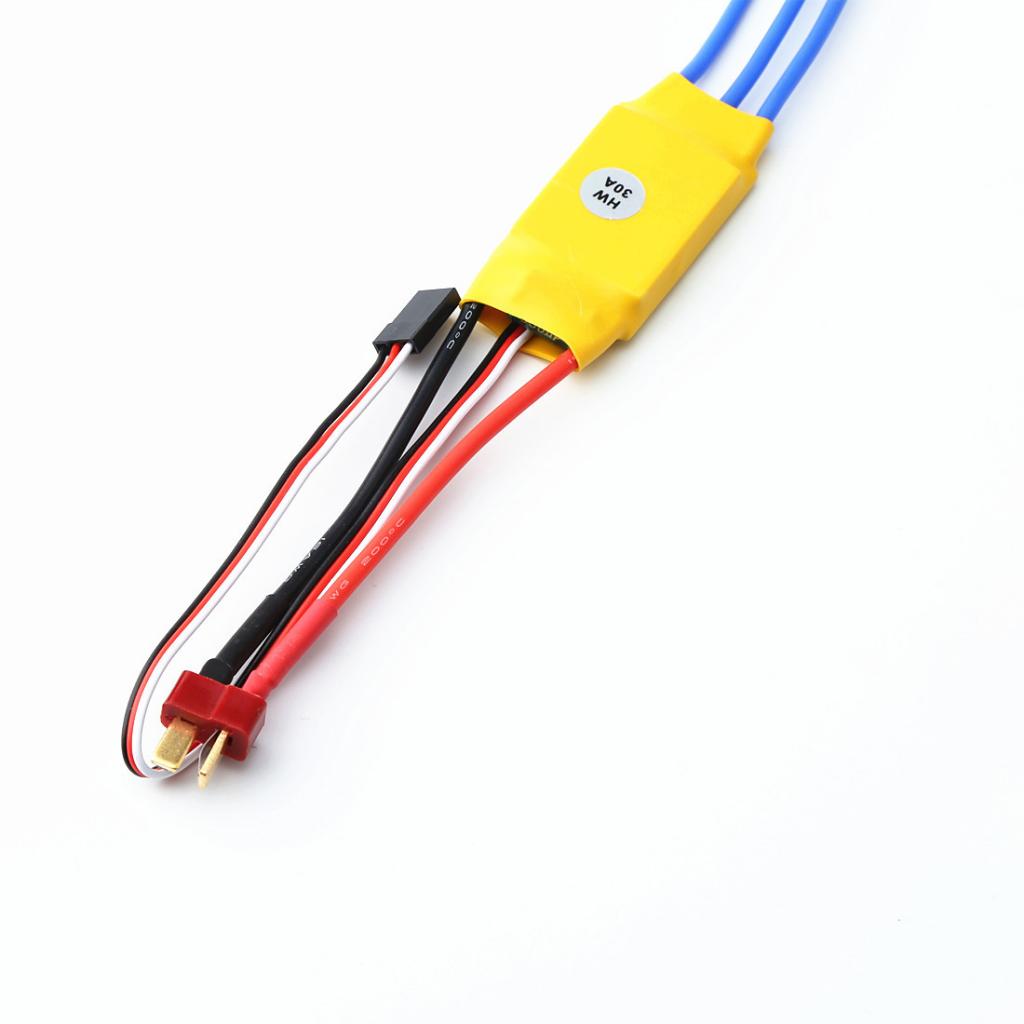

With T plug and 3.5mm banana connectors
Size Chart:
Size: Approx. 57x25x8mm/2.24x0.98x0.31inch
Package Includes:
1 Piece 30A ESC
1 Piece 2212 Brushless Motor
Note:
Please allow 1-3mm measuring deviation due to manual measurement.
