Maxbell A2212 1000KV Brushless Motor+40A ESC+9G Servo+Propeller for RC Airplane Part
Description:
This is a pack of RC model vehicle parts & accs for RC airplane.
40A ESC can be used to change time to fit different brushless motors.
40A ESC has low voltage cutoff & Over-heat protection.
Designed to minimize power consumption, servo has less noise.
Easy and quick Installation.
Specification:
SG90A 9G servo Specification:
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
Size: 21.5X11.8X22.7mm/0.85x0.46x0.89inch
Weight: 9g

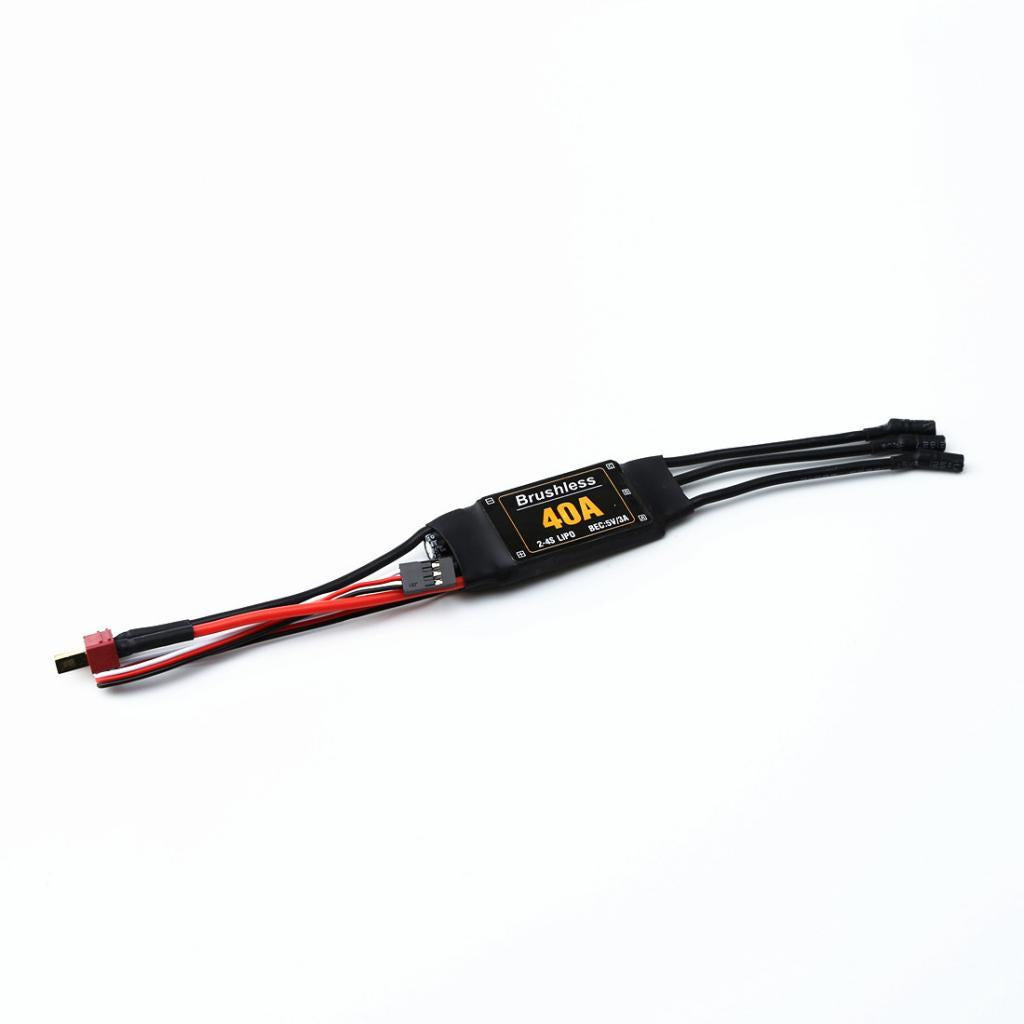

40A Brushless ESC Specification:
Current: 40A
Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: Approx. 68x25x8mm/2.68x0.98x0.31inch

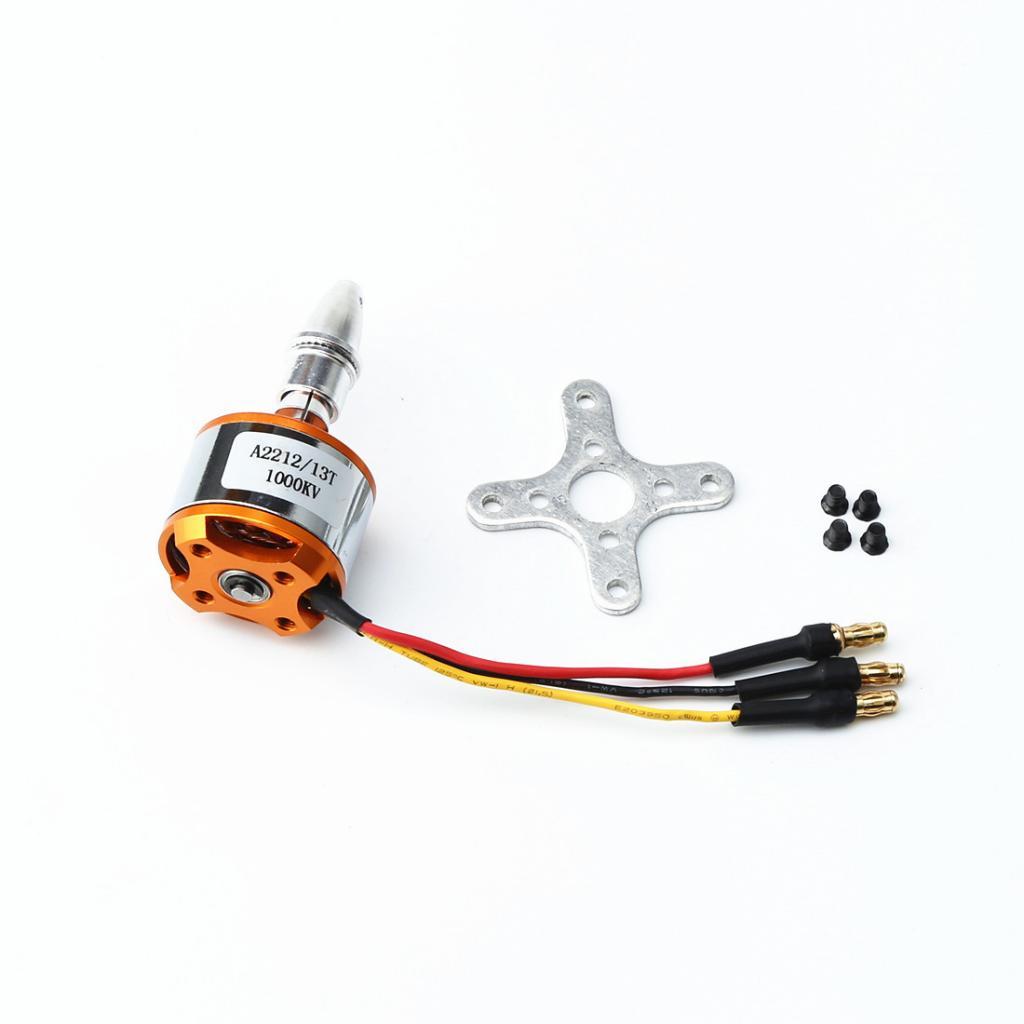

A2212 1000kv Motor Specification:
KV: 1000
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Approx. 27.5 x 30mm/1.08x1.18inch
Shaft Diameter: Approx. 3.17mm/0.12inch
Weight: 47g

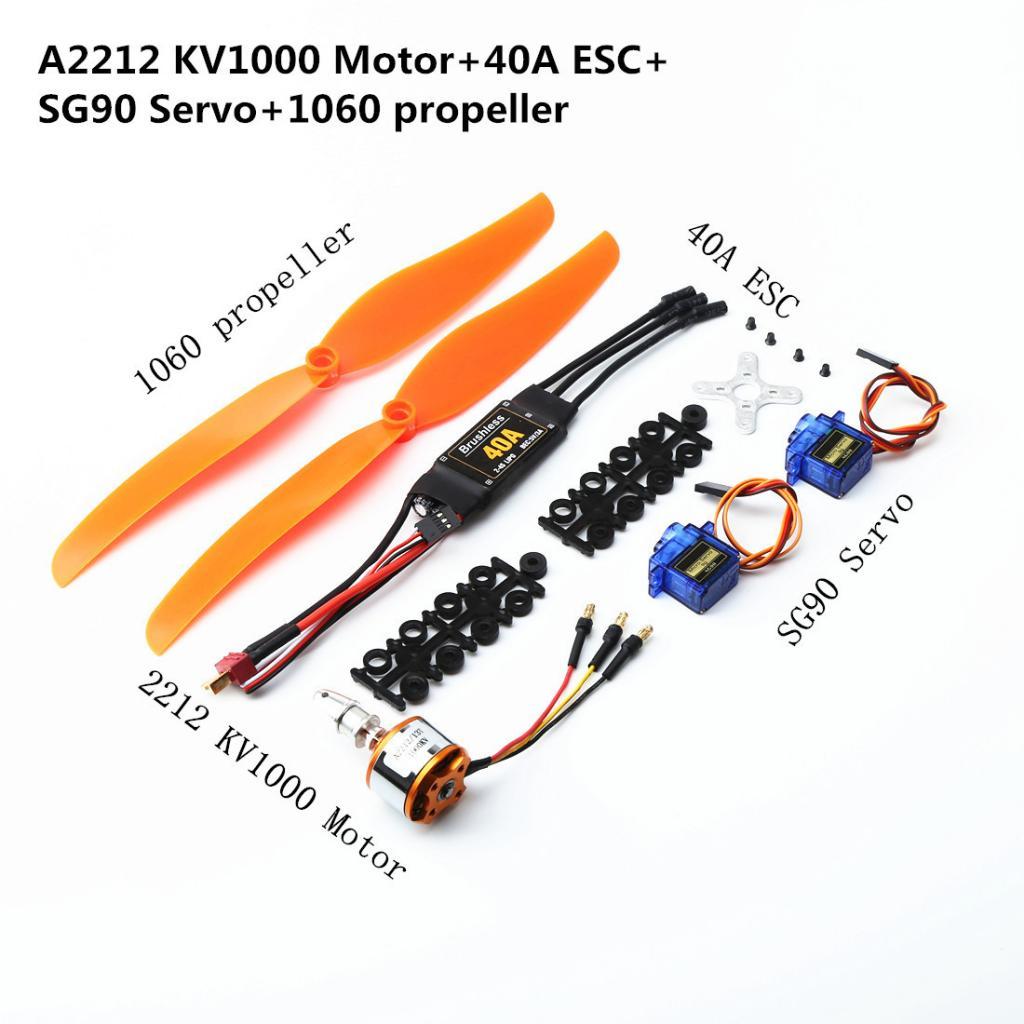

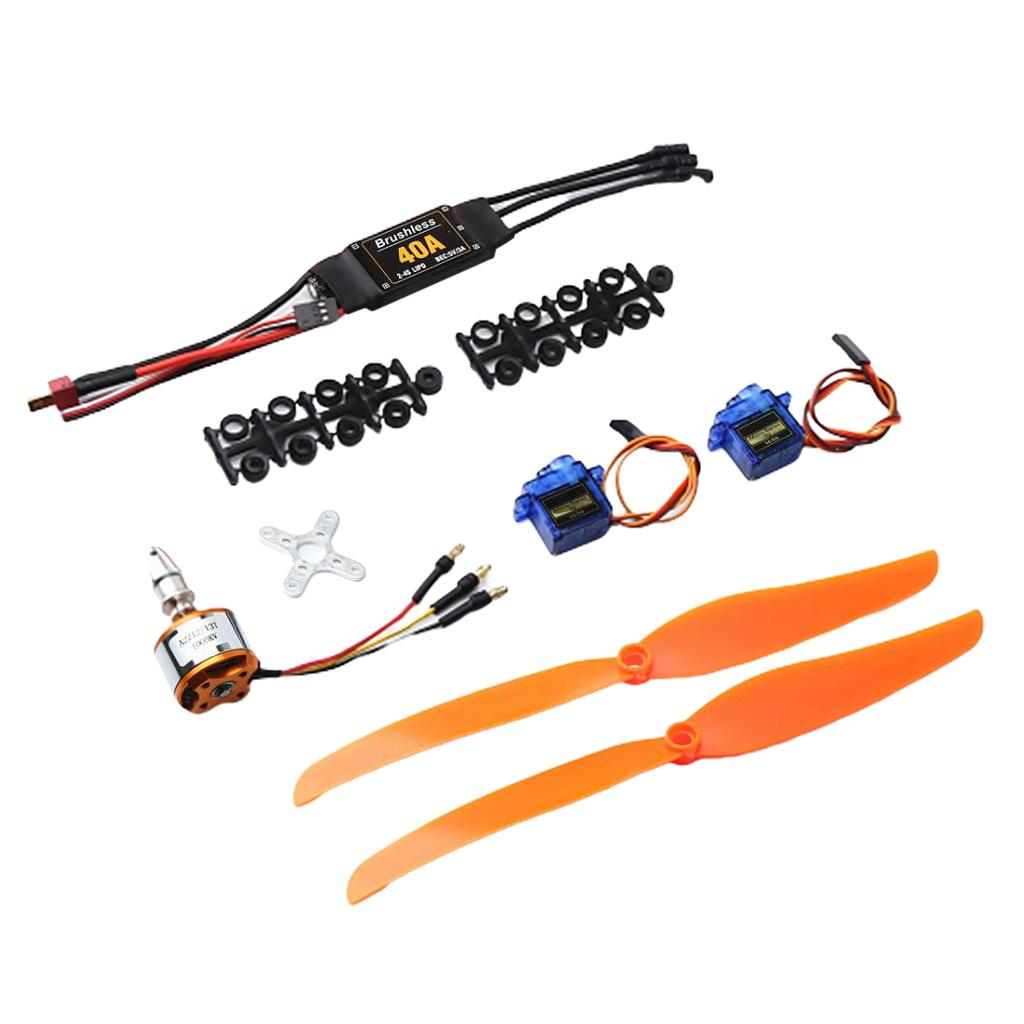

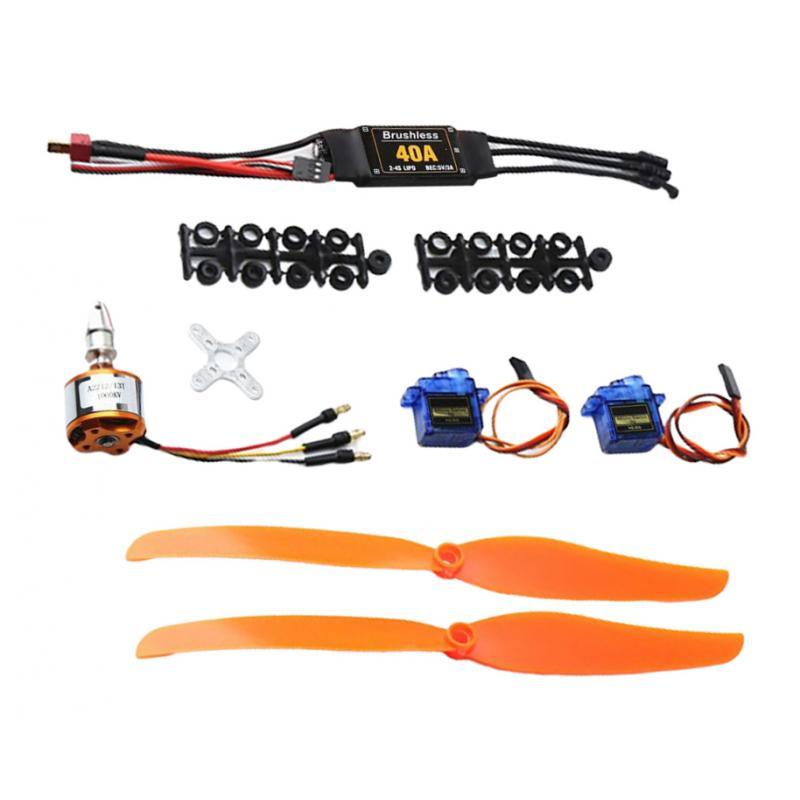

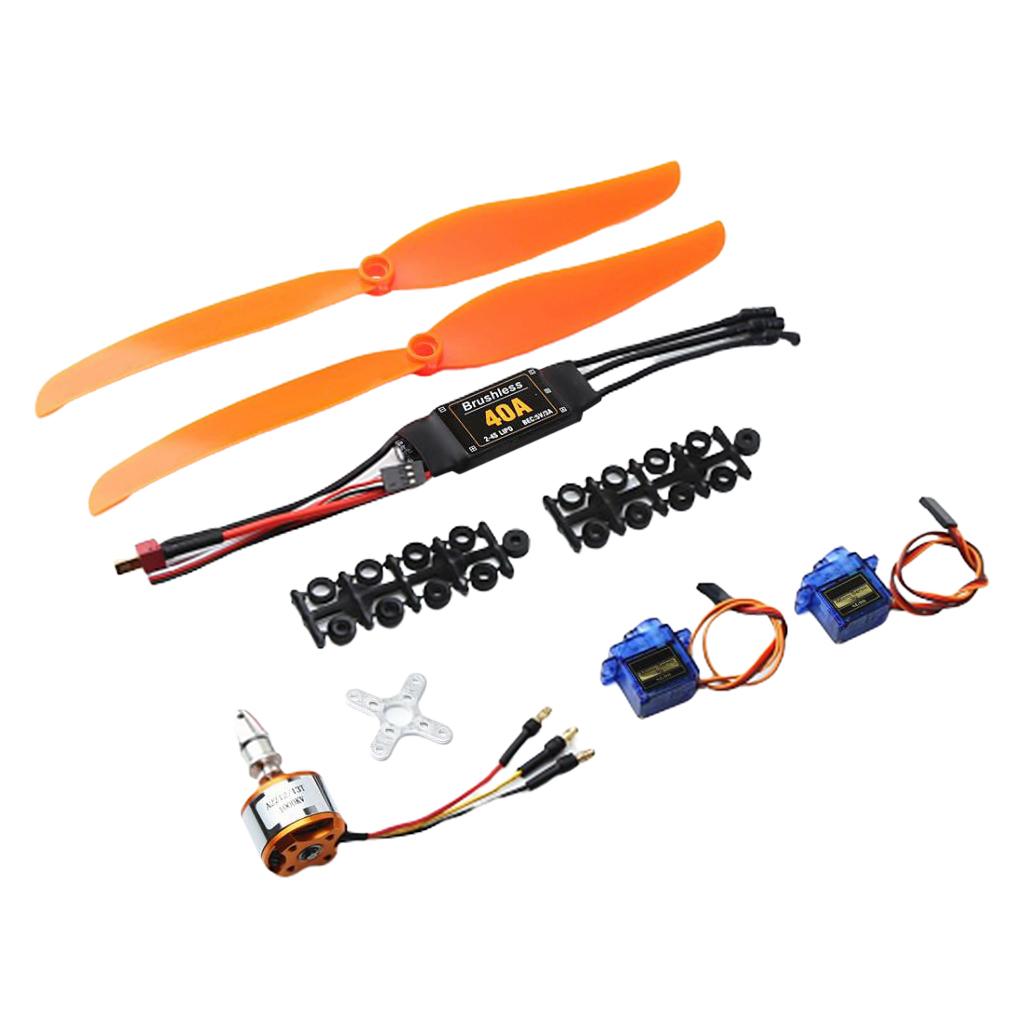

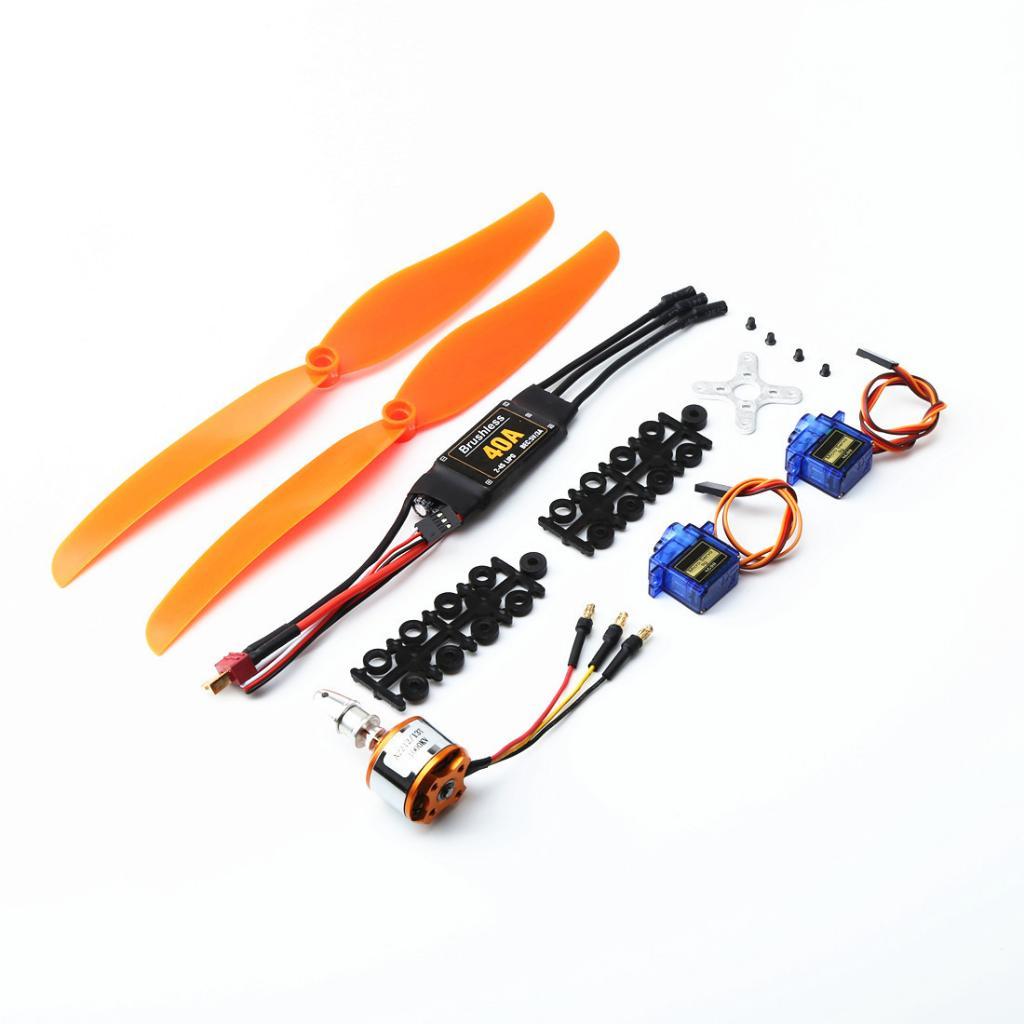

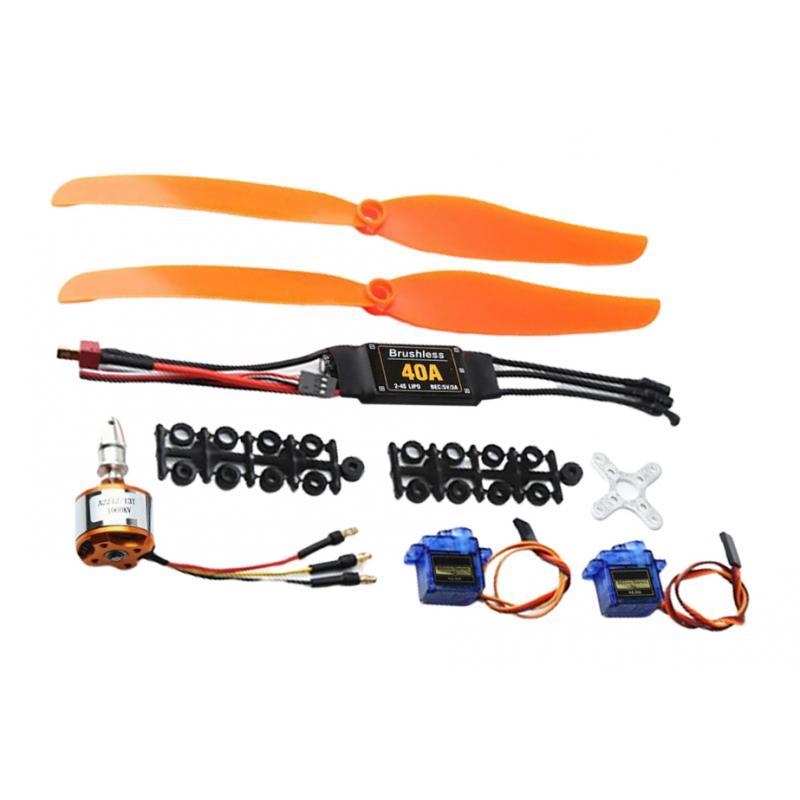

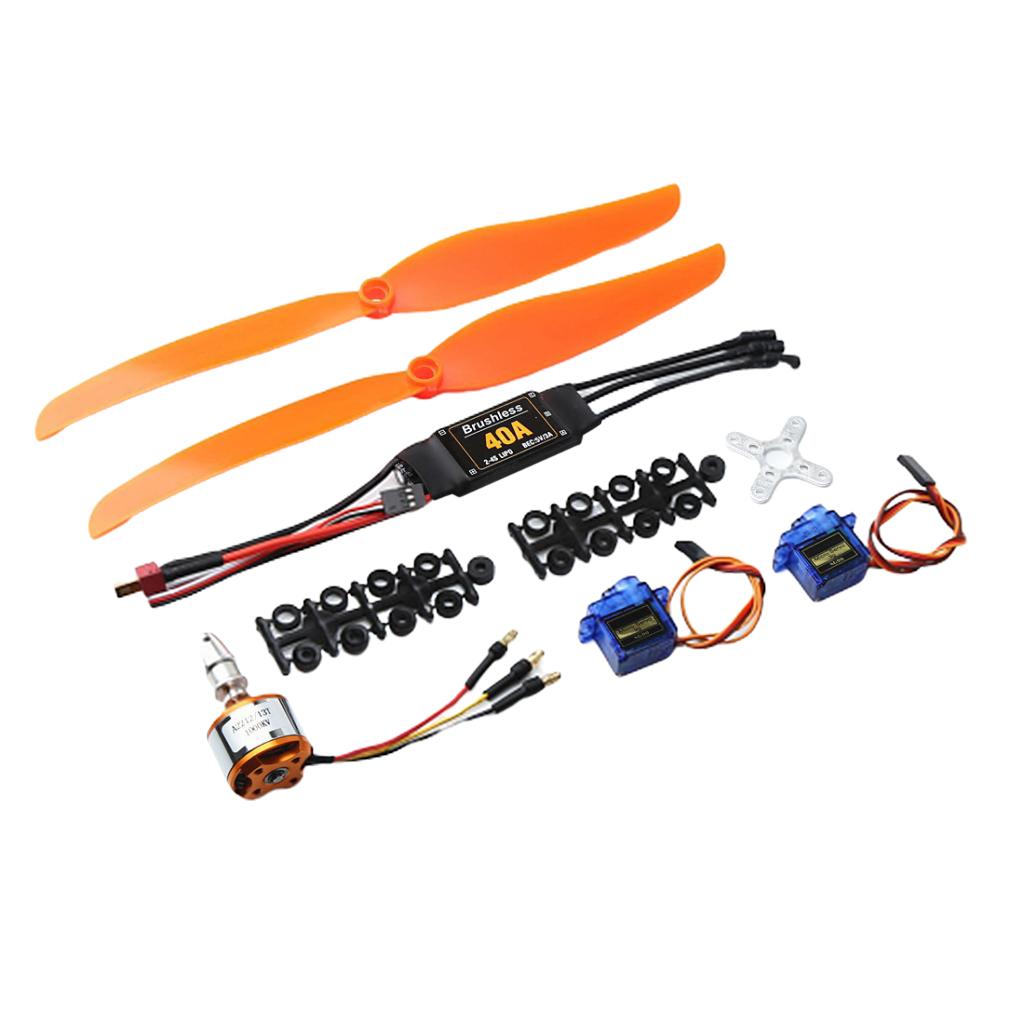

Package Includes:

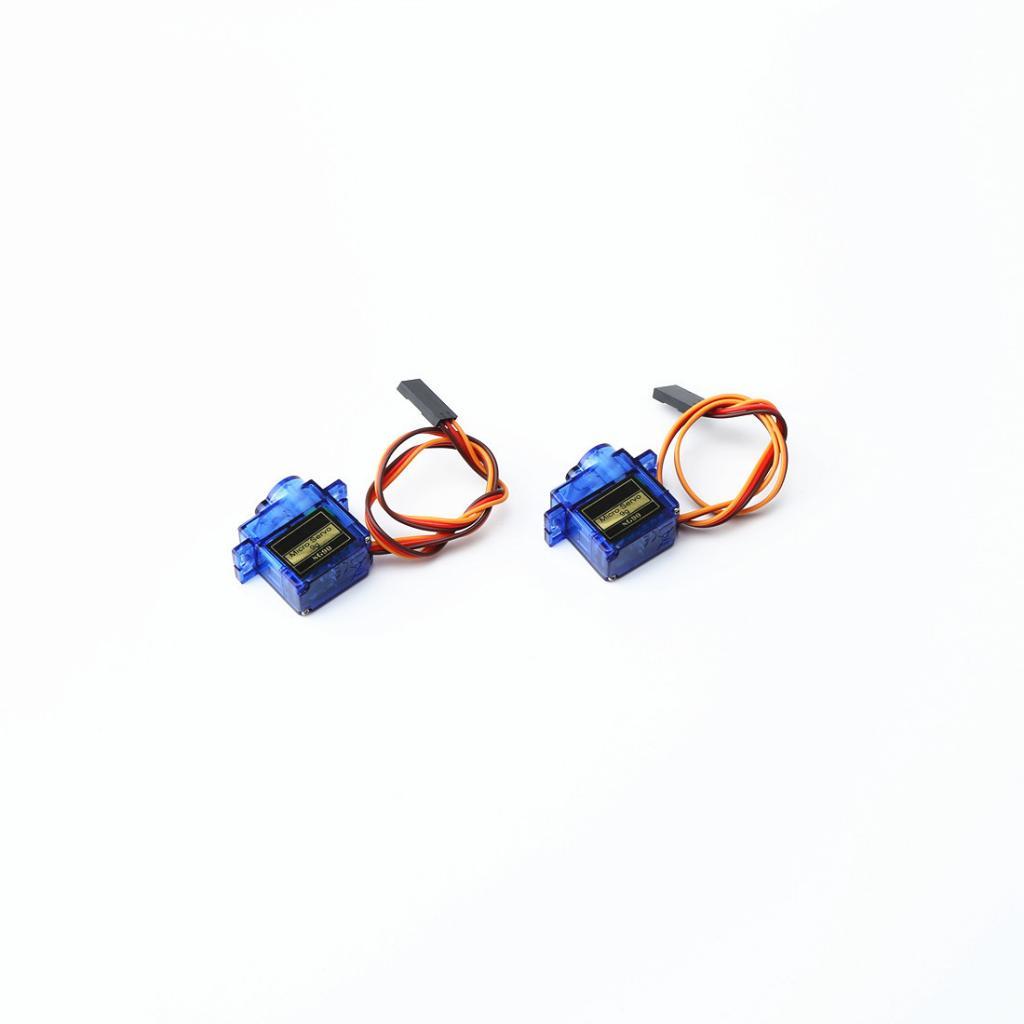

2 Pieces 9G SG90A Servo
1 Piece A2212 KV1000 Brushless Motor

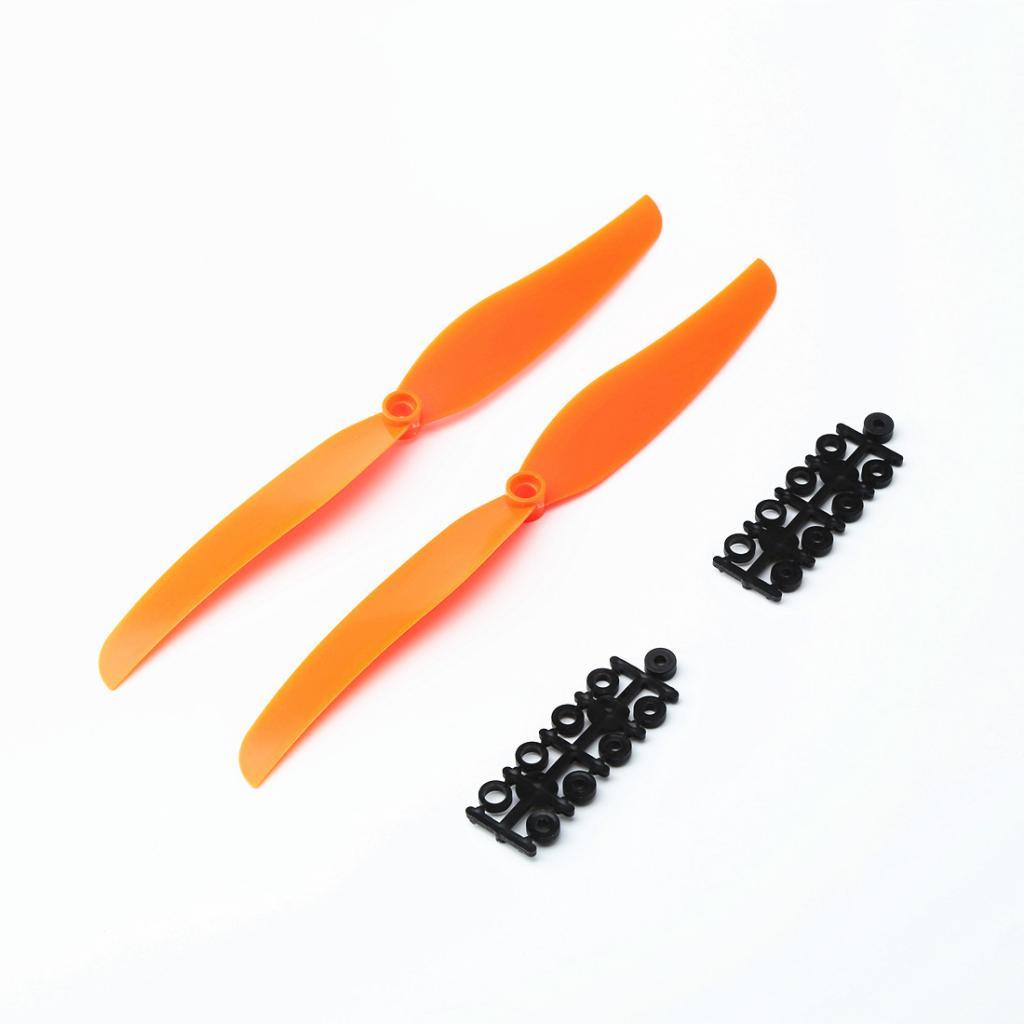

2 Pieces 1060 Propellers
1 Piece 40A Brushless ESC
Other Mounting Parts
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may be 1-2mm error in size.
