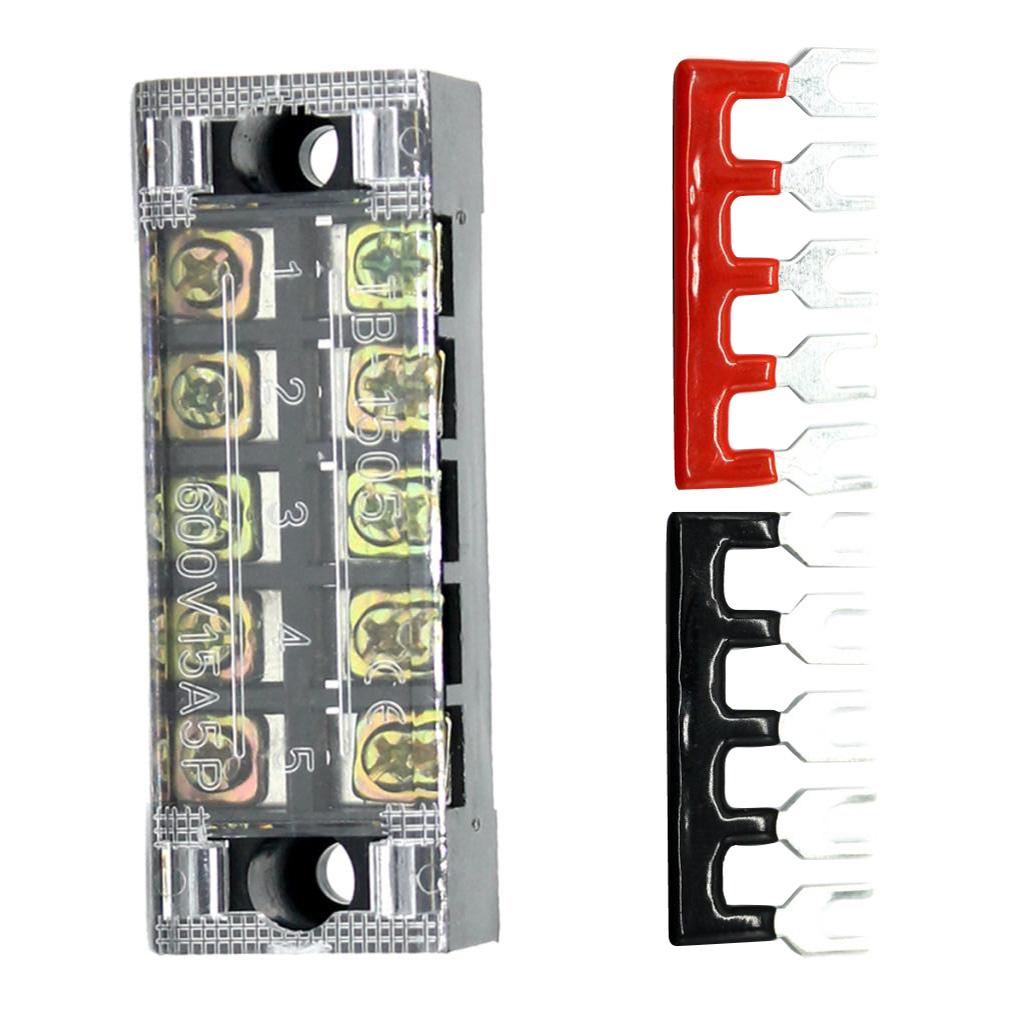

Max 600V 15A 5 Positions Wire Barrier Strips Double Row Screw Terminal Blocks

Description:

With 5 positions, dual row.

Removable clear plastic insulating cover, screw barrier terminal block.

Each pair of terminals is insulated from the next, prevent circuit in disorder.

One Mounting Hole Each End for Fixed Mounting

Waterproofing & Insulation,Used in Power supply, communications, cable, optical fiber, sensors, etc.

Specification:

Maximum Rated Voltage: 600V

Maximum Rated AMPS: 15A

Poles: 6 poles (dual row)

Size: About 63x22x17mm/ 2.5" x 0.87" x 0.67"

Terminal Stripe: Inside Width : 3.8mm/0.15"

Outside Width : 6.3mm/0.24"

Pin Pitch : 2.7mm/0.1"

Fork Total Width : 37.9mm/ 1.49"

Sleeve Total Width : 41.5mm/ 1.64"

Total Height : 20mm/ 0.79"

Package Includes:

1 Pieces Double Row Wire Barrier Block

2 Pieces Terminal Stripe

Note:

Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)

Please check the size measurement and the picture carefully before making payment.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand,Thank you.
