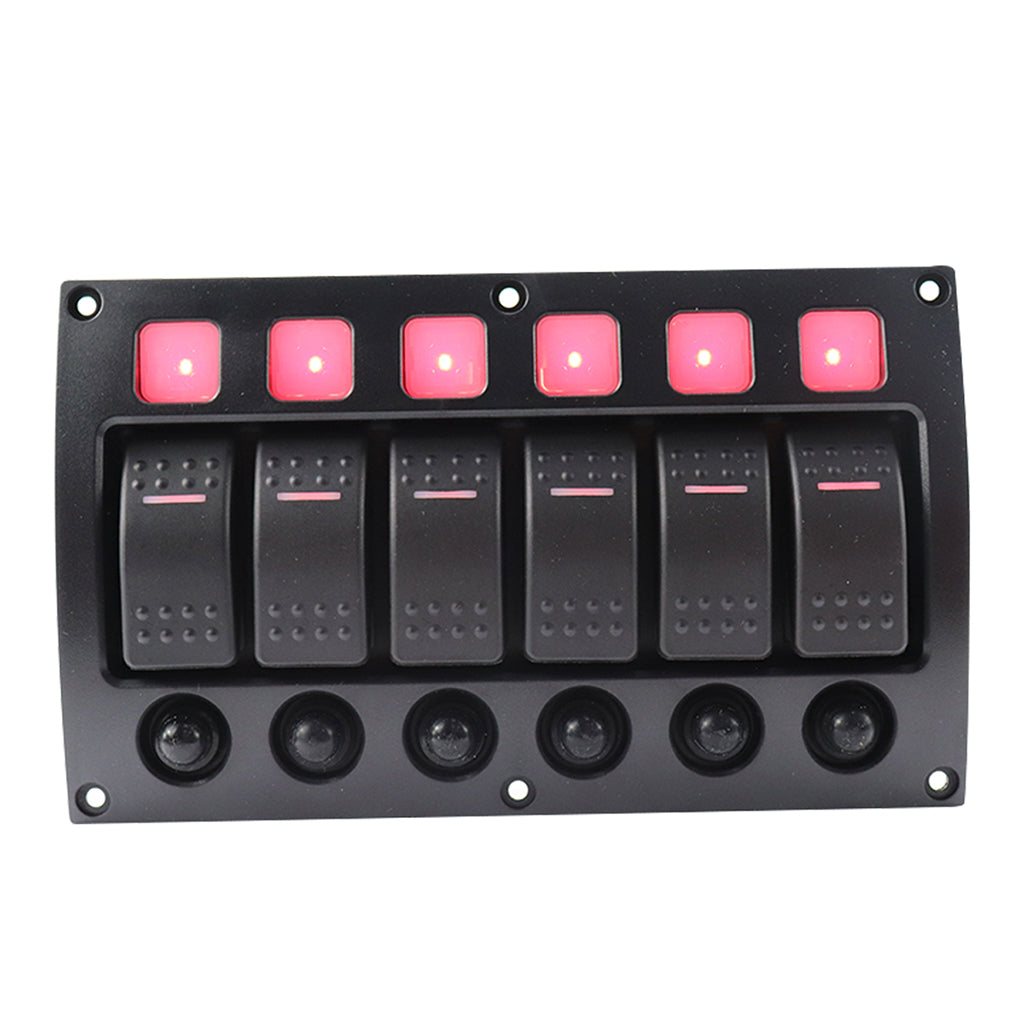

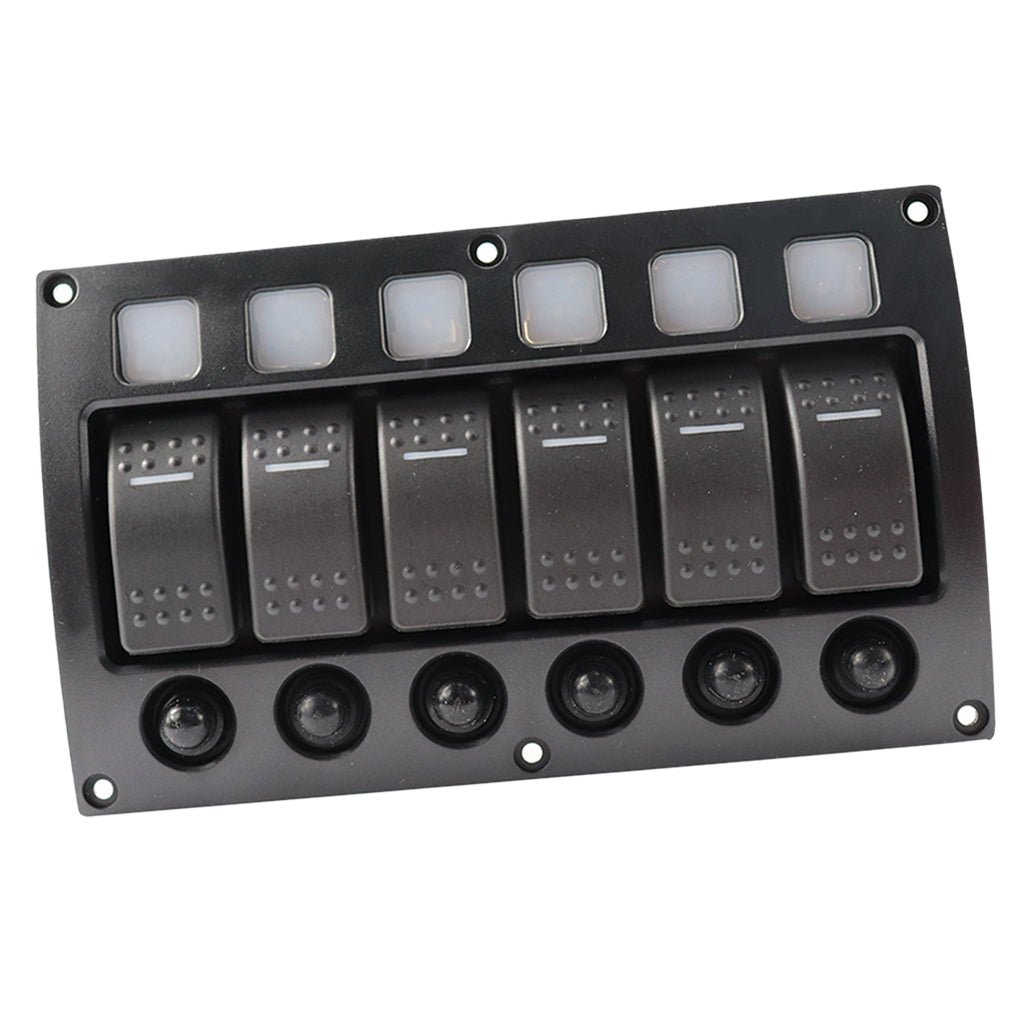

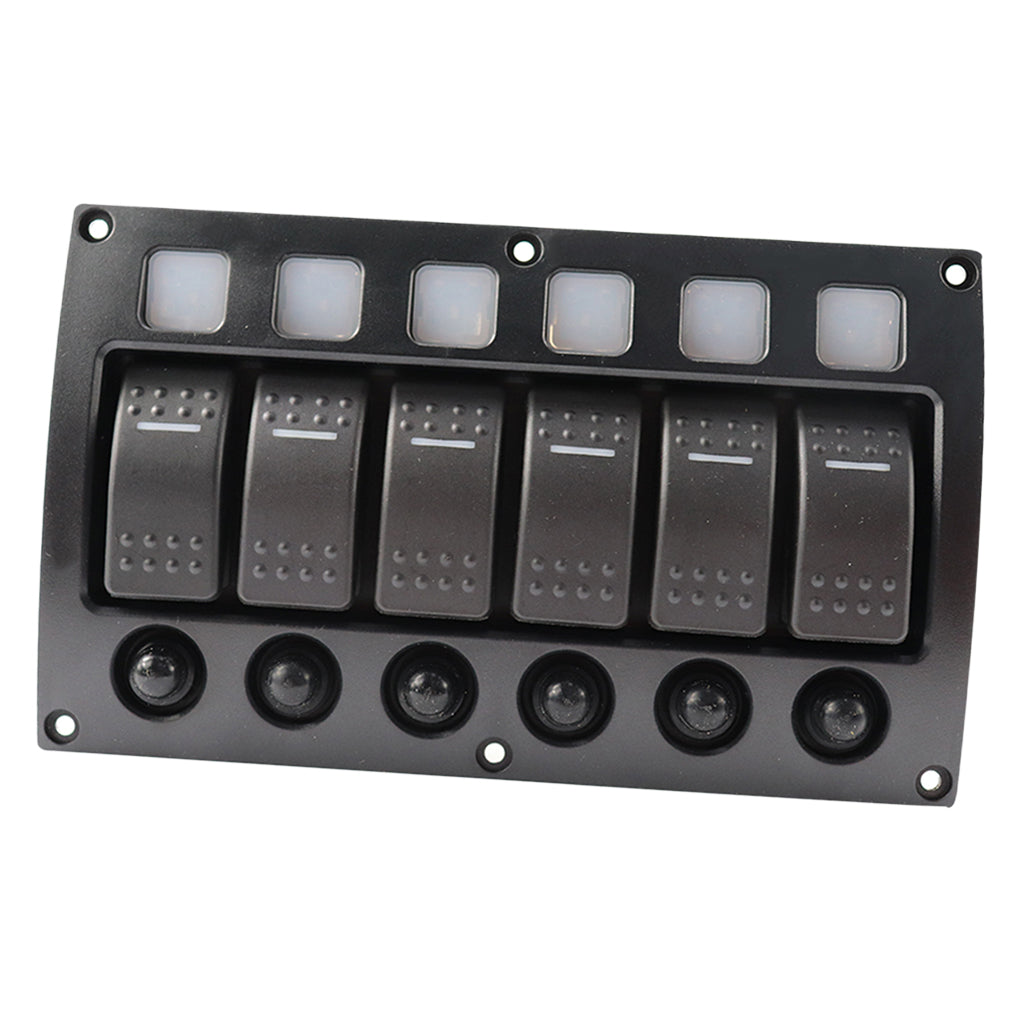

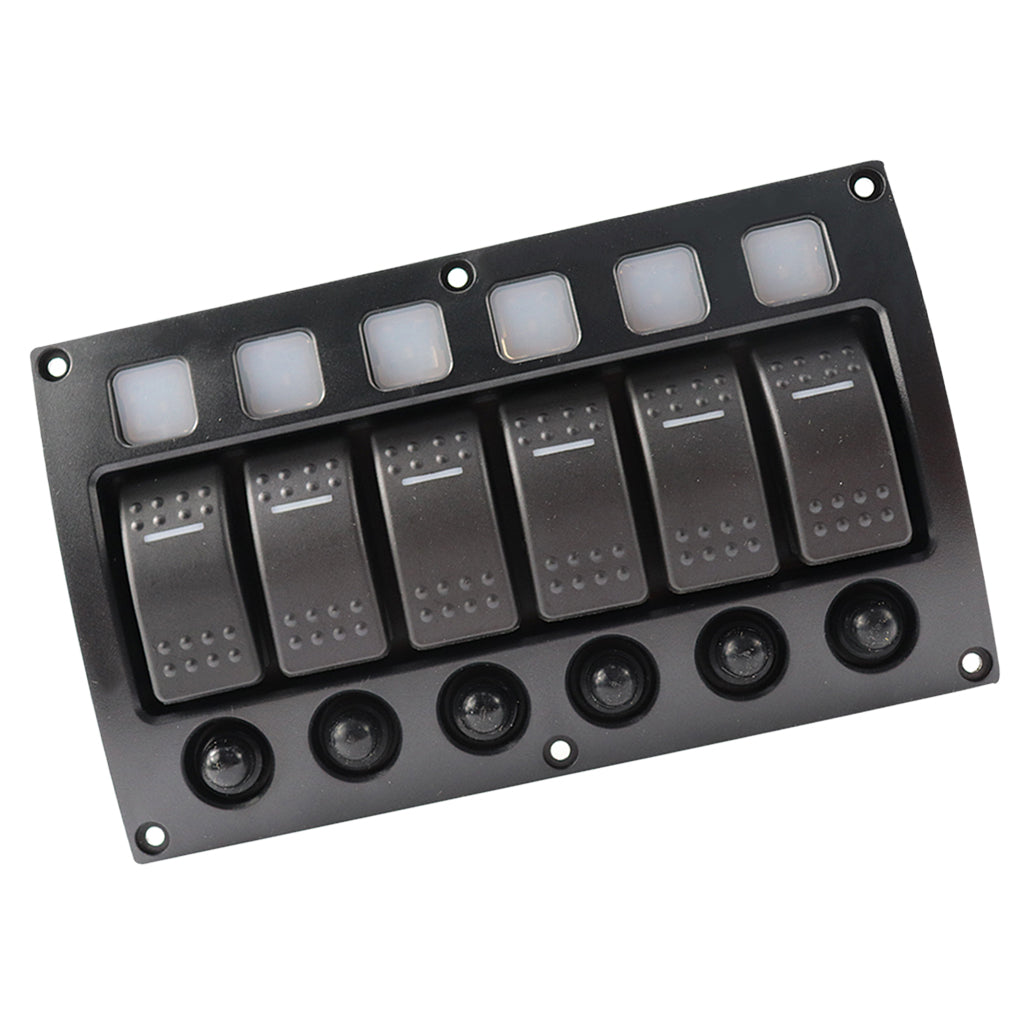

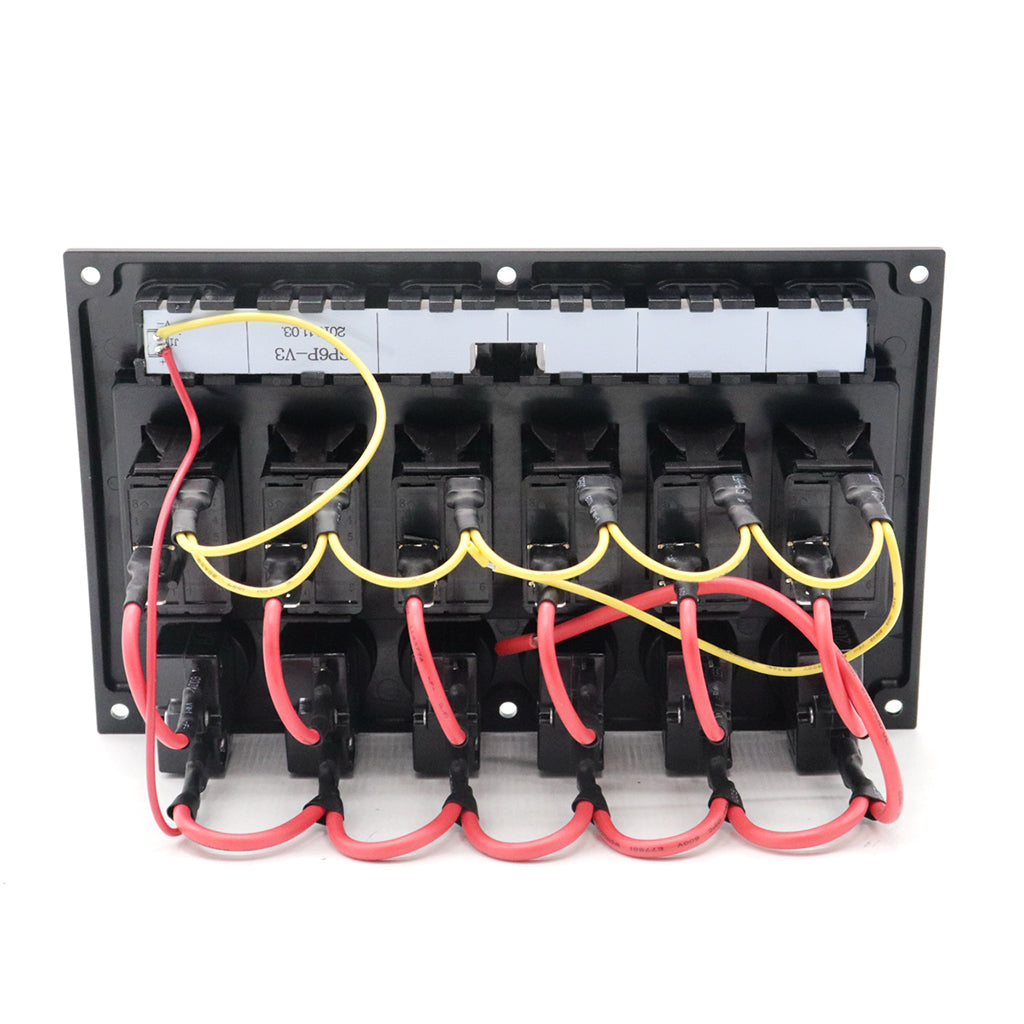

Maxbell 6 Gang Boat Marine RV 12V 24V Rocker Switch Panel LED Indicator Auto Fuses

Description:

6P Curved Water-resistant LED Switch Panel with Circuit Breakers Backlight modules for label stickers
Backlight modules for label stickers Water-resistant (IP66)
Water-resistant (IP66)
With modern curved faceplate design and new backlighted label features, these panels are stylish, high performance switch panels with complete features.

Specification:

Features
New modern curved and compact panel design

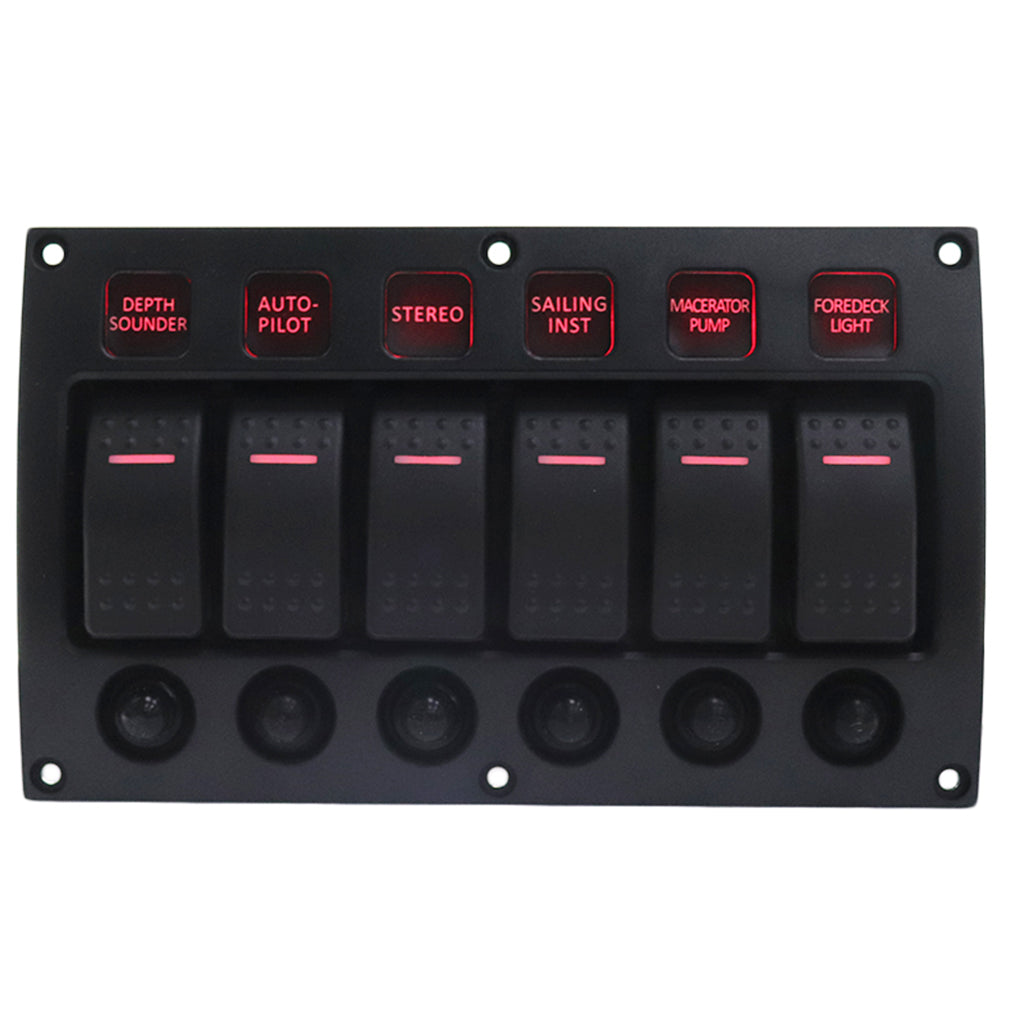

Backlight modules for labels, allowing easy operation in darkness
IP66–protect against strong water jets

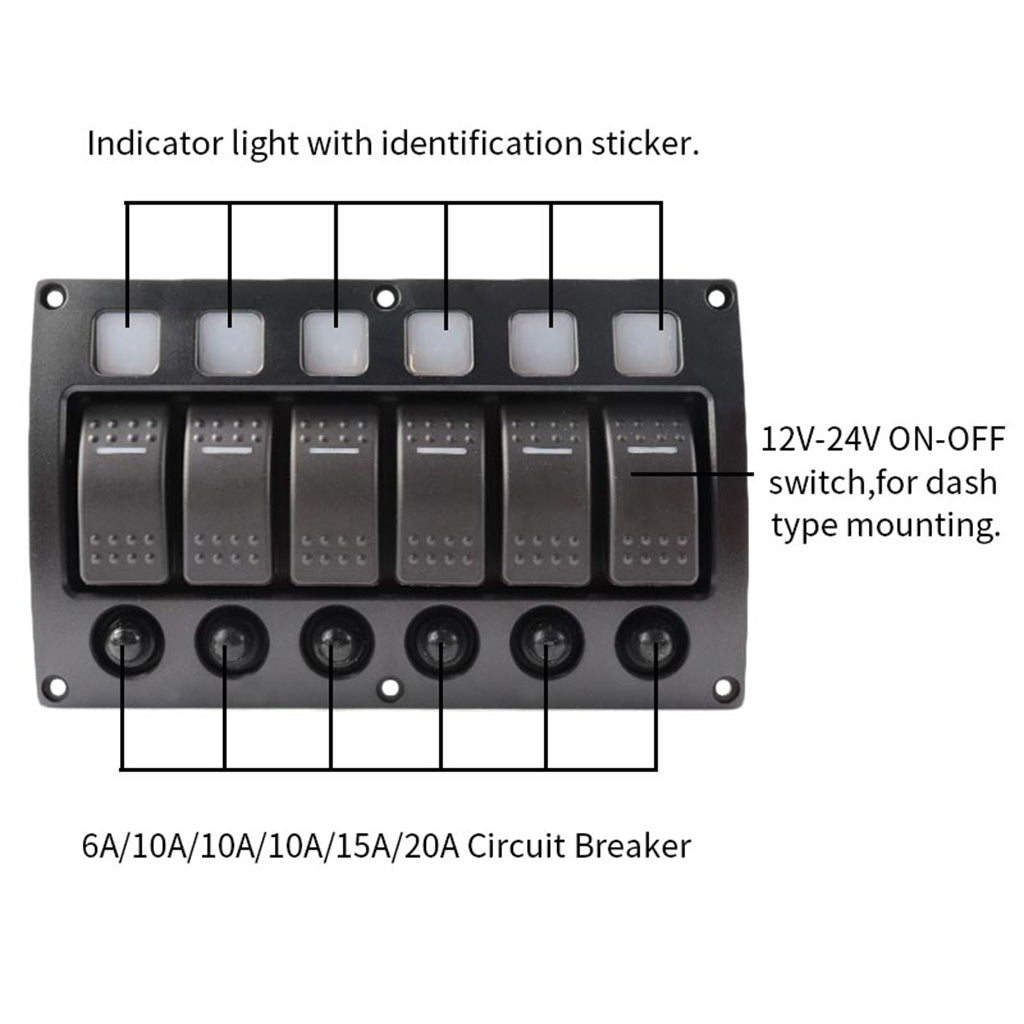

Push-reset circuit breakers with rubber boots
Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
Watertight mounting gasket included
Square shaped label stickers (30pcs) allow vertical or horizontal installation
Specification
Faceplate: Curved shaped plastic (ABS)
Circuit Protection: Circuit Breakers
Switch Ratings: 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
Panel Rating: Maximum Cumulative Amp: 45A(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)

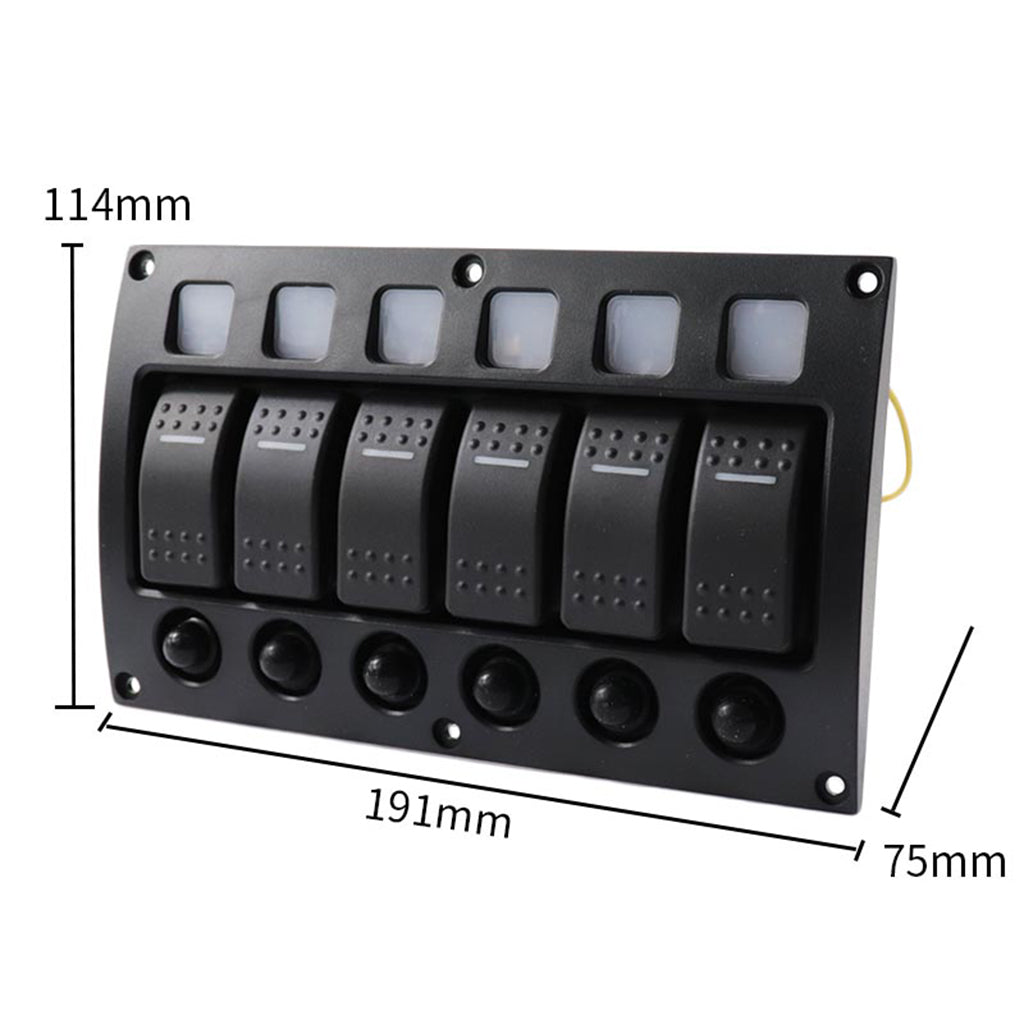

Product Dimensions (W x H): 114 x 191mm
Mounting Depth: 75mm
Panel Cut-out (W x L): 101 x 166mm
Certification:CE

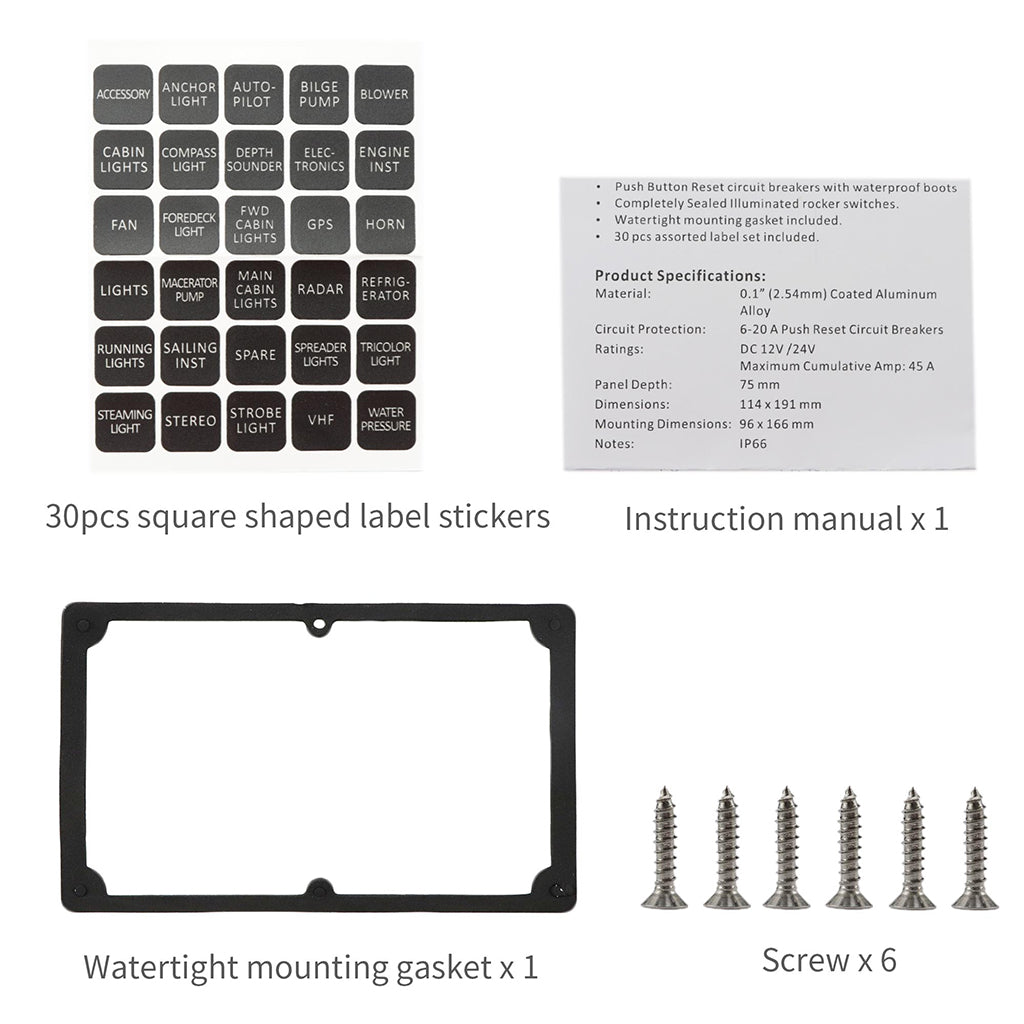

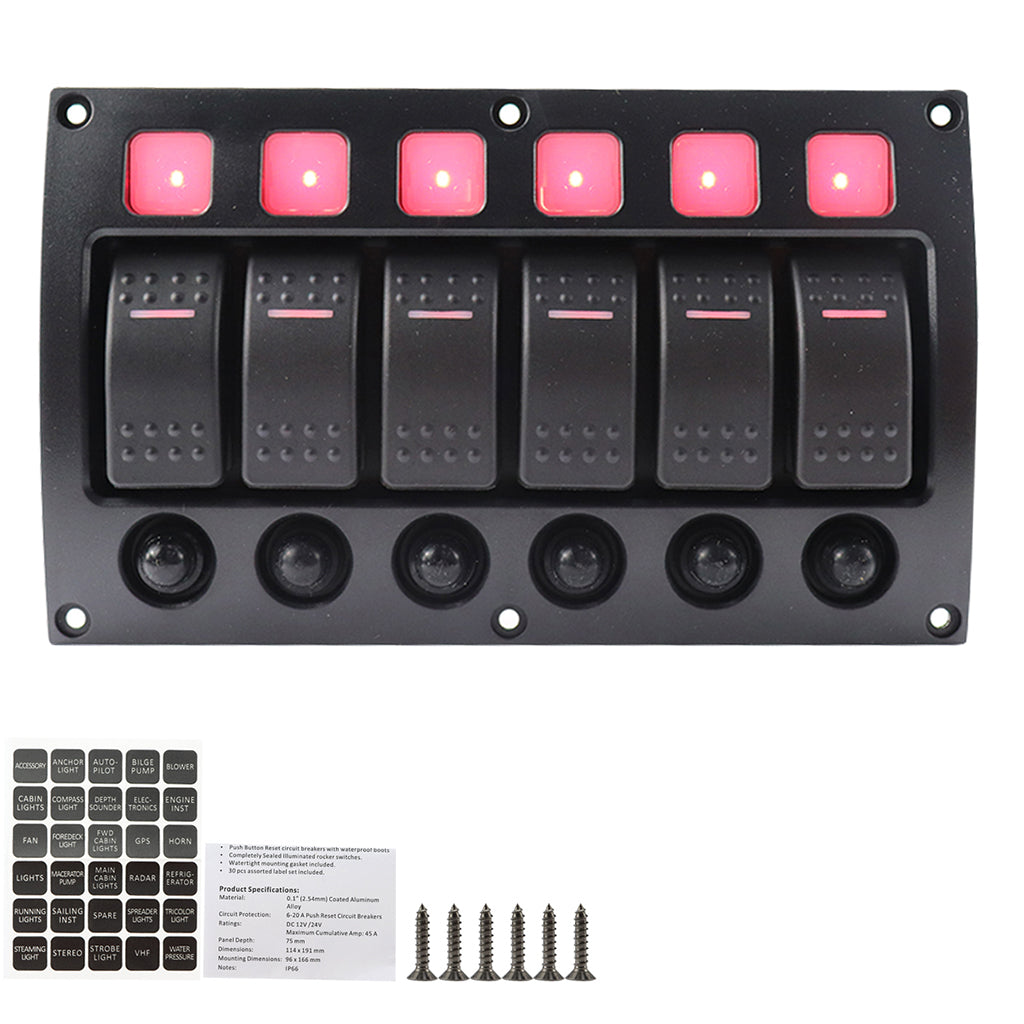

Package Includes:

1 Piece Switch Panel
4 Pieces mounting screws
30 Pieces label stickers
