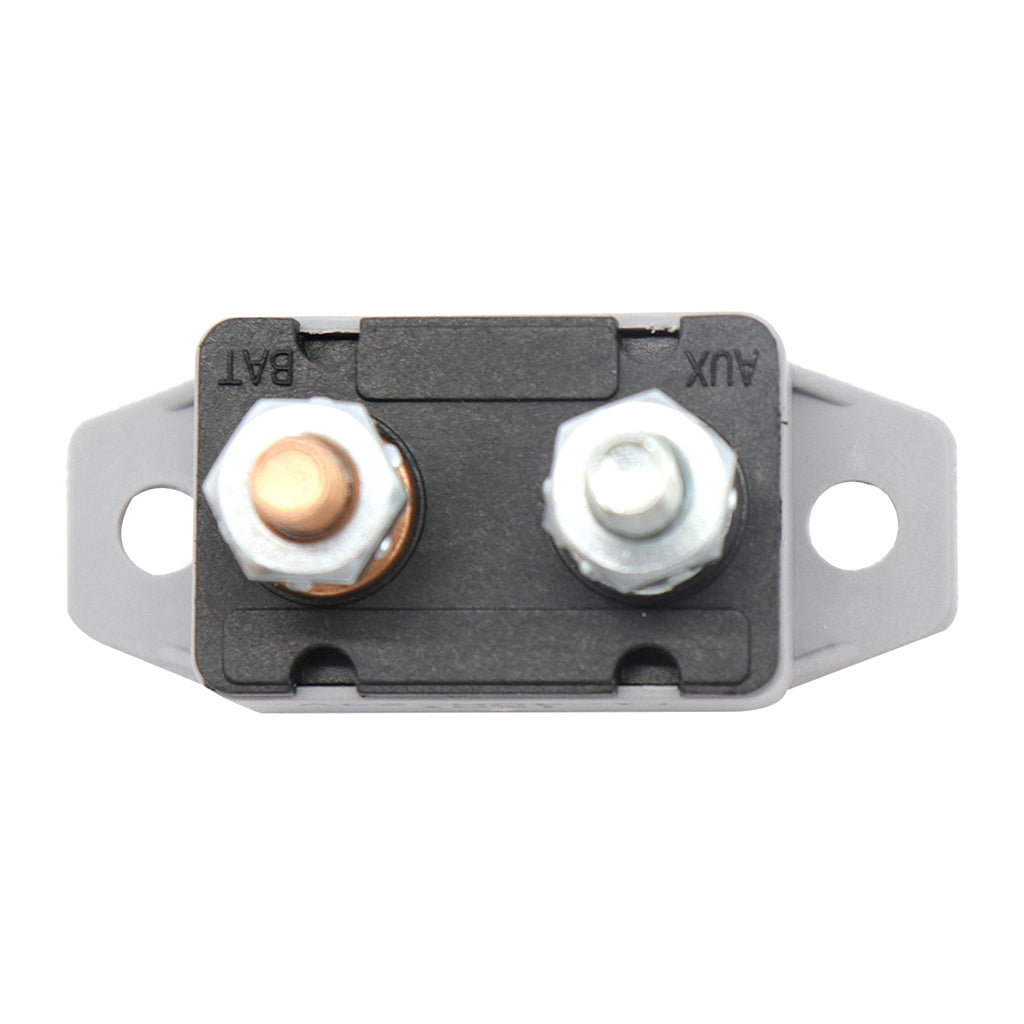

Maxbell 50Amp Auto Reset 12V 24V Circuit Breaker Car Automatic Fuse Metal Stud Bolt Type
Rs. 929.00Rs. 1,858.00
Description:
Brand New 50 Amp Circuit Breaker
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection.
Plastic body and mounting bracket
Apply to 6-28VDC application
Suitable for battery charger, audio, car, truck, bus, ship, trailer motor, etc
Specification:
Rated current: 50A
Rated voltage: 6-28V
#10-32 bolt length. 66In (16.8mm); bolt spacing.69in (17.5mm)
Wing spacing: 1.56in (39.6mm)
Interruption rating: 2.5KA @ 28Vdc
Operating temp: -40°C to 85°C (-40°F to 185°F)
Storage temp: -40°C to 125°C (-40°F to 260°F)
Torque grade: 15in-lb
IP66 waterproofing: IP66 on plastic cover (except for terminal)
Conformance: SAE JGG3; SAE J1171 (ignition protection level)
Material: Metal + Plastic
Package Includes:
1...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Brand New 50 Amp Circuit Breaker
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection.
Plastic body and mounting bracket
Apply to 6-28VDC application
Suitable for battery charger, audio, car, truck, bus, ship, trailer motor, etc
Specification:
Rated current: 50A
Rated voltage: 6-28V
#10-32 bolt length. 66In (16.8mm); bolt spacing.69in (17.5mm)
Wing spacing: 1.56in (39.6mm)
Interruption rating: 2.5KA @ 28Vdc
Operating temp: -40°C to 85°C (-40°F to 185°F)
Storage temp: -40°C to 125°C (-40°F to 260°F)
Torque grade: 15in-lb
IP66 waterproofing: IP66 on plastic cover (except for terminal)
Conformance: SAE JGG3; SAE J1171 (ignition protection level)
Material: Metal + Plastic
Package Includes:
1 Piece 50A Circuit Breaker
