Max 45W SSB Linear Power Amplifier for Transceiver HF Radio Shortwave Radio FM
Rs. 3,144.00Rs. 6,288.00
Description:
For SSB, AM linear power amplifier, CW, FM power amplifier, and the most basic signal amplification and expansion.
It can also be used in RFID and other popular applications.
The overall gain is over 40dB, that is, 10000 times, input 1mW and output 10W.
Input power 1-5mw; Output power 45W (Max) (this data is only the earliest test data, the new data is below)
Output impedance: 50 ohms, adjustable between 10 and 200 ohms as required.
Specification:
Material: Plastic
Size Chart:
Size: Approx. 60 x 100mm/2.36 x 3.94 inch
Package Includes:

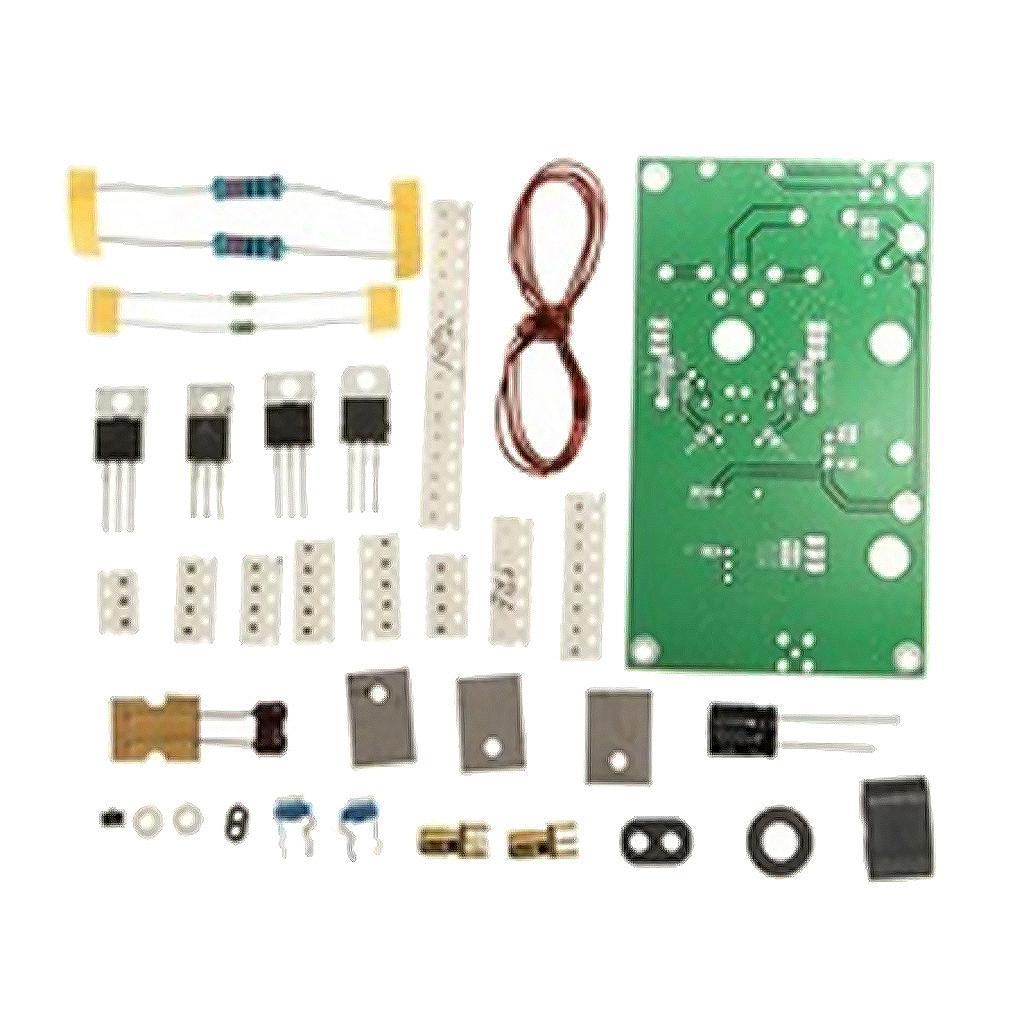

1 x DIY Kits 45W SSB Linear Power Amplifier
