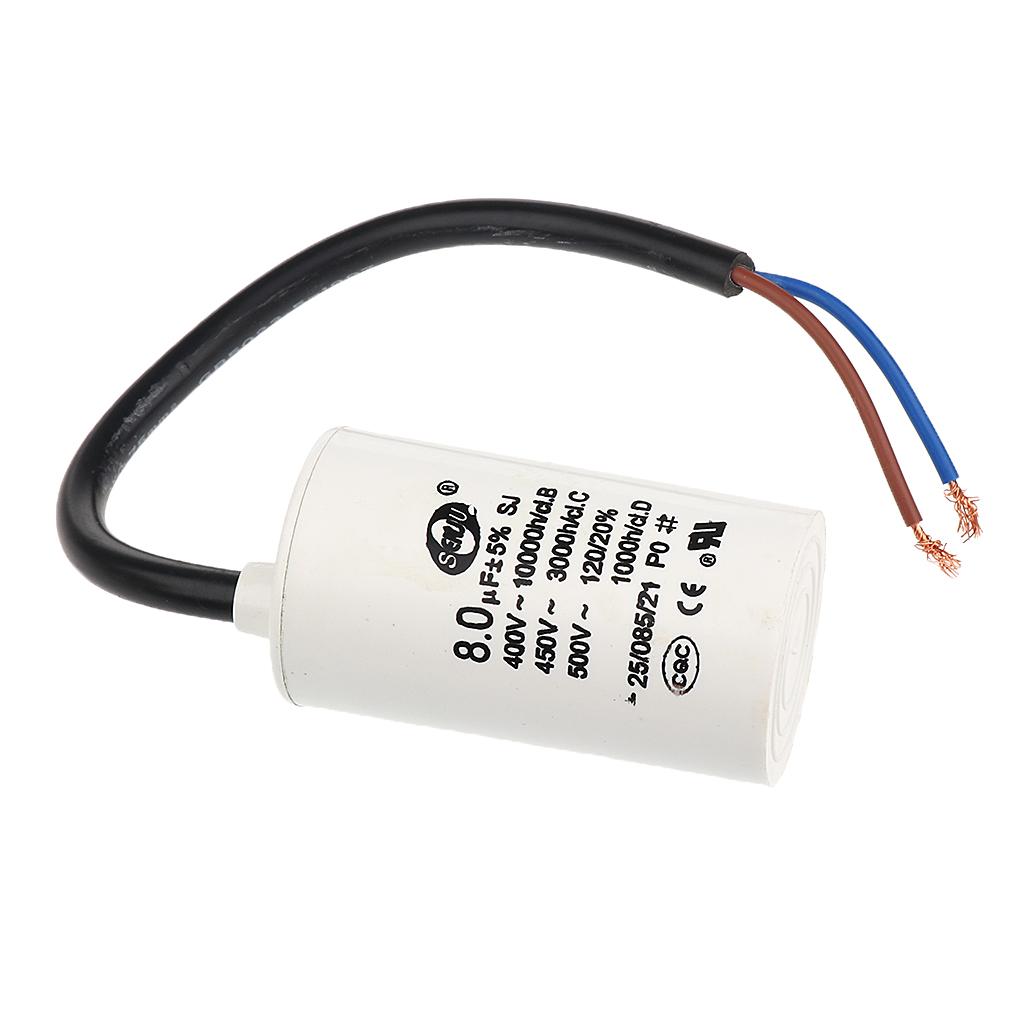

Maxbell Maxbell 450V AC 8uF 50/60Hz Polypropylene Film Motor Start Run Capacitor CBB60

Maxbell Maxbell 450V AC 8uF 50/60Hz Polypropylene Film Motor Start Run Capacitor CBB60

Rs. 890.00Rs. 1,780.00

CBB60 AC motor run capacitor can be used in an electric motor under lower starting electric current, can obtain higher torque. CBB60 AC motor run capacitor is widely applied in single phase. CBB60 AC motor run capacitor features square shape 2-wired mounting, metalized polypropylene film


✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance

Product details

CBB60 AC motor run capacitor can be used in an electric motor under lower starting electric current, can obtain higher torque. CBB60 AC motor run capacitor is widely applied in single phase. CBB60 AC motor run capacitor features square shape 2-wired mounting, metalized polypropylene film


Features:


  • Designed with 450V AC rated voltage, and 8uF capacitance

  • Easy to connect with 2-wire, great for motor starting

  • Suitable for starting and running for monophase motors with power supply AC 50/60Hz

  • Application: ceiling fan, exhaust fan, dynamotor, home appliance etc.


Specifications:


Product Name Capacitor
Model CBB60
Type Polypropylene Film Capacitor
Material(External) Plastic
Rated Capacitance 8 uF
Tolerance ±5%
Rated Frequency 50/60Hz
Rated Voltage 450VAC
Size Approx.61mm x 34mm /2.4" x 1.3"( H x Dia.)
Cable Length Approx.20cm/8"
Main Color White

Package Includes:


  • 1 x CBB60 AC motor run capacitor
